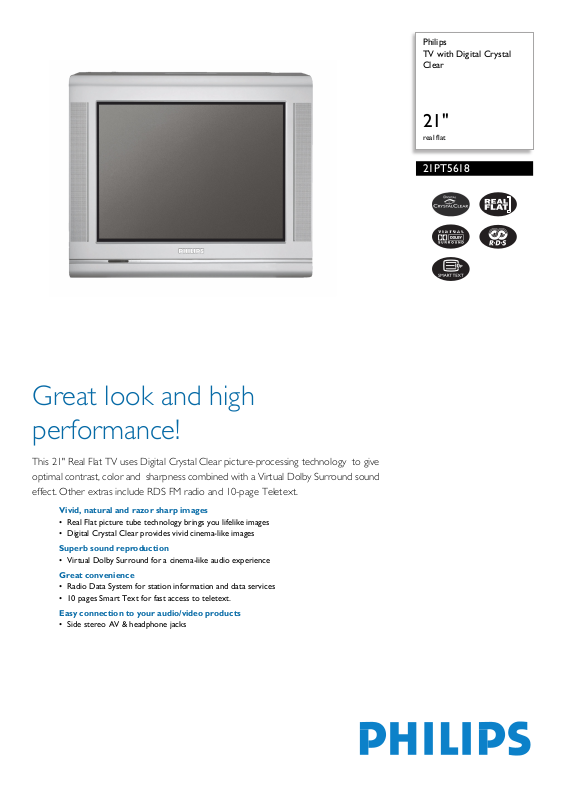

Philips 21PT5618 User Manual
For preview purpose only
Philips
TV with Digital Crystal
Clear
21"
real flat
21PT5618
Great look and high
performance!
This 21" Real Flat TV uses Digital Crystal Clear picture-processing technology to give
optimal contrast, color and sharpness combined with a Virtual Dolby Surround sound
effect. Other extras include RDS FM radio and 10-page Teletext.
Vivid, natural and razor sharp images
• Real Flat picture tube technology brings you lifelike images
• Digital Crystal Clear provides vivid cinema-like images
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Great convenience
• Radio Data System for station information and data services
• 10 pages Smart Text for fast access to teletext.
Easy connection to your audio/video products
• Side stereo AV & headphone jacks
For preview purpose only
TV with Digital Crystal Clear
21" real flat
Technical specifications Product highlights
Picture/Display
• Aspect ratio: 4:3
• Diagonal screen size (inch): 21 inch
• Visible diagonal screen size: 50 cm
• Diagonal screen size - tele: 52 cm
• Display screen type: Real Flat picture tube
• Picture enhancement: 2D Combfilter, Color
Transient Improvement, Color Temperature
Adjustment, Contrast Plus, Digital Crystal Clear,
LTI, Scavem, Sharpness Adjustment
• Picture processing: 50 Hz
• Teletext enhancements: 4 favourite pages,
Program information Line
• Screen Format Adjustments: 16:9 compress, 4:3
expand, Zoom 14:9
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/
G, SECAM D/K, SECAM L/L'
• Video Playback: NTSC
• Aerial Input: 75 ohm coaxial (IEC75)
• Number of Preset Channels: 100
Sound
• Sound Enhancement: Ultra Bass
• Sound System: Virtual Dolby Surround
• Music Power: 40 W
Loudspeakers
• Built-in speakers: 2
Connectivity
• Number of Scarts: 2
• Ext 1 Scart: CVBS in/out, RGB
• Ext 2 Scart: CVBS in/out, S-video in
• Other connections: Audio constant level out
• Front / Side connections: Audio L/R in, CVBS in,
Headphone out
FM Radio
• FM Radio functions: RDS FM Radio, 40 Preset
channel, Preset List, Autostore/Manual store,
Sorting
Power
• Power consumption: 65 W
• Standby power consumption: <1W
• Mains power: AC 220 - 240 V, 50/60 Hz
Convenience
• Ease of Installation: Automatic Channel
Install(ACI), Automatic Tuning System (ATS),
Autostore, Fine Tuning, PLL Digital Tuning, Plug
& Play, Sorting
• Ease of Use: Smart Listening, Smart Sound
Control, Smart Picture Control, Top Controls
• Remote control type: RCLE107
• Teletext: 10 page Smart Text
Dimensions
• Weight incl. Packaging: 28 kg
• Color cabinet: Pearl - White Silver (11092)
• Box dimensions (W x H x D):
690x594x628mm
• Set dimensions (W x H x D):
596x469x504mm
• Set weight: 25 kg
•
21PT5618/01
Real Flat picture tube
The flatter tube provides a wider viewing angle while
minimizing refl ections for the best picture possible. The
special alloy invar shadow mask helps maintain sharper
focus and eliminates 'color blooming' compared to
standard tubes.
Digital Crystal Clear
Digital Crystal Clear is a package of picture innovations
that digitally adjusts and optimizes picture quality to
optimal contrast, color and sharpness levels. It's like
watching vivid cinema-like images.
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It which create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed
in your television experience.
RDS FM Radio
The Radio Data System (RDS) lets you tune into radio
stations without having to remember the frequencies. In
standard mode. RDS displays the station name instead
of the transmission frequency, facilitating quick and
easy tuning. RDS also allows stations to send text
mess ages s uch as new s an d stat ion infor mat ion di rectly
to the radio display. Commonly used in Europe, RDS
text is sent out on the same frequency the radio station
broadcasts on. You can choose either the basic RDS
display (station name) or subscribe to additional textbased services.
10 page Smart Text
The teletext is a common system transmitted by most
broadcasters. The 10 page smart text feature gives you
fast access to information when changing pages.
Side Stereo AV & headphone
Side stere o AV & headpho ne makes i t more con venient
to connect external devices like audio equipment,
games and video cameras. It's the easy way to enjoy an
extra audio sensation or a totally immersive gaming
experience.
Date of issue 2006-07-07
Version: 5.0
12 NC: 8670 000 18924
EAN: 87 10895 77836 7
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
