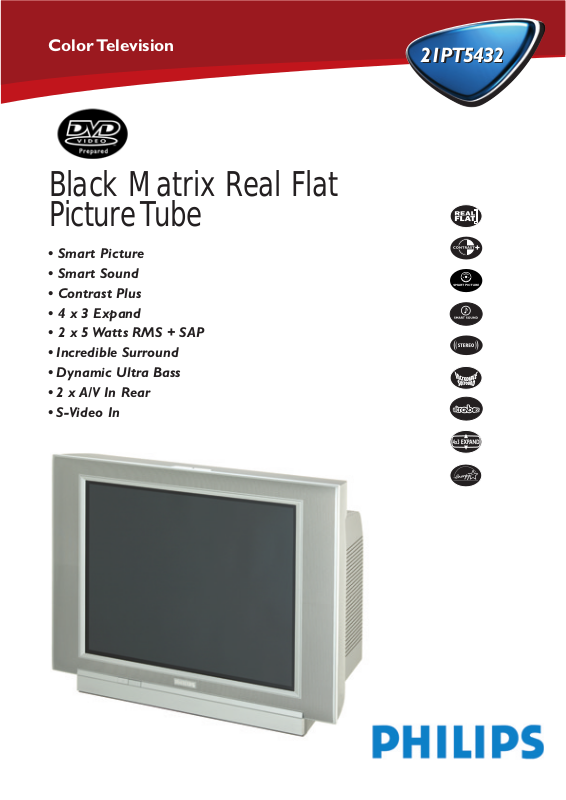

Philips 21PT5432 User Manual
Color Television
Blac k Matrix Real Flat
Picture T ube
• Smart Picture
• Smart Sound
• Contrast Plus
• 4 x 3 Expand
21PT5432
21PT5432
• 2 x 5 Watts RMS + SAP
• Incredible Surround
• Dynamic Ultra Bass
• 2 x A/V In Rear
• S-Video In
Color Television
Product Information
21PT5432
21PT5432
• Screen size 21” (53 cm)
• Picture tube Black Matrix Invar Mask
• Viewing area 51 cm (NBR 5258)
• Smart Picture Modes Rich, Natural, Soft,
Personal, Multimedia
• Contrast Plus
• Sharpness Control
• Color Temperature
Control
• 4:3 Expand
• Noise Reduction
Sound
• Sound output 2 x 5 Watts RMS
• Loudspeakers Full Range
• Smart Sound Modes Theatre, Music,Voice,
Personal
• Incredible Surround
• Dynamic Ultra Bass
• Auto Volume Leveller (AVL)
Reception
• Tuning system PLL digital tuning
• Tuner UV, S and Hyperband
(Pal Multisystem)
Full Cable
• Channel selection 100 presets (Pal)
181 presets (NTSC)
• Aerial input 75 Ohm Coaxial
• System PAL-M, PAL-N, NTSC,
PAL-BG Playback
Close Caption
• Full Text
Connectors
• Rear Stereo Audio/Video
input x 2
S-Video input
Measurements
• Mains 90 - 276V, 50/60 Hz
• Power consumption 52W
(Normal Operation)
1W Standby
• Net weight 26kg
• Gross weight 31kg
• Set dimension 599 x 505 x 460 mm
( W x D x H mm)
• Box dimension 668 x 577 x 539 mm
( W x D x H mm)
• Container loading 430 (Truck)
272 (40’DC)
• Cabinet Color Techno Silver (10811)
Product Highlights
Black Matrix Real Flat picture tube
The Real Flat picture tube offers high contrast for
natural colors and improved daytime viewing.With the
revolutionary flat screen design,there is virtually no
picture distortion, even when viewed from the sides.
The flat screen technology reduces glare from ambient
light,preventing eye fatigue.
Smart Picture
A touch of the SMART PICTURE button on the remote
control provides the option of selecting one of five
preset positions (Rich, Natural,Soft,Personal,
Multimedia) to enhance enjoyment of video games,
sports and movies, also based upon the room lighting
condition.By selecting the desired option,all important
picture elements are instantly adjusted to optimize
viewing pleasure.
Contrast Plus
A special circuitry has been incorporated into this
receiver to enhance the darker portions of the picture
for added realism and overall picture quality.
4 x 3 Expand
Expands movie images recorded in letterbox format by
removing the black horizontal bars at the top and
bottom and filling the entire screen.
Incredible Surround
Actively processes the signal using advanced electronics
and psycho-acoustic method to widen the stereo spatial
image. This feature provides incredible sound with
extra depth and an unbelievable three-dimensional
effect that surrounds the user completely without the
need for additional surround speakers.
S-Video Input
Used for playback of S-VHS VCR tapes,Video Discs,
Video Games or Compact Disc-Interactive (cd-I) discs.
Better picture detail and clarity is possible with the
S-Video playback as compared to the picture from a
normal antenna (RF) connection.
Predecessor : 21PT839A
Chassis : L01 2K3
Release date : Q2 2003
Reference : PS&P/L01/Latam/21PT5432 v1.0
Date of issue : Jan 2003
Operation
• Remote control RCLB014
• Number of remote 35 buttons
control buttons
• Multi language
on-screen display
•Surf
• Wake-up Clock
• Daily On/Off Timer
• Sleep Timer (240 minutes)
Smart Sound
A touch of the SMART SOUND button on the remote
control provides the option of selecting one of four
preset positions (Theatre, Music,Voice, Personal) to suit
each individual sound preference when viewing
different programs or sources.
Features and specifications subject to change
without notice
2003 © Philips Consumer Electronics
www.consumer.philips.com
