Philips 21PT5317 User Manual
For preview purpose only

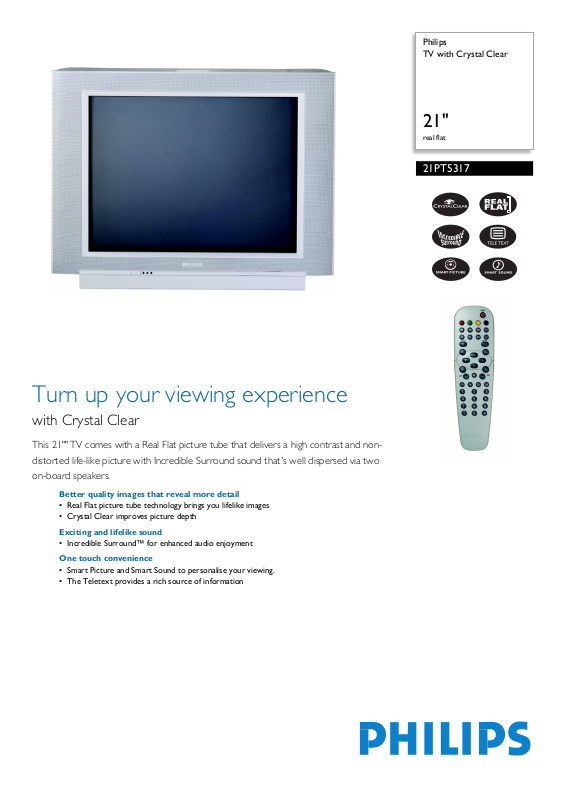

Philips
TV with Crystal Clear
21"
real flat
21PT5317
Turn up your viewing experience
with Crystal Clear
This 21"" TV comes with a Real Flat picture tube that delivers a high contrast and nondistorted life-like picture with Incredible Surround sound that's well dispersed via two
on-board speakers.
Better quality images that reveal more detail
• Real Flat picture tube technology brings you lifelike images
• Crystal Clear improves picture depth
Exciting and lifelike sound
• Incredible Surround™ for enhanced audio enjoyment
One touch convenience
• Smart Picture and Smart Sound to personalise your viewing.
• The Teletext provides a rich source of information
For preview purpose only
TV with Crystal Clear
21" real flat
Technical specifications Product highlights
Picture/Display
• Aspect ratio: 4:3
• Diagonal screen size: 21 inch / 55 cm
• Visible diagonal screen size: 51 cm
• Display screen type: Real Flat picture tube
• Picture enhancement: Crystal Clear, Black
stretch, Color Temperature Adjustment,
Sharpness Adjustment
• Picture processing: 50 Hz
• Screen enhancement: Anti-Reflection
Sound
• Sound Enhancement: Auto Volume Leveller,
Smart Sound, Ultra Bass
• Sound System: Incredible Surround, Stereo
• Output power (RMS): 2 x 10W
• Music Power: 20 W
Tuner/Reception/Transmission
• TV system: PAL B/G, PAL D/K, PAL I, SECAM B/
G, SECAM D/K
• Video Playback: NTSC
Connectivity
• Number of AV connections: 3
• AV 1: Audio L/R in, CVBS in, AV In
• AV 2: Audio L/R in, CVBS, S-Video
• AV 3: Monitor Out
• Front / Side connections: Audio in, CVBS in,
Headphone out
• Headphone: 3.5 mm
Power
• Power consumption: 60 W
• Standby power consumption: <1 W
• Mains power: 90-276V, 50-60Hz
Convenience
• Ease of Installation: Autostore, Fine Tuning, PLL
Digital Tuning
• Remote control type: RCLA014
• Teletext: 1 page Teletext
• Teletext enhancements: Program information
Line
• Remote Control: TV
• Remote control: Zappa
• Clock: Sleep Timer
Dimensions
• Product weight: 26 kg
• Weight incl. Packaging: 31 kg
• Color cabinet: Silver Frost (11027)
• Box dimensions (W x H x D):
664x532x575mm
• Set dimensions (W x H x D):
599x462x507mm
•
21PT5317/60
Real Flat picture tube
The flatter tube provides a wider viewing angle while
minimizing reflections f or the best picture possible. The
special alloy invar shadow mask helps maintain sharper
focus and eliminates 'color blooming' compared to
standard tubes.
Crystal Clear
Combining picture enhancements like Contrast plus and
color improvement, Crystal Clear improves picture
depth.
Incredible Surround™
Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround allows you to
experience total surround with greater depth and width
of sound, without the use of additional speakers.
Smart Picture and Smart Sound
Philips preset modes for Smart Picture and Smart Sound
provide you with direct access via a single key on the
remote control. You can select optimized picture and
sound settings for the various picture modes such as
Eco, Natural, Rich, Multimedia and Personal, and sound
modes such as Movie, Voice, Music and Personal. Do
refer to the DFU for the various picture and sound
smart modes.
Teletext
The Teletext is a communication system transmitted by
most broadcasters in Europe, which contains a rich
variety of information. This information can only be
viewed by a set equipped with a Teletext decoder.
Date of issue 2006-08-16
Version: 9.0
12 NC: 8670 000 21257
EAN: 87 10895 84681 3
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
