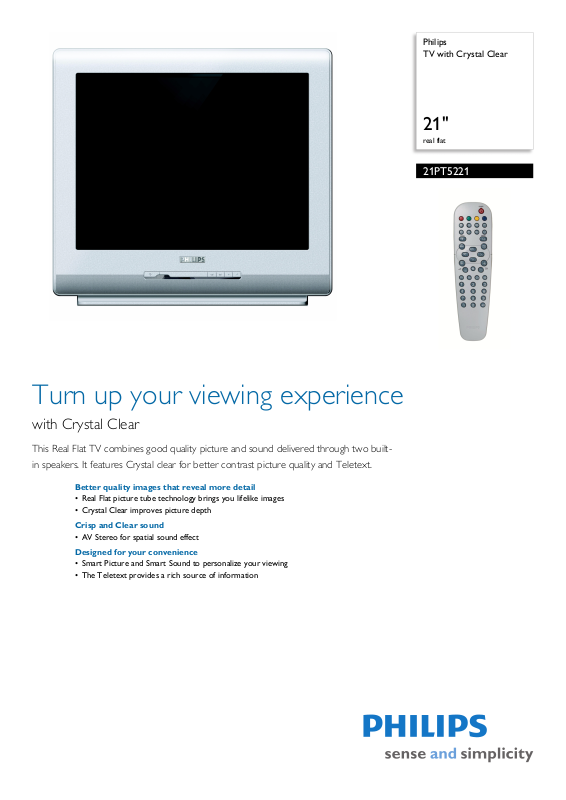

Philips 21PT5221-60 User Manual

Philips TV with Crystal Clear

21"

real flat

21PT5221

Turn up your viewing experience

with Crystal Clear

This Real Flat TV combines good quality picture and sound delivered through two builtin speakers. It features Crystal clear for better contrast picture quality and Teletext.

Better quality images that reveal more detail

• Real Flat picture tube technology brings you lifelike images

• Crystal Clear improves picture depth

Crisp and Clear sound

• AV Stereo for spatial sound effect

Designed for your convenience

• Smart Picture and Smart Sound to personalize your viewing

• The Teletext provides a rich source of information

TV with Crystal Clear

21" real flat

21PT5221/60

Specifications

Picture/Display

• Aspect ratio: 4:3

• Diagonal screen size: 21 inch / 55 cm

• Visible diagonal screen size: 51 cm

• Display screen type: Re

• Picture enhancement: Crystal Clear, Black stretch, lor Temperature Adjustment, Sharpness

Co Adjustment, Active Control, Digital Noise Reduction, Contrast Plus, Smart Picture

• Picture processing: 50 Hz

Sound

• Output power (RMS): 2 x 3 W

•Music Power: 6 W

• Sound Enhancement: Auto Volume Leveller,

reble and Bass Control

• Sound System: Stereo Playback

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Installation: Autostore, Fine Tuning, PLL

Digital Tuning

• Ease of Use: Smart Picture, Smart Sound

• Remote control type: RCLA014

• Remote Control: TV

• Teletext: 1 page Teletext

al Flat picture tube

• Teletext enhancements: Program information Line

• Clock: Sleep Timer

Tuner/Reception/Transmission

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: PAL, PAL B/G, SECAM, SECAM B/G, SECAM D/K

• Video Playback: NTSC, PAL

• Aerial Input: 75 ohm coaxial (IEC75)

• Number of Preset Channels: 100

PAL D/K, PAL I,

Connectivity

• AV 1: Audio L/R in, CVBS in

• AV 2: CVBS, Audio L/R in

•AV 3: Monitor Out

Power

• Power consumption: 60 W

• Standby power consumption: < 3W

• Mains power: 90-276V, 50-60Hz

Dimensions

• Set dimensions (W x H x D): 506 x 466 x 476 mm

• Product weight: 21 kg

• Weight incl. Packaging: 25 kg

•Box dimensions (W x H x D):

5 x 560 x 560 mm

• Color cabinet: Silver Frost (11027)

•

Highlights

Real Flat picture tube

The flatter tube provides a wider viewing angle while minimizing reflections for the best picture possible.

Crystal Clear

Combining picture enhancements like Contrast plus and color improvement, Crystal Clear improves picture depth.

AV Stereo

By connecting the TV to an AV source with stereo sound, the TV converts the mono sound to spatial stereo sound for a lifelike experience.

Smart Picture and Smart Sound

Philips preset modes for Smart Picture and Smart Sound provide you with direct access via a single key on the remote control. You can select optimized picture and sound settings for the various picture and sound modes.

Teletext

The Teletext is a communication system transmitted by most broadcasters in Europe, which contains a rich variety of information. This information can only be viewed by a set equipped with a Teletext decoder.

Issue date 2009-03-30

Version: 2.0.5

12 NC: 8670 000 24269 EAN: 87 10895 97939 9

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
