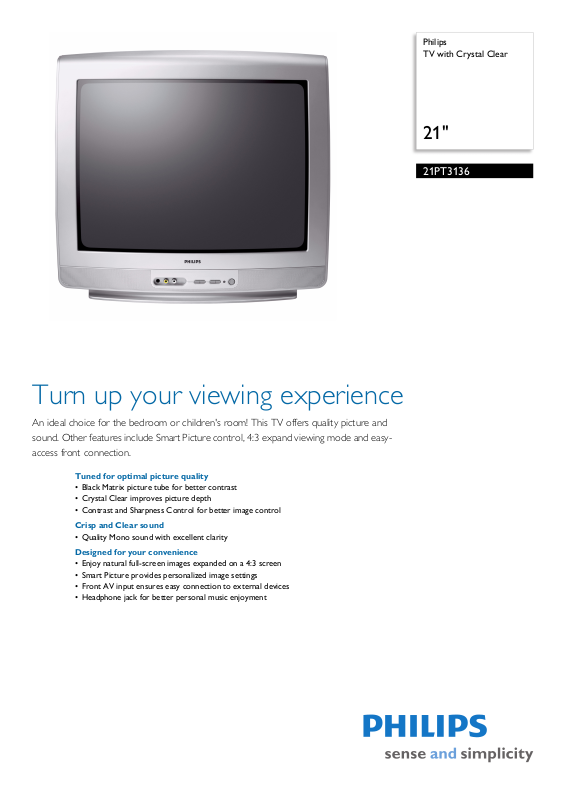

Philips 21PT3136 User Manual
Philips
TV with Crystal Clear
21"
21PT3136
Turn up your viewing experience
An ideal choice for the bedroom or children's room! This TV offers quality picture and
sound. Other features include Smart Picture control, 4:3 expand viewing mode and easyaccess front connection.
Tuned for optimal picture quality
• Black Matrix picture tube for better contrast
• Crystal Clear improves picture depth
• Contrast and Sharpness Control for better image control
Crisp and Clear sound
• Quality Mono sound with excellent clarity
Designed for your convenience
• Enjoy natural full-screen images expanded on a 4:3 screen
• Smart Picture provides personalized image settings
• Front AV input ensures easy connection to external devices
• Headphone jack for better personal music enjoyment
TV with Crystal Clear
21"
21PT3136/55
Specifications
Picture/Display
• Aspect ratio: 4:3
• Diagonal screen size: 21 inch / 53 cm
• Visible diagonal screen size: 51 cm
• Picture enhancement: Sharpness Adjustment,
rystal Clear
C
• Picture processing: 50 Hz, 60Hz Analog
Sound
• Output power (RMS): 1x1W
•Sound System: Mono
Loudspeakers
• Built-in speakers: 1
Convenience
• Ease of Use: Auto Volume Leveller (AVL), Smart
• Remote control type: RCLB016
• Teletext: Closed Captioning
• Screen Format Adjustments: 4:3, 4:3 expand
• Clock: Sleep Timer
Tuner/Reception/Transmission
• TV system: NTSC
•Video Playback: NTSC
• Aerial Input: 75 ohm F-type
•Tuner Display: PLL
Connectivity
• Front / Side connections: AV input, Headphone out
Power
• Power consumption: 47 W
• Standby power consumption: < 1 W
• Mains power: AC 105-132V, 50/60 Hz
Dimensions
• Set dimensions (W x H x D): 514 x 467 x 484 mm
• Set weight: 20 kg
• Weight incl. Packaging: 23.5 kg
•Box dimensions (W x H x D):
6 x 545 x 535 mm
56
• Color cabinet: Silver Shadow (10811)
•
Highlights
Black Matrix picture tube
A Black Matrix picture tube improves the contrast of
images even when viewing in daylight conditions.
Crystal Clear
Combining picture enhancements like Contrast plus
and color improvement, Crystal Clear improves
picture depth.
4x3 Expand
4x3 Expand enables widescreen movies to be viewed
on a 4:3 aspect ratio TV screen by removing the
black bars at the top and bottom of the image. You
are able to watch full-screen movies without
compromizing on picture quality and resolution.
Smart Picture
Smart Picture provides the optimum picture settings
for color, brightness, saturation, contrast, sharpness,
and so on, to enhance your overall viewing
experience at all times.
Issue date 2009-03-31
Version: 4.0.9
12 NC: 8670 000 23999
EAN: 87 10895 94816 6
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
