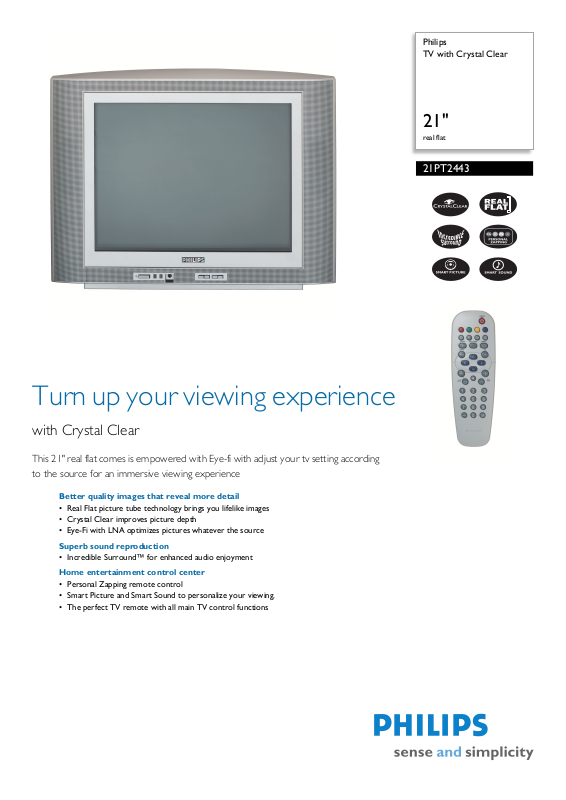

Philips 21PT2443 User Manual

Philips
TV with Crystal Clear

21"

real flat

21PT2443

Turn up your viewing experience

with Crystal Clear

This 21" real flat comes is empowered with Eye-fi with adjust your tv setting according
to the source for an immersive viewing experience

Better quality images that reveal more detail

• Real Flat picture tube technology brings you lifelike images

• Crystal Clear improves picture depth

• Eye-Fi with LNA optimizes pictures whatever the source

Superb sound reproduction

• Incredible Surround™ for enhanced audio enjoyment

Home entertainment control center

• Personal Zapping remote control

• Smart Picture and Smart Sound to personalize your viewing.

• The perfect TV remote with all main TV control functions

TV with Crystal Clear

21" real flat

21PT2443/94R

Specifications Product highlights

Picture/Display

• Aspect ratio: 4:3

• Diagonal screen size: 21 inch / 53 cm

• Visible diagonal screen size: 51.6 cm

• Display screen type: Real Flat picture tube

• Picture enhancement: Eye-Fi with LNA,
Contrast Plus, Digital Noise Reduction,
Sharpness Adjustment

Sound

• Music Power: 200 W

• Output power (RMS): 2 x 5W

• Sound Enhancement: Auto Volume Leveller,
Balance, Incredible Surround, Smart Sound,
Treble and Bass Control

• Sound System: Stereo Playback

Loudspeakers

• Built-in speakers: 2

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• Number of Preset Channels: 200

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: PAL B/G

• Video Playback: NTSC, PAL

Convenience

• Child Protection: Child Lock

• Clock: On/Off event timer, Sleep Timer

• Ease of Installation: Autostore, Fine Tuning

• Ease of Use: Auto Volume Leveller (AVL), Smart
Picture Control, Smart Sound Control

• On-Screen Display languages: English, Hindi

• Remote control: Zappa

• Remote control type: RCLA015

Connectivity

• AV 1: CVBS in

• AV 2: Monitor out

• Front / Side connections: Headphone out

Power

• Mains power: AC 150-276V, 50Hz

• Power consumption: 55 W

• Standby power consumption: <1W

Dimensions

• Box dimensions (W x H x D):
727

x 595 x 649 mm

• Color cabinet: Silver Frost

• Product weight: 22 kg

• Set dimensions (W x H x D):
600

x 460 x 520 mm

•

Real Flat picture tube

The flatter tube provides a wider viewing angle while
minimizing reflections for the best picture possible.

Crystal Clear

Combining picture enhancements like Contrast plus and
color improvement, Crystal Clear improves picture
depth.

Eye-Fi with LNA

Eye-Fi ensures that noise and sharpness improvements
are continuously made at a rate of 60 times per second.
By continually adjusting picture setting over 3,000 times
per minute, Eye-Fi optimizes the viewing experience.

Incredible Surround™

Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround allows you to
experience total surround with greater depth and width
of sound, without the use of additional speakers.

Personal Zapping

Smart Picture and Smart Sound

Philips preset modes for Smart Picture and Smart Sound
provide you with direct access via a single key on the
remote control. You can select optimized picture and
sound settings for the various picture modes such as
Eco, Natural, Rich, Multimedia and Personal, and sound
modes such as Movie, Voice, Music and Personal.

TV Remote

The TV remote is particularly easy to use with large
buttons for channel selection and volume. It is simply
the best r ep lacement for yo ur broken or l os t TV remote
control.

Date of issue 2007-03-19

Version: 1.0

12 NC: 8670 000 18035
EAN: 87 10895 76707 1

© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com
