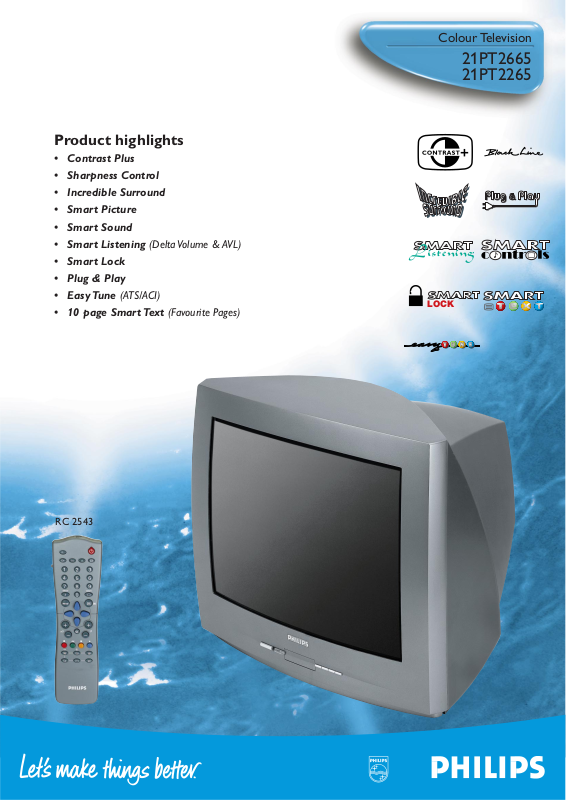

Philips 21PT2265, 21PT 2665 User Manual
Product highlights
LOCK
• Contrast Plus
• Sharpness Control
• Incredible Surround
• Smart Picture
• Smart Sound
• Smart Listening (Delta Volume & AVL)
• Smart Lock
• Plug & Play
• Easy Tune (ATS/ACI)
• 10 page Smart Text (Favourite Pages)
Colour Television
21PT2665
21PT2265
RC 2543
Colour Television
21PT2665
21PT2265
Product Information
Screen size 21” (52 cm)
Picture tube 21” Black Line
Viewing area 50 cm (21”)
Iron Mask
Smart Picture Modes Soft, Natural, Rich,
Personal
Contrast Plus
Sharpness Control
Color Temperature Control
Noise Reduction
Sound
Sound output 2 x 3 Watts RMS
Loudspeakers Full Range Speakers
Smart Sound Modes Movie, Music, Speech,
Personal
Ultra Bass
Smart Listening (Delta Volume & AVL)
Bilingual switch on remote control
Reception
Tuning system PLL digital tuning
Tuner UV, S and Hyperband
Channel selection 100 presets
Aerial input 75 Ohm Coaxial
TV systems See table
Video playback NTSC 3.58/4.43
Stereo systems See table
Plug and Play
Easy Tune (ATS/ACI) : UK, FR, BE, NL, CH, DE,
AT,ES,PL,IT, ND
Teletext
Reception standards TOP/FLOF
10 page memory
Smart Text (Favourite 4 pages)
Connectors
Front Stereo headphone out (3.5 mm)
Rear Ext 1: Scart CVBS
In/Out + RGB In
Ext 2: Scart CVBS
In/Out + Y/C In
Operation
Remote control RC 2543/01
Side TV/VCR switch on remote control
Program Information Line
Sleeptimer (240 minutes)
Smart Lock
Smart Clock
Wake-up Clock
Measurements
Mains 220 - 240V, 50 Hz
Power consumption 63W
Net weight 20 kg
Gross weight 23 kg
Set dimension 549 x 497 x 469
(W x D x H)
Box dimension 658 x 576 x 570
(W x D x H)
Box dimension 658 x 576 x 638
intruding stand (W x D x H)
Cabinet colour Blue Silver (10852) 21PT2665
Black (80007) 21PT2265
Product Highlights
Contrast Plus
A special circuitry has been incorporated into this
receiver to enhance the darker portions of the
picture for added realism and overall picture quality.
Incredible Surround
Actively processes the signal using advanced
electronics and psycho-acoustic method to widen the
stereo spatial image.This feature provides incredible
sound with extra depth and an unbelievable three-dimensional effect.
Smart Picture
A touch of the SMART PICTURE button on the
remote control provides the option of selecting one of
four preset positions (Soft, Natural, Rich, Personal) to
enjoy excellent viewing under different lighting
conditions. Select the desired option and all
important picture elements are instantly adjusted to
optimize viewing pleasure.
‘Rich’ for bright daylight conditions,‘Soft’ for dark
room settings, ‘Natural’ for normal ambient conditions
and ‘Personal’ for individual preference.
Smart Sound
A touch of the SMART SOUND button on the
remote control provides the option of selecting one of
four preset positions (Movie, Music, Speech, Personal)
to optimize each individual sound preference when
viewing different programs or sources.
Smart Listening
It is the combination of Delta Volume and AVL. The
former avoids undesirable changes in volume, due to
different sound modulations of the programs, during
channel prowsing.The latter avoids rapid increase in
volume like, for exemple, in case of commercials.
version
2CS NICAM 2CS NICAM NICAM NICAM PAL PAL PAL SECAM SECAM SECAM
DK DK BG BG I LL’ BG DK I BG DK LL’
21PT2665 /00
21PT2665 /01
21PT2665 /05
21PT2665 /58
21PT2265 /00
Predecessor : 21PT2684
Chassis : L9SS
Release date : July 2000
Date of issue : January 2000
•••• •• ••
Easy Tune (ATS/ACI)
A no fuss and easy way to install and store channels
in any favorite order.
Sleeptimer
The Sleeptimer automatically turns the TV off at a
preset time of up to 240 minutes from the time the
feature is activated. Sleeptimer settings are
programmed in 15, 30 and 60-minute increments.
stereo
system
transmission
system
•• •
••• •• •• •
•••
•• •
Features and specifications subject to change without notice
stand
supplied
in box
