Philips 21PT1867, 21PT1867-58 User Manual

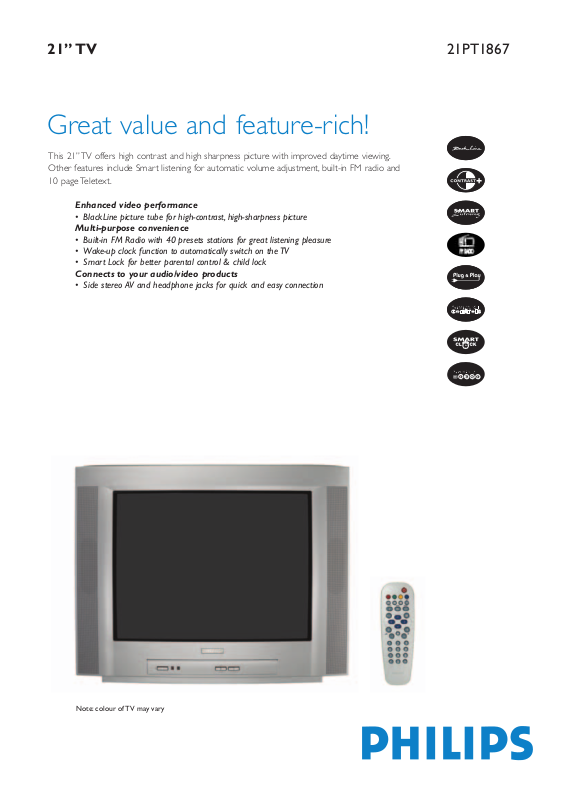

21” TV
Great value and feature-rich!
This 21”TV offers high contrast and high sharpness picture with improved daytime viewing.
Other features include Smart listening for automatic volume adjustment, built-in FM radio and
10 page Teletext.
Enhanced video performance
•BlackLine picture tube for high-contrast, high-sharpness picture
Multi-purpose convenience
• Built-in FM Radio with 40 presets stations for great listening pleasure
•Wake-up clock function to automatically switch on the TV
•Smart Lock for better parental control & child lock
Connects to your audio/video products
• Side stereo AV and headphone jacks for quick and easy connection
21PT1867
Note: colour of TV may vary
21” TV 21PT1867
Te chnical specifications
• Screen Size : 21” (52 cm)
• Visible screen size : 50 cm
• Picture Tube : BlackLine
• Contrast Plus
• Sharpness Control
• Noise reduction
• Colour Temperature
Sound
• Sound Power : 4 W RMS
8 W Music Power
•2 On Board Speakers
Ease of Use Installation
•Plug & Play
• 100 Preset channels
• Autostore
• Fine Tuning
• Sorting
• Smart ATS and ACI
Ease of Use Utilisation
• Remote Control : RCLE011
•Smart Picture : Soft, Natural, Rich,
Control Multimedia, Personal
•Smart Sound : Movie, Speech, Music,
Control Personal
•Smart Listening (Delta Volume + AVL)
• 4:3 Expand
• Smart Clock
• Wake up Clock
• Sleep Timer
• Smart Lock (Child Lock + Parental Control)
Connections
Side
• CVBS Video in
• Audio (cinch/RCA) in
•Headphone Jack 3,5 mm out
Back
• Euro A/V connector Ext1
(RGB in, CVBS in/out)
Product highlights
Information
• 10 Pages Smart Text
•4 Favourite Pages
•Program Information Line
FM Radio
• 40 Preset channels
• Autostore/Manual store
• Sorting
•Preset List
Reception
•Tuning System : PLL digital tuning
• Tuner : VHF, UHF, S-Channel,
Hyperband
• Aerial Input : 75 ohm Coaxial
• TV System : See table
• Video Playback : NTSC 4.43/3.58
Miscellaneous
• Mains : AC 220-240 V, 50/60 Hz
(stroke /01, /05)
AC 90-276 V, 50/60 Hz
(stroke /58)
• Power Consumption: 50 W Normal Operation
<3 W Stand by
• Set Weight : 20 kg
•Weight Incl. : 21kg
Packaging
• Set Dimension : 596 x 483 x 482 mm
(WxHxD)
• Box Dimension : 693 x 576 x 575 mm
(WxHxD)
• TV Colour : Indigo Black (60609)
Black Line
The Black Line picture tube offers excellent images
with high sharpness and contrast and less reflection for
brilliant colors and improved viewing in daylight
conditions.
Contrast Plus
A special circuitry has been incorporated into this
receiver to enhance the darker portions of the picture
for added realism and overall picture quality.
RMS
The standard professional measure of sound output
power.All our TV’s are measured in RMS with 10%
Distortion.There are other terms than RMS which
often show higher numbers but are not comparable.
Smart Listening
This is the combination of Delta Volume and Automatic
Volume Limiter.The former avoids undesirable changes
in volume, caused by the different sound settings of
different programmes.The latter avoids the rapid
increase in volume which can happen in the case of
different commercials.
FM Radio Built in
A radio is included capable of storing 40 FM presets.
On Screen naming makes navigation simple, and a
handy Clock Screensaver is also included for use
while listening.
Plug & Play
Having connected the TV, it automatically searches for
all channels and installs them.
Smart Clock
The ability of your TV to automatically update its
internal clock for easier use of the Wake up clock
function which allows you to program the TV to switch
on at a certain time.
Side Connections
Connections for headphone and other inputs such as
camcorder, front entry for ease of use.
NTSC Playback
Playback NTSC tapes from the USA, Japan or Canada
on your PAL TV.
version
21PT1867/58
transmission system
PA L PA L PA L S ECAM SECAM SECAM
BG DK I BG DK LL’
Predecessor : 21PT1866
Chassis : L01 SS
Introduction :Year 2003
Date of issue 2004-01-15
Specifications subject to change without notice.
2004 Royal Philips Electronics—All rights reserved.
www.philips.com
