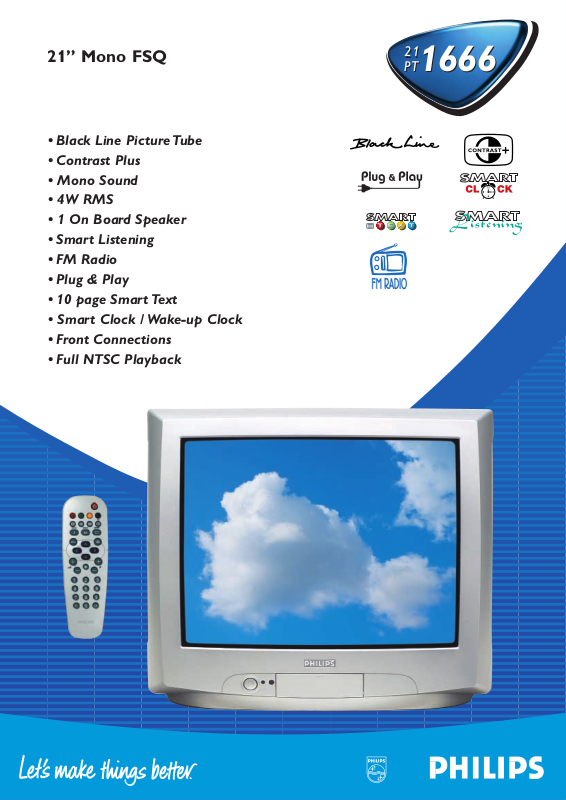

21” Mono FSQ

• Black Line Picture Tube

• Contrast Plus

• Mono Sound

• 4W RMS

• 1 On Board Speaker

• Smart Listening

• FM Radio

• Plug & Play

• 10 page Smart Text

• Smart Clock / Wake-up Clock

• Front Connections

• Full NTSC Playback

PT1666

Product Information


• Screen Size: 21” (52 cm)

• Visible screen size: 50 cm

• Picture Tube : Black Line

• Contrast Plus

• Sharpness Control

• Noise reduction

• Colour Temperature

Sound

• Sound Power: 4 W RMS 8 W Music Power

• 1 On Board Speaker

Ease of Use Installation

• Plug & Play

• 100 Preset channels

• Autostore

• Fine Tuning

• Sorting

• Smart ATS and ACI

Ease of Use Utilisation

• Remote Control: RCLE011

• Smart Picture Control: Soft, Natural, Rich,

Multimedia, Personal

• Smart Sound Control : Movie, Speech

Music, Personal

• Smart Listening (Delta Volume + AVL)

• Smart Clock

• Wake up Clock

• Sleep Timer

• Smart Lock (Child Lock + Parental Control)

21” Mono FSQ

Connections

Side

• CVBS Video in

• Audio (cinch/RCA) in

• Headphone Jack 3,5 mm out

Back

• Euro A/V connector Ext1 (RGB in, CVBS in/out)

Information

• 10 Page Smart Text

• 4 Favourite Pages

• Program Information Line

FM Radio

• 40 Preset channels

• Autostore / Manual store

• Sorting

• Preset List

Reception

• Tuning System : PLL digital tuning

• Tuner : VHF, UHF, S-Channel, Hyperband

• Aerial Input : 75 ohm Coaxial

• TV System : See table

• Video Playback: NTSC 4.43/3.58

Miscellaneous

• Mains : AC 220-240V, 50/60 Hz (stroke /01, /05) AC 90-276V, 50/60 Hz (stroke /58)

• Power Consumption: 50W Normal Operation

< 3W Stand by

• Set Weight : 19.5kg

• Weight Incl. Packaging : 23 kg

• Set Dimension (WxHxD) : 549x468x495 mm

• Box Dimension (WxHxD): 647x586x568 mm

• TV Colour : Silver Shadow (10811)

Predecessor : 21PT1664S Chassis : L01 SS Introduction :Year 2002

Features and specifications subject to change without notice

PT1666

PAL PAL PAL SECAM SECAM SECAM

BG DK I BG DK LL’

version

transmission

system

21PT1666 /00 •

stand

supplied

in the

box

21PT1666 /01 • • • •

21PT1666 /05 • •

21PT1666 /58 • • • •

Product Highlights

Black Line

The Black Line picture tube offers excellent images with high sharpness and contrast and less reflection for brilliant colors and improved viewing in daylight conditions.

Contrast Plus

A special circuitry has been incorporated into this receiver to enhance the darker portions of the picture for added realism and overall picture quality.

RMS

The standard professional measure of sound output power.All our Tv's are measured in RMS with 10% Distortion.There are other terms than RMS which often show higher numbers but are not comparable.

Smart Listening

This is the combination of Delta Volume and Automatic Volume Limiter.The former avoids undesirable changes in volume, caused by the different sound settings of different programmes.The latter avoids the rapid increase in volume which can happen in the case of different commercials

FM Radio

A radio is included inside the TV, capable of stereo sound (in stereo TV's) and storage of up to 40 FM Radio stations. On screen naming of all these stations is also possible for easy navigation.

Plug & Play

Having connected the tv , it automatically searches for all channels and installs them.

Smart Clock

The ability of your TV to automatically update its internal clock for easier use of the Wake up clock function which allows you to program the TV to switch on at a certain time.

Front Connections

Connections for headphone and other inputs such as camcorder, front entry for ease of use

Full NTSC Playback

The TV can be used to watch NTSC material (eg american video tapes), when connected via scart to a video recorder
