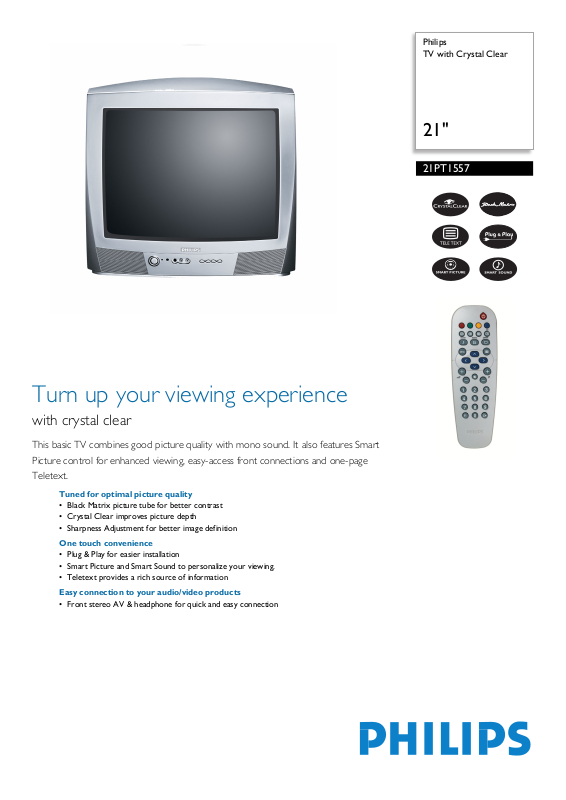

Philips
TV with Crystal Clear
21"
21PT1557
Turn up your viewing experience
with crystal clear
This basic TV combines good picture quality with mono sound. It also features Smart
Picture control for enhanced viewing, easy-access front connections and one-page
Teletext.
Tuned for optimal picture quality
• Black Matrix picture tube for better contrast
• Crystal Clear improves picture depth
• Sharpness Adjustment for better image definition
One touch convenience
• Plug & Play for easier installation
• Smart Picture and Smart Sound to personalize your viewing.
• Teletext provides a rich source of information
Easy connection to your audio/video products
• Front stereo AV & headphone for quick and easy connection
For preview purpose only
TV with Crystal Clear
21"
Technical specifications Product highlights
Picture / Display
• Aspect ratio: 4:3
• Diagonal screen size: 21 inch / 55 cm
• Visible diagonal screen size: 51 cm
• Display screen type: BlackLine picture tube
• Picture enhancement: Crystal Clear, Sharpness
adjustment
Sound
• Sound system: Mono
• Output power (RMS): 1w
• Music power: 2W
Tuner / Reception / Transmission
• Tuner bands: Hyper band, S channel, UHF, VHF
• TV system: PAL B/G, PAL D/K, PAL I, SECAM B/
G, SECAM D/K, SECAM L/L'
• Video playback: NTSC
• Aerial input: 75 ohm coaxial (IEC75)
• Number of preset channels: 100
Connectivity
• Number of scarts: 1
• Ext 1 Scart: CVBS in/out, RGB
• Front / Side connections: Headphone out
• Headphone: 3.5 mm
Loudspeakers
• Built-in speakers: 1
Convenience
• Ease of installation: Auto store, PLL digital
tuning, Plug & Play, Smart ATS and ACI
• Ease of Use: Smart picture control, Smart sound
control
• Remote control type: RCLE012
• Teletext: 1 page Teletext
• Teletext enhancements: Program information
line
• Screen format adjustments: 4:3 expand
• Clock: Sleep timer
Power
• Power consumption: 50 W W
• Standby power consumption: < 3 w
• Mains power: AC 220 - 240 V, 50/60 Hz
Dimensions
• Product weight: 21 kg
• Weight incl. packaging: 25 kg
• Colour cabinet: Silver Frost (11027)
• Box dimensions (W x H x D): 606
mm x 568 x 586 mm
• Set dimensions (W x H x D): 518 x 476
mm x 480 mm mm
•
21PT1557/05
Black Matrix picture tube
A Black Matrix picture tube improves the contrast of
images even when viewing in daylight conditions.
Crystal Clear
Combining picture enhancements like Contrast plus and
colour improvement, Crystal Clear improves picture
depth.
Sharpness adjustment
Plug & Play
Plug & Play gives you the ability to install or add a new
comp on ent an d have it wor k without havi ng to p erform
any complex installation procedure or technical analysis.
Smart Picture & Smart Sound
Philips preset modes for Smart Picture and Smart Sound
provide you with direct access via a single key on the
remote control. You can select optimised picture and
sound settings for the various picture modes such as
Eco, Natural, Rich, Multimedia and Personal, and sound
modes such as Movie, Voice, Music and Personal.
Teletext
Teletext is a communication system transmitted by
most broadcasters in Europe, which contains a rich
variety of information. This information can only be
viewed by a set equipped with a Teletext decoder.
Front stereo AV & headphone
Front AV Input makes it much more convenient to
connect external devices like audio equipment, games
and video cameras. It's the easy way to enjoy an extra
audio sensation or a totally immersive gaming
experience.
Date of issue 2006-11-02
Version: 6.0
12 NC: 8670 000 18906
EAN: 87 10895 77601 1
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
