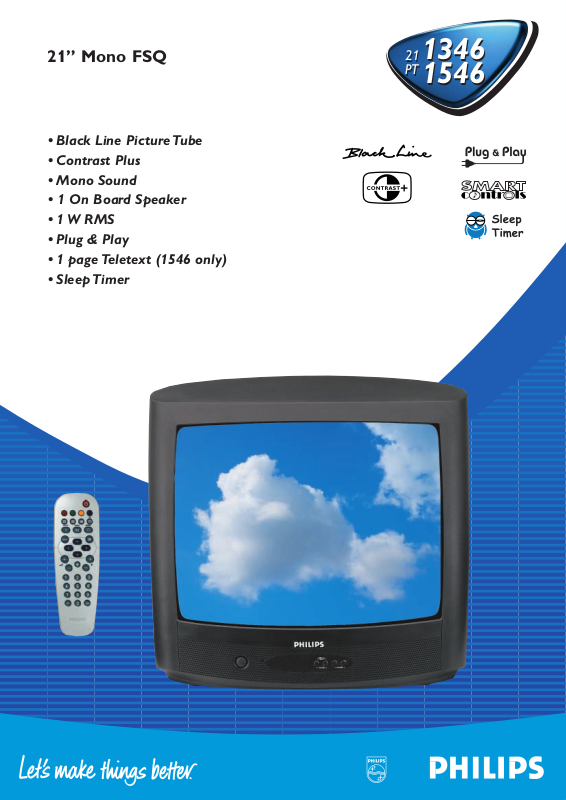

Philips 21PT1346, 21PT1546 User Manual
21” Mono FSQ
• Black Line Picture Tube
• Contrast Plus
• Mono Sound
• 1 On Board Speaker
• 1 W RMS
• Plug & Play
• 1 page Teletext (1546 only)
• Sleep Timer
1346
21
PT
1546
1346
21
PT
1546
Product Information
• Screen Size: 21” (52 cm)
• Visible screen size: 50cm
• Picture Tube : Black Line
• Contrast Plus
• Sharpness Control
Sound
• Sound Power: 1 W RMS
2 W Music Power
• 1 On Board Speaker
Ease of Use Installation
• Plug & Play
• 100 Preset channels
• Autostore
Ease of Use Utilisation
• Remote Control: RCLE011 (21PT1546)
RCLE012 (21PT1346)
• Smart Picture Control: Soft, Natural, Rich,
Multimedia, Personal
• Smart Sound Control : Movie, Speech
Music, Personal
• Sleep Timer
21” Mono FSQ
Connections
Back
• Euro A/V connector Ext1 (RGB in, CVBS in/out)
Information
• 1 Page Teletext (1546 only)
• Program Information Line
Reception
• Tuning System : PLL digital tuning
• Tuner : VHF, UHF, S-Channel, Hyperband
• Aerial Input : 75 ohm Coaxial
• TV System : See table
• Video Playback: NTSC 4.43/3.58
Miscellaneous
• Mains : AC 220-240V, 50/60 Hz (stroke /01, /05)
AC 90-276V, 50/60 Hz (stroke /58)
• Power Consumption: 50W Normal Operation
< 3W Stand by
• Set Weight : 19 kg
• Weight Incl. Packaging : 20 kg
• Set Dimension (WxHxD) : 517x482x473mm
• Box Dimension (WxHxD): 602x588x568 mm
• TV Colour : Mid Grey (10763)
Predecessor : 21PT1342_1542
Chassis : L01 SS
Introduction :Year 2002
Features and specifications subject to change without notice
1346
21
PT
1546
1346
21
PT
1546
PAL PAL PAL SECAM SECAM SECAM
BG DK I BG DK LL’
version
transmission
system
21PT1346/1546 /00 •
stand
supplied
in the
box
21PT1346/1546 /01 • • • •
21PT1346/1546 /05 •
21PT1346/1546 /58 • • • •
Product Highlights
Black Line
The Black Line picture tube offers excellent images with
high sharpness and contrast and less reflection for brilliant colors and improved viewing in daylight conditions.
Contrast Plus
A special circuitry has been incorporated into this
receiver to enhance the darker portions of the picture
for added realism and overall picture quality.
Smart Picture
A touch of the SMART PICTURE button on the remote
control provides the option of selecting one of four preset positions (Rich, Natural, Soft, Personal, Multimedia) to
enhance enjoyment of video games, sports and movies,
also based upon the room lighting condition. By selecting
the desired option, all important picture elements are
instantly adjusted to optimize viewing pleasure.
Smart Sound
A touch of the SMART SOUND button on the remote
control provides the option of selecting one of four preset positions (Theatre, Music,Voice, Personal) to suit
each individual sound preference when viewing different
programs or sources.
RMS
The standard professional measure of sound output
power.All our Tv's aremeasured in RMS with 10%
Distortion.There are other terms than RMSwhich often
show higher numbers but are not comparable.
Plug and Play
No problem anymore to install your new TV. You choose
the language you are more familiar with, the country
you are in and the TV will install automatically all available programs.
1 page Teletext
Teletext information available.
Sleeptimer
The Sleeptimer automatically turns the TV off at a preset time of up to 240 minutes from the time the feature is activated. Sleeptimer settings are programmed in
15, 30, and 60-minute increments.
05/01
