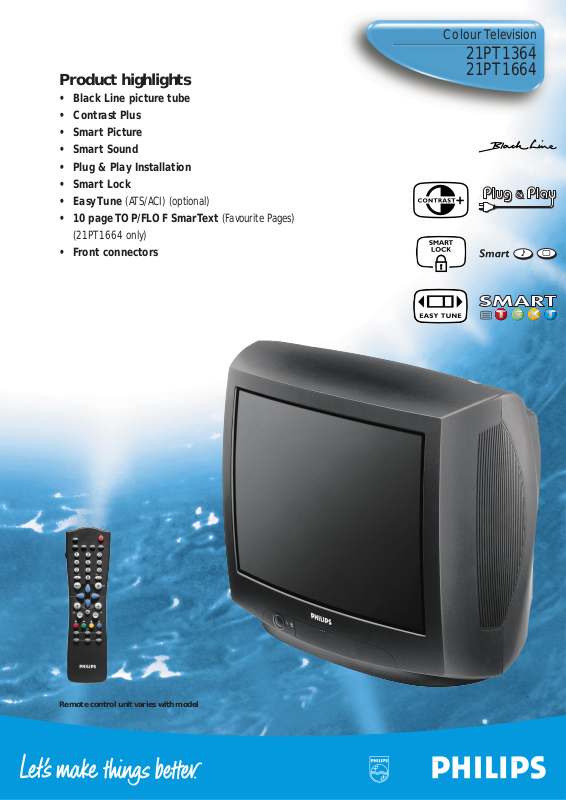

Page 1
Colour Television
21PT1364
21PT1664
Product highlights
• Black Line picture tube
• Contrast Plus
• Smart Picture
• Smart Sound
• Plug & Play Installation
• Smart Lock
• Easy T une (ATS/ACI) (optional)
• 10 page TOP/FLOF SmarText (Favourite Pages)
(21PT1664 only)
• Front connectors
Remote control unit varies with model
Page 2
Colour Television
21PT1364
21PT1664
Product highlights
• Black Line picture tube
• Contrast Plus
• Smart Picture
• Smart Sound
• Plug & Play Installation
• Smart Lock
• Easy T une (ATS/ACI) (optional)
• 10 page TOP/FLOF SmarText (Favourite Pages)
(21PT1664 only)
• Front connectors
Remote control unit varies with model
Page 3
Colour Television
21PT1364
21PT1664
Product highlights
• Black Line picture tube
• Contrast Plus
• Smart Picture
• Smart Sound
• Plug & Play Installation
• Smart Lock
• Easy T une (ATS/ACI) (optional)
• 10 page TOP/FLOF SmarText (Favourite Pages)
(21PT1664 only)
• Front connectors
Remote control unit varies with model
Page 4
Colour Television
21PT1364
21PT1664
Product highlights
• Black Line picture tube
• Contrast Plus
• Smart Picture
• Smart Sound
• Plug & Play Installation
• Smart Lock
• Easy T une (ATS/ACI) (optional)
• 10 page TOP/FLOF SmarText (Favourite Pages)
(21PT1664 only)
• Front connectors
Remote control unit varies with model
Page 5
Colour Television
21PT1364
21PT1664
Product highlights
• Black Line picture tube
• Contrast Plus
• Smart Picture
• Smart Sound
• Plug & Play Installation
• Smart Lock
• Easy T une (ATS/ACI) (optional)
• 10 page TOP/FLOF SmarText (Favourite Pages)
(21PT1664 only)
• Front connectors
Remote control unit varies with model
Page 6
Colour Television
21PT1364
21PT1664
Product highlights
• Black Line picture tube
• Contrast Plus
• Smart Picture
• Smart Sound
• Plug & Play Installation
• Smart Lock
• Easy T une (ATS/ACI) (optional)
• 10 page TOP/FLOF SmarText (Favourite Pages)
(21PT1664 only)
• Front connectors
Remote control unit varies with model
Page 7
Colour Television
21PT1364
21PT1664
Product highlights
• Black Line picture tube
• Contrast Plus
• Smart Picture
• Smart Sound
• Plug & Play Installation
• Smart Lock
• Easy T une (ATS/ACI) (optional)
• 10 page TOP/FLOF SmarText (Favourite Pages)
(21PT1664 only)
• Front connectors
Remote control unit varies with model
Page 8
Colour Television
21PT1364
21PT1664
Product highlights
• Black Line picture tube
• Contrast Plus
• Smart Picture
• Smart Sound
• Plug & Play Installation
• Smart Lock
• Easy T une (ATS/ACI) (optional)
• 10 page TOP/FLOF SmarText (Favourite Pages)
(21PT1664 only)
• Front connectors
Remote control unit varies with model
Page 9
Colour Television
21PT1364
21PT1664
Product highlights
• Black Line picture tube
• Contrast Plus
• Smart Picture
• Smart Sound
• Plug & Play Installation
• Smart Lock
• Easy T une (ATS/ACI) (optional)
• 10 page TOP/FLOF SmarText (Favourite Pages)
(21PT1664 only)
• Front connectors
Remote control unit varies with model
Page 10
Colour Television
21PT1364
21PT1664
Product highlights
• Black Line picture tube
• Contrast Plus
• Smart Picture
• Smart Sound
• Plug & Play Installation
• Smart Lock
• Easy T une (ATS/ACI) (optional)
• 10 page TOP/FLOF SmarText (Favourite Pages)
(21PT1664 only)
• Front connectors
Remote control unit varies with model
Page 11
Colour Television
21PT1364
21PT1664
Product highlights
• Black Line picture tube
• Contrast Plus
• Smart Picture
• Smart Sound
• Plug & Play Installation
• Smart Lock
• Easy T une (ATS/ACI) (optional)
• 10 page TOP/FLOF SmarText (Favourite Pages)
(21PT1664 only)
• Front connectors
Remote control unit varies with model
Page 12
Colour Television
21PT1364
21PT1664
Product highlights
• Black Line picture tube
• Contrast Plus
• Smart Picture
• Smart Sound
• Plug & Play Installation
• Smart Lock
• Easy T une (ATS/ACI) (optional)
• 10 page TOP/FLOF SmarText (Favourite Pages)
(21PT1664 only)
• Front connectors
Remote control unit varies with model
Page 13
Colour Television
21PT1364
21PT1664
Product Information
Screen size 21” (52 cm)
Picture tube 21” Black Line
Viewing area 50 cm (21”)
Iron Mask
Smart Picture Modes Soft,Natural,Rich,
Personal
Contrast Plus
Sharpness Control
Color T emperature Control
Noise Reduction
Sound
Sound output 1 x 4 Watts RMS
Loudspeakers Full Range Speakers
Smart Sound Modes Movie, Music, Speech,
Personal
Smart Listening (Delta Volume)
Reception
Tuning system PLL digital tuning
Tuner UV, S and Hyperband
Channel selection 100 presets
Aerial input 75 Ohm Coaxial
TV systems See table
Video playback NTSC 3.58 / 4.43
Stereo systems See table
Plug and Play installation
Easy T une (ATS/ACI)
(Optional) See table
Teletext (21PT1664 only)
Reception standards TOP / FLOF
10 page memory
SmarText (4 Favorite Pages)
Connectors
Front Stereo headphone out (3.5 mm)
Video CVBS In + Audio mono In
Cinch
Rear Ext 1:Scart CVBS In/Out + RGB In
Operation
Remote control RC2525/01 (21PT1664)
RC282601/01 (21PT1364)
No.of RC buttons 39 buttons (RC2525)
24 buttons (RC282601)
Multi language on-screen display
Cursor Control
Program Information Line (21PT1664 only)
Alternate Channel Selection
Smart Lock
Sleeptimer (240 minutes)
Smart Clock
Wake-up Clock
Measurements
Mains 220 - 240V, 50 Hz
Power consumption 63 Watts
10 Watts (Standby)
Net weight 19.5 kg (approx.)
Gross weight 23 kg (approx.)
Set dimension 549 x 495 x 468
(W x D x H mm)
Box dimension 647 x 568 x 586
(W x D x H mm)
Box dimension 647 x 651 x 586
inclu.stand (W x D x H mm)
Product Highlights
Black Line picture tube
The Black Line picture tube offers excellent images
with high sharpness and contrast and less reflection for
brilliant colors and improved viewing in daylight
conditions.
Contrast Plus
A special circuitry has been incorporated into this
receiver to enhance the darker portions of the picture
for added realism and overall picture quality.
Smart Picture
A touch of the SMART PICTURE button on the remote
control provides the option of selecting one of four
preset positions (Soft,Natural, Ric h, Personal) to enjoy
excellent viewing under different lighting conditions.
Select the desired option and all important picture
elements are instantly adjusted to optimize viewing
pleasure.‘Rich’for bright daylight conditions,‘Soft’ for
dark room settings,‘Natural’for normal ambient conditions and ‘Personal’ for individual preference.
Smart Sound
A touch of the SMART SOUND button on the remote
control provides the option of selecting one of four
preset positions (Movie,Music,Speech, Personal) to
optimize each individual sound preference when
viewing different programs or sources .
SmarText (Favorite Pages)
A touch of any one of the four colored teletext buttons
on the remote control recalls instantly the desired
favorite teletext page. Simply program four favorite
teletext page numbers into the four teletext colored
buttons for quick access.
Easy T une (ATS/A CI)
A no fuss and easy way to install and store channels in
any favorite order
Sleeptimer
The Sleeptimer automatically turns the TV off at a
preset time of up to 240 minutes from the time the
feature is activated.Sleeptimer settings are
programmed in 15,30 and 60-minute increments.
Plug and Play
No problem anymore to install your new TV.
You choose the language you are more famliar with,
the country you are in and the TV will install
automatically all available programs.
Predecessor : 21PT1663
Chassis : L9SS
Release date (TTM) : July 1999
Reference : Basic/EEU/PH/GR750/0898
Date of issue : December 1998 Features and specifications subject to change without notice
PAL PAL PAL SECAM SECAM SECAM
BG DK I BG DK LL’
version
transmission
system
stand
supplied
in the
box
21PT1664 /00 • •
ATS/
ACI
21PT1664 /01 • • • • •
21PT1664 /05 • • •
21PT1664 /58 • • • • • •
21PT1364 /58 • • • •
Page 14
Colour Television
21PT1364
21PT1664
Product Information
Screen size 21” (52 cm)
Picture tube 21” Black Line
Viewing area 50 cm (21”)
Iron Mask
Smart Picture Modes Soft,Natural, Rich,
Personal
Contrast Plus
Sharpness Control
Color T emperature Control
Noise Reduction
Sound
Sound output 1 x 4 Watts RMS
Loudspeakers Full Range Speakers
Smart Sound Modes Movie, Music, Speech,
Personal
Smart Listening (Delta Volume)
Reception
Tuning system PLL digital tuning
Tuner UV, S and Hyperband
Channel selection 100 presets
Aerial input 75 Ohm Coaxial
TV systems See table
Video playback NTSC 3.58 / 4.43
Stereo systems See table
Plug and Play installation
Easy T une (ATS/ACI)
(Optional) See table
Teletext (21PT1664 only)
Reception standards TOP / FLOF
10 page memory
SmarText (4 Favorite Pages)
Connectors
Front Stereo headphone out (3.5 mm)
Video CVBS In + Audio mono In
Cinch
Rear Ext 1:Scart CVBS In/Out + RGB In
Operation
Remote control RC2525/01 (21PT1664)
RC282601/01 (21PT1364)
No.of RC buttons 39 buttons (RC2525)
24 buttons (RC282601)
Multi language on-screen display
Cursor Control
Program Information Line (21PT1664 only)
Alternate Channel Selection
Smart Lock
Sleeptimer (240 minutes)
Smart Clock
Wake-up Clock
Measurements
Mains 220 - 240V, 50 Hz
Power consumption 63 Watts
10 Watts (Standby)
Net weight 19.5 kg (approx.)
Gross weight 23 kg (approx.)
Set dimension 549 x 495 x 468
(W x D x H mm)
Box dimension 647 x 568 x 586
(W x D x H mm)
Box dimension 647 x 651 x 586
inclu.stand (W x D x H mm)
Product Highlights
Black Line picture tube
The Black Line picture tube offers excellent images
with high sharpness and contrast and less reflection for
brilliant colors and improved viewing in daylight
conditions.
Contrast Plus
A special circuitry has been incorporated into this
receiver to enhance the darker portions of the picture
for added realism and overall picture quality.
Smart Picture
A touch of the SMART PICTURE button on the remote
control provides the option of selecting one of four
preset positions (Soft,Natural, Ric h, Personal) to enjoy
excellent viewing under different lighting conditions.
Select the desired option and all important picture
elements are instantly adjusted to optimize viewing
pleasure.‘Rich’for bright daylight conditions,‘Soft’ for
dark room settings,‘Natural’for normal ambient conditions and ‘Personal’ for individual preference.
Smart Sound
A touch of the SMART SOUND button on the remote
control provides the option of selecting one of four
preset positions (Movie,Music,Speech, Personal) to
optimize each individual sound preference when
viewing different programs or sources .
SmarText (Favorite Pages)
A touch of any one of the four colored teletext buttons
on the remote control recalls instantly the desired
favorite teletext page. Simply program four favorite
teletext page numbers into the four teletext colored
buttons for quick access.
Easy T une (ATS/A CI)
A no fuss and easy way to install and store channels in
any favorite order
Sleeptimer
The Sleeptimer automatically turns the TV off at a
preset time of up to 240 minutes from the time the
feature is activated.Sleeptimer settings are
programmed in 15,30 and 60-minute increments.
Plug and Play
No problem anymore to install your new TV.
You choose the language you are more famliar with,
the country you are in and the TV will install
automatically all available programs.
Predecessor : 21PT1663
Chassis : L9SS
Release date (TTM) : July 1999
Reference : Basic/EEU/PH/GR750/0898
Date of issue : December 1998 Features and specifications subject to change without notice
PAL PAL PAL SECAM SECAM SECAM
BG DK I BG DK LL’
version
transmission
system
stand
supplied
in the
box
21PT1664 /00 • •
ATS/
ACI
21PT1664 /01 • • • • •
21PT1664 /05 • • •
21PT1664 /58 • • • • • •
21PT1364 /58 • • • •
Page 15
Colour Television
21PT1364
21PT1664
Product Information
Screen size 21” (52 cm)
Picture tube 21” Black Line
Viewing area 50 cm (21”)
Iron Mask
Smart Picture Modes Soft,Natural, Rich,
Personal
Contrast Plus
Sharpness Control
Color T emperature Control
Noise Reduction
Sound
Sound output 1 x 4 Watts RMS
Loudspeakers Full Range Speakers
Smart Sound Modes Movie, Music, Speech,
Personal
Smart Listening (Delta Volume)
Reception
Tuning system PLL digital tuning
Tuner UV, S and Hyperband
Channel selection 100 presets
Aerial input 75 Ohm Coaxial
TV systems See table
Video playback NTSC 3.58 / 4.43
Stereo systems See table
Plug and Play installation
Easy T une (ATS/ACI)
(Optional) See table
Teletext (21PT1664 only)
Reception standards TOP / FLOF
10 page memory
SmarText (4 Favorite Pages)
Connectors
Front Stereo headphone out (3.5 mm)
Video CVBS In + Audio mono In
Cinch
Rear Ext 1:Scart CVBS In/Out + RGB In
Operation
Remote control RC2525/01 (21PT1664)
RC282601/01 (21PT1364)
No.of RC buttons 39 buttons (RC2525)
24 buttons (RC282601)
Multi language on-screen display
Cursor Control
Program Information Line (21PT1664 only)
Alternate Channel Selection
Smart Lock
Sleeptimer (240 minutes)
Smart Clock
Wake-up Clock
Measurements
Mains 220 - 240V, 50 Hz
Power consumption 63 Watts
10 Watts (Standby)
Net weight 19.5 kg (approx.)
Gross weight 23 kg (approx.)
Set dimension 549 x 495 x 468
(W x D x H mm)
Box dimension 647 x 568 x 586
(W x D x H mm)
Box dimension 647 x 651 x 586
inclu.stand (W x D x H mm)
Product Highlights
Black Line picture tube
The Black Line picture tube offers excellent images
with high sharpness and contrast and less reflection for
brilliant colors and improved viewing in daylight
conditions.
Contrast Plus
A special circuitry has been incorporated into this
receiver to enhance the darker portions of the picture
for added realism and overall picture quality.
Smart Picture
A touch of the SMART PICTURE button on the remote
control provides the option of selecting one of four
preset positions (Soft,Natural, Ric h, Personal) to enjoy
excellent viewing under different lighting conditions.
Select the desired option and all important picture
elements are instantly adjusted to optimize viewing
pleasure.‘Rich’for bright daylight conditions,‘Soft’ for
dark room settings,‘Natural’for normal ambient conditions and ‘Personal’ for individual preference.
Smart Sound
A touch of the SMART SOUND button on the remote
control provides the option of selecting one of four
preset positions (Movie,Music,Speech, Personal) to
optimize each individual sound preference when
viewing different programs or sources .
SmarText (Favorite Pages)
A touch of any one of the four colored teletext buttons
on the remote control recalls instantly the desired
favorite teletext page. Simply program four favorite
teletext page numbers into the four teletext colored
buttons for quick access.
Easy T une (ATS/A CI)
A no fuss and easy way to install and store channels in
any favorite order
Sleeptimer
The Sleeptimer automatically turns the TV off at a
preset time of up to 240 minutes from the time the
feature is activated.Sleeptimer settings are
programmed in 15,30 and 60-minute increments.
Plug and Play
No problem anymore to install your new TV.
You choose the language you are more famliar with,
the country you are in and the TV will install
automatically all available programs.
Predecessor : 21PT1663
Chassis : L9SS
Release date (TTM) : July 1999
Reference : Basic/EEU/PH/GR750/0898
Date of issue : December 1998 Features and specifications subject to change without notice
PAL PAL PAL SECAM SECAM SECAM
BG DK I BG DK LL’
version
transmission
system
stand
supplied
in the
box
21PT1664 /00 • •
ATS/
ACI
21PT1664 /01 • • • • •
21PT1664 /05 • • •
21PT1664 /58 • • • • • •
21PT1364 /58 • • • •
Page 16
Colour Television
21PT1364
21PT1664
Product Information
Screen size 21” (52 cm)
Picture tube 21” Black Line
Viewing area 50 cm (21”)
Iron Mask
Smart Picture Modes Soft,Natural, Rich,
Personal
Contrast Plus
Sharpness Control
Color T emperature Control
Noise Reduction
Sound
Sound output 1 x 4 Watts RMS
Loudspeakers Full Range Speakers
Smart Sound Modes Movie, Music, Speech,
Personal
Smart Listening (Delta Volume)
Reception
Tuning system PLL digital tuning
Tuner UV, S and Hyperband
Channel selection 100 presets
Aerial input 75 Ohm Coaxial
TV systems See table
Video playback NTSC 3.58 / 4.43
Stereo systems See table
Plug and Play installation
Easy T une (ATS/ACI)
(Optional) See table
Teletext (21PT1664 only)
Reception standards TOP / FLOF
10 page memory
SmarText (4 Favorite Pages)
Connectors
Front Stereo headphone out (3.5 mm)
Video CVBS In + Audio mono In
Cinch
Rear Ext 1:Scart CVBS In/Out + RGB In
Operation
Remote control RC2525/01 (21PT1664)
RC282601/01 (21PT1364)
No.of RC buttons 39 buttons (RC2525)
24 buttons (RC282601)
Multi language on-screen display
Cursor Control
Program Information Line (21PT1664 only)
Alternate Channel Selection
Smart Lock
Sleeptimer (240 minutes)
Smart Clock
Wake-up Clock
Measurements
Mains 220 - 240V, 50 Hz
Power consumption 63 Watts
10 Watts (Standby)
Net weight 19.5 kg (approx.)
Gross weight 23 kg (approx.)
Set dimension 549 x 495 x 468
(W x D x H mm)
Box dimension 647 x 568 x 586
(W x D x H mm)
Box dimension 647 x 651 x 586
inclu.stand (W x D x H mm)
Product Highlights
Black Line picture tube
The Black Line picture tube offers excellent images
with high sharpness and contrast and less reflection for
brilliant colors and improved viewing in daylight
conditions.
Contrast Plus
A special circuitry has been incorporated into this
receiver to enhance the darker portions of the picture
for added realism and overall picture quality.
Smart Picture
A touch of the SMART PICTURE button on the remote
control provides the option of selecting one of four
preset positions (Soft,Natural, Ric h, Personal) to enjoy
excellent viewing under different lighting conditions.
Select the desired option and all important picture
elements are instantly adjusted to optimize viewing
pleasure.‘Rich’for bright daylight conditions,‘Soft’ for
dark room settings,‘Natural’for normal ambient conditions and ‘Personal’ for individual preference.
Smart Sound
A touch of the SMART SOUND button on the remote
control provides the option of selecting one of four
preset positions (Movie,Music,Speech, Personal) to
optimize each individual sound preference when
viewing different programs or sources .
SmarText (Favorite Pages)
A touch of any one of the four colored teletext buttons
on the remote control recalls instantly the desired
favorite teletext page. Simply program four favorite
teletext page numbers into the four teletext colored
buttons for quick access.
Easy T une (ATS/A CI)
A no fuss and easy way to install and store channels in
any favorite order
Sleeptimer
The Sleeptimer automatically turns the TV off at a
preset time of up to 240 minutes from the time the
feature is activated.Sleeptimer settings are
programmed in 15,30 and 60-minute increments.
Plug and Play
No problem anymore to install your new TV.
You choose the language you are more famliar with,
the country you are in and the TV will install
automatically all available programs.
Predecessor : 21PT1663
Chassis : L9SS
Release date (TTM) : July 1999
Reference : Basic/EEU/PH/GR750/0898
Date of issue : December 1998 Features and specifications subject to change without notice
PAL PAL PAL SECAM SECAM SECAM
BG DK I BG DK LL’
version
transmission
system
stand
supplied
in the
box
21PT1664 /00 • •
ATS/
ACI
21PT1664 /01 • • • • •
21PT1664 /05 • • •
21PT1664 /58 • • • • • •
21PT1364 /58 • • • •
Page 17
Colour Television
21PT1364
21PT1664
Product Information
Screen size 21” (52 cm)
Picture tube 21” Black Line
Viewing area 50 cm (21”)
Iron Mask
Smart Picture Modes Soft,Natural, Rich,
Personal
Contrast Plus
Sharpness Control
Color T emperature Control
Noise Reduction
Sound
Sound output 1 x 4 Watts RMS
Loudspeakers Full Range Speakers
Smart Sound Modes Movie, Music, Speech,
Personal
Smart Listening (Delta Volume)
Reception
Tuning system PLL digital tuning
Tuner UV, S and Hyperband
Channel selection 100 presets
Aerial input 75 Ohm Coaxial
TV systems See table
Video playback NTSC 3.58 / 4.43
Stereo systems See table
Plug and Play installation
Easy T une (ATS/ACI)
(Optional) See table
Teletext (21PT1664 only)
Reception standards TOP / FLOF
10 page memory
SmarText (4 Favorite Pages)
Connectors
Front Stereo headphone out (3.5 mm)
Video CVBS In + Audio mono In
Cinch
Rear Ext 1:Scart CVBS In/Out + RGB In
Operation
Remote control RC2525/01 (21PT1664)
RC282601/01 (21PT1364)
No.of RC buttons 39 buttons (RC2525)
24 buttons (RC282601)
Multi language on-screen display
Cursor Control
Program Information Line (21PT1664 only)
Alternate Channel Selection
Smart Lock
Sleeptimer (240 minutes)
Smart Clock
Wake-up Clock
Measurements
Mains 220 - 240V, 50 Hz
Power consumption 63 Watts
10 Watts (Standby)
Net weight 19.5 kg (approx.)
Gross weight 23 kg (approx.)
Set dimension 549 x 495 x 468
(W x D x H mm)
Box dimension 647 x 568 x 586
(W x D x H mm)
Box dimension 647 x 651 x 586
inclu.stand (W x D x H mm)
Product Highlights
Black Line picture tube
The Black Line picture tube offers excellent images
with high sharpness and contrast and less reflection for
brilliant colors and improved viewing in daylight
conditions.
Contrast Plus
A special circuitry has been incorporated into this
receiver to enhance the darker portions of the picture
for added realism and overall picture quality.
Smart Picture
A touch of the SMART PICTURE button on the remote
control provides the option of selecting one of four
preset positions (Soft,Natural, Ric h, Personal) to enjoy
excellent viewing under different lighting conditions.
Select the desired option and all important picture
elements are instantly adjusted to optimize viewing
pleasure.‘Rich’for bright daylight conditions,‘Soft’ for
dark room settings,‘Natural’for normal ambient conditions and ‘Personal’ for individual preference.
Smart Sound
A touch of the SMART SOUND button on the remote
control provides the option of selecting one of four
preset positions (Movie,Music,Speech, Personal) to
optimize each individual sound preference when
viewing different programs or sources .
SmarText (Favorite Pages)
A touch of any one of the four colored teletext buttons
on the remote control recalls instantly the desired
favorite teletext page. Simply program four favorite
teletext page numbers into the four teletext colored
buttons for quick access.
Easy T une (ATS/A CI)
A no fuss and easy way to install and store channels in
any favorite order
Sleeptimer
The Sleeptimer automatically turns the TV off at a
preset time of up to 240 minutes from the time the
feature is activated.Sleeptimer settings are
programmed in 15,30 and 60-minute increments.
Plug and Play
No problem anymore to install your new TV.
You choose the language you are more famliar with,
the country you are in and the TV will install
automatically all available programs.
Predecessor : 21PT1663
Chassis : L9SS
Release date (TTM) : July 1999
Reference : Basic/EEU/PH/GR750/0898
Date of issue : December 1998 Features and specifications subject to change without notice
PAL PAL PAL SECAM SECAM SECAM
BG DK I BG DK LL’
version
transmission
system
stand
supplied
in the
box
21PT1664 /00 • •
ATS/
ACI
21PT1664 /01 • • • • •
21PT1664 /05 • • •
21PT1664 /58 • • • • • •
21PT1364 /58 • • • •
Page 18
Colour Television
21PT1364
21PT1664
Product Information
Screen size 21” (52 cm)
Picture tube 21” Black Line
Viewing area 50 cm (21”)
Iron Mask
Smart Picture Modes Soft,Natural, Rich,
Personal
Contrast Plus
Sharpness Control
Color T emperature Control
Noise Reduction
Sound
Sound output 1 x 4 Watts RMS
Loudspeakers Full Range Speakers
Smart Sound Modes Movie, Music, Speech,
Personal
Smart Listening (Delta Volume)
Reception
Tuning system PLL digital tuning
Tuner UV, S and Hyperband
Channel selection 100 presets
Aerial input 75 Ohm Coaxial
TV systems See table
Video playback NTSC 3.58 / 4.43
Stereo systems See table
Plug and Play installation
Easy T une (ATS/ACI)
(Optional) See table
Teletext (21PT1664 only)
Reception standards TOP / FLOF
10 page memory
SmarText (4 Favorite Pages)
Connectors
Front Stereo headphone out (3.5 mm)
Video CVBS In + Audio mono In
Cinch
Rear Ext 1:Scart CVBS In/Out + RGB In
Operation
Remote control RC2525/01 (21PT1664)
RC282601/01 (21PT1364)
No.of RC buttons 39 buttons (RC2525)
24 buttons (RC282601)
Multi language on-screen display
Cursor Control
Program Information Line (21PT1664 only)
Alternate Channel Selection
Smart Lock
Sleeptimer (240 minutes)
Smart Clock
Wake-up Clock
Measurements
Mains 220 - 240V, 50 Hz
Power consumption 63 Watts
10 Watts (Standby)
Net weight 19.5 kg (approx.)
Gross weight 23 kg (approx.)
Set dimension 549 x 495 x 468
(W x D x H mm)
Box dimension 647 x 568 x 586
(W x D x H mm)
Box dimension 647 x 651 x 586
inclu.stand (W x D x H mm)
Product Highlights
Black Line picture tube
The Black Line picture tube offers excellent images
with high sharpness and contrast and less reflection for
brilliant colors and improved viewing in daylight
conditions.
Contrast Plus
A special circuitry has been incorporated into this
receiver to enhance the darker portions of the picture
for added realism and overall picture quality.
Smart Picture
A touch of the SMART PICTURE button on the remote
control provides the option of selecting one of four
preset positions (Soft,Natural, Ric h, Personal) to enjoy
excellent viewing under different lighting conditions.
Select the desired option and all important picture
elements are instantly adjusted to optimize viewing
pleasure.‘Rich’for bright daylight conditions,‘Soft’ for
dark room settings,‘Natural’for normal ambient conditions and ‘Personal’ for individual preference.
Smart Sound
A touch of the SMART SOUND button on the remote
control provides the option of selecting one of four
preset positions (Movie,Music,Speech, Personal) to
optimize each individual sound preference when
viewing different programs or sources .
SmarText (Favorite Pages)
A touch of any one of the four colored teletext buttons
on the remote control recalls instantly the desired
favorite teletext page. Simply program four favorite
teletext page numbers into the four teletext colored
buttons for quick access.
Easy T une (ATS/A CI)
A no fuss and easy way to install and store channels in
any favorite order
Sleeptimer
The Sleeptimer automatically turns the TV off at a
preset time of up to 240 minutes from the time the
feature is activated.Sleeptimer settings are
programmed in 15,30 and 60-minute increments.
Plug and Play
No problem anymore to install your new TV.
You choose the language you are more famliar with,
the country you are in and the TV will install
automatically all available programs.
Predecessor : 21PT1663
Chassis : L9SS
Release date (TTM) : July 1999
Reference : Basic/EEU/PH/GR750/0898
Date of issue : December 1998 Features and specifications subject to change without notice
PAL PAL PAL SECAM SECAM SECAM
BG DK I BG DK LL’
version
transmission
system
stand
supplied
in the
box
21PT1664 /00 • •
ATS/
ACI
21PT1664 /01 • • • • •
21PT1664 /05 • • •
21PT1664 /58 • • • • • •
21PT1364 /58 • • • •
Page 19
VIS_RC2525_FT1.EPS
Loading...
