Philips 21PT1356, 21PT1556 User Manual

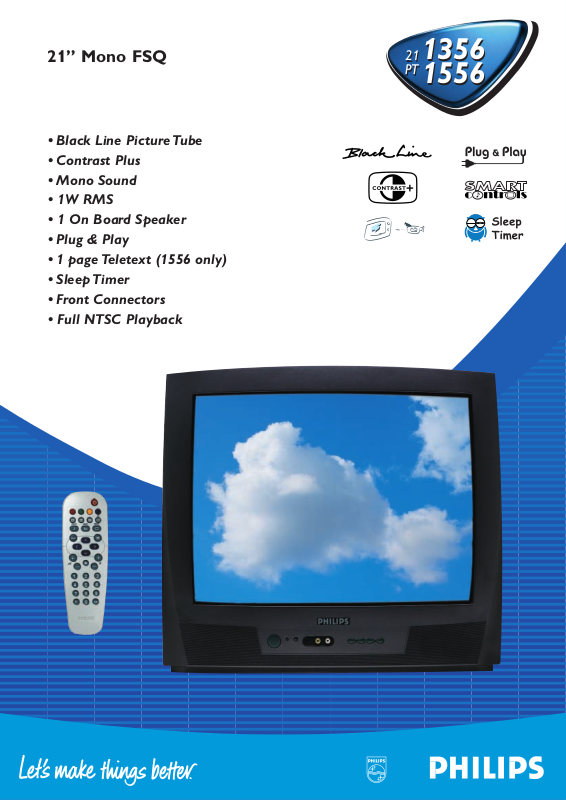

21” Mono FSQ
• Black Line Picture Tube
• Contrast Plus
• Mono Sound
• 1W RMS
• 1 On Board Speaker
• Plug & Play
• 1 page Teletext (1556 only)
• Sleep Timer
• Front Connectors
• Full NTSC Playback
1356
21
PT
1556
1356
21
PT
1556
Product Information
• Screen Size: 21” (52 cm)
• Visible screen size: 50 cm
• Picture Tube :Black Line
• Contrast Plus
• Sharpness Control
Sound
• Sound Power: 1 W RMS
2 W Music Power
• 1 On Board Speaker
Ease of Use Installation
• Plug & Play
• 100 Preset channels
• Autostore
Ease of Use Utilisation
• Remote Control: RCLE011 (21PT1556)
RCLE012 (21PT1356)
• Smart Picture Control: Soft, Natural, Rich,
Multimedia, Personal
• Smart Sound Control : Movie, Speech
Music, Personal
• Sleep Timer
Product Highlights
Black Line
The Black Line picture tube offers excellent images with
high sharpness and contrast and less reflection for brilliant colors and improved viewing in daylight conditions.
Contrast Plus
A special circuitry has been incorporated into this
receiver to enhance the darker portions of the picture
for added realism and overall picture quality.
Smart Picture
A touch of the SMART PICTURE button on the remote
control provides the option of selecting one of four preset
positions (Rich, Natural, Soft, Personal, Multimedia) to
enhance enjoyment of video games, sports and movies,
also based upon the room lighting condition. By selecting
the desired option, all impor tant picture elements are
instantly adjusted to optimize viewing pleasure.
Smart Sound
A touch of the SMART SOUND button on the remote
control provides the option of selecting one of four preset positions (Theatre, Music,Voice, Personal) to suit
each individual sound preference when viewing different
programs or sources.
Plug and Play
No problem anymore to install your new TV. You choose
the language you are more familiar with, the country
you are in and the TV will install automatically all available programs.
1 page Teletext
Teletext information available.
Sleeptimer
The Sleeptimer automatically turns the TV off at a preset time of up to 240 minutes from the time the feature is activated. Sleeptimer settings are programmed in
15, 30, and 60-minute increments.
Front Connections
Connections for headphone and other inputs such as
camcorder, front entry for ease of use
21” Mono FSQ
Connections
Front
• CVBS Video in
• Audio (cinch/RCA) in
• Headphone Jack 3,5 mm out
Back
• Euro A/V connector Ext1 (RGB in, CVBS in/out)
Information
• 1 Page Teletext (1556 only)
• Program Information Line
Reception
• Tuning System : PLL digital tuning
• Tuner : VHF, UHF, S-Channel, Hyperband
• Aerial Input : 75 ohm Coaxial
• TV System : See table
• Video Playback: NTSC 4.43/3.58
Miscellaneous
• Mains : AC 220-240V, 50/60 Hz (stroke /01, /05)
AC 90-276V, 50/60 Hz (stroke /58)
• Power Consumption: 50W Normal Operation
< 3W Stand by
• Set Weight : 21kg
• Weight Incl. Packaging : 22 kg
• Set Dimension (WxHxD) : 514x494x487mm
• Box Dimension (WxHxD): 592x584x565 mm
• TV Colour : Metallic Antracite (10897)
Predecessor : 21PT1354/1654
Chassis : L01 SS
Introduction :Year 2002
Features and specifications subject to change without notice
1356
21
PT
1556
1356
21
PT
1556
PAL PAL PAL SECAM SECAM SECAM
BG DK I BG DK LL’
version
transmission
system
21PT1356/1556 /00 •
stand
supplied
in the
box
21PT1356/1556 /01 • • • •
21PT1356/1556 /05 • •
21PT1356/1556 /58 • • • •
05/01
