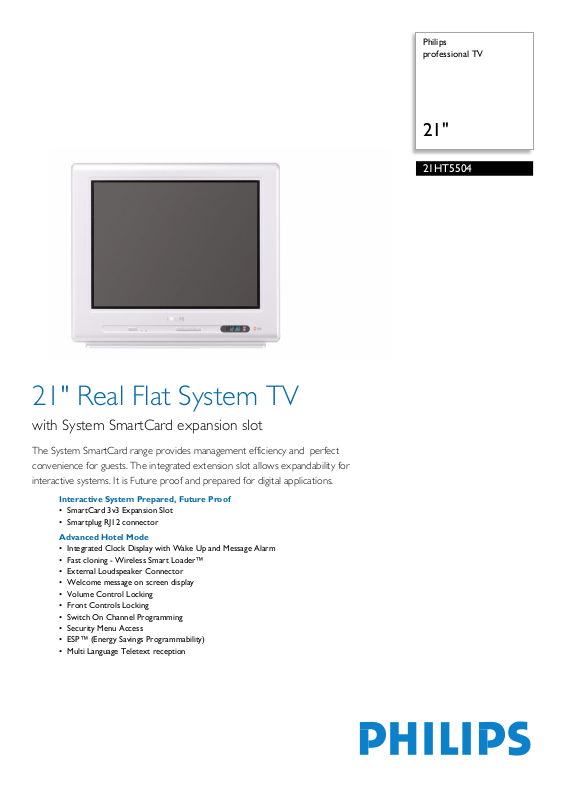

Philips 21HT5504 User Manual

For preview purpose only

Philips
professional TV

21"

21HT5504

21" Real Flat System TV

with System SmartCard expansion slot

The System SmartCard range provides management efficiency and perfect
convenience for guests. The integrated extension slot allows expandability for
interactive systems. It is Future proof and prepared for digital applications.

Interactive System Prepared, Future Proof

• SmartCard 3v3 Expansion Slot

• Smartplug RJ12 connector

Advanced Hotel Mode

• Integrated Clock Display with Wake Up and Message Alarm

• Fast cloning - Wireless Smart Loader™

• External Loudspeaker Connector

• Welcome message on screen display

• Volume Control Locking

• Front Controls Locking

• Switch On Channel Programming

• Security Menu Access

• ESP™ (Energy Savings Programmability)

• Multi Language Teletext reception

For preview purpose only

professional TV

21"

Technical specifications Product highlights

Picture/Display

• Aspect ratio: 4:3

• Diagonal screen size: 21 inch / 55 cm

• Visible diagonal screen size: 51 cm

• Display screen type: Real Flat picture tube

• Picture enhancement: Smart Picture

Sound

• RMS Power rating: 2x2W

• Sound System: Stereo

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Use: Smart Picture Control, Smart Sound
Control

• Remote control type: RC86702/01 (not
included)

• Teletext: 1 page Teletext

• Clock: Sleep Timer, On separate display

Tuner/Reception/Transmission

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: PAL B/G, PAL D/K, PAL I, SECAM B/
G, SECAM D/K, SECAM L/L'

• Video Playback: NTSC

• Aerial Input: 75 ohm coaxial (2x) (IEC75)

Connectivity

• Ext 1 Scart: CVBS in/out, RGB

• Front / Side connections: Audio L/R in, CVBS in,
Headphone out

• Connectivity Enhancements: SmartCard
Expansion Slot, External Loudspeaker
connector, RJ12 SmartPlug connector

Power

• Power consumption: 52 W Normal
Operation W

• Standby power consumption: 4W

• Mains power: AC 220 - 240 V +/- 10%

• Off Mode: 2.5 W

Dimensions

• Product weight: 21 kg

• Weight incl. Packaging: 24 kg

• Color cabinet: Frost Silver

• Set dimensions (W x H x D):
532x479x468mm

•

21HT5504/01Z

SmartCard 3v3 Expansion Slot

Permits OEM or 3rd party decoders and controllers to
be installed inside the television for custom designed
component integration. Eliminates the need for external
set-top decoders, controllers, or data terminals.
Integrates system for superior control applications.
Allows expandability for future upgrades. Prepared for
digital applications.

Smartplug RJ12 connector

The Smartplug RJ12 connector permits OEM or 3rd
party decoders and controllers to interface with the TV.

Integrated Clock Display

The built-in clock display, which is also an wake-up
alarm, eliminates the need for an additional clock with
cables and connections in the room. Automatic time
synchronisation via teletext, selectable display
brightness and wake-up alarm level to enhance guest
comfort.

Wireless Smart Loader™

Provides the ability to copy easy and wireless all
programmming settings from one TV set into other TV
sets in less then a minute. The feature ensures
uniformity between TV sets and significantly reduces
installation time and costs.

External Loudspeaker Connector

Amplified audio connector for easy installation of
external speakers (like for bathrooms), eliminating the
need for investments in external equipment

Welcome Message

Welcome greeting displayed on screen each time the
TV set is switched on

Volume Control Locking

This feature predefines the volume range in which the
TV set can operate, preventing excessive volume
adjustments avoiding disturbance of next door guests.

Front Controls Locking

Prevents unauthorised access to TV functions

Switch On Channel Programming

It forces the TV set to a specified channel when turned
on. Perfect for in-house advertising or information
channels.

Security Menu Access

Provides conditional access to installation and
configuration settings via a special code or master
remote control

ESP™

Feature can be selected in the set-up menu. The TV can
be switched off automatically after a specified period of
use saving energy and provide extended product life
time. The selectable range is from 0 to 99 hours.

Multi Language Teletext

Allows users to select their preferred language
supported by the teletext characters

Date of issue 2006-06-02

Version: 2.0

12 NC: 8670 000 18189
EAN: 87 10895 75552 8

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
