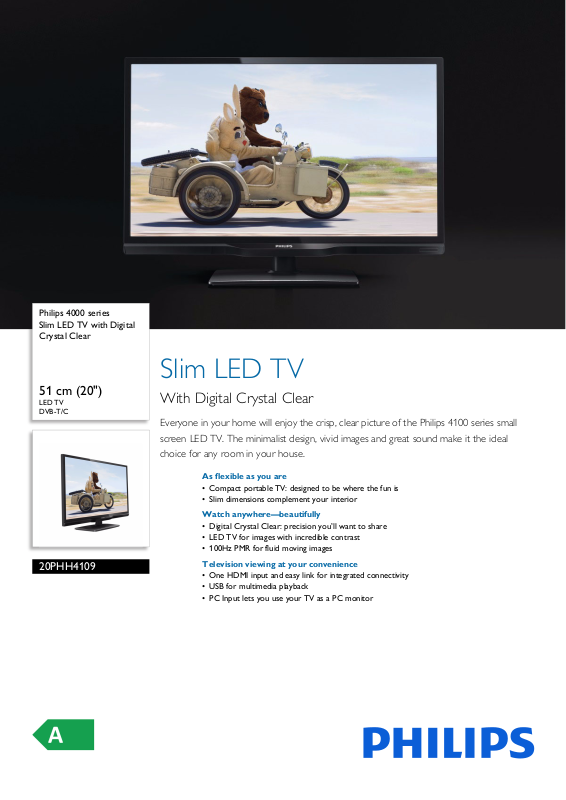

Page 1
Philips 4000 series
Slim LED TV with Digital
Crystal Clear
Slim LED TV
51 cm (20")
LED TV
DVB-T/C
20PHH4109
With Digital Crystal Clear
Everyone in your home will enjoy the crisp, clear picture of the Philips 4100 series small
screen LED TV. The minimalist design, vivid images and great sound make it the ideal
choice for any room in your house.
As flexible as you are
• Compact portable TV: designed to be where the fun is
• Slim dimensions complement your interior
Watch anywhere—beautifully
• Digital Crystal Clear: precision you’ll want to share
• LED TV for images with incredible contrast
• 100Hz PMR for fluid moving images
Television viewing at your convenience
• One HDMI input and easy link for integrated connectivity
• USB for multimedia playback
• PC Input lets you use your TV as a PC monitor
Page 2
20PHH4109/88
Slim LED TV
51 cm (20") LED TV, DVB-T/C
Highlights
Portable design
Stylish, compact and lightweight. Your small
screen
TV lets you catch up with your
favourite programmes in the kitchen, keeps
you up to date with the news while you tinker
around in the garage, and gives you the latest
sports scores as you BBQ. A TV this portable
likes to be where the fun is!
Slim profile
The Philips Slim profile TV makes a statement
w
ith its sleek, sophisticated dimensions. After
all, why shouldn't your TV be as beautiful as it
is functional?
Digital Crystal Clear
For natural pictures from any source, Philips
cre
ated Digital Crystal Clear. Because whether
you indulge in your favourite soap, the news,
or have friends over to watch a video—you'll
enjoy it all in optimal contrast, colour and
sharpness.
LED TV
With LED backlight you can enjoy low power
consu
mption and beautiful lines combined with
high brightness, incredible contrast and vibrant
colours.
100 Hz Perfect Motion Rate
Nothing beats the adrenaline rush of gaming,
fast pace
That's why this Philips TV has 100Hz Perfect
Motion Rate; so you’ll enjoy fluid moving
images. Because even though your pulse may
jump, the image you’re watching shouldn’t.
One HDMI input with Easylink
Avoid cable clutter with a single cable to carry
bo
d sporting events or action films.
th picture and audio signals from your
devices to your TV. HDMI uses uncompressed
signals, ensuring the highest quality from
source to screen. Together with Philips
Easylink, you'll need only one remote control
to perform most operations on your TV, DVD,
Blu-ray, set top box or home cinema system.
USB (photos, music, video)
Share the fun. Connect your USB memorystick
, digital camera, mp3 player or other
mu ltim edia device to t he USB port on yo ur TV
to enjoy photos, videos and music with the
easy to use onscreen content browser.
PC input (VGA)
Use your TV as a monitor. Simply connect
u
sing a VGA cable and you are ready to go.
Page 3
20PHH4109/88
Slim LED TV
51 cm (20") LED TV, DVB-T/C
Specifications
Picture/Display
• Display: LED HD TV
• Diagonal screen size: 20 inch / 51 cm
• Panel resolution: 1366 x 768p
• Aspect ratio: 4:3/16:9
• Brightness: 250 cd/m²
a
• Picture enhancement: Digital Cryst
l Clear, 100 Hz
Perfect Motion Rate
Smart Interaction
• Programme: Pause TV, USB Recording*
• Ease of Use: One-stop Home button
• Firmware upgradeable: Firmware auto upgrade
, Firmware upgradeable via USB
wizard
• Screen Format Adjustments: Advance - Shift, Basic
reen, Fit to Screen, Stretch, Zoom
- Fill Sc
• Signal strength indication
• Teletext: 1000-page Hypertext
El
• Electronic Programme Guide*: 8 days
ectronic
Programme Guide
Sound
• Output power (RMS): 5 W
• Sound Enhancement: Incredible Surround, Clear
Sound, Auto Volume Le
veller, Dynamic Bass
Enhancement
Connectivity
• Number of HDMI connections: 1
•Number of scarts (RGB/CVBS): 1
• Number of USBs: 1
• Other connections: CI+1.3 certified, Antenna
C75, Comm
IE
on Interface Plus (CI+), Audio in
(VGA/DVI), PC-In VGA, Digital audio out (optical),
Headphone out, Service connector
• EasyLink (HDMI-CEC): Remote control passrou
gh, System audio control, System standby,
th
Auto subtitle shift (Philips)*, Pixel Plus link
(Philips)*, One touch play
Multimedia Applications
• Video Playback Formats: Containers: AVI, MKV,
H264/MPEG-4 AVC, MPEG-1, MPEG-2, MPEG-4,
WMV9/VC1
• Subtitles Formats Support: .AAS, .SMI, .SRT, .SSA,
B
, .TXT
.SU
• Music Playback Formats: AAC, AMR, LPCM, M4A,
MP3, MPEG1 L
1/2, WMA (v2 up to v9.2)
• Picture Playback Formats: JPEG, BMP, GIF, JPS,
PNG, PNS
Supported Display Resolution
• Computer inputs: up to 1920 x 1080 @ 60 Hz
• Video inputs: 24, 25, 30, 50, 60 Hz, up to 1920 x
1080p
Tuner/Reception/Transmission
• Digital TV: DVB-T/C
• MPEG Support: MPEG2, MPEG4
• Video Playback: NTSC, PAL, SECAM
Power
• Mains power: AC 220 - 240 V 50/60 Hz
• Ambient temperature: 5°C to 35°C
• EU Energy Label power: 21 W
• Annual energy consumption: 31 kW·h
• Standby power consumption: < 0.3 W
swit
• Power Saving Features: Auto
ch-off timer, Eco
mode, Picture mute (for radio)
• Off mode power consumption: < 0.3 W
• Energy Label Class: A
Dimensions
•Box dimensions (W x H x D):
560 x 375 x 106 mm
•Set dimensions (W x H x D): 460 x 299 x 53 mm
• Set dimensions with stand (W x H x D):
0 x
344 x 145 mm
46
• Product weight: 2.6 kg
• Product weight (+stand): 2.8 kg
• Weight incl. Packaging: 3.8 kg
• VESA wall mount compatible: 75 x 75 mm
Accessories
• Included accessories: Remote Control, Tabletop
stand, Power cord, Quick start guide, Legal and
safety brochure, Warranty Leaflet
•
Issue date 2019-06-10
Version: 8.0.2
12 NC: 8670 001 11167
EAN: 87 12581 70828 3
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* Software upgrade required for Pause TV and USB recording. For
more details about the software update, please visit
www.philips.com/TV and click on support.
* USB recording for digital channels only, recordings may be limited by
broadcast copy protection (CI+). Country and channel restrictions
may apply.
* The TV supports DVB reception for 'Free to air' broadcast. Specific
DVB operators may not be supported. An up to date list can be
found in the FAQ section of the Philips support website. For some
operators Conditional Access and subscription are required.
Contact your operator for more information.
* Energy consumption in kWh per year based on the power
consumption of the television operating 4 hours per day for 365
days. The actual energy consumption will depend on how the
television is used.
* EPG and actual visibility (up to 8 days) is country- and operator-
dependent.
* (Philips) only compatible with specific Philips player device.
