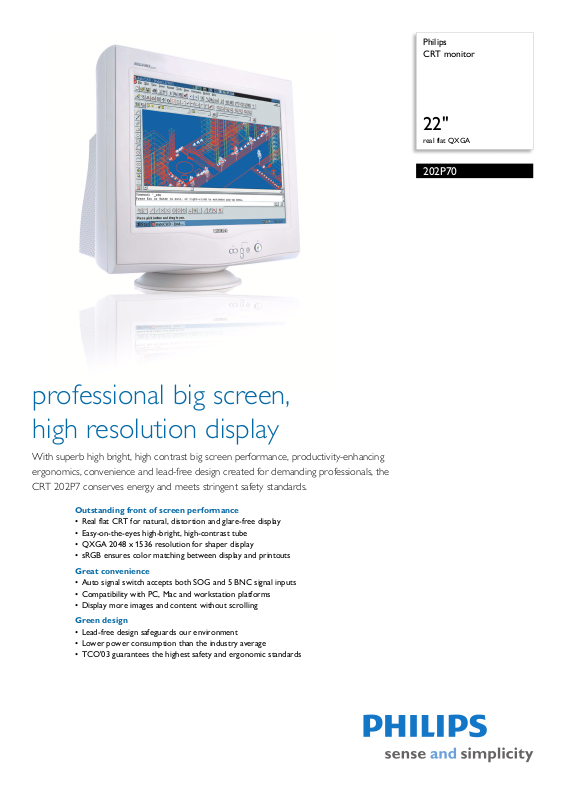

Philips 202P70-00 User Manual
Philips
CRT monitor
22"
real flat QXGA
202P70
professional big screen,
high resolution display
With superb high bright, high contrast big screen performance, productivity-enhancing
ergonomics, convenience and lead-free design created for demanding professionals, the
CRT 202P7 conserves energy and meets stringent safety standards.
Outstanding front of screen performance
• Real flat CRT for natural, distortion and glare-free display
• Easy-on-the-eyes high-bright, high-contrast tube
• QXGA 2048 x 1536 resolution for shaper display
• sRGB ensures color matching between display and printouts
Great convenience
• Auto signal switch accepts both SOG and 5 BNC signal inputs
• Compatibility with PC, Mac and workstation platforms
• Display more images and content without scrolling
Green design
• Lead-free design safeguards our environment
• Lower power consumption than the industry average
• TCO'03 guarantees the highest safety and ergonomic standards
CRT monitor
22" real flat QXGA
202P70/00
Specifications
Picture/Display
• Display screen type: Shadow mask Real Flat CRT
• Panel Size: 22"/ 55 cm
• Phosphor: P22
• Recommended display area(mm): 392 x 294 mm
• Recommended Display Area(inch): 15.4" x 11.6"
• Dot pitch: 0.25 mm
• Dot Pitch (horizontal): 0.21 mm
• White Chromaticity, 5500K: x = 0.332 / y = 0.347
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 2048 x 1536 @ 80 Hz
• Optimum Resolution: 1600 x 1200 @ 85 Hz
• Factory Preset Modes: 9 modes
• Factory Preset Mode: 1024 x 768 @ 75 Hz, 1024
8 @ 85 Hz, 1280 x 1024 @ 75 Hz, 1280 x
x 76
24 @ 85 Hz, 1600 x 1200 @ 75 Hz, 1600 x
10
00 @ 85 Hz, 1792 x 1344 @ 75 Hz, 1920 x
12
40 @ 75 Hz, 1920 x 1440 @ 85 Hz
14
• Factory Preload Modes: 27 modes
• Video Dot Rate: 360 MHz
• Horizontal Scanning Frequency: 30 - 130 kHz
• Vertical Scanning Frequency: 50 - 160 Hz
• Recommended Refresh Rate: 85 Hz
• Screen enhancement: Anti-glare Polarizer, Anti-
•sRGB
•GTF
n, Anti-Static, High Brightness, High
Reflectio
Contrast
on Green
• Video Sync Polarities: Positive and Negative
• Cable Connection: AC Power in, 5BNC, D-sub
Convenience
• User convenience: Auto Signal Switch, Menu
Languages, On-screen Display
• Monitor Controls: Brightness Control, Contrast
ntrol, Left/Right, Menu, Power On/Off, Up/
Co
Down
• OSD Languages: English, Fr
Spanish, Portuguese, Korean, Simplified Chinese
• Plug & Play Compatibility: DDC 2B, sRGB,
ws 98/ME/2000/XP
Windo
• Regulatory Approvals: CE Mark, FCC-B, UL, CSA,
O, TCO '03, TÜV/GS, TÜV Ergo, FDA
SEMK
•Swivel: +/- 90°
• Tilt: -5° to 25°
ench, German, Italian,
Accessories
• Included Accessories: AC Power Cord
• User Manual
Dimensions
• Dimensions (with base) (W x H x D):
501 x 501
• Temperature range (operation): 5°C to 35°C
• Temperature range (storage): -25°C to 65°C
•Weight: 26.34 kg
x 466 mm
Highlights
Real flat CRT display
Philips advanced flat CRT technology reduces glare
and reflection more efficiently than a conventional
CRT. The special high-bright, high-contrast shadow
mask helps maintain sharper focus and eliminates
'color blooming' compared to standard tubes. It
displays images on a monitor that look like images on
paper: Viewing the image is more comfortable.
Straight lines are straight. Finding a reflection-free
viewing position is much easier. This adds up to
reduced eyestrain for a comfortable viewing
experience.
High-bright-high-contrast tube
A CRT tube designed to increase display brightness
and contrast by increasing the CRT ray gun's beam
current.
QXGA, 2048 x 1536 resolution
Quantum eXtended Graphics Array: A screen
resolution of 2048 x 1536 pixels.
sRGB ready
Connectivity
• Cables: D-sub Video Cable, Power Cord
• Sync input impedance: 2.2k ohm
• Video input impedance: 75 ohm
• Video input signal levels: 0.7 Vpp
• Sync Input: Composite Sync,
Separate Sync, Sync
Power
• Consumption (On mode): 125 W (Typical)
• Consumption (Off Mode): 1 W
• Power LED indicator: Off - Amber, Operation -
n
gree
• Power supply: Built-in
•
sRGB is an industry standard that ensures the best
possible match between the colors displayed on
your screen and those in your printouts.
Auto signal switch
The function determines signal type and routes the
signal to the proper channel.
Platform compatibility
The ability to work with a variety of platforms;
Philips monitors are compatible to connect with PCs
and workstation by employing a VGA connection
and connect with Macintosh.
Large viewing area
Viewing area is the visible portion of a monitor
screen available for displaying data.
Lead-free
Lead-free display products are designed and
produced in compliance with strict European
Community Restriction of Hazardous Substances
(RoHS) standards that restrict lead and other toxic
substances that can harm the environment.
Energy efficiency
Reduction of the electrical power required to
operate a device to achieve real savings.
Issue date 2009-04-22
Version: 3.0.4
12 NC: 8639 000 16171
EAN: 87 10895 89170 7
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
TCO '03 compliance
