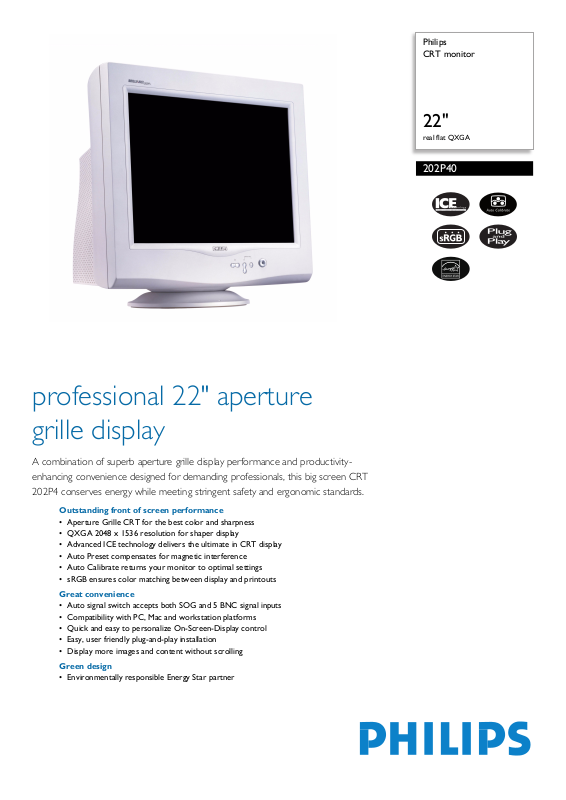

CRT monitor
22"
real flat QXGA
202P40
professional 22" aperture
grille display
A combination of superb aperture grille display performance and productivityenhancing convenience designed for demanding professionals, this big screen CRT
202P4 conserves energy while meeting stringent safety and ergonomic standards.
Outstanding front of screen performance
• Aperture Grille CRT for the best color and sharpness
• QXGA 2048 x 1536 resolution for shaper display
• Advanced ICE technology delivers the ultimate in CRT display
• Auto Preset compensates for magnetic interference
• Auto Calibrate returns your monitor to optimal settings
• sRGB ensures color matching between display and printouts
Great convenience
• Auto signal switch accepts both SOG and 5 BNC signal inputs
• Compatibility with PC, Mac and workstation platforms
• Quick and easy to personalize On-Screen-Display control
• Easy, user friendly plug-and-play installation
• Display more images and content without scrolling
Green design
• Environmentally responsible Energy Star partner
For preview purpose only
CRT monitor
22" real flat QXGA
Technical specifications Product highlights
Picture/Display
• Display screen type: Aperture Grille CRT
• Panel Size: 22"/ 55 cm
• Phosphor: B22
• Recommended display area(mm): 392 x 294 mm
• Recommended Display Area(inch): 15.4" x 11.6"
• Dot pitch: 0.24 mm
• Dot Pitch (horizontal): 0.24 mm
• White Chromaticity, 5500K: x = 0.332 /
y = 0.347
• White Chromaticity, 6500K: x = 0.313 /
y = 0.329
• White Chromaticity, 9300K: x = 0.283 /
y = 0.297
• Maximum Resolution: 2048 x 1536 @ 80 Hz
• Recommended Resolution: 1600 x 1200 @ 85
Hz
• Factory Preset Modes: 9 modes
• Factory Preset Mode: 1024 x 768 @ 75 Hz,
1024 x 768 @ 85 Hz, 1280 x 1024 @ 75 Hz,
1280 x 1024 @ 85 Hz, 1600 x 1200 @ 75 Hz,
1600 x 1200 @ 85 Hz, 1792 x 1344 @ 75 Hz,
1920 x 1440 @ 75 Hz, 1920 x 1440 @ 85 Hz
• Factory Preload Modes: 27 modes
• Video Dot Rate: 360 MHz
• Horizontal Scanning Frequency: 30 - 130 kHz
• Vertical Scanning Frequency: 50 - 160 Hz
• Recommended Refresh Rate: 85 Hz
• Screen enhancement: Anti-glare Polarizer, AntiReflection, Anti-Static, High Contrast, High
Brightness
• Picture enhancement: Auto Calibrate, ICE
Technology
•sRGB
•GTF
Connectivity
• Cables: D-sub Video Cable, Power Cord
• Sync input impedance: 2.2k ohm
• Video input impedance: 75 ohm
• Video input signal levels: 0.7 Vpp
• Video Sync Input Signal: Composite Sync,
Separate Sync, Sync on Green
• Video Sync Polarities: Positive and Negative
• Cable Connection: AC Power in, 5BNC, D-sub
Convenience
• Convenience Enhancements: Auto Preset, Auto
Signal Switch, Menu Languages, On-screen
Display
• Monitor Controls: Brightness Control, Contrast
Control, Left/Right, Menu, Power On/Off, Up/
Down
• OSD Languages: English, French, German, Italian,
Simplified Chinese, Spanish
• Plug & Play Compatibility: DDC 2B, sRGB,
Windows 98/ME/2000/XP
• Regulatory Approvals: CE Mark, FCC-B, UL,
CSA, SEMKO, TCO '03, TÜV/GS, TÜV Ergo,
FDA, E2000, NUTEK, Energy Star
• Swivel: +/- 90°
• Tilt: -5° to 25°
Accessories
• Included Accessories: AC Power Cord
•User Manual
Dimensions
• Dimensions (with base) (W x H x D):
501x501x466mm
• Temperature range (operation): 0°C to 35°C
• Temperature range (storage): -25°C to 65°C
• Weight: 29.6 kg
Power
• Complies with: E2000, Energy Star, NUTEK
• Consumption: 130 W (Typical)
• Off Mode: 1 W
• Power LED indicator: Off - Amber, Operation green
• Power supply: Built-in
•
202P40/94
Aperture Grille CRT
A high-end technology used for illuminating phosphors
in CRT tubes. It delivers a brighter, sharper overall
picture.
QXGA, 2048 x 1536 resolution
Qu an tum eXte nd ed Graph ic s Array: A s creen r es olution
of 2048 x 1536 pixels.
ICE technology
An exclusive Philips suite of technical enhancements
that deliver outstanding CRT display.
Auto preset
Designed to keep the purity and video position of your
monitor at good under different magnetic field.
Auto Calibrate
A one-touch system for maintaining optimal CRT
monitor performance by automatically recalibrating
color temperature to their original values.
sRGB ready
Calibrated RGB that is optimized for the vast majority
of computer peripherals, monitors, operating systems
and browsers, allowing accurate color mapping with
very little data overhead.
Auto signal switch
The function determines signal type and routes the
signal to the proper channel.
Platform compatibility
The ability to work with a variety of platforms; Philips
monitors are compatible to connect with PCs and
workstation by employing a VGA connection and
connect with Macintosh.
OSD On-Screen-Display control
An on-screen panel for adjusting a monitor. The OSD is
used for contrast, brightness, horizontal, vertical
positioning and other monitor adjustments.
Easy plug-and-play
Plug-and-play is a peripheral connectivity standard. A
plug and play display device can be connected to a PC
and operate without requiring user intervention to
adjust complicated settings.
Large viewing area
Viewing area is the visible portion of a monitor screen
available for displaying data.
Date of issue 2006-07-07
Version: 3.0
12 NC: 8639 000 14956
Energy efficiency
Reduction of the electrical power required to operate a
device to achieve real savings.
TCO '03 compliance
A TCO (Swedish Confederation of Professional
Employees) standard even more stringent than MPR-II
for safety and ergonomics, especially concerning
alternating electric fields (AEF).
Energy Star partner
A manufacturer in compliance with power conservation
requirements set forth by the Environmental Protection
Agency of the U.S. government.
Flame retardant case
PC/ABS plastic composite is the industry-best tough,
flame-retardant casing material, a space-age
compound deployed in the aerospace and automotive
industries as well as in fire detectors.
