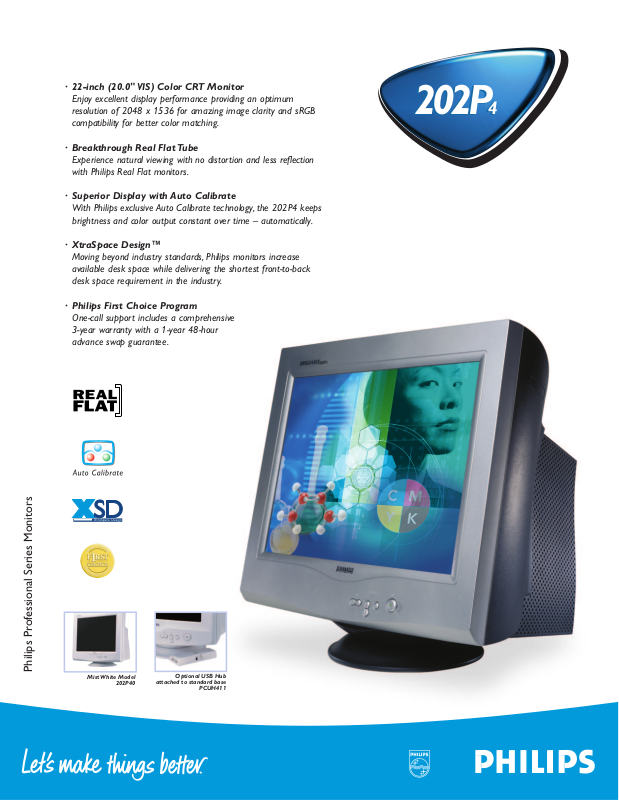

Philips 202P4074 User Manual

Philips Professional Series Monitors

202P4

Mist White Model

202P40

Optional USB Hub

attached to standard base

PCUH411

· 22-inch (20.0" VIS) Color CRT Monitor

Enjoy excellent display performance providing an optimum resolution of 2048 x 1536 for amazing image clarity and sRGB compatibility for better color matching.

·Breakthrough Real Flat Tube

Experience natural viewing with no distortion and less reflection with Philips Real Flat monitors.

· Superior Display with Auto Calibrate

With Philips exclusive Auto Calibrate technology, the 202P4 keeps brightness and color output constant over time – automatically.

· XtraSpace Design™

Moving beyond industry standards, Philips monitors increase available desk space while delivering the shortest front-to-back desk space requirement in the industry.

· Philips First Choice Program

One-call support includes a comprehensive 3-year warranty with a 1-year 48-hour advance swap guarantee.

202P4

202P

Product Number 202P45 (Black/Silver)

202P40 (Mist White)

Technical Specifications

CRT

• Size (inch/cm) 22.0 inch / 55 cm (20.0" VIS)

• Deflection Angle (degrees) 90°

• Grille Pitch 0.25 mm

•Tube Type Aperture Grille, Real Flat,High Contrast, Anti-glare,Anti-static,Anti-reflection, Light Transmission 41%

• Phosphor B22

• Recom. Display Area (mm) 392 x 294 mm

• Recom. Display Area (inch) 15.4" x 11.6"

• Max. Display Area (mm) 406 x 305 mm

• Max. Display Area (inch) 16.0" x 12.0"

Scanning

• Horizontal Scanning 30 - 130 kHz

•Vertical Scanning 50 - 160 Hz

Video

• Video Dot Rate 360 MHz

• Input Impedance

-Video 75Ω

-Sync 2.2kΩ

• Input Signal Levels 0.7 Vp-p

• Sync Input Signal Separate Sync Composite Sync

• Sync Polarities Positive and Negative

White Color Temperature

Chromaticity CIE Coordinates:

• at 9300 K: x=0.283, y=0.297

• at 6500 K: x=0.313, y=0.329

• at 5500 K: x=0.332, y=0.347

• sRGB

Resolution and Preset Modes

• Max. Resolution 2048 x 1536

• Recom. Resolution 1600 x 1200

• GTF

• 16 User Definable Modes

• 37 Factory Preset Modes:

Plug and Play Compatibility

• Display Data Channel DDC 2B (VESA)

• Microsoft®Windows®95/98/Me & 2000/NT/XP Compatible

Specifications subject to change without notice.

Energy Star guidelines for energy efficiency. Microsoft and Windows are registered trademarks of Microsoft Corporation. Macintosh is a registered trademark of Apple Computer, Inc.

1244 - 07/02

Literature Order Number: 202P45/202P40

Power Management

Complies with EPA Energy Star specifications

• Operation 124 W (typical)

• Suspend/Stand By Mode < 7 W

• Off Mode/Deep Sleep Mode < 2.8 W

Low-Emission Characteristics

• Complies with MPR-II and TCO ’99 specifications

Monitor Controls and Functions

• Main 5-button OSD Brightness +/- Direct Access Contrast+/- Direct Access Input Selection Direct Access

• On Screen Display Language (English, Spanish, French, German, Italian),Zoom, Horizontal,Vertical, Pincushion, Balanced,Trapezoid, Parallelogram, Color, sRGB, Reset, Degauss, Moire, Serial Number, Resolution, Frequency, Convergence, Purity, Input Selection,Auto Calibrate

• Auto Calibrate Automatic and manual calibration of color temperature, brightness and contrast levels to original setting

Connections and Cables

• Connections

-Video 15-pin D-Sub / 5 BNC

• Cables D-Sub Video Cable, Power Cord

Regulatory Approvals

• TCO ’99

• MPR-II Low Emission

• FCC-B, UL,CSA, DHHS

• VCC-I, CE,BCIQ, PSB

• Energy Star

Physical Specifications

• UPC Code 202P45 (Black/Silver) 0 37849 92918 6

202P40 (Mist White) 0 37849 92469 3

• Unit Dimension (WxHxD) 19.7" x 19.7" x 18.3" (incl. base) 501 x 501 x 466 mm (incl. base)

19.7" x 18.1" x 18.3" (excl. base) 501 x 461 x 466 mm (excl. base)

• Unit Weight 61.8 lbs/28.1 kg

• Carton Dimension (WxHxD) 25.9" x 26.6" x 25.9"

657.9 x 675.6 x 657.9 mm

• Carton Weight 76.0 lbs/34.5 kg

•Power Supply 90 – 264 VAC, 50/60Hz

•Temperature (operating) 0°C to 35°C/ 32°F to 95° F

•Temperature (storage) -25°C to 65°C/ -13°F to 149°F

• Relative Humidity 5% to 95%

• System MTBF > 75,000 hrs

Other

• USB Hub Option PCUH411

Carton contains: 202P4 Monitor, power cord, and user’s manual on CD.

INTERNET ADDRESS: http://www.philipsusa.com TECHNICAL SUPPORT: (877) 835-1838 (USA)

(402) 536-4171 (outside USA)
