Philips 201B40 User Manual

Technical Specifications

Plug and play compatibility

• Display Data Channel DDC 2B

• Microsoft® Windows®95/98/Me & 2000/NT/XP compatible

Power management

Complies with EPA Energy Star and NUTEK specifications

• Operation 104 W (typical)

• Off mode/Deep Sleep < 1 W

Low-emission characteristics

• Complies with MPR-II and TCO ’99 specifications

Monitor controls and functions

• Main 5-button OSD Brightness +/- direct access Contrast+/- direct access Input selection direct access

• On Screen Display Language (English, Spanish, French, German, Italian),zoom,horizontal, vertical, pincushion,balanced, trapezoid, parallelogram,color, sRGB, reset, degauss, moire, serial number, resolution, frequency Convergence, purity Input selection Auto Calibrate

• Auto Calibrate Automatic and manual calibration of color temperature, brightness and contrast levels to original setting.

Connections and Cables

• Connections

-Video 15-pin D-sub / 5 BNC

• Cables Video, power

Regulatory approvals

• TCO ‘99

• MPR-II Low Emission

• TÜV/GS,TÜV/Ergo

• FCC-B, UL,CSA,DHHS

• SEMKO, Poland-B sign, C-Tick

• VCC-I, CE,BSMI,PSB

Physical specifications

• Dim. incl.base (WxHxD)(mm) 482 x 476 x 467

• Dim. incl.base (WxHxD)(inch) 19.0" x 18.7" x 18.4"

• Dim. excl.base (WxHxD)(mm) 482 x 437 x 467

• Dim. excl.base (WxHxD)(inch) 19.0" x 17.2" x 18.4"

• Weight (kg) 28.0 kg

• Power supply 90 - 264 VAC, 50/60Hz

• Temperature (operational) 0°C to 35°C/ 32°F to 95°F

• Temperature (storage) -25°C to 65°C/ -13°F to 149°F

• Relative humidity 5% to 95%

• MTBF > 75,000 hrs

All data subject to change without notice Release date: January 2004 www.philips.com

As an Energy Star partner, Philips has determined that this product meets the Energy Star guidelines for energy efficiency. Microsoft and Windows are registered trademarks of Microsoft Corporation All trademark acknowledged. Copyright 2001 Koninklijke Philips Electronics N.V.

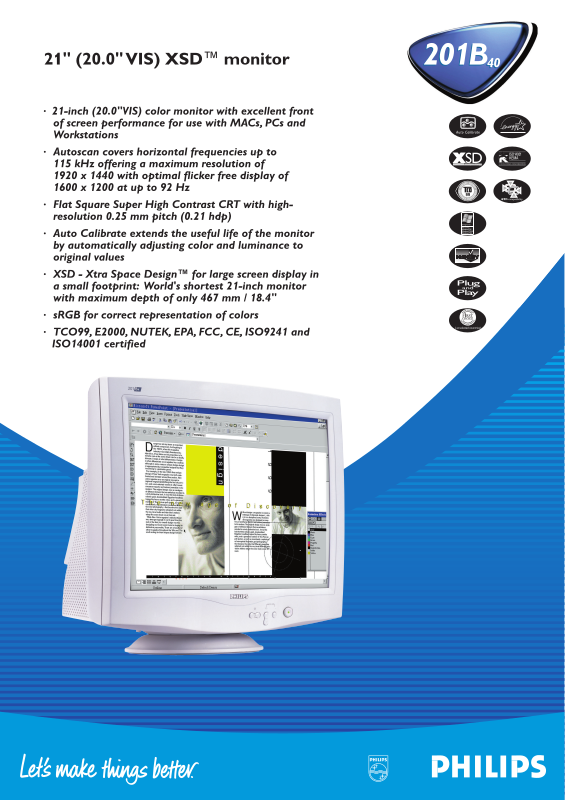

21" (20.0" VIS) XSD™ monitor

• Size (inch/cm) 21"/ 51 cm

• Deflection angle (degrees) 90°

• Dot pitch 0.25 mm

• Horizontal pitch 0.21 mm

-Tube type Shadow mask, Flat Square, Super High Contrast, Anti Glare,Anti Static,Anti reflection Light Transmission 43%

• Phosphor P22

• Recom. display area(mm) 392 x 294 mm

• Recom. display area(inch) 15.4" x 11.6"

• Max. display area(mm) 406 x 305 mm

• Max. display area(inch) 16.0" x 12.0"

Scanning

• Horizontal scanning 30 - 115 kHz

• Vertical scanning 50 - 160 Hz

Video

• Video dot rate 300 MHz

• Input impedance

-Video 75 Ohm

-Sync 2.2k Ohm

• Input signal levels 0.7 Vpp

• Sync input signal Separate sync Composite sync

• Sync polarities Positive and negative

White color temperature

Chromaticity CIE coordinates:

• at 9300°K: x=0.283, y=0.297

• at 6500°K: x=0.313, y=0.329

• at 5500°K: x=0.332, y=0.347

Resolution and preset modes

• Max. resolution 1920 x 1440

• Recom. resolution 1600 x 1200

• GTF

• 16 user definable modes

• 34 factory preset modes: H.freq (kHz)/ V.freq (Hz)

640 x 480 31.5K/60 640 x 480 37.9K/72 640 x 480 37.5K/75 640 x 480 43.3K/85 640 x 480 50.6K/100 720 x 400 31.5K/70 800 x 600 37.9K/60 800 x 600 48.1K/72 800 x 600 46.9K/75 800 x 600 53.7K/85 800 x 600 63.9K/100 832 x 624 49.7K/75 1024 x 768 48.4K/60 1024 x 768 56.5K/70 1024 x 768 60.0K/75 1024 x 768 68.7K/85 1152 x 870 68.7K/75 1280 x 960 85.9K/85 1280 x 1024 64.0K/60 1280 x 1024 80.0K/75 1280 x 1024 91.1K/85 1280 x 1024 115.0K/107 1600 x 1200 75.0K/60 1600 x 1200 81.3K/65 1600 x 1200 87.5K/70 1600 x 1200 93.8K/75 1600 x 1200 106.3K/85 1600 x 1200 115.0K/92 1792 x 1344 83.6K/60 1792 x 1344 106.3K/75 1792 x 1344 114.0K/81 1856 x 1392 86.3K/60 1856 x 1392 110.0K/75 1920 x 1440 90.0K/60

201B
