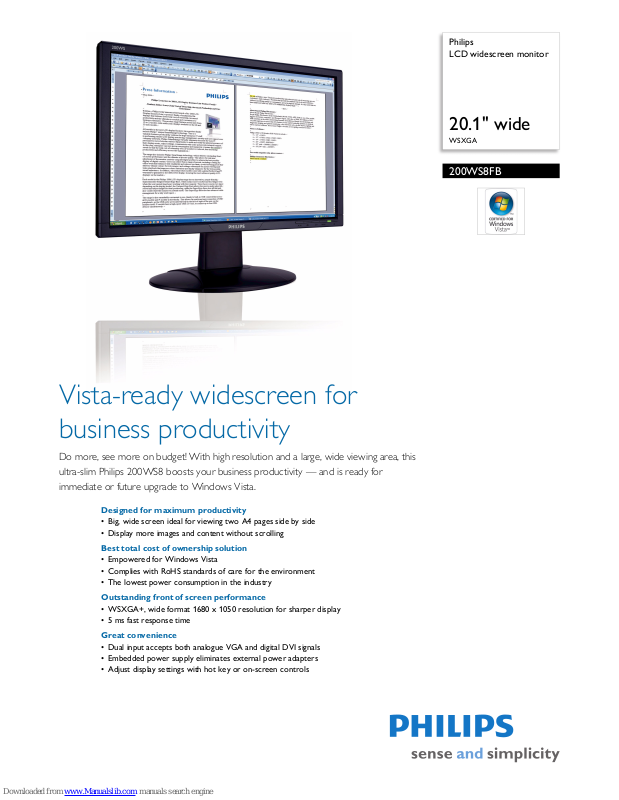

Page 1
Philips
LCD widescreen monitor
20.1" wide
WSXGA
200WS8FB
Vista-ready widescreen for
business productivity
Do more, see more on budget! With high resolution and a large, wide viewing area, this
ultra-slim Philips 200WS8 boosts your business productivity — and is ready for
immediate or future upgrade to Windows Vista.
Designed for maximum productivity
• Big, wide screen ideal for viewing two A4 pages side by side
• Display more images and content without scrolling
Best total cost of ownership solution
• Empowered for Windows Vista
• Complies with RoHS standards of care for the environment
• The lowest power consumption in the industry
Outstanding front of screen performance
• WSXGA+, wide format 1680 x 1050 resolution for sharper display
• 5 ms fast response time
Great convenience
• Dual input accepts both analogue VGA and digital DVI signals
• Embedded power supply eliminates external power adapters
• Adjust display settings with hot key or on-screen controls
Page 2
200WS8FB/00
Highlights
LCD widescreen monitor
20.1" wide WSXGA
Widescreen
A big, widescreen display that improves
product
ivity by displaying two A4 pages side by
side.
Large viewing area
Viewing area is the visible portion of a monitor
s
creen available for displaying data.
Windows Vista-ready
Philips Vista-ready monitors are empowered
for vi
brant, exciting display of this new, visually
sophisticated and demanding Windows
operating system, designed to enhance your
entertainment experience, make you more
productive and help you control your
computing experience at home and in the
office, making viewing, finding and organising
information for work or play quick, efficient
and easy.
Compliant with RoHS standards
Philips designs and produces display products
in
compliance with strict Restriction of
Hazardous Substances (RoHS) standards that
restrict lead and other toxic substances that
can harm the environment.
Lowest power consumption
Lower power consumption reduces the energy
requi
red to operate a device, saving its owner
operating costs and conserving power.
WSXGA+, wide format 1680 x 1050
Wide format, super extended graphics array is
a
display specification that is capable of
displaying 1680 x 1050 resolution or
approximately 1.7 million pixels.
5 ms on/off response time
On-Off response time is the period required
for a liqui
d crystal cell to go from active (black)
to inactive (white) and back to active (black)
again. It is measured in milliseconds. Faster is
better: lower response time means faster
transitions and, therefore, results in fewer
visible image artefacts in the display of
transition of texts and graphics. On-Off
response time is a more important measure in
the display of business content like documents,
graphs and photos.
Dual input
Dual input provides connectors to
accommodate input of both analogue VGA and
digital DVI signals.
Embedded power supply
An embedded power supply is a power
adapte
r built into the body of a display device
that replaces a bulky external power adapter.
User-friendly hot key and OSD
The user-friendly hot key and on-screen
dis
play controls are dual systems for
conveniently fine-tuning display settings to
meet a variety of needs. Press the hot key on
your monitor's frame for automatic picture,
quick contrast and brightness control or use
the on-screen display feature to fine-tune your
display settings.
Page 3
Issue date 2010-01-25
Version: 4.0.11
12 NC: 8670 000 30107
EAN: 87 12581 30142 2
© 2010 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
200WS8FB/00
Specifications
LCD widescreen monitor
20.1" wide WSXGA
Picture/Display
• LCD panel type: 1680 x 1050 pixels, Anti-glare
polariser, RGB vertical stripe
• Panel Size: 20.1"/51 cm
• Effective viewing area: 433.4 x 270.9 mm
• Pixel pitch: 0.258 x 0.258 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 800:1
• Display colours: 16.7 M
• Viewing angle: 160º (H)/160º (V),
@ C/R > 10
• Response time (typical): 5 ms
• White Chromaticity, 6500K: x = 0.313/y = 0.329
• White Chromaticity, 9300K: x = 0.283/y = 0.297
• Maximum Resolution: 1680 x 1050 @ 60 Hz
• Recommended Resolution: 1680 x 1050 @ 60 Hz
• Video Dot Rate: 205 MHz
• Horizontal Scanning Frequency: 30 - 93 kHz
• Vertical Scanning Frequency: 56 - 76 Hz
• Aspect ratio: 16:10
•sRGB
Connectivity
• Signal Input: Analogue (VGA), DVI-D
• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on
Green
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Convenience
• Convenience Enhancements: On-screen Display
• Monitor Controls: Auto, Brightness (Left),
Co
ntrast (Right), Menu, Power On/Off
• OSD Languages: English, Fr
ench, German, Italian,
Russian, Spanish
• Other convenience: Kensingto
n lock compatible
• Plug & Play Compatibility: DDC/CI, sRGB,
Windo
ws 98/ME/2000/XP/Vista
• Regulatory Approvals: CE Mark, Energy Star, FCC
Cl
ass B, SEMKO, TCO '03, TÜV/GS, TÜV Ergo,
UL/cUL
• Tilt: -5° to 25°
• VESA Mount: 100 x 100 mm
Accessories
• Included Accessories: AC Power Lead, VGA cable
• User Manual
Dimensions
•Box dimensions (W x H x D):
525 x 174 x 452 mm
• Box dimensions in inch (W x H x D):
20
.7 x 6.9 x 17.8 inch
•Set dimensions (W x H x D):
47
2.89 x 310.23 x 73 mm
• Set dimensions in inch (W x H
x D):
18.6 x 12.2 x 2.9 inch
• Set dimensions with stand (W x H x D):
47
2.89 x 400.42 x 213.59 mm
•Set dimensions with st
and in inch (W x H x D):
18.6 x 15.8 x 8.4 inch
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 5°C to 35°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 5.3 kg
• Product weight (+stand) (lb): 11.7 lb
• Weight incl. Packaging: 6.1 kg
• Weight incl. Packaging (lb): 13.4 lb
Power
• Complies with: Energy Star
• Consumption: < 43 W (Typical)
• Off Mode: < 1 W
• Power LED indicator: Operation - green, Standby/
sl
eep - Amber
• Power supply: Built in, 100-240 VAC, 50/60 Hz
•
