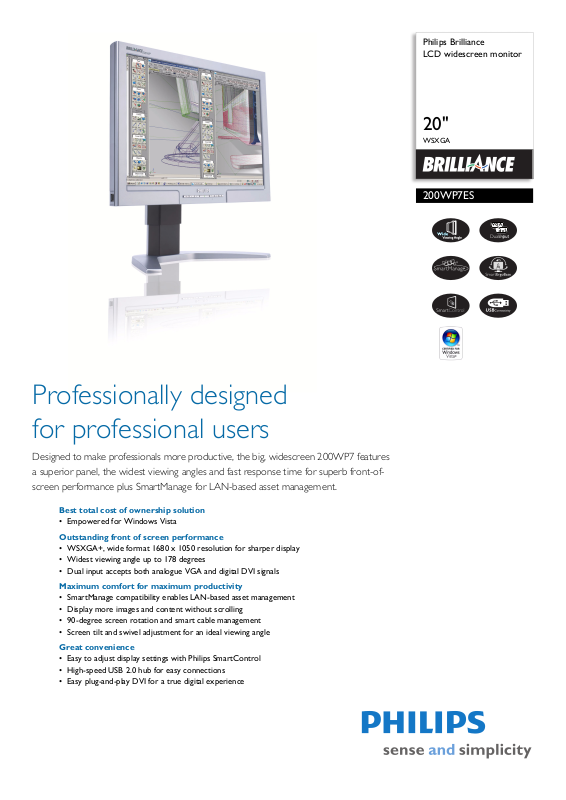

Page 1
Philips Brilliance
LCD widescreen monitor
20"
WSXGA
200WP7ES
Professionally designed
for professional users
Designed to make professionals more productive, the big, widescreen 200WP7 features
a superior panel, the widest viewing angles and fast response time for superb front-ofscreen performance plus SmartManage for LAN-based asset management.
Best total cost of ownership solution
• Empowered for Windows Vista
Outstanding front of screen performance
• WSXGA+, wide format 1680 x 1050 resolution for sharper display
• Widest viewing angle up to 178 degrees
• Dual input accepts both analogue VGA and digital DVI signals
Maximum comfort for maximum productivity
• SmartManage compatibility enables LAN-based asset management
• Display more images and content without scrolling
• 90-degree screen rotation and smart cable management
• Screen tilt and swivel adjustment for an ideal viewing angle
Great convenience
• Easy to adjust display settings with Philips SmartControl
• High-speed USB 2.0 hub for easy connections
• Easy plug-and-play DVI for a true digital experience
Page 2
LCD widescreen monitor
200WP7ES/00
20" WSXGA
Specifications Product highlights
Picture/Display
• LCD panel type: 1680 x 1050 pixels, Anti-glare
polariser, RGB vertical stripe
• Panel Size: 20.1"/51 cm
• Effective viewing area: 433.4 x 270.9 mm
• Pixel pitch: 0.258 x 0.258 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• Display colours: 16.7 M
• Viewing angle: 178º (H)/178º (V), @ C/R > 10
• Response time (typical): 8 (Grey to Grey) ms
• White Chromaticity, 6500K: x = 0.313/y = 0.329
• White Chromaticity, 9300K: x = 0.283/y = 0.297
• Maximum Resolution: 1680 x 1050 @ 75Hz
(digital input)
• Recommended Resolution: 1680 x 1050 @ 60Hz
(digital input)
• Video Dot Rate: 205 MHz
• Horizontal Scanning Frequency: 30–98 kHz
• Vertical Scanning Frequency: 56 - 76 Hz
• Aspect ratio: 16:10
•sRGB
Connectivity
• Signal Input: Analogue (VGA), DVI-D
• USB: 4 x USB 2.0
• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on Green
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Convenience
• Convenience Enhancements: On-screen Display,
SmartManage enabled
• Monitor Controls: Auto, Brightness Control (Up/
Down), Left/Right, Menu (OK), Power On/Off
• OSD Languages: English, French, German, Italian,
Russian, Spanish
• Other convenience: Kensington lock compatible
• Plug & Play Compatibility: DDC/CI, sRGB,
Windows 98/ME/2000/XP/Vista
• Regulatory Approvals: CE Mark, Energy Star,
FCC-B, UL, CSA, SEMKO, TCO '03, TÜV/GS,
TÜV Ergo
• Swivel: +/- 45°
• Tilt: -5° to 25°
• Pivot: 90° (clockwise)
• VESA Mount: 100 x 100 mm
Accessories
• Included Accessories: AC Power Lead, DVI-D
cable, USB cable, VGA cable
•User Manual
Dimensions
• Box dimensions (W x H x D):
579
x 513 x 267 mm
• Box dimensions in inch (W x H x D):
22.8
x 20.2 x 10.5 inch
• Set dimensions (W x H x D):
483
x 338.5 x 68.7 mm
• Set dimensions in inch (W x H x D):
19
x 13.3 x 2.7 inch
• Set dimensions with stand (W x H x D):
483
x 402 x 215.3 mm
• Set dimensions with stand in inch (W x H x D):
19
x 15.8 x 8.5 inch
• Height adjustment range: 130 mm
• Height adjustment range (inch): 5.1 inch
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 0°C to 35°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 8.6 kg
• Product weight (+stand) (lb): 18.9 lb
• Weight incl. Packaging: 10.7 kg
• Weight incl. Packaging (lb): 23.6 lb
Power
• Complies with: Energy Star
• Consumption: 50 W (Typical)
• Off Mode: < 1 W
• Power LED indicator: Operation - green, Standby/
sleep - Amber
• Power supply: Built in, 100-240 VAC, 50/60 Hz
•
Windows Vista-ready
Philips Vista-ready monitors are empowered for vibrant,
exciting display of this new, visually sophisticated and
demanding Windows operating system, designed to
enhance your entertainment experience, make you more
productive and help you control your computing
experience at home and in the office, making viewing,
finding and organising information for work or play quick,
efficient and easy.
WSXGA+, wide format 1680 x 1050
Wide format, super extended graphics array is a display
specification that is capable of displaying 1680 x 1050
resolution or approximately 1.7 million pixels.
Widest viewing angle (178°)
The widest viewing angle up to 178 degree provides the
clearest display from any angle.
Dual input
Dual input provides connectors to accommodate input of
both analogue VGA and digital DVI signals.
SmartManage enabled
SmartManage is a system for monitoring, managing and
checking the status of display devices as well as delivering
remote support to users who experience difficulties - all
accomplished over a LAN.
Large viewing area
Viewing area is the visible portion of a monitor screen
available for displaying data.
Super Ergo Base
The Super Ergo base is a monitor base that delivers
ergonomic display comfort and provides intelligent cable
management. The base's people-friendly height, swivel,
tilt and rotation angle adjustments position the monitor
for maximum comfort that can ease the physical strains
of a long working day; intelligent cable management
reduces cable clutter and keeps the workspace neat and
professional.
Screen tilt and swivel
Screen tilt and swivel mechanism built into the base
permits the monitor to swivel and tilt backwards or
forwards.
SmartControl
PC software for fine-tuning display performance and
settings. Philips offers users two choices for display setting
adjustment. Either navigate the multilevel On Screen
Display menu through buttons on the display itself or use
the Philips SmartControl software to easily adjust the
various display settings in a familiar way.
High-speed USB 2.0 hub
The universal serial bus or USB is a standard protocol for
linking PCs and peripherals. Since it delivers high speed
at a low co st, US B h as becom e the mos t popula r method
for connecting peripheral devices to a computer. A USB
2.0 hub located on the monitor provides a conveniently
located, easy-to-use, high-speed connection for reading,
writing, loading and transferring programs, data, digital
media or music files to, from or among your PC and one
or more USB devices.
In-box DVI cable
A DVI cable is shipped with the product to provide high-
Issue date 2008-05-16
Version: 7.0.12
12 NC: 8639 000 16908
EAN: 87 10895 95631 4
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
quality digital display.
