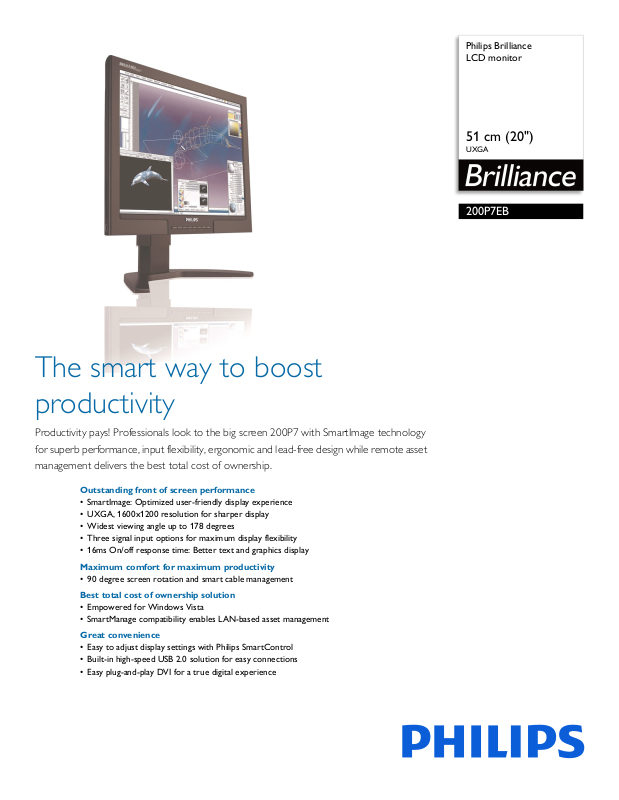

Page 1
Philips Brilliance
LCD monitor
51 cm (20")
UXGA
200P7EB
The smart way to boost
productivity
Productivity pays! Professionals look to the big screen 200P7 with SmartImage technology
for superb performance, input flexibility, ergonomic and lead-free design while remote asset
management delivers the best total cost of ownership.
Outstanding front of screen performance
• SmartImage: Optimized user-friendly display experience
• UXGA, 1600x1200 resolution for sharper display
• Widest viewing angle up to 178 degrees
• Three signal input options for maximum display flexibility
• 16ms On/off response time: Better text and graphics display
Maximum comfort for maximum productivity
• 90 degree screen rotation and smart cable management
Best total cost of ownership solution
• Empowered for Windows Vista
• SmartManage compatibility enables LAN-based asset management
Great convenience
• Easy to adjust display settings with Philips SmartControl
• Built-in high-speed USB 2.0 solution for easy connections
• Easy plug-and-play DVI for a true digital experience
Page 2
200P7EB/27
LCD monitor
51 cm (20") UXGA
Highlights
SmartImage
SmartImage is an exclusive leading edge Philips
te
chnology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface allows
you to select various modes like Office, Image,
Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the contrast,
color saturation and sharpness of images and
videos for ultimate display performance. The
Economy mode option offers you major power
savings. All in real time with the press of a single
button!
UXGA, 1600 x 1200 resolution
For graphics monitors, the s
signifies the number of dots (pixels) on the
entire screen. For example, a 1600-by-1200
pixel screen is capable of displaying 1600 distinct
dots on each of 1200 lines, or about 2 million
pixels. This ensures a better display
performance and accurate color display effect.
Widest viewing angle (178°)
The widest viewing angle up to 178 degree
prov
ides the clearest display from any angles.
Triple input
Triple input is a means for displaying digital and
anal
og signals. A triple input monitor provides
one D-Sub (VGA) and one DVI-I interface
connector. The DVI-I interface connector
accepts either a digital or an analog signal input
creen resolution
via optional adapter for maximum display
flexibility and 'insurance' from your monitor
obsolete.
16ms response time (On-Off)
On-Off response time is the period required for
a
liquid crystal cell to go from active (black) to
inactive (white) and back to active (black) again.
It is measured in milliseconds. Faster is better:
Lower response time means faster transitions
and, therefore, results in fewer visible image
artifacts in the display of transition of text and
graphics. On-Off response time is a more
important measure in the display of business
content like documents, graphs and photos.
Super Ergo Base
The Super Ergo base is a monitor base that
d
elivers ergonomic display comfort and
provides intelligent cable management. The
base's people-friendly height, swivel, tilt and
rotation angle adjustments position the monitor
for maximum comfort that can ease the physical
strains of a long workday; intelligent cable
management reduces cable clutter and keeps
the workspace neat and professional.
Windows Vista ready
Philips Vista-ready monitors are empowered for
v
ibrant, exciting display of this new, visually
sophisticated and demanding Windows
operating system, designed to enhance your
entertainment experience, make you more
productive and help you control your computing
experience at home and in the office, making
viewing, finding and organizing information for
work or play quick, efficient and easy.
SmartManage enabled
SmartManage is a system for monitoring,
managi
ng and checking status of display devices
as well as delivering remote support to users
who experience difficulties - all accomplished
over a LAN.
SmartControl
PC software for fine tuning display performance
and set
tings. Philips offers users two choices for
display setting adjustment. Either navigate the
multilevel On Screen Display menu through
buttons on the display itself or use the Philips
SmartControl software to easily adjust the
various display settings in a familiar way.
USB connectivity solution
The universal serial bus or USB is a standard
pro
tocol for linking PCs and peripherals.
Because it delivers high speed at a low cost, USB
has become the most popular method for
connecting peripheral devices to a computer. By
placing a USB 2.0 solution in a monitor, Philips
provides a conveniently located, easy-to-use,
high-speed USB connection for reading, writing,
loading and transferring programs, data, digital
media or music files to, from or among your PC
and one or more USB devices.
Page 3
200P7EB/27
LCD monitor
51 cm (20") UXGA
Specifications
Picture/Display
• LCD panel type: 1600 x 1200 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 20.1"/ 51 cm
• Effective viewing area: 16.1 x 12 inch
• Pixel pitch: 0.255 x 0.255 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 800:1
• Display colors: 16.7 M
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Response time (typical): 16 (on/off) ms; 8 (grey to
grey) ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1600 x 1200 @ 60Hz (digital
t)
inpu
• Optimum resolution: 1600 x 1200 @ 60Hz (digital
t)
inpu
• Video Dot Rate: 202.5 MHz
• Horizontal Scanning Frequency: 30 - 98 kHz
• Vertical Scanning Frequency: 56 - 85 Hz
• Picture enhancement: SmartImage
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-I, DVI-D
• USB: USB 2.0 x 4
• Sync Input: Composite Sync, Separate Sync, Sync on
en
Gre
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Convenience
• User convenience: On-screen Display, SmartManage
enabled
• Monitor Controls: Auto, Brightness Control (Up/
), Left/Right, Menu (OK), Power On/Off,
Down
SmartImage
• OSD Languages: English, French, Portuguese,
ied Chinese, Spanish
Simplif
• Other convenience: Kensingto
• Plug & Play Compatibility: DDC/CI, sRGB, Windows
ME/2000/XP/Vista
98/
n lock compatible
• Regulatory approvals: CE Mark, EMC, Energy Star,
CC-B, UL, CSA, SEMKO, TCO '03, TÜV/GS, TÜV
F
Ergo
• Swivel: +/- 45°
• Tilt: -5° to 25°
• Pivot: 90° (counter-clockwise)
• VESA Mount: 100 x 100 mm
Accessories
• Included accessories: AC Power Cord, DVI-D cable,
USB cable, VGA cable
•User Manual
Dimensions
• Box dimensions (W x H x D): 551 x 520 x 277 mm
• Box dimensions in inch (W x H x D):
21.7 x 20.5 x 10.9 inch
• Set dimensions (W x H x D):
461 x 378.8 x 74.7 mm
• Set dimensions in inch (W
18.1 x 14.9 x 2.9 inch
• Set dimensions with stand (W x H x D):
461 x 421 x 215.3 mm
• Set dimensions with stand in inch (W x H x D):
18.1 x 16.6 x 8.5 inch
• Height adjustment range: 130 mm
• Height adjustment range (inch): 5.1 inch
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 5°C to 35°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 8.9 kg
• Product weight (+stand) (lb): 19.6 lb
• Weight incl. Packaging: 10 kg
• Weight incl. Packaging (lb): 22 lb
x H x D):
Power
• Complies with: Energy Star
• Consumption (On mode): 50 W (Typical)
• Consumption (Off Mode): 1 W
• Power LED indicator: Operation - green, Stand by/
- Amber
sleep
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
Issue date 2022-04-21
Version: 10.0.13
12 NC: 8639 000 16918
UPC: 6 09585 11181 3
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
o change without notice.
