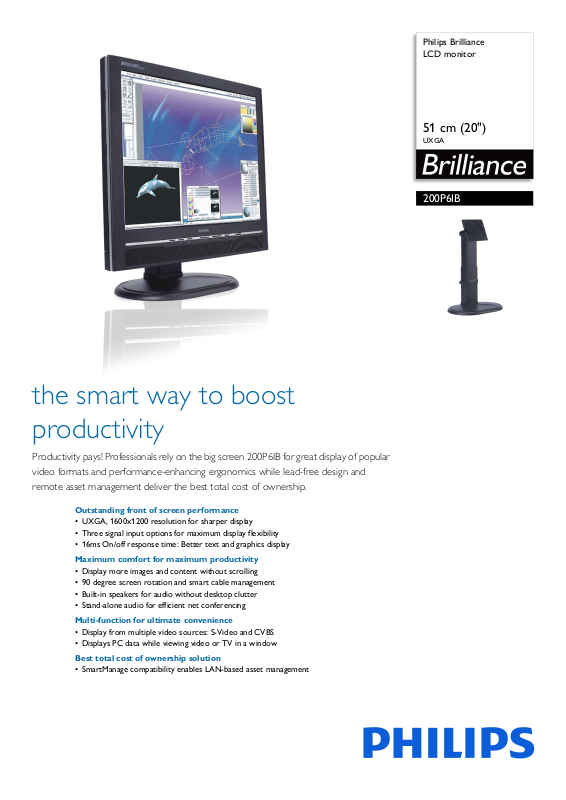

Page 1
Philips Brilliance
LCD monitor
51 cm (20")
UXGA
200P6IB
the smart way to boost
productivity
Productivity pays! Professionals rely on the big screen 200P6IB for great display of popular
video formats and performance-enhancing ergonomics while lead-free design and
remote asset management deliver the best total cost of ownership.
Outstanding front of screen performance
• UXGA, 1600x1200 resolution for sharper display
• Three signal input options for maximum display flexibility
• 16ms On/off response time: Better text and graphics display
Maximum comfort for maximum productivity
• Display more images and content without scrolling
• 90 degree screen rotation and smart cable management
• Built-in speakers for audio without desktop clutter
• Stand-alone audio for efficient net conferencing
Multi-function for ultimate convenience
• Display from multiple video sources: S-Video and CVBS
• Displays PC data while viewing video or TV in a window
Best total cost of ownership solution
• SmartManage compatibility enables LAN-based asset management
Page 2
200P6IB/00
LCD monitor
51 cm (20") UXGA
Highlights
UXGA, 1600 x 1200 resolution
For graphics monitors, the screen
signifies the number of dots (pixels) on the
entire screen. For example, a 1600-by-1200
pixel screen is capable of displaying 1600
distinct dots on each of 1200 lines, or about 2
million pixels. This ensures a better display
performance and accurate color display effect.
Triple input
Triple input is a means for displaying digital and
anal
og signals. A triple input monitor provides
one D-Sub (VGA) and one DVI-I interface
connector. The DVI-I interface connector
accepts either a digital or an analog signal input
via optional adapter for maximum display
flexibility and 'insurance' from your monitor
obsolete.
16ms response time (On-Off)
On-Off response time is the period required
for a liqui
to inactive (white) and back to active (black)
again. It is measured in milliseconds. Faster is
better: Lower response time means faster
transitions and, therefore, results in fewer
d crystal cell to go from active (black)
resolution
visible image artifacts in the display of
transition of text and graphics. On-Off
response time is a more important measure in
the display of business content like documents,
graphs and photos.
Large viewing area
Viewing area is the visible portion of a monitor
s
creen available for displaying data.
Super Ergo Base
The Super Ergo base is a monitor base that
d
elivers ergonomic display comfort and
provides intelligent cable management. The
base's people-friendly height, swivel, tilt and
rotation angle adjustments position the
monitor for maximum comfort that can ease
the physical strains of a long workday;
intelligent cable management reduces cable
clutter and keeps the workspace neat and
professional.
Built-in speakers
A pair of stereo speakers built into a display
device.
It can be visible front firing, or invisible
down firing, top firing, rear firing, etc
depending on model and design.
Stand-Alone audio function
Built-in advanced firmware that delivers audio
o
utput even if there is no video input.
Two video connections
Plugs to accomodate signal input from two
vi
deo sources: S-video and CVBS
Picture in Picture
PIP enables the viewing of a small television or
v
ideo window at a selected location in a full-
screen display.
SmartManage enabled
SmartManage is a system for monitoring,
managing and
as well as delivering remote support to users
who experience difficulties - all accomplished
over a LAN.
checking status of display devices
Page 3
200P6IB/00
LCD monitor
51 cm (20") UXGA
Specifications
Picture/Display
• LCD panel type: 1600 x 1200 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 20.1"/ 51 cm
• Effective viewing area: 408 x 306 mm
• Pixel pitch: 0.255 x 0.255 mm
• Brightness (nits): 250 nit
• Contrast ratio (typical): 400:1
• Display colors: 16.2 M
• Viewing angle: @ C/R > 10
• Viewing angle (H / V): 176 / 176 degree
• Response time (typical): 16 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1600 x 1200 @ 75Hz
• Optimum resolution: 1600 x 1200 @ 60Hz
• Factory Preset Modes: 15 modes
• User definable modes: 37 modes
• Video Dot Rate: 202.5 MHz
• Horizontal Scanning Frequency: 30 - 97 kHz
• Vertical Scanning Frequency: 56 - 85 Hz
•sRGB
• Picture enhancement: Pictur
e in Picture
Connectivity
• Signal Input: VGA (Analog ), DVI-I, PC Audio in
• Audio input for video: Audio Left/Right (RCA x 2)
• Audio output: Stereo Audio (3.5 mm jack) 1x
• Other video input: Compos
• Sync Input: Composite Sync,
on Green
ite Video, S-Video
Separate Sync, Sync
Convenience
• Built-in Audio: 2W RMS x 2 stereo speakers
• User convenience: On-screen Display,
SmartManag
e enabled
• Monitor Controls: Auto, Brightness Control, Left/
Ri
ght, Menu (OK), Power On/Off, Up/Down,
Volume control, Input, Picture in Picture
• OSD Languages: English, Fr
Simplified Chinese, Spanish
• Other convenience: Kensingto
• Plug & Play Compatibility: DDC/CI, sRGB,
ws 98/ME/2000/XP
Windo
• Regulatory approvals: CE Mark, EMC, FCC-B, UL,
A, SEMKO, TCO '99, TÜV/GS, TÜV Ergo
CS
•Swivel: +/- 65°
• Tilt: -5° to 25°
• VESA Mount: 100 x 100 mm
ench, German, Italian,
n lock compatible
Accessories
• Included accessories: AC Power Cord, DVI-D
cable, PC audio cable, VGA cable
• User Manual
Dimensions
• Dimensions (with base) (W x H x D):
461 x 438 x 214 mm
• Height adjustment range: 130 mm
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 5°C to 35°C
• Temperature range (storage): -20°C to 60°C
• Weight: 9.85 kg
Power
• Complies with: NUTEK
•Consumption (On mode):
•Consumption (Off Mo
• Power LED indicator: Operation - Blue, Stand by/
eep - Amber
sl
• Power supply: Built-in, 90-264 VAC, 50/60 Hz
•
52 W (Typical)
de): 1.5 W
Issue date 2021-02-17
Version: 2.0.12
12 NC: 8639 000 16323
EAN: 87 10895 89714 3
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
