Philips 200P4VS/74, 200P4VS/00 User Manual
Philips LCD Monitor Electronic User’s Manual
e-Manual
file:///D|/My%20documents/dfu/J/english/200p4/index.htm [4/15/2004 1:44:34 PM]
Safety and Troubleshooting Information
•Safety
Precautions
and
Maintenance
• Installation
Locations
• FAQs

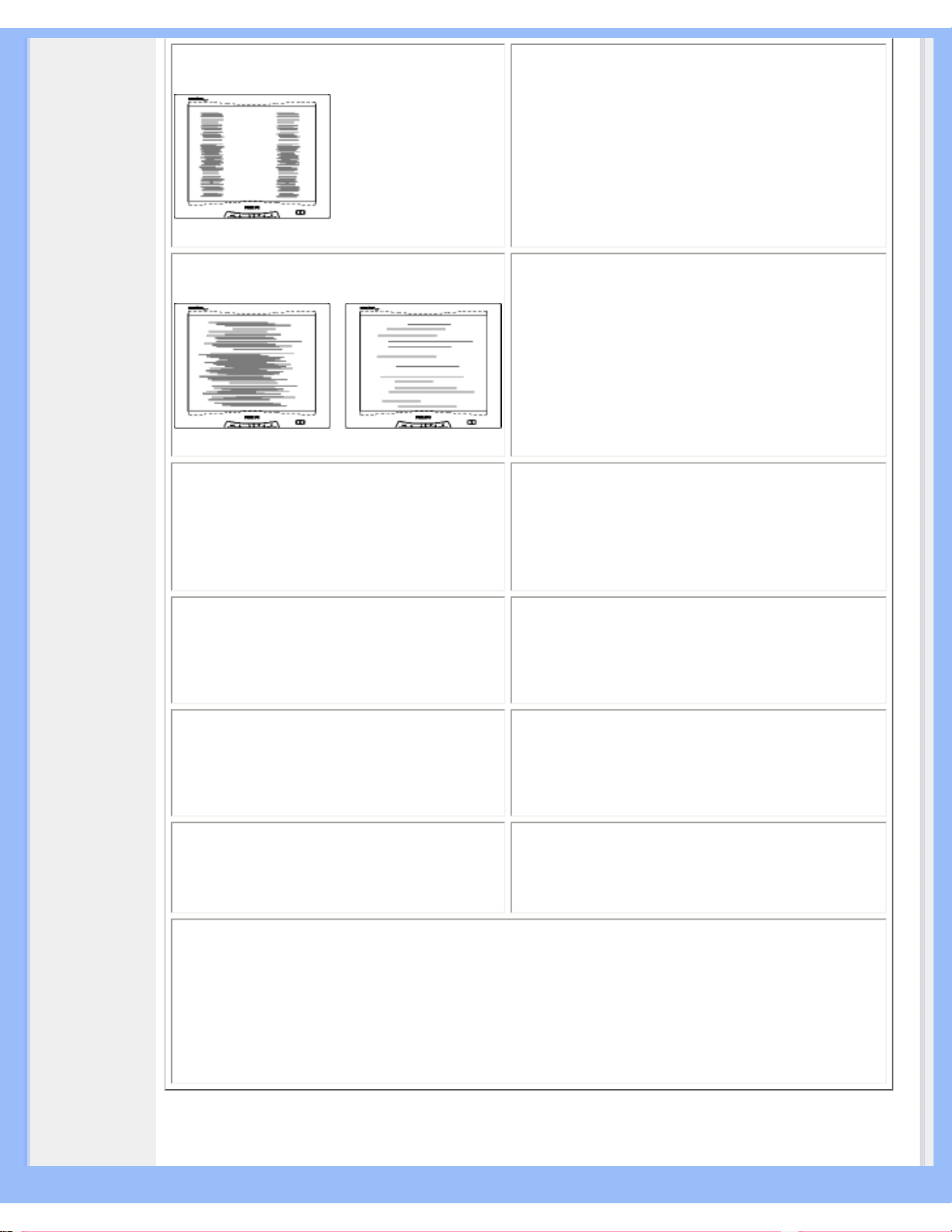

• Troubleshooting
• Regulatory
Information
• Other Related
Information
Safety and Troubleshooting Information
Safety precautions and maintenance
WARNING: Use of controls, adjustments or procedures other than those
specified in this documentation may result in exposure to shock,
electrical hazards and/or mechanical hazards.
Read and follow these instructions when connecting and using your computer monitor:
● Unplug the monitor if you are not going to use it for an extensive period of time.
● Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be wiped
with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based
liquids.
● Consult a service technician if the monitor does not operate normally when you have followed
the instructions in this manual.
● The casing cover should be opened only by qualified service personnel.
● Keep the monitor out of direct sunlight and away from stoves or any other heat source.
● Remove any object that could fall into the vents or prevent proper cooling of the monitor’s
electronics.
● Do not block the ventilation holes on the cabinet.
● Keep the monitor dry. To avoid electric shock, do not expose it to rain or excessive moisture.
● When positioning the monitor, make sure the power plug and outlet are easily accessible.
● If turning off the monitor by detaching the power cable or DC power cord, wait for 6 seconds
before attaching the power cable or DC power cord for normal operation.
● To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain or
excessive moisture.
● IMPORTANT: Always activate a screen saver program during your application. If a still image in
high contrast remains on the screen for an extended period of time, it may leave an 'after-image'
or 'ghost image' on front of the screen. This is a well-known phenomenon that is caused by the
shortcomings inherent in LCD technology. In most cases, the after-image will disappear
gradually over a period of time after the power has been switched off. Be aware, that the after-
image symptom cannot be repaired and is not covered under warranty.
Consult a service technician if the monitor does not operate normally when the operating instructions
given in this manual have been followed.
RETURN TO TOP OF THE PAGE
Installation Locations
● Avoid exposure to heat and extreme cold.
file:///D|/My%20documents/dfu/J/english/200p4/safety/safety.htm (1 of 2) [4/15/2004 1:44:37 PM]
Safety and Troubleshooting Information
● Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or extreme
cold.
● Avoid moving the LCD monitor between locations with large temperature differences. Choose a
site that falls within the following temperature and humidity ranges.
❍ Temperature: 5-35°C 41-95°F
❍ Humidity: 20-80% RH
● Do not subject the LCD monitor to severe vibration or high impact conditions. Do not place the
LCD monitor in the trunk of a car.
● Take care not to mishandle this product by either knocking or dropping it during operation or
transportation.
● Do not store or use the LCD monitor in locations where there is a high level of humidity or in
dusty environments. Do not allow water or other liquids to spill on or into the LCD monitor.
RETURN TO TOP OF THE PAGE
file:///D|/My%20documents/dfu/J/english/200p4/safety/safety.htm (2 of 2) [4/15/2004 1:44:37 PM]
About This Manual
• About This
Guide
• Notational
Descriptions
About This Manual
About This Guide
This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the
LCD monitor's features, setup, operation and other important information. Its contents are identical to the
information in our printed version.
It includes the following sections:
● Safety and Troubleshooting Information provides tips and solutions for common problems as well
as other related information you may need.
● About This Electronic User's Manual gives an overview of information included, along with
notation icon descriptions and other documentation for your reference.
● Product Information gives an overview of the monitor's features as well as the technical
specifications for this monitor.

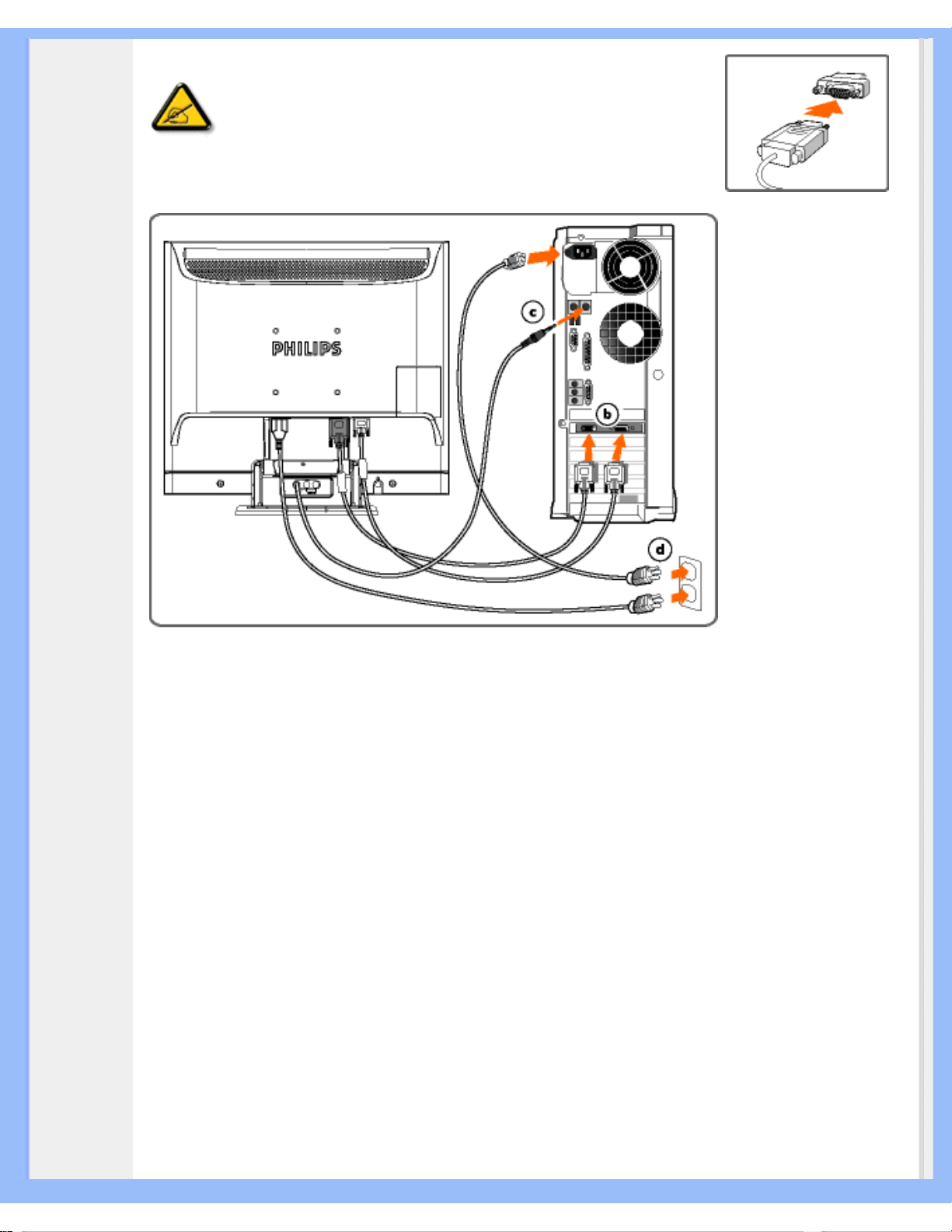

● Installing Your Monitor describes the initial setup process and gives an overview of how to use the
monitor.
● On-Screen Display provides information on adjusting the settings on your monitor.
● Customer Care and Warranty contains a list of worldwide Philips Consumer Information Centers
along with help desk phone numbers and information on the warranty applicable to your product.
● Glossary defines technical terms.
● Download and Print Option transfers this entire manual to your hard drive for easy reference.
RETURN TO TOP OF THE PAGE
Notational Descriptions
The following subsections describe notational conventions used in this document.
Notes, Cautions and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type.
These blocks contain notes, cautions or warnings. They are used as follows:
file:///D|/My%20documents/dfu/J/english/200p4/about/about.htm (1 of 2) [4/15/2004 1:44:40 PM]
About This Manual
NOTE: This icon indicates important information and tips that help you make better
use of your computer system.
CAUTION: This icon indicates information that tells you how to avoid either potential
damage to hardware or loss of data.
WARNING: This icon indicates the potential for bodily harm and tells you how to
avoid the problem.
Some warnings may appear in alternate formats and may not be accompanied by an icon. In such cases,
the specific presentation of the warning is mandated by the relevant regulatory authority.
RETURN TO TOP OF THE PAGE
©2003 Koninklijke Philips Electronics NV
All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or
broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV
file:///D|/My%20documents/dfu/J/english/200p4/about/about.htm (2 of 2) [4/15/2004 1:44:40 PM]
Product Information
• Product
Features
•Technical
Specifications
•Resolution &
Preset Modes

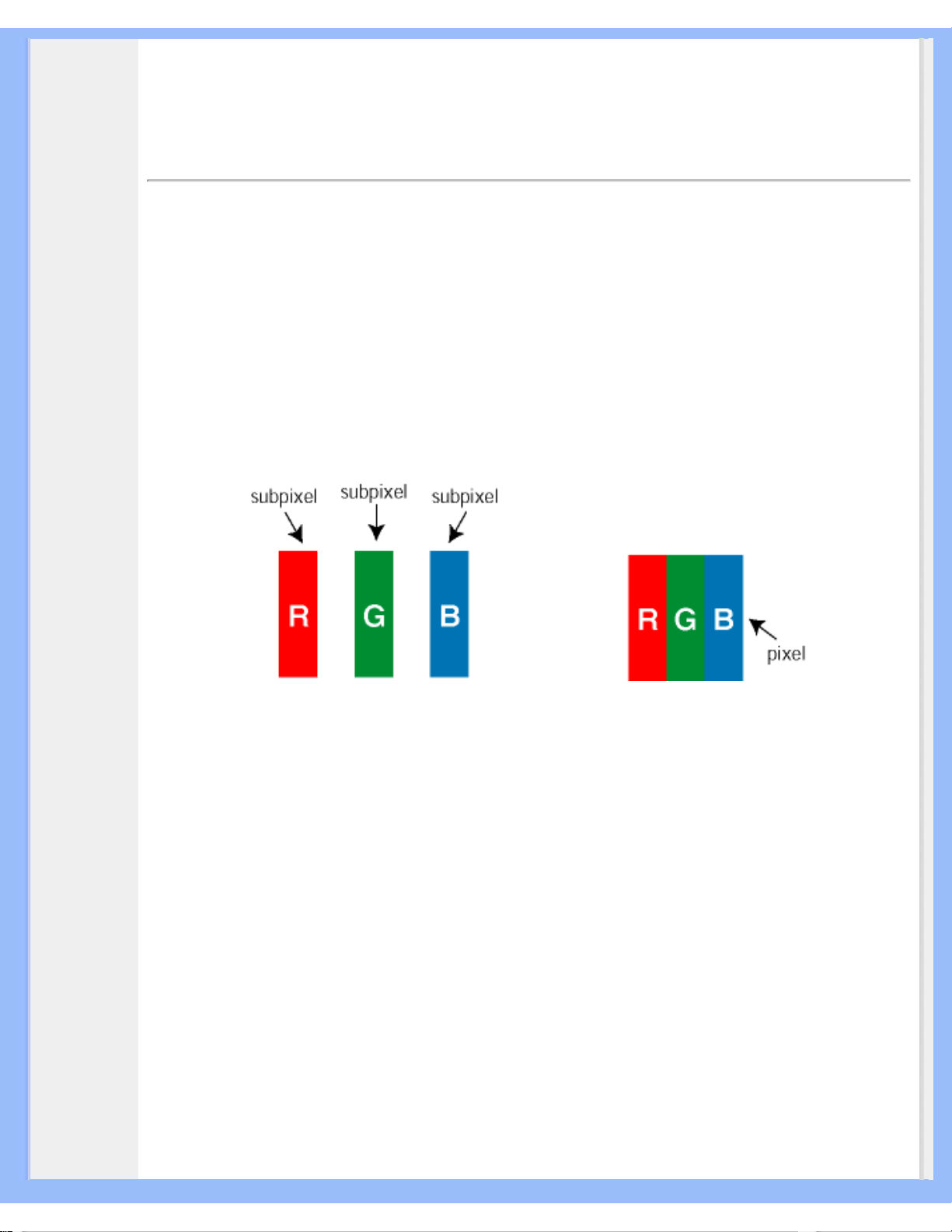

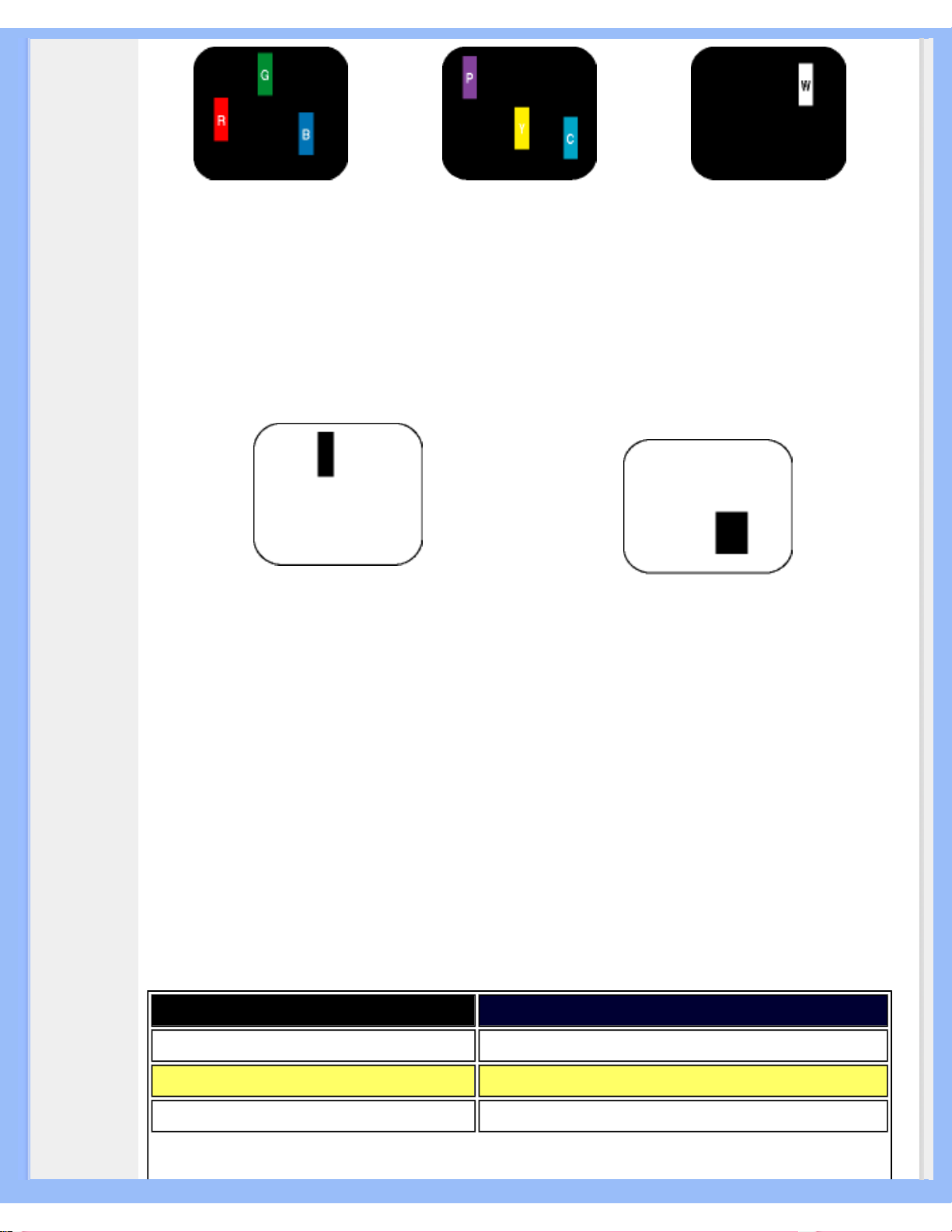

•Philips Pixel
Defect Policy
•Automatic
Power Saving
•Physical
Specification
•Pin
Assignment
•Product
Views
•Physical
Function
Product Information
Product Features
BRILLIANCE 200P4
200S4
● 20-inch color LCD monitor with excellent display performance
● Multiple video input allowing connection of DVI-D digital and VGA analog
● Embedded AC power supply
● Front firing speakers with stereo 2x2W RMS stereo sound output
● Advanced AUTO adjustment optimizes picture quality
● Adjustable tilt and swivel function
● Picture-in-Picture (PIP) function for displaying both PC and video simultaneously on the screen
● Built in module to provide S-Video & CVBS Video inputs(200P4VS, 200P4VG, 200P4VB models)
● Optional module to provide S-video and CVBS video inputs(200P4SS, 200P4SG, 200P4SB,
200S4SS models)
● Optional super-ergo base for height adjustment
● sRGB compliant
RETURN TO TOP OF THE PAGE
Technical Specifications*
LCD PANEL
• Type TFT LCD
• Screen size 20.1" / 51cm
• Pixel Pitch 0.255 x 0.255mm
• LCD Panel type
1600 x 1200 pixels
R.G.B. vertical stripe
Anti-glare polarizer, hard coated
• Effective viewing area 408 x 306 mm
• Display Colors 8 bits interface (16M colors)
SCANNING
Vertical refresh rate 56Hz-85Hz
Horizontal Frequency 30kHz-94kHz (Analog input)
file:///D|/My%20documents/dfu/J/english/200p4/product/product.htm (1 of 8) [4/15/2004 1:44:43 PM]
Product Information
VIDEO
• Video dot rate 165 MHz
• Input impedance
- Video
75 ohm
- Sync
2K2 ohm
• Input signal levels 0.7 Vpp
• Sync input signal
Separate sync
Composite sync
Sync on green
• Sync polarities Positive and negative
• S-Video Y input 1.0Vpp, C input 0.3Vpp, 75ohm input impedance
• CVBS Composite, 1.0Vpp, 75 ohm input impedance
•Video interface
D-Sub (Analog)
DVI-D (Digital)
AUDIO-IN
• Input signal level 0.7 Vpp
• Headphone out signal level
20mW x 2, 32
• Input signal connector 3.5mm mini jack
• Loudspeaker
4W Stereo Audio (2W/channel RMSx2, 200Hz-12kHz, 4
ohm,THD=10%)
Optical characteristics
• Contrast ratio:
200P4: 400:1 (typ.)
200S4: 350:1 (typ.)
• Brightness:
250 cd/m
2
(typ.)
• Peak contrast angle 6 o'clock
• White Chromaticity:
x: 0.283 y: 0.297 (at 9300°K)
x: 0.313 y: 0.329 (at 6500°K)
file:///D|/My%20documents/dfu/J/english/200p4/product/product.htm (2 of 8) [4/15/2004 1:44:43 PM]
Product Information
• Viewing Angle:
(C/R>10)
200P4:
Upper >88° (typ.)
Lower >88° (typ.)
Left >88° (typ.)
Right >88° (typ.)
200S4:
Upper >80° (typ.)
Lower >80° (typ.)
Left >80° (typ.)
Right >80° (typ.)
• Response time
200P4: 16 ms (typ.)
200S4: 20 ms (typ.)
sRGB
sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital
cameras, monitors, printers, scanners, etc.)
Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible
device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you
can rely on the correctness of the colors shown on your screen.
Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a
predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the
monitor's OSD.
To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down button
to go to Adjust Color and press OK again. Then move the down button to go to sRGB and press OK
again.
Exit this OSD.
After this, please do not change the brightness or contrast setting of your monitor. If you change either
of these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K.
For more information on sRGB, please visit: www.srgb.com
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
Resolution & Preset Modes
file:///D|/My%20documents/dfu/J/english/200p4/product/product.htm (3 of 8) [4/15/2004 1:44:43 PM]
Product Information
• Maximum
1600 x 1200 at 60Hz(analog input)
1600 x 1200 at 60Hz(digtal input)
• Recommended 1600 x 1200 at 60Hz * at DVI digital input
37 user definable modes
15 factory preset modes:
H. freq (kHz) Resolution V. freq (Hz)
31.5 640*350 70 (IBM VGA 10h)
31.5 720*400 70
31.5 640*480 60
37.5 640*480 75
35.2 800*600 56
37.9 800*600 60
46.9 800*600 75
48.4 1024*768 60
60.0 1024*768 75
69.0 1152*870 75
63.9 1280*1024 60
80.0 1280*1024 75
75.0 1600*1200 60
33.8 1080i 60
45.0 720p 60
(Interlace mode is not applicable except 1080i)
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA DPMS compliance display card or software installed in your PC, the monitor can
automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other
input device is detected, the monitor will 'wake up' automatically. The following table shows the power
consumption and signaling of this automatic power saving feature:
Power Management Definition
file:///D|/My%20documents/dfu/J/english/200p4/product/product.htm (4 of 8) [4/15/2004 1:44:43 PM]
Product Information
VESA Mode Video H-sync V-sync Power Used LED color
ON Active Yes Yes < 65W Green
OFF Blanked No No < 1.5W Amber
This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has
determined that this product meets the
ENERGY STAR
®
guidelines for energy efficiency.
RETURN TO TOP OF THE PAGE
Physical Specifications
• Dimension (WxHxD) 488 x 459 x220 mm (incl. Pedestal)
• Weight 7.5 Kg
• Tilt / Swivel -5° ~ 25° / + - 175°
• Power supply 100 — 240 VAC, 50/60 Hz
• Power consumption 50 W* (typ.)
• Temperature
5° C to 35° C (operating)
-20° C to 60° C (storage)
• Relative humidity
20% to 80%
• System MTBF 50K hrs (excluding CCFL 40K hrs)
• Cabinet color
200P4VG/200P4SG: Light Gray
200P4VB/200P4SB: Black
200P4VS/200P4SS/200S4SS: Silver
* This data is subject to change without notice.
* Resolution 1600x1200, standard size, contrast max., brightness 50%, 9300° K, full white pattern,
without audio/USB.
RETURN TO TOP OF THE PAGE
file:///D|/My%20documents/dfu/J/english/200p4/product/product.htm (5 of 8) [4/15/2004 1:44:43 PM]
Product Information
Pin Assignment
1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal
pin assignments are listed in the following table:
Pin
No.
Signal
Assignment
Pin
No.
Signal
Assignment
Pin
No.
Signal
Assignment
1
T.M.D.S. Data2-
9
T.M.D.S. Data1- 17 T.M.D.S. Data0-
2
T.M.D.S. Data2+
10
T.M.D.S. Data1+ 18 T.M.D.S. Data0+
3
T.M.D.S. Data2/4
Shield
11
T.M.D.S. Data1/3
Shield
19
T.M.D.S. Data0/5
Shield
4
No connect
12
No connect 20 No connect
5
No connect
13
No connect 21 No connect
6
DDC Clock
14
+5V Power 22
T.M.D.S. Clock
Shield
7
DDC Data
15
Ground (for +5V) 23 T.M.D.S. Clock+
8
No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-
2. The 15-pin D-sub connector (male) of the signal cable:
Pin
No.
Assignment
Pin
No.
Assignment
file:///D|/My%20documents/dfu/J/english/200p4/product/product.htm (6 of 8) [4/15/2004 1:44:43 PM]
Product Information
1
Red video input
9
+5V
2
Green video input/SOG
10
Logic ground
3
Blue video input
11
Ground
4
Ground
12
Serial data line (SDA)
5
No connect
13
H. Sync / H+V
6
Red video ground
14
V. Sync (VCLK for DDC)
7
Green video ground
15
Data clock line (SCL)
8
Blue video ground
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
RETURN TO TOP OF THE PAGE
Physical Function
1) Tilt
file:///D|/My%20documents/dfu/J/english/200p4/product/product.htm (7 of 8) [4/15/2004 1:44:43 PM]
Product Information
2) Swivel
RETURN TO TOP OF THE PAGE
file:///D|/My%20documents/dfu/J/english/200p4/product/product.htm (8 of 8) [4/15/2004 1:44:43 PM]
Installing Your LCD Monitor
•
Front View
Produt
Description
•

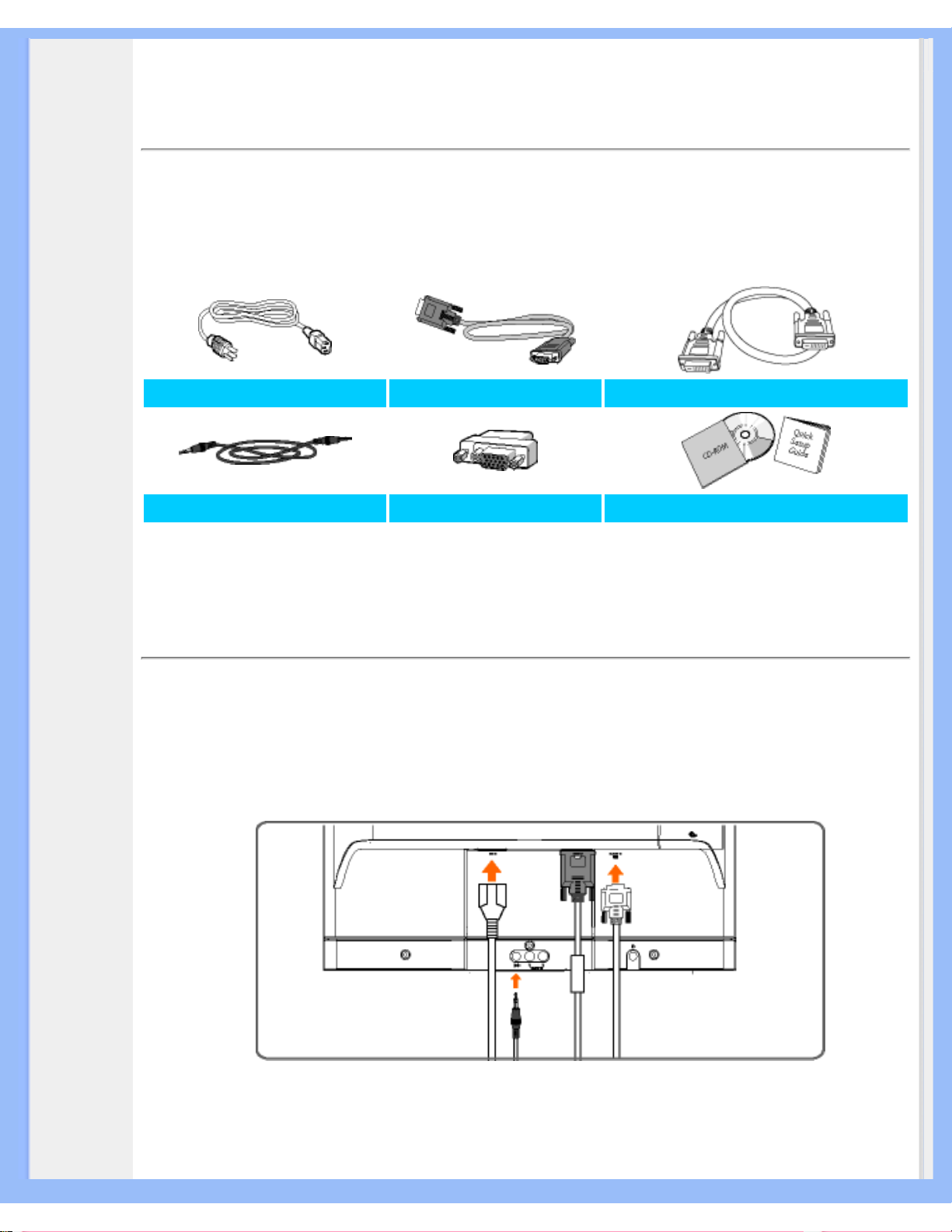

Setting Up
and
Connecting
Your Monitor
•

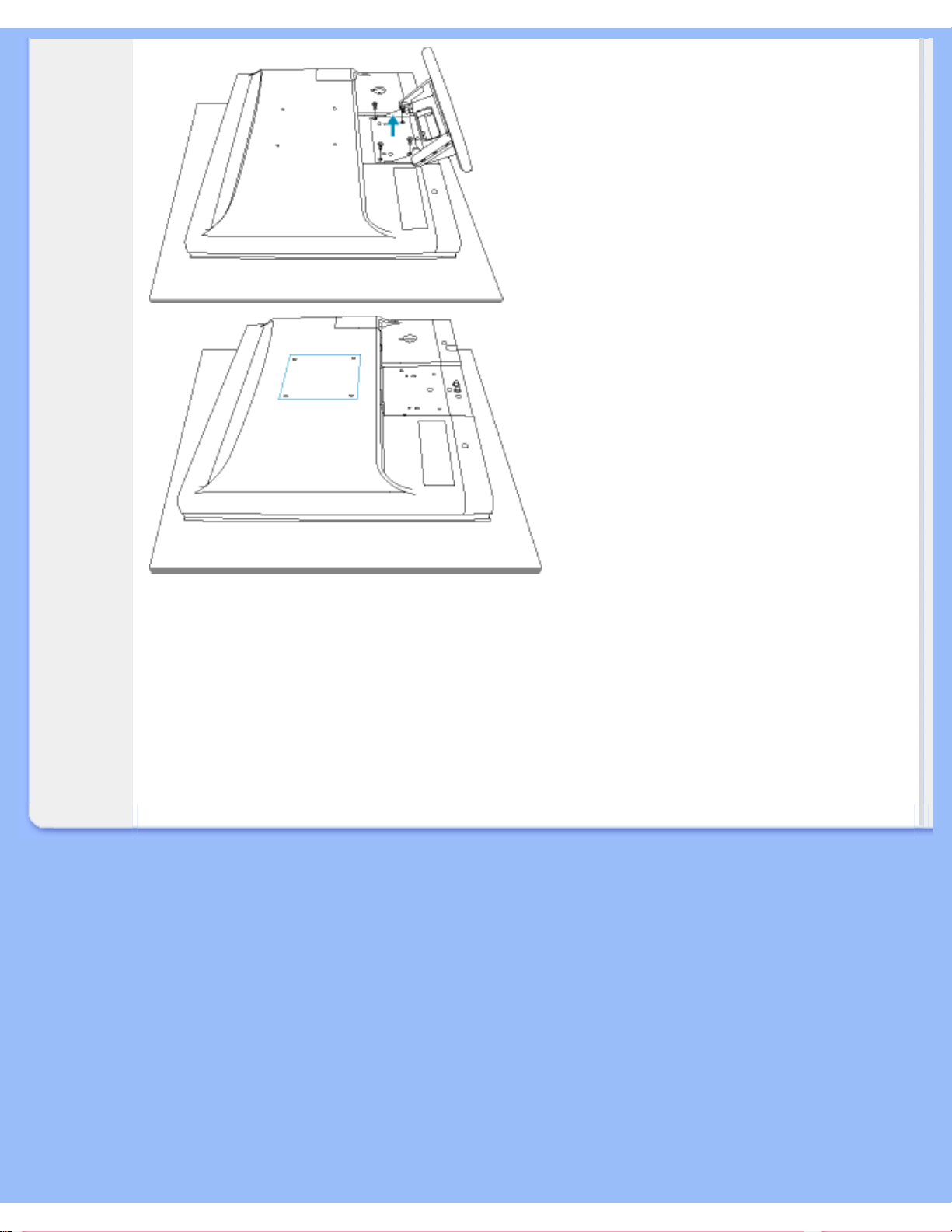

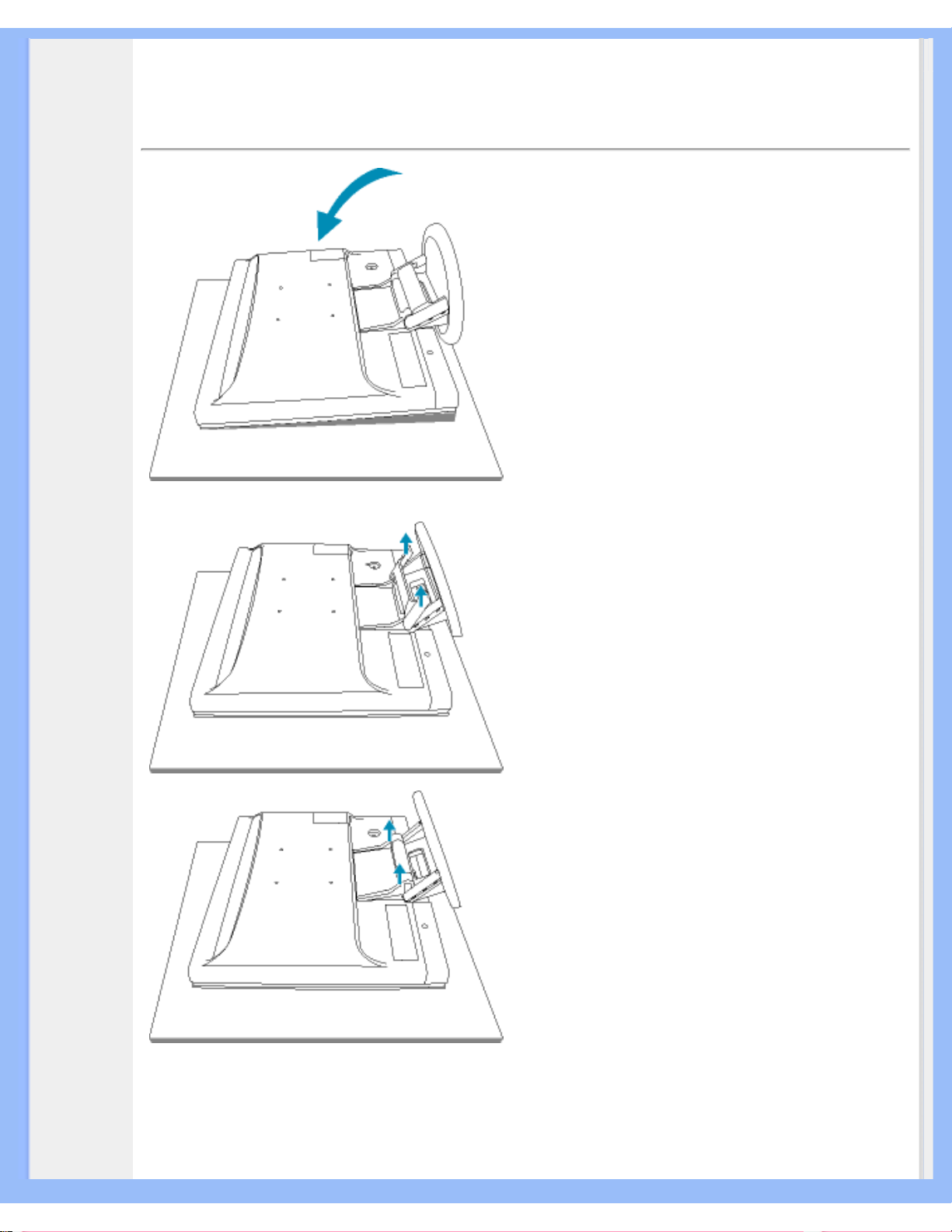

VESA
Standard
Mounting
•
Getting
Started
•
Optimizing
Performance
Installing Your LCD Monitor
Front View Product Description
1 To switch monitor's power On and Off
2
Power LED
3
To access OSD menu
4
To adjust the OSD
5
To adjust brightness of the display
6
To adjust the OSD
7
VOLUME
To adjust speaker volume
file:///D|/My%20documents/dfu/J/english/200p4/install/install.htm (1 of 3) [4/15/2004 1:44:46 PM]
Installing Your LCD Monitor
8
AUTO
Automatically adjust the horizontal position, vertical position,
phase and clock setting
9
INPUT
Signal input selection
10
PIP/SIZE
Activate PIP (Picture in Picture) window (200P4V)
or
adjust screen size (200P4S, 200S4S)
RETURN TO TOP OF THE PAGE
Rear View

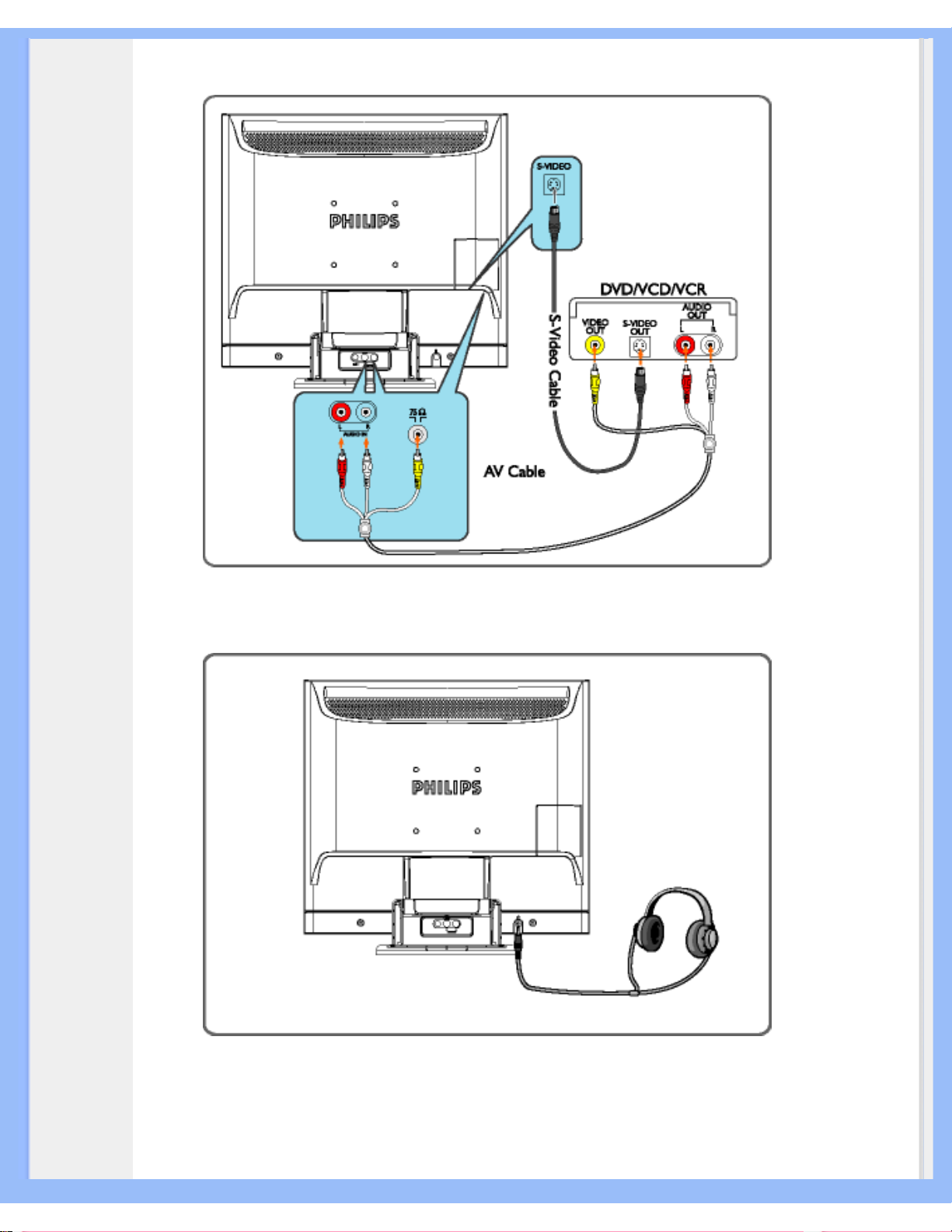

1 CVBS video input (for video model 200P4V- only )
2 S-Video input (for video model 200P4V- only )
3 Earphone jack
4 VGA input
5 DVI-D input
6 Audio R/L input
7 PC audio input
8 AC power input
file:///D|/My%20documents/dfu/J/english/200p4/install/install.htm (2 of 3) [4/15/2004 1:44:46 PM]
Installing Your LCD Monitor
RETURN TO TOP OF THE PAGE
Optimizing Performance
● For best performance, ensure that your display settings are set at 1600x1200@60Hz
Note: You can check the current display settings by pressing the 'OK' button once.
Go into the Product Information. The current display mode is shown on the item
called RESOLUTION.
● You can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best
performance out of your monitor. This is included on this CD. Step-by-step instructions are provided
to guide you through the installtion process. Click on the link to know more about this program.
More about FP_setup04.exe
RETURN TO TOP OF THE PAGE
file:///D|/My%20documents/dfu/J/english/200p4/install/install.htm (3 of 3) [4/15/2004 1:44:46 PM]
On-Screen Display
•Description
of the OnScreen
Display
•
The OSD
Tree
On-Screen Display
Description of the On Screen Display
What is the On-Screen Display?
This is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance of the
monitors directly through an on-screen instruction window. The user interface provides user-friendliness and
ease-of-use when operating the monitor.
Basic and simple instruction on the control keys.
When you press the
button on the front control of your monitor, the On-Screen Display (OSD) Main
Controls window will pop up and you can then start making adjustments to your monitor's various features.
Use the
or the keys to make your adjustments.
RETURN TO TOP OF THE PAGE
The OSD Tree
file:///D|/My%20documents/dfu/J/english/200p4/osd/osddesc.htm (1 of 6) [4/15/2004 1:44:49 PM]
On-Screen Display
Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when
you want to work your way around the different adjustments later on.
file:///D|/My%20documents/dfu/J/english/200p4/osd/osddesc.htm (2 of 6) [4/15/2004 1:44:49 PM]
On-Screen Display
file:///D|/My%20documents/dfu/J/english/200p4/osd/osddesc.htm (3 of 6) [4/15/2004 1:44:49 PM]
On-Screen Display
file:///D|/My%20documents/dfu/J/english/200p4/osd/osddesc.htm (4 of 6) [4/15/2004 1:44:49 PM]
On-Screen Display
file:///D|/My%20documents/dfu/J/english/200p4/osd/osddesc.htm (5 of 6) [4/15/2004 1:44:49 PM]
On-Screen Display
RETURN TO TOP OF THE PAGE
file:///D|/My%20documents/dfu/J/english/200p4/osd/osddesc.htm (6 of 6) [4/15/2004 1:44:49 PM]
Customer Care & Warranty
Customer Care & Warranty
PLEASE SELECT YOUR COUNTRY/AREA TO REVIEW DETAILS OF YOUR WARRANTY
COVERAGE
WESTERN EUROPE: Austria • Belgium • Cyprus • Denmark • France • Germany • Greece •
Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden •
Switzerland • Spain • United Kingdom
EASTERN EUROPE: Czech Republic • Hungary • Poland • Russia • Turkey
LATIN AMERICA: Antilles • Argentina • Brasil • Chile • Colombia • Mexico • Paraguay • Peru
• Uruguay • Venezuela
NORTH AMERICA: Canada • USA
PACIFIC: Australia • New Zealand
ASIA: Bangladesh • China • Hong Kong • India • Indonesia • Japan • Korea • Malaysia •
Pakistan • Philippines • Singapore • Taiwan • Thailand
AFRICA: Morocco • South Africa
MIDDLE EAST: Dubai • Egypt
file:///D|/My%20documents/dfu/J/english/warranty/warranty.htm [4/15/2004 1:44:51 PM]
Glossary
Glossary
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
C
Color temperature
A way of describing the color of a radiating source in terms of the temperature (in degrees Kelvin) of a black
body radiating with the same dominant frequency as the source.
Most Philips monitors offer the possibility of setting the color temperature to any desired value.
RETURN TO TOP OF THE PAGE
D
D-SUB
Your monitor comes with a D-Sub cable.
Digital Visual Interface (DVI)
The Digital Visual Interface (DVI) specification provides a high-speed digital connection for visual data types
that is display technology independent. The interface is primarily focused at providing a connection between
a computer and its display device. The DVI specification meets the needs of all segments of the PC industry
(workstation, desktop, laptop, etc.) and will enable these different segments to unite around one monitor
interface specification.
file:///D|/My%20documents/dfu/J/english/200p4/glossary/glossary.htm (1 of 5) [4/15/2004 1:44:55 PM]
Glossary
The DVI interface enables:
1. Reduce signal loss and video noise in signal due to less signal conversion.
2. Independent from display technology, and can be used on LCD, Plasma, LCOS, etc.
3. Plug and play through hot plug detection, EDID and DDC2B.
4. Digital and Analog support in a single connector (DVI-I only).
RETURN TO TOP OF THE PAGE
E
Energy Star Computers Program
An energy conservation program launched by the US Environmental Protection Agency (EPA), promotes
the manufacture and marketing of energy-efficient office automation equipment. Companies joining this
program, must be willing to commit themselves to manufacture one or more products capable of going into
a low -power state (< 30 W) either after a period of inactivity, or after a predetermined time selected by the
user.
RETURN TO TOP OF THE PAGE
L
LCD Liquid Crystal Display
An alphanumeric display, using the unique properties of liquid crystal, to form characters. The latest flatpanel displays, contains a matrix of hundreds or thousands of individual LCD cells that generate text and
colorful graphics on a screen. They consume little power, though they do require external lighting to make
them legible to the user.
RETURN TO TOP OF THE PAGE
file:///D|/My%20documents/dfu/J/english/200p4/glossary/glossary.htm (2 of 5) [4/15/2004 1:44:55 PM]
Glossary
U
USB or Universal Serial Bus
A smart plug for PC peripherals. USB automatically determines resources (like driver software and bus
bandwidth) required by peripherals. USB makes necessary resources available without user intervention.
● USB eliminates "case anxiety" -- the fear of removing the computer case to install add-on
peripherals. USB also eliminates adjustment of complicated IRQ settings when installing new
peripherals.
● USB does away with "port gridlock." Without USB, PCs are normally limited to one printer, two Com
port devices (usually a mouse and modem), one Enhanced Parallel Port add-on (scanner or video
camera, for example) and a joystick. More and more peripherals for multimedia computers arrive on
the market every day. With USB, up to 127 devices can run simultaneously on a computer.
● USB permits "hot plug-in." There's no need to shut down, plug in, reboot and run set-up to install
peripherals. And no need to go through the reverse process to unplug a device.
In short, USB transforms today's "Plug-and-Pray" into true Plug-and-Play!
Hub
A Universal Serial Bus device that provides additional connections to the Universal Serial Bus.

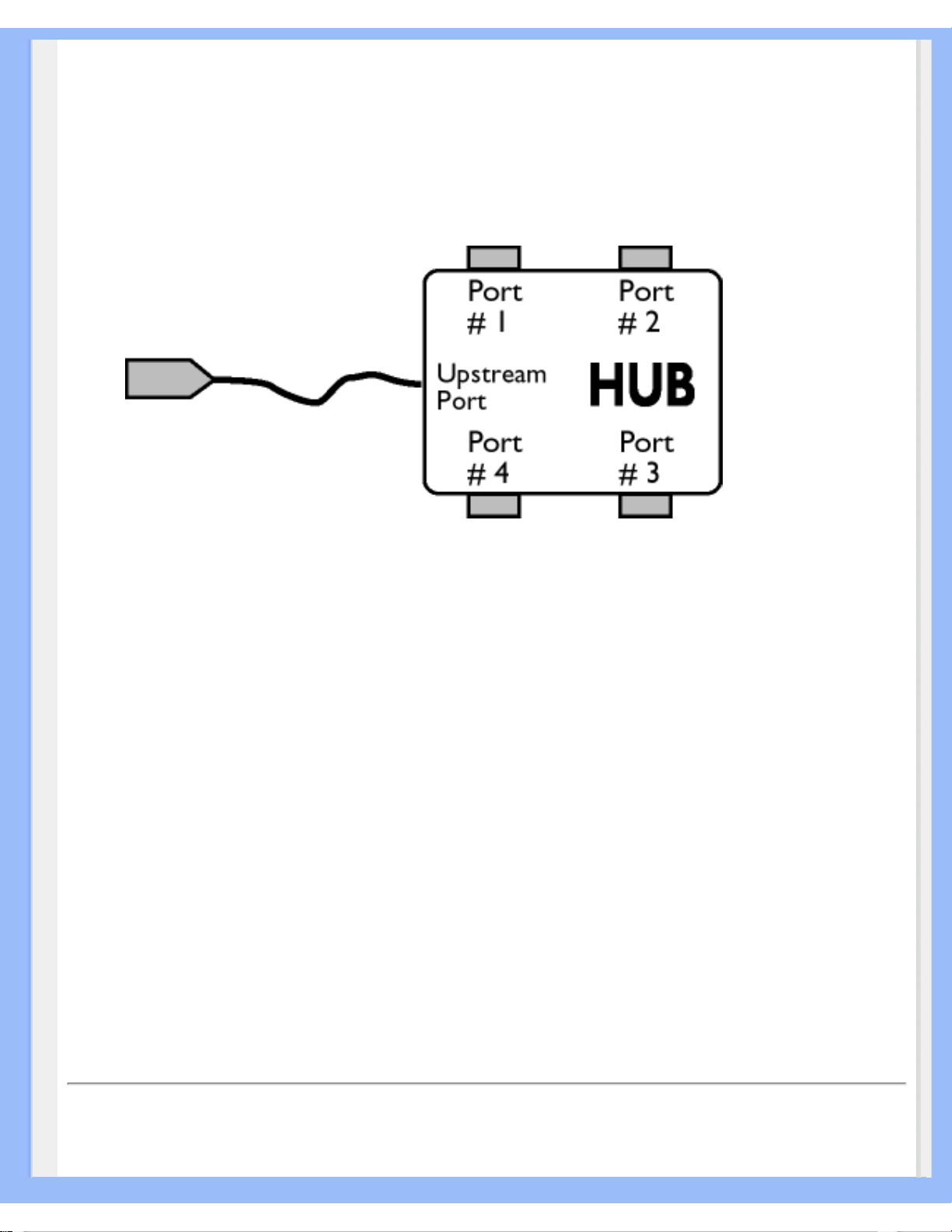

Hubs are a key element in the plug-and-play architecture of USB. The Figure shows a typical hub. Hubs
serve to simplify USB connectivity from the user's perspective providing low cost and complexity.
Hubs are wiring concentrators and enable the multiple attachment characteristics of USB. Attachment points
are referred to as ports. Each hub converts a single attachment point into multiple attachment points. The
architecture supports concatenation of multiple hubs.
The upstream port of a hub connects the hub towards the host. Each of the other downstream ports of a
hub allows connection to another hub or function. Hubs can detect, attach and detach at each downstream
port and enable the distribution of power to downstream devices. Each downstream port can be individually
enabled and configured at either full or low speed. The hub isolates low speed ports from full speed
signaling.
A hub consists of two portions: the Hub Controller and Hub Repeater. The repeater is a protocol-controlled
switch between the upstream port and downstream ports. It also has hardware support for reset and
suspend/resume signaling. The controller provides the interface registers to allow communication to/from
the host. Hub specific status and control commands permit the host to configure a hub and to monitor and
control its ports.
Device
file:///D|/My%20documents/dfu/J/english/200p4/glossary/glossary.htm (3 of 5) [4/15/2004 1:44:55 PM]
Loading...
