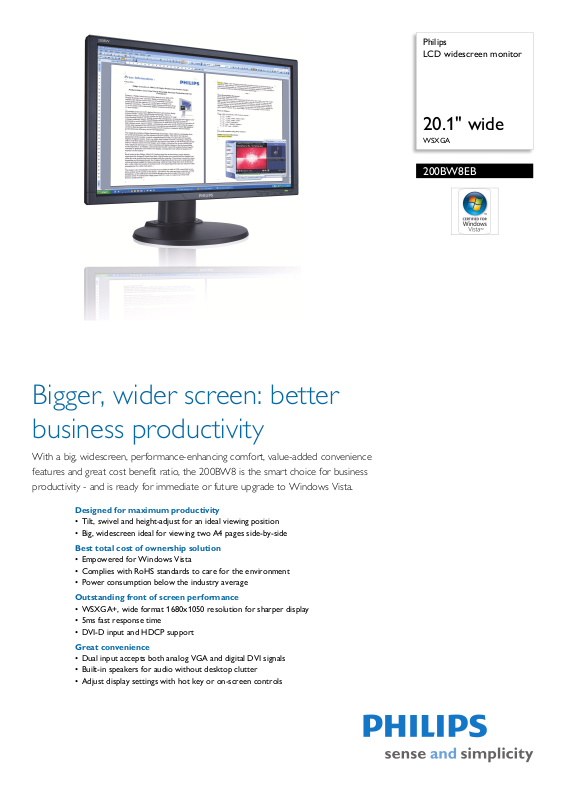

Page 1
Philips
LCD widescreen monitor
20.1" wide
WSXGA
200BW8EB
Bigger, wider screen: better
business productivity
With a big, widescreen, performance-enhancing comfort, value-added convenience
features and great cost benefit ratio, the 200BW8 is the smart choice for business
productivity - and is ready for immediate or future upgrade to Windows Vista.
Designed for maximum productivity
• Tilt, swivel and height-adjust for an ideal viewing position
• Big, widescreen ideal for viewing two A4 pages side-by-side
Best total cost of ownership solution
• Empowered for Windows Vista
• Complies with RoHS standards to care for the environment
• Power consumption below the industry average
Outstanding front of screen performance
• WSXGA+, wide format 1680x1050 resolution for sharper display
• 5ms fast response time
• DVI-D input and HDCP support
Great convenience
• Dual input accepts both analog VGA and digital DVI signals
• Built-in speakers for audio without desktop clutter
• Adjust display settings with hot key or on-screen controls
Page 2
LCD widescreen monitor
20.1" wide WSXGA
Highlights
200BW8EB/00
Widescreen
A big, widescreen display that improves
product
ivity by displaying two A4 pages side-
by-side.
Windows Vista ready
Philips Vista-ready monitors are empowered
for vi
brant, exciting display of this new, visually
sophisticated and demanding Windows
operating system, designed to enhance your
entertainment experience, make you more
productive and help you control your
computing experience at home and in the
office, making viewing, finding and organizing
information for work or play quick, efficient
and easy.
Compliant with RoHS standards
Philips designs and produces display products
in
compliance with strict Restriction of
Hazardous Substances (RoHS) standards that
restrict lead and other toxic substances that
can harm the environment.
Lower power consumption
Reduction of the electrical power required to
o
perate a device.
WSXGA+, wide format 1680x1050
Wide format, super extended graphics array is
a
display specification that is capable of
displaying 1680 x 1050 resolution or
approximately 1.7 million pixels.
5ms on/off response time
On-Off response time is the period required
for a liqui
to inactive (white) and back to active (black)
again. It is measured in milliseconds. Faster is
better: Lower response time means faster
transitions and, therefore, results in fewer
visible image artifacts in the display of
transition of texts and graphics. On-Off
response time is a more important measure in
the display of business content like documents,
graphs and photos.
HDCP ready
High-Bandwidth Digital Content Protection
(HDCP) is a
is incorporated into the DVI connector. It
helps stop unauthorized duplication of
copyrighted content. HDCP allows you to play
protected content media such as movies and
d crystal cell to go from active (black)
copyright protection system that
concerts. It checks the signal to prevent piracy,
allowing only legal copies of content to display.
Dual input
Dual input provides connectors to
accommodate input of both analog VGA and
digital DVI signals.
Built-in speakers
Audio speakers built into a display device.
User friendly hot key and OSD
The user friendly hot key and on-screen display
control
s are dual systems for conveniently
fine-tuning display settings to meet a variety of
needs. Press the hot key on your monitor's
frame for automatic picture, quick contrast and
brightness control or use the on-screen display
feature to fine-tune your display settings.
Page 3
LCD widescreen monitor
20.1" wide WSXGA
Specifications
200BW8EB/00
Picture/Display
• LCD panel type: 1680 x 1050 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 20.1"/ 51 cm
• Effective viewing area: 433.4 x 270.9 mm
• Pixel pitch: 0.258 x 0.258 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 800:1
• Display colors: 16.7 M
• Viewing angle: 160º (H) / 160º (V), @ C/R > 10
• Response time (typical): 5 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1680 x 1050 @ 60Hz
• Optimum Resolution: 1680 x 1050 @ 60Hz
• Video Dot Rate: 205 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 - 75 Hz
• Aspect ratio: 16:10
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D
• Sync Input: Composite Sync,
on Green
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Separate Sync, Sync
Convenience
• User convenience: On-screen Display
• Monitor Controls: Auto, Brightness (Left),
ntrast (Right), Menu, Power On/Off
Co
• OSD Languages: English, Fr
Russian, Spanish
• Other convenience: Kensingto
• Plug & Play Compatibility: DDC/CI, sRGB,
ws 98/ME/2000/XP/Vista
Windo
• Regulatory Approvals: CE Mark, Energy Star, FCC
lass B, SEMKO, TCO '03, TÜV/GS, TÜV Ergo,
C
UL/cUL
ench, German, Italian,
n lock compatible
•Swivel: +/-45°
• Tilt: -5° to 20°
• VESA Mount: 100 x 100 mm
• Built-in Audio: 1 W x 2
Accessories
• Included Accessories: AC Power Cord, VGA cable,
Audio Cable
• User Manual
Dimensions
•Box dimensions (W x H x D):
565 x 420 x 295 mm
• Box dimensions in inch (W x H x D):
.2 x 16.5 x 11.6 inch
22
•Set dimensions (W x H x D):
2.89 x 310.23 x 73 mm
47
• Set dimensions in inch (W x
18.6 x 12.2 x 2.9 inch
• Set dimensions with stand (W x H x D):
2.89 x 343.15 x 230.25 mm
47
•Set dimensions with st
18.6 x 13.5 x 9.1 inch
• Height adjustment range: 130 mm
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 5°C to 35°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 6.7 kg
• Product weight (+stand) (lb): 14.8 lb
• Weight incl. Packaging: 8.6 kg
• Weight incl. Packaging (lb): 19.0
H x D):
and in inch (W x H x D):
Power
• Complies with: Energy Star
• Consumption (On mode): < 47 W (Typical)
•Consumption (Off Mo
• Power LED indicator: Operation - green, Stand by/
eep - Amber
sl
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
de): < 1 W
Issue date 2009-04-22
Version: 2.0.3
12 NC: 8670 000 35506
EAN: 87 12581 38124 0
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
