Philips 2 User Manual

Download

Page 1

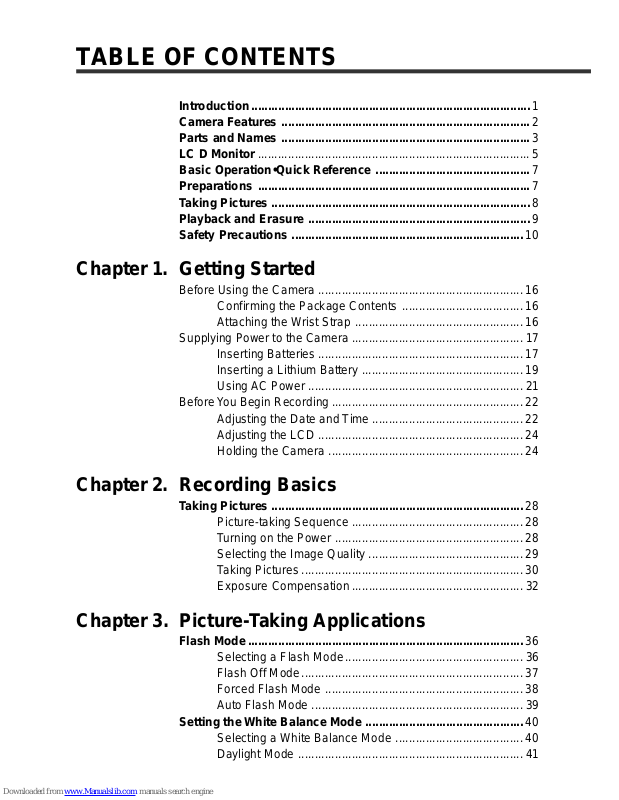

TABLE OF CONTENTS

Introduction...................................................................................1

Camera Features ..........................................................................2

Parts and Names ..........................................................................3

LC D Monitor ................................................................................. 5

Basic Operation•Quick Reference ..............................................7

Preparations .................................................................................7

Taking Pictures .............................................................................8

Playback and Erasure .................................................................. 9

Safety Precautions ..................................................................... 10

Chapter 1. Getting Started

Before Using the Camera............................................................. 16

Confirming the Package Contents .................................... 16

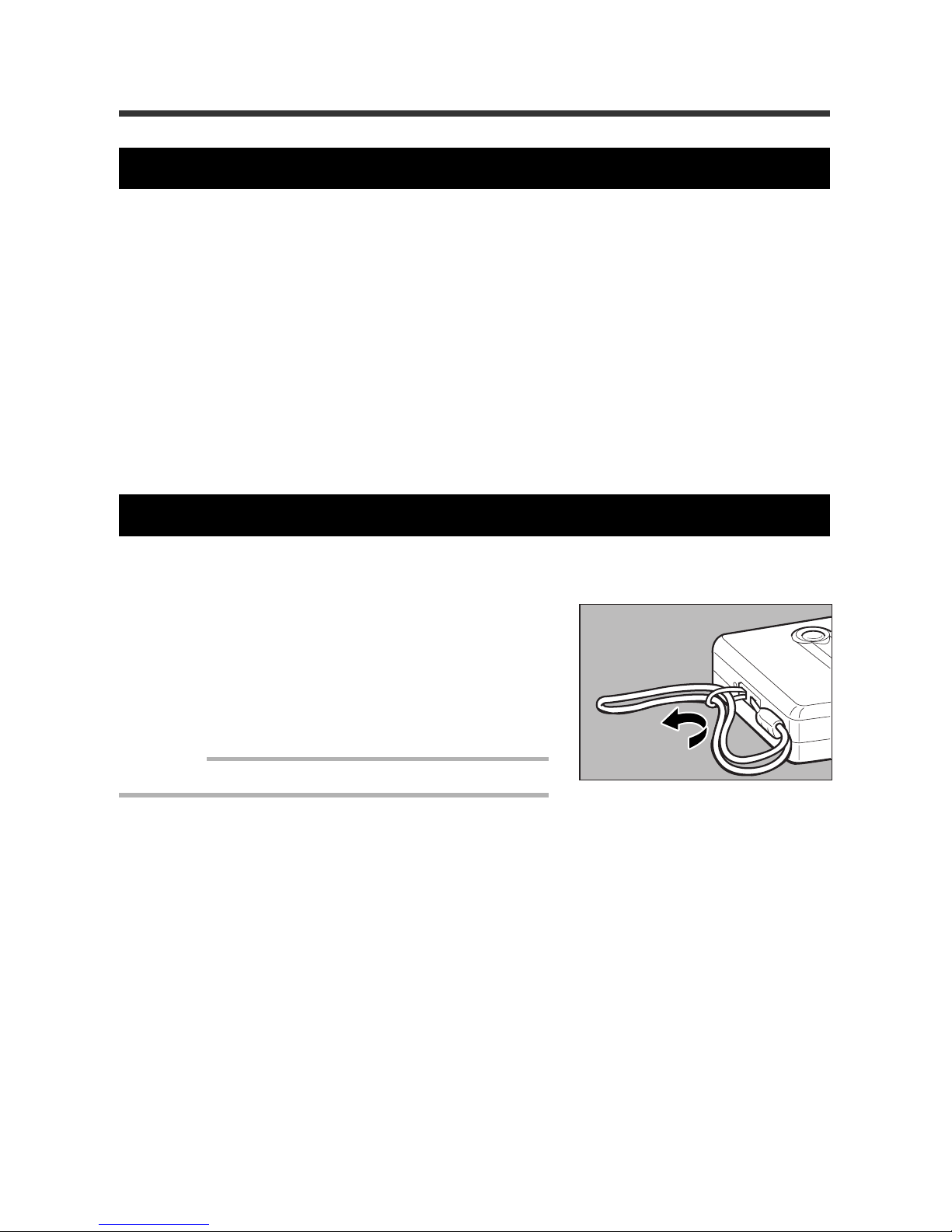

Attaching the Wrist Strap .................................................. 16

Supplying Power to the Camera ...................................................17

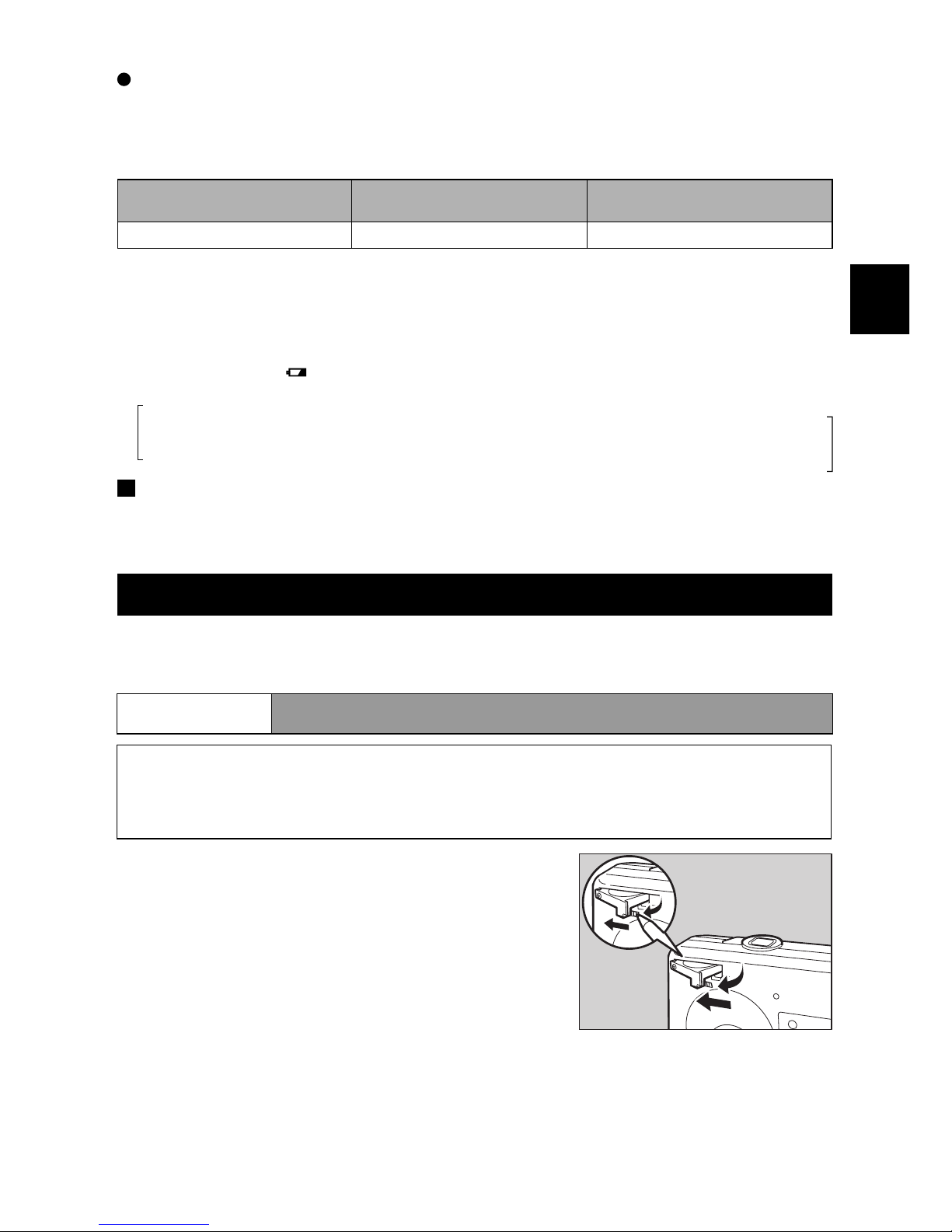

Inserting Batteries ............................................................. 17

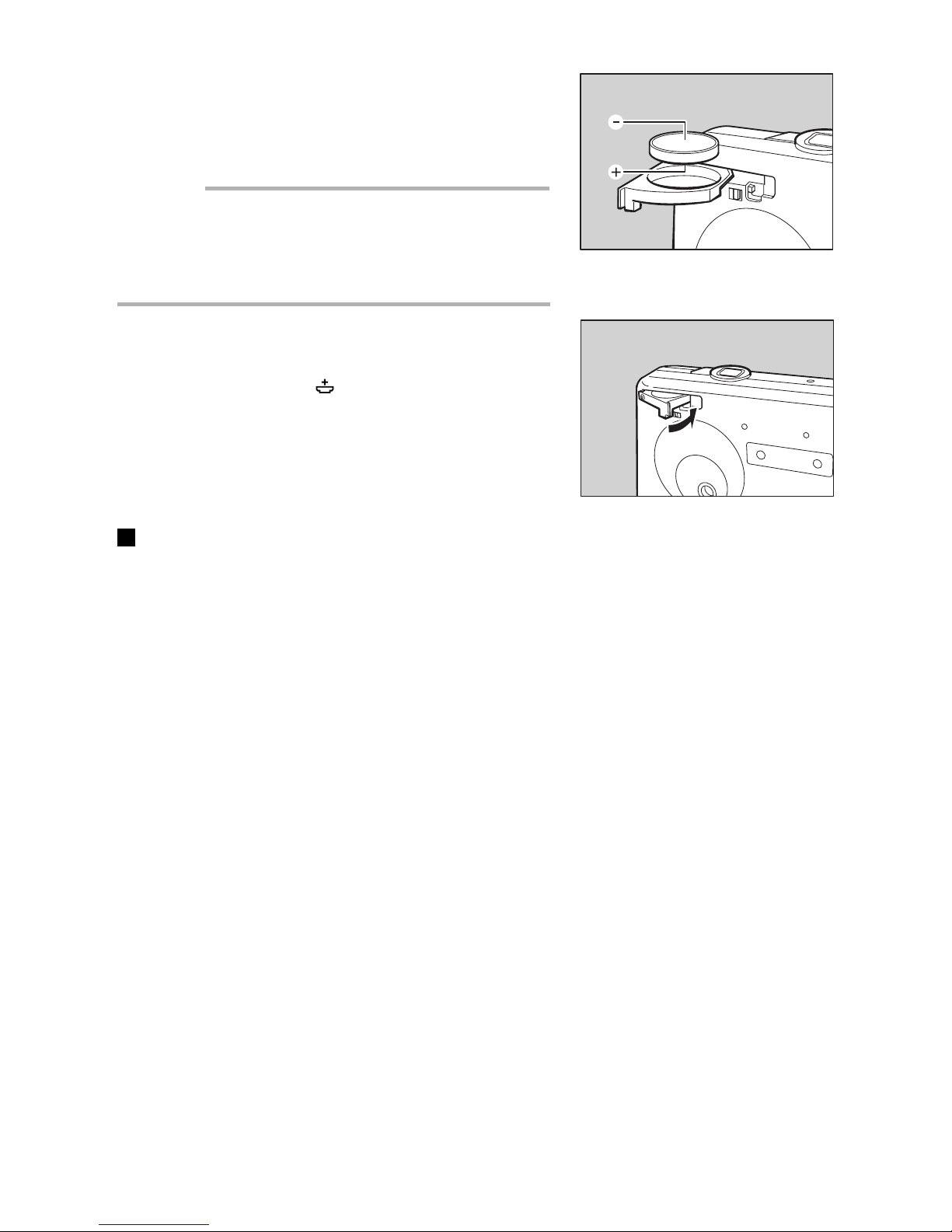

Inserting a Lithium Battery ................................................ 19

Using AC Power ................................................................ 21

Before You Begin Recording......................................................... 22

Adjusting the Date and Time.............................................22

Adjusting the LCD ............................................................. 24

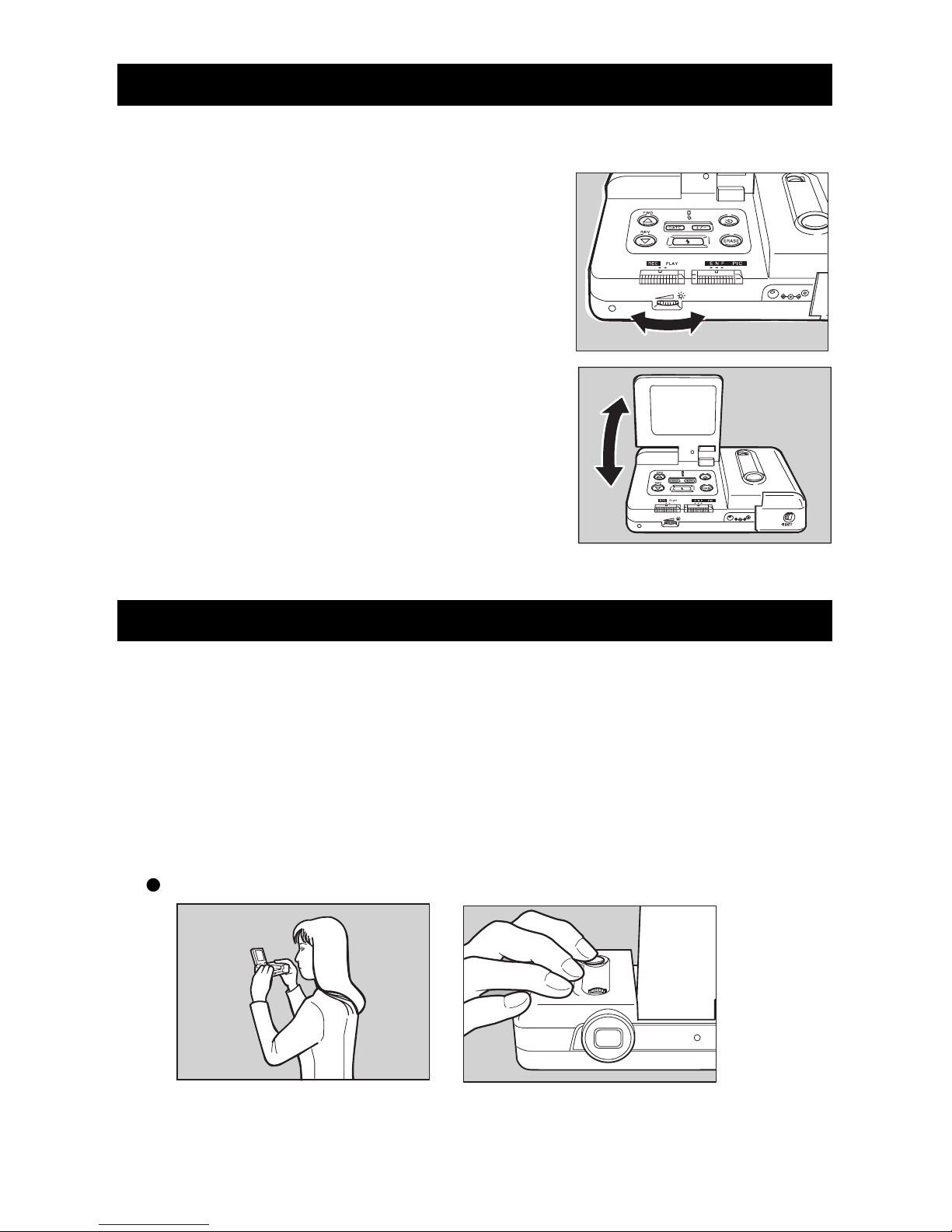

Holding the Camera .......................................................... 24

Chapter 2. Recording Basics

Taking Pictures ...........................................................................28

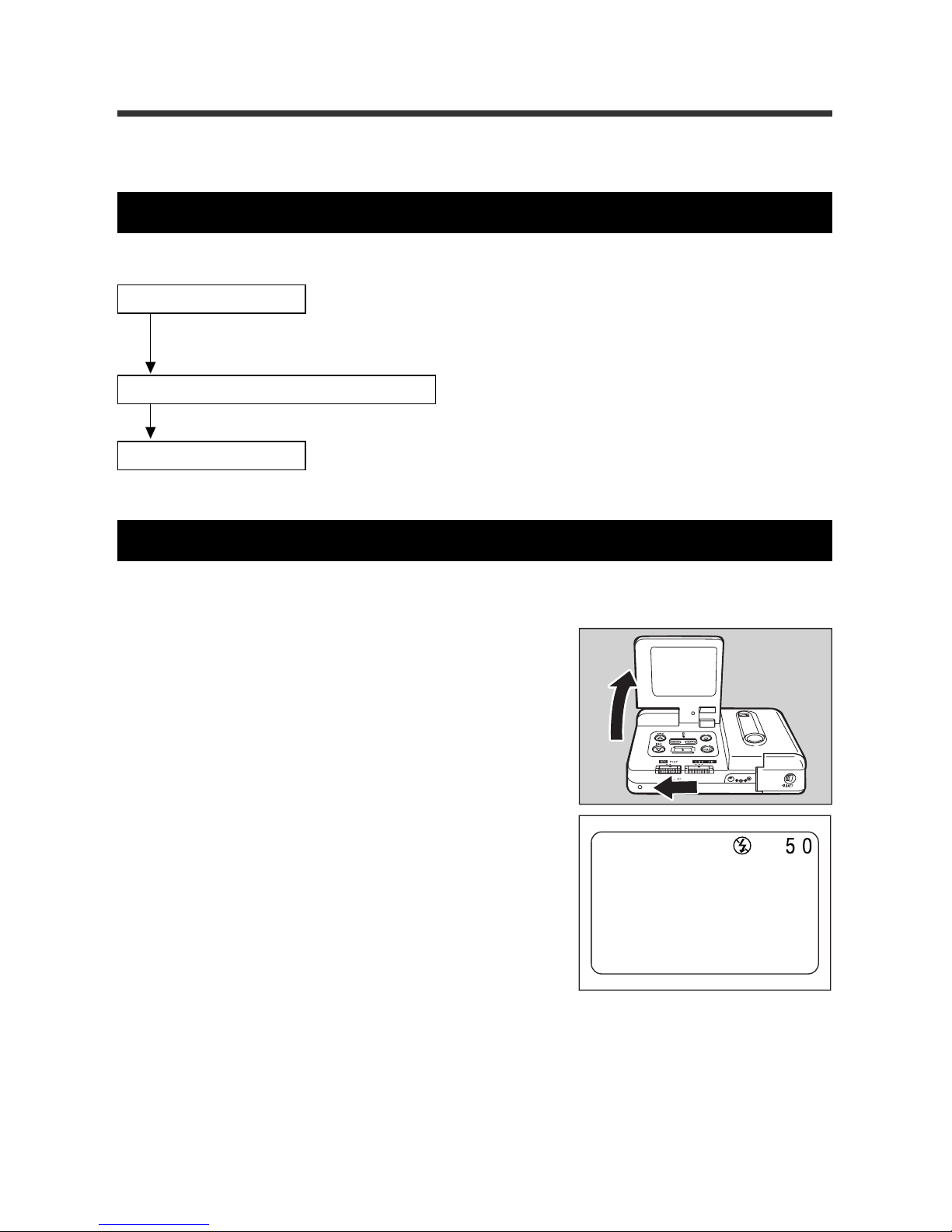

Picture-taking Sequence ...................................................28

Turning on the Power ........................................................ 28

Selecting the Image Quality .............................................. 29

Taking Pictures.................................................................. 30

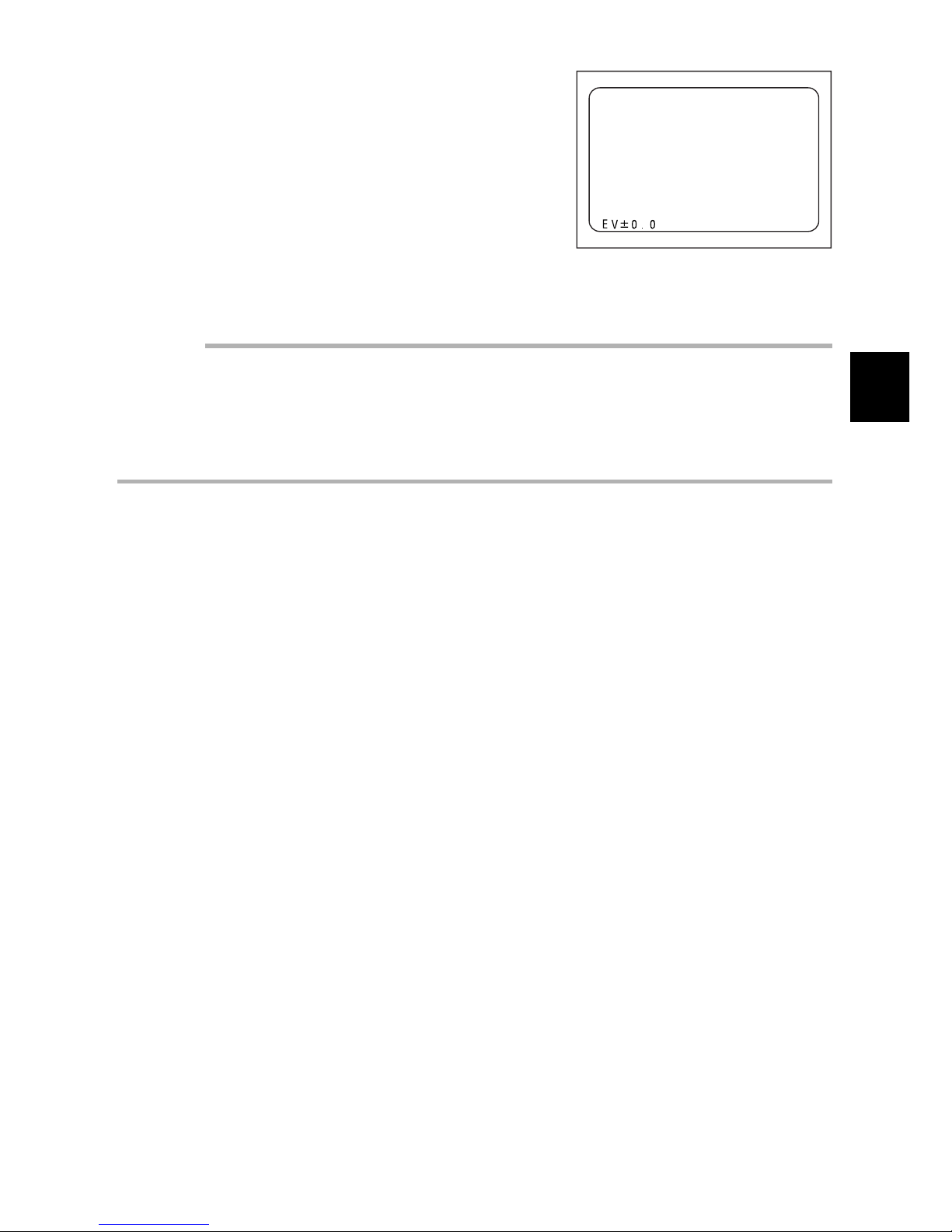

Exposure Compensation...................................................32

Chapter 3. Picture-Taking Applications

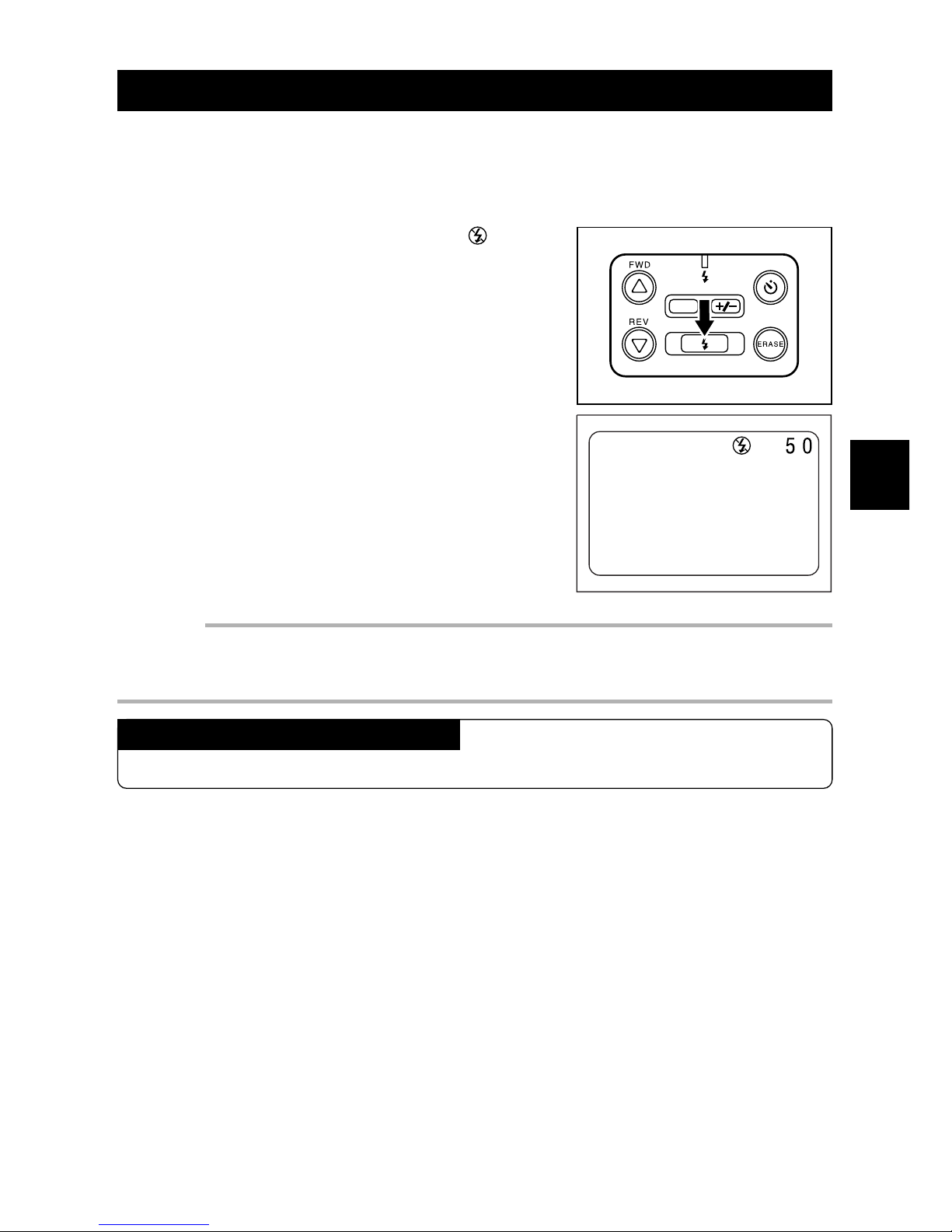

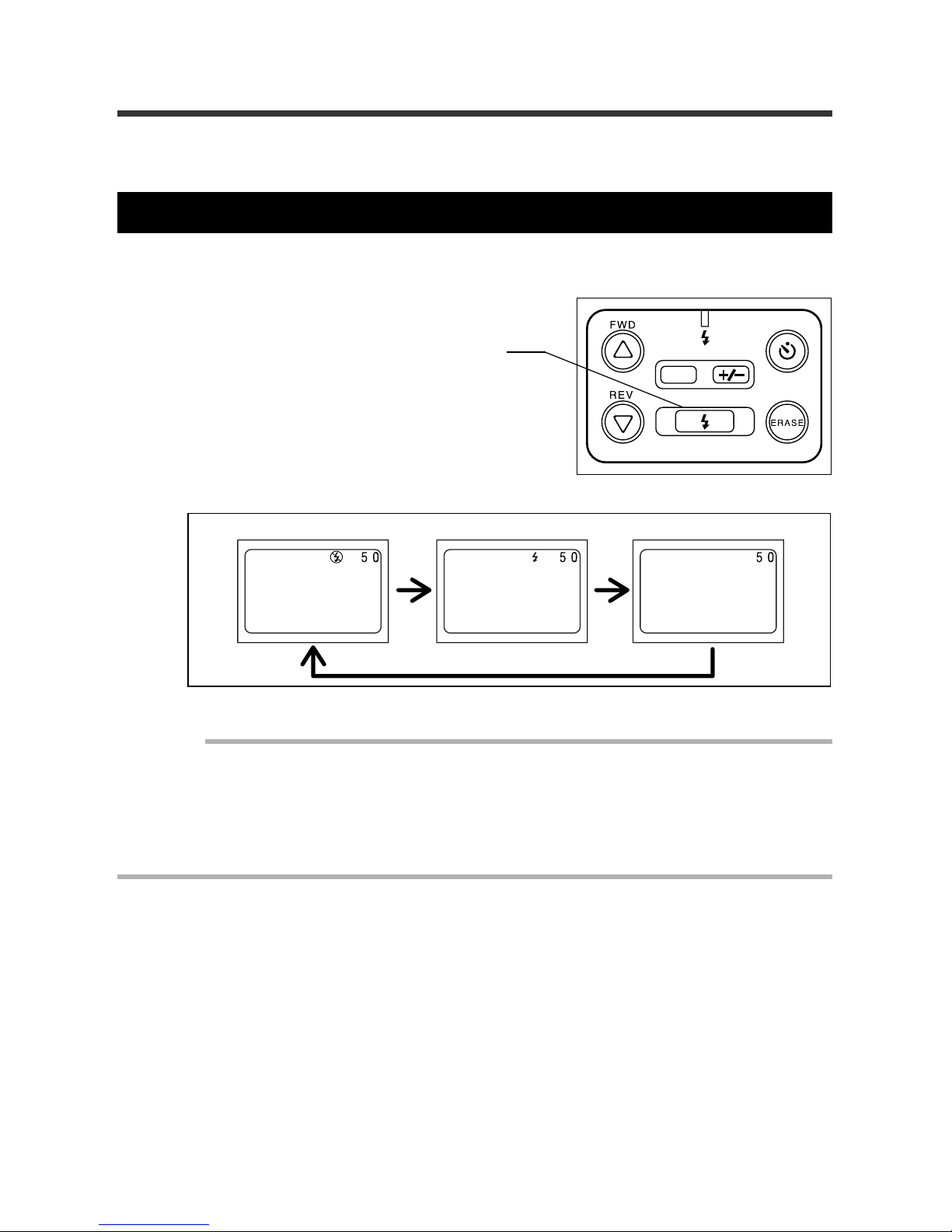

Flash Mode.................................................................................. 36

Selecting a Flash Mode.....................................................36

Flash Off Mode..................................................................37

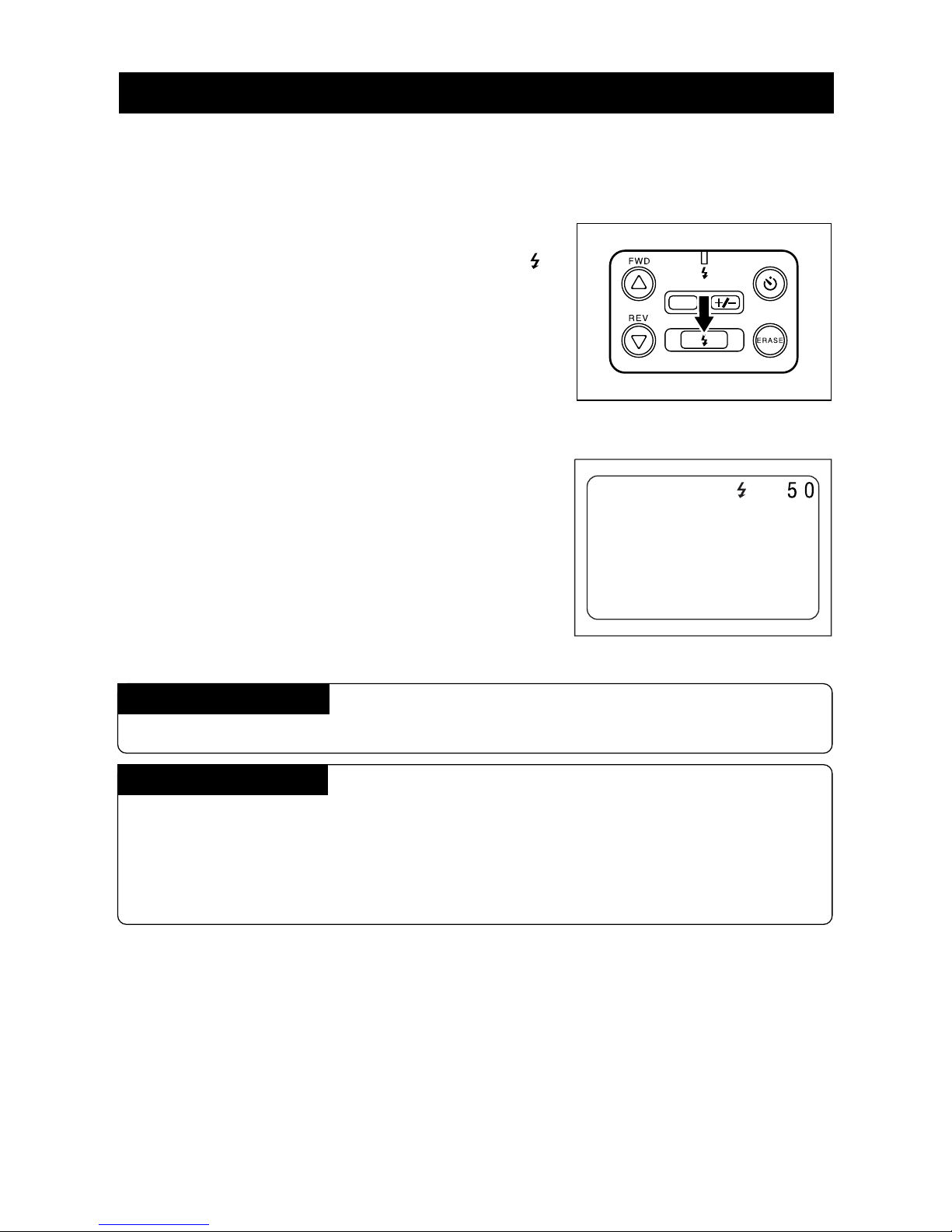

Forced Flash Mode ........................................................... 38

Auto Flash Mode ...............................................................39

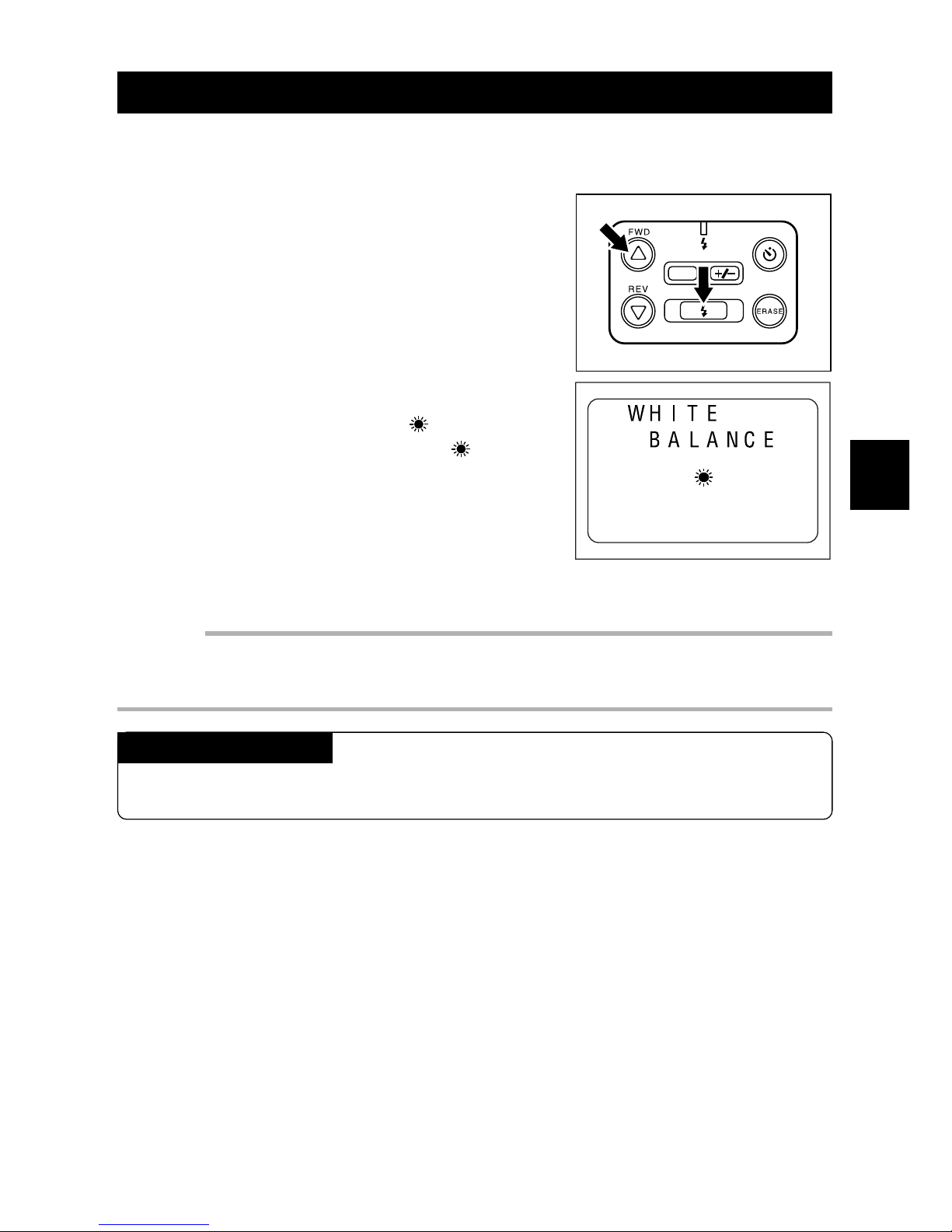

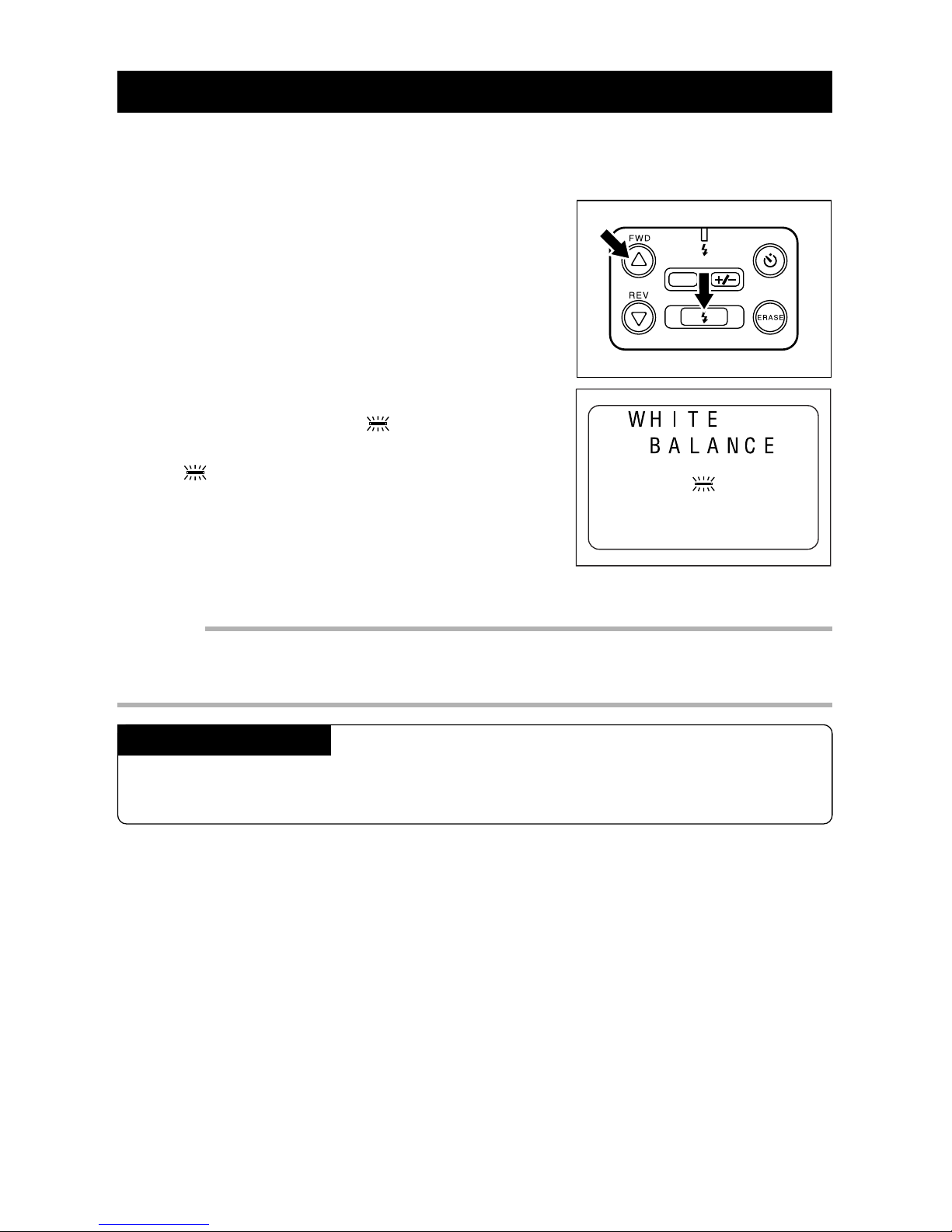

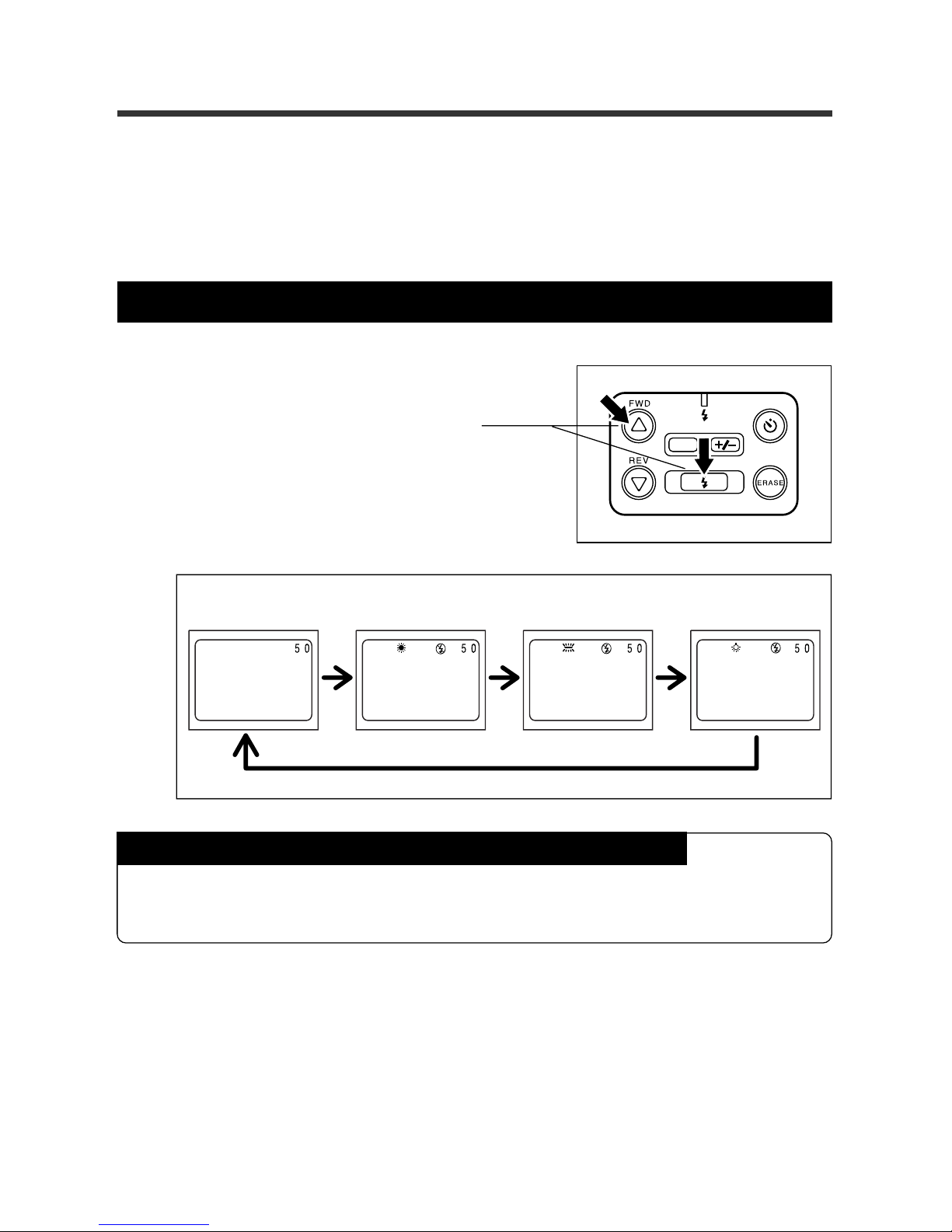

Setting the White Balance Mode ............................................... 40

Selecting a White Balance Mode ...................................... 40

Daylight Mode ................................................................... 41

Page 2

Fluorescent Mode ............................................................. 42

Tungsten Light Mode......................................................... 43

Special Functions....................................................................... 44

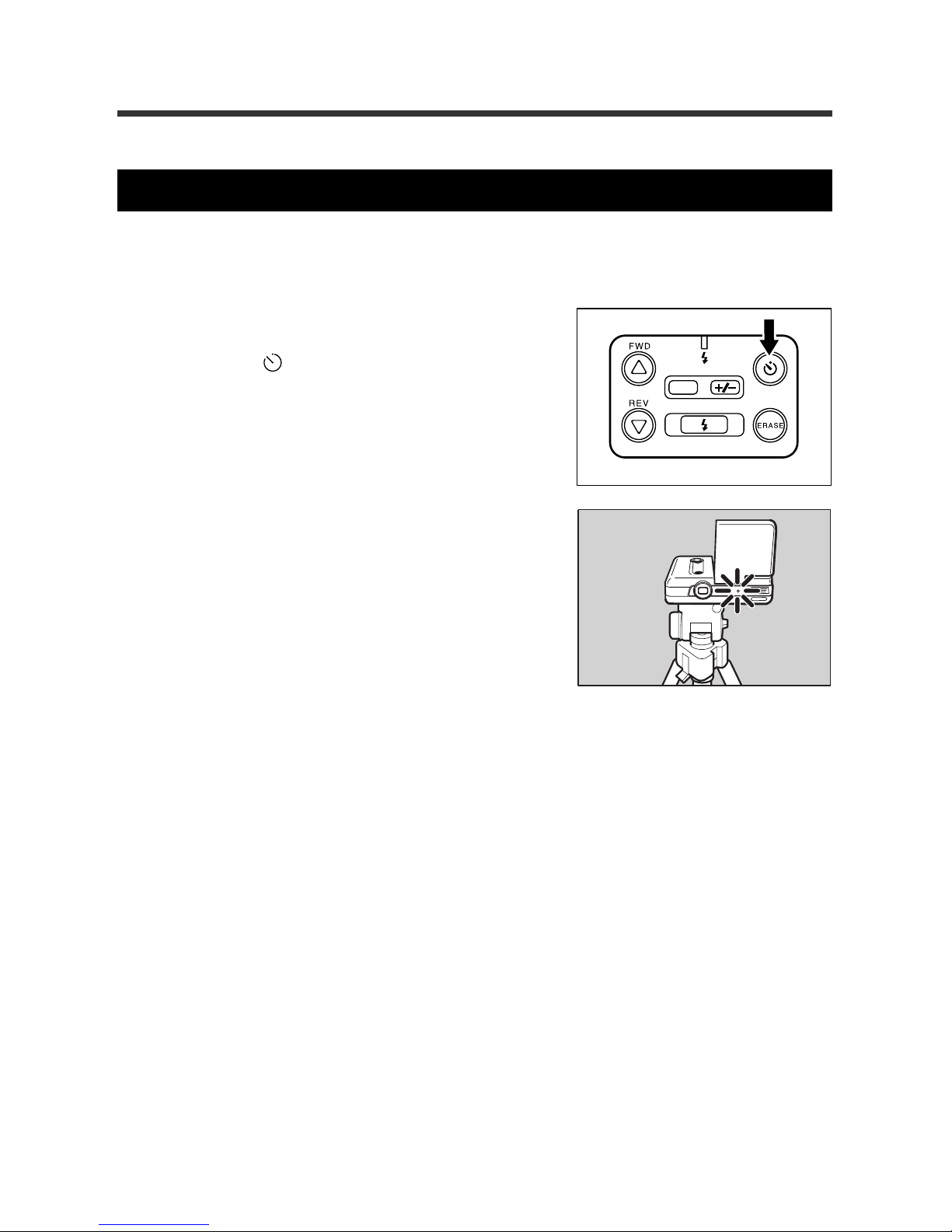

Using the Self Timer..........................................................44

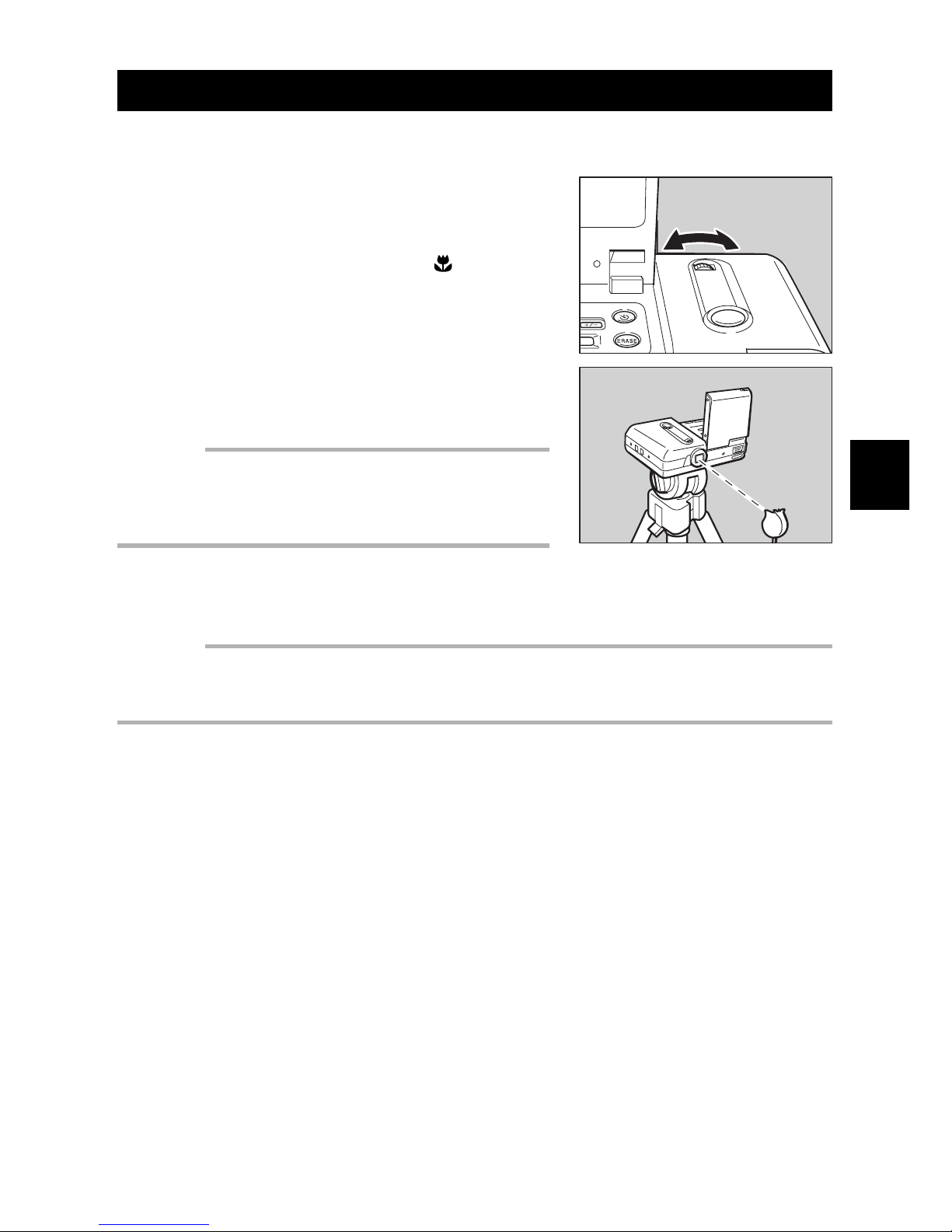

Macro Shooting (Close-up Shooting) ................................ 45

Chapter 4. Picture Playback/Erasure

Before Playback.......................................................................... 48

Displaying Information....................................................... 48

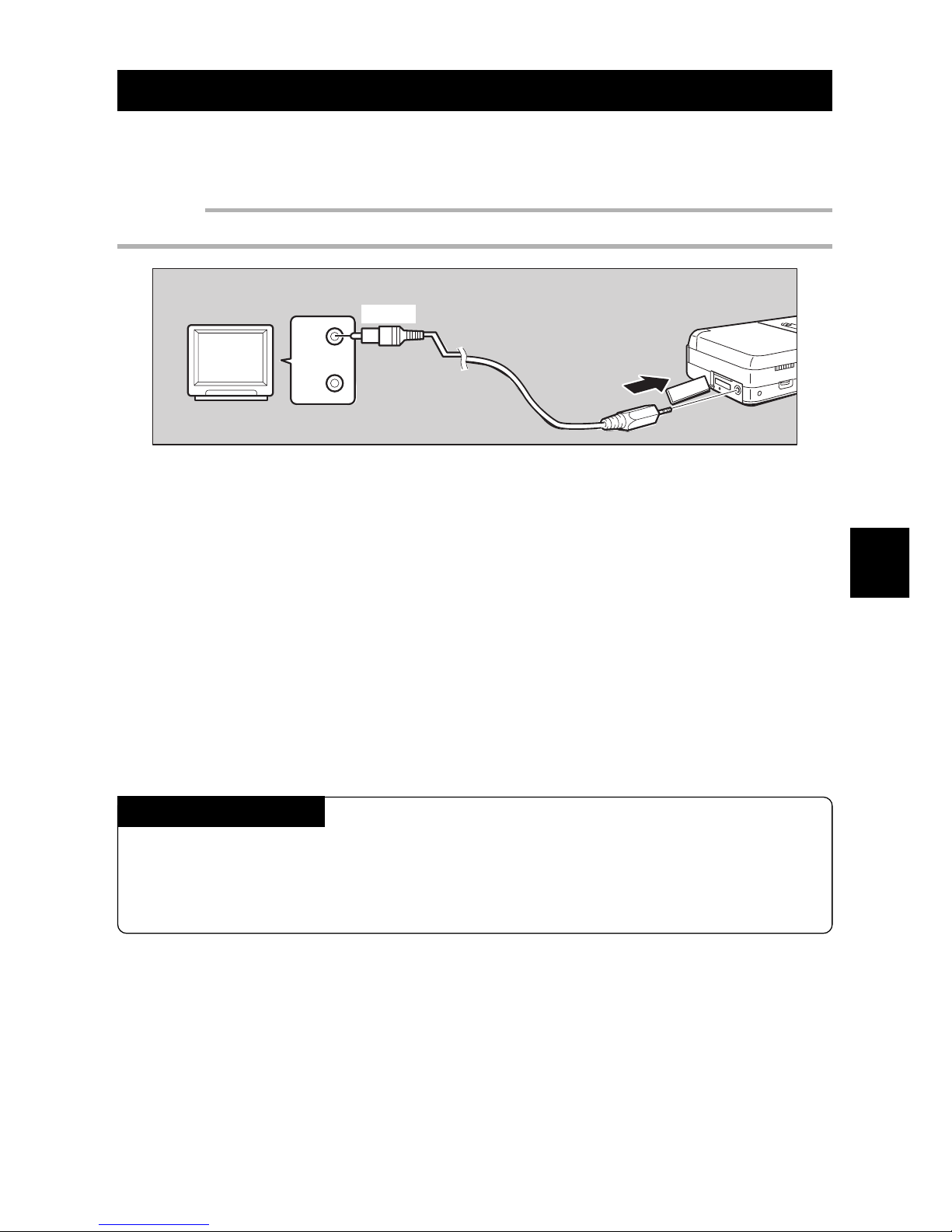

Connecting to a TV............................................................49

File Playback............................................................................... 50

File Playback.....................................................................50

Automatic Playback........................................................... 50

File Erasing ................................................................................. 52

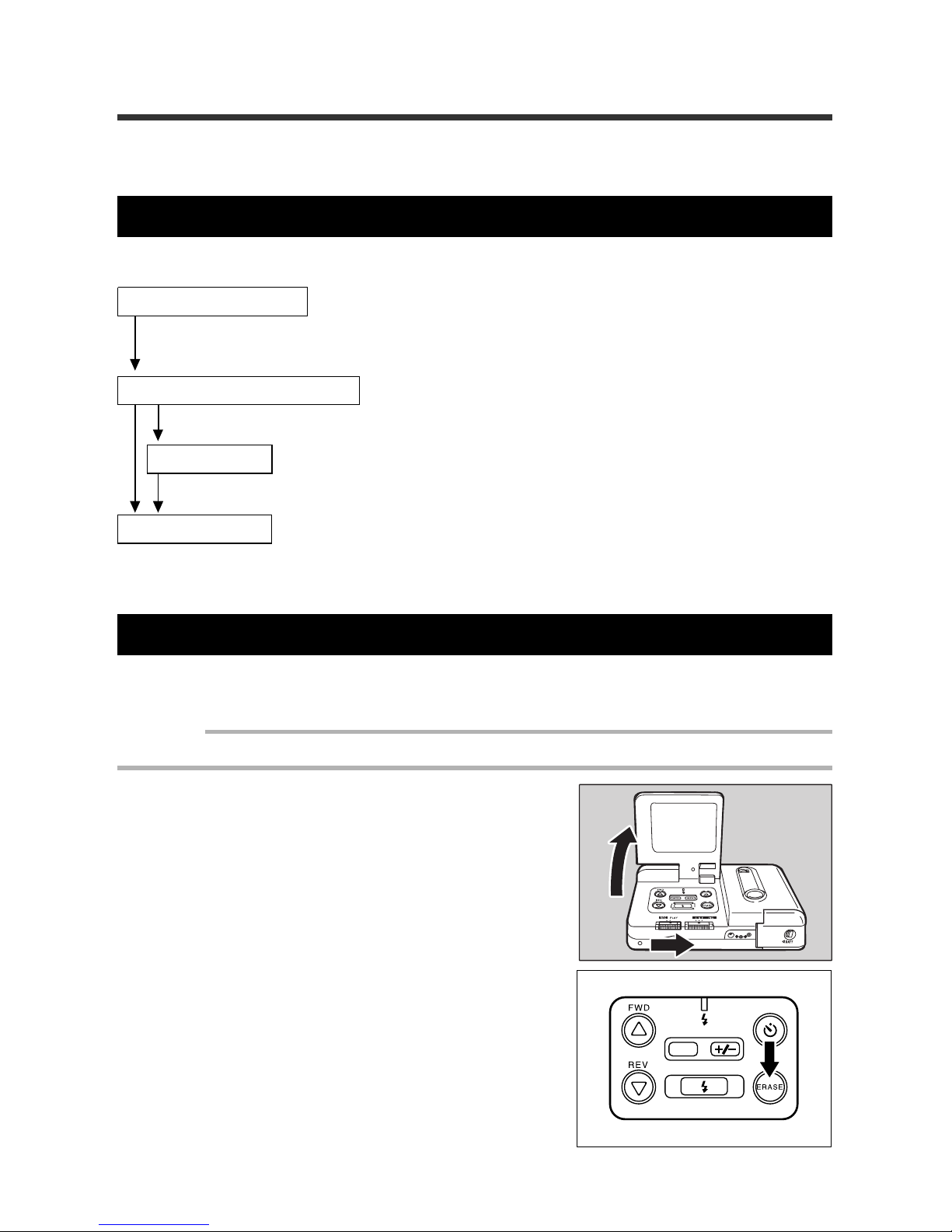

Operation Flow..................................................................52

Erasing One File ............................................................... 52

Erasing All Files ................................................................ 54

Chapter 5. Additional Information

Changing a Camera Setting ...................................................... 56

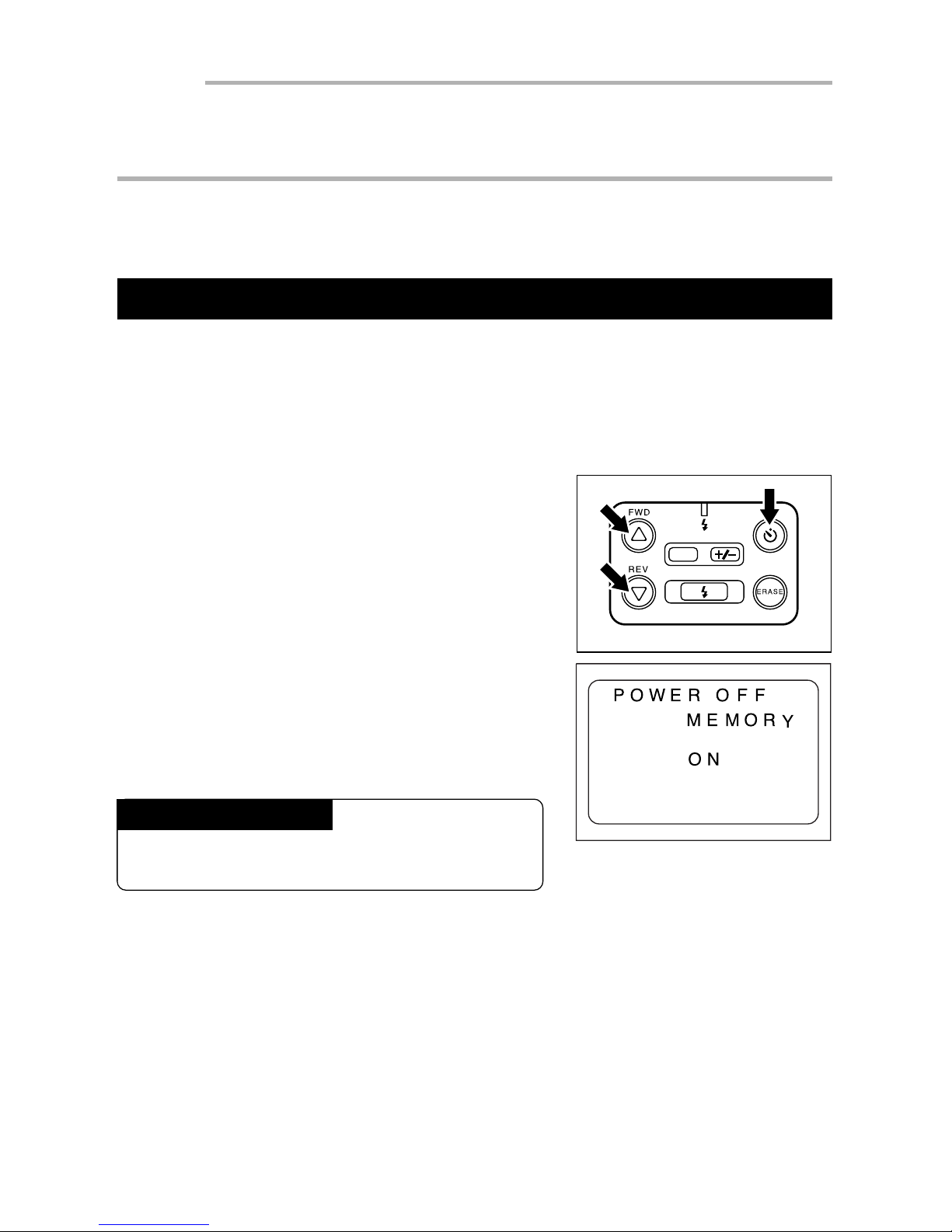

Setting the Auto Power Off mode...................................... 56

Setting the Power Saving Mode ........................................ 57

Saving Your Settings ......................................................... 58

Returning the settings to the Original Position .................. 59

System Configuration Figure .................................................... 60

Accessories for ESP2 ................................................................ 62

Computer and DC Connections ................................................ 63

Handling Precautions ................................................................ 66

Caring for Your Digital Camera.................................................. 67

Troubleshooting ......................................................................... 68

Using Your Digital Camera in Other Countries ........................ 71

Specifications ............................................................................. 72

Page 3

Introduction

Testing the camera

Always test the camer a b y taking se v er al sample pictures to confirm that the pictures are recorded correctly.

Respecting copyrights

Reproduction or alteration of copyrighted documents and magazines other than for personal or family use or for a similarly limited extent, without the consent of the author, is prohibited.

About lost files

We regret that we cannot be responsib le for files lost due to any malfunction of the camera.

About the warranty

This product is made according to local specifications. Should it malfunction while you are abroad, we cannot be responsible for the cost or availability of service in other countries.

Radio-frequency interference

Using the digital camera near electric devices could inhibit the performance of both the camera and nearby devices. Interference is likely to occur when the camera is placed near a radio or television. If this condition occurs, perform the following procedures:

• Relocate the camera as far as possible from the interference source.

• Change the orientation of the radio or television antenna.

• Plug the camera into a different electrical outlet.

Microsoft, MS-DOS, and Windows are trademarks of the Microsoft Corporation of the U. S. A. and are registered in the U. S. and other countries. Macintosh is a trademark of Apple Computer Inc. of the U. S. A. and is registered in the U. S. and other countries. All trademarked product names mentioned in this manual are the property of their respective companies.

Page 4

Camera Features

Recording quickly

Recording can be performed quickly and simply by determining the image composition while observing the LCD monitor and pressing the shutter release button. The memory is stored in the main unit of the camera.

Confirming a file after recording

A recorded file can be confirmed by the LCD monitor right after the recording. Playback the file by switching to the playback mode.

Taking several pictures by switching the mode

Three modes can be set. These modes include Normal mode, Fine mode (sets the recording priority on image quality), and Economy mode, which records several which images.

Natural color images

Use the Auto White Balance feature to place the subject in natural color, regardless of the lighting conditions.

Close-up shooting

You may approach a subject as close as a distance of 1 cm. This is called Macro Shooting and is appropriate for pictures of flowers, insects, or other detailed subjects.

Monitoring on a TV

A recorded file may be view ed on a TV by connecting the video cable. Dubbing to a video cassette tape and printing a full-color print are also possible if you connect the camera to a video deck or a video printer (NTSC only).

Easy to carry, compact size

The compact size and light weight of the camera enable easy carrying. This camera has an optional hard case, making it easy for you to take it with you anywhere.

Transferring files to a computer

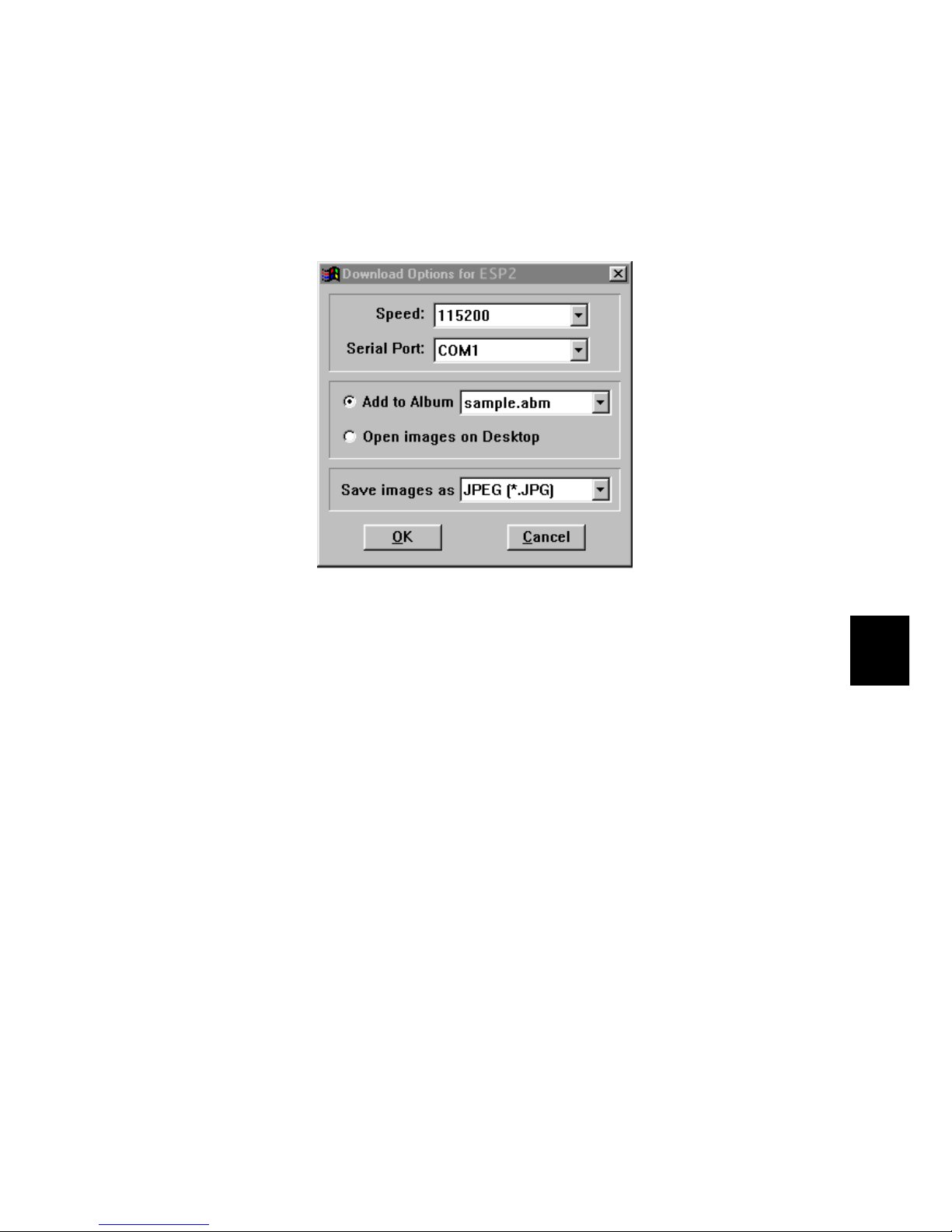

Files can be transferred to a computer using the software for the ESP2. The file can be printed with a color printer and color copier.

Page 5

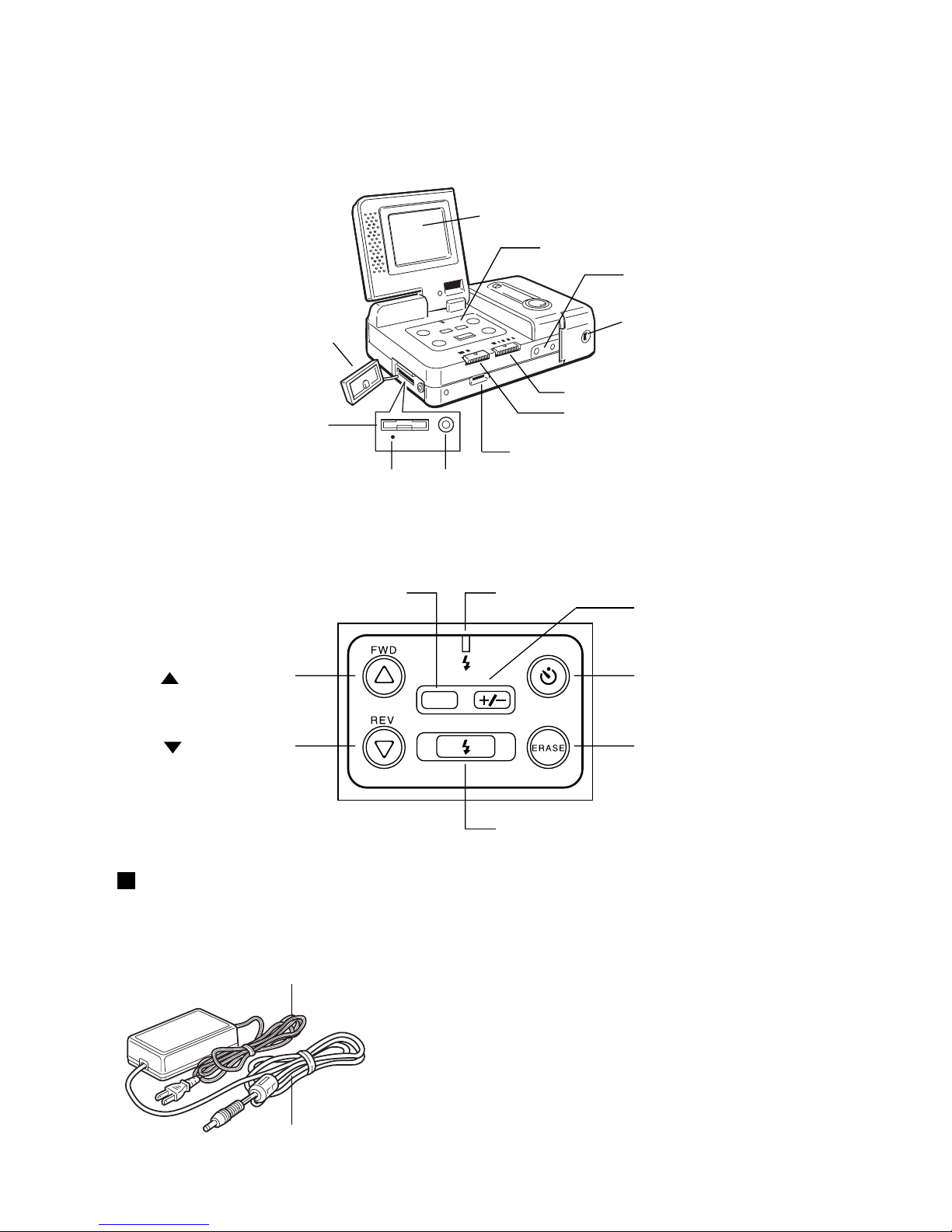

Parts and Names

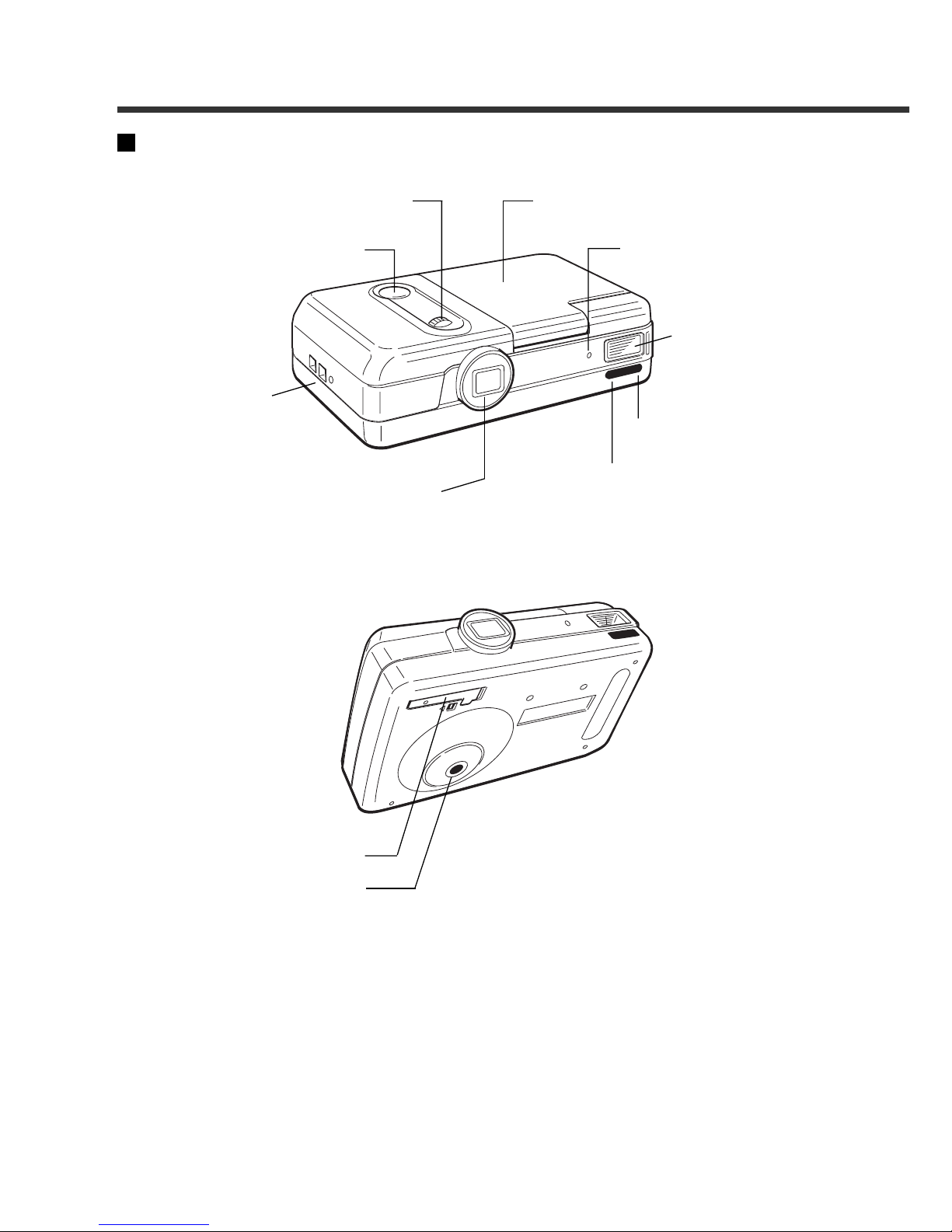

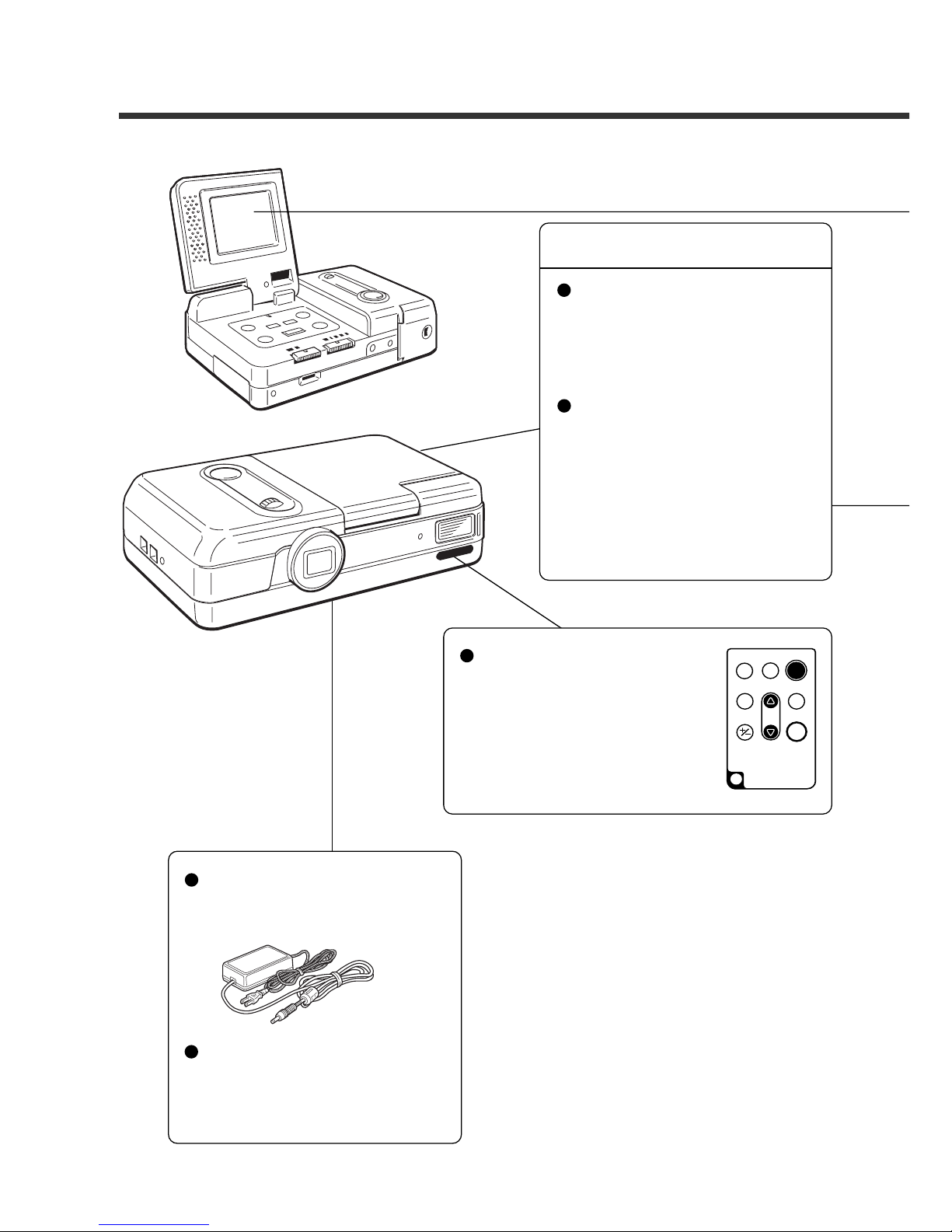

Camera (main unit) (Top)

Lens

Self timer light

Release button

Macro dial

Wrist strap eyelet

LCD monitor

Flash sensor reception window

Flash

Remote control reception

(Bottom)

Clock Battery compartment

Tripod screw hole

Page 6

(Operation part)

Brightness adjustment dial

RECORD/PLAY switch

PIC (Image Quality) switch

Battery compartment

Power supply terminal (DC IN 5 V)

Operation panel

LCD monitor

Terminal cover

RS232C/AUX terminal

Reset button VIDEO OUT terminal

(Operation panel)

DATE

DATE button Flash LED

Self Timer button

Erase button

Flash button

+/- (exposure compensation) button

(FWD) button

(REV) button

Connection cable

AC adaptor (not supplied)

• AY3140 (100V to 240V)

Power cord

Page 7

LCD Monitor

The battery condition, number of possible recordings, current mode, and other camera conditions appear as symbols and numbers on the LCD monitor.

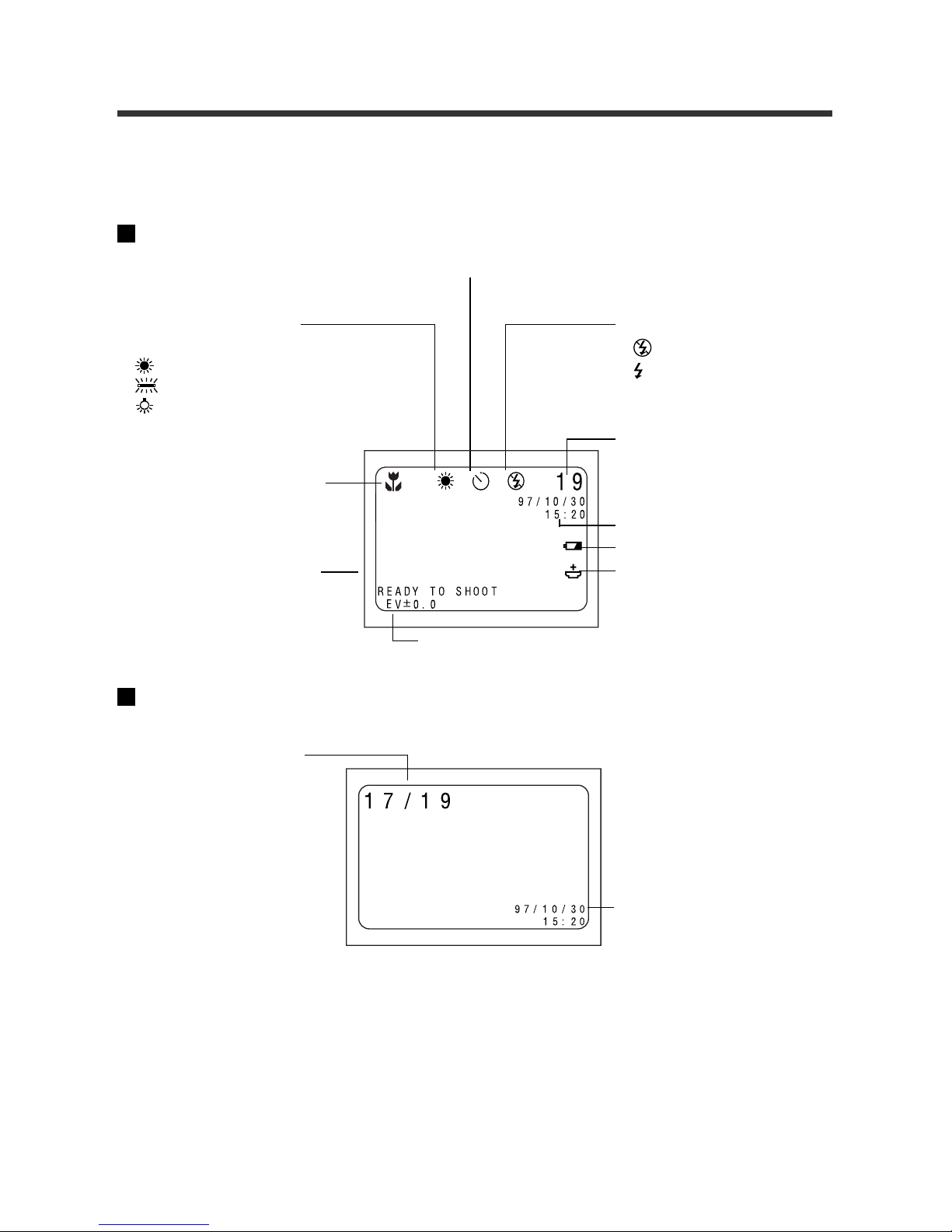

Recording Display

White balance display (No display) : AUTO

: Daylight mode : Fluorescent light mode : Tungsten light mode

Flash display

: Flash OFF : Forced flash

(No display) :Auto flash

Exposure compensation value display

Message display

Macro mode

Date and time display Battery symbol Clock battery symbol

Recording data display

The remaining number of images is displayed.

Date and time display

(The date and time that the image was shot appears here.)

Playback data display

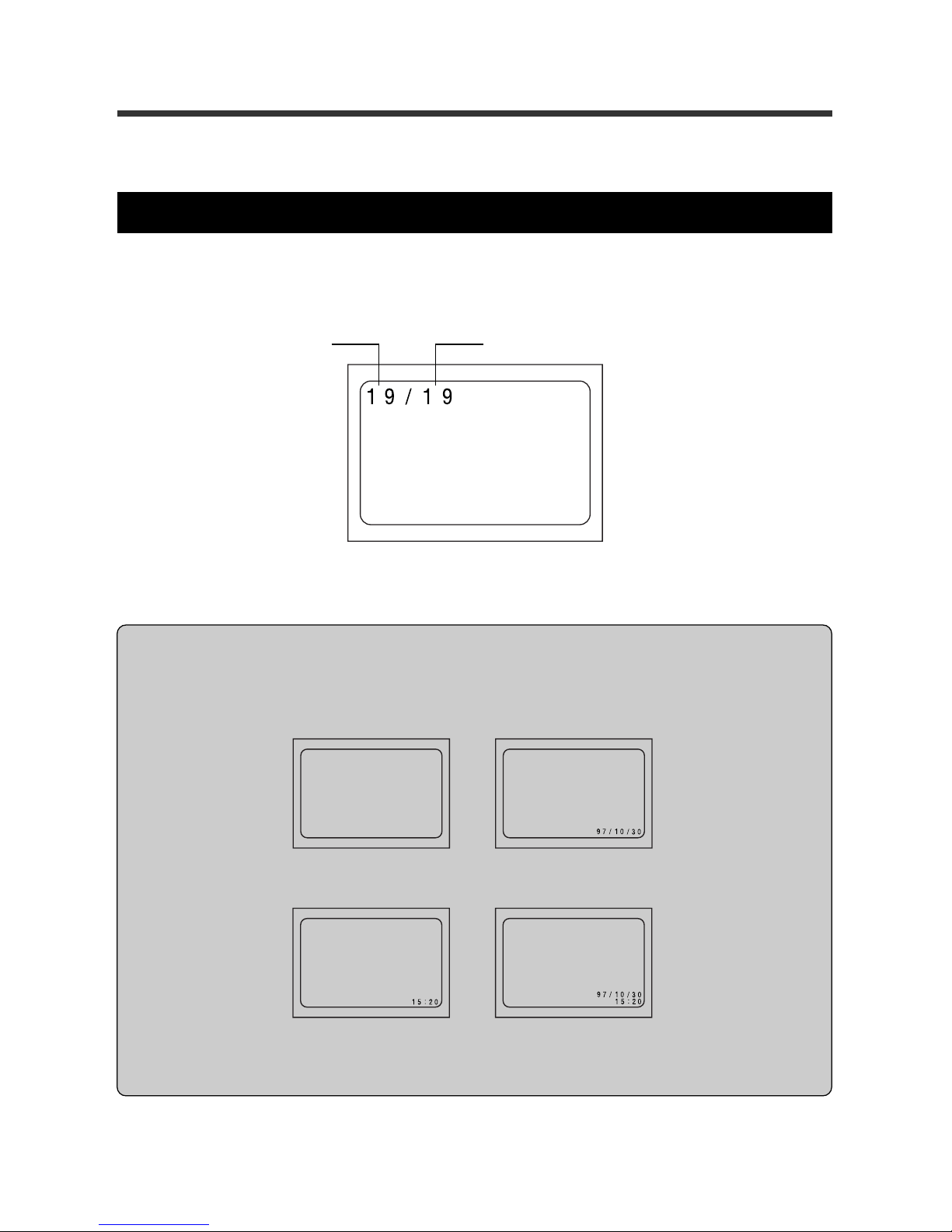

The number of the current file and the number of availab le file are displayed.

Note:

• All data is displayed in this figure. However, only the necessary data is displayed.

• When the LCD monitor is opened, if no camera operations (button or switch operations) are performed for more than approximately five minutes, the Auto Power Off mode is activated to conserve energy. The display of the LCD monitor disappears . (The battery is only used slightly in this condition.) Supply the power again or press the release button for more than one second to turn the power on.

• The Auto Power Off setting can be changed. See page 56.

Playback Display

Self timer

Page 8

Warnings

When the following warnings appear on the LCD monitor, verify the problem and correct it.

Message Condition Description Reference page

Lights 17

Lights 19

Errors

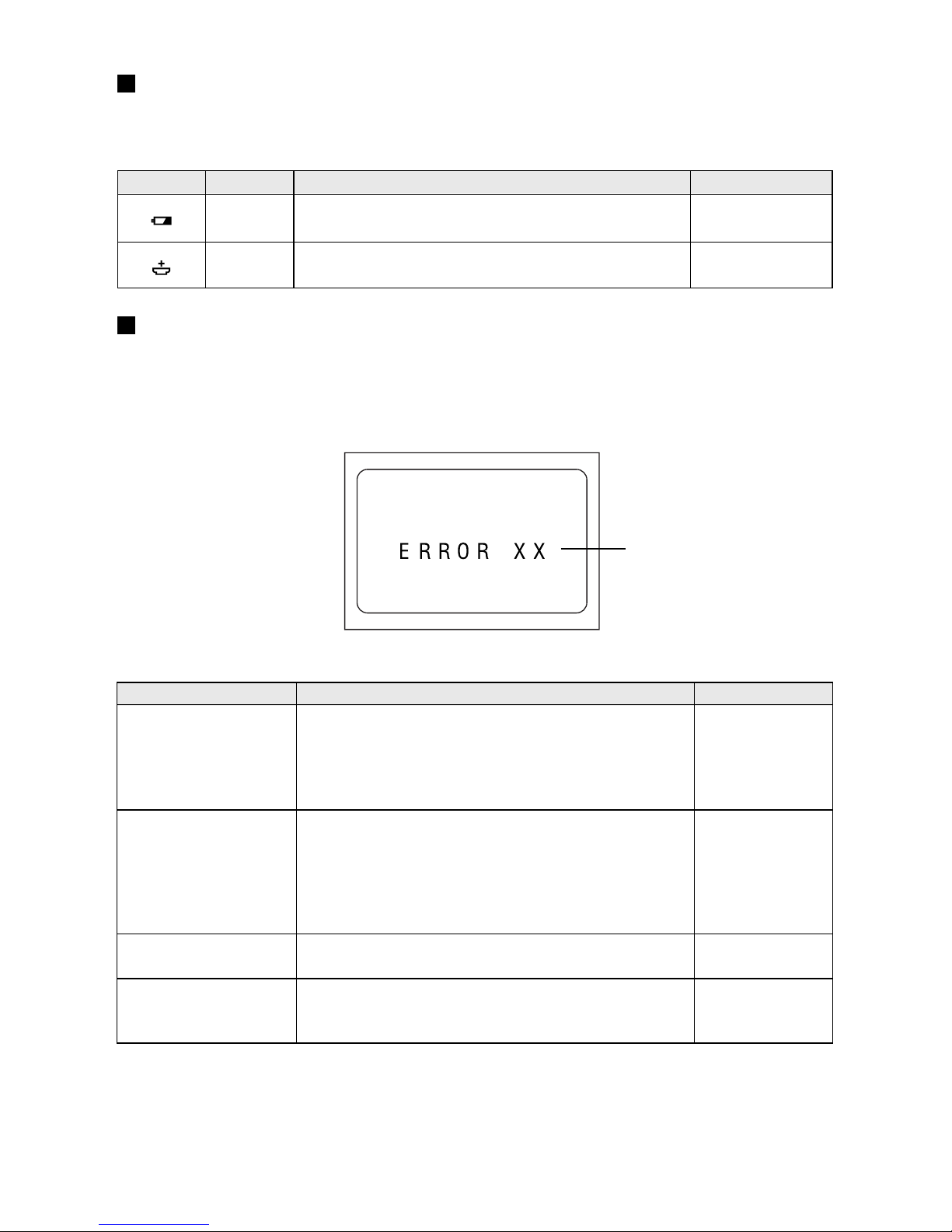

When one of the following errors appears on the LCD monitor, verify the problem and correct it.

Error message

Error message Description Reference page

ERROR RECORD 28

ERROR ERASE 28

52 59

ERROR PLAY 28

SYSTEM ERROR1 28 SYSTEM ERROR2 59 SYSTEM ERROR3

* When problems cannot be solved by following the steps above, please contact your

dealer or the local service representative.

This indicates that the batteries are depleted. Replace or recharge the batteries.

The clock battery is depleted or the clock battery is not set. Replace or insert a new batteries.

The file is lost or damaged. Record the image again; the data that was recorded at this time may not be played back correctly. If the error message is still displayed, turn on the power again or press the Reset button.

The erase operation was not performed correctly. Turn off the power by closing the LCD monitor, then turn it on again and take a test image. If the test image data is erased, the incorrectly erased data will also be erased at this time. If the error message is still displayed, press the Reset button.

The playback f ailed. T urn on the power again or press the Reset button.

Turn on the power again. Otherwise, press the Reset button.

Page 9

Basic Operation• Quick Reference

This section describes the basic operations. Refer to the additional pages for further details.

Preparations

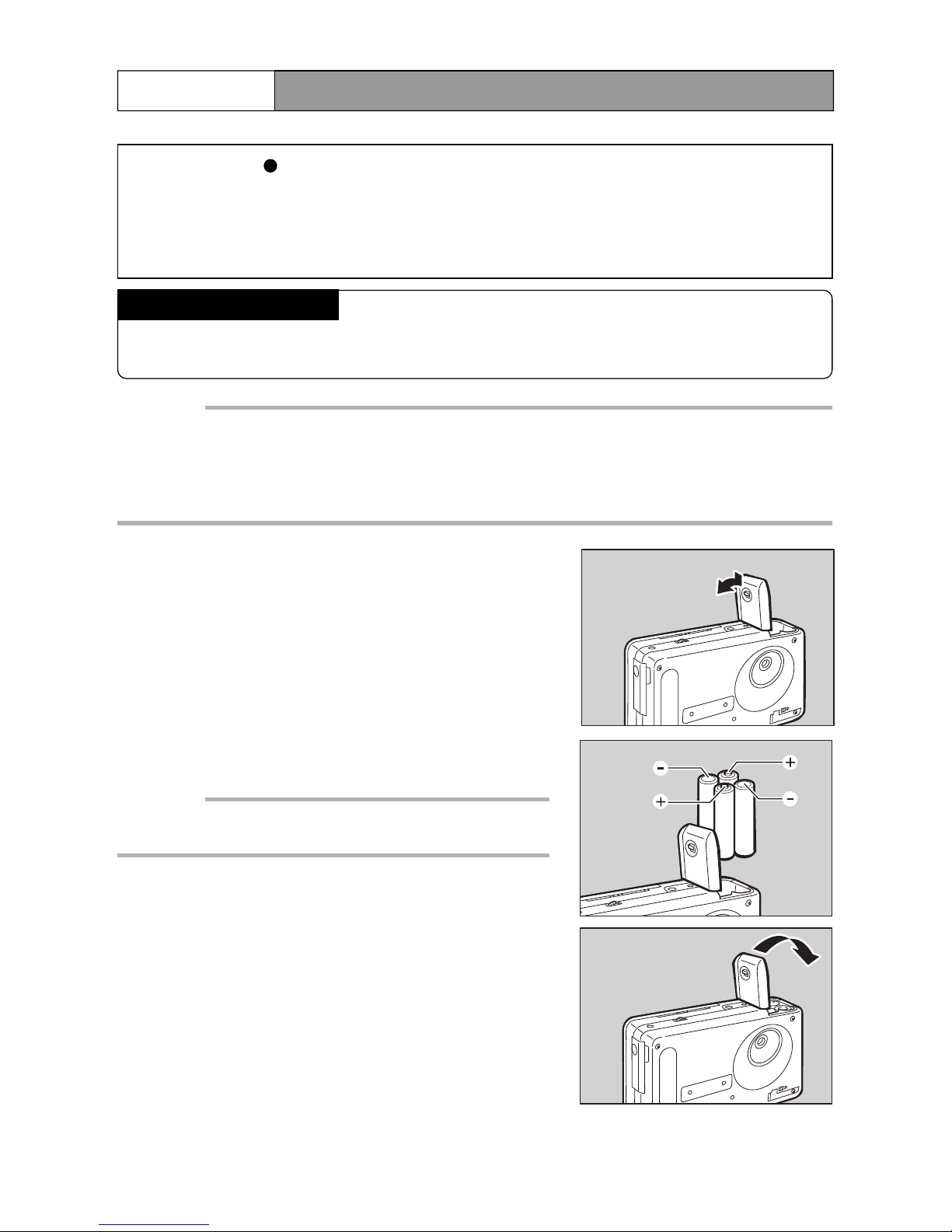

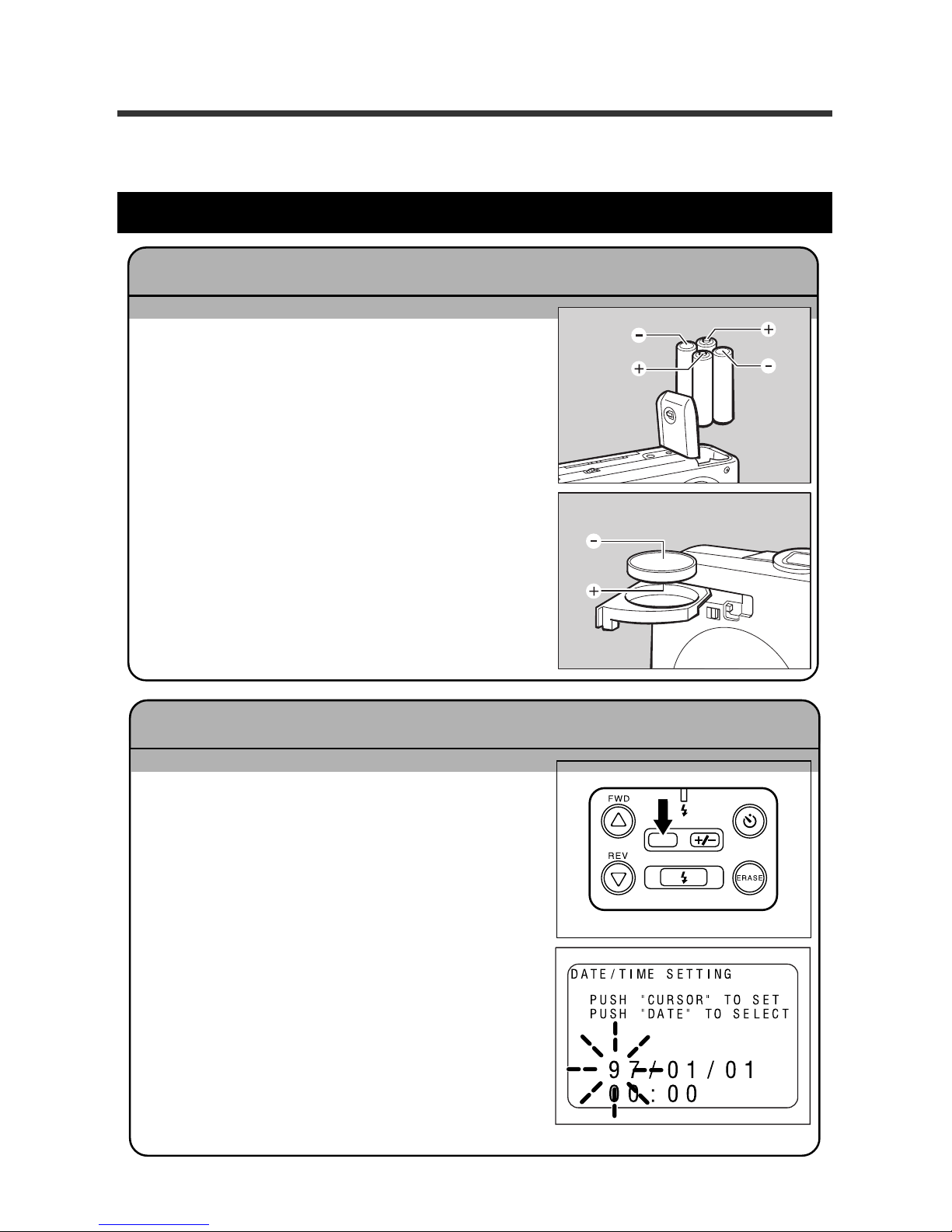

q Insert the batteries.

* When using the AC adaptor , connect the A C

adaptor to the camera, then connect the adaptor to the wall outlet. See pages 19 -

20.

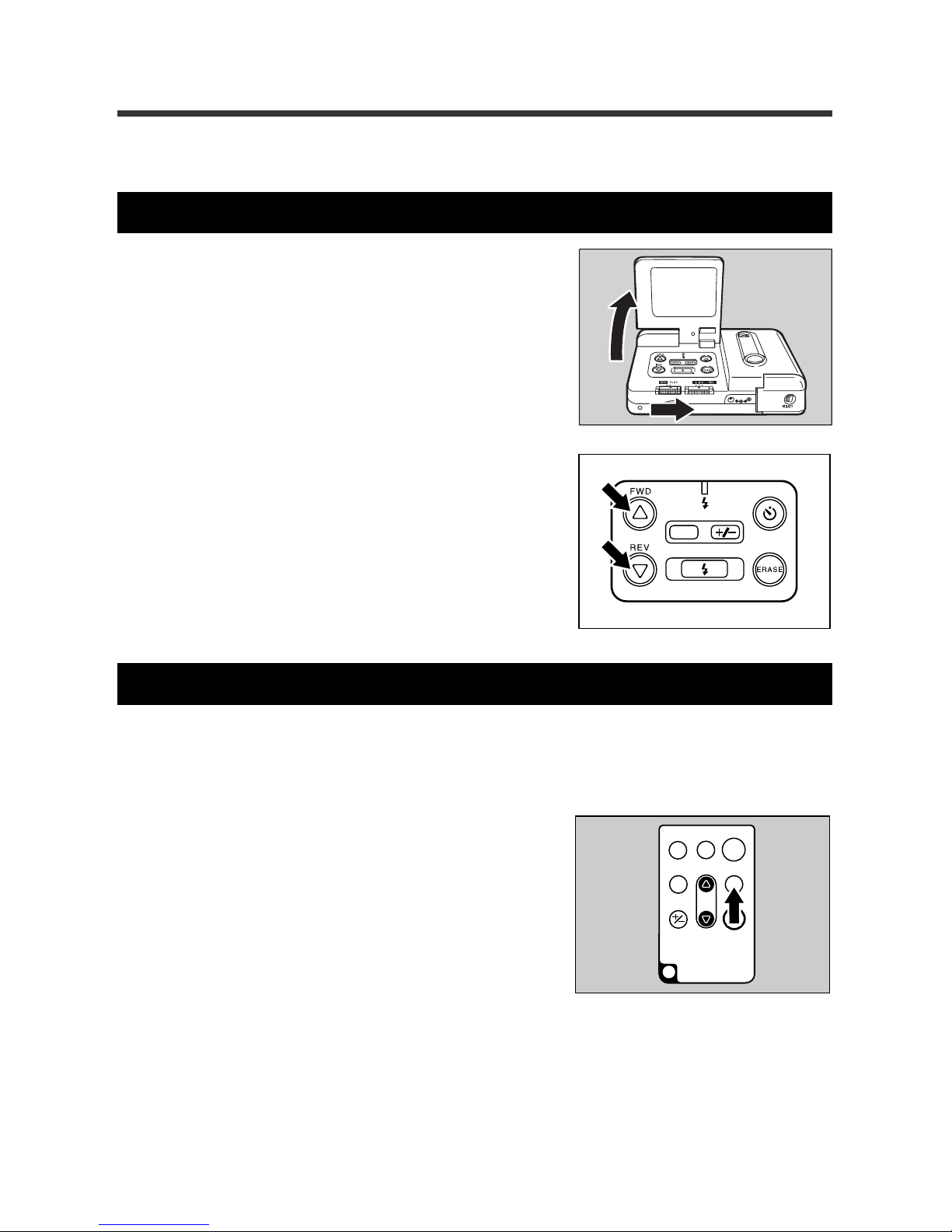

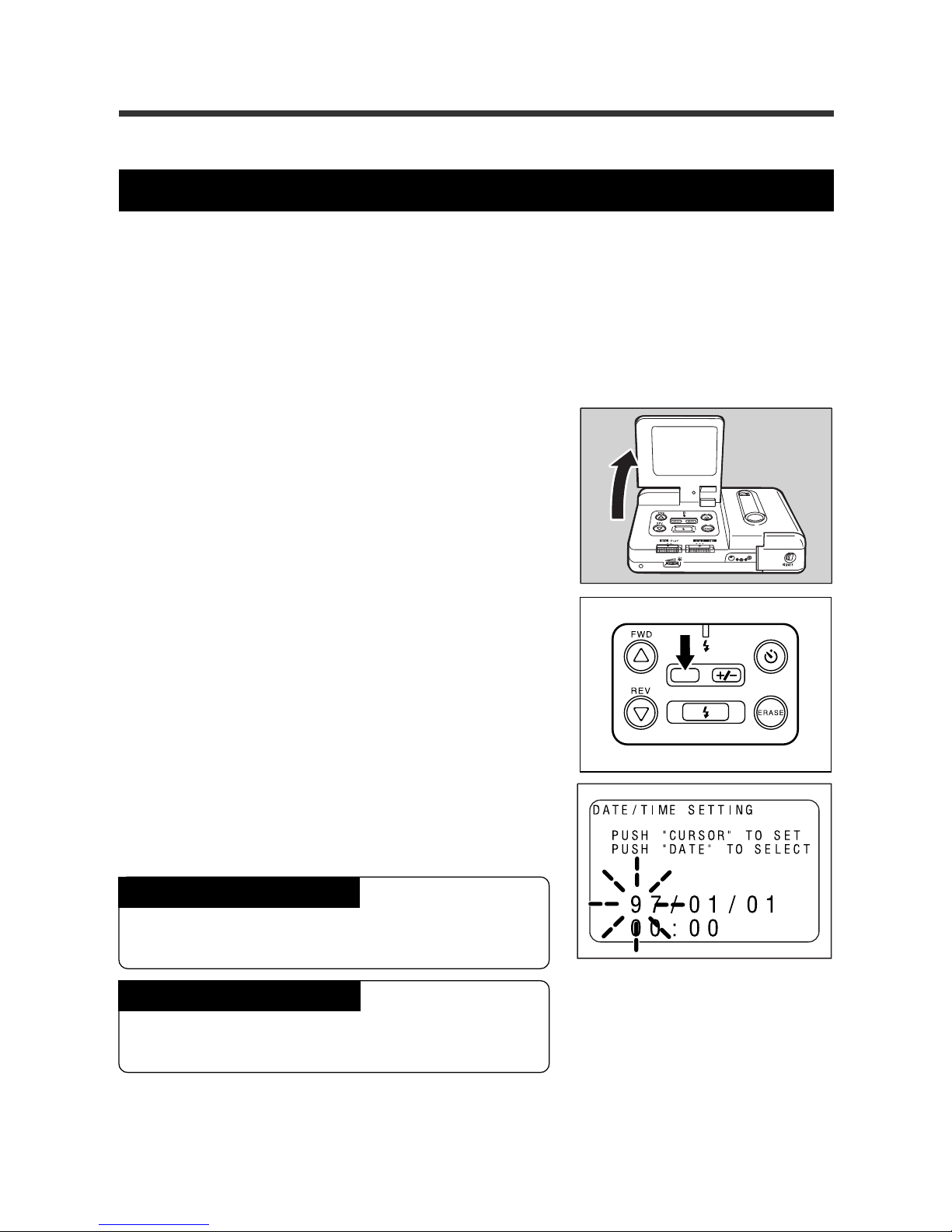

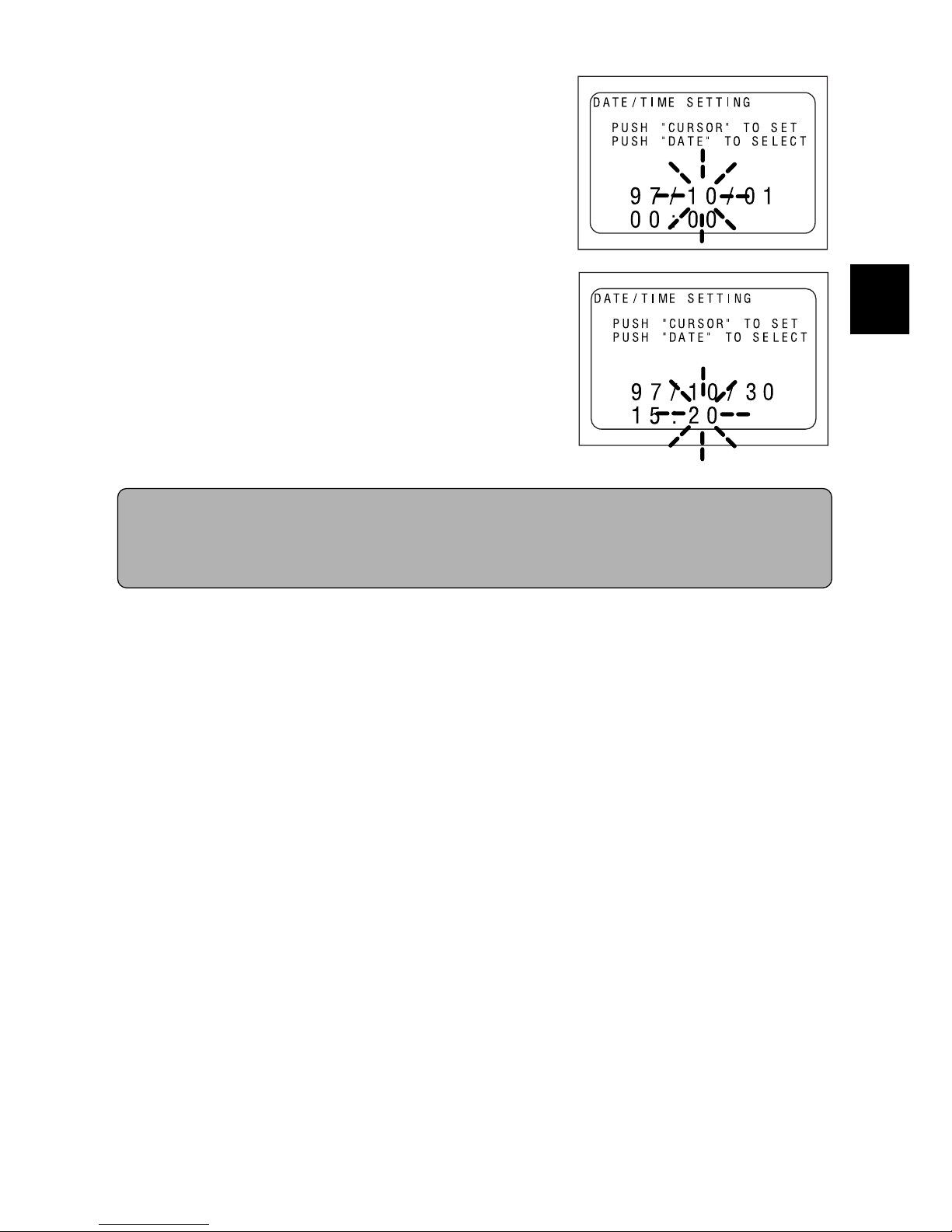

q Open the LCD monitor. w Press and hold the DATE button for more than

two seconds.

e Press the FWD U button or the REV T button

to change the information. Each time the DATE button is pressed, the next position starts flashing. * Press the DATE button repeatedly to set (in

order) the year , month, date, hour, and min ute. When the selected date or time area is flashing, press the U button or the T button to set the correct numbers.

r Start the clock.

When the information is correct, press the DATE button again to start the clock.

Setting the Date and Time Pages 22 - 23

Inserting the batteries Pages 17 - 21

DATE

Page 10

Taking Pictures

q Turn on the power. The recording mode is

set.

Open the LCD monitor. Set the REC(ord) /PLAY switch to the REC position.

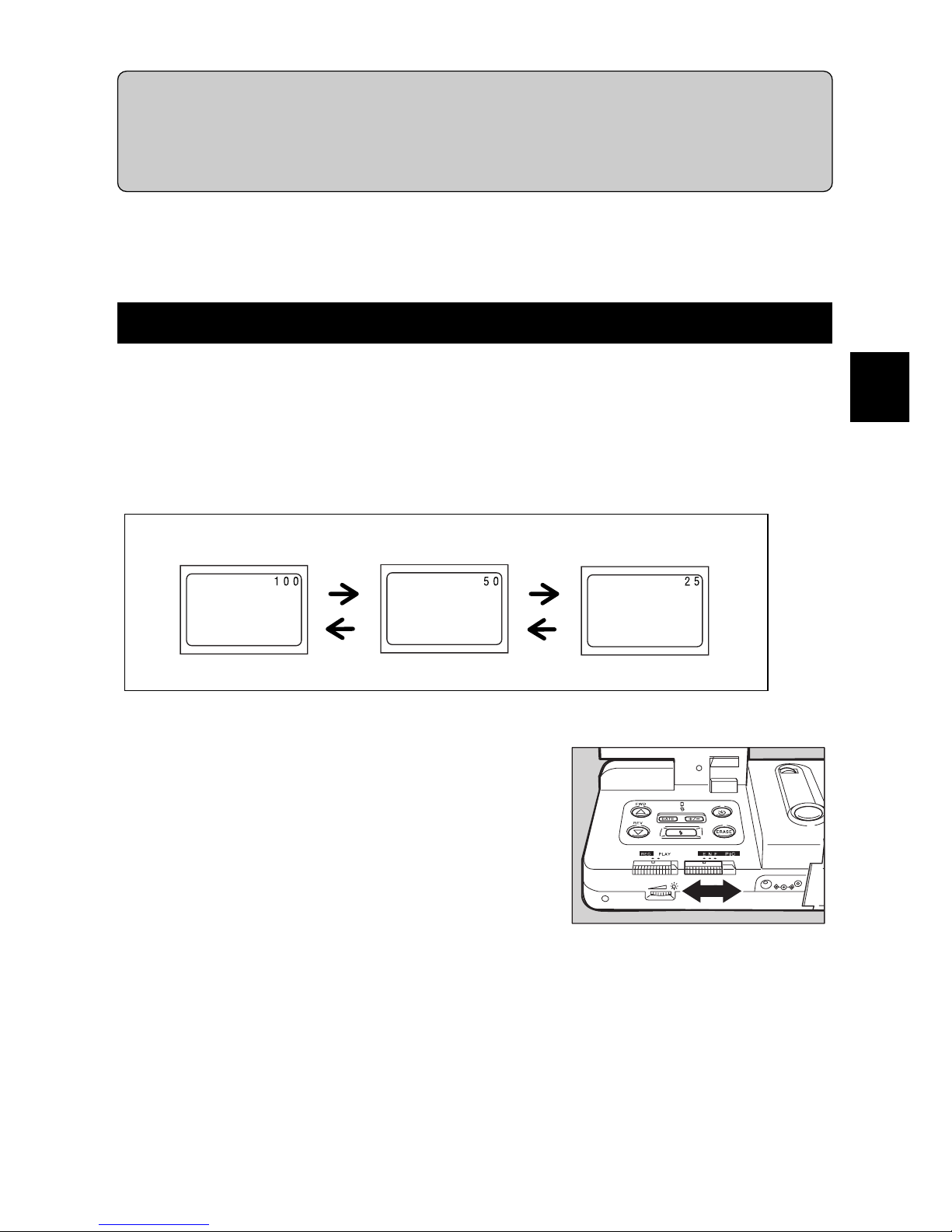

w Set the image quality mode.

Set the PIC switch to F, N, or E.

e While viewing the LCD monitor, move the

camera toward the subject.

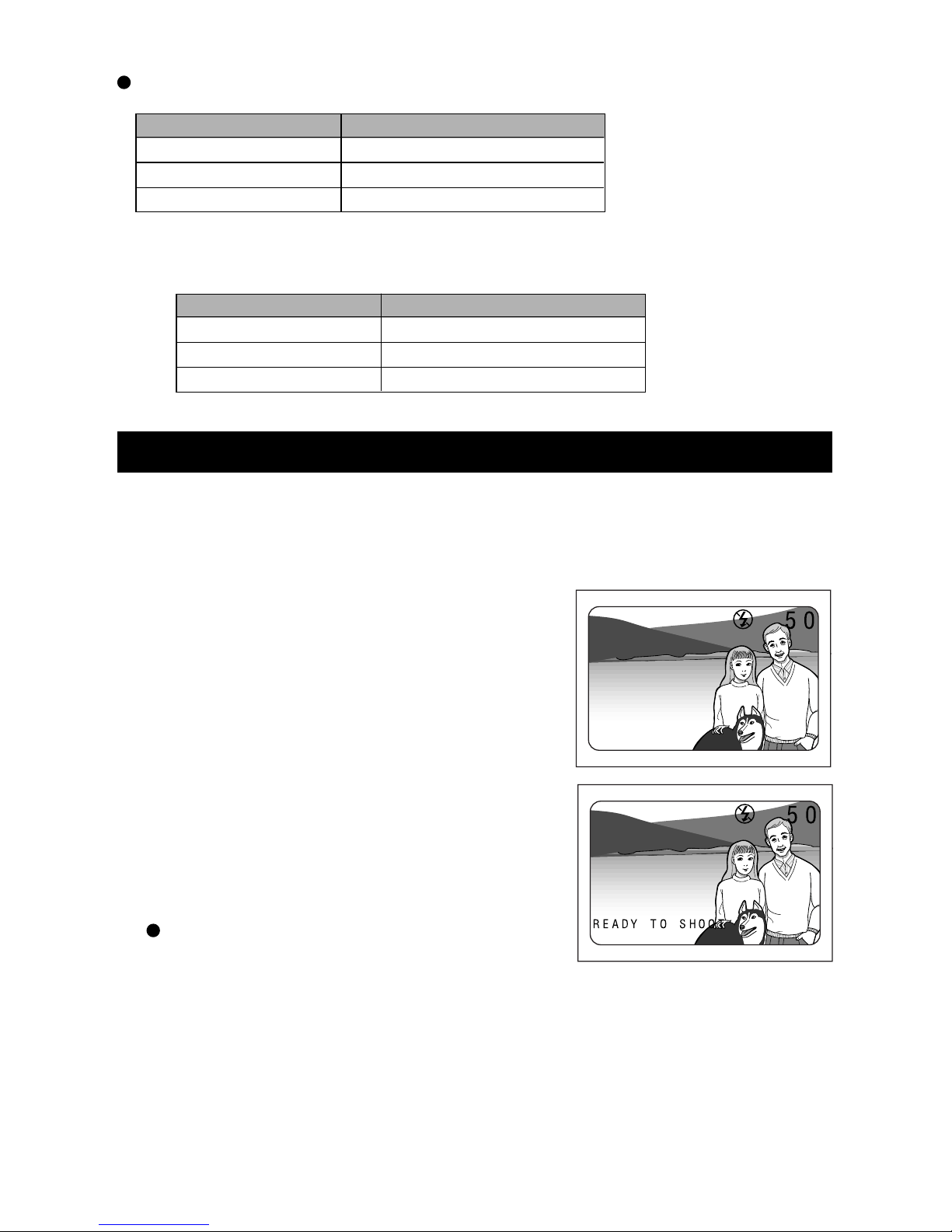

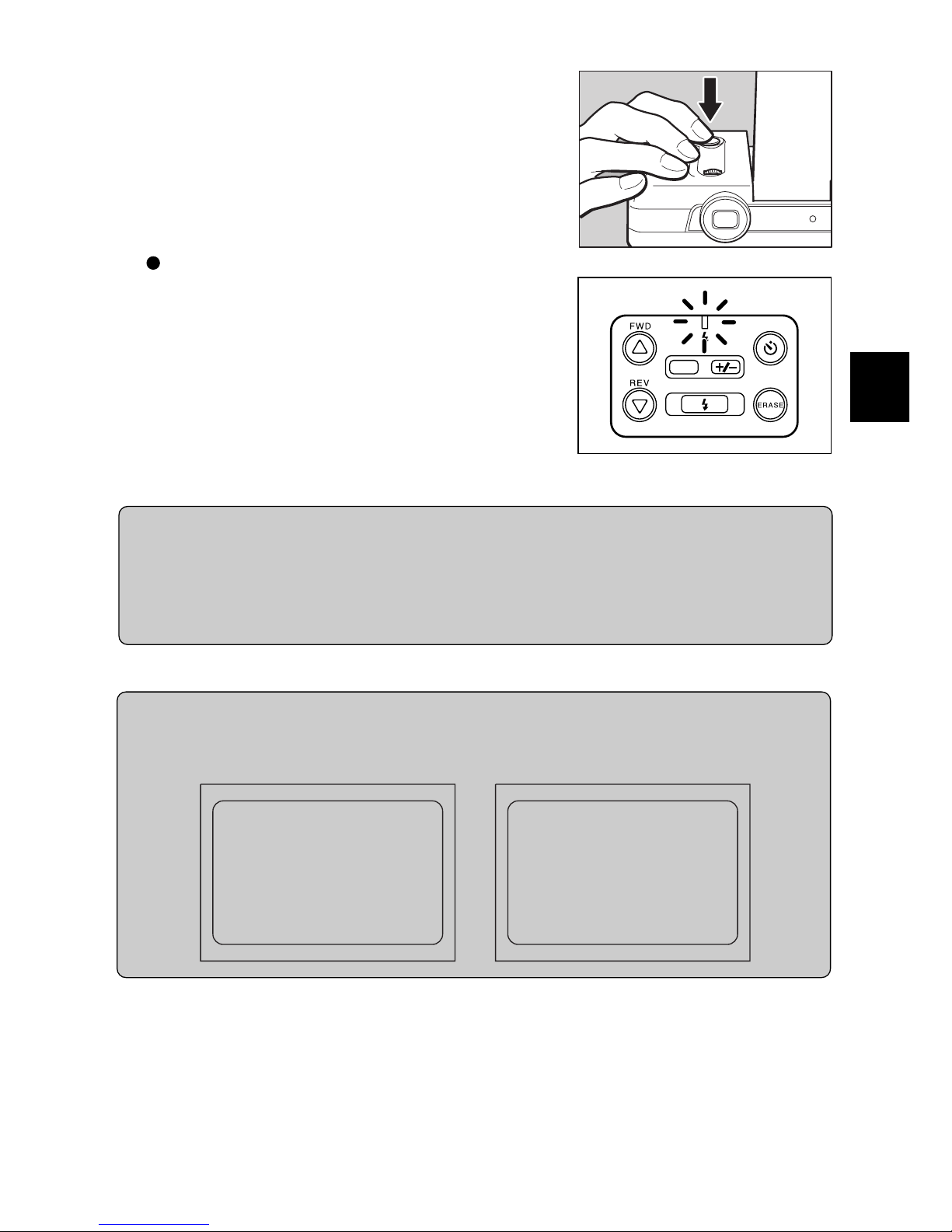

Briefly press the Release button and make sure the message “READY TO SHOOT” appears.

r Press the Release button to take a picture.

Taking Pictures Pages 28 - 31

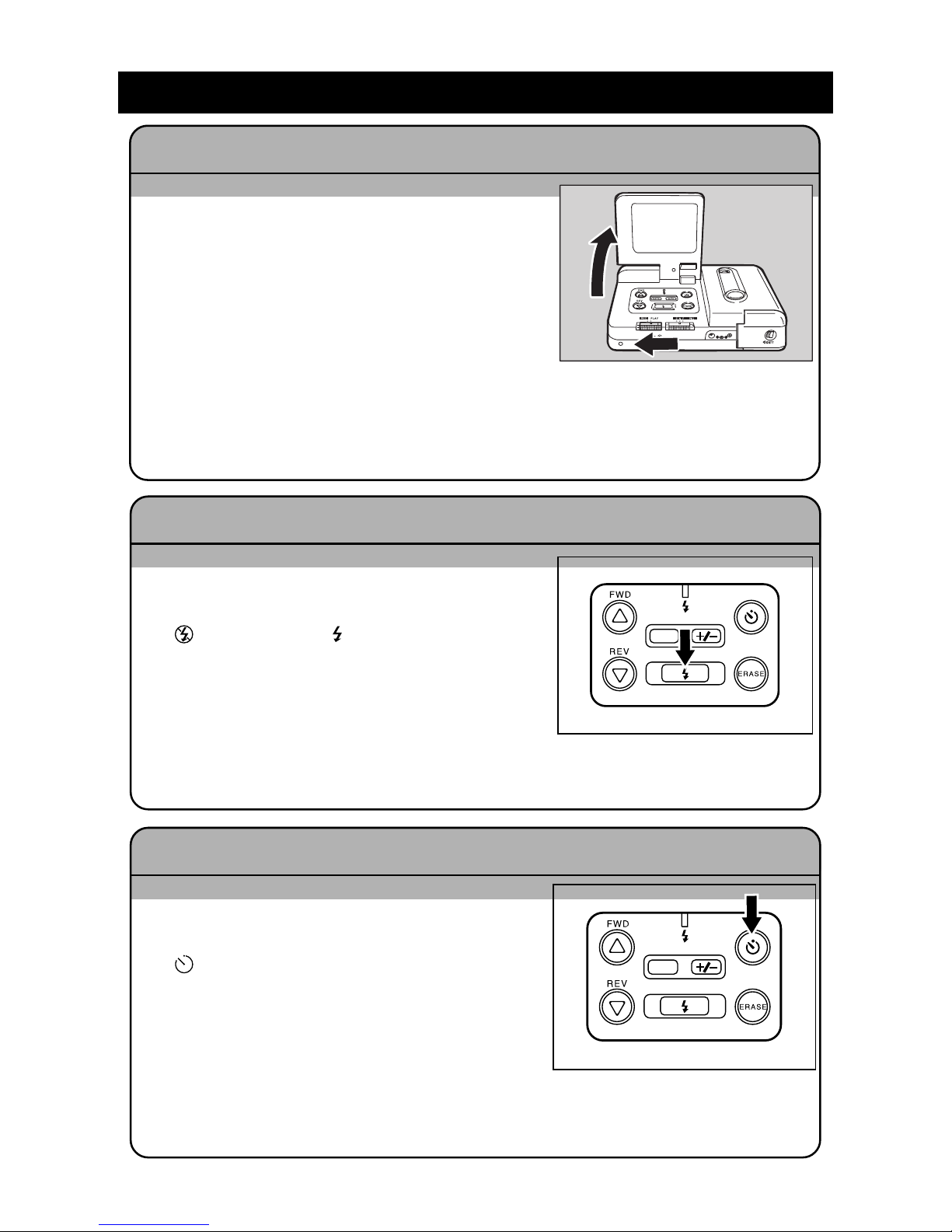

q Open the LCD monitor and slide the

REC(ord)/PLAY switch to the REC position.

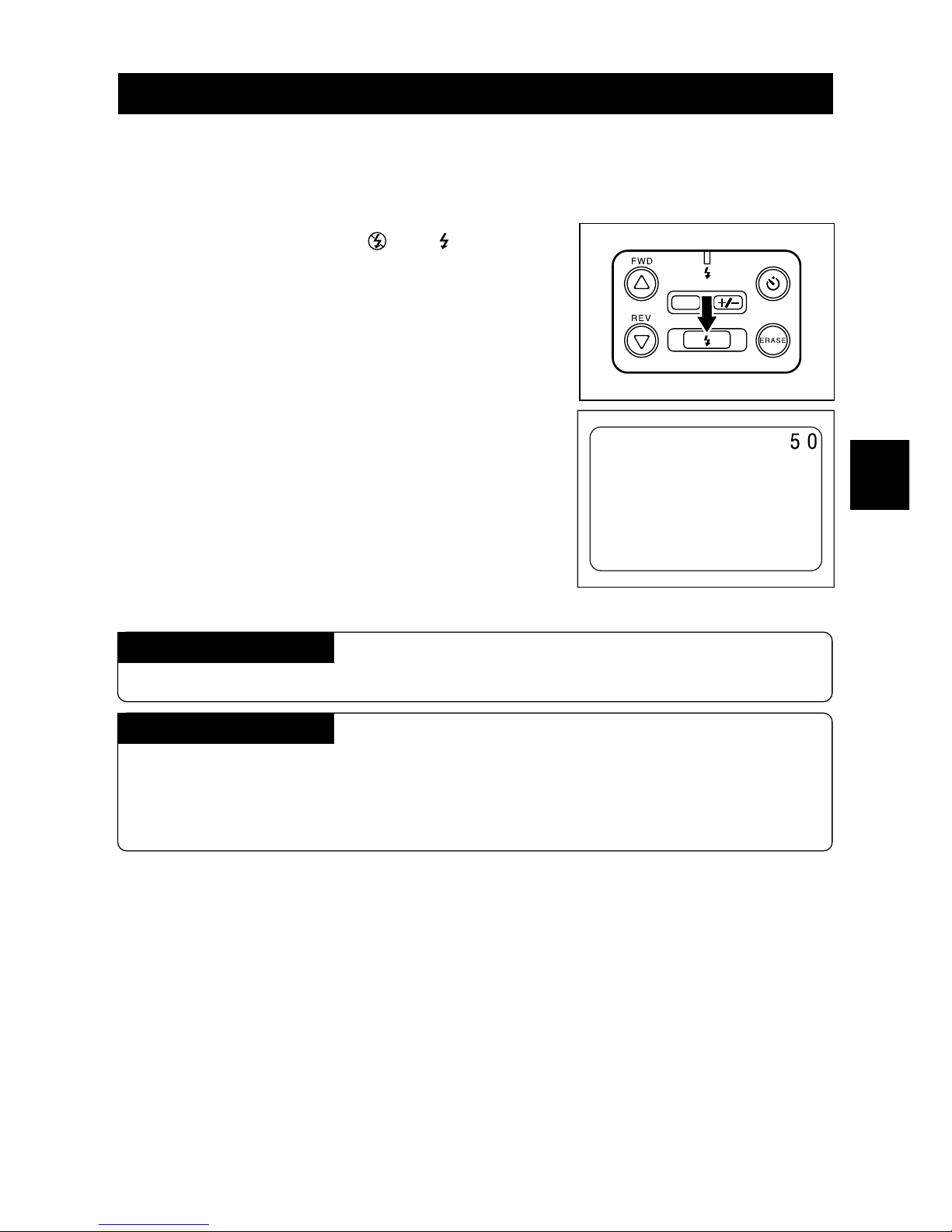

w Press the Flash button and select Flash Off

(

), Forced Flash ( ) or Auto Flash (no sym-

bol).

e While viewing the LCD monitor , position the

camera to frame the subject, then press the Release button to take the picture.

Changing the Flash Mode Pages 36 - 39

q Open the LCD monitor and set the

REC(ord)/PLAY switch to REC.

w Press the Self Timer button. The Self Timer

(

) symbol will be displayed.

e Position the camera to frame the subject,

then press the Release button to take the picture.

The Self Timer lights, the shutter will be re-

leased after approximately 10 seconds.

Using the Self Timer Page 44

DATE

Page 11

Playback and Erasure

q Open the LCD monitor and set the REC(ord)/

PLAY switch to PLAY.

w Press the

U and

T buttons to move through

the files.

Viewing a File (File Playback) Page 50

q Open the LCD monitor and slide the

REC(ord)/PLAY switch to PLAY.

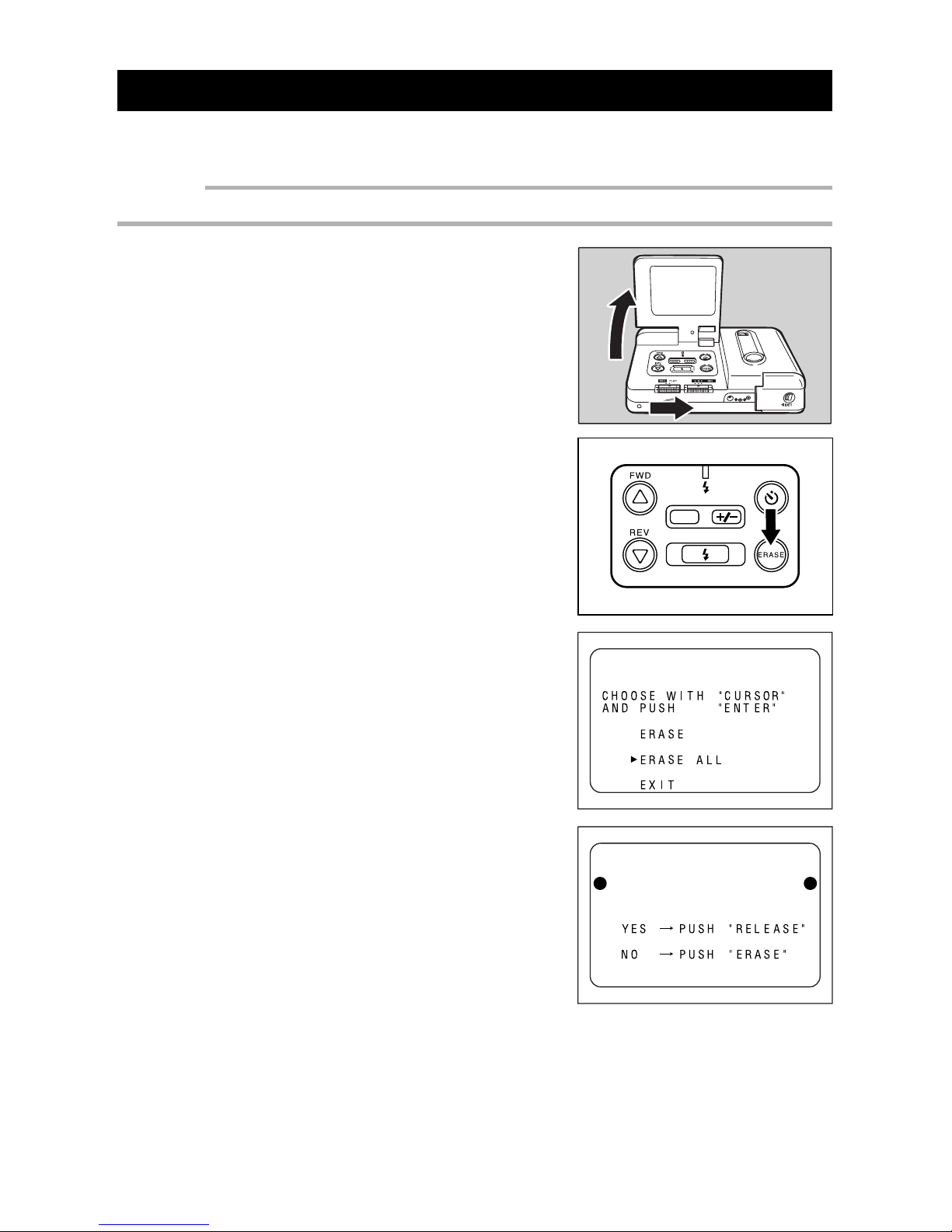

w Press the ERASE button.

Add a note:

The Release button is also referred to as the ENTER button in the LCD monitor.

Erasing a File Pages 52 - 54

e T o erase one file, press the

U and

T buttons

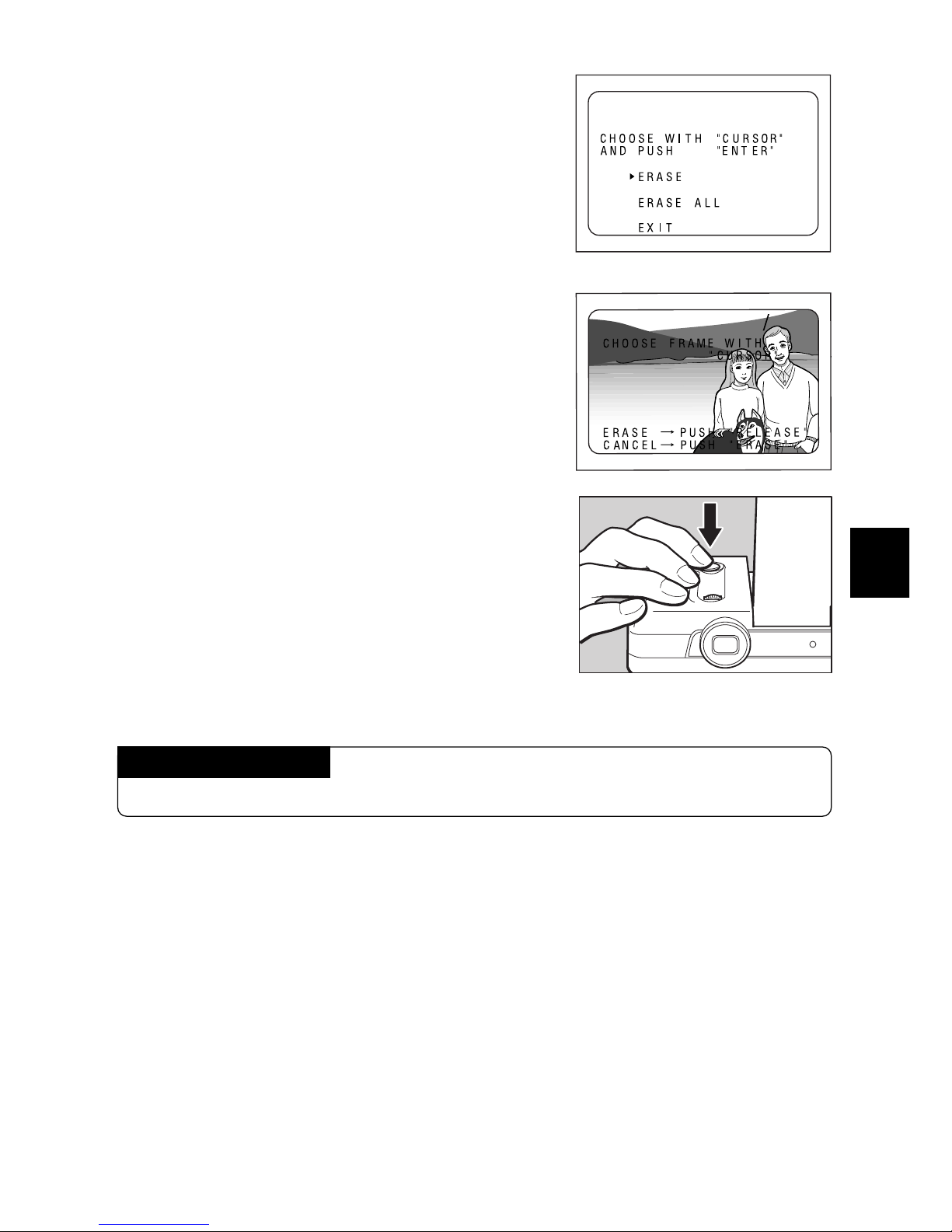

to select ERASE, then press the Release button. Press the

U and

T buttons to select

the file to be erased. Press the Release b utton be consistent. Repeat as desired.

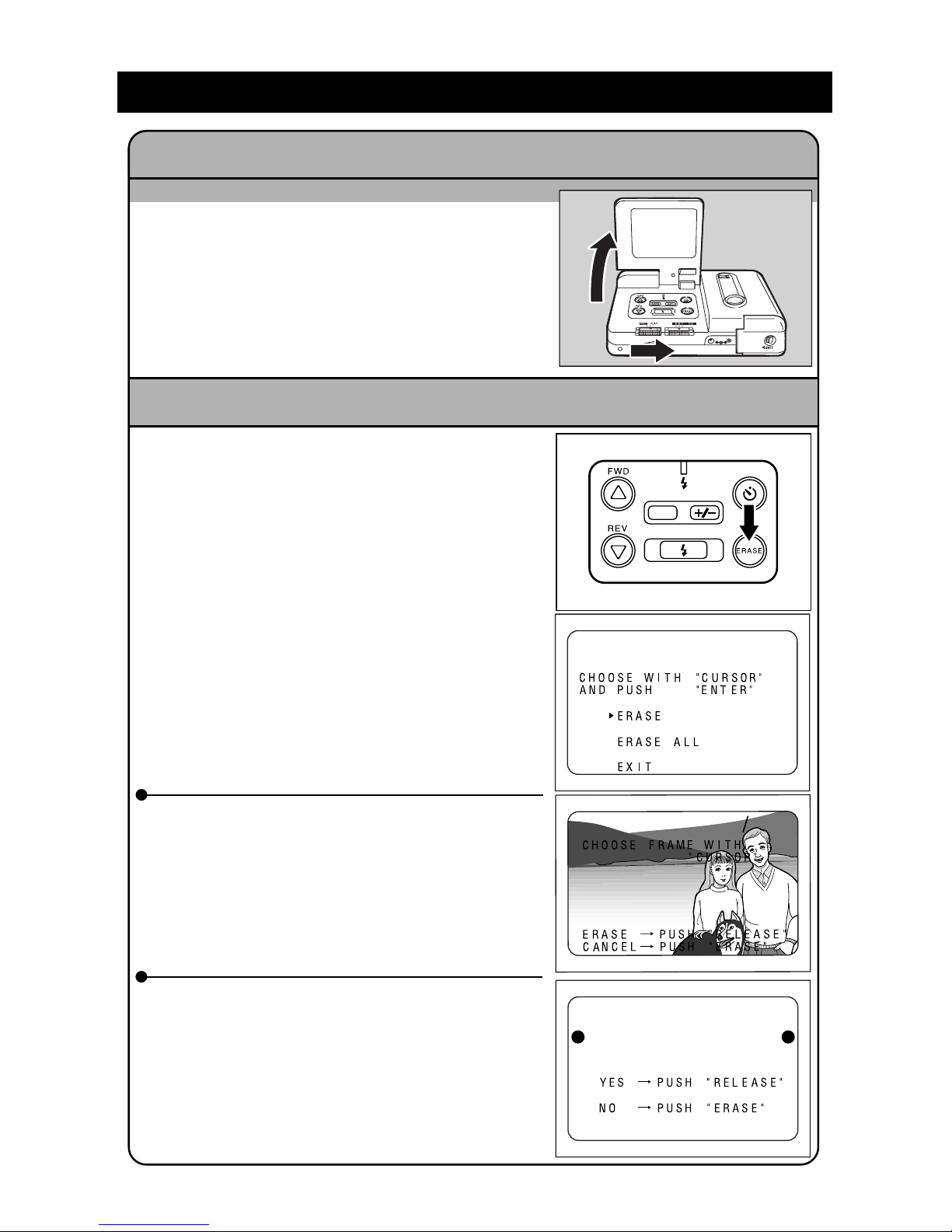

e To erase all the files, press the

U and

T but-

tons to select ERASE ALL, then Press the RELEASE button to erase all files. Or, press the Erase button if you do not want to erase all files.

Erased files cannot be restored. Check the contents of the file carefully before erasing the file.

DATE

ERASE

ERASE ALL?

ERASE

Page 12

Safety Precautions

Display

Various messages enable you to use the product safely and prevent unexpected danger to people or damage to property.

R Warning This symbol means operations may result in a serious injury or death

if this message is ignored or if incorrect operation is performed.

R Caution This symbol means mishandling may injure the users or damage ob-

jects if the message is ignored.

Display Example

m Indicates a warning of a prohibited operation. m Indicates specifically prohibited items.

Display example

Meaning: T ouch prohibited.

Meaning: Disassemb ly prohibited.

Observe the following precautions in order to use this equipment safely.

R W arning

Turn off the power immediately if a fire, odor or other abnormal

condition is observed. Remove the batteries carefully, being careful to avoid electrical shock or b urning. When the po wer is supplied by an electrical outlet, always remove the electrical plug from the wall outlet to av oid fire or shock. Contact your nearest service representative. Do not use this equipment when it is damaged or is not operating correctly.

Turn off the power immediately if foreign matter (metallic objects,

water, fluid, etc.) enters the internal parts. Remove the batteries, being careful to avoid electrical shock or burning. When the power is supplied by an electrical outlet, always remo v e the electrical plug from the wall outlet to avoid fire or shock. Contact your nearest service representative. Do not use this equipment when it is damaged or is not operating correctly.

Page 13

• When the LCD monitor is damaged, do not touch the fluid inside the display. If any of the following conditions occur, perform the appropriate action immediately.

• If liquid crystals contact the skin, wipe the crystals off the skin and rinse the affected area with plenty of water. Then, wash the area thoroughly with soap and water.

• If any fluid gets in your ey es, rinse your e y es with clean water f or at least 15 minutes. Contact a doctor immediately.

• If someone drinks the fluid in the display, rinse out the mouth thoroughly with water. Drink a large quantity of water and induce v omiting. Then, contact a doctor immediately.

Observe the following precautions to prevent the batteries from leaking, exploding, igniting, or breaking.

• Never use batteries that are not specifically recommended for use with this camera.

• Never dispose of the batteries in a fire; do not short-circuit the terminals; and do not attempt to disassemble, heat, or recharge the batteries. (Only Nickel Cadmium or nickel-metal-hydride (NiMH) batteries can be recharged.) Doing so may damage the batteries and cause a fire, injury, or environmental contamination.

• Do not use batteries incorrectly; do not use batteries of a different type or name; do not use batteries of a diff erent manufacturer; and do not mix old and new batteries.

• Be sure to maintain the correct polarity (positive [+] and negative [–] poles) when inserting the batteries.

• Do not solder the batteries. This may damage the batteries and may cause a fire, injury, or environmental contamination.

• When using rechargeable batteries, do not mix them with other types of batteries or with batteries in another charged condition.

• Store the batteries in a location that is not accessible to infants or children in order to prevent the batteries from being s wallowed accidentally. Contact a doctor immediately if the batteries are swallowed accidentally. This may result in severe personal injury.

• Never lea ve this product within the reach of infants or children.

Page 14

• Do not touch the inside of the camera. The internal high-voltage circuits may cause an electrical shock. Remove the batteries right away, being careful to avoid electrical shock or burns. When the unit is damaged, contact the store where you purchased the product or contact the service representatives.

• Never attempt to disassemble , repair , or modify the camera by y ourself. There are internal, high-voltage circuits which may cause severe electrical shock.

• Never use the camera in the bathtub or shower. This may cause fire or electrical shock.

• Do not use the unit near flammable gas, gasoline, benzene, thinner, etc. This may cause an explosion, fire, or burns.

• Do not use the camera in an airplane or other location where usage is restricted. Using the camer a in these locations ma y result in an accident.

• When dust accumulates on the electrical plug, wipe it off thoroughly . The dust may cause a fire.

• When using a household electrical outlet, always use the special AC adaptor (product name: AY3140, optional). If a non-recommended AC adaptor is used, this may cause fire, shock, or other damage.

• When traveling outside the U.S., do not contact the AC adaptor to power outlet. This may cause fire, shock or other damage.

Page 15

Observe the following precautions in order to use this unit safely.

R Caution

Fluid leaking from a battery can cause skin burns. If you touch a damaged battery , w ash y our hands with w ater immediately (do not use soap).

If fluid leaks from the batteries, wipe off the fluid and replace the batteries with new batteries.

Make sure that the electrical plug is plugged securely into the wall.

Do not get the camera wet. Do not touch the camera with wet hands . This may cause an electrical shock.

Do not point the flash unit at the driver of a car , bicycle or train. This may cause an accident.

To pre v ent fire and shock, do not use metal objects such as a tw eezers to grasp the batteries. This may cause a short-circuit.

Special Products

• When using products that are optional, such as the Ricoh remote controller and AC adaptor, read the section Safety Precautions in the operation manual f or each product before operation.

o m m m

Page 16

Page 17

Chapter 1. Getting Started

Before Using the Camera ....................................................... 16

Confirming the Package Contents.................................... 16

Attaching the Wrist Strap................................................... 16

Supplying Power to the Camera ............................................ 17

Inserting Batteries .............................................................. 17

Inserting a Lithium Battery ................................................ 19

Using AC Power .................................................................. 21

Before You Begin Recording .................................................. 22

Adjusting the Date and Time ............................................. 22

Adjusting the LCD .............................................................. 24

Holding the Camera............................................................ 24

Page 18

Before Using the Camera

Confirming the Package Contents

Check the packaging to ensure you have received the following items. Read the warranty, then store it in a safe place.

• Digital Camera (main unit)

• Video connection cable

• Soft Case

• Four AA Alkaline Batteries

• Lithium battery (CR2025)

• Wrist Strap

• Instructions for use

• Warranty Card

Attaching the Wrist Strap

For security, always use the wrist strap when carrying the camera.

q To attach the wrist strap, pull the leading

end of the strap through the wrist strap eyelet on the camera, then pull then remainder of the strap through the looped end of the strap as shown.

Important

• Avoid swinging the camera when carrying it.

Page 19

Getting Started

Supplying Power to the Camera

The procedures for loading the batteries (alkaline batteries, Lithium battery) are explained in this section. Electrical power supply by standard AC household current is also explained in this section.

Inserting Batteries

Insert four AA alkaline batteries to begin using the camera. It is recommended to use the same type of batteries which are included in the package.

Note: The camera can also be powered by commercially available rechargeable nickel-cadmium

(NiCad) batteries or nickel-metal-hydride (NiMH) batteries. (It is recommended to use a high capacity type of battery for NiCad batteries.)

R Warning

Observe the following precautions to pre vent the batteries from leaking, exploding, igniting fire or breaking.

• Never use batteries that are not specifically recommended for use with this camera.

• Never dispose of the batteries in a fire; do not short-circuit the terminals; and do not attempt to disassemble, heat, or recharge the batteries. (Only Nic kel Cadmium or nic kel-metal-h ydride (NiMH) batteries can be recharged.) Doing so may damage the batteries and cause a fire, injury, or environmental contamination.

• Do not use batteries incorrectly; do not use batteries of a different type or name; do not use batteries of a diff erent manufacturer; and do not mix old and new batteries.

• Be sure to maintain the correct polarity (positive [+] and negative [–] poles) when inserting the batteries.

• Do not solder the batteries. This may damage the batteries and may cause a fire, injury, or environmental contamination.

• When using rechargeable batteries, do not mix them with other types of batteries or with batteries in another charged condition.

• Store the batteries in a location that is not accessible to infants or children in order to prevent the batteries from being swallowed accidentally. Contact a doctor immediately if the batteries are swallowed accidentally. This may result in severe personal injury.

m o

Page 20

R Caution

Fluid leaking from a battery can cause skin burns. If you touch a damaged battery, wash your hands with water immediately (do not use soap).

If fluid leaks from the batteries, wipe off the fluid and replace the batteries with new batteries.

Rechargeable batteries

• Before using commercially availab le Nic k el Cadmium or nic k el-metal-hydride batteries, thoroughly read the safety precautions provided with each product.

Important

• Use only specified AA-type batteries.

• Never use manganese batteries, or an y other type of battery that is not specifically recommended. Use of such batteries may damage the camera or LCD monitor.

• Some batteries may become hot after a long period of use. Remove the batteries after they ha v e cooled.

q Close the LCD monitor, then press slide

the lever to open the battery compartment.

Note: See “Turning on the Power” on page 2 8 for informa-

tion about the camera power supply.

w Insert the batteries.

Important

• Carefully note the proper batter y polarities (positive [+] poles and negative [-] poles).

e Close the battery compartment lid.

Page 21

Getting Started

Recording and playback capacities The following table shows the number of recordable images and the playback time

available with AA alkaline batteries (at temperatures between 10 °C and 30 °C).

Type of battery Number of recordable Standard playback time

standard images

AA alkaline batteries Approximately 150 images Approximately 2 hours

* The battery life varies according to flash usage and other factors. * Results may vary according to the type and brand of battery.

Note:

• Whenever you do not have access to an electrical outlet, always carry four extra batteries.

• The battery symbol ( ) appears on the LCD monitor to indicate that the batteries are weak or depleted. Replace the batteries.

For rechargeable Nickel Cadmium or nickel-metal-hydride batteries, the time between lighting of the battery symbol and complete depletion of the batteries is shorter than when alkaline batteries are used. The batteries run out quickly after the symbol lights.

Safety Precautions

• Do not use damaged batteries or batteries that are almost depleted.

• Do not subject the batteries to strong impact.

Inserting a Lithium Battery

The lithium battery (CR2025) maintains the set date and time. Insert the lithium battery before starting to operate the camera.

R Caution

• To pre vent fire and shock, do not use metal objects, such as tweezers, to grasp the batteries. This may short out the circuit.

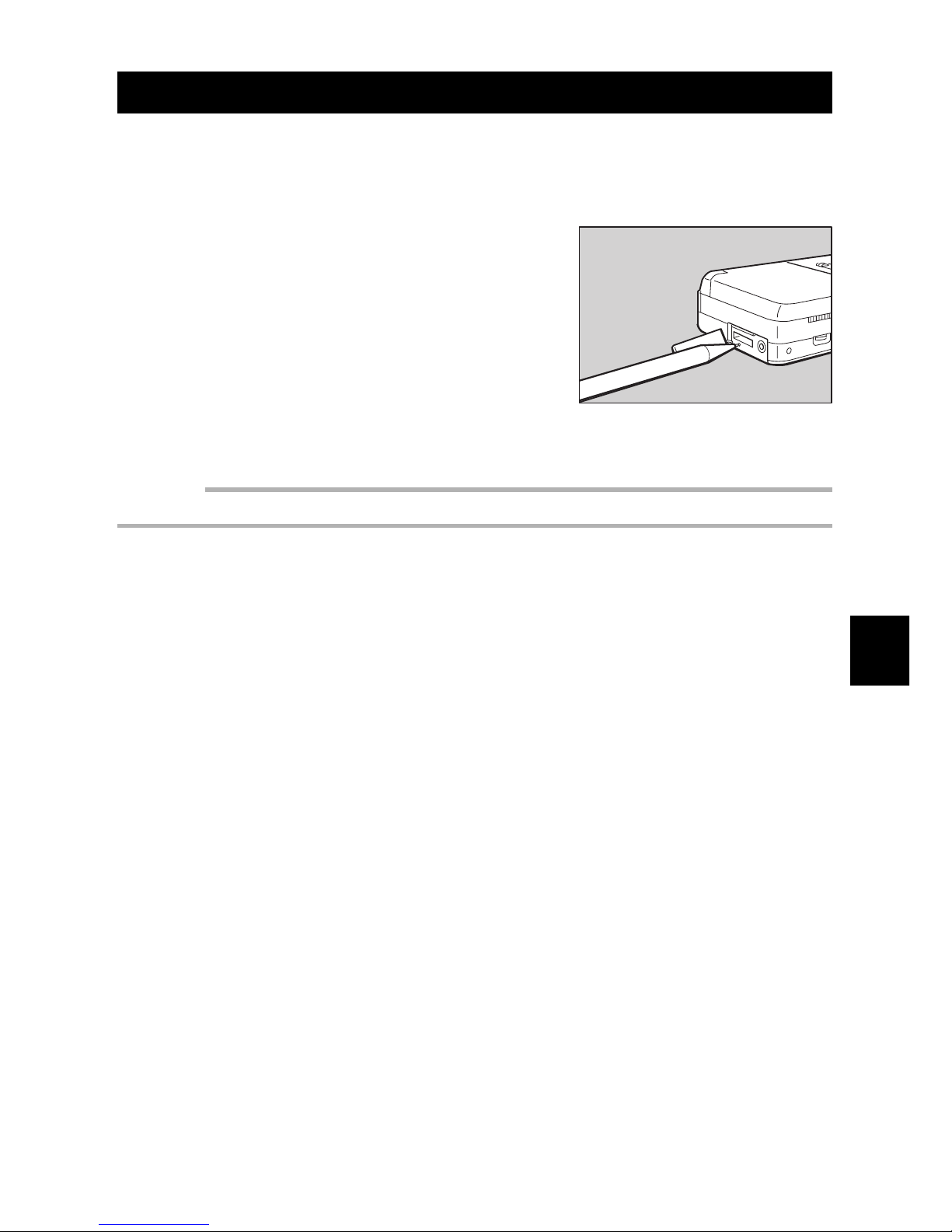

q After closing the LCD monitor, use a ball

point pen to move the battery compartment switch (on the bottom of the camera) to the left.

Note: See “Turning on the P o wer” on page 28 for more infor-

mation on the power supply of the camera.

w Then, pull out the lithium battery tray by

pulling the tray’s lever out and to the left.

Page 22

e Insert the lithium battery in the battery tray

so that the positive (+) pole surface is facing down.

Important

• Use the lithium batter y (CR2025) that is installed in the camera. Do not use any other type of battery that is not specifically recommended.

• Be sure to maintain the correct polarity (positive [+] poles and negative [–] poles) when inserting the batteries.

r Close the battery tray.

Note: The battery symbol ( ) appears in the LCD monitor

to indicate that the lithium battery is worn out or is not inserted. Replace or insert the battery.

Safety Precautions

• The lithium battery (CR2025) maintains the date and time. Battery life is appro ximately one year.

• To prevent imperfect contact, wipe off the battery with a dry cloth before inserting lit.

• Dispose of the battery according to the local ordinances and regulations.

Page 23

Getting Started

Using AC Power

If you intend to use your camera to record or playback files for a long period of time, use the optional AC adapter to connect the camera to a household electrical outlet.

R Caution

• Make sure the electrical plug is plugged securely into the wall.

About the AC Adaptor

Be sure to read the safety precautions in the manual supplied with the AC adaptor.

q Close the LCD monitor.

Note: See “Turning on the Power” on page 28 for information about the camera power source.

w Connect the cable of the A C adaptor to the DC IN 5 V jac k of the camera.

e Insert the plug into an electrical outlet.

Note: When the AC adaptor is used with the camera, it becomes the active power source, even

when the batteries are installed in the camera.

Important

• Plug the power cord firmly into the power source and into the camera. If the power plug or connecting cable loosens during recording, data could be lost or damaged.

• When the AC adapter is connected to the camera, the pow er supply to the camera is tempor arily interrupted during the change of the power source. If this occurs while the camera is in use such as during recording, playback or erasing, data can be damaged or lost. Therefore, always turn off the power of the camera before connecting the AC adaptor.

Page 24

Before You Begin Recording

This section explains the initial camera adjustments and basic camera operations.

Adjusting the Date and Time

The camera records the date and time of ev ery image that is recorded. You should set the correct date and time when you first begin using your camera, as well as when y ou tr avel to a different time zone.

Note:

• Enter the date in following order: year/month/day.

• The camera uses a 24-hour clock, where 00:00 indicates midnight and 12:00 indicates noon.

q Open the LCD monitor.

Note:

The REC(ord)/PLAY switch can be set to either REC or PLAY.

w Press and hold the DATE button for more

than two seconds.

e Press the

U button or the

T button to

change the flashing number (the year, for example).

To increase the number

Press the U button. Press and hold the button to rapidly increase the number.

To decrease the number

Press the T button. Press and hold the button to decrease the numbers rapidly.

DATE

Page 25

Getting Started

r Press the D ATE button to advance to next

item (the month, for example).

Repeat steps 3 and 4 to correct the necessary items.

Note: Every time the DATE button is pressed, the year,

month, day, hour, and minute flashes (in that order).

t After setting the minutes, press the DATE

button again.

The clock starts and the display reappears on the LCD monitor.

Note: The current date and time will be displayed only when

in the RECORD mode.

Press the DATE button repeatedly to display the date and time on the LCD monitor. * When the REC(ord)/PLA Y switch is set to REC. The current date and time will appear on the

LCD monitor. When the REC(ord)/PLAY switch is set to PLAY, the date and time that the image was captured will appear on the LCD monitor.

Page 26

Adjusting the LCD

This section explains how to adjust the brightness and angle of the LCD monitor.

q Turn the brightness adjustment dial to the

right or left to adjust the brightness.

The brightness increases when you turn the brightness adjustment dial to the right. It decreases when you turn the brightness adjustment dial to the left.

w Adjust the LCD monitor toward you or

away fr om you to obtain the optimal angle.

The LCD monitor can be adjusted between 60° and 140°.

Holding the Camera

Moving the camera during picture taking will result in blurred pictures. For best results, hold the camera steady when pressing the Release button.

q Securely hold the camera with both hands; hold your elbows lightly

against your side. Point the camera toward the subject and view the subject in the LCD.

w Lightly press the Release button.

When holding the camera in a high position:

Page 27

Getting Started

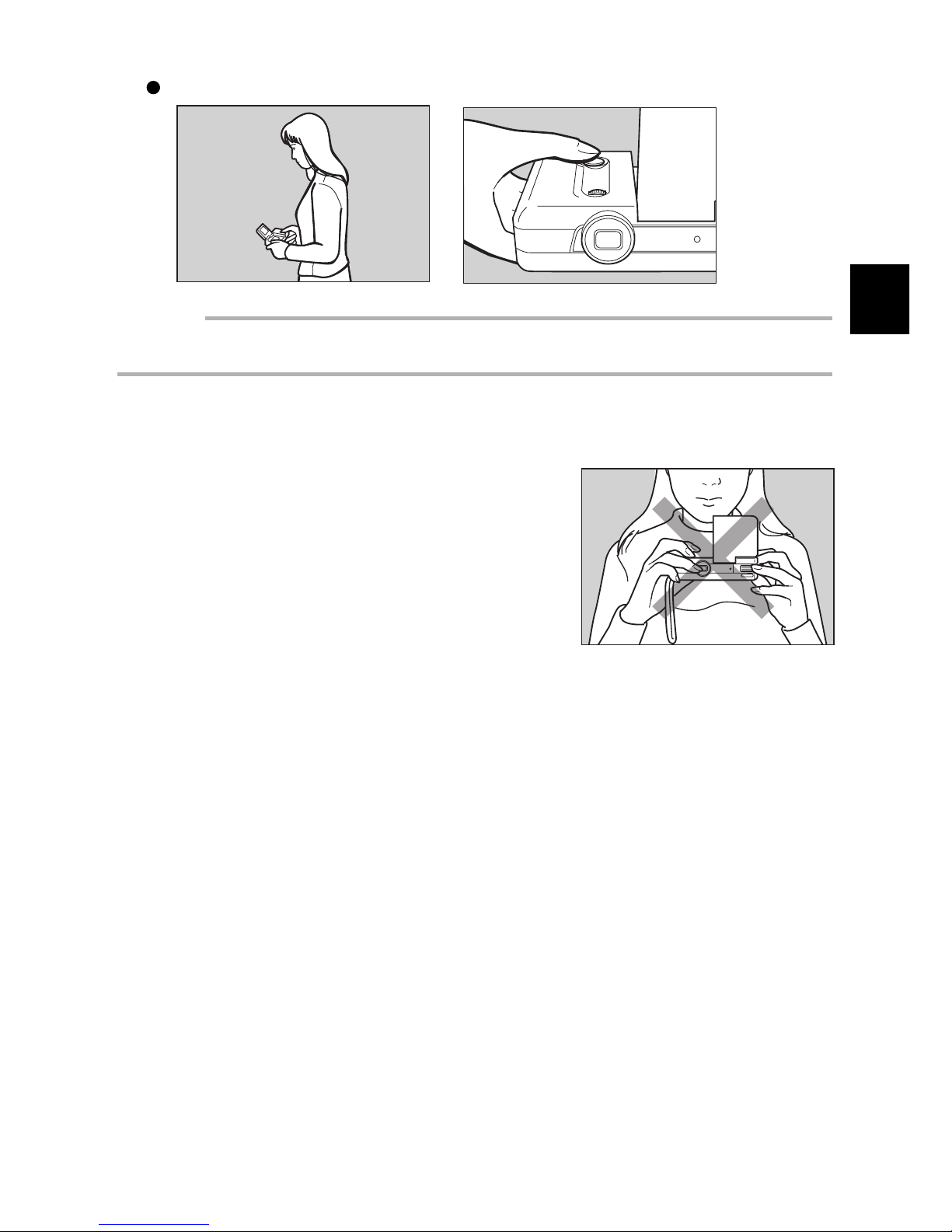

When holding the camera in a low position:

Important

• If you place your finger too far from the Release b utton, then press the b utton too fast, the camera may shake and a blurred picture may result.

Note: Hold the camera vertically for a more vertical image. The image will appear vertically on the

LCD monitor.

Be sure to keep your fingers and the wrist strap aw ay from the camera lens and the flash window.

Page 28

Page 29

Chapter 2. Recording Basics

Taking Pictures........................................................................ 28

Picture-taking Sequence.................................................... 28

Turning on the Power ......................................................... 28

Selecting the Image Quality............................................... 29

Taking Pictures ................................................................... 30

Exposure Compensation ................................................... 32

Page 30

Taking Pictures

This chapter explains the basic operations and other information needed to record images.

Picture-taking Sequence

To take a picture follow these steps. Details of each steps follow.

Turn on the power.

Open the LCD monitor, then slide the REC(ord)/PLAY switch to the REC side.

Select the image quality.

Select the image quality of either E, N, or F (Economy, Normal, or Fine). See page 29.

Take the picture.

Press the Release button to record the image. See page 30.

Turning on the Power

The power is turned on by opening the LCD monitor (approximately 60°).

q Open the LCD monitor, then set the

REC(ord)/PLAY switch to REC.

The lens cover opens and the power is turns on.

Note:

• When the power is turned on, the Recording Data Display and the Flash display appear on the monitor in approximately three seconds.

• If the LCD monitor is closed, the power turns off and the lens cover closes.

Page 31

Recording Basics

Hint: Auto Power Off Function

If no operations are performed for fiv e min utes or longer while the LCD monitor is opened, the LCD monitor will dim. This operation sav es battery power. To turn the power back on, press the Release button for more than one second. To disable Auto Power Off, see page 56.

Note: When the Auto Power Off feature operates, the FLASH MODE, WHITE BALANCE MODE,

AUTO PO WER OFF, and INTERVAL TIME SETTING are sav ed . See “Sa ving Your Settings ” on page 58 for further details.

Selecting the Image Quality

This digital camera uses compression and decompression schemes to record a large amount of information. N (Normal) mode is standard; F (Fine) mode improves picture quality; and E (Economy) mode allows you to record and store more images. You may change the image quality for each image. The number of pixels is set to the VGA resolution (640 (H) x 480 (V)).

q Slide the image mode switch (ENF PIC)

to select the desired mode (E, N, or F).

The number of images that can be recorded appears on the LCD monitor (see illustration above).

Economy mode

Normal mode

Fine mode

Page 32

Standard Data

Image Quality Mode Data Size/Image

Fine mode Approx. 160 KB/image Normal mode Approx. 80 KB/ image Economy mode Approx. 40 KB/ image

Note: The following chart indicates the maximum number of images that can be recorded when

the image quality mode is selected.

Image Quality Mode Number of Recorded images

Fine mode Approx. 25 images Normal mode Approx. 50 images Economy mode Approx. 100 images

Taking Pictures

This section explains the basic operations and other inf ormation needed to record images.

Note: See “Holding the Camera” on page 24

q Look at the LCD monitor and position the

camera to compose the image.

Use the macro mode to take pictures of subjects at distances from 1 to 60 cm.

Note: See “Macro Shooting” on page 45.

w Press the Release button lightly so that it

is halfway down.

The Release button has two steps. Messages are displayed if the b utton is pressed halfw ay do wn. The exposure and white balance are set at this time.

Displayed Messages

Pictures can be taken when the message “READY TO SHOOT” is displayed. When the message “SLO W SHUTTER CHECK FLASH MODE” appears , press the FLASH button to select a Flash mode.

Note: See “Selecting a Flash Mode” on page 36.

Page 33

Recording Basics

e To take the picture, depress the Release

button completely.

The Flash LED will light to indicate that an image is recorded. If the image is recorded, the remaining number of images that can be recorded appears on the LCD monitor.

When Forced Flash or Auto Flash is set: When taking a flash photo in dark locations, the Flash LED will light when the Release button is pressed lightly.

Note: The strobe lamp flashes when the flash is charging. A

photo cannot be taken at this time.

Tip:

If no operation is performed for fiv e minutes or longer while the po w er is on, the A uto P ower Off function dims the LCD monitor to save power. Turn off the Auto Power Off function if a certain amount of time is required until a picture can be taken. Prepare a spare set of batteries; the batteries may be worn out if they are used for a long time. Connect an optional AC adaptor to use the camera with power from an electrical outlet.

Note: See “Setting the Auto Power Off mode” on page 56.

Tip:

You may disable the LCD monitor during recording. The following message appears when the FLASH button is pressed while pressing the U and T buttons. Press the U or T button to switch ON and OFF.

DATE

Page 34

Exposure Compensation

When there is a significant difference in brightness between the background and the subject, the subject may be underexposed (too dark) or overexposed (too light). In such cases, adjust the exposure . This function allo ws y ou to intentionally undere xpose or ov erexpose an image.

Exposure compensation range

± 2.0 EV (in 0.5 EV increments)

Shooting with backlighting

When the background is bright, the subject is underexposed. In this case, adjust the exposure by increasing the value (positive (+) compensation).

Important

• In backlit conditions, place the subject at the center of the shooting range. If the subject is not placed at the center of the shooting range, the camera cannot determine the backlit conditions.

Shooting images that are too light

When shooting an image that is too light, the entire image is underexposed. The image is recorded too dark; light-colored subjects are recorded in a grayish tone. In this case, increase the value (positive (+) compensation) to adjust the exposure.

Shooting images that are too dark

When shooting an image that is too dark, the entire image is overexposed. The image is recorded too light; light-colored subjects are recorded in a grayish tine. In this case, decrease the value (negative (–) compensation) to adjust the exposure. Follow the same procedures as when shooting an image in direct light.

Exposure compensation setting

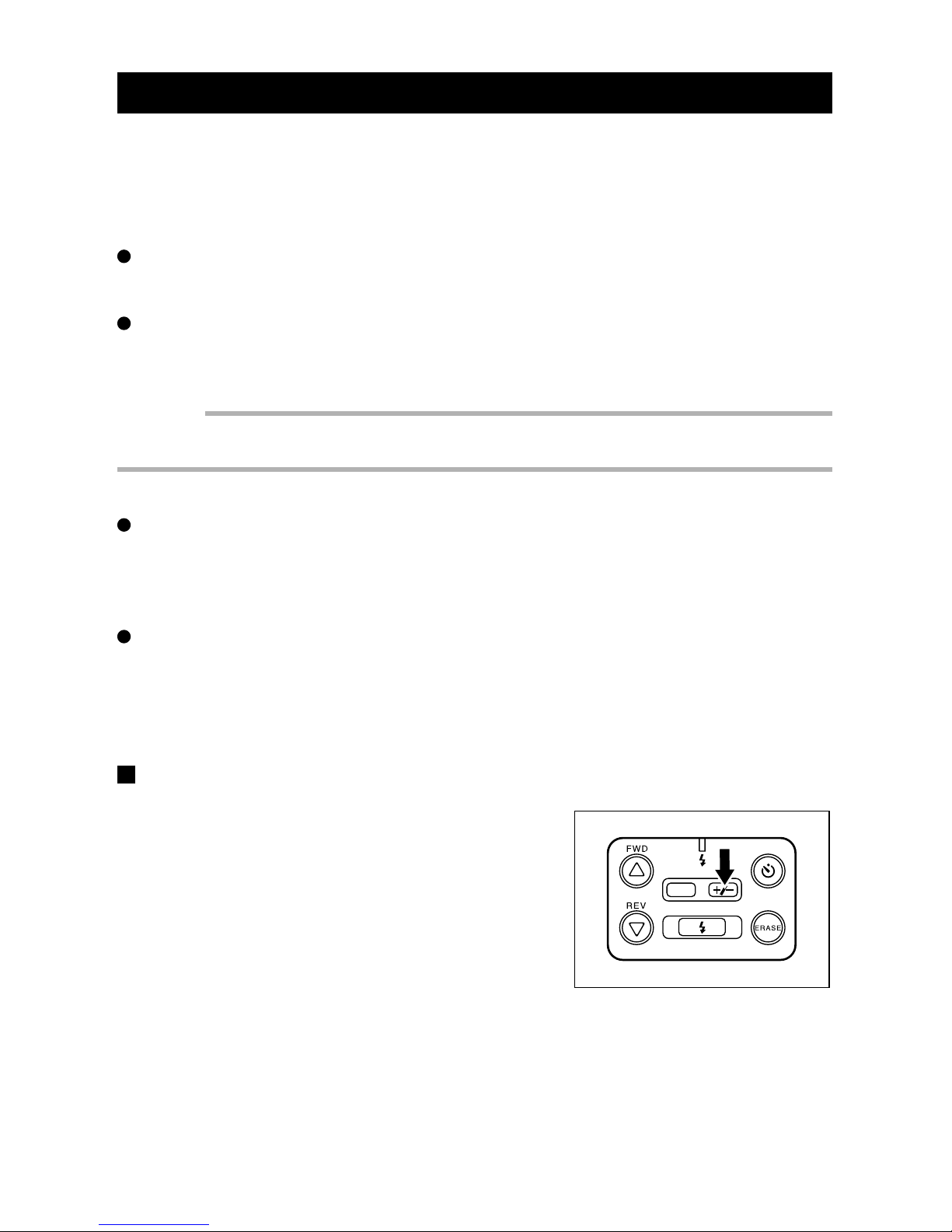

q When the REC(ord)/PLAY switch is set to

REC, press the +/– button to display the exposure compensation value on the LCD monitor .

DATE

Page 35

Recording Basics

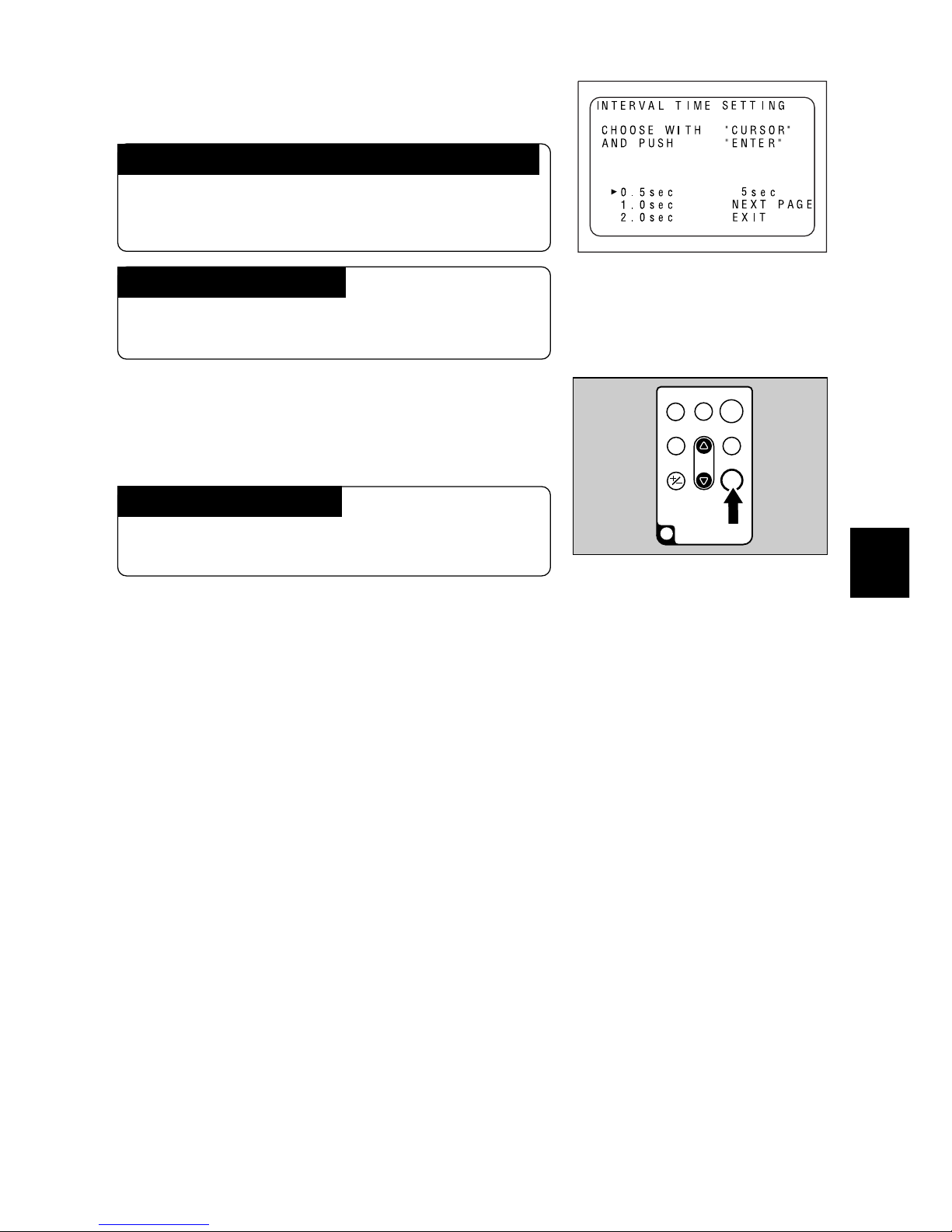

w Press the

U or

T button to increase or

decrease the exposure compensation.

Each press the U or T button will increase or decrease the exposure 0.5 EV. After adjusting the value, take the picture.

Note: To cancel the setting, press the +/– button again.

Important

About the exposure compensation

To confirm the effect of the exposure compensation on the recorded image, watch the image on the LCD monitor after the picture is taken, or play back the image.

The exposure compensation value is retained in memory ev en when the exposure compensation setting is released. Howe v er, the exposure compensation setting only aff ects the images recorded when the exposure compensation appears on the LCD monitor.

Page 36

Page 37

Chapter 3. Picture-Taking

Applications

Flash Mode .............................................................................. 36

Selecting a Flash Mode...................................................... 36

Flash Off Mode.................................................................... 37

Forced Flash Mode............................................................. 38

Auto Flash Mode................................................................. 39

Setting the White Balance Mode............................................ 40

Selecting a White Balance Mode ....................................... 40

Daylight Mode ..................................................................... 41

Fluorescent Mode............................................................... 42

Tungsten Light Mode ......................................................... 43

Special Functions ................................................................... 44

Using the Self Timer ........................................................... 44

Macro Shooting (Close-up Shooting) ............................... 45

Page 38

Flash Mode

This section explains how to change the flash mode. You can select the flash mode best suited to the lighting conditions.

Selecting a Flash Mode

Press the FLASH button repeatedly to select the desired mode.

Important

• The White Balance Mode is set for the Flash Off mode and cannot be changed except when the White Balance Mode is set to AUTO mode. Perform the operations after changing the White Balance Mode to AUTO. See “Setting the White Balance Mode” on page 40.

• When performing Macro Shooting, the Flash Off mode is set. The flash mode cannot be changed.

• The light from the flash appears red in the picture if the flash discharges on the subject at a distance less than the minimum distance (approximately 0.6 m).

Flash Off Mode Forced Flash Mode

Auto Flash Mode

(no display)

DATE

FLASH button:

Sets the flash mode

Page 39

Picture-Taking Applications

DATE

Flash Off Mode

If this mode is used, the flash will not discharge, even in dark locations. This feature is convenient when you wish to take a picture where flash photography is prohibited. It is also convenient for using the available room light when taking a picture.

q Press the FLASH button until the [ ] sym-

bol appears on the LCD monitor.

w Press the Release button.

The camera will take a picture without the flash discharging.

Important

• In dim light, the camera's shutter speed is automatically reduced. The message SLOW SHUTTER CHECK FLASH MODE will appear. To prevent a blurred picture , steadily hold the camera or stabilize the camera with a tripod.

Canceling the selected Flash Mode

Press the FLASH button repeatedly to select another mode.

Page 40

DATE

Forced Flash Mode

When taking photographs of subjects in strong light or with backlighting, dark shadows may appear on the image. Forced Flash Mode is used to soften shadows. The flash will operate in all lighting conditions.

q When the REC(ord)/PLAY switch is set to

REC, press the FLASH b utton until the [

] symbol appears on the LCD monitor. The Flash LED will blink.

The FLASH LED will light when the Release button is pressed lightly.

Note: The flash LED flashes while the flash is charging; a

picture cannot be taken at this time.

w Press the RELEASE button.

The camera will take a picture with the flash.

Canceling the Mode

Press the FLASH button repeatedly to select another mode.

Flash Distance

The recommended shooting range is approximately 0.6 m to 3.0 m if the flash is used. If the flash does not reach the subject, a dark, underexposed image may result. If the lens-to-subject distance is less than 25 cm (10 in.), the image may look washed-out.

Page 41

Picture-Taking Applications

Auto Flash Mode

The flash discharges automatically when shooting in dark locations or in backlighting. Take the photo according to the lighting conditions.

q Press the FLASH button repeatedly until

neither flash symbol (

and ) appears

on the LCD monitor.

When shooting in a dark location, press the Release button lightly. The flash will operate.

Note: The flash LED flashes while the flash is recharging. A

photo cannot be taken at this time.

w Press the Release b utton.

The flash will discharge automatically in dark locations or in backlighting.

Canceling the Mode

Press the FLASH button repeatedly to select another mode.

Flash Distance

DATE

Page 42

Setting the White Balance Mode

You may adjust the White Balance Mode so that subjects appear in natural colors, even when under a light source. Normally, Auto is the preferred setting. The white balance is adjusted automatically, using the white portion as a reference. The white balance sometimes cannot be adjusted correctly. If the white area of the subject is too small. If this occurs, set the White Balance Mode to the Daylight mode, Fluorescent mode or Tungsten light mode, then take the picture.

Selecting a White Balance Mode

DATE

Subjects that the Auto White Balance may not work properly

• Monotone subjects.

• Subjects with multiple light sources.

• Subjects with a deep background, especially when a flash is used.

Note:

• If the white area of subject is insufficient, move the camera to increase the white por tion of the subject then shoot the picture.

• To adjust the White Balance Mode, make sure that REC(ord)/PLAY switch is set to REC.

While pressing the

U button,

press the FLASH button. Then, press the

U or

T T

T button to se-

lect a white Balance Mode.

Auto mode

(no display)

Daylight mode

Fluorescent mode

Tungsten light

mode

Page 43

Picture-Taking Applications

DATE

Daylight Mode

Use Daylight Mode when shooting a picture outdoors or when the Auto White Balance does not work properly.

q When the REC(ord)/PLAY switch is set to

REC, press the FLASH b utton while pressing the

U button.

w Within three seconds, press the

U or

button repeatedly until the

symbol ap-

pears on the LCD monitor. The

will remain on the LCD monitor for about three seconds.

Important

• The Flash Off mode is set when the Daylight mode is set. At this time, the flash mode cannot be switched, even if the FLASH button is pressed.

• The color tone of the same subject may vary depending on weather conditions .

Canceling the Mode

Press the FLASH button while pressing the U button, then use the U or T b utton to choose a White Balance mode.

Page 44

Fluorescent Mode

Use the fluorescent mode when shooting a picture in fluorescent lighting or when the Auto White Balance does not work properly.

q When the REC(ord)/PLAY switch is set to

REC, press the FLASH b utton while pressing the

U button.

w Within three seconds, press the

U U

U or

button to display the

symbol on the

LCD monitor.

The will remain on the LCD monitor for about three seconds.

Important

• The Flash Off mode is set when the Fluorescent mode is set. At this time, the Flash mode cannot be switched, even if the FLASH button is pressed.

• The color tone for the same subject may vary depending on the type of the fluorescent light .

Canceling the Mode

Press the FLASH button while pressing the U button. Within three seconds, press the U or T button to select AUTO.

DATE

Page 45

Picture-Taking Applications

DATE

Tungsten Light Mode

Use the Tungsten Light mode when shooting a picture in incandescent lighting or when the Auto White Balance does not work properly.

q When the REC(ord)/PLAY switch is set to

REC, press the FLASH b utton while pressing the

U button.

w Within three seconds, press the

U or

button to display the

symbol on the LCD

monitor .

The will remain on the LCD monitor for about three seconds.

Important

• The Flash Off mode is set when the Tungsten Light mode is set. At this time, the Flash mode cannot be switched, even if the FLASH button is pressed.

• The color tone for the same subject may vary depending on the type of incandescent light.

Canceling the Mode

Press the FLASH button while pressing the U button. Within three seconds, press the U or T button to select AUTO.

Page 46

Special Functions

This camera has a variety of special functions available.

Using the Self Timer

This function is convenient for taking a group picture that includes the photographer. Before using the Self Timer, securely place the camera on a steady support or tripod.

q When the REC(ord)/PLAY switch is set to

REC, press the self timer mode button to display the

symbol on the LCD moni-

tor.

w Frame the subject and make sure that the

camera is positioned securely. Press the Release button.

Within 10 seconds position yourself in front of the camera. The Self Timer light on the front of the camera glows. The Self Timer light will flash for nearly two seconds just before the picture is taken. The Self Timer is disabled after one picture is taken.

Note: The Self Timer cannot be activated when the flash is recharging. Wait until recharging is

completed before starting the Self Timer.

Note: You also may use this function with an optional remote control.

DATE

Page 47

Picture-Taking Applications

Macro Shooting (Close-up Shooting)

Macro shooting is tight, close-up photography.

q Approach the subject and compose the

picture. Adjust the focus by turning the Macro to the dial right or left.

When you turn the Macro dial, the symbol appears on the LCD monitor.

w When the subject is focused, press the

Release button to take the picture.

Important

• When the camera is repositioned, the subject may go out of focus; the accurate focus range for macro shooting is quite narrow. Position the camera on a stable surface or tripod before taking a close-up picture.

Important

• The Flash Off mode is set when the Macro mode is set. The Flash mode cannot be switched at this time, even if the FLASH button is pressed.

• The Macro dial automatically returns to the original position when the LCD monitor is closed .

Page 48

Page 49

Chapter 4. Picture Playback/

Erasure

Before Playback ...................................................................... 48

Displaying Information....................................................... 48

Connecting to a TV ............................................................. 49

File Playback ........................................................................... 50

File Playback....................................................................... 50

Automatic Playback............................................................ 50

File Erasing.............................................................................. 52

Operation Flow ................................................................... 52

Erasing One File ................................................................. 52

Erasing All Files.................................................................. 54

Page 50

Before Playback

This section explains the preparation file the playback and provides information about the images played back on the LCD monitor or TV.

Displaying Information

The file number of the recorded image appears on the monitor for three seconds as shown in the following figure.

File number of this image

Total number of files

➡

Date/Time

Time

DateStandard playback display

➡

Tips:

The monitor displays information about the recorded images including the date and time of recording. Press the DATE b utton repeatedly to change the display in the following sequence:

* The date and time setting mode is set if the DATE button is pressed and held for more than

two seconds. Refer to “Adjusting the Date and Time” on page 22 for the setting procedures.

Page 51

Picture Playback/Erasure

Connecting to a TV

The recorded images can be played back on a TV by connecting the Video cable to the camera and to the TV.

Important

• Refer to the TV manual for more information.

q Close the LCD monitor and turn off the TV power. w Remove the terminal cover, then connect the Video cable to the VIDEO

OUT terminal.

e Connect the opposite end of the Video cable to the VIDEO IN terminal of

the TV .

r Set your TV to Line Input or Auxiliary mode. For details, refer to y our TV

owner's manual.

Note: When the Video cable is connected to the camera, no image is displayed on the LCD monitor .

Extended Playback

For e xtended pla ybac k, use the optional A C adaptor. See “Using A C Power” on page

21. * Be sure to close the LCD monitor before connecting the AC adaptor.

Yellow

VIDEO

TONE

Page 52

DATE

File Playback

This section explains how to view a recorded images.

File Playback

To view a file, follow these steps.

q Open the LCD monitor, then slide the

REC(ord)/PLAY switch to PLAY.

The monitor displays the most recently recorded file.

w Press the

U or

T button to move through

the available files.

Automatic Playback

The files may be played back in sequence using the optional remote control. This is called the automatic playback function. The playback interval (length of time each image is displayed) may be set between 0.5 to 30 seconds.

q Press the PROGRAM b utton of the remote

control.

RELEASE

ERASE

FWD

PROGRAM

REV

ENTER

REMOTE CONTROL

AY3740

Page 53

Picture Playback/Erasure

RELEASE

ERASE

FWD

PROGRAM

REV

ENTER

REMOTE CONTROL

AY3740

w Press the

U or

T button to set the length

of time for playback.

To display the previous page or the ne xt page

Use the U or T button to select the previous page or the next page, then press the ENTER b utton on the remote control unit.

To cancel the settings

Use the U or T button to select EXIT, then press the ENTER button.

e Press the ENTER button of the remote

control.

The recorded files will be played back in sequence.

To stop the playback

Press the ENTER button or the PROGRAM button on the remote control.

Page 54

File Erasing

This section explains how to er ase recorded files. You may erase one file at a time, or y ou may erase all files at one time.

Operation Flow

The following is the basic explanation of how to erase a file.

Turn the power on.

Open the LCD monitor and set the REC(ord)/PLAY switch to PLAY. Press the ERASE.

Select the erase method.

Choose to erase either a single file or all files.

Select a file.

Select a file to be erased, or erase all files

Erase the file.

See pages 52 - 53 for information on erasing one file. See page 54 for information on erasing all files.

Erasing One File

The following steps explain how to erase a specific file.

Important

• An erased file cannot be restored. Carefully confirm the contents of a file before erasing it.

q Open the LCD monitor, then set the

REC(ord)/PLAY switch to PLAY.

w Press the ERASE button.

DATE

Page 55

3 4

Picture Playback/Erasure

e Press the

U or

T button to select ERASE

with the arrow, then press the RELEASE button.

Note: To stop erasing, select EXIT, then press the Release

button. The Release button is also referred to as the ENTER button in the LCD monitor.

r Press the

U or

T button to select the file to

be erased.

t Press the RELEASE button.

The selected file is erased. Repeat steps r and t to erase another file. When you finish, press

the ERASE button.

Note: When a file is erased, the file numbers of the suc-

ceeding files decrease by one.

Canceling the Mode

Press the ERASE button again.

ERASE

Page 56

Erasing All Files

The following section explains how to erase all the files at one time.

Important

• Erased files cannot be restored. Carefully confirm the contents of files before erasing them.

q Open the LCD monitor, then slide the

REC(ord)/PLAY switch of the camera to PLAY.

w Press the ERASE button.

e Press the

U or

T button to select ERASE

ALL with the arrow. Then, press the RELEASE button.

An ERASE ALL message will appear.

Note: The Release button is referred to as the ENTER but-

ton in the LCD monitor.

r Press the RELEASE button.

The ERASING message appears and all files are erased. After erasing is finished, the NO IMAGE RECORDED message appears.

Note: To cancel erasure, press the ERASE button.

DATE

ERASE ALL?

ERASE

Page 57

Chapter 5. Additional Information

Changing a Camera Setting ................................................... 56

Setting the Auto Power Off mode ..................................... 56

Setting the Power Saving Mode ........................................ 57

Saving Y our Settings .......................................................... 58

Returning the Settings to the Original Position............... 59

System Configuration Figure................................................. 60

Accessories for ESP2 ............................................................. 62

Computer and DC Connections............................................. 63

Handling Precautions ............................................................. 66

Caring for Your Digital Camera .............................................. 67

Troubleshooting ...................................................................... 68

Using Your Digital Camera in Other Countries ..................... 71

Specifications.......................................................................... 72

Page 58

Changing a Camera Setting

You may change the camera setting to “Auto Power Off”, “Energy Saving” or “Power-Off memory” according to the usage.

Setting the Auto Power Off mode

If no buttons or switches are oper ated for five minutes, the Auto Power Off function turns off the main power in order to conserve power.

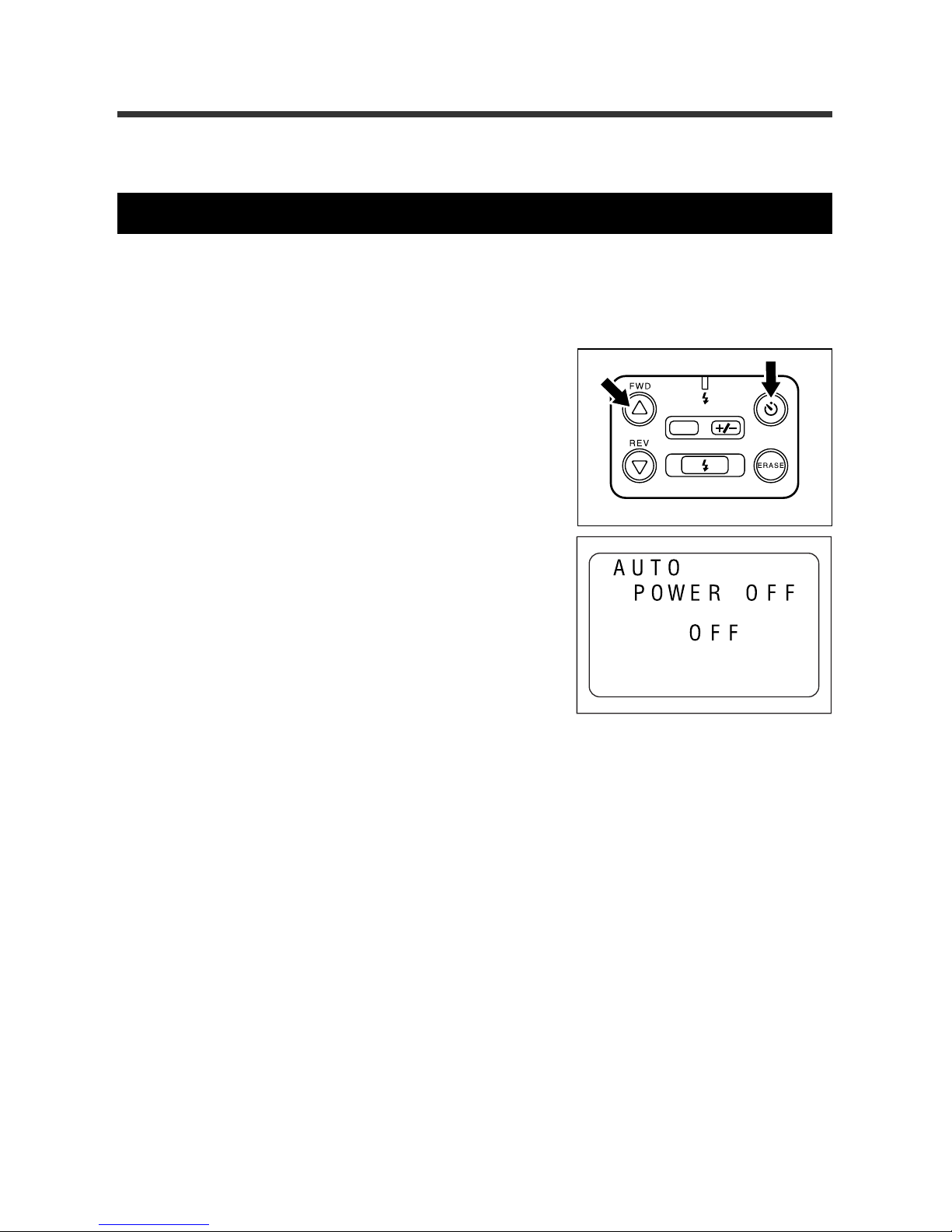

q Press the SELF TIMER b utton while press-

ing the

U button.

The REC(ord)/PLAY switch can be set to either REC or PLAY. Auto Power Off is enabled.

w Within three seconds, press the

U or

button to turn off the function.

Within three seconds, the Auto Power Off will be disabled.

Note:When the Auto Power Off feature turns off the LCD

monitor, you may turn on the LCD monitor by these methods: close and reopen the LCD monitor, slide the REC(ord)/PLAY switch, or press the Release b utton for one second or more.

DATE

Page 59

3 4

Additional Information

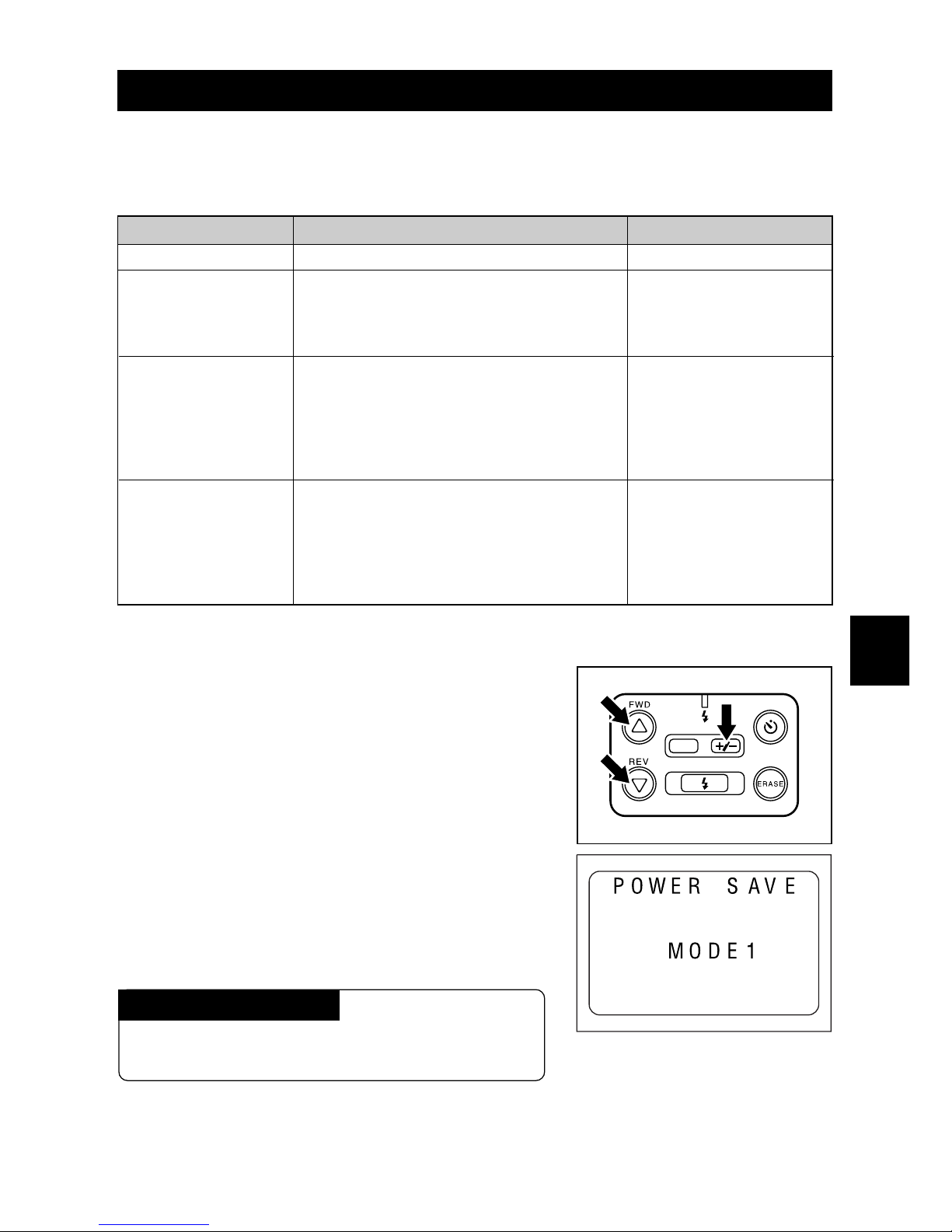

Setting the Power Saving Mode

This function saves battery power by adjusting the LCD monitor brightness. MODE 1, MODE 2, or MODE 3 can be set. However, the operations vary depending on whether the record mode and playback mode is set. Figure 57-1

Power saving mode

OFF MODE1

MODE2

MODE3

Record mode

Regular operation The LCD monitor is slightly dark.

This condition remains until the setting is changed.

The LCD monitor becomes dark. If the Release button is pressed lightly, the LCD monitor returns to the regular brightness. When the Release button is pressed and released, the picture is taken and the LCD monitor turns dark again after a few seconds.

The LCD monitor becomes dark. If the Release button is pressed lightly, the LCD monitor becomes slightly dark. When the Release button is pressed and released, the picture is taken and the LCD monitor turns dark again after a few seconds.

Playback mode

Regular operation The LCD monitor is

slightly dark. This condition remains until the setting is changed.

This setting can be operated, however, the pow er saving function cannot be operated.

Same as MODE 1.

DATE

To select a power saving mode, follow these steps.

q Press the +/– button while pressing the

button, and the

T button at the same time.

The REC(ord)/PLAY switch may be set to either REC or PLAY. The power saving setting mode is set.

w Press the

U or

T b utton to select the power

saving mode.

In three seconds, the power saving mode will be set.

To cancel the setting

Repeat the operation described above, selecting OFF at step 2.

Page 60

Important

• The power saving mode is automatically set to OFF when the LCD monitor is closed.

• When the camera is used in an environment where the temperature is approximately 40

C or higher, the LCD monitor ma y ha ve a certain uneven quality. The LCD monitor will return to normal when the temperature decreases.

Note: Depending on the environment in which the camera is used, the power saving mode can v ary

because in the number of recording files can be 1.2 times greater than usual and the playback time is approximately 2.5 hours.

Saving Y our Settings

The Power Off Memory function saves your settings when the power is turned off. If the power is turned off when the Power Off Memory is set, the Flash mode (see page 36), White Balance mode (see page 40), Auto Power Off (see page 56) and Automatic Playback (see page 51) settings are saved. They will be available when the power is turned on next. All other camera settings will return to the original positions.

q Press the SELF TIMER button, the

U but-

ton, and the

T button at the same time.

The REC(ord)/PLAY can be set to either REC or PLAY. The power-off memory setting mode is set.

w Within three seconds, press the

U or

button to select ON.

Within three seconds, the Power Off Memory will be set to ON.

To cancel the setting

Repeat steps 1 and 2 above, selecting OFF at step 2.

DATE

Page 61

3 4 5

Additional Information

Returning the Settings to the Original P osition

This section explains how to reset Flash mode, White Balance mode, Auto Power Off, Automatic Playback and Power Off Memory settings the original positions.

q Remove the terminal cover on the side of

the camera. Depress the RESET button with the tip of a sharp pencil or similar object.

The settings also are reset when the batteries or the clock batteries are installed. The recorded images are not erased even after a reset is performed.

Important

• Do not use a sharp object or an object that breaks easily .

Page 62

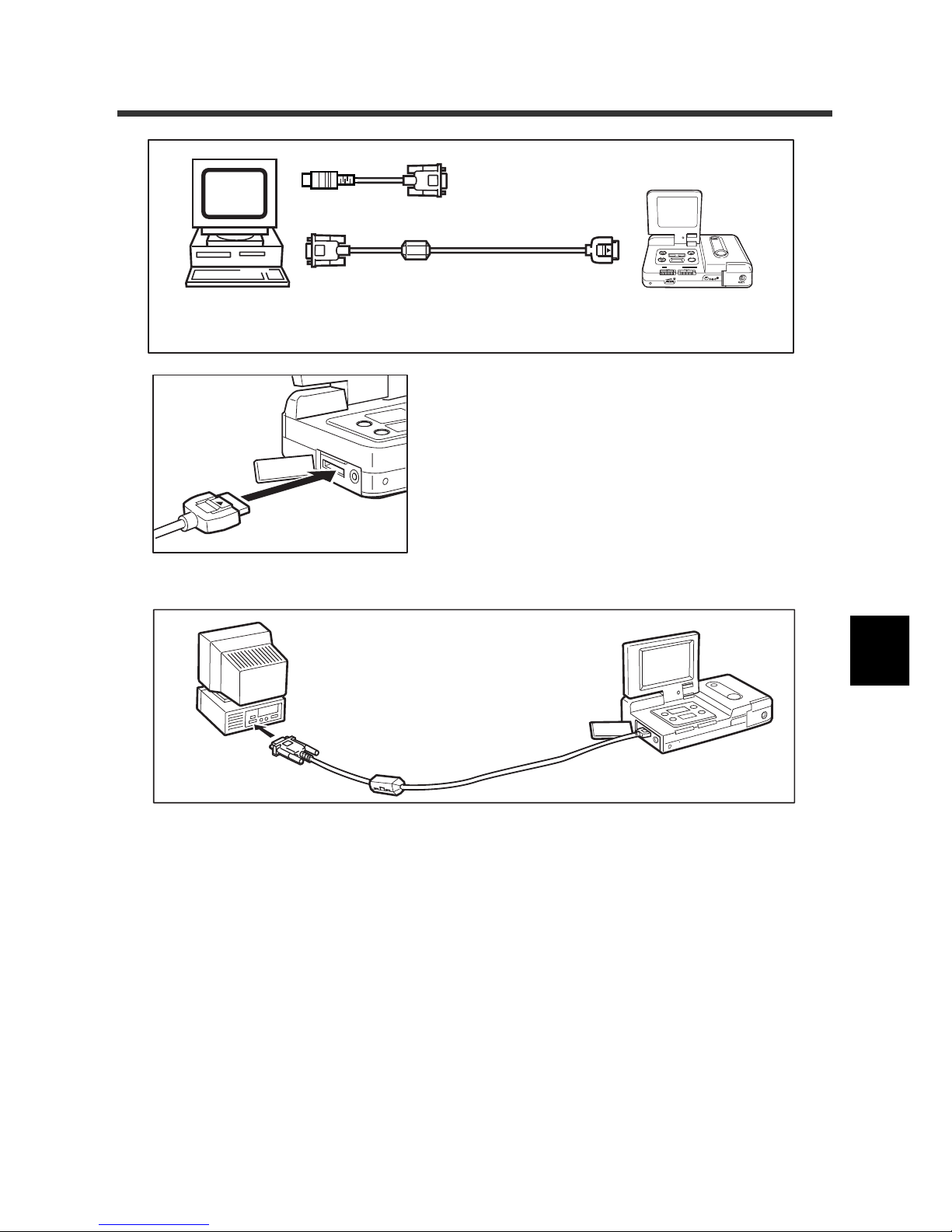

System Configuration Figure

Computer

File transmission to a personal computer

Philips utility software for ESP2 and a serial cable are required.

Digital camera

Batteries

Alkaline batteries Nickel Cadmium batteries Nickel-metal-hydride batteries

Remote control

• Remote control AY3740 * When using this unit with

the camera, the screen display button and the monitor button do not function.

RELEASE

ERASE

FWD

PROGRAM

REV

ENTER

REMOTE CONTROL

AY3740

Power supply

• AC adaptor AY3140 (100 V to 240 V)

Image transmission to a personal computer

You can transmit your file to a personal computer using the utility software for the ESP2. The file can be transmitted using a special cable from the camera.

Page 63

3 4 5

Additional Information

Playback

• LCD monitor

• TV monitor (Connects to the camera with the Video cab le that is included.)

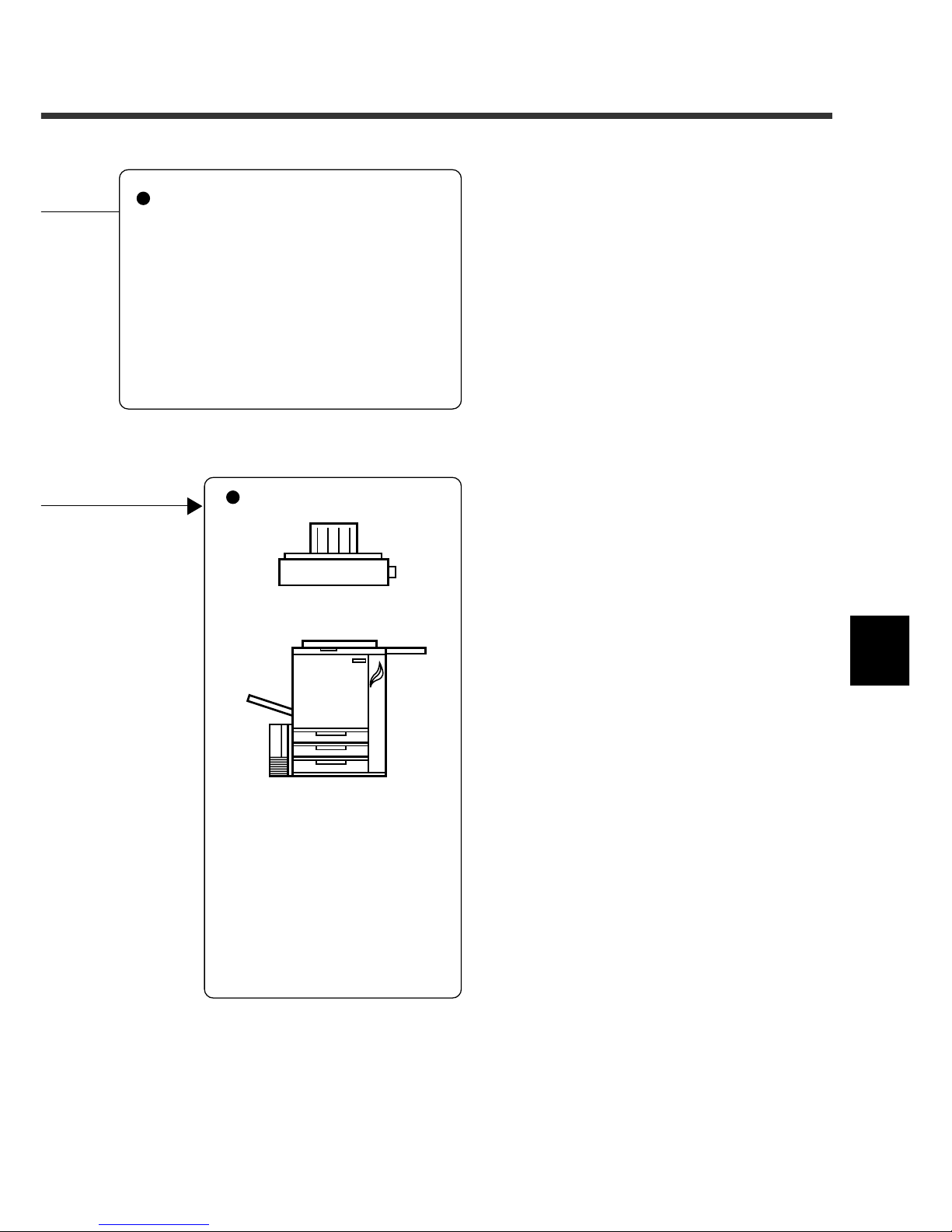

Output

Color printer

Color copier

* Accessories for ESP2 on page 62 for

information on products mentioned above.

Once data is sent to your personal computer, y ou can print it with a color printer or color copier.

* A video printer can be con-

nected to the camera for printing still pictures.

Page 64

Accessories for ESP2

Item

AC Adaptor

Remote Control Unit

Remarks

For operating on AC power. See page 21, “Using AC Power.”

For recording or playback by remote control. The Automatic Playback feature enables you to program the sequence of pictures to be played bac k. This function is a v ailable only with this Remote Control.

Model

AY3140

AY3740

Page 65

3 4 5

Additional Information

Computer and DC Connections

• PC/AT compatible unit (RS232C D-sub 9-pin)

• Macintosh

Connection cable

RS232C/AUX

Macintosh adaptor

1. Open the ter minal cover on the side of the camera.

2. Connect the cable to the RS232C/ AUX terminal.

3. Connect the other end of the cable to the serial port of the computer.

Page 66

For the Macintosh® Users:

q Select the New catalogue from the File menu.

Note: To import an image into a catalogue that already exists, select File and Open the Catalogue

to select the catalogue into which you want to import the image.

w Enter the new catalogue name in the dialog box, then click the Save button.

The new catalogue window is displayed.

e Set the REC(ord)/PLAY switch to PLAY. r Select [Load from Philips Camera] in the File menu.

The dialog box is displayed.

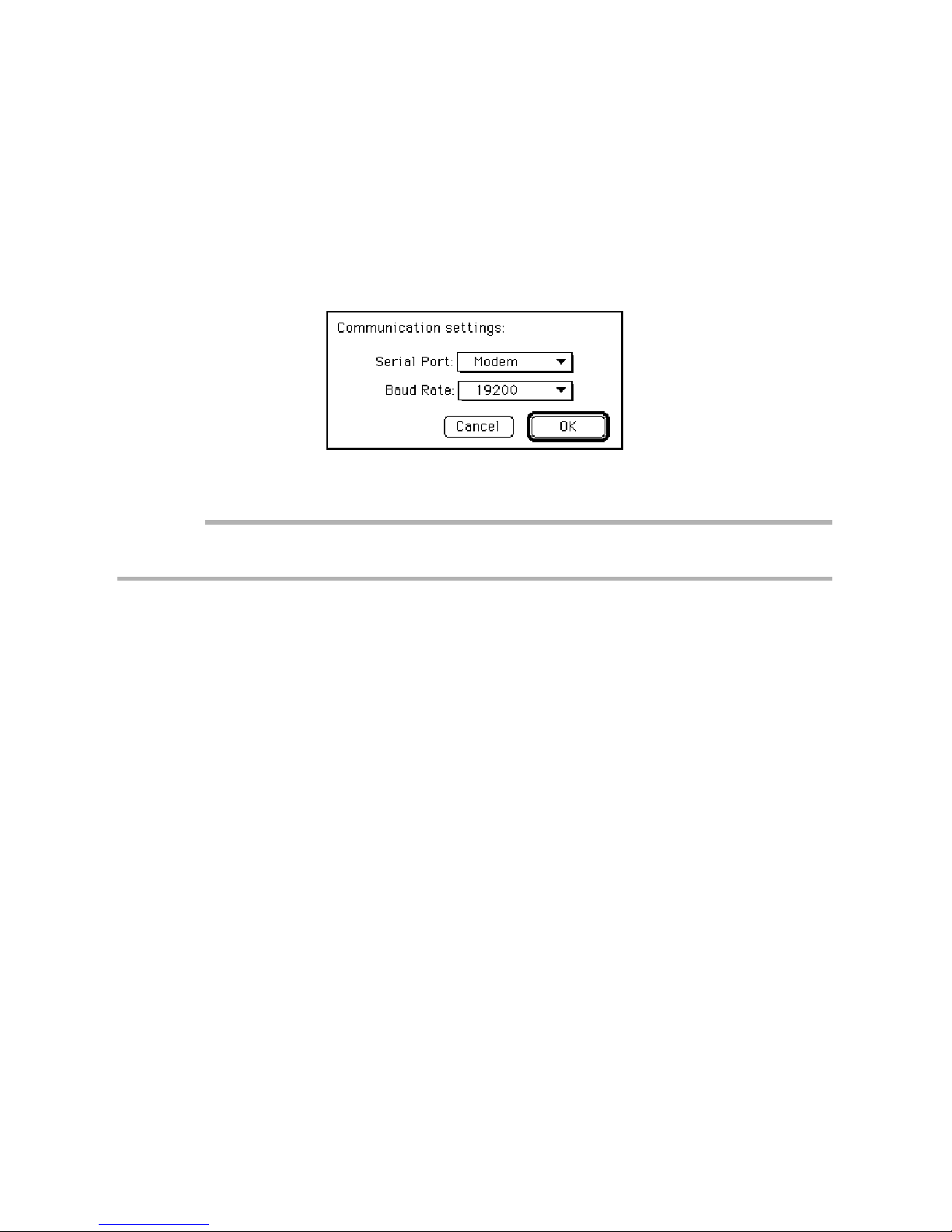

t Set the serial port and the communication speed (Baud Rate) then click the

OK button.

Important:

• When connecting to the camera through the printer port, set the Apple Talk item to Not used in the Selector of the Apple menu.

When the computer and the camera are connected correctly, the following dialog box is displayed.

y Select the image to be imported.

• To specify one image at a time Press the < button or the > button to select the image , then clic k the Select check button. Repeat the operation and specify the images to be imported in image sequence.

• To specify all images Click the Select All button. All images that are recorded in the camera are selected.

Note: To cancelthe image selection, remove the chec k in the Select chec k box or click the No select

button. The image that is currently selected is canceled.

u After selecting the image, click the OK button.

The specified image is imported.

Note: • Use the AC adaptor when you transfer images to the computer.

• Refer to the on-line HELP menu in the software for further details. The Acrobat Reader should be installed to view the HELP menu.

Page 67

3 4 5

Additional Information

For Windows®:

Transfer files from the camera

q Select [DOWNLOAD Philips FILES] from the FILE menu. w Specify the communication speed (Baud Rate) and the serial port for the

cable connection. Select whether a file is to be added to the album or to be developed on the desktop.

e Select the f ormat in which the file should be saved.

r Click OK to start the file transfer.

Note: • It is recommended to use an AC adapter when images are uploaded or downloaded. The

file transfer operations will be interrupted if the power is cut off during the operation.

• Refer to the on-line help menu in the software for further details.

Page 68

Handling Precautions

This camera is not waterproof. Take great care to avoid water, rain, or spilled drinks. If

the camera gets wet, contact your local Philips service office. Never drop the camera or subject it to strong shock. To avoid overheating the system, do not continuously operate the built-in flash unit

more than necessary. Protect the camera from sand or dust, especially at the beach or in dusty environments

(construction sites, etc.). Do not expose the camera to high temperatures or high humidity for long periods of

time, such as in a closed car, at the beach, or in a bath. Turn off the camera before connecting it to the optional AC adaptor. Sudden changes of temperature may cause condensation to form inside and outside

the camera body and lens, resulting in malfunctions. If this occurs, place the camera

into a bag or plastic bag temporarily to moderate any drastic change of temperature.

Keep it in the bag until the temperature difference is minimized. If the LCD monitor is exposed to sunlight or other bright light, it may appear white and

may become difficult to observe. Sometimes a pixel that always lights or never lights is present in the LCD monitor. The

brightness may have an unevenness due to the characteristics of the LCD. However,

these are not malfunctions. Do not pull the terminal cover with excessive force. Do not lift the camera by grasping

terminal cover. Do not open the LCD monitor while holding the lens cover. Always close the LCD monitor when carrying the camera.

Condensation occurs when:

• The camera is suddenly brought into a warm place from a cold place.

• The camera is used in a location subject to high humidity.

• The camera is used in a recently heated room. The camera was in a location subject to direct cool air flow from an air conditioner.

Page 69

3 4 5

Additional Information

Caring for Your Digital Camera

Camera Care

• Keep the lens of the camera clean; stains or dirt on the lens may lessen the precision of the image quality.

• Do not attempt to remove dust or smears on the lens with your fingers. Use a b low er to blow the dust away, or wipe the surface gently with a soft cloth.

• After using the camera at the beach or exposing it to a chemical environment, take special care to wipe off any dirt.

• If the camera does not operate properly, contact a service representative. The camer a is equipped with a hazardous high-voltage circuit. Never attempt to repair the camera by yourself .

• Keep the camera a way from volatile liquids such as thinner, benzene, and insecticide. These chemicals may peel off the paint or damage the surface.

• Do not scrub the surface of the LCD monitor with a hard object; the LCD monitor is scratched or damaged easily.

• Wipe off the surface of the LCD monitor gently, using a moistened, soft cloth with thinned detergent; wipe off the moisture with a dry cloth.

* Remove the batteries and AC stet from the camera before cleaning.

Safekeeping

• Do not store the camera in a closet with insect repellents, which may damage the camera and cause a malfunction.

Page 70

Troubleshooting

Before sending the unit for repairs, first refer to the following checklist for a possible solution to the problem. If you still cannot correct the problem, please contact the service representatives.

Power Source Problems

Remedy

Install the batteries correctly or replace with fresh batteries.

Reconnect the AC adaptor.

Press the Release button more than one second or turn on the power again.

Replace the old batteries with fresh batteries.

Replace the batteries.

—

Cause

The batteries are not installed properly or are depleted.

The AC adaptor is not connected properly.

The Auto Power Off feature shuts down the camera after several minutes of inactivity.

The batteries are depleted.

The batteries were subjected to excessively low or high temperatures.

The built-in flash was used too frequently because of dark conditions or other reasons.

Problem

No power

Sudden loss of power

The batteries go dead quickly.

Shooting and Playback Problems

Cause

The batteries are not inserted properly (incorrect polarity) or are dead.

The power is off, or the REC(ord)/ PLAY switch is set to PLAY.

The shutter release button is not fully pressed down. (Button was pressed only halfway down.)

The internal memory is full.

The Self Timer mode is selected.

The flash is recharging.

Flash Off mode is selected.

The White Balance mode or Macro mode is set.

The batteries are dead.

Remedy

Reposition the batteries correctly or replace with fresh batteries.

Slide the main switch to [Record].

Press the Release button all the way down.

Delete some files to secure enough space.

Press the SELF TIMER button to cancel the Self Timer mode.

Wait until the flash lamp stops flashing.

Press the FLASH button to change the setting.

Press the flash button while pressing the U button, then cancel the White Balance mode, or rotate the Macro dial to cancel the Macro mode.

Replace with fresh batteries.

Problem

The camera fails to record the picture when the Release button is pressed.

The flash does not work or recharge.

Page 71

3 4 5

Additional Information

Cause

The distance to the subject exceeds approximately 3.0 meters.

The flash discharged when distance to the subject was less than 60 cm.

The image is overexposed.

The brightness adjustment dial is not set correctly.

The picture was taken in the Flash Off mode under dark conditions.

The image is underexposed.

The brightness adjustment dial is not set correctly.

The image conditions prevent the Automatic White Balance system from functioning property.

The REC(ord)/PLAY switch is not set to PLAY.

Video connection cable is not correctly connected to the video output terminal of the camera and the input terminal of the TV.

A noise source, such as a motor, is close to the camera.

This is a malfunction in the camera’s internal memory.

The batteries are dead.

The Auto Power Off system has activated.

There is an obstruction in the path between the reception window of the camera and the transmission window of the remote control.

The reception window on the camera or the transmission window on the remote control is dirty.

The lithium battery in the remote control is dead.

This condition occurs when a picture is taken of a well-lit subject. It is called a smear.

Remedy

Reduce the distance to the subject.

Select the Flash Off mode.

Compensate the exposure with the +/– button.

Turn the brightness adjustment dial to the right or to the left to adjust the brightness.

Press the FLASH button to change the setting.

Compensate the exposure with the +/– button.

Turn the brightness adjustment dial to the right or to the left to adjust the brightness.

Include a white or light-colored object in the subject, or use the flash or Fixed White Balance.

Slide the REC(ord)/PLA Y switch to PLA Y.

Connect the cable properly.

Place the camera where it is not close to a noise source.

Transfer impor tant images to a computer, then erase all files.

Replace the batteries with fresh batteries.

Close the LCD monitor to turn off the power , then turn on the power again. Or, press the Release button more than one second.

Clear the path between the camera and the remote control.

Clean both windows.

Replace the battery with a fresh lithium battery (CR2032).

This is not a malfunction.

Problem

The flash discharged properly but the image is dark.

The picture is too bright.

The image is underexposed.

The picture does not show natural colors.

The camera fails to play back the data or display an image on the monitor.

The image does not play back clearly.

The image on the monitor has disappeared.

The remote control (optional) is malfunctioning.

The image has a vertical trail.

Page 72
