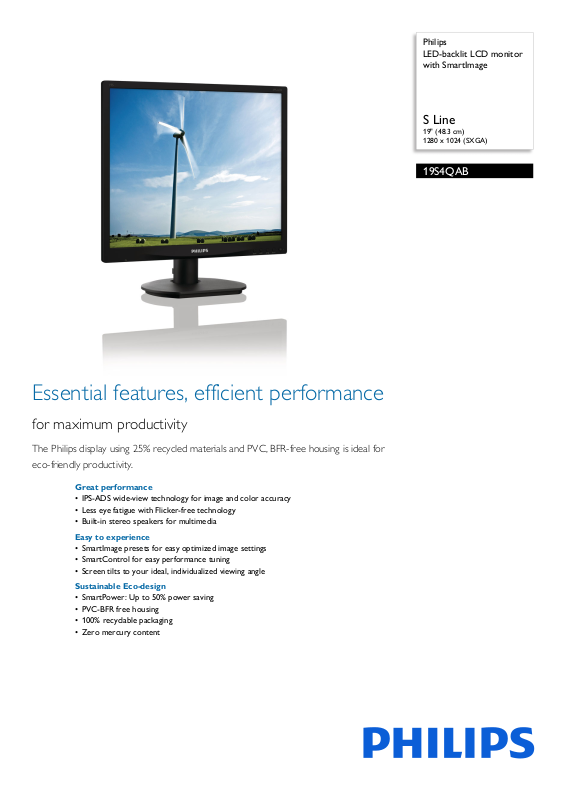

Page 1
Philips
LED-backlit LCD monitor
with SmartImage
S Line
19" (48.3 cm)
1280 x 1024 (SXGA)
19S4QAB
Essential features, efficient performance
for maximum productivity
The Philips display using 25% recycled materials and PVC, BFR-free housing is ideal for
eco-friendly productivity.
Great performance
• IPS-ADS wide-view technology for image and color accuracy
• Less eye fatigue with Flicker-free technology
• Built-in stereo speakers for multimedia
Easy to experience
• SmartImage presets for easy optimized image settings
• SmartControl for easy performance tuning
• Screen tilts to your ideal, individualized viewing angle
Sustainable Eco-design
• SmartPower: Up to 50% power saving
• PVC-BFR free housing
• 100% recyclable packaging
• Zero mercury content
Page 2
19S4QAB/75
LED-backlit LCD monitor
S Line 19" (48.3 cm), 1280 x 1024 (SXGA)
Highlights
IPS-ADS technology
IPS-ADS displays use an advanced technology
which gives you extra wide viewing angles of
178/178 degree, making it possible to view the
display from almost any angle. Unlike standard
TN panels, IPS-ADS displays give you
remarkably crisp images with vivid colors,
making it ideal not only for Photos, movies and
web browsing, but also for professional
applications which demand color accuracy and
consistent brightness at all times.
Flicker-free technology
Due to the way brightness is controlled on
LED-backlit screens, some users experience
flicker on their screen which causes eye
fatigue. Philips Flicker-free Technology applies
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
Built-in stereo speakers
A pair of high quality stereo speakers built into
a display device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
SmartControl for easy tuning
PC software for fine tuning display
pe
rformance and settings. Philips offers users
two choices for display setting adjustment.
Either navigate the multilevel On Screen
Display menu through buttons on the display
itself or use the Philips SmartControl software
to easily adjust the various display settings in a
familiar way
SmartPower
SmartPower is an artificial intelligent
t
echnology which dynamically analyzes the
content of the screen image to achieve power
saving. The backlight intensity can be
controlled automatically and pre-set by the
system to reduce the power consumption by
up to 50%, which saves substantially on energy
costs
PVC-BFR free housing
This Philips monitor housing is free from
b
rominated flame retardant and polyvinyl
chloride (PVC-BFR free)
Sustainability
Philips is committed to use sustainable, ecofriendly m
body plastic parts, metal chassis parts and
packing materials use 100% recyclable
materials. In selected models, we utilize >=
65% Post-Consumer Recycled plastics,
ensuring reduction in waste. Strict adherence
to RoHS standards ensure substantial
reduction or elimination of toxic substances
like Lead and Mercury. Our display housing is
made up of PVC/BFR free material. For more
information, please visit Philips @ http://
www.asimpleswitch.com/global/ to learn
more.
Zero mercury content
Philips monitors with LED backlighting are free
of
natural substances, which affects humans and
animals. This reduces the environmental
impact of the display throughout its life-cycle,
from manufacturing to disposal.
aterials across its monitor range. All
Mercury content, one of the most toxic
Page 3
19S4QAB/75
LED-backlit LCD monitor
S Line 19" (48.3 cm), 1280 x 1024 (SXGA)
Specifications
Picture/Display
• LCD panel type: IPS-ADS LCD
• Backlight type: W-LED system
• Panel Size: 19 inch / 48.3 cm
• Effective viewing area: 374.78 x 299.83 mm
• Display Screen Coating: Anti-Glare, 3H, Haze 25%
• Aspect ratio: 5:4
• Optimum resolution: 1280 x 1024 @ 60Hz
• Response time (typical): 5 ms (Gray to Gray)*
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1,000:1
• SmartContrast:
• Pixel pitch: 0.293 x 0.293 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
20,000,000:1
kHz (H) / 56 -76 Hz (V)
Connectivity
• Signal Input: DVI-D (digital, HDCP), VGA (Analog )
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 1.5W x 2
• User convenience: Smart
SmartPower, Menu, Power On/Off
• Control software: SmartControl Premium
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukranian
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 8.1 / 8 / 7
sR
Image, Volume,
Stand
• Tilt: -5/20 degree
Power
• ECO mode: 8 W (typ.)
• On mode: 11.13 W (typ.) (EnergyStar test method)
• Standby mode: <0.3 W (typ.)
• Off mode: <0.3 W (typ.)
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand (mm): 404 x 418 x 194 mm
• Product without stand (mm): 404 x 346 x 61 mm
• Packaging in mm (WxHxD): 465 x 457 x 139 mm
Weight
• Product with stand (kg): 3.20 kg
• Product without stand (kg): 2.80 kg
• Product with packaging (kg): 4.82 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF (demonstrated): 70,000 hrs (excluded
klight)
bac
Sustainability
• Environmental and energy: EnergyStar 8.0,
EPEAT*, TCO Certified, RoHS
• Recyclable packaging material: 100 %
• Recycled material: 25%
• Specific Substances: PVC / BFR free housing,
ry free
Mercu
Compliance and standards
• Regulatory Approvals: CE Mark, FCC Class B,
SEMKO, BSMI, GS, ERGO, WEEE, PSB, C-Tick,
cETLus, TUV Ergo, TUV/GS, UKRAINIAN, CCC,
CECP, MEPS, RCM
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
•
Issue date 2022-04-21
Version: 5.0.1
12 NC: 8670 001 41356
EAN: 87 12581 74198 3
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* "IPS" word mark / trademark and related patents on technologies
belong to their respective owners.
* EPEAT rating is valid only where Philips registers the product. Please
visit https://www.epeat.net/ for registration status in your country.
* Response time value equal to SmartResponse
