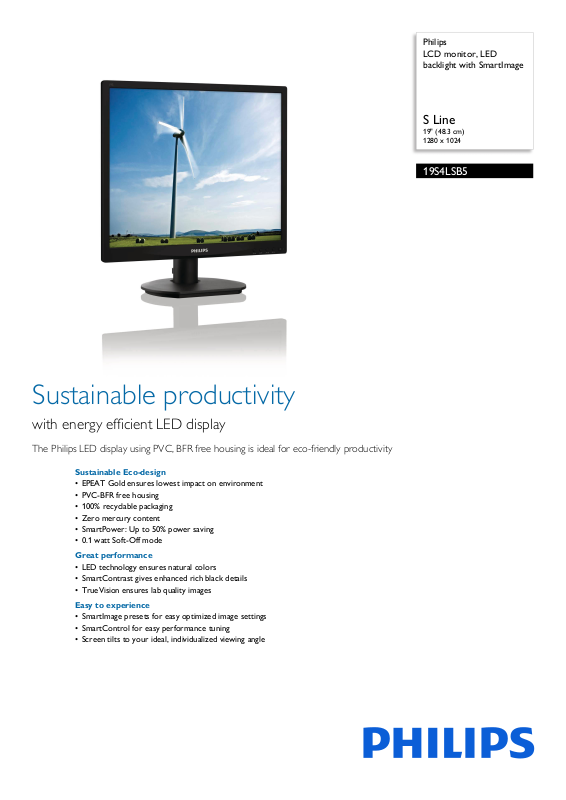

Page 1
Philips
LCD monitor, LED
backlight with SmartImage
S Line
19" (48.3 cm)
1280 x 1024
19S4LSB5
Sustainable productivity
with energy efficient LED display
The Philips LED display using PVC, BFR free housing is ideal for eco-friendly productivity
Sustainable Eco-design
• EPEAT Gold ensures lowest impact on environment
• PVC-BFR free housing
• 100% recyclable packaging
• Zero mercury content
• SmartPower: Up to 50% power saving
• 0.1 watt Soft-Off mode
Great performance
• LED technology ensures natural colors
• SmartContrast gives enhanced rich black details
• TrueVision ensures lab quality images
Easy to experience
• SmartImage presets for easy optimized image settings
• SmartControl for easy performance tuning
• Screen tilts to your ideal, individualized viewing angle
Page 2
19S4LSB5/75
LCD monitor, LED backlight
S Line 19" (48.3 cm), 1280 x 1024
Highlights
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
SmartContrast
SmartContrast is a Philips technology that
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
SmartPower
SmartPower is an artificial intelligent
te
chnology which dynamically analyzes the
content of the screen image to achieve power
saving. The backlight intensity can be
controlled automatically and pre-set by the
system to reduce the power consumption by
up to 50%, which saves substantially on energy
costs
SmartControl for easy tuning
PC software for fine tuning display
pe
rformance and settings. Philips offers users
two choices for display setting adjustment.
Either navigate the multilevel On Screen
Display menu through buttons on the display
itself or use the Philips SmartControl software
to easily adjust the various display settings in a
familiar way
TrueVision
TrueVision is a proprietary Philips technology
that uses advanced algorithm for testing and
aligning monitor display which gives you the
ultimate display performance. Philips ensures
TrueVision monitors leave the factory finetuned with this process giving you consistent
color and picture quality.
EPEAT Gold
Philips EPEAT GOLD certified monitors
e
nsure protection for human health and
environment, and are highly energy efficient
ensuring low emissions of climate changing
green house gases. EPEAT program helps
purchasers evaluate, compare and select
Monitors based on 51 environmental criteria
supported by US EPA. GOLD certification
ensures that at least 30% of plastic used is Post
Consumer Resin, which ensures reduction in
use of toxic and hazardous materials. EPEAT
Gold is valid only where Philips registers the
product. Please visit www.epeat.net for
registration status in your country.
PVC-BFR free housing
This Philips monitor housing is free from
b
rominated flame retardant and polyvinyl
chloride (PVC-BFR free)
Zero mercury content
Philips monitors with LED backlighting are free
of
Mercury content, one of the most toxic
natural substances, which affects humans and
animals. This reduces the environmental
impact of the display throughout its life-cycle,
from manufacturing to disposal.
Page 3
19S4LSB5/75
LCD monitor, LED backlight
S Line 19" (48.3 cm), 1280 x 1024
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 19 inch / 48 cm
• Effective viewing area: 376.32 x 301.06 mm
• Aspect ratio: 5:4
• Optimum resolution: 1280 x 1024 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1,000:1
• SmartContrast:
• Pixel pitch: 0.294 x 0.294 mm
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
20,000,000:1
kHz (H) / 56 -75 Hz (V)
Connectivity
• Signal Input: DVI-D (digital, HDCP), VGA (Analog )
• Sync Input: Separate Sync, Sync on Green
Convenience
• User convenience: SmartImage, Brightness,
SmartPower, Menu, Power On/Off
• Control software: SmartControl Premium
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Portuguese,
Russian, Simplified Chinese, Spanish, Polish,
Swedish, Traditional Chinese, Turkish, Ukranian
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 8/7/Vista
sR
Stand
• Tilt: -5/20 degree
Power
• ECO mode: 9 W (typ.)
• On mode: 14.3 W (typ.) (EnergyStar 6.0 test
hod)
met
• Standby mode: 0.1 W
• Off mode: 0.1 W
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand (mm): 404 x 418 x 194 mm
• Product without stand (mm): 404 x 346 x 61 mm
• Packaging in mm (WxHxD): 465 x 457 x 139 mm
Weight
• Product with stand (kg): 3.20 kg
• Product without stand (kg): 2.80 kg
• Product with packaging (kg): 4.82 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 6.0, EPEAT
Gold, RoHS
• Recyclable packaging material: 100 %
• Specific Substances: PVC / BFR free housing,
ry free, Lead free
Mercu
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, cETLus,
FCC Class B, GOST, SASO, SEMKO, TCO 6.0,
TUV Ergo, TUV/GS, WEEE
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
•
Issue date 2017-07-28
Version: 2.0.1
12 NC: 8670 001 05891
EAN: 87 12581 69553 8
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* EPEAT Gold is valid only where Philips registers the product. Please
visit www.epeat.net for registration status in your country.
