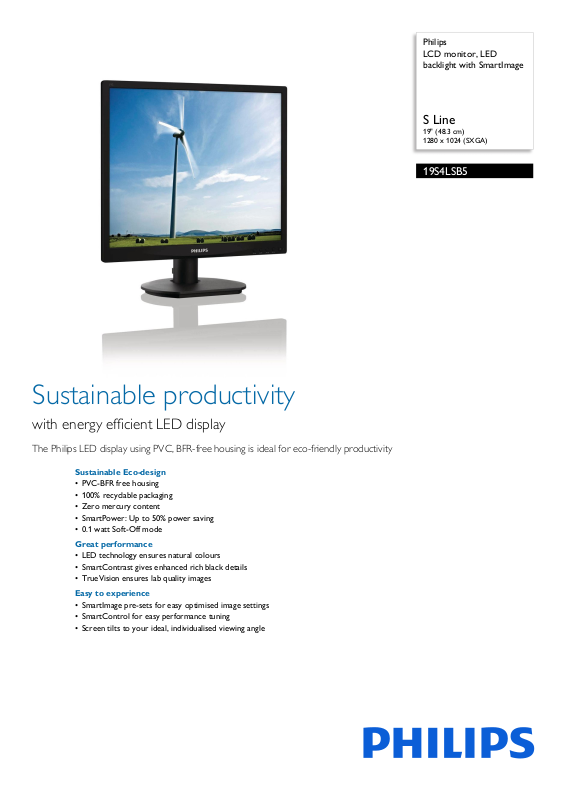

Page 1
Philips
LCD monitor, LED
backlight with SmartImage
S Line
19" (48.3 cm)
1280 x 1024 (SXGA)
19S4LSB5
Sustainable productivity
with energy efficient LED display
The Philips LED display using PVC, BFR-free housing is ideal for eco-friendly productivity
Sustainable Eco-design
• PVC-BFR free housing
• 100% recyclable packaging
• Zero mercury content
• SmartPower: Up to 50% power saving
• 0.1 watt Soft-Off mode
Great performance
• LED technology ensures natural colours
• SmartContrast gives enhanced rich black details
• TrueVision ensures lab quality images
Easy to experience
• SmartImage pre-sets for easy optimised image settings
• SmartControl for easy performance tuning
• Screen tilts to your ideal, individualised viewing angle
Page 2
19S4LSB5/01
LCD monitor, LED backlight
S Line 19" (48.3 cm), 1280 x 1024 (SXGA)
Highlights
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content, which allows for eco-friendly
recycling and disposal process. LED's allow for
better dimming control of the LCD backlight,
resulting in a super high contrast ratio. It also
gives superior colour reproduction thanks to
consistent brightness across the screen.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyses the content displayed
on your screen and optimises your display
performance. This user-friendly interface
allows you to select various modes, like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimises the
contrast, colour saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
at the touch of a single button!
SmartContrast
SmartContrast is a Philips technology that
analyses the contents you are displaying,
automatically adjusting colours and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
SmartPower
SmartPower is an artificial intelligent
te
chnology which dynamically analyses the
content of the screen image to achieve power
saving. The backlight intensity can be
controlled automatically and pre-set by the
system to reduce the power consumption by
up to 50%, which saves substantially on energy
costs
SmartControl for easy tuning
PC software for fine tuning display
pe
rformance and settings. Philips offers users
two choices for display setting adjustment.
Either navigate the multi-level On-Screen
Display menu through buttons on the display
itself or use the Philips SmartControl software
to easily adjust the various display settings in a
familiar way
TrueVision
TrueVision is a proprietary Philips technology
that uses an advanced algorithm for testing and
aligning monitor display, which gives you the
ultimate display performance. Philips ensures
that TrueVision monitors leave the factory
fine-tuned with this process giving you
consistent colour and picture quality.
PVC-BFR free housing
This Philips monitor housing is free from
b
rominated flame retardant and polyvinyl
chloride (PVC-BFR free)
Zero mercury content
Philips monitors with LED backlighting are free
from
Mercury, one of the most toxic natural
substances, which affects humans and animals.
This reduces the environmental impact of the
display throughout its lifecycle, from
manufacturing to disposal.
Page 3
19S4LSB5/01
LCD monitor, LED backlight
S Line 19" (48.3 cm), 1280 x 1024 (SXGA)
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 19 inch/48 cm
• Effective viewing area: 376.32 mm x 301.06 mm
• Display Screen Coating: Anti-Glare, 3H, Haze 25%
• Aspect ratio: 5:4
• Optimum resolution: 1280 x 1024 @ 60 Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
• Pixel pitch: 0.294 x 0.294 mm
• Viewing angle: 170º (H)/160º (V),
• Picture enhancement: SmartImage
• Display colours: 16.7 M
• Scanning Frequency: 30–83 kHz (H)/56–75 Hz (V)
•sRGB
20,000,000:1
@ C/R > 10
Connectivity
• Signal Input: DVI-D (digital, HDCP), VGA
(Analogue)
• Sync Input: Separate Sync, Sync on Green
Convenience
• User convenience: SmartImage, Brightness,
SmartPower, Menu, Power On/Off
• Control software: SmartControl Premium
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Portuguese,
Russian, Simplified Chinese, Spanish, Polish,
Swedish, Traditional Chinese, Turkish, Ukrainian
• Other convenience: Kensington lock, VESA mount
(100 x 100 mm)
• Plug and Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 8/7/Vista
sR
Stand
• Tilt: -5/20 degree
Power
• ECO mode: 9 W (typ.)
• On mode: 14.3 W (typ.) (EnergyStar 6.0 test
hod)
met
• Standby mode: 0.1 W
• Off mode: 0.1 W
• Power LED indicator: Operation - White, Standby
mode - White (f
• Power supply: Built-in, 100–240 VAC, 50–60 Hz
lashing)
Dimensions
• Product with stand (mm): 404 x 418 x 194 mm
• Product without stand (mm): 404 x 346 x 61 mm
• Packaging in mm (W x H x D): 465 x 457 x 139 mm
Weight
• Product with stand (kg): 3.20 kg
• Product without stand (kg): 2.80 kg
• Product with packaging (kg): 4.82 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000 ft (3658 m), Non-
eration: +40,000 ft (12,192 m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 6.0, RoHS
• Recyclable packaging material: 100 %
• Specific Substances: PVC/BFR free housing,
ry free, Lead free
Mercu
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, cETLus,
FCC Class B, GOST, SASO, SEMKO, TUV Ergo,
TUV/GS, WEEE
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
•
Issue date 2020-04-26
Version: 5.0.1
12 NC: 8670 001 05886
EAN: 87 12581 69549 1
© 2020 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
