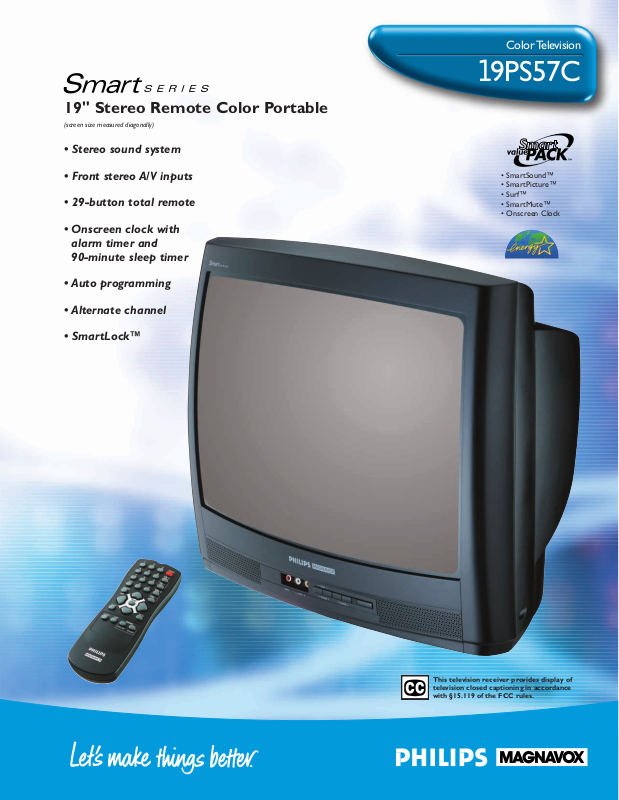

Philips 19PS57C User Manual

19" Stereo Remote Color Portable

(screen size measured diagonally)

• Stereo sound system

• Front stereo A/V inputs

• 29-button total remote

• Onscreen clock with
alarm timer and
90-minute sleep timer

• Auto programming

• Alternate channel

• SmartLock™

Color Television

19PS57C

• SmartSound™

• SmartPicture™

• Surf™

• SmartMute™

• Onscreen Clock

This television receiver provides display of
television closed captioning in accordance
with §15.119 of the FCC rules.

Specifications subject to change without notice.

Color Television

19PS57C

Onscreen Volume Bar

When activated, this feature displays an onscreen volume bar for a visual
indication of the volume setting.

Sound

Stereo Sound System

The built-in stereo sound system incorporates an MTS decoder for
reception and reproduction of broadcast stereo television programs
(where available).

SmartSound™

When activated, SmartSound™ keeps volume levels constant between
programs and commercials, and from one channel to another.
SmartSound™ constantly monitors the audio signal, reducing a signal
that’s too loud and increasing a signal that’s too weak.

Audio/Video Jack Panel JP203B

Additional Features Include:

• Channel edit

• Total remote menu format tuning with multicolor onscreen graphics

• 181-channel capability

• 4-way cursor control

• Direct channel access

• Programmable scan tuning

• Status recall

• Mono/stereo select

• Cable/normal select

• Two 3" round, full-range speaker

UPC: 0 3784989016 5
Product Dimensions: 20.5"W x 17.5"H x 18.4"D
Product Weight: 37.5 lbs.
Carton Dimensions: 21.8"W x 20.8"H x 23.1"D
Carton Weight: 41.9 lbs.
Master Pack: 1

Carton Contains: 19" Stereo Remote Color Portable TV, 29-Button Remote Control with
Batteries, Operating Instructions,Warranty Information

Printed in U.S.A.
©2000 Philips Consumer Electronics Co.
A Division of Philips Electronics North America Corp.
KID Design 99342, Philips Consumer Electronics Co.

By using environmentally-friendly materials, Philips Consumer Electronics Company continues to demonstrate
our commitment to a cleaner environment.This paper is made from at least 10% post-recycled stock, and the
ink is vegetable based.

INTERNET ADDRESS: http://www.philipsusa.com


Black Stretch

Special circuitry enhances the darker portions of the picture for added
realism and overall picture quality.

SmartPicture™

Instantly optimize brightness, contrast, color, tint, and sharpness settings
to enhance enjoyment of video games, sports, movies, or weak signals.

Remote Control

29-Button Total Remote controls:

• SmartSound™, SmartPicture™, SmartMute™, and Surf™ options

• Onscreen clock • 4-way cursor control

• Menu display • Programmable scan tuning

• Direct channel access • Volume control

• Closed caption • 90-minute sleep timer

• Volume mute • Power on/off

• Status/exit
(Remote # RC1112901/04)

Convenience

Surf™

Simplify channel surfing by storing up to five favorite stations in the Surf™
memory and then surfing only those channels at the touch of a button.

SmartLock™

Protect young children from harmful programming with V-chip technology
based on the Motion Picture Association of America (MPAA) and the
network television rating systems.

Front Stereo A/V Jacks

For fast, easy connection of external video sources (VCR, camcorder,
or video games) nothing beats front audio/video input jacks.

SmartMute™

Automatically activates closed-captioning when the MUTE button is pressed.

Alternate Channel

Keep close tabs on 2 different channels with one-button convenience.

Onscreen Clock with Alarm Timer & 90-minute Sleep Timer

Correct digital onscreen time display at your fingertips. Sleep timer
automatically turns set off at a preset time of up to 90 minutes,
programmed in 15-minute increments.The Alarm Timer automatically
turns on the TV to a preselected channel at a preset time of up to
24 hours from the time it was set.

Bilingual Onscreen Display

Control various television features with easy onscreen displays in your
choice of English or Spanish.

Auto Programming

Automatically scans all available channels–from regular antenna or
cable–and programs only active broadcast stations into memory.

Closed Caption

Allows the hearing impaired to read dialogue and narratives (on Closed
Caption telecasts) without the use of an external decoding device.
Excellent for development of language skills and private viewing without
disturbing others.

SmartPicture, Surf,Smar tLock, SmartMute, and SmartSound are trademarks of
Philips Consumer Electronics Company.
As an ENERGY STAR®Partner,Philips has determined that this product meets
the ENERGY STAR®guidelines for energy efficiency.
