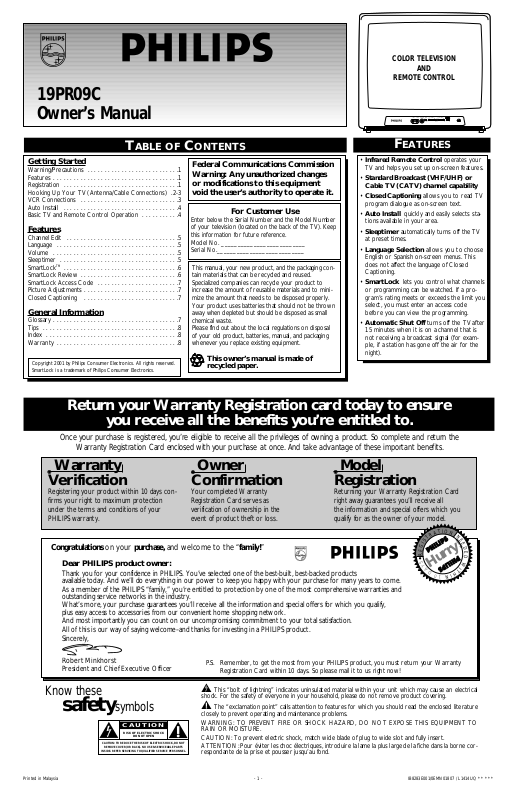

Philips 19PR09C User Manual

TABLE OF CONTENTS

19PR09C
Owner’s Manual

F

EATURES

• Infrared Remote Control operates your
TV and helps you set up on-screen features.

• Standard Broadcast (VHF/UHF) or

Cable TV (CATV) channel capability

• Closed Captioning allows you to read TV
program dialogue as on-screen text.

• Auto Install quickly and easily selects sta-
tions available in your area.

• Sleeptimer automatically turns off the TV
at preset times.

• Language Selection allows you to choose
English or Spanish on-screen menus. This
does not affect the language of Closed
Captioning.

• SmartLock lets you control what channels
or programming can be watched. If a pro­gram’s rating meets or exceeds the limit you
select, you must enter an access code
before you can view the programming.

• Automatic Shut Off turns off the TV after
15 minutes when it is on a channel that is
not receiving a broadcast signal (for exam­ple, if a station has gone off the air for the
night).

Getting Started

Warning/Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Hooking Up Your TV (Antenna/Cable Connections) .2-3

VCR Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Auto Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Basic TV and Remote Control Operation . . . . . . . . . . .4

Features

Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Sleeptimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

SmartLockTM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

SmartLock Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

SmartLock Access Code . . . . . . . . . . . . . . . . . . . . . . . .7

Picture Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Closed Captioning . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

General Information

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

For Customer Use

Enter below the Serial Number and the Model Number
of your television (located on the back of the TV). Keep
this information for future reference.
Model No. __________________________
Serial No.___________________________

Printed in Malaysia - 1 - IB8283E001/0EMN01807 / L1414UQ * * * * *

Federal Communications Commission
Warning: Any unauthorized changes
or modifications to this equipment
void the user’s authority to operate it.

Once your purchase is registered, you’re eligible to receive all the privileges of owning a product. So complete and return the

Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to ensure

you receive all the benefits you’re entitled to.

Know these

safetysymbols

t This “bolt of lightning” indicates uninsulated material within your unit which may cause an electrical

shock. For the safety of everyone in your household, please do not remove product covering.

s The “exclamation point” calls attention to features for which you should read the enclosed literature

closely to prevent operating and maintenance problems.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE.
CAUTION: To prevent electric shock, match wide blade of plug to wide slot and fully insert.
ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne cor-

respondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warranty

Verification

Registering your product within 10 days con­firms your right to maximum protection
under the terms and conditions of your
PHILIPS warranty.

Owner

Confirmation

Your completed Warranty
Registration Card serves as
verification of ownership in the
event of product theft or loss.

Model

Registration

Returning your Warranty Registration Card
right away guarantees you’ll receive all
the information and special offers which you
qualify for as the owner of your model.

R

E

G

I

S

T

R

A

T

I

O

N

N

E

E

D

E

D

W

I

T

H

I

N

1

0

D

A

Y

S

Hurry!

This manual, your new product, and the packaging con­tain materials that can be recycled and reused.
Specialized companies can recycle your product to
increase the amount of reusable materials and to mini­mize the amount that needs to be disposed properly.
Your product uses batteries that should not be thrown
away when depleted but should be disposed as small
chemical waste.
Please find out about the local regulations on disposal
of your old product, batteries, manual, and packaging
whenever you replace existing equipment.

This owner’s manual is made of
recycled paper.

Copyright 2001 by Philips Consumer Electronics. All rights reserved.
SmartLock is a trademark of Philips Consumer Electronics.

COLOR TELEVISION

AND

REMOTE CONTROL

Congratulations

on your

purchase,

and welcome to the

“family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products
available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and
outstanding service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify,
plus easy access to accessories from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction.
All of this is our way of saying welcome–and thanks for investing in a PHILIPS product.

Sincerely,

Robert Minkhorst

President and Chief Executive Officer

P.S. Remember, to get the most from your PHILIPS product, you must return your Warranty

Registration Card within 10 days. So please mail it to us right now!

CHANNELVOLUME

EARPHONEVIDEO

MENUAUDIO

POWER

HOOKING UP YOUR TV (ANTENNA/CABLE CONNECTIONS)

A

combination antenna

receives normal broadcast
channels (VHF 2-13 and UHF
14-69). Your connection is easy
since there is only one 75Ω
(ohm) antenna jack on the
back of your TV - and that’s
where the antenna goes.

ANTENNA

COMBINATION UHF/VHF

To set the
TV to select only
the channel num­bers in your area,
see Auto Install on
page 4.

SMART
H

ELP

If your antenna has a

round connector (75Ω),

then you're ready to connect it
to the TV.

If your antenna has flat
twin-lead wire (300Ω), you

first need to attach the antenna
wires to the screws on a 300
to 75Ω adaptor.

Push the round end of
the adaptor (or cable) onto
the ANT(enna) IN jack on
the back of the TV. If the

round end of the adaptor or
cable is threaded, screw it
down tight.

Y

ou may have two separate

antennas. One antenna is
for VHF channels (2-13) and
the other antenna is for UHF
channels (14-69).
For homes with separate
UHF/VHF antennas, you will
need an optional combiner
before you can connect the
antennas to the TV.

SEPARATE UHF/VHF

300 to 75Ω

Adaptor

Combination

VHF/UHF

Antenna

(Outdoor or

Indoor)

Twin-lead

Wire

Round Cable

75Ω

Back of TV

Back of TV

UHF/VHF
Combiner

75-300Ω Adaptor

Outdoor UHF Antenna

(Twin-lead 300Ω)

Outdoor VHF

Antenna

(Twin-lead 300Ω)

Twin-lead

Wire

Push the round end of the
combiner onto the ANT(enna)
IN jack on the back of the TV.

Attach the separate
UHF and VHF antennas to
the correct screws on the
combiner.

Round

End

Outdoor VHF

Antenna

(Round cable 75Ω)

- 2 -

To order
any optional
accessory, contact
your dealer. Or,
call 1-800-851-8885
and refer to the fol­lowing part num­bers to order.

• UHF/VHF
Combiner:
4835 466 97016

• 75-300Ω
Adaptor:
M61009

• 300-75Ω
Adaptor:
4835 218 27003

SMART
HELP

OR

ANT.IN

OR

Ω ADAPTOR

75-300

UH

F

3

0

0

Ω

V

H

F

ANT.IN

Y

our Cable TV signal may be

a single (75Ω) cable or a
Cable Box installation. In either
case, the connection to the TV
is very easy.

CABLE TV

CABLE/CABLE BOX

If you do not have a

Cable Box, then you're ready

to connect your Cable TV sig­nal to the TV. Go to step 2.

If you have a Cable Box:

Connect the Cable TV signal
to the IN jack on the Cable
Box.

If you do not have a

Cable Box, connect the Cable

TV signal directly to the
ANT(enna) IN jack on the TV.

If you have a Cable Box:

Use a coaxial cable to connect
the OUT jack of the Cable Box
to the ANT(enna) IN jack on
the TV.
NOTE: The coaxial cable
might be supplied by the Cable
TV company.

Back of TV

Coaxial cable

Cable Box

To select
only the channels on
your Cable system,
see Auto Install
(page 4).

If you use a Cable
Box, set the TV to
the same channel as
the CH 3/4 switch
on the back of the
Cable Box and
select channels at
the Cable Box.

SMART
HELP

Cable TV Company

Cable TV Signal (75Ω)

Note to the Cable TV System Installer:

This reminder is provided to call the Cable TV
system installer’s attention to Article 820-40 of
the National Electrical Code, which provides
guidelines for proper grounding - in particular,
specifying that the cable ground shall be connect­ed to the grounding system of the building, as
close to the point of cable entry as possible.

HOOKING UP YOUR TV (ANTENNA/CABLE CONNECTIONS) (CONT’D)

- 3 -

F

or more convenient tape

playback from a camcorder

or VCR, use the AUDIO and
VIDEO In jacks on the front of
the TV. These easily accessible
jacks allow quick connections
between the TV and the VCR
or camcorder.

USING THE FRONT AUDIO/VIDEO IN JACKS

A

UDIO/VIDEOINJACKS

Connect a video
cable (not supplied) to the
VIDEO OUT jack of the
camcorder/VCR and to the
VIDEO In jack on the front
of the TV.

When you are
finished watching
the tape, press the
TV/AUX button on
the TV remote con­trol to return to
viewing normal TV
channels.

If the VCR or cam­corder has Right
and Left AUDIO
OUT jacks, you will
need a “Y” connec­tor cable in order
to connect the cam­corder/VCR to the
TV. Or, check the
owner’s manual of
the camcorder or
VCR. It may explain
how to connect to
a TV that has a sin­gle AUDIO In jack.

SMART
HELP

When you play a tape,

select A/V IN at the TV.

Press the TV/AUX button
to select A/V IN. A/V IN will

appear on the screen.

Connect an audio cable
(not supplied) to the
AUDIO OUT jack of the
camcorder/VCR and to the
AUDIO In jack on the
front of the TV.

Turn on the cam­corder/VCR and press the
PLAY button on the cam­corder/VCR.
When you are finished
watching the tape, press
the STOP button on the
camcorder/VCR.

T

he basic Antenna/Cable to

VCR to TV connection is
shown here. If you have a Cable
Box, refer to the VCR owner’s
manual for details.

VCR TO TV

BASIC CONNECTION

Connect your
Antenna or Cable signal to
the ANTENNA IN jack on
the VCR.

Connect a coaxial
cable to the RF OUT
or ANTENNA OUT
jack on the VCR and to
the ANT(enna) IN jack
on the TV.

The coaxial cable may be
supplied with the VCR.

Coaxial cable

Outdoor

VHF/UHF

Antenna

300 to 75Ω

Adaptor

Cable TV signal

Back of TV

Refer to the VCR

owner's manual for other

possible connections and for
operating details.

VCR

(example only)

VIDEO L AUDIOR

ANTENNA IN

POWER

VCR/TV

RF/ANTENNA OUT

CHANNEL

PAUSE

REW

STOP/EJECT

MENU STATUS/EXIT

RECORD

PLAY

F.FWD

ANT.IN

IN

O

UT

OR

ANT.IN

AUDIO

VIDEO

1

OUT

Video Cable (yellow) from

VIDEO OUT to VIDEO In

Audio Cable (white) from

AUDIO OUT to Audio In

2

EARPHONEVIDEO

MENUAUDIO

CHANNELVOLUME

POWER
