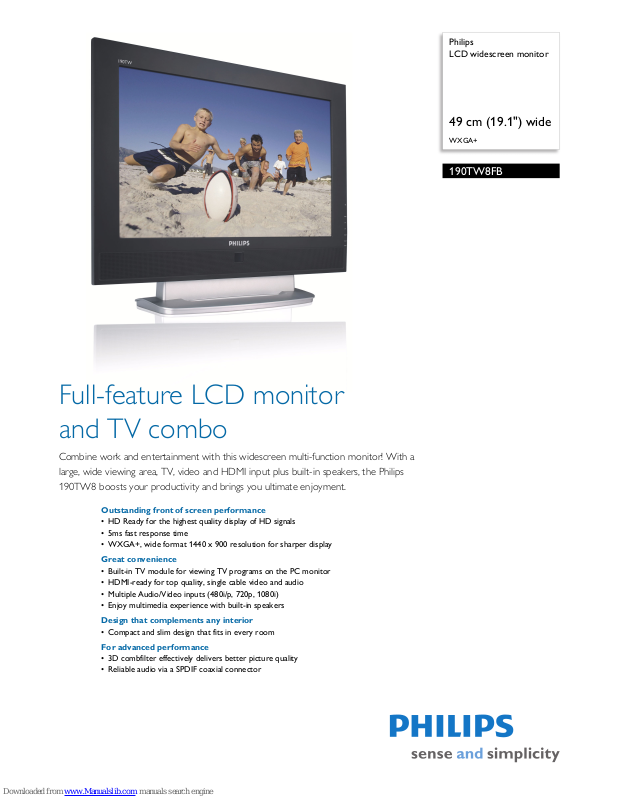

Page 1
Philips
LCD widescreen monitor
49 cm (19.1") wide
WXGA+
190TW8FB
Full-feature LCD monitor
and TV combo
Combine work and entertainment with this widescreen multi-function monitor! With a
large, wide viewing area, TV, video and HDMI input plus built-in speakers, the Philips
190TW8 boosts your productivity and brings you ultimate enjoyment.
Outstanding front of screen performance
• HD Ready for the highest quality display of HD signals
• 5ms fast response time
• WXGA+, wide format 1440 x 900 resolution for sharper display
Great convenience
• Built-in TV module for viewing TV programs on the PC monitor
• HDMI-ready for top quality, single cable video and audio
• Multiple Audio/Video inputs (480i/p, 720p, 1080i)
• Enjoy multimedia experience with built-in speakers
Design that complements any interior
• Compact and slim design that fits in every room
For advanced performance
• 3D combfilter effectively delivers better picture quality
• Reliable audio via a SPDIF coaxial connector
Page 2
190TW8FB/05
Highlights
LCD widescreen monitor
49 cm (19.1") wide WXGA+
TV module
A television tuner built into a monitor to
disp
lay television signals as well as computer
data.
HDMI ready
A HDMI-ready device has all the required
hardware to
accept High-Definition
Multimedia Interface (HDMI) input, high quality
digital video and audio signals all transmitted
over a single cable from a PC or any number of
AV sources including set-top boxes, DVD
players and A/V receivers.
Multiple AV inputs
Multiple AV inputs accommodate a variety of
f
ormat choices in connecting video and audio
devices (480i/p, 720p, 1080i).
Built-in speakers
A pair of high quality stereo speakers built into
a display
device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
HD Ready
Enjoy the exceptional picture quality of High
Definiti
on pictures and be fully prepared for
HD sources like HDTV settop box or Blu-ray
disc. HD Ready is a protected label that offers
picture quality beyond that of progressive scan.
It conforms to strict standards laid out by
EICTA to offer a HD screen that displays the
benefits of resolution and picture quality of a
High Definition signal. It has a universal
connection for both analog YPbPr and
uncompressed Digital connection of DVI or
HDMI, supporting HDCP. It can display 720p,
and 1080i signals at 50 and 60Hz.
5ms on/off response time
On-Off response time is the period required
for a liqui
d crystal cell to go from active (black)
to inactive (white) and back to active (black)
again. It is measured in milliseconds. Faster is
better: Lower response time means faster
transitions and, therefore, results in fewer
visible image artifacts in the display of
transition of texts and graphics. On-Off
response time is a more important measure in
the display of business content like documents,
graphs and photos.
WXGA+ 1440 x 900 resolution
WXGA+ or Wide Extended Graphics Array
pl
us is a standard indicating a graphics
monitor's ability to display up to the
resolutions 1440 by 900 pixels and supports
simultaneous display of more than one million
colors. WXGA allows monitors to be noninterlaced for better display performance and
increased color accuracy.
Compact and slim design
This design style emphasizes a slim, compact
l
ook that saves space and fits in anywhere.
3D combfilter
The 3D comb filter separates brightness and
c
olor signals better in 3D domain to eliminate
cross-color, cross-luminance and dot-crawl
distortion - all of which detract from your
viewing pleasure. The 3D digital comb filter
performs field-by-field comparisons of the
television image to accurately separate the
color from the black-and-white information
and remove both horizontally and vertically
hanging dots, as well as dot crawl. The result is
a razor sharp image.
Coaxial Digital Audio SPDIF
An SPDIF coaxial cable is a highly reliable way
o
f connecting digital audio.
Page 3
Issue date 2011-06-07
Version: 1.0.3
12 NC: 8670 000 35753
EAN: 87 12581 38506 4
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
190TW8FB/05
Specifications
LCD widescreen monitor
49 cm (19.1") wide WXGA+
Picture/Display
• LCD panel type: 1440 x 900 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 19.1"/ 48.1 cm
• Effective viewing area: 410.4 x 256.5 mm
• Pixel pitch: 0.285 x 0.285 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• Display colors: 16.7 M
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Response time (typical): 5 ms
• Maximum Resolution: 1440 x 900 @ 75 Hz
• Optimum resolution: 1440 x 900 @ 60 Hz
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 - 75 Hz
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 75Hz
800 x 600 60, 72, 75Hz
1024 x 768 60, 75Hz
1280 x 720 60Hz
1440 x 900 60, 75Hz
• Vi
deo formats
Res
olution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz
Sound
• Output power (RMS): 2 speakers @ 5w each
• Sound System: Mono, Nicam Stereo, Stereo
Convenience
• Child Protection: Child Lock+Parental Control
• Ease of Installation: Plug & Play
• Ease of Use: Auto Volume Leveller (AVL), On
Screen Display
•
Screen Format Adjustments: 4:3, 16:10, Full
scre
en, Panorama, Movie expand 1(2.35:1), Movie
expand 2 (1.85:1), Auto Format
• VESA Mount: 100 x 100mm
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL I, PAL B/G, PAL
D/K, SECAM B/G,
SECAM D/K, SECAM L/L'
• Video Playback: PAL, SECAM, NTSC
• Tuner bands: Hyperband, UHF, VHF
Connectivity
• AV input: Audio (L/R) x1, Composite (CVBS) x1, Svideo x1
• Ext 1 Scart: CVBS in/out, RGB
• Other connections: HDMI, PC
Audi
o in, VGA in, S/
PDIF out (coaxial), Headphone out
Power
• Ambient temperature: 5 °C to 40 °C
• Mains power: 90-264 VAC. 47-63 Hz
• Consumption (On mode): < 58 W
• Standby power consumption: < 1 W
Accessories
• Included accessories: AC Power Cord, VGA cable,
Audio Cable, Quick start guide, User Manual,
Remote Control, Batteries for remote control
• User Manual
Dimensions
•Box dimensions (W x H x D):
490 x 187 x 565 mm
• Box dimensions in inch (W x H x D):
19.3
x 7.4 x 22.2 inch
•Set dimensions (W x H x D): 491 x 370 x 69 mm
• Set dimensions in inch (W x H x D):
19
.3
x 14.6 x 2.7
inch
• Set dimensions with stand (W x H x D):
491 x
413 x 139 mm
•Set dimensions with stand in inch (W
x H x D):
19.3 x 16.3 x 5.5 inch
• MTBF: 50,000 (excl. CCFL 40,000) hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 0°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 4.69 kg
• Product weight (+stand) (lb): 10.3 lb
• Weight incl. Packaging: 6.51 kg
• Weight incl. Packaging (lb): 14.4
•
