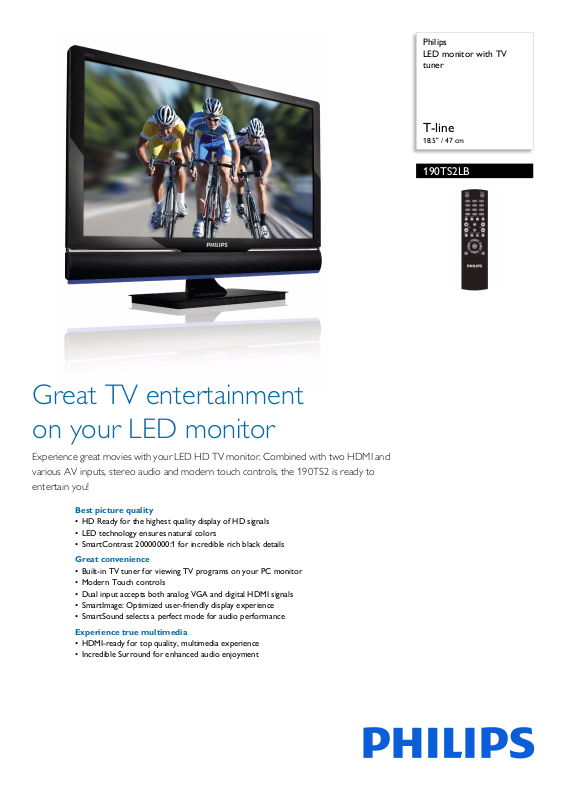

Page 1
Philips
LED monitor with TV
tuner
T-line
18.5" / 47 cm
190TS2LB
Great TV entertainment
on your LED monitor
Experience great m ovies with your LED H D T V monitor. Combine d with two HDMI and
various AV inputs, stereo audio and modern touch controls, the 190TS2 is ready to
entertain you!
Best picture quality
• HD Ready for the highest quality display of HD signals
• LED technology ensures natural colors
• SmartContrast 20000000:1 for incredible rich black details
Great convenience
• Built-in TV tuner for viewing TV programs on your PC monitor
• Modern Touch controls
• Dual input accepts both analog VGA and digital HDMI signals
• SmartImage: Optimized user-friendly display experience
• SmartSound selects a perfect mode for audio performance
Experience true multimedia
• HDMI-ready for top quality, multimedia experience
• Incredible Surround for enhanced audio enjoyment
Page 2
190TS2LB/75
LED monitor with TV tuner
2x
SmartSound
T-line 18.5" / 47 cm
Highlights
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
HD Ready
Enjoy the exceptional picture quality of High
Definition pictures and be fully prepared for
HD sources like HDTV settop box or Blu-ray
disc. HD Ready is a protected label that offers
picture quality beyond that of progressive scan.
It conforms to strict standards laid out by
EICTA to offer a HD screen that displays the
benefits of resolution and picture quality of a
High Definition signal. It has a universal
connection for both analog YPbPr and
uncompressed Digital connection of DVI or
HDMI, supporting HDCP. It can display 720p,
and 1080i signals at 50 and 60Hz.
SmartContrast ratio 20000000:1
dark shades and colors. It gives a bright, lifelike
picture with high contrast and vibrant colors.
Built-in TV tuner
A television tuner built into a monitor to
disp
lay television signals as well as computer
data.
Incredible Surround
Incredible Surround is an audio technology
from Philips that dramatically magnifies the
sound field to immerse you in the audio. Using
state-of-the-art electronic phase shifting,
Incredible Surround mixes sounds from left
and right in such a way that it expands the
virtual distance between the two speakers.
This wider spread greatly enhances the stereo
effect and creates a more natural sound
dimension. Incredible Surround allows you to
experience total surround with greater depth
and width of sound, without the use of
additional speakers.
SmartImage
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
HDMI Ready
An HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input. A HDMI
cable enables high-quality digital video and
audio all transmitted over a single cable from a
PC or any number of AV sources (including
set-top boxes, DVD players, A/V receivers and
video cameras).
Touch controls
Touch controls are intelligent, touch sensitive
icons that replace protruding buttons that lets
the user adjust the monitor to their
requirement. Responding to your lightest
touch,Touch control gives the monitor a
modern feel.
You want the LCD flat display with the highest
contrast and most vibrant images. Philips
advanced video processing combined with
unique extreme dimming and backlight
boosting technology results in vibrant images.
SmartContrast will increase the contrast with
excellent blacklevel and accurate rendition of
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Image, Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
Dual input
Dual input accepts both analog VGA and digital
HDMI signal
SmartSound
SmartSound allows you to select various
m
odes like Movie, Games, Music etc thereby
automatically activating pre defined
frequencies to enhance the sound related to
the function
s
Page 3
190TS2LB/75
LED monitor with TV tuner
T-line 18.5" / 47 cm
Specifications
Picture/Display
• LCD panel type: TFT-LCD (TN)
• Backlight type: W-LED system
• Diagonal screen size: 18.5 inch / 47 cm
• Aspect ratio: 16:9, Widescreen
• Panel resolution: 1366 x 768
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• SmartContrast: 20000000:1
• Viewing angle: 170º (H) / 160º (V), @ C/R > 5
Supported Display Resolution
• Computer formats
Resolution Refresh rate
1366 x 768 60Hz
deo formats
• Vi
Res
olution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 50, 60Hz
Sound
• Output Power: 2 x 3W
• Sound Enhancement: Incredible Surround, Smart
Sound
• Sound System: Mono, Nicam Stereo, Stereo
Convenience
• Ease of Installation: Automatic Tuning System
(ATS), Plug & Play
• Ease of Use: On Screen Display, Program List, Side
rol
Cont
• Remote control type: 190TS2 Remote control
• On-Screen Display languages
Chinese
• Other convenience: VESA mount (75x75mm)
• Screen Format Adjustments: Widescreen, Super
m
, Zoom 1, Zoom 2, 4:3
Zoo
• SmartImage: Vivid, Standard, Personal, E
• SmartSound: Personal, Music, Speech
:
English, Simplified
co, Movie
Stand
• Tilt: 0/+12 degree
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL B/G, PAL D/K, PAL I
• Video Playback: NTSC, PAL
•Tuner Display: PLL
Connectivity
• CV IN: YpbPr, Audio L/R in
• AV IN: Video in, Audio L/R in
• AV OUT: Video out, Video L/R out
• Other connections: HDMI, PC-In VGA, PC Audio
in
• AV IN (@ side): Video in, Audio L/R in
• Other connections (@ side): Headphone out, S-
deo in, HDMI
i
V
Power
• On mode: 20W (typ.)
• Off mode: 0.5W
• Ambient temperature: 0 °C to 40 °C
• Mains power: 100-240V, 50/60Hz
• Standby mode: 0.5W
• MTBF: 30,000 hour(s)
Dimensions
• Packaging in mm (WxHxD): 520 x437 x 135 mm
• Product with stand (mm): 458 x 366 x 171 mm
• Product without stand (mm): 458 x 326 x 44 mm
Weight
• Product with packaging (kg): 4.96 kg
• Product with stand (kg): 3.50 kg
• Product without stand (kg): 3.14 kg
Accessories
• Included accessories: Table top stand, Quick start
guide, User Manual, Remote Control, VGA cable,
Audio Cable, Power cord
•
Issue date 2017-07-28
Version: 3.0.2
12 NC: 8670 000 62991
EAN: 87 12581 54320 4
