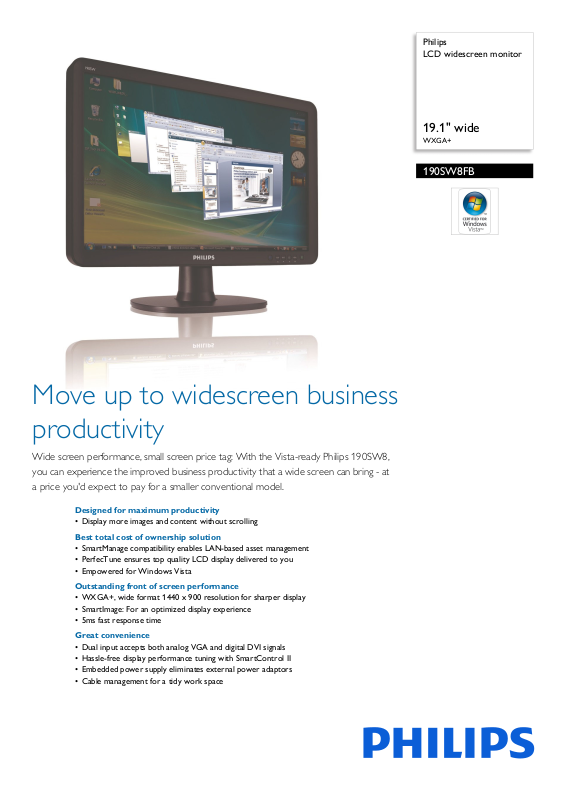

Page 1
Philips
LCD widescreen monitor
19.1" wide
WXGA+
190SW8FB
Move up to widescreen business
productivity
Wide screen performance, small screen price tag: With the Vista-ready Philips 190SW8,
you can experience the improved business productivity that a wide screen can bring - at
a price you'd expect to pay for a smaller conventional model.
Designed for maximum productivity
• Display more images and content without scrolling
Best total cost of ownership solution
• SmartManage compatibility enables LAN-based asset management
• PerfecTune ensures top quality LCD display delivered to you
• Empowered for Windows Vista
Outstanding front of screen performance
• WXGA+, wide format 1440 x 900 resolution for sharper display
•SmartImage: For an optimized display experience
• 5ms fast response time
Great convenience
• Dual input accepts both analog VGA and digital DVI signals
• Hassle-free display performance tuning with SmartControl II
• Embedded power supply eliminates external power adaptors
• Cable management for a tidy work space
Page 2
190SW8FB/75
LCD widescreen monitor
19.1" wide WXGA+
Highlights
Large viewing area
Viewing area is the visible portion of a monitor
s
creen available for displaying data.
SmartManage enabled
SmartManage is a system for monitoring,
managing and
as well as delivering remote support to users
who experience difficulties - all accomplished
over a LAN.
PerfecTune
PerfectTune is industry-leading, proprietary
Phili
ps testing and algorithm technology for
monitor adjustment and fine tuning, an
extensive process that ensures ultimate display
performance in compliance with a standard
four-times more stringent than Microsoft's
Vista requirements from each and every
monitor that leaves the factory - not just a few
review samples. Only Philips goes to these
lengths to deliver this exacting level of color
accuracy and display quality in every new
monitor.
Windows Vista ready
Philips Vista-ready monitors are empowered
for vi
brant, exciting display of this new, visually
sophisticated and demanding Windows
operating system, designed to enhance your
entertainment experience, make you more
checking status of display devices
productive and help you control your
computing experience at home and in the
office, making viewing, finding and organizing
information for work or play quick, efficient
and easy.
WXGA+ 1440 x 900 resolution
WXGA+ or Wide Extended Graphics Array
pl
us is a standard indicating a graphics
monitor's ability to display up to the
resolutions 1440 by 900 pixels and supports
simultaneous display of more than one million
colors. WXGA allows monitors to be noninterlaced for better display performance and
increased color accuracy.
SmartImage
SmartImage is an exclusive, leading edge Philips
te
chnology that analyzes the content displayed
on your screen. Based on a scenario you select,
SmartImage dynamically enhances the contrast,
color saturation and sharpness of images and
videos for ultimate display performance - all in
real time with the press on a single button.
5ms on/off response time
On-Off response time is the period required
for a liqui
to inactive (white) and back to active (black)
again. It is measured in milliseconds. Faster is
better: Lower response time means faster
d crystal cell to go from active (black)
transitions and, therefore, results in fewer
visible image artifacts in the display of
transition of texts and graphics. On-Off
response time is a more important measure in
the display of business content like documents,
graphs and photos.
Dual input
Dual input provides connectors to
accommoda
digital DVI signals.
SmartControl II
SmartControl II is monitor-based software
w
ith an easy-to-use on-screen graphic
interface that guides you through fine-tuning
resolution, color calibration and other display
settings including brightness, contrast, clock &
phase, position, RGB, white point and - on
models with onboard speakers - volume
adjustments.
Embedded power supply
An embedded power supply is a power
adapto
that replaces a bulky external power adaptor.
Cable management
Cable management is a system that maintains
t
idy workspace by organizing cables and wires
required for the operation of a display device.
te input of both analog VGA and
r built into the body of a display device
Page 3
190SW8FB/75
LCD widescreen monitor
19.1" wide WXGA+
Specifications
Picture/Display
• LCD panel type: 1440 x 900 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 19.1"/ 48.1 cm
• Effective viewing area: 410.4 x 256.5 mm
• Pixel pitch: 0.285 x 0.285 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 800:1
• SmartContrast ratio (dynamic): 3500:1
• Display colors: 16.7 M
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Response time (typical): 5 ms
• Maximum Resolution: 1440 x 900 @ 75 Hz
• Recommended Resolution: 1440 x 900 @ 60 Hz
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 -75 Hz
• Picture enhancement: SmartImage
•sRGB
• Aspect ratio: 16:10
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
Connectivity
• Signal Input: Analog (VGA), DVI-D
• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on
• Sync input impedance: 2.2k ohm
• Video input impedance: 75 ohm
• Video input signal levels: 0.7 Vpp
Green
Convenience
• Convenience Enhancements: On-screen Display,
SmartManage enabled, SmartControl II
• Monitor Controls: SmartImage, Auto (Back), Input
), Brightness (Up), Menu (OK), Power On/
(Down
Off
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: Kensingto
• Plug & Play Compatibility: DDC/CI, Windows 98/
ench, German, Italian,
n lock compatible
2000/XP/Vista
ME/
• Regulatory Approvals: CE Mark, E2000, EMC,
Energy St
TÜV Ergo
• Tilt: -5° to 20°
• VESA Mount: 100 x 100 mm
ar, FCC-B, UL, CSA, TCO '03, TÜV/GS,
Accessories
• Included Accessories: AC Power Cord, VGA cable
• User Manual
Dimensions
•Box dimensions (W x H x D):
500 x 415 x 149 mm
• Box dimensions in inch (W x H x D):
.7 x 16.3 x 5.9 inch
19
•Set dimensions (W x H x D):
2.2 x 303.5 x 61.5 mm
45
• Set dimensions in inch (W x
17.8 x 11.9 x 2.4 inch
• Set dimensions with stand (W x H x D):
2.2 x 375.3 x 183.2 mm
45
•Set dimensions with st
17.8 x 14.8 x 7.2 inch
• MTBF: 50,000 (excl. CCFL 40,000) hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 0°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 4.4 kg
• Product weight (+stand) (lb): 9.7 lb
• Weight incl. Packaging: 5.3 kg
• Weight incl. Packaging (lb): 11.7
H x D):
and in inch (W x H x D):
Power
• Complies with: Energy Star
•Consumption: < 36W
• Consumption (economy mode): 28 W
• Off Mode: < 1 W
• Power LED indicator: Operation - green, Stand by/
eep - Amber
sl
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
Issue date 2020-05-08
Version: 3.0.3
12 NC: 8670 000 32979
EAN: 87 12581 35675 0
© 2020 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
