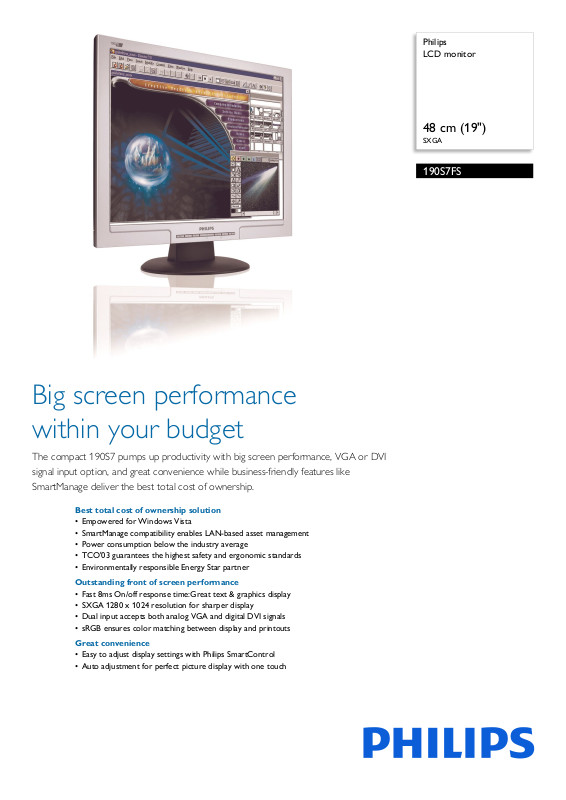

Page 1
Philips
LCD monitor
48 cm (19")
SXGA
190S7FS
Big screen performance
within your budget
The compact 190S7 pumps up productivity with big screen performance, VGA or DVI
signal input option, and great convenience while business-friendly features like
SmartManage deliver the best total cost of ownership.
Best total cost of ownership solution
• Empowered for Windows Vista
• SmartManage compatibility enables LAN-based asset management
• Power consumption below the industry average
• TCO'03 guarantees the highest safety and ergonomic standards
• Environmentally responsible Energy Star partner
Outstanding front of screen performance
• Fast 8ms On/off response time:Great text & graphics display
• SXGA 1280 x 1024 resolution for sharper display
• Dual input accepts both analog VGA and digital DVI signals
• sRGB ensures color matching between display and printouts
Great convenience
• Easy to adjust display settings with Philips SmartControl
• Auto adjustment for perfect picture display with one touch
Page 2
190S7FS/75
LCD monitor
48 cm (19") SXGA
Highlights
Windows Vista ready
Philips Vista-ready monitors are empowered
for vi
brant, exciting display of this new, visually
sophisticated and demanding Windows
operating system, designed to enhance your
entertainment experience, make you more
productive and help you control your
computing experience at home and in the
office, making viewing, finding and organizing
information for work or play quick, efficient
and easy.
SmartManage enabled
SmartManage is a system for monitoring,
managing and
as well as delivering remote support to users
who experience difficulties - all accomplished
over a LAN.
Lower power consumption
Reduction of the electrical power required to
o
perate a device.
checking status of display devices
TCO '03 compliance
A TCO (Swedish Confederation of
Prof
essional Employees) standard even more
stringent than MPR-II for safety and
ergonomics, especially concerning alternating
electric fields (AEF).
8ms response time (On/Off)
On-Off response time is the period required
for a liqui
to inactive (white) and back to active (black)
again. It is measured in milliseconds. Faster is
better: Lower response time means faster
transitions and, therefore, results in fewer
visible image artifacts in the display of
transition of text and graphics. On-Off
response time is a more important measure in
the display of business content like documents,
graphs and photos.
Dual input
Dual input provides connectors to
accommodat
digital DVI signals.
d crystal cell to go from active (black)
e input of both analog VGA and
sRGB ready
sRGB is an industry standard that ensures the
b
est possible match between the colors
displayed on your screen and those in your
printouts.
SmartControl
PC software for fine tuning display
p
erformance and settings. Philips offers users
two choices for display setting adjustment.
Either navigate the multilevel On Screen
Display menu through buttons on the display
itself or use the Philips SmartControl software
to easily adjust the various display settings in a
familiar way.
One-touch auto adjustment
The auto adjustment key restores optimal
screen
position, phase and clock settings with
the press of a single button - without
navigation through OSD menus and control
keys.
Page 3
190S7FS/75
LCD monitor
48 cm (19") SXGA
Specifications
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 19"/ 48 cm
• Effective viewing area: 376.3 x 301.1 mm
• Pixel pitch: 0.294 x 0.294 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 700:1
• Display colors: 16.2 M
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Response time (typical): 8 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz
al input)
(digit
• Optimum resolution: 1280 x 1024 @ 60 Hz (digital
t)
inpu
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 - 76 Hz
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D
• Sync Input: Composite Sync,
on Green
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Separate Sync, Sync
Convenience
• User convenience: On-screen Display,
SmartManage enabled
• Monitor Controls: Auto, Brightness Control, Left/
ight, Menu (OK), Power On/Off, Up/Down
R
• OSD Languages: English, Fr
Simplified Chinese, Spanish
• Other convenience: Kensingto
• Plug & Play Compatibility: DDC/CI, sRGB,
ws 98/ME/2000/XP/Vista
Windo
ench, German, Italian,
n lock compatible
• Regulatory approvals: CE Mark, EMC, FCC-B, UL,
A, Energy Star, SEMKO, TÜV/GS, TÜV Ergo,
CS
TCO '03
• Tilt: -5° to 20°
• VESA Mount: 100 x 100 mm
Accessories
• Included accessories: AC Power Cord, VGA cable
• Optional accessories: Super Ergo Base
• User Manual
Dimensions
•Box dimensions (W x H x D):
490 x 451 x 159 mm
• Box dimensions in inch (W x H x D):
.3 x 17.8 x 6.3 inch
19
•Set dimensions (W x H x D):
4 x 361 x 65.1 mm
42
• Set dimensions in inch (W x H
16.7 x 14.2 x 2.6 inch
• Set dimensions with stand (W x H x D):
4 x 418 x 211 mm
42
•Set dimensions with st
16.7 x 16.5 x 8.3 inch
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 5°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 4.3 kg
• Product weight (+stand) (lb): 9.5 lb
• Weight incl. Packaging: 6.1 kg
• Weight incl. Packaging (lb): 13.4
x D):
and in inch (W x H x D):
Power
• Complies with: Energy Star
•Consumption (On mode):
•Consumption (Off Mo
• Power LED indicator: Operation - green, Stand by/
eep - Amber
sl
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
34 W (Typical)
de): < 1 W
Issue date 2022-04-21
Version: 6.0.10
12 NC: 8639 000 16984
EAN: 87 10895 97281 9
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
