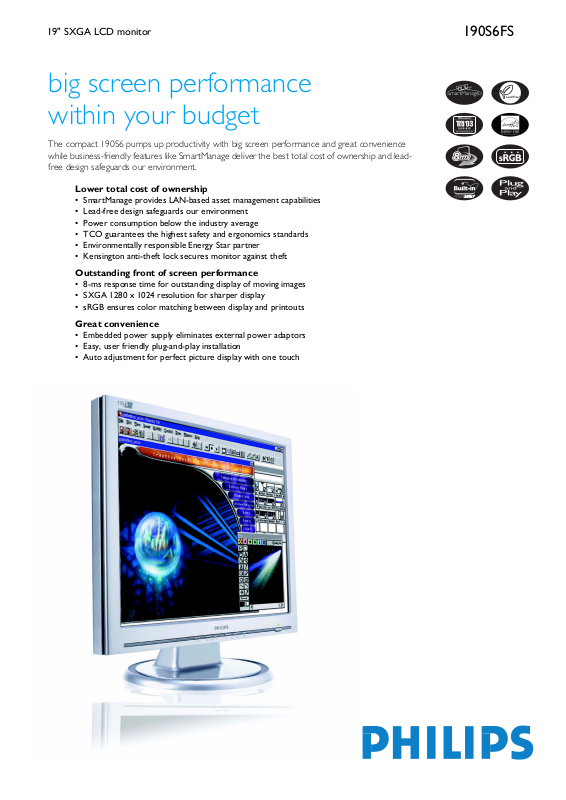

Page 1
19" SXGA LCD monitor
big screen performance
within your budget
The compact 190S6 pumps up productivity with big screen performance and great convenience
while business-friendly features like SmartManage deliver the best total cost of ownership and leadfree design safeguards our environment.
Lower total cost of ownership
• SmartManage provides LAN-based asset management capabilities
• Lead-free design safeguards our environment
• Power consumption below the industry average
• TCO guarantees the highest safety and ergonomics standards
• Environmentally responsible Energy Star partner
• Kensington anti-theft lock secures monitor against theft
Outstanding front of screen performance
• 8-ms response time for outstanding display of moving images
• SXGA 1280 x 1024 resolution for sharper display
• sRGB ensures color matching between display and printouts
190S6FS
Great convenience
• Embedded power supply eliminates external power adaptors
• Easy, user friendly plug-and-play installation
• Auto adjustment for perfect picture display with one touch
Page 2
19" SXGA LCD monitor
190S6FS/27
Technical specifications Product highlights
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 19"/ 48 cm
• Effective viewing area: 376.3 x 301.1 mm
• Pixel pitch: 0.294 x 0.294 mm
• Brightness (nits): 250 nit
• Contrast ratio (typical): 500:1
• Display colors: 16.2 M
• Viewing angle: - C/R > 5
• Viewing angle (H / V): 160/160degree
• Response time (typical): 8ms
• White Chromaticity, 6500K: x = 0.313 /
y = 0.329
• White Chromaticity, 9300K: x = 0.283 /
y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz
• Recommended Resolution: 1280 x 1024 @ 60
Hz
• Factory Preset Modes: 15 modes
• User definable modes: 50 modes
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 KHz
• Vertical Scanning Frequency: 56 - 76 Hz
•sRGB
Connectivity
• Signal Input: Analog (VGA)
• Video Sync Input Signal: Composite Sync,
Separate Sync, Sync on Green
Convenience
• Convenience Enhancements: On-screen Display,
SmartManage enabled
• Monitor Controls: Auto, Brightness Control,
Left/Right, Menu (OK), Power On/Off, Up/
Down
• OSD Languages: English, French, German, Italian,
Simplified Chinese, Spanish
• Other convenience: Kensington lock compatible
• Plug & Play Compatibility: DDC/CI, sRGB,
Windows 98/ME/2000/XP
• Regulatory Approvals: CE Mark, E2000, EMC,
Energy Star, FCC-B, UL, CSA, SEMKO, TCO '03,
TÜV/GS, TÜV Ergo
• Tilt: -5° to 25°
• VESA Mount: 100 x 100 mm
Accessories
• Included Accessories: AC Power Cord, VGA
cable
• Optional accessories: Super Ergo Base
•User Manual
Dimensions
• Dimensions (with base) (W x H x D):
425x418x235mm
• MTBF: 50,000 hrs
• Relative Humidity: 20% - 80%
• Temperature Range (Operation): 5° C to 40° C
• Temperature Range (Storage): -20°C to 60° C
• Weight: 5.4 kg
Power
• Complies with: E2000, Energy Star, NUTEK
• Consumption: 34W (Typical)
• Off Mode: < 1 W
• Power LED indicator: Operation, green, Stand
by/sleep, Amber
• Power supply: Built-in, 90-264 VAC, 50/60 Hz
SmartManage enabled
SmartManage is a system for monitoring, managing
and checking status of display devices as well as
delivering remote support to users who experience
difficulties - all accomplished over a LAN.
Lead-free
Lead-free display products are designed and produced
in compliance with strict European Community
Restriction of Hazardous Substances (RoHS) standards
that restrict lead and other toxic substances that can
harm the environment.
8-ms response time
Response time is the period required for a liquid crystal
cell to go from active (black) to inactive (white) and
back to active (black) again. It is measured in
milliseconds. Faster is better: Lower response time
means faster transitions and, therefore, results in fewer
visible image artifacts in the display of fast-moving
images.
Lower power consumption
Reduction of the electrical power required to operate a
device.
sRGB ready
Calibrated RGB that is optimized for the vast majority
of computer peripherals, monitors, operating systems
and browsers, allowing accurate color mapping with
very little data overhead.
TCO '03 compliance
A TCO (Swedish Confederation of Professional
Employees) standard even more stringent than MPR-II
for safety and ergonomics, especially concerning
alternating electric fields (AEF).
Embedded power supply
An embedded power supply is a power adaptor built
into the body of a display device that replaces a bulky
external power adaptor.
One-touch auto adjustment
The auto adjustment key restores optimal screen
position, phase and clock settings with the press of a
single button - without navigation through OSD menus
and control keys.
Kensington lock compatible
A security device that fixes the monitor in place to
prevent theft.
Easy plug-and-play
Plug-and-play is a peripheral connectivity standard. A
plug and play display device can be connected to a PC
and operate without requiring user intervention to
adjust complicated settings.
Date of issue 2005-08-10
Version: 2.0
12 NC: 8639 000 16184
UPC: 3 78499 59800
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2005 Koninklijke Philips Electronics N.V.
