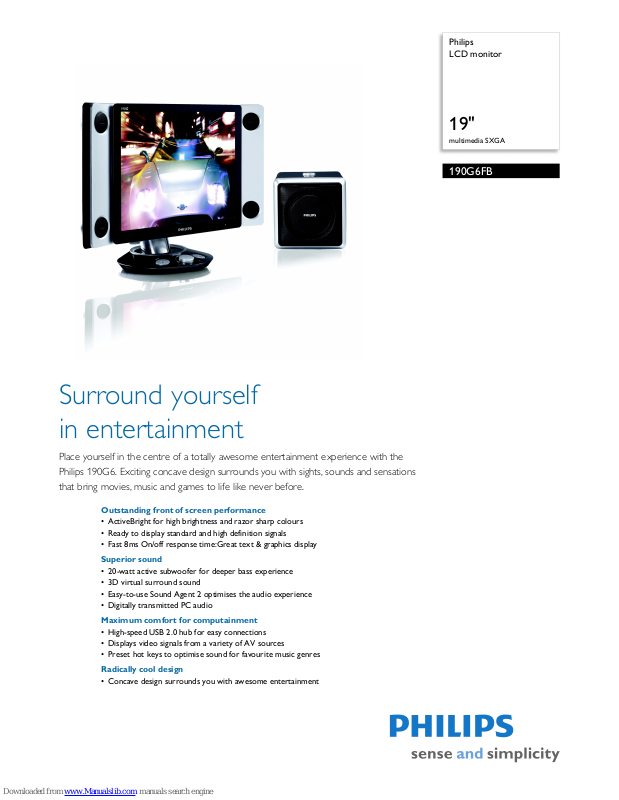

Page 1
Philips
LCD monitor
19"
multimedia SXGA
190G6FB
Surround yourself
in entertainment
Place yourself in the centre of a totally awesome entertainment experience with the
Philips 190G6. Exciting concave design surrounds you with sights, sounds and sensations
that bring movies, music and games to life like never before.
Outstanding front of screen performance
• ActiveBright for high brightness and razor sharp colours
• Ready to display standard and high definition signals
• Fast 8ms On/off response time:Great text & graphics display
Superior sound
• 20-watt active subwoofer for deeper bass experience
• 3D virtual surround sound
• Easy-to-use Sound Agent 2 optimises the audio experience
• Digitally transmitted PC audio
Maximum comfort for computainment
• High-speed USB 2.0 hub for easy connections
• Displays video signals from a variety of AV sources
• Preset hot keys to optimise sound for favourite music genres
Radically cool design
• Concave design surrounds you with awesome entertainment
Page 2
190G6FB/00
Highlights
LCD monitor
19" multimedia SXGA
ActiveBright
The ActiveBright delivers high-definition-TVli
ke quality by displaying brilliant, razor sharp
colours and a wide viewing angle for the very
best in multimedia entertainment.
High definition monitor
A display device ready to display standard and
hi
gh definition signals, which are commonly
used by TV systems around the world.
8ms response time (On/Off)
On-Off response time is the period required
for a liqui
d crystal cell to go from active (black)
to inactive (white) and back to active (black)
again. It is measured in milliseconds. Faster is
better: Lower response time means faster
transitions and, therefore, results in fewer
visible image artefacts in the display of
transition of text and graphics. On-Off
response time is a more important measure in
the display of business content like documents,
graphs and photos.
20-watt active subwoofer
A subwoofer is a speaker that reproduces the
l
ower end of the audio spectrum. The monitor
has a separate subwoofer that is optimized to
reproduce bass frequencies and satellite
speakers that are optimised for mid- and highrange frequencies. The result is a system that
powerfully reproduces the full range of audio
frequencies from deep bass to crystal clear
high notes with the minimum of distortion.
3D surround sound
Virtual 3D Surround Sound is an advanced
sound en
hancement technology that provides
a simulated surround sound effect from stereo
sources for a more immersive and realistic
soundscape.
Sound Agent 2
Sound Agent 2 is intelligent software that
comes w
ith a fun and easy-to-use graphical
interface. It takes the confusion out of PC
audio by automatically optimising sounds for all
popular formats. Sound Agent 2 makes it easy
to fine-tune any audio performance to suit
your personal musical taste.
USB Digital Audio
Digital transmission of PC audio signals over a
US
B cable instead of the old analogue mini-jack
cable that delivers instant up mix for incredible
surround effects without the distortion caused
by digital/analogue conversion.
High-speed USB 2.0 hub
The universal serial bus or
USB is a standard
protocol for linking PCs and peripherals.
Because it delivers high speed at a low cost,
USB has become the most popular method for
connecting peripheral devices to a computer.
A USB 2.0 hub located on the monitor
provides a conveniently located, easy-to-use,
high-speed connection for reading, writing,
loading and transferring programs, data, digital
media or music files to, from or among your
PC and one or more USB devices.
AV device
Display signals from a rich variety of AV
devic
es.
Preset hotkeys
Preset hotkeys that instantly change audio
settin
gs for enhanced surround sound effects.
Four audio environments are offered: Neutral,
Rock, Jazz and Classic. There's a mode just
right for every application.
Exciting concave design
Cutting edge concave design is a breakthrough
i
n entertainment that surrounds you with
exciting sights and sounds, putting you right
smack in the centre of a totally encompassing,
totally awesome entertainment experience.
Page 3
190G6FB/00
Specifications
LCD monitor
19" multimedia SXGA
Picture/Display
• LCD panel type: 1280 x 1024 pixels, High gloss,
RGB vertical stripe
• Panel Size: 19"/ 48 cm
• Effective viewing area: 376.3 x 301.1 mm
• Pixel pitch: 0.098 (H) x 0.294 (V) mm
• Brightness (nits): 420 nit
• Contrast ratio (typical): 700:1
• Display colours: 16.2 M
• Viewing angle: 160º (H) / 160º (V), @ C/R > 10
• Response time (typical): 8 ms
• Maximum Resolution: 1280 x 1024 @ 75Hz
• Recommended Resolution: 1280 x 1024 @ 60Hz
• Video Dot Rate: 135 MHz
• Horizontal Scanning Frequency: 30 - 82 kHz
• Vertical Scanning Frequency: 56 - 76 Hz
•sRGB
Connectivity
• PC: 3.5 mm PC audio input x1, DVI-D x1, D-Sub x1
• AV input: Audio (L/R) for CVBS &
S-Video, Audio
(L/R) for YPbPr x1, Component (YPbPr) x1,
Composite (CVBS) x1, SCART x1, S-video x1
• Audio input for data: Digital Audio (via USB) 1x
• Audio output: Subwoofer Out
• USB: Up stream port x 1, Down str
eam port x 2
• Headphone: 3.5 mm
• Microphone: Microphone in 3.5 mm jack
• Video Sync Input Signal: Composite Sync, Separate
Sync
Convenience
•Ease of Use: Hot Keys
• Convenience Enhancements: On-screen Display
• Monitor Controls: Auto, Brightness Control, Input
s
elect, Left/Right, Menu (OK), Power On/Off, Up/
Down, Volume control
• OSD Languages: English, Fr
ench, German, Italian,
Simplified Chinese, Spanish
• Other convenience: Kensingto
n lock compatible
• Plug & Play Compatibility: DDC/CI, sRGB,
Windo
ws 98/ME/2000/XP
• Regulatory Approvals: CB, CCC, CE Mark, FCC-B,
U
L, CSA, GOST, MPRII, NUTEK, Energy Star,
SEMKO
• Tilt: -5° to 25°
Accessories
• Included Accessories: AC Power Cord, Audio
Cable, DVI-D cable, USB cable, VGA cable, 1x
subwoofer
• User Manual
• Quick start guide
Dimensions
• Box dimensions (W x H x D):
677 x 564 x 526 mm
• Box dimensions in inch (W x H x D):
26
.7 x 22.2 x 20.7 inch
• Set dimensions with stand (W x H x D):
59
0 x 451 x 262.5 mm
•Set dimensions with st
and in inch (W x H x D):
23.2 x 17.8 x 10.3 inch
• Subwoofer dimensions (W x H
x D):
220 x 220 x 334 mm
• MTBF: 50,000 hrs
• Relative Humidity: 20% - 80%
• Temperature range (operation): 5°C to 35°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 9.5 kg
• Product weight (+stand) (lb): 20.9 lb
• Subwoofer Weight: 4 kg
• Weight incl. Packaging: 14.5 kg
• Weight incl. Packaging (lb): 32
Power
• Complies with: Energy Star, NUTEK
• Consumption: < 100 W (< 62 W without
s
ubwoofer)
• Off Mode: < 2 W
• Power LED indicator: Operation - green, Stand by/
sl
eep - Amber
• Power supply: Built-in, 90-264 VAC, 50/60 Hz
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 75Hz
720 x 400 70Hz
800 x 600 60, 75Hz
1024 x 768 60, 75Hz
1280 x 1024 60, 75Hz
• Vi
deo formats
Resolution Refresh rate
480i 25, 30Hz
480p 60Hz
576p 50Hz
576i 25, 30Hz
720p 50, 60Hz
1080i 25, 30Hz
Sound
• Output Power: 5 W RMS x 2 Stereo + 20 W x
1Subwoofer
• Sound Enhancement: Digital Signal Processing,
Sub
woofer, Virtual 3D Surround
• Stereo System: NICAM
• Volume Control: Subwoofer Volume Control
Software
• Philips Sound Agent 2
•
Issue date 2009-07-31
Version: 4.1.18
12 NC: 8639 000 16443
EAN: 87 10895 91278 5
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
