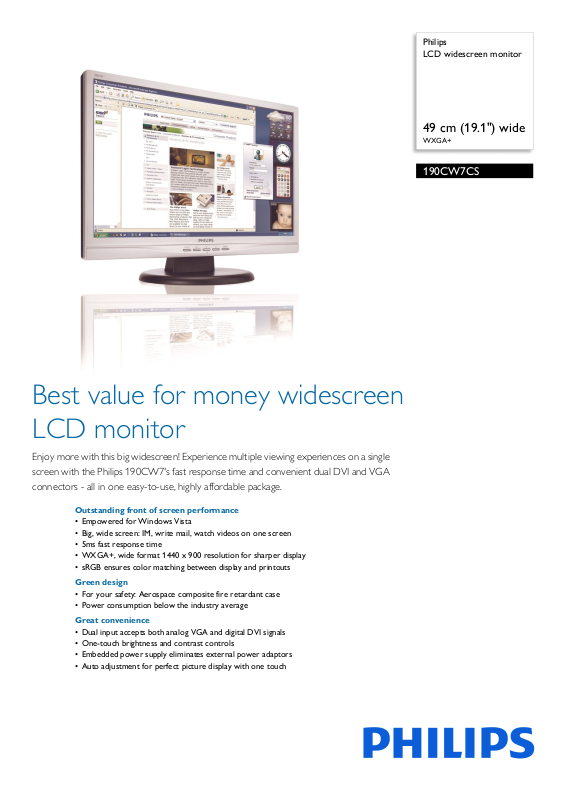

Philips
LCD widescreen monitor
49 cm (19.1") wide
WXGA+
190CW7CS
Best value for money widescreen
LCD monitor
Enjoy more with this big widescreen! Experience multiple viewing experiences on a single
screen with the Philips 190CW7's fast response time and convenient dual DVI and VGA
connectors - all in one easy-to-use, highly affordable package.
Outstanding front of screen performance
• Empowered for Windows Vista
• Big, wide screen: IM, write mail, watch videos on one screen
• 5ms fast response time
• WXGA+, wide format 1440 x 900 resolution for sharper display
• sRGB ensures color matching between display and printouts
Green design
• For your safety: Aerospace composite fire retardant case
• Power consumption below the industry average
Great convenience
• Dual input accepts both analog VGA and digital DVI signals
• One-touch brightness and contrast controls
• Embedded power supply eliminates external power adaptors
• Auto adjustment for perfect picture display with one touch
190CW7CS/05
LCD widescreen monitor
49 cm (19.1") wide WXGA+
Highlights
Windows Vista ready
Philips Vista-ready monitors are empowered
for vi
brant, exciting display of this new, visually
sophisticated and demanding Windows
operating system, designed to enhance your
entertainment experience, make you more
productive and help you control your
computing experience at home and in the
office, making viewing, finding and organizing
information for work or play quick, efficient
and easy.
Widescreen design
A wide screen has a wider aspect ratio for
disp
laying more entertainment or information
to have more fun and get more done.
5ms on/off response time
On-Off response time is the period required
for a liqui
to inactive (white) and back to active (black)
again. It is measured in milliseconds. Faster is
better: Lower response time means faster
transitions and, therefore, results in fewer
visible image artifacts in the display of
transition of texts and graphics. On-Off
response time is a more important measure in
d crystal cell to go from active (black)
the display of business content like documents,
graphs and photos.
WXGA+ 1440 x 900 resolution
WXGA+ or Wide Extended Graphics Array
pl
us is a standard indicating a graphics
monitor's ability to display up to the
resolutions 1440 by 900 pixels and supports
simultaneous display of more than one million
colors. WXGA allows monitors to be noninterlaced for better display performance and
increased color accuracy.
sRGB ready
sRGB is an industry standard that ensures the
be
st possible match between the colors
displayed on your screen and those in your
printouts.
Flame retardant cabinet
PC/ABS plastic composite is the industry's best
and t
oughest flame-retardant casing material;
and is a space-age compound deployed in the
aerospace and automotive industries as well as
in fire detectors that is compliant with most
stringent fire safety standards.
Lower power consumption
Reduction of the electrical power required to
o
perate a device.
Dual input
Dual input provides connectors to
accommoda
digital DVI signals.
Brightness and contrast button
Conveniently located buttons on the front
b
ezel that provide one-touch brightness and
contrast adjustments.
Embedded power supply
An embedded power supply is a power
adapto
that replaces a bulky external power adaptor.
One-touch auto adjustment
The auto adjustment key restores optimal
screen
the press of a single button - without
navigation through OSD menus and control
keys.
te input of both analog VGA and
r built into the body of a display device
position, phase and clock settings with
190CW7CS/05
LCD widescreen monitor
49 cm (19.1") wide WXGA+
Specifications
Picture/Display
• LCD panel type: 1440 x 900 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 19.1"/ 48.1 cm
• Effective viewing area: 410.4 x 256.5 mm
• Pixel pitch: 0.285 x 0.285 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 850:1
• Display colors: 16.7 M
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Response time (typical): 5 ms
• Maximum Resolution: 1440 x 900 @ 75 Hz
• Optimum resolution: 1440 x 900 @ 60 Hz
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 55 - 75 Hz
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D
• Sync Input: Composite Sync,
on Green
Separate Sync, Sync
Convenience
• User convenience: On-screen Display
• Monitor Controls: Auto, Brightness (Left),
ntrast (Right), Menu (OK), Power On/Off
Co
• OSD Languages: English, Fr
Russian, Spanish
• Other convenience: Kensingto
• Plug & Play Compatibility: DDC 2B, Windows 98/
2000/XP/Vista
ME/
• Regulatory approvals: CE Mark, E2000, EMC,
Energy St
TÜV/GS, TÜV Ergo
• Tilt: -5° to 20°
ar, FCC-B, UL, CSA, MPRII, TCO '99,
ench, German, Italian,
n lock compatible
Accessories
• Included accessories: AC Power Cord, VGA cable
• User Manual
Dimensions
•Box dimensions (W x H x D):
520 x 392 x 190 mm
• Box dimensions in inch (W x H x D):
.5 x 15.4 x 7.5 inch
20
•Set dimensions (W x H x D):
8.5 x 310.4 x 60.5 mm
43
• Set dimensions in inch (W x H x D):
.3 x 12.2 x 2.4 inch
17
• Set dimensions with stand (W x H x D):
8.5 x 358
43
•Set dimensions with st
17.3 x 14.1 x 8.3 inch
• MTBF: 50,000 (excl. CCFL 40,000) hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 0°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 5 kg
• Product weight (+stand) (lb): 11 lb
• Weight incl. Packaging: 6.7 kg
• Weight incl. Packaging (lb): 14.8 lb
x 211 mm
and in inch (W x H x D):
Power
• Complies with: E2000, Energy Star
•Consumption (On mod
•Consumption (Off Mo
• Power LED indicator: Operation - green, Stand by/
eep - Amber
sl
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
e): 36W (Typical)
de): < 1 W
Issue date 2021-02-16
Version: 3.0.5
12 NC: 8670 000 28348
EAN: 87 12581 32478 0
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
