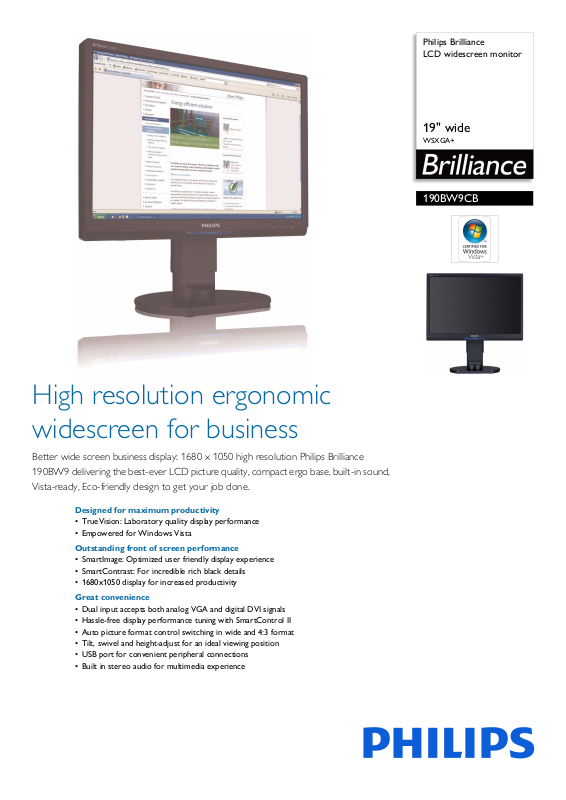

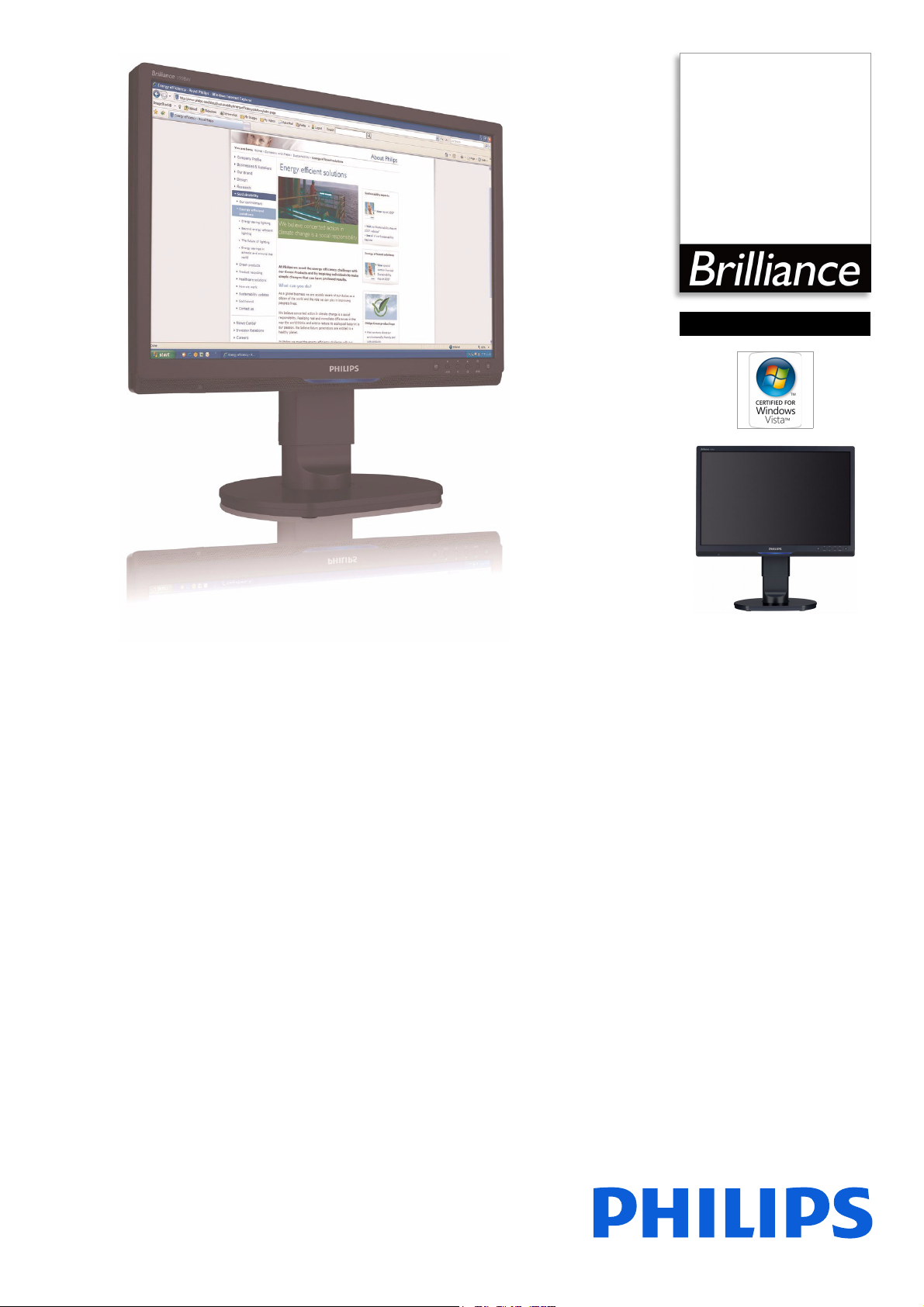

Philips Brilliance
LCD widescreen monitor
19" wide
WSXGA+
190BW9CB
High resolution ergonomic
widescreen for business
Better wide screen business display: 1680 x 1050 high resolution Philips Brilliance
190BW9 delivering the best-ever LCD picture quality, compact ergo base, built-in sound,
Vista-ready, Eco-friendly design to get your job done.
Designed for maximum productivity
• TrueVision: Laboratory quality display performance
• Empowered for Windows Vista
Outstanding front of screen performance
• SmartImage: Optimized user friendly display experience
• SmartContrast: For incredible rich black details
• 1680x1050 display for increased productivity
Great convenience
• Dual input accepts both analog VGA and digital DVI signals
• Hassle-free display performance tuning with SmartControl II
• Auto picture format control switching in wide and 4:3 format
• Tilt, swivel and height-adjust for an ideal viewing position
• USB port for convenient peripheral connections
• Built in stereo audio for multimedia experience
Page 2
190BW9CB/69
LCD widescreen monitor
19" wide WSXGA+
Highlights
SmartImage
SmartImage is an exclusive, leading edge Philips
te
chnology that analyzes the content displayed
on your screen. Based on a scenario you select,
SmartImage dynamically enhances the contrast,
color saturation and sharpness of images and
videos for ultimate display performance - all in
real time with the press on a single button.
TrueVision
TrueVision is industry-leading, proprietary
Phili
ps testing and algorithm technology for
monitor adjustment and fine tuning, an
extensive process that ensures ultimate display
performance in compliance with a standard
four-times more stringent than Microsoft's
Vista requirements from each and every
monitor that leaves the factory - not just a few
review samples. Only Philips goes to these
lengths to deliver this exacting level of color
accuracy and display quality in every new
monitor.
WSXGA, wide format 1680x1050
Wide format, super extended graphics array is
a
display specification that is capable of
displaying 1680 x 1050 resolution or
approximately 1.7 million pixels.
SmartContrast
SmartContrast is Philips technology that
anal
yzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and
optimum contrast for more entertainment fun
when viewing videos or playing games where
dark hues are displayed; when you select the
Economy mode, contrast is adjusted and
backlighting fine-tuned for just-right display of
everyday office applications and lower power
consumption.
Dual input
Dual input provides connectors to
accommodat
digital DVI signals.
SmartControl II
SmartControl II is monitor-based software
w
ith an easy-to-use on-screen graphic
interface that guides you through fine-tuning
resolution, color calibration and other display
settings including brightness, contrast, clock &
phase, position, RGB, white point and - on
models with onboard speakers - volume
adjustments.
Compact Ergo Base
The Compact Ergo Base is a 'people friendly'
Phili
ps monitor base that tilts, swivels and
height adjusts so each user can position the
monitor for maximum viewing comfort and
efficiency.
e input of both analog VGA and
USB 2.0 port
USB port allows user to convenie
their plug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which has USB connection available.
The conveniently located USB 2.0 port on the
monitor allows USB 2.0 signals to pass thru to
the computer. Note that many devices like
cameras and HDD may need to be powered
On independently, as they have higher power
requirements than the monitor USB port can
provide
Windows Vista ready
Philips Vista-ready monitors are empowered
for
vibrant, exciting display of this new, visually
sophisticated and demanding Windows
operating system, designed to enhance your
entertainment experience, make you more
productive and help you control your
computing experience at home and in the
office, making viewing, finding and organizing
information for work or play quick, efficient
and easy.
Built-in stereo audio
A pair of high quality stereo speakers built into
a displa
y device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
ntly connect
Page 3
190BW9CB/69
LCD widescreen monitor
19" wide WSXGA+
Specifications
Picture/Display
• Panel Size: 18.95"/ 48.1 cm
• LCD panel type: 1680 x 1050 pixels, Anti-glare
larizer, RGB vertical stripe
po
• Optimum Resolution: 1680 x 1050 @ 60 Hz
• Maximum Resolution: 1680 x 1050 @ 60 Hz
• Display colors: 16.7 M
• Aspect ratio: 16:10
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast ratio (dynamic): 10000:1
• Picture enhancement: SmartImage
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Response time (typical): 5 ms
• Effective viewing area: 408.24 x 255.15 mm
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 -75 Hz
• Pixel pitch: 0.243 x 0.243 mm
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D, PC Audio in
• USB: USB 2.0 x 1
• Audio output: Stereo Audio (3.5 mm jack) 1x
• Sync Input: Composite Sync,
on Green
Separate Sync, Sync
Convenience
• User convenience: SmartControl II, SmartManage
enabled, Picture format selection, On-screen
Display
• Built-in Audio: 1 W x 2
• Monitor Controls: Auto (Back), Brightness (Up),
(OK), Power On/Off, SmartImage, Volume
Menu
control (Down)
• OSD Languages: English, Fr
Russian, Simplified Chinese, Spanish, Portuguese
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 98, Windows 2000, Windows XP,
sR
Windows Vista
ench, German, Italian,
• Regulatory Approvals: CE Mark, Energy Star, FCC
ass B, SEMKO, TCO '03, TÜV/GS, TÜV Ergo,
Cl
UL/cUL
• Height Adjustment: 70 mm
•Swivel: +/- 45°
• Tilt: -5° to 20°
• Other convenience: Kensingto
• VESA Mount: 100 x 100 mm
n lock compatible
Dimensions
• Set dimensions with stand (W x H x D):
436 x 421 x 201 mm
•Set dimensions with st
17.2 x 16.6 x 7.91 inch
• Relative humidity: 20% - 80%
• MTBF: 50,000 (excl. CCFL 40,000) hrs
•Set dimensions (W x H x D): 436 x 305 x 68 mm
• Set dimensions in inch (W x H x D):
.2 x 12.0 x 2.68 inch
17
• Height adjustment range (inch): 2.76 inch
• Temperature range (operation): 0°C to 40°C
• Temperature range (storage): -20°C to 60°C
•Box dimensions (W
508 x 485 x 172 mm
• Box dimensions in inch (W x H x D):
.0 x 19.1 x 6.77 inch
20
• Product weight (+stand): 4.45 kg
• Product weight (+stand) (lb): 9.81 lb
• Weight incl. Packaging: 6.1 kg
• Weight incl. Packaging (lb): 13.4
and in inch (W x H x D):
x H x D):
Power
•Consumption (On mode): < 36W (typical)
• Consumption (economy mode): 27 W
• Complies with: Energy Star
• Consumption (Off Mo
• Power LED indicator: Operation - Blue, Stand by/
eep -blue(blinking)
sl
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
de): < 0.8 W
Issue date 2019-05-08
Version: 5.0.2
12 NC: 8670 000 42072
EAN: 87 12581 44151 7
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
