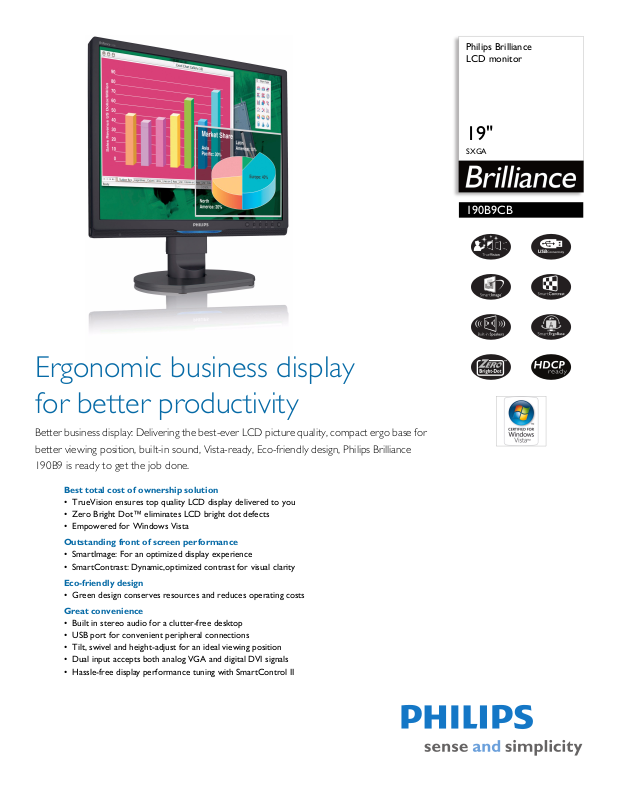

Philips Brilliance
LCD monitor

19"

SXGA

190B9CB

Ergonomic business display
for better productivity

Better business display: Delivering the best-ever LCD picture quality, compact ergo base for
better viewing position, built-in sound, Vista-ready, Eco-friendly design, Philips Brilliance
190B9 is ready to get the job done.

Best total cost of ownership solution

• TrueVision ensures top quality LCD display delivered to you

• Zero Bright Dot™ eliminates LCD bright dot defects

• Empowered for Windows Vista

Outstanding front of screen performance

• SmartImage: For an optimized display experience

• SmartContrast: Dynamic,optimized contrast for visual clarity

Eco-friendly design

• Green design conserves resources and reduces operating costs

Great convenience

• Built in stereo audio for a clutter-free desktop

• USB port for convenient peripheral connections

• Tilt, swivel and height-adjust for an ideal viewing position

• Dual input accepts both analog VGA and digital DVI signals

• Hassle-free display performance tuning with SmartControl II

LCD monitor

190B9CB/27

19" SXGA

Specifications Product highlights

Picture/Display

• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe

• Panel Size: 19"/ 48 cm

• Effective viewing area: 14.8 x 11.9 inch

• Pixel pitch: 0.294 x 0.294 mm

• Brightness: 300 cd/m²

• Contrast ratio (typical): 800:1

• SmartContrast ratio (dynamic): 8000:1

• Display colors: 16.7 M

• Viewing angle: 176º (H) / 170º (V), @ C/R > 5

• Response time (typical): 5 ms

• Maximum Resolution: 1280 x 1024 @ 75 Hz

• Recommended Resolution: 1280 x 1024 @ 60 Hz

• Horizontal Scanning Frequency: 30 - 83 kHz

• Vertical Scanning Frequency: 56 -75 Hz

• Picture enhancement: SmartImage

•sRGB

Connectivity

• Signal Input: Analog (VGA), DVI-D, PC Audio in

• Audio output: Stereo Audio (3.5 mm jack) 1x

• USB: 1 x USB 2.0

• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on Green

Convenience

• Built-in Audio: 1W x 2

• Convenience Enhancements: On-screen Display,
SmartManage enabled, SmartControl II

• Monitor Controls: SmartImage, Auto (Back),
Volume control (Down), Brightness (Up), Menu
(OK), Power On/Off

• OSD Languages: English, French, German, Italian,
Russian, Portuguese, Simplified Chinese, Spanish

• Other convenience: Kensington lock compatible

• Plug & Play Compatibility: DDC/CI, sRGB,
Windows 98, Windows 2000, Windows XP,

Windows Vista, Mac OS X

• Regulatory Approvals: CE Mark, Energy Star, FCC
Class B, SEM KO, TC O '03, TÜV/GS, TÜV Er go, UL/
cUL

• Swivel: +/- 45°

• Tilt: -5° to 20°

• VESA Mount: 100 x 100 mm

Dimensions

• Box dimensions (W x H x D): 451 x 486 x 162 mm

• Box dimensions in inch (W x H x D):

17.8

x 19.1 x 6.38 inch

• Set dimensions (W x H x D): 404 x 350 x 68 mm

• Set dimensions in inch (W x H x D):

15.9

x 13.8 x 2.68 inch

• Set dimensions with stand (W x H x D):
404

x 442 x 201 mm

• Set dimensions with stand in inch (W x H x D):

15.9

x 17.4 x 7.91 inch

• Height adjustment range: 70 mm

• Height adjustment range (inch): 2.76 inch

• MTBF: 50,000 hrs

• Relative humidity: 20% - 80%

• Temperature range (operation): 0°C to 40°C

• Temperature range (storage): -20°C to 60°C

• Product weight (+stand): 4.55 kg

• Product weight (+stand) (lb): 10.0 lb

• Weight incl. Packaging: 5.95 kg

• Weight incl. Packaging (lb): 13.1

Power

• Complies with: Energy Star

• Consumption: < 36 W (typical)

• Consumption (economy mode): 27 W

• Off Mode: < 0.8 W

• Power LED indicator: Operation - Blue, Stand by/
sleep -blue(blinking)

• Power supply: Built-in, 100-240VAC, 50/60Hz

•

TrueVision

TrueVision is industry-leading, proprietary Philips testing
and algorithm technology for monitor adjustment and fine
tuning, an extensive process that ensures ultimate display
performance in compliance with a standard four-times
more stringent than Microsoft's Vista requirements from
each and every monitor that leaves the factory - not just a
few review samples. Only Philips goes to these lengths to
deliver this exacting level of color accuracy and display
quality in every new monitor.

Zero Bright Dot™

Bright dots are defects in a LCD panel once thought to be
an inevitable part of the manufacturing process. With Zero
Bright Dot™, Philips monitors are guaranteed without
bright dot defects.

Windows Vista ready

Philips Vista-ready monitors are empowered for vibrant,
exciting display of this new, visually sophisticated and
demanding Windows operating system, designed to
enhance your entertainment experience, make you more
productive and help you control your computing experie nc e
at home and in the office, making viewing, finding and
organizing information for work or play quick, efficient and
easy.

SmartImage

SmartImage is an exclusive, leading edge Philips technology
that analyzes the content displayed on your screen. Based
on a scenario you select, SmartImage dynamically
enhances the contrast, color saturation and sharpness of
images and videos for ultimate display performance - all in
real time with the press on a single button.

SmartContrast

SmartContrast is Philips technology that analyzes the
contents you are displaying, automatically adjusting colors
and controlling backlight intensity to dynamically enhance
contrast for the best digital images and optimum contrast
for more entertainment fun when viewing videos or playing
games where dark hues are displayed; when you select the
Economy mode, contrast is adjusted and backlighting fine­tuned for just-right display of everyday office applications
and lower power consumption.

Eco-friendly design

Green design is based on environmentally conscious
engineering of a display device to minimize power
consumption, reduce packing materials and eliminate
environmentally sensitive materials.

Built-in stereo audio

A p air of high q ual ity ste reo audio built into a display device.

USB 2.0 port

The universal serial bus or USB is a standard protocol for
linking PCs and peripherals. Because it delivers high speed
at a low cost, USB has become the most popular method
for connecting peripheral devices to a computer. A port
located on a monitor directly in the user's line of sight
provides easy , high-speed connectivity f or USB devices at a
co nv enient location. (USB 2. 0 s upport is dependent on yo ur
PC's USB configuration; when connected to a PC that
supports USB 2.0, your monitor is USB 2.0 compatible)

Dual input

Issue date 2008-10-29

Version: 3.0.4

12 NC: 8670 000 38621
UPC: 6 09585 15726 2

© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com

Dual input provides connectors to accommodate input of
both analog VGA and digital DVI signals.
