Philips 190B8CS-00, 190B8CB-69, 190B8CB-27, 190B8CS-27, 190B8CB-75 User Guide

19" LCD Color Monitor Chassis: HUDSON 8

Service

Service

Service

Description Page Description Page

Table Of Contents........................................………….1

Revision List................................................…………….2

Important Safety Notice………….................................3

1. Monitor Specifications……...................................…..4

2. LCD Monitor Description………..…….........................6

3. Operation instructions…………….......................…....7

3.1General Instructions…………………..…..…………7

3.2 Control buttons…………..……………………………7

3.3 Adjusting the Picture……....................................…..9

3.4 Connecting to the PC ….........…….…........……....11

4. Input/Output Specification.........................………….12

4.1 Input Signal Connector...........................…………..12

4.2 Factory Preset Display Modes...............................13

4.3 Pixel Defect Policy……………………………………13

4.4 Failure Mode OF Panel………………………..…..16

5. Block Diagram……………………………................17

5.1 Software Flow Chart............................………….....17

5.2 Electrical Block Diagram..................……….........19

6. Schematic Diagram…….....................……….........21

6.1 Main Board…….……………..….……………………21

6.2 Power Board…………………………..…………………25

6.3 Audio Board…….…………………..…………………27

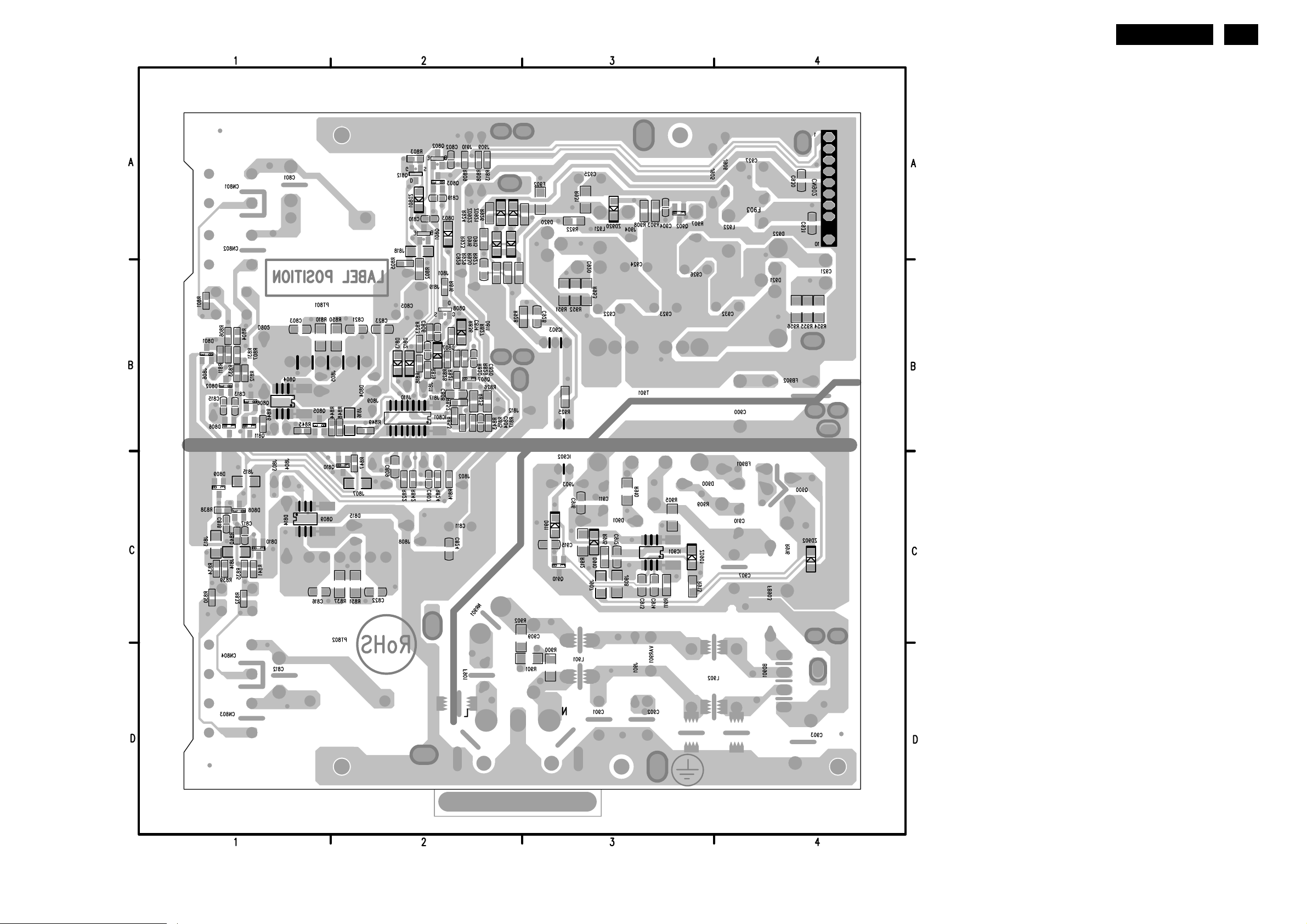

7. PCB Layout.....……......................……………………..28

7.1 Main Board.....…….......................……..…………......28

7.2 Power Board.……................…..…………….............30

7.3 Audio Board………..…………………..…………………32

7.4 Key Board………...………………………………………34

8. Wiring Diagram……………………………………….…..35

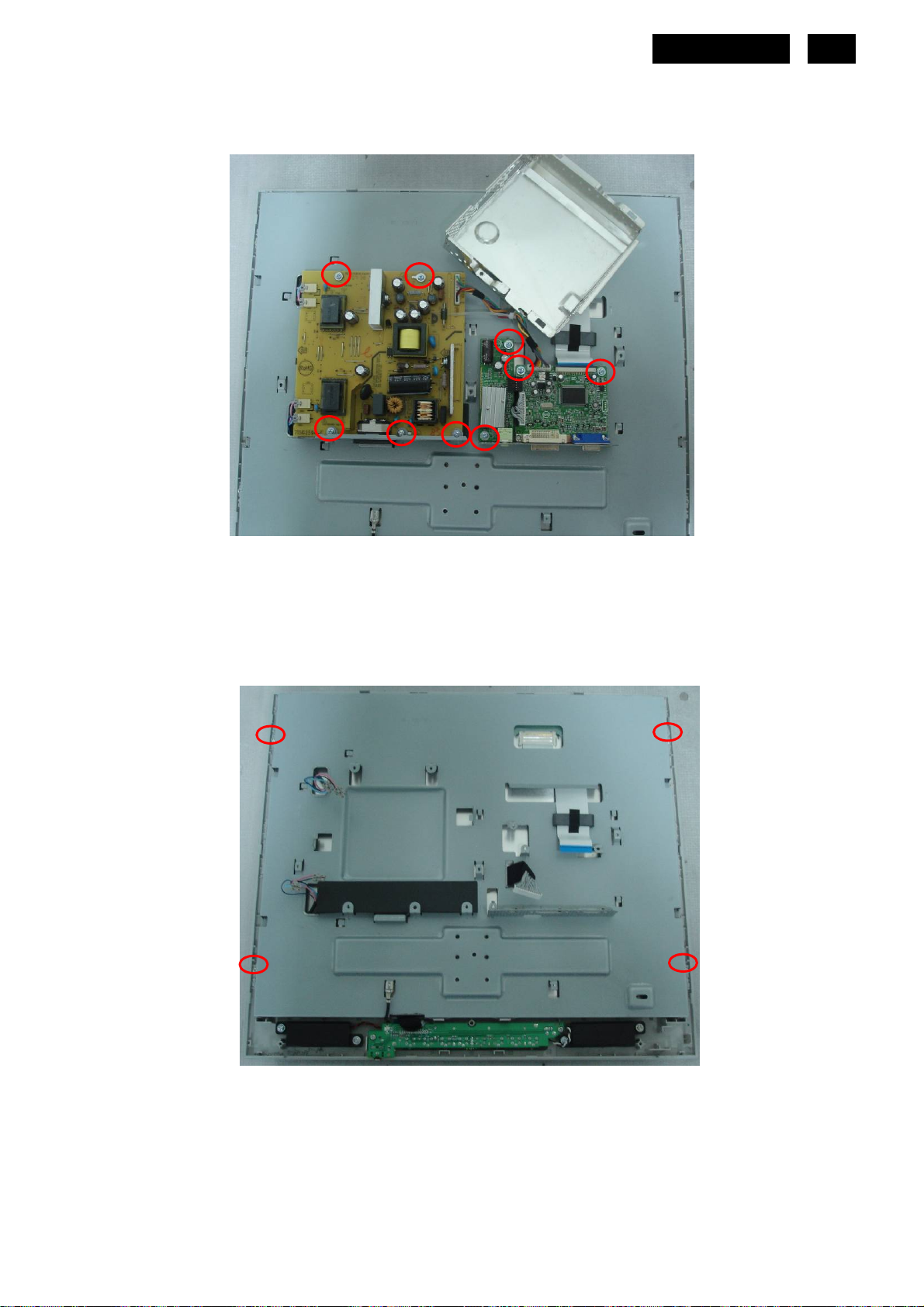

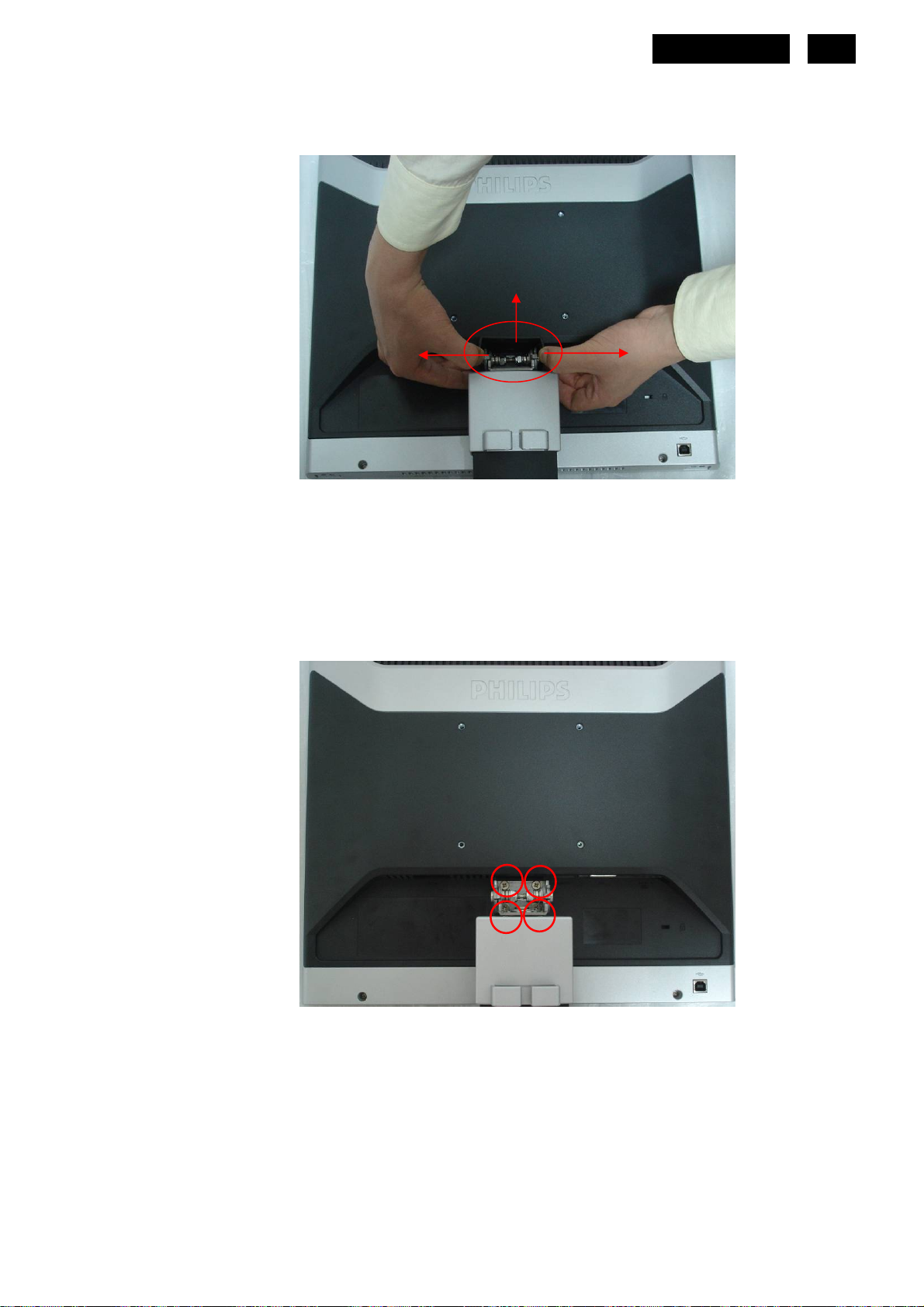

9. Mechanical Instructions.....……...…………..…..........36

10.Trouble shooting…..…………………………...……..45

11. Repair Flow Chart…….…….……………………………47

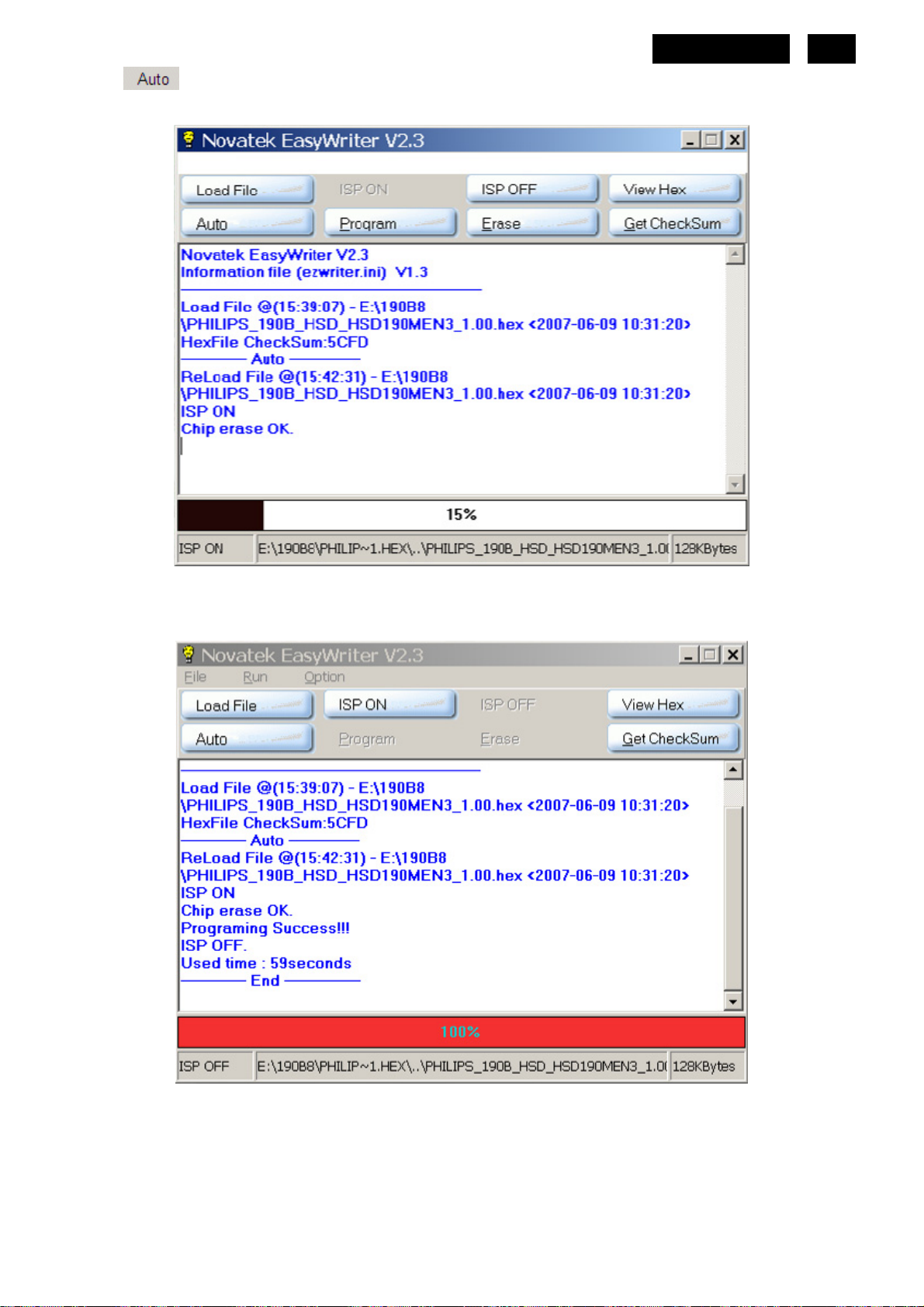

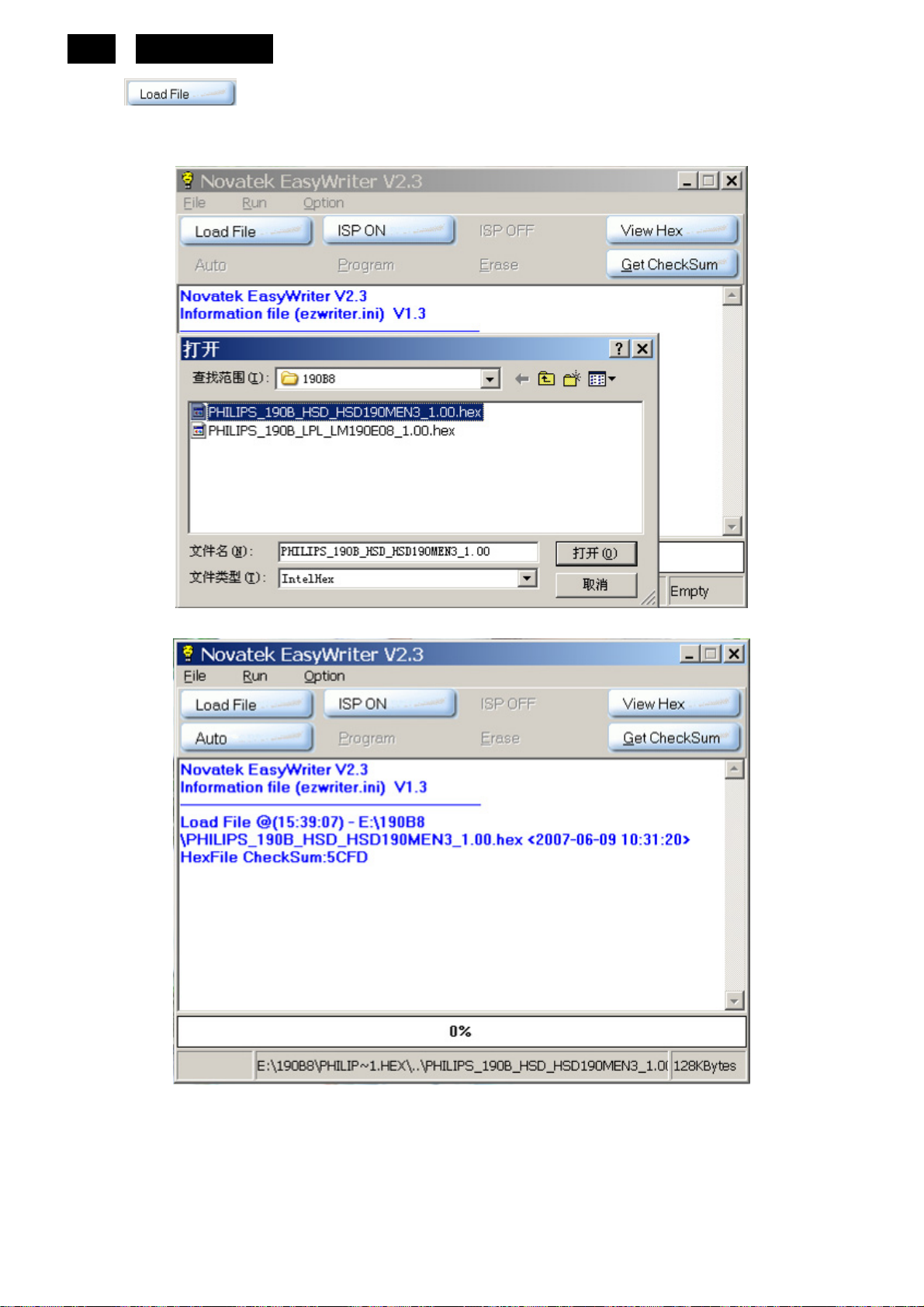

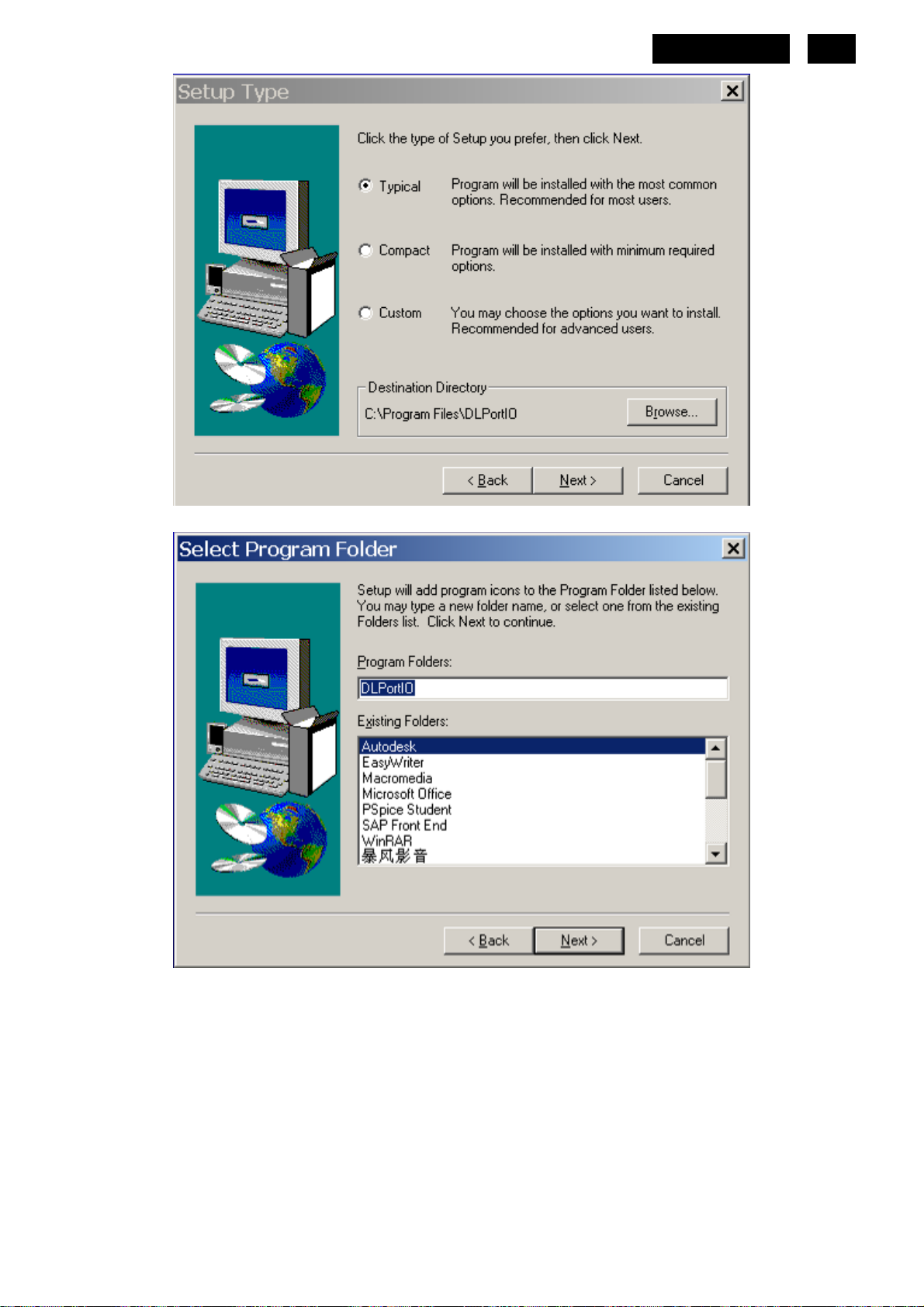

12. ISP Instructions..…..........................………..............53

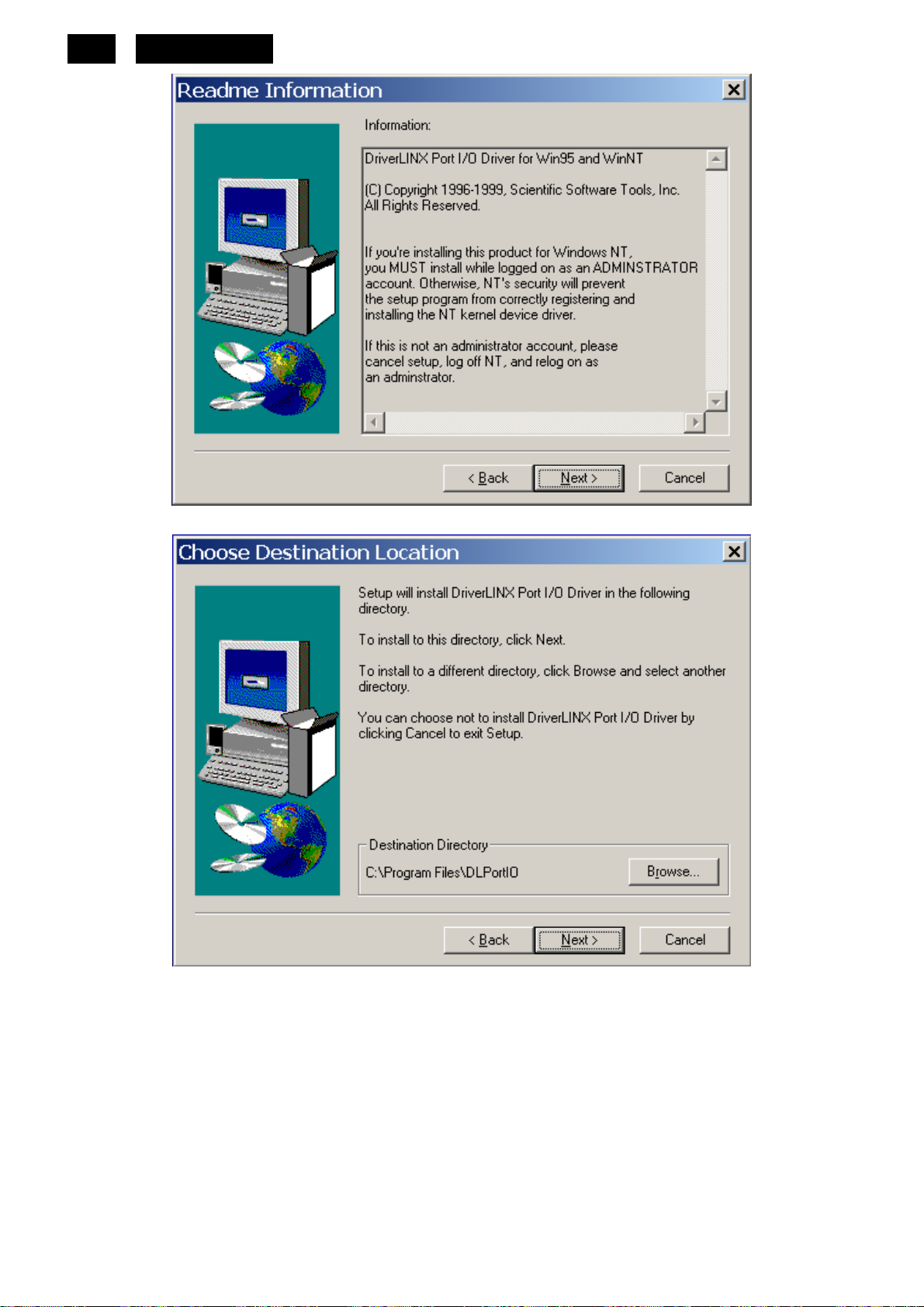

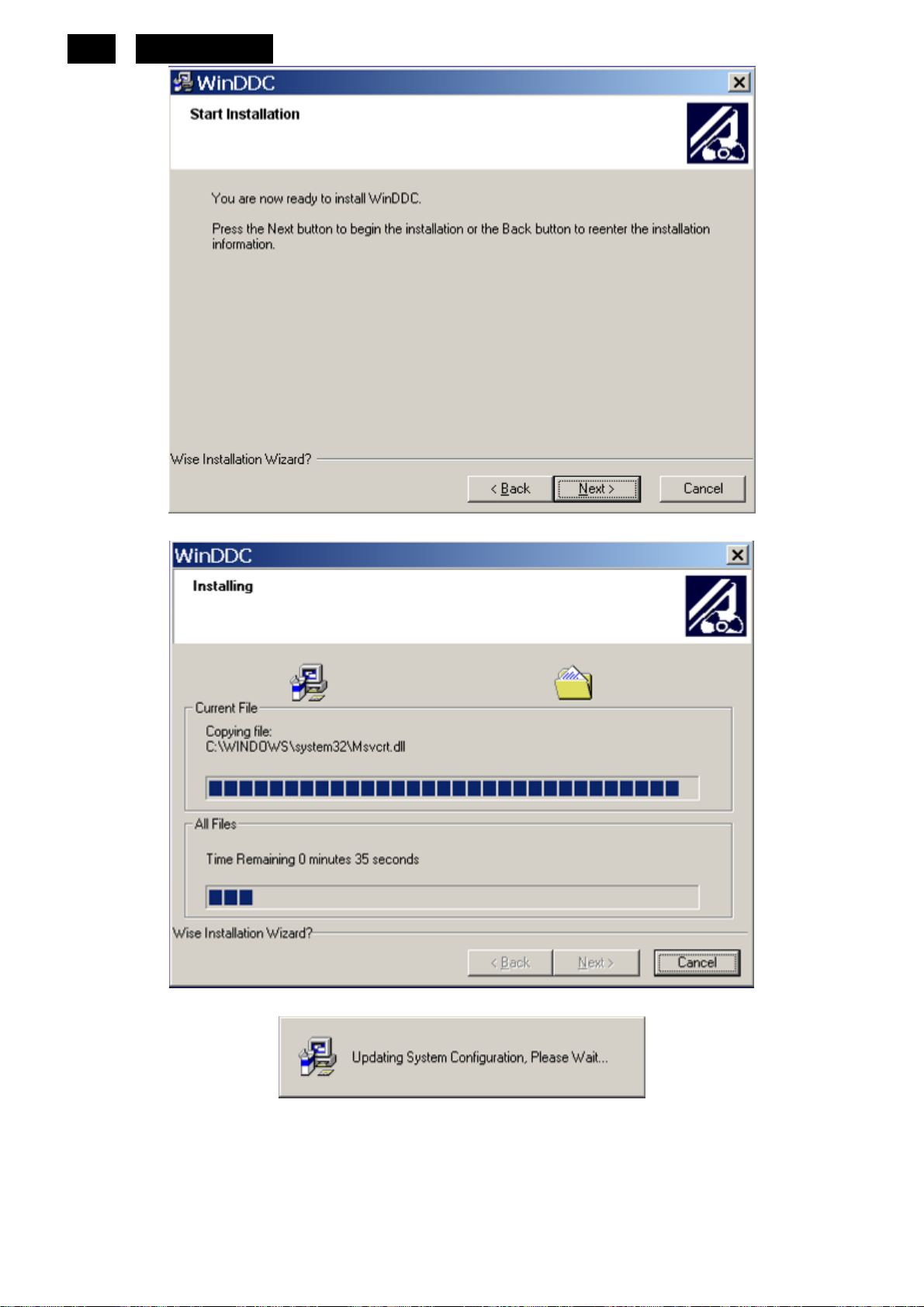

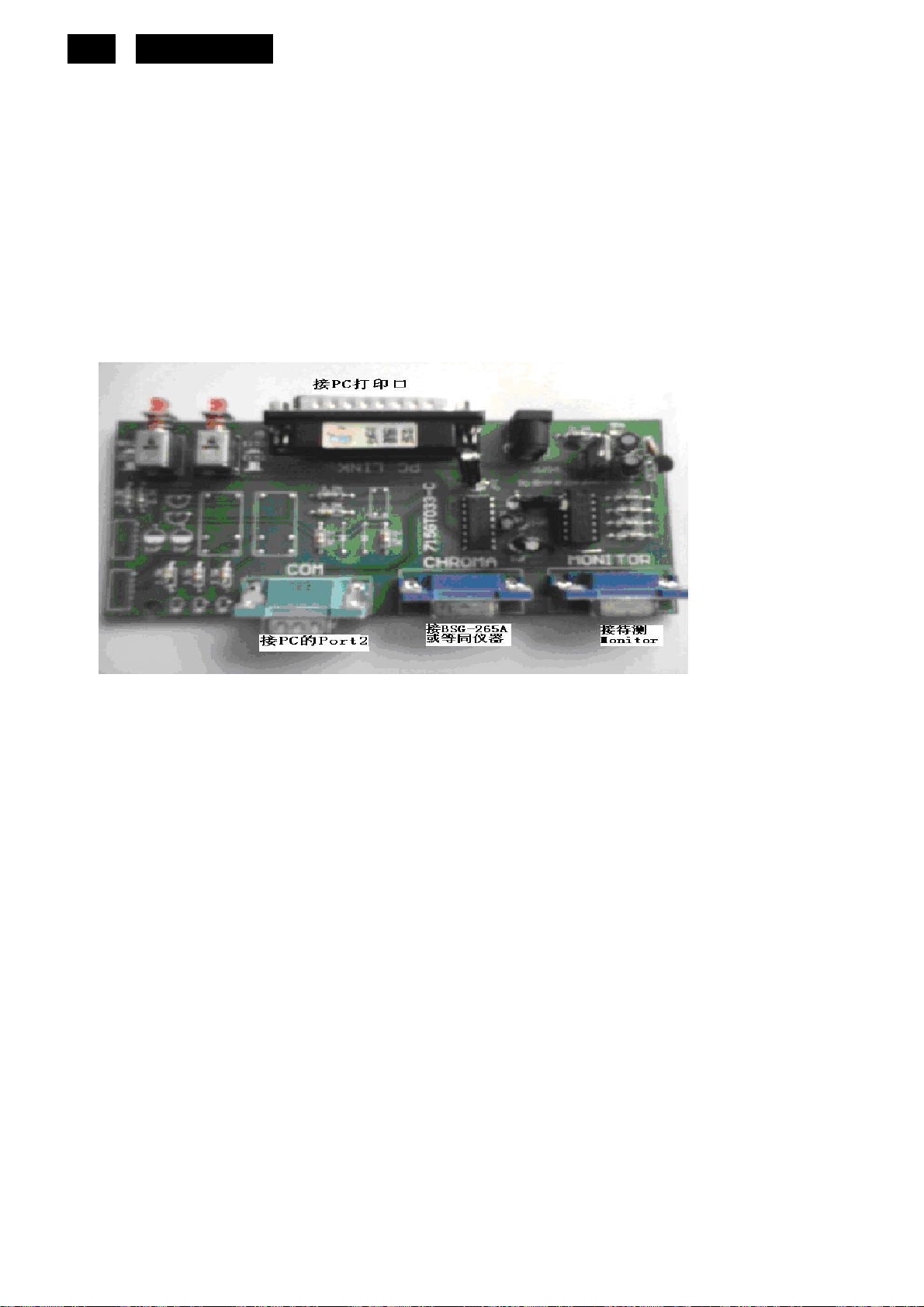

13. DDC Instructions……......…….............….................60

14. White Balance, Luminance Adjustment……............74

15. Monitor Exploded View………..…….………..............76

16. Recommended & Spare Parts List...…………..............77

17. Different Parts List...……….....………....................94

18. General Product Specification………………………….96

190B8CS/00

190B8CB/69

190B8CB/27

190B8CS/27

190B8CB/75

http://www.wjel.net

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE

CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING

ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

REFER TO BACK COVER FOR IMPORTANT SAFETY GUIDELINES

Published by Philips CE Copyright reserved Subject to modification ○K Jun, 10, 2007

GB 312278517250

2

HUDSON 8

Revision List

Version Release Date Revision History

A00 Jun.10, 2007 Initial release, Draft Version

A01 Oct.16,2007 Add Philips 12NC for Model 190B8CB/69 and 190B8CB/75

A02 Nov.07, 2007 Update C907 in Item 16

A03 Nov.21, 2007 Update 190B8 CD MANUAL in Item 16

A04 Nov.25,2007 Add Philips 12NC for 715GT039 A

A05 Apr.08,2008 Cancel USB cable

http://www.wjel.net

HUDSON 8

3

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all Philips Company Equipment. The service

procedures recommended by Philips and described in this service manual are effective methods of performing

service operations. Some of these service operations require the use of tools specially designed for the purpose.

The special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in

order to minimize the risk of personal injury to service personnel. The possibility exists that improper service

methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE

NOT EXHAUSTIVE. Philips could not possibly know, evaluate and advise the service trade of all conceivable ways

in which service might be done or of the possible hazardous consequences of each way. Consequently, Philips has

not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not

recommended by Philips must first satisfy himself thoroughly that neither his safety nor the safe operation of the

equipment will be jeopardized by the service method selected.

Hereafter throughout this manual, Philips Company will be referred to as Philips.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics may create shock,

fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from Philips.

Philips assumes no liability, express or implied, arising out of any unauthorized modification of design.

Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:

DANGER-Invisible laser radiation when open. AVOID DIRECT EXPOSURE TO BEAM.

CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure.

CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S

REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF

THIS SERVICE MANUAL.

Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to

the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may

http://www.wjel.net

damage the panel.)

4

1. Monitor Specifications

HUDSON 8

http://www.wjel.net

HUDSON 8

5

http://www.wjel.net

6

(

HUDSON 8

2. LCD Monitor Description

The LCD monitor will contain a main board, a power board, an audio board and a key board which house the flat

panel control logic, brightness control logic and DDC.

The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips

each voltage.

Power board

Include: adapter, inverter)

AC-IN

100V-240V

Monitor Block Diagram

CCFL Drive.

Audio Board

Flat Panel and

CCFL backlight

Main Board

Key Board

HOST Computer

RS232 Connector

For white balance

adjustment in factory

mode

Video signal, DDC

http://www.wjel.net

HUDSON 8

7

3. Operating Instructions

3.1 General Instructions

Press the power button to turn the monitor on or off. The other control buttons are located at the front of the

panel of the monitor.

By changing these settings, the picture can be adjusted to your personal preferences.

The power cord should be connected.

-

Connect the video cable from the monitor to the video card.

-

Press the power button to turn on the monitor, the power indicator will light up.

-

3.2 Control Buttons

Front View

http://www.wjel.net

8

Rear View

HUDSON 8

http://www.wjel.net

3.3 Adjusting the Picture

Description of the On Screen Display

On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen

performance or select functions of the monitors directly through an on-screen instruction window. A user friendly on

screen display interface is shown as below:

HUDSON 8

9

In the OSD shown above users can press buttons at the front bezel of the monitor to move the cursor, to confirm the

choice or change.

To Lock/Unlock OSD function (User Mode)

The OSD function can be locked by pressing “MENU” button for more than 10 seconds.

Locked OSD function can be released by pressing “MENU” button for more than 10 seconds again.

http://www.wjel.net

10

The OSD Tree

Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want

to work your way around the different adjustments later on.

HUDSON 8

http://www.wjel.net

3.4 Connecting to the PC

1) Connect the power cord to the back of the monitor firmly. (Philips has pre-connected VGA cable for the first

installation.

HUDSON 8

11

2) Connect to PC

(a) Turn off your computer and unplug its power cable.

(b) Connect the monitor signal cable to the video connector on the back of your computer.

(c) Plug the power cord of your computer and your monitor into a nearby outlet.

(d) Connect the PC audio cable to the audio connector on the back of your computer.

(e) USB plug

(1) Connect USB upstream port on monitor and the USB port on PC with a USB cable.

(2) The USB downstream port is now ready for any USB device to plug in.

(f) Turn on your computer and monitor. If the monitor displays an image, installation is complete.

Note: The USB plug is a pass through connection whether it can support USB 1.1 or USB 2.0 depends on your PC's

specification.

http://www.wjel.net

12

HUDSON 8

4. Input/ Output Specification

4.1 Input Signal Connector

Analog connectors

Pin No. Description Pin No. Description

1. Red video input 9. +5V

2. Green video input 10. Logic Ground

3. Blue video input 11. Ground

4. Sense (GND) 12. Serial data line (SDA)

5. Cable detect (GND) 13. H. Sync

6. Red video ground 14. V. Sync

7. Green video ground 15. Data clock line (SCL)

8. Blue video ground

VGA connector layout

DVI connectors

Pin

No.

1. T.M.D.S Data2- 9. T.M.D.S Data1- 17. T.M.D.S Data0-

2. T.M.D.S Data2+ 10. T.M.D.S Data1+ 18. T.M.D.S Data0+

3. T.M.D.S Data2/4 Shield 11. T.M.D.S Data1/3 Shield 19. T.M.D.S Data0/5 Shield

4. No connector 12. No connector 20. No connector

5. No connector 13. No connector 21. No connector

6. DDC Clock 14. +5V Power 22. T.M.D.S Clock Shield

7. DDC Data 15. Ground (for +5V) 23. T.M.D.S Clock+

Description

http://www.wjel.net

Pin

No.

Description

Pin

Description

No.

8. No connector 16. Hot Plug Detection 24. T.M.D.S Clock-

4.2 Factory Preset Display Modes

HUDSON 8

13

4.3 Pixel Defect Policy

http://www.wjel.net

14

HUDSON 8

http://www.wjel.net

HUDSON 8

15

http://www.wjel.net

16

g

g

g

g

g

HUDSON 8

4.4 Failure Mode Of Panel

Quick reference for failure mode of LCD panel



this pa

e presents problems that could be made by LCD panel.
It is not necessary to repair circuit board. Simply follow the mechanical
instruction on this manual to eliminate failure by replace LCD panel.

Polarizer has bubbles

Failure description

Vertical block defect

Vertical dim lines

Vertical lines defect
(Always bri

Horizontal block defect

ht or dark)

Phenomenon

Polarizer has bubbles

Foreign material inside
polarizer. It shows liner or
dot shape.

Concentric circle formed

Horizontal dim lines

Horizontal lines defect
(Always bri

Has bri

ht or dark)

ht or dark pixel

Bottom back light of LCD is
brighter than normal

Back light un-uniformity

http://www.wjel.net

ht has foreign material.

Backli
Black or white color, liner or
circular type

N

N

HUDSON 8

17

5. Block Diagram

5.1 Software Flow Chat

1

2

N

4

5

Y

6

7

Y

Y

3

9

10

Y

N

http://www.wjel.net

18

N

12

Y

14

19

N

13

15

11

17

N

Y

N

Y

16

Y

18

1) MCU initialize.

2) Is the EPROM blank?

3) Program the EPROM by default values.

4) Get the PWM value of brightness from EPROM.

5) Is the power key pressed?

6) Clear all global flags.

7) Are the AUTO and SELECT keys pressed?

8) Enter factory mode.

9) Save the power key status into EPROM.

Turn on the LED and set it to green color.

Scalar initializes.

10) In standby mode?

11) Update the lifetime of back light.

12) Check the analog port, are there any signals coming?

HUDSON 8

13) Does the scalar send out an interrupt request?

14) Wake up the scalar.

15) Are there any signals coming from analog port?

16) Display "No connection Check Signal Cable" message. And go into standby mode after the message

disappear.

17) Program the scalar to be able to show the coming mode.

18) Process the OSD display.

19) Read the keyboard. Is the power key pressed?

http://www.wjel.net

HUDSON 8

19

5.2 Electrical Block Diagram

5.2.1 Main Board

Keypad Interface

(CN401)

Crystal

12.000MHZ

(X201)

Panel Interface

(CN402)

Scalar NT68665MFG

(Include MCU, ADC, OSD)

(U203)

RGB

H sync

V sync

VGA_SDA,

VGA SCL

EEPROM

M24C16

(U204)

D-Data

D-Clock

DVI_SDA,

DVI_SCL

http://www.wjel.net

D-Sub

Connector

(CN101)

DVI

Connector

(CN102)

20

t

t

5.2.2 Inverter/Power Board

HUDSON 8

AC input

EMI filter

Bridge
Rectifier
and Filter

Transformer

Rectifier
diodes

Start Circuit: R905

CN902

PWM Control IC

（IC901）

Feedback

Circuit

12V

5V

ON/OFF

Output

Circui

Transformer MOSFET

Lamp

Over Voltage

PWM

ON/OFF
Control

Feedback
Circui

Control IC

（IC801）

DIM

http://www.wjel.net

HUDSON 8

21

6. Schematic

6.1 Main Board

715G2561-1

D-SUB/DVI

A A

B B

C C

D D

E E

F F

G G

H H

HS

VS

25

25

26

26

VGA_SDA3

VGA_SCL3

1

1

RX2-

2

RX2+

3

GND

4

RX4-

5

RX4+

6

SCL

7

SDA

8

VS

9

RX1-

10

RX1+

11

GND

12

RX3-

13

RX3+

14

5V

15

GND

16

HP

17

RX0-

18

RX0+

19

GND

20

RX5-

21

RX5+

22

GND

23

RXC+

24

RXC-

C1

RED

C2

GRN

C3

BLU

C4

HS

C5

GND

CN102
JACK

DDC_WP3

R134 100R 1/16W

R136 100R 1/16W

C127330pF 50V

C128

33pF

RX2M
RX2P

DDCSCL_D
DDCSDA_D

RX1M
RX1P

RX0M
RX0P

RXCP
RXCM

R141

2K2 1/16W

2

R106

10R 1/16W

R107

10R 1/16W

R110

10R 1/16W

R111

10R 1/16W

R115

10R 1/16W

R116 10R 1/16W
R117

10R 1/16W

R118

10R 1/16W

R125

10K 1/16W

FB105
0R05 1/8W

RLZ5.6B

ZD106

RX0- 3
RX0+ 3

RXC+ 3
RXC- 3

R123

4K7 1/16W

R128

100R 1/16W

DDCSDA

DDCSCL

HIN

VIN

R142

2K2 1/16W

RX2- 3
RX2+ 3

RX1- 3
RX1+ 3

R113 1K 1/16W

R122

1K 1/16W

VGA_VDD

R124

4K7 1/16W

R127

100R 1/16W

ZD107

RLZ5.6B

3

ZD103
RLZ5.6B

ZD104
RLZ5.6B

DVI-HPD 3

C115

1uF 16V

U102

8

VCC

NC/NC/NC/E0/E0

7

WC

NC/NC/E1/E1/E1

6

NC/E2/E2/E2/E2

SCL

NC/M24C02-WMN6TP

ZD105
RLZ5.6B

ZD101
RLZ5.6B

BAV70

D110

FB101
120 OHM

1 2

100R 1/16W

C132

470PF 50V

VSSSDA

11

12

13

14

15

DVI_5V

C106

0.1uF 16V

R108

R109 100R 1/16W

VGA_5V

+5V

1
2
3
45

CN101
DB15

1716

1
6
2
7
3
8
4
9
5
10

VGA_5V

4

DDC_WP3

R120

1K 1/16W

C114

0.1uF 16V

12

FB102
120 OHM

C101

0.1uF 16V

http://www.wjel.net

R101

75R 1/16W

R144

1K 1/16W

C130

0.1uF 16V

R105

10K 1/16W

DVI_SDA 3

DVI_SCL 3

R

G

B

R139

75R 1/16W

5

R103

R104

4K7 1/16W

4K7 1/16W

DVI_CABLE 3

MODEL

190B8

170A8

170S8

190S8

170P8

170C8

190C8

FB103
30 OHM

1 2

FB104
30 OHM

1 2

FB106
30 OHM

1 2

R140

75R 1/16W

VGA_CABLE 3

6

BAV70

DVI_VDD

C107

1uF 16V

U101

8

VCC

7

WC

6

SCL

NC/M24C02-WMN6TP

D102

NC/NC/NC/E0/E0

NC/NC/E1/E1/E1

NC/E2/E2/E2/E2

VSSSDA

FUNCTION

D-SBU Scaler
NT68665 + AUDIO

NT68625 + AUDIO

D-SBU/DVI
Scaler NT68665

D-SBU/DVI
Scaler NT68665

D-SBU/DVI Scaler
NT68665 + USB HUB

D-SBU/DVI
Scaler NT68665

D-SBU/DVI
Scaler NT68665

R126 100R 1/16W

R129 1 50 1/16W

R131

390R 1/16W

R132 100R 1/16W

R133 1 50 1/16W

R135 100R 1/16W

R138 1 50 1/16W

DVI_5V

FB107

1 2

120 OHM

1
2
3
45

CN102 + DVI CIRCUIT

CN102 NC

CN102 + DVI CIRCUIT

CN102 + DVI CIRCUIT

CN102 + DVI CIRCUIT

C121

0.047uF

ǂ

ǂ

C122

0.047uF

C123

1000pF

C124

0.047uF

C125

0.047uF

C126

0.047uF

2007/05/09

ǂ

C129

0.047uF

7

+5V

RX0P RX0M

+5V_ESD

D103

BAV99

2

3

D106
BAV99

3

1

+5V_ESD

2

1

C102

0.1uF 16V

C110

0.1uF 16V

KEY CON.

CN401( 13PIN )

CN401( 13PIN )D-SBU Scaler

CN401 NC, CN407(
7PIN )

CN401 NC ,
CN407( 7PIN )

CN401 NC ,
CN404( 9 PIN )

CN401 NC,
CN407( 7PIN )

CN401 NC ,
CN407( 7PIN )

RIN+ 3

U101

U102

Q201 NC 3906

RIN- 3

SOG 3

GIN+ 3

+5V

GIN- 3

BIN+ 3

BIN- 3

R206 NC 4.7K

FB201 120 NC

R102

1K 1/16W

C131

1000pF

ZD102
RLZ5.6B

8

D104

BAV99

BAV99

D107

2

1

2

1

C103

0.1uF 16V

C111

0.1uF 16V

3

3

USB CON.

X

XCN102 + DVI CIRCUIT

XCN102 + DVI CIRCUIT

CN406(6PIN)+USB CONTROL:
R437 0,R438 0 , R434 0,
R435 0,R436 0

X

X

EXT_EDID

INT_EDID

24C02

9

D101

BAV99

RX1P

3

D108

BAV99

3

VOLUME CON.DVI CON.

CN403(2x6PIN )
, R202 100

CN403(2x6PIN )
, R220 100

CN403,R220 ,
FB403 NC

CN403,R220 ,
FB403 NC

CN403,R220 ,
FB403 NC

CN403,R220 ,
FB403 NC

CN403,R220 ,
FB403 NC

NC

24C02 NC

NCD201 BAV70

+5V_ESD

2

GRB

3

BAV99

1

D111
C116

0.1uF 16V

2

1

2

1

BAV99

C104

0.1uF 16V

C112

0.1uF 16V

3

10

D105

BAV99

RX1MRX2P RX2M

BAV99

RXCMRXCP

D109

2

3

1

2

3

1

DVI CIRCUIT

LIGHT SENSOR
CONT.

R205,C202,FB401 NC

R205,C202,FB401 NCX

R205,C202,FB401 NC

R205,C202,FB401 NC

R205 47K, C202
1UF, FB401 120

R205,C202,FB401 NC

R205,C202,FB401 NC

2

D112

C117

0.1uF 16V

1

C105

0.1uF 16V

C113

0.1uF 16V

CN407 CON.
GND

R439 NC

R439 NC

R439 NC

R439 NC

R439 NC

R439 0

R439 0

BAV99

11

CN101 F3
CN102 A1
C101 E4
C102 A7
C103 A8
C104 A9
C105 A10
C106 A4
C107 A5
C110 B7
C111 B8
C112 B9
C113 B10
C114 C4
C115 E3
C116 G9
C117 G10
C118 G11
C121 E6
C122 F6
C123 F6
C124 F6
C125 G6
C126 G6
C127 G1
C128 G1
C129 G6
C130 H4
C131 G7
C132 C3
D101 A9
D102 A6
D103 A7
D104 A8
D105 A10
D106 B7
D107 B8
D108 B9
D109 B10
D110 D3
D111 G8
D112 G10
D113 G11
FB101 A3
FB102 E4
FB103 E5
FB104 F5
FB105 G2
FB106 G5
FB107 A6
R101 G4
R102 G7
R103 A5
R104 A5
R105 A5
R106 A2
R107 A2
R108 A4
R109 A4
R110 B2
R111 B2
R113 B3
R115 B2
R116 B2
R117 B2
R118 B2
R120 C4
R122 C3
R123 E2
R124 E2
R125 E2
R126 E6
R127 E2
R128 E2
R129 F6
R131 F6
R132 F6
R133 G6
R134 G1
R135 G6
R136 G1
R138 G6
R139 G5
R140 G5
R141 G2
R142 G2
R144 H4
U101 A6
U102 E3
ZD101 G3
ZD102 G8
ZD103 A3
ZD104 B3
ZD105 F3
ZD106 G2
ZD107 G2

2

D113

1

C118

0.1uF 16V

3

1

2

3

4

5

6

7

8

9

10

11

22

HUDSON 8

1

2

3

4

5

6

7

8

9

10

11

MCU+SCALER NT68665

NO. PARTS

U203

1

2

3

4

5

6

NT68665MFG-128

LF_LED5

VSO

HSO

C220

22pF

MCU_VDD

R225

100R 1/16W

R218

C212

C211 NC 0.1u

U203

103

PC7

104

PD0

105

PD1

106

PD2

107

PD3

108

PD4

109

NC/(HSYNCI)

110

GPO1

111

AD0/GPO2

112

AD1/GPO3

113

INT_VSO/GPO4

114

INT_HSO/GPO5

115

CVDD

116

GPO6

117

PWMA/GPO7

118

PWMB/GPO8

119

NC/(VSYNCI)

120

PC0*

121

PC1*

122

PC3/PWM0

123

PC4/PWM1

124

PC5

125

PB1/ADC1

126

PB0/ADC0

127

OSCI

128

OSCO

R218
22R 1/16W

4

RX2+2
RX2-2
RX1+2
RX1-2
RX0+2
RX0-2
RXC+2
RXC-2

BIN+2
BIN-2
SOG2
GIN+2
GIN-2
RIN+2
RIN-2

VGA_VDD

PANEL_IDX4

+5V

DVI_VDD

ZD201
RLZ2.2B

R202
10K 1/16W

D201
BAV70

5V_DECT

5

C216

0.1uF 16V

Q201
2N3906S-RTK/PS

R206
4K7 1/16W

INT_EDID MCU POWER

R233

NC/750R OHM 1/16W 5%

CVDD18

R234
220R 1/16W

CVDD18

C212

NC/0.1uF 16V

R214
4K7 1/16W

MCU_VDD

2007/05/08

H_SCL

H_SDA

BRIGHTNESS4,5

AUDIO_STDBY5

BL_CONTROL4

C219

TCLK

LED_B/G5

5V_DECT

VGA_CABLE2

CVDD18

DVI_CABLE2

KEY25

KEY15

R201
1M 1/16W

1 2

X201

12MHz

22pF

http://www.wjel.net

A A

B B

C C

+3.3VCC

FB202
120OHM

1 2

FB203
120 OHM

1 2

FB204
120 OHM

1 2

FB205
120 OHM

1 2

FB201

NC/120 OHM

1 2

26

C203

0.1uF 16V

53

C204

0.1uF 16V

6

C206

0.1uF 16V

17

C208

0.1uF 16V

90

C205

0.1uF 16V

15

ADC_VAA

DVDD

AVCC

C207

0.1uF 16V

PVCC

MCU_VDD

EXT_EDID MCU POWER

+1.8VCC

D D

E E

1
2
3
4 5

SMT TYPE

F F

U204

NC

VCC

NC

WC

NC

SCL

VSS SDA

M24C16

U201

1
2
3
4 5

NC/M24C04-WMN6TP

FB206
120OHM

1 2

8
7
6

NC

VCC

E1

WC

E2

SCL

VSS SDA

MCU_VDD

C213

1uF 16V

8
7
6

115

MCU_VDD

C209

0.1uF 16V

R213

C222

NC/1uF 16V

52

C210

0.1uF 16V

R215

4K7 1/16W

4K7 1/16W

24C16_WP

IICSCL

IICSDA

R231
NC/4K7 1/16W

R232 NC/0R05 1/16W

R229
NC/100
R230
NC/100

R223

CVDD18

R224

NC/4.7K

NC/4.7K

DDC_WP

H_SCL

H_SDA

SMT TYPE

G G

MCU_VDD

CN202

1

TX

2

RX

3
4

NC/4PIN 2.0mm CONN

NONE OD OD

NT68665 NT68670

22R NC

1

101

102

PC6

DGND/CGND

RSTB

MCU_VCC

12345

MCU_VDD

C201

0.1uF 16V

NCR209 0R

NCR228 0R

NC 0.1u

DVDD

MCU_VDD

96

95

98

97

100

99

RSRB2P

RSRB3P

RSRB1M

RSRB2M

RSRB3M

AVCC

RX2+

RX2-

RX1+

678

AVCC

MCU_GND

R211
0R05 1/16W

R210
NC/0R05 1/16W

94

RSRB1P

RSGB3M

RX1-

AGND

9

93

RSGB3P

RX0+

10

92

RSGB2M

RX0-

11

91

RSGB2P

AGND

12

90

13

DVDD

RXC+

78

89

SP

RXC-

141615

85

86

87

88

RSGB1M/T0M

AVCC

AVCC

RSGB1P/T0P

REXT

R221

RSBB3P/T2P

RSBB3M/T2M

RSCLKBP/T1P

RSCLKBM/T1M

PVCC

PGND

BIN1+

BIN1-

171819202122232425262728293031323334353637

470R 1/16W

PVCC

80

81

828483

RSBB1M/T3M

RSBB2P/TCLK1P

RSBB2M/TCLK1M

SOG1I

GIN1+

GIN1-

79

RSBB1P/T3P

DGND/CGND

RIN1+

RIN1-

ADC_VAA

74

75

76

77

RSRA3P/T4P/RSRB0P

RSRA2P/T5P/RSGB0P

RSRA3M/T4M/RSRB0M

RSRA2M/T5M/RSGB0M

ADC_VAA

ADC_GNDA

PC2

PD6

73

RSRA1M/T6M/RSBB0M

PB3/ADC3/INT1

69

70

71

72

RSGA2M/T7M

RSGA3P/TCLK2P

RSGA3M/TCLK2M

RSRA1P/T6P/RSBB0P

P31/TXD

P30/RXD

PB2/ADC2/INT0

PB7*/DDC_SDA1

67

68

PA1/PWM3

RSGA2P/T7P

PB6*/DDC_SCL1

PA3/PWM5

RX

TX

HSO

24C16_WP

65

66

PA0/PWM2

PA2/PWM4

CGND/DGND

RSGA1P/VCKI

RSCLKAM/V7

RSCLKAP/V6

RSBA3M/V5

RSBA3P/V4

RSBA2M/V3

RSBA2P/V2

RSBA1M/V1

RSBA1P/V0

PB4*/DDC_SCL0

PB5*/DDC_SDA0

TOUTP/VSYNCI1

PA7*/PWM9*

PA6*/PWM8*

PA4*/PWM6*

PA5*/PWM7*

38

R228

RSGA1M

DVDD

CVDD

IRQn

SCL/P34

SDA/P35

RSTn/PD5

PLL_VDD

TCLK

PLL_GND

HSYNCI1

VSO

0R05 1/16W

IRQN

3

64

63

62

61

60

59

58

57

56

55

54

53

52

51

50

49

48

47

46

45

44

43

42

41

40

39

R205

NC/47K 1/16W
C202
NC/1uF 16V

DVDD

IRQN

IICSCL

IICSDA

TCLK

PANEL_PWR 4

LED_R 5

KEY_PWR 5

CVDD18

2

R207

NC/4.7K

DDC_WP 2

DVI-HPD 2

VGA_SCL 2

VGA_SDA 2

LIGHT_SEN 5

170P8

T0M 5
T0P 5
T1M 5
T1P 5
T2M 5
T2P 5
TCLK1M 5
TCLK1P 5
T3M 5
T3P 5
T4M 5
T4P 5
T5M 5
T5P 5
T6M 5
T6P 5
TCLK2M 5
TCLK2P 5
T7M 5
T7P 5

R209
NC/0R05 1/16W

DVI_SCL 2

DVI_SDA 2

C215

0.1uF 16V

MCU_VDD

DVDD

C211

NC/0.1uF 16V

FB207
1000OHM

1 2

C214

+

100uF/16V

VS 2

HS 2

+5V

R219
NC/4.7K

R220
100R 1/16W

170A8/90B8

6

+1.8VCC

VOLUME 5

CN202 G1
C201 F5
C202 G9
C203 A2
C204 B2
C205 B2
C206 B2
C207 B2
C208 C2
C209 D2
C210 D2
C211 D10
C212 E4
C213 E1
C214 E10
C215 E10
C216 E4
C219 F4
C220 F5
C222 F2
D201 A3
FB201 C1
FB202 A1
FB203 B1
FB204 B1
FB205 C1
FB206 D1
FB207 E10
Q201 A4
R201 E4
R202 C3
R205 G9
R206 A4
R207 E10
R209 D10
R210 B6
R211 B6
R213 E2
R214 E4
R215 E2
R218 E5
R219 F10
R220 F10
R221 F7
R223 F2
R224 F2
R225 F5
R228 F9
R229 G2
R230 G2
R231 F2
R232 F2
R233 B4
R234 C4
U201 F1
U203 C5
U204 E1
X201 E4
ZD201 C3

1

TO RS232

2

H H

OPTION(HDCP)

3

4

5

6

7

8

9

10

11

1

2

3

4

5

6

7

8

HUDSON 8

9

23

DC-DC

A A

+5V

C302
10uF/16V

R305
10K 1/16W

R307

ǂ

R308 4K7 1/16W

B B

C C

CN301

D D

CONN

E E

PANEL_PWR3

R304
10K 1/16W

R309

100R 1/16W

1
2
3
4
5
6
7
8
9

+12V

C316

0.1uF/25V

C308

1uF 16V

51K 1/16W

Q301
2N3904S-RTK/PS

PANEL_IDX 3

FB303

ǂ

120

C315

100uF/16V

+5V

+

C304

1uF 16V

C317

0.1uF 16V

Q302
AO3401

R314

4K7 1/16W

PANEL_VCC

+

0.1uF 16V

FB302

ǂ

120

C303

R302

ǂ

330 1/4W

+5V

R311

1K 1/16W

R303

ǂ

330 1/4W

+3.3VCC

R312
1K 1/16W

BRIGHTNESS 3,5

+5V

C301

0.1uF 16V

+

C305

100uF/16V

U303

NC/LD1117S33

3 2

VI VO

GND

1

ADJ(GND)

VOUT

VIN

123

modify 1/8

+3.3VCC

R301
1K 1/16W

Q305

http://www.wjel.net

R316 4K7 1/16W

2N3904S-RTK/PS

BL_CONTROL 3

+5V

D301

SM340A

C311

0.1uF 16V

+

C309
100uF/16V

U301

AP1117D33LA

C307

0.1uF 16V

U304
AP1117E18LA

3 2

VI VO

GND

1

+3.3VCC

+

C306
100uF/16V

U302
NC/AZ1117D-1.8-E1

ADJ/GND

OUTPUT

INPUT

123

0.1uF 16V

C312

+1.8VCC

+

CN301 D1
C301 B6
C302 A4
C303 A4
C304 B3
C305 B7
C306 B8
C307 B8
C308 B2
C309 E7
C310 E9
C311 E7
C312 E8
C315 D3
C316 D1
C317 D3
D301 D7
FB302 B4
FB303 D2
Q301 B2
Q302 B3
Q305 E4
R301 D4
R302 A4
R303 A4
R304 B2
R305 A2
R307 B3
R308 B2
R309 D1
R311 D4
R312 D5
R314 D4
R316 E4
U301 B7
U302 D8
U303 A7
U304 C7

C310
100uF/16V

1

2

3

4

5

6

7

8

9

24

HUDSON 8

1

2

3

4

5

6

7

8

9

10

30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

OUT-R+

CN402

CONN

R404

0R05 1/16W

CN401

1
2
3
4
5
6
7
8
9
10
11
12
13

CONN

R432

0R05 1/16W

http://www.wjel.net

KEY1_PAD
KEY2_PAD
POWER
LED_G
LED_O

LF_B
LIGHT_SEN

5V_FB
OUT-L+
OUT-L-

EAR-R
EAR-L

R431

0R05 1/16W

AUDIO_STDBY 3

CN407

1
2
3
4
5
6
7

NC/CONN

CN404

KEY1_PAD
KEY2_PAD
POWER
LED_G
LED_O

LF_B LF_B

NC/CONN

CN405

1
2
3
4
5
6
7

1
2
3
4
5
6
7
8
9

KEY1_PAD
KEY2_PAD
POWER
LED_G
LED_O

LF_B

KEY1_PAD
KEY2_PAD
POWER
LED_G
LED_O

5V_FB

LIGHT_SEN 3

FB401

1 2

NC/120 OHM

170P8

+3.3VCC

+5V->+3.3VCC

C402

0.1uF 16V

C403

0.1uF 16V

C404

0.1uF 16V

R416 100R 1/16W

C406

0.1uF 16V

R418 100R 1/16W

C407

0.1uF 16V

R424 NC/100R 1/16W

C401

NC/0.1uF 16V

R439

NC/0R05 1/16W

R407

100R 1/16W

R410

100R 1/16W

R412 1K 1/16W

+3.3VCC

+3.3VCC

Auto/Left/Right key

Menu/Up/Down key

Q402
2N3906S-RTK/PS

Q403
2N3906S-RTK/PS

+3.3VCC

Q404

NC/2N3906S-RTK/PS

+3.3VCC

ǂ

3.9K 1/16W

R423

R403

R402

R415 10K 1/16W

R417 10K 1/16W

NC/10K 1/16W

ǂ

3.9K 1/16W

KEY1

3

KEY2

3

KEY_PWR

3

LED_R

3

LED_B/G

3

LF_LED

3

CN401 B4
CN402 A3
CN403 E2
CN404 E6
CN405 F5
CN406 C1
CN407 E5
C401 E8
C402 B7
C403 B7
C404 C7
C405 C1
C406 D8
C407 D8
FB401 E7
FB403 E2
Q402 C8
Q403 D8
Q404 E8
R402 A9
R403 A9
R404 E3
R407 B8
R410 B8
R411 B1
R412 C8
R413 C2
R414 C3
R415 C9
R416 D7
R417 D9
R418 D7
R421 E3
R423 E9
R424 E8
R430 C2
R431 E4
R432 E4
R433 D2
R434 F1
R435 F1
R436 D2
R437 C1
R438 C2
R439 F7

CONNECTOR

T0M
T0P
T1M
T1P

A A

C405

R437

R411
NC/22

+3.3VCC

R436
NC/0R05 1/10W 5%

11

9
7
5
3
1

R435

NC/0R05 1/10W 5%

R430

NC/0R05 1/16W

+5V

R438
NC/0R05 1/10W 5%

R433
NC/0R05 1/10W 5%

CN403

12
10
8
6
4
2

CONN

FB403

1 2

120

ǂ

EAR-SENSE

B B

BRIGHTNESS3,4

PANEL_VCC

0.1uF 16V

C C

NC/0R05 1/10W 5%

CN406

1
2
3
4
5
6

NC/CONN

D D

E E

VOLUME

OUT-L+
OUT-L­EAR-L

R434

NC/0R05 1/10W 5%

F F

OPTION(AUDIO CONTROL)

T2M
T2P

TCLK1M
TCLK1P
T3M
T3P
T4M
T4P

T5M
T5P

T6M
T6P
TCLK2M
TCLK2P
T7M
T7P

R413

NC/0R05 1/16W

T0P3

T0M3

T1P3

T1M3

T2P3

T2M3

TCLK1P3

TCLK1M3

T3P3

T3M3

T4P3

T4M3

T5P3

T5M3

T6P3

T6M3

TCLK2P3

TCLK2M3

T7P3

T7M3

LVDS OUTPUT

+12V

EAR-R

+5V

R414

R421
10K 1/16W

OUT-R-

NC/0R05 1/16W

NC/CONN

1

2

3

4

5

6

7

8

9

10

HUDSON 8

25

6.2 Power Board

715G2594-1

1

POWER

BD901

KBP208G

A A

3

1

+

!

2

-

4

L902

1

2

!

4

3

L

B B

VAR901
NC

L901

2

3

C902

1000pF

C901

1000pF

!

1

!

R900

4

4.0mH

C909 0.47uF

330K 1/4W

R901

!

!

!

R902

330K 1/4W

!

C C

330K 1/4W

D D

!

CN901

E E

3

!

12

SOCKET

2

12

FB903
BEAD

+

C907
100uF/450V

!

C903
1000PF

!

!

C912

0.1uF 50V

C916

0.1uF 50V

!

1

RT

2

COMP

3

CS

4 5

GNDOUT

LD7575PS

C914
470pF/25V

GND1
GND

1
2

HS1
HEAT SINK(Q900)

1
2

NR901
NTCR

F901
FUSE

R911

ǂ

100K 1/8W

IC901

HV
NC

VCC

3

R905

ǂ

10K 1/4W

8
7
6

GND2
GND

1
2

HS5
HEAT SINK(D920)

1
2

ZD901
NC

1 2

D910 LL4148W P

C913
220pF 50V

D901
UF4003PT

+

C911
22uF/50V

R912
10R 1/4W

10K 1/8W

1K 1/8W

R913

D911
NC

C915
NC

R915

4

C910

1500PF/2KV

5

R95147 1/4W

R95247 1/4W

R95347 1/4W

3

1

D921

3

NC

2

1

R954 47 1/4W

R955 47 1/4W

R956 47 1/4W

ǂ

ǂ

ǂ

R909

ǂ

100K 2W

D900
BA159GPT

12

FB901
BEAD

!

Q900
STP10NK70ZFP

R916

ǂ

0.43 2W

R910

ǂ

2.2 1/4W

ZD902

1 2

!

T901

80GL17T-33-N2

4

5

6
4

6
1

3

NC

ǂ

ǂ

ǂ

9

7

11

10

8

12

!

12

IC902
PC123X2YFZOF

43

!

C900

FB902

2200PF

1 2

Jumper

Q910
NC

http://www.wjel.net

IC903
KIA431A-AT/P

6

C920

0.001uF/500V

D920
SBT150-10LST

2

D922
31DQ06FC3

C921

0.001uF/500V

R922
330R 1/8W

R925
1K 1/8W

LL4148WP

C928

0.1uF 50V

R928
1K 1/8W

1 2

D915

+

ZD921
RLZ13B

R927
1K 1/8W

C922

680uF/25V

C926

+

1000uF/16V

CHANGE 13X20mm

1 2

LL4148WP

+

C923

ZD922
RLZ5.1B

D916

+

680uF/25V

R923
10K 1/8W

C929

0.1uF 50V

7

C924

NC

R930

1K 1/8W

L921

3.5uH

L922

3.5uH

+

C925

470uF/25V

R924
3K6 1/8W

R929

ǂ

2.4K 1/8W

R931

10K 1/4W

ǂ

+

C927
470uF/16V

R926
33K 1/8W

8

R907

ǂ

150 1W

Q902
PMBS3904

CN902

CONNECTOR

1
2
3
4
5
6
7
8
9
10

C904

0.001uF 50V

C931

0.1uF 50V

ON/OFF

+5V

1 2

R908
470 1/8W

R903
1K 1/8W

9

F902
0R05 1/4W

ZD920

RLZ13B

ǂ

F903

JUMPER

DIM

C930

0.1uF 50V

+12V

12V

BD901 A1 CN901 E1
CN902 C8 C900 E4
C901 B2 C902 B2
C903 B2 C904 B8
C907 B2 C909 D1
C910 B4 C911 B3
C912 B2 C913 D3
C914 D2 C915 F4
C916 B2 C920 A6
C921 C6 C922 B6
C923 B6 C924 B7
C925 B7 C926 C6
C927 C8 C928 E6
C929 E7 C930 D9
C931 D8 D900 B4
D901 B4 D910 C3
D911 E4 D915 D6
D916 D6 D920 A6
D921 B5 D922 C6

+5V

FB901 C4 FB902 E5
FB903 A2 F901 E2
F902 A9 F903 C9
GND1 E2 GND2 E3
HS1 F2 HS5 F3
IC901 C3 IC902 D5
IC903 E5 L901 C1
L902 B1 L921 A7
L922 B7 NR901 D2
Q900 C4 Q902 B8
Q910 E4 R900 D1
R901 D1 R902 D2
R903 B9 R905 B3
R907 B8 R908 B9
R909 B4 R910 C4
R911 C2 R912 C3
R913 D4 R915 C4
R916 D4 R922 D6
R923 E7 R924 D7
R925 D6 R926 E8
R927 E6 R928 E6
R929 E7 R930 E7
R931 B8 R951 A6
R952 A6 R953 A6
R954 C5 R955 C5
R956 C5 S1 A1
S2 B1 S3 B2
S4 C2 S5 C1
S6 D1 S7 D2
S8 E2 S9 E1
S10 B2 S11 A5
S12 C4 S13 D5
S16 E4 S17 B3
S19 C1 S20 D2
S21 D1 T901 B5
VAR901 B1 ZD901 C3
ZD902 D4 ZD920 B9
ZD921 D6 ZD922 D6

10

F F

1

2

3

4

5

6

7

8

9

10

26

A A

B B

C C

HUDSON 8

1

INVERTER

+12V

ON/OFF

DIM

R827
1K 1/10W 1%

R808

10K 1/10W 1%

R809
NC

R813
100 1/10W 5%

2

Q802

PDTC144WK

C819

R816

NC

ǂ

68K 1% 1/10W

R820

ǂ

560K 1/10W 5%

D811
LL4148WP

R821 1M 1/10W 5%

C802

1uF 16V

R818
NC

LL4148WP

C808 2.2uF/16V

D803
LL4148WP

Q803
PMBS3904

D812

10K 1/10W

R822 47K 1/10W 1%

R823

3

R802
100R 1/8W 5%

Q801
PDTA144WK

C806
1uF/16V

R819
10K 1/10W 1%

R824

10K 1/10W 1%

R817
NC

C807

0.1uF/16V

C809 220pF

R815

47K 1/10W 1%

DTC

R842
47K 1/10W 1%

ǂ

R825 51K 1% 1/8W

R843 NC

4

R814

75K 1/10W 1%

C804

0.1uF/16V

ǂ

180K 1% 1/8W

D813

DTC

1
2
3
4
5
6
7
8 9

R826

LL4148WP

FB

IC801

1IN+
1IN­FEEDBACK
DTC

OUTPUT CTRL
CT
RT
GND
C1 E1

TL494IDR

Q812

RK7002

2IN+

2IN-

REF

VCC

C2
E2

5

R805

4.7K 1/10W 5%

16
15
14
13
12
11
10

ZD801
10K 1/4W 5%

1 2

R803

ǂ

2.4K 1/10W

R853
10K 1/10W 1%

C810

0.1uF/25V
R852
10K 1/10W 1%

6

15 1/4W

Q804

AM9945N-T1-PF

Q810

PMBS3904

Q805

PMBS3906

R844
22R 1/10W 5%

R848
1K 1/10W 1%

R850

ǂ

C821
1500PF/50V

8

D

S

1

R845
22R 1/10W 5%

7

PT801

POWER X'FMR

6

3
4

R810

ǂ

15 1/4W

C803

1500PF/50V

7

6

5

D

D

D

G

S

G

4

C805
470uF/25V

+

C823

0.1uF/25V

Q811

PMBS3904

Q806
PMBS3906

R846
22R 1/10W 5%

R847

22R 1/10W 5%

R849
1K 1/10W 1%

2

3

!

FB

7

81

D801
BAV99

2

8

10pF/3KV

3

C801

R806
1K 1/10W 1%

1

9

R801 0R05 1/10W 5%

1

4

R804 0R05 1/10W 5%

R807
1K 1/10W 1%

OLP1 OLP2

D802

3

BAV99

R811
1K 1/10W 1%

2

R812

1

1
2

2

3

1K 1/10W 1%

CN801

L801

CONN

NC

1
2

CN802
CONN

CN801 A10 CN802 A10 CN803 D10
CN804 E10 C801 A8 C802 A2
C803 B7 C804 B4 C805 B7
C806 C3 C807 C3 C808 C2
C809 D3 C810 D6 C811 E7
C812 D8 C813 E3 C814 E1
C815 E3 C816 D7 C817 E3
C818 E3 C819 B2 C820 D4
C821 B6 C822 E7 C823 B7
C824 E7 D801 B8 D802 B9
D803 B3 D806 D2 D807 D1
D808 E2 D809 E8 D810 E9
D811 C2 D812 C3 D813 B5
IC801 C4 L801 A9 L802 D9
PT801 A7 PT802 D7 Q801 A3
Q802 A2 Q803 B2 Q804 B6
Q805 C6 Q806 C7 Q807 D4
Q808 D1 Q809 E6 Q810 C6
Q811 C7 Q812 B5 R801 A9
R802 A3 R803 B5 R804 A9
R805 A5 R806 A8 R807 A9
R808 A2 R809 A2 R810 A6
R811 B8 R812 B9 R813 B2
R814 B4 R815 B3 R816 B2
R817 B3 R818 C3 R819 C3
R820 C2 R821 C2 R822 C3
R823 C3 R824 C3 R825 D4
R826 D4 R827 D1 R828 D2
R829 D3 R830 D9 R831 D3
R832 D9 R833 D3 R834 E8
R835 E9 R836 E1 R837 D7
R838 E3 R839 E8 R840 E3
R841 E9 R842 C4 R843 D4
R844 C6 R845 C6 R846 C7
R847 C7 R848 D6 R849 D7
R850 A6 R851 E7 R852 D5
R853 C5 S14 A8 S15 D8

10

D D

Q808

RK7002

C814

E E

F F

0.1uF/16V

R828

47K 1/10W 1%

D807
LL4148WP

R836
1M 1/10W 5%

D806
BAW56

B

3

C

E

D808
BAW56

B

3

C

E

R829

ǂ

68K 1% 1/10W

1

2

1

2

C815

0.0022uF

C818

0.0022uF

R831

10K 1/10W 1%

R833

10K 1/10W 1%

C813

0.0022uF

R838

10K 1/10W 1%

R840

10K 1/10W 1%

C817

0.0022uF

OLP1

OLP2

OLP3

OLP4

C820
NC

!

6

3
4

PT802

POWER X'FMR

D809
BAV99

FB

7

81

10pF/3KV

2

C812

3

R834
1K 1/10W 1%

1

OLP3

R839
1K 1/10W 1%

Q807
PMBS3904

1

2

3

4

S

S

G

Q809

AM9945N-T1-PF

D

8

G

0.1uF/25V

D

D

D

7

6

5

http://www.wjel.net

C824

C816

1500PF/50V

R837

ǂ

15 1/4W

+

470uF/25V

R851

ǂ

15 1/4W

C822

1500PF/50V

C811

CHANGE UPDATE

D810
BAV99

R830 0R05 1/10W 5%

1

4

R832 0R05 1/10W 5%

R835
1K 1/10W 1%

3

1

2

2

3

OLP4

R841
1K 1/10W 1%

L802
NC

1
2

1
2

CN803

CONN

CN804

CONN

1

2

3

4

5

6

7

8

9

10

HUDSON 8

27

6.3 Audio Board

715G2562-1

1

AUDIO

A A

2

3

4

5

6

7

8

9

10

11

CN602

FB607

120 OHM

ǂ

12
10
8
6
4
2

GND_AUD

AUDIO_STANDBY
HP_SENSE
GND_AUD
ROUT+
ROUT-LOUT­HP_R

ROUT- 5

ROUT+ 5

HP_R 5

HP_L 5

C625

0.01uF

LOUT+ 5

LOUT- 5

+12V

11

VOLUME

GND_AUD

C605

+

220uF/25V

C627
100pF

GND_AUD

C624
100pF

LOUT+

HP_L

AUDIO_STANDBY 3

+

GND_AUD

ǂ

ǂ

AUD_12VCC

C602
1000uF/16V

GND_AUD

C603
1uF

U601

1

ROUT-

2
3
4
5
6
7
8

9
10
11
12
13
14 15

GND

PVCC

ROUT+

SEMAX

SE/BTL
IN2/IN1

RIN1­RIN1+

SHUTDOWN

RIN2-

VOLUME

RIN2+

SEDIFF

VCC

5VREF

LIN1-

CLK

LIN1+

GND

LIN2-

BYPASS

LIN2+

PVCC

NC

LOUT+

LOUT- GND

TPA6030A4PWPRG4

28
27
26
25
24
23
22
21
20
19
18
17
16

GND_AUD

GND_HS GND_AUD

GND_AUD

R609

ǂ

100K 1/10W

R61110K 1/10W

0.0047uF

C618
1uF

0.22uF

ǂ

C614

C616

GND_AUD

FB602

120 OHM

FB603

120 OHM

AUD_12VCC

R606 100K 1/10W

ǂ

HP_SENSE 5

VOLUME 3

R613

100K 1/10W

ǂ

R614
18K 1/10W

ǂ

GND_AUD

GND_AUD

GND_AUD

GND_AUD

C611

0.1uF/16V

GND_AUD

AUD_12VCC

C620
1uF

GND_AUD

C626
1uF

C604
100pF

C606
100pF

R61010K 1/10W

ǂ

FB606

120 OHM

FB608

120 OHM

GND_AUD

GND_AUD

B B

CN601

PHONEJACK

1
2
3
4
5

C C

D D

E E

FB601

120 OHM

FB605

120 OHM

15K 1/10W

C601
100pF

15K 1/10W

C623
100pF

ǂ

ǂ

R601

R615

R608

5.1K 1/10W

R612

0 1/10W

ǂ

R616

5.1K 1/10W

C608

0.47uF/16V

ǂ

AUD_12VCC

C615
1uF

C621

0.47uF/16V

ǂ

+12V

ZD601

1 2

1N5819

R602 0 1/10W

R618 0 1/10W

R603
10K 1/10W

ǂ

R60533K 1/10W

R60768K 1/10W

GND_AUD

ǂ

ǂ

C6090.47uF/16V

C6100.47uF/16V

C6120.47uF/16V

C6130.47uF/16V

C6170.47uF/16V

C6190.47uF/16V

FB604

120 OHM

R604

ǂ

1K 1/10W

C622

+

220uF/25V

9
7
5
3
1

CONN

GND_AUD

GND_AUD

C607

0.01uF

R617
1K 1/10W

CN601 C1
CN602 B8
C601 C2
C602 B3
C603 B4
C604 C7
C605 C7
C606 C7
C607 C8
C608 C2
C609 C3
C610 C3
C611 C7
C612 D3
C613 D3
C614 D6
C615 D2
C616 D6
C617 D3
C618 D6
C619 D3
C620 D7
C621 D2
C622 D8
C623 D2
C624 D7
C625 D9
C626 E7
C627 E7
FB601 C1
FB602 B7
FB603 C7
FB604 C8
FB605 D1
FB606 D7
FB607 D8
FB608 E7
R601 C2
R602 B3
R603 C3
R604 C8
R605 C3
R606 C6
R607 C3
R608 C2
R609 C6
R610 C7
R611 C6
R612 D2
R613 D6
R614 D6
R615 D2
R616 D2
R617 D8
R618 B3
U601 C4
ZD601 B3

F F

http://www.wjel.net

G G

H H

1

2

3

4

5

6

7

8

9

10

11

28

HUDSON 8

7. PCB Layout

7.1 Main Board

715G2561-1

C101 B3 C215 B3 D105 C1 Q301 A3 R144 C2 R410 B1

C102 C1 C216 A1 D106 C2 Q302 A3 R201 B2 R411 A3

C103 C1 C219 B2 D107 C2 Q305 A1 R202 A2 R412 B1

C104 B1 C220 B2 D108 C2 Q402 B2 R205 A1 R413 A3

C105 C2 C222 B3 D109 C2 Q403 B2 R206 B3 R414 A3

C106 C2 C301 B2 D110 B3 Q404 B1 R207 B3 R415 B2

C107 C2 C302 A3 D111 C3 R101 C3 R209 B3 R416 B2

C110 B1 C303 A3 D112 C3 R102 C1 R210 A2 R417 B2

C111 B2 C304 A3 D113 C2 R103 C2 R211 A2 R418 B1

C112 B2 C305 B2 D201 B3 R104 C2 R213 B3 R421 B2

C113 C2 C306 B1 D301 A2 R105 C2 R214 B2 R423 B1

C114 B2 C307 B1 FB101 C2 R106 C1 R215 B3 R424 B1

C115 C3 C308 A3 FB102 B3 R107 C1 R218 B2 R430 A3

C116 C3 C309 A2 FB103 C3 R108 C2 R219 B3 R431 B1

C117 C3 C310 A2 FB104 C3 R109 B2 R220 A1 R432 A1

C118 C2 C311 A2 FB105 C3 R110 B1 R221 B2 R433 A1

C121 B3 C312 A2 FB106 C2 R111 B1 R223 B3 R434 B1

C122 B3 C315 A1 FB107 C1 R113 C2 R224 A3 R435 B1

C123 B2 C316 A1 FB201 B3 R115 C2 R225 B2 R436 B1

C124 B3 C317 A1 FB202 B3 R116 C2 R228 B3 R437 A1

C125 B3 C401 B1 FB203 B3 R117 B2 R229 B3 R438 A1

C126 B2 C402 B1 FB204 B2 R118 B2 R230 B3 R439 B1

C127 B3 C403 B1 FB205 B2 R120 B2 R231 B3 U101 B2

C128 C3 C404 B1 FB206 B2 R122 C2 R232 B3 U102 B3

C129 B2 C405 A3 FB207 B3 R123 B3 R233 B3 U201 B3

C130 C2 C406 B2 FB302 A3 R124 B3 R234 B2 U203 B2

C131 C1 C407 B1 FB303 A1 R125 B3 R301 A1 U204 B3

C132 C1 CN101 C3 FB401 B1 R126 C3 R302 A3 U301 B1

C201 B2 CN102 C2 FB403 A1 R127 C3 R303 A3 U302 A2

C202 A1 CN202 B3 FDT1 B3 R128 C3 R304 A3 U303 B1

C203 B2 CN301 A2 FDT10 <1 R129 C3 R305 A3 U304 A2

C204 B3 CN401 B1 FDT11 C8 R131 C2 R307 A3 X201 B2

C205 B3 CN402 A2 FDT12 <8 R132 C3 R308 A3 ZD101 C3

C206 B2 CN403 B1 FDT13 C1 R133 C3 R309 A1 ZD102 B1

http://www.wjel.net

C207 B2 CN404 B1 FDT2 A2 R134 C3 R311 A1 ZD103 B2

C208 B2 CN405 B1 FDT3 A3 R135 C2 R312 A1 ZD104 B2

C209 B3 CN406 A1 FDT4 C1 R136 C3 R314 A1 ZD105 C3

C210 B2 CN407 B1 FDT5 C1 R138 C2 R316 A1 ZD106 C3

C211 A2 D101 C1 FDT6 <1 R139 C3 R402 B1 ZD107 C3

C212 B2 D102 C2 FDT7 C8 R140 C2 R403 B1 ZD201 B2

C213 B3 D103 C1 FDT8 <8 R141 C3 R404 A1

C214 B3 D104 C1 Q201 B3 R142 C3 R407 B1

HUDSON 8

29

http://www.wjel.net

30

HUDSON 8

7.2 Power Board

715G2594-1

BD901 D4 J802 C2
C801 A1 J803 B1
C805 B2 J804 B1
C811 C2 J805 B2
C812 D1 J806 B1
C900 B4 J808 C2
C901 D3 J809 C2
C902 D3 J810 C2
C903 D4 J811 C2
C907 C4 J812 B2
C909 D3 J817 C2
C910 C4 J819 B2
C911 C3 J901 D3
C920 B3 J903 C3
C921 B4 J904 A3
C922 B3 J905 A3
C923 B3 J906 A4
C924 B3 J909 A2
C925 A3 J910 A2
C926 B3 L801 B1
C927 A4 L802 C1
C932 B4 L901 D3
CN801 A1 L902 D4
CN802 A1 L921 A3
CN803 D1 L922 A4
CN804 D1 NR901 C2
CN901 D2 PT801 B1
CN902 A4 PT802 C2
D804 B1 Q900 C4
D805 B1 R907 A3
D814 C1 R909 C3
D815 C2 R916 C4
D900 C3 SG11 C4
D901 C3 SG12 D2
D920 A3 SG19 D2
D921 B4 SG22 D4
D922 A4 SG25 D4
F901 D2 SG27 D3
F903 A4 SG28 C3
FB901 C4 SG31 D3

http://www.wjel.net

FB902 B4 SG33 A1
FB903 C4 SG34 A1
HS10 A3 SG35 A1
HS13 A3 SG36 A1
HS14 A2 SG39 A1
HS16 A2 SG40 D1
HS17 B4 SG42 D1
HS20 A8 SG44 D1
HS28 A7 SG45 D1
HS29 B1 SG46 C4
HS31 B4 SG47 C4
IC902 B3 SG49 C4
IC903 B3 T901 C3
J801 B2 VAR901 D3

C802 A2 J907 C3 R843 B2
C803 B1 J908 C3 R844 B2
C804 B2 Q801 A2 R845 B1
C806 B2 Q802 A2 R846 B1
C807 C2 Q803 A2 R847 C2
C808 B2 Q804 B1 R848 B2
C809 C2 Q805 B1 R849 B2
C810 A2 Q806 B1 R850 B2
C813 B1 Q807 B2 R851 C2
C814 B2 Q808 B2 R852 B2
C815 B1 Q809 C1 R853 B2
C816 C1 Q810 C2 R900 D3
C817 C1 Q811 B1 R901 D3
C818 C1 Q812 A2 R902 C2
C819 A2 Q902 A3 R903 A3
C820 B2 Q910 C3 R905 C3
C821 B2 R801 B1 R908 A3
C822 C2 R802 B2 R910 C3
C823 B2 R803 A2 R911 C3
C824 C2 R804 B1 R912 C3
C904 A3 R805 B2 R913 C3
C912 C3 R806 B1 R915 C3
C913 C3 R807 B1 R922 A3
C914 C3 R808 A2 R923 A2
C915 C3 R809 A2 R924 A2
C916 C3 R810 B1 R925 B3
C928 B3 R811 B1 R926 A3
C929 B2 R812 B1 R927 B2
C930 A4 R813 A2 R928 B3
C931 A4 R814 C2 R929 B2
D801 B1 R815 B2 R930 B2
D802 B1 R816 B2 R931 A3
D803 A2 R817 B2 R951 B3
D806 B1 R818 B2 R952 B3
D807 B2 R819 B2 R953 B3
D808 C1 R820 B2 R954 B4
D809 C1 R821 B2 R955 B4
D810 C1 R822 C2 R956 B4
D811 B2 R823 B2 SG10 C3
D812 B2 R824 C2 SG15 D3
D813 B2 R825 B2 SG17 D3
D910 C3 R826 B2 SG18 D4
D911 C3 R827 B2 SG20 D4
D915 A2 R828 B2 SG21 D3
D916 A2 R829 B2 SG23 D4

http://www.wjel.net

F902 A3 R830 C1 SG24 D3
HS11 D4 R831 B1 SG26 D4
HS15 A1 R832 C1 SG29 C3
HS21 A7 R833 B1 SG30 D3
HS22 A1 R834 C1 SG32 D3
IC801 B2 R835 C1 SG37 D2
IC901 C3 R836 B2 SG38 D2
J807 C2 R837 C2 ZD801 A2
J813 C1 R838 C1 ZD901 C3
J814 C1 R839 C1 ZD902 C4
J815 C1 R840 C1 ZD920 A3
J816 B2 R841 C1 ZD921 A2
J818 A2 R842 C2 ZD922 A2

HUDSON 8

31

32

HUDSON 8

7.3 Audio Board

715G2562-1

C601 C1 FB601 C1

C602 A1 FB602 C1

C603 C1 FB603 C1

C604 C1 FB604 A1

C605 A1 FB605 C1

C606 B1 FB606 B1

C607 A1 FB607 B1

C608 C1 FB608 B1

C609 C1 R601 C1

C610 B1 R602 C1

C611 B1 R603 B1

C612 B1 R604 A1

C613 B1 R605 B1

C614 B1 R606 B1

C615 B1 R607 B1

C616 B1 R608 C1

C617 B1 R609 B1

C618 B1 R610 B1

C619 B1 R611 B1

C620 B1 R612 B1

C621 C1 R613 B1

C622 A1 R614 B1

C623 C1 R615 C1

C624 B1 R616 C1

C625 B1 R617 B1

C626 B1 R618 C1

C627 B1 U601 B1

http://www.wjel.net

CN601 C1 ZD601 A1

CN602 B1

HUDSON 8

33

http://www.wjel.net

34

HUDSON 8

7.4 Key Board

715G1766-1M

CN101 A4

CN102 A4

CN103 A4

CN104 A1

GND1 A1

GND A4

J101 A1

J102 A2

J103 A3

J104 A3

J105 A4

LED1 A2

SW1 A4

SW2 A3

SW3 A3

SW4 A3

SW5 A2

SW6 A2

SW7 A2

SW8 A1

http://www.wjel.net

C101 A3

C102 A3

C103 A3

C104 A3

C105 A3

C106 A4

C107 A4

C108 A4

C109 A4

C110 A4

C111 A3

C112 A3

L101 A4

L102 A4

L103 A4

R101 A3

R102 A3

R103 A3

R104 A3

R105 A2

R106 A2

R107 A2

R108 A1

R109 A3

R110 A4

HUDSON 8

35

8. Wiring Diagram

Lamp Wire Harness

Lamp Wire Harness

CN801

CN802

CN902

Panel

Power Wire Harness

FPC

Panel Interface

Power Board

CN804

CN803

Right Speaker

http://www.wjel.net

CN901

AC-IN

CN103

CN102

Phone Jack

Key Board Wire

CN101

CN602

Audio

Board

CN601

Phone Jack

Key Board

CN301 CN402

CN403

Main Board

CN401

CN102

DVI

CN104

CN101

D-SUB

Left Speaker

35

36

9. Mechanical Instructions

Steps of dismantling base stand from base column

Step 1: Place the monitor face down on a smooth surface as Fig 1. Be careful to avoid scratch and injury during the

uninstallation. Meanwhile, it is need to avoid pressing the control key.

HUDSON 8

Step 2: Insert a sheet, as Fig 2.2, to the base stand as Fig 2.1.

The sheet’s dimension is about 5cm(L) x 1cm(W) x 1mm(D).

Fig1

http://www.wjel.net

Fig2.1 Fig2.2

Step 3: Put out the base emphatically as Fig 3, then you can disjoin the base from the stand.

HUDSON 8

37

Fig3

Step 4: Turn the stand, then pull out the hinge cover as Fig 4.

http://www.wjel.net

Fig4

37

38

Step 5: Pull out the stand cover emphatically as Fig 5.

The stand cover

HUDSON 8

Fig5

Step6: Unfasten the four screws on the hinge as Fig 6. then dismantle base stand from base column.

http://www.wjel.net

Fig6

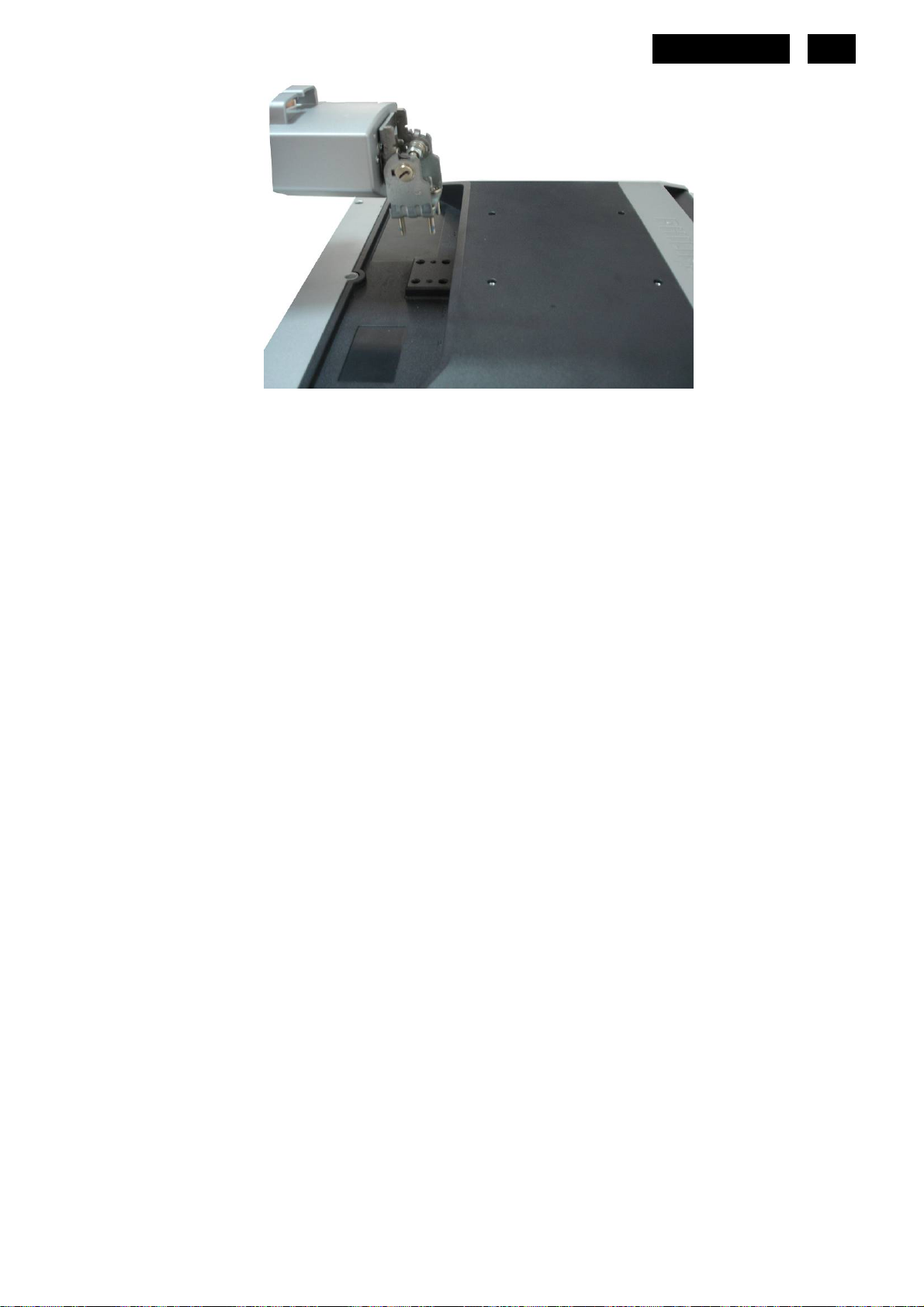

Fig 7

HUDSON 8

39

http://www.wjel.net

39

40

Back View as Fig.1

HUDSON 8

2. Remove hinge cover as Fig.2.

Remove the hinge cover as Fig.2

http://www.wjel.net

Fig.1

Fig.2

3. Remove rear cover as Fig.3.

Pull out the stand cover emphatically as fig.3.

Fig.3

HUDSON 8

41

4. Remove base stand as Fig.4

Remove the four screws as Fig.7 to remove the base stand.

http://www.wjel.net

Fig.4

41

42

5. Remove back cover as Fig.5

Remove the three screws to remove the back cover as Fig.5.

HUDSON 8

Fig.5

6. Remove the shields of the main board and power board as Fig.6.

Remove the 8 screws as Fig.6 to remove the shields.

http://www.wjel.net

Fig.6

7. Remove the main board，audio board and the power board. as Fig.7

Remove the 9 screws as Fig.7 to remove the main board、 audio board and the power board.

HUDSON 8

43

8. Remove the bezel as Fig.8.

Remove the 4 screws as Fig.8 to remove the bezel.

http://www.wjel.net

Fig.7

Fig.8

43

44

9. Remove the main frame as Fig.9.

Remove the 4 screws as Fig.9 to remove the main frame.

HUDSON 8

Fig.9

http://www.wjel.net

HUDSON 8

45

10. Trouble Shooting

This page deals with problems that can be corrected by a user. If the problem still persists after you

have tried these solutions, contact Philips customer service representative.

http://www.wjel.net

45

46

HUDSON 8

http://www.wjel.net

HUDSON 8

47

11. Repair Flow Chart

11.1 Main Board

(1). No Power

Press power key and look

if the picture is normal

Please reinsert and make sure

the AC of 100-240 is normal

Measure U301 PIN2=3.3V

Measure U304 PIN2=1.8V

X201 oscillate waveforms

are normal

No power

OK

OK

NG

NG

NG

Reinsert or check the
Adapter/Inverter
section

Replace D301, U301 or
U304

OK

Replace U203

http://www.wjel.net

NG

Replace X201

47

48

(2). No Picture

HUDSON 8

No picture

Measure U301 PIN2=3.3V

Measure U304 PIN2=1.8V

NG

OK

X201 oscillate waveforms are normal

OK

Check if the sync signal from

computer is output and video cable

OK

NG

NG

Replace D301, U301 or U304

Replace X201

Input the sync signal of

computer, or change

Replace U203

http://www.wjel.net

p

p

(3). White screen

HUDSON 8

49

White screen

Check Correspondent
com

onent.

Measure Q301 base

is high level?

OK

Check Q301, Q302 is broken

or CN402 solder?

NG

OK

Replace Panel

NG

X201 oscillate
waveform is normal

NG

OK

Check reset circuit of

U203 is normal

NG

OK

Replace U203

Replace X201

Check Correspondent
com

onent.

http://www.wjel.net

49

50

HUDSON 8

11.2. Power/Inverter Board

(1) No power

Check CN902 pin4, 5 = 12V

NG

Check AC line volt 110V or 220V

OK

Check the voltage of C907 (+)

OK

Check start voltage for the pin8 of IC901

OK

NG

Check AC input

NG

Check bridge rectified circuit and F901 circuit

NG

Check R905 and Change IC901

Check the auxiliary voltage is bigger than

10V and smaller than 20V

OK

Check IC901 pin5 PWM wave

OK

http://www.wjel.net

Check D910, Q900, D900, IC902, F902, ZD921, ZD922, D915, D916

NG

NG

1) Check IC901

2) Check R910, D901 circuit

Check IC901

(2) W / LED, No Backlight

HUDSON 8

51

Check CN902 pin4, 5 = 12V

OK

NG

Check adapter or MB

Check ON/OFF signal

OK

NG

Check Interface board

Check IC801 PIN12=12V

OK

NG

Change Q801

Check IC801 PIN10, 9 have the output of square wave at short

NG

OK

Check Q804, Q809 PIN5, 6, 7, 8 have the output of square wave at short time.

NG

OK

Check Q804, Q805, Q806, Q809, Q810, Q811

Check the output of PT801, PT802

Change IC801

http://www.wjel.net

OK

NG

Change PT801, PT802

Check connecter & lamp

51

52

11.3 Key Board

HUDSON 8

OSD is unstable or not working

Is Key Pad Board connecting normally?

Is Button Switch normally?

Is Key Pad Board normally?

N

Connect Key Pad Board

Y

N

Replace Button Switch

Y

N

Replace Key Pad Board

Y

Check Main Board

http://www.wjel.net

12. ISP Instruction

HUDSON 8

53

(1). Install the program software

a. First decompressing files , as follow:

http://www.wjel.net

53

54

b. Double – click , start to install as follows:

HUDSON 8

http://www.wjel.net

HUDSON 8

55

http://www.wjel.net

55

56

HUDSON 8

http://www.wjel.net

c. There will be a shortcut key appears on the desktop.

(2). Connect the ISP board as follow:

HUDSON 8

57

a. Double-click

Connect to

the PC LPT

，running the program as follows:

Connect to the

Philips 190B8

http://www.wjel.net

57

58

b. Click icon, search the program” PHILIPS_190B_HSD_HSD190MEN3_1.00.hex”, and click

open:

HUDSON 8

http://www.wjel.net

c. Click icon, the writer is in processing…

HUDSON 8

59

d. Until appears the follow Fig, writer completed.

http://www.wjel.net

59

60

HUDSON 8

13. DDC Instruction

General

DDC Data Re-programming

In case the main EEPROM with Software DDC which store all factory settings were replaced because a defect,

repaired monitor’ the serial numbers have to be re-programmed.

It is advised to re- soldered the main EEPROM with Software DDC from the old board onto the new board if

circuit board have been replaced, in this case the DDC data does not need to be re-programmed.

Additional information about DDC (Display Data Channel) may be obtained from Video Electronics Standards

Association (VESA). Extended Display Identification Data (EDID) information may be also obtained from

VESA.

1. An i486 (or above) personal computer or compatible.

2. Microsoft operation system Windows 95/98/2000/XP.

3. “ PORT95NT.exe, WinDDC_ setup” program.

4. Software OSD SN Alignment kits

The kit contents:

a. OSD SN BOARD x1

b. Printer cablex1

c. VGA cable x1

d. Digital cable x1

e. 12V DC power source

1. Install the “PORT95NT.EXE”, and restart the computer.

You must install the

at the first. The processing as follows:

http://www.wjel.net

HUDSON 8

61

http://www.wjel.net

61

62

HUDSON 8

http://www.wjel.net

HUDSON 8

63

http://www.wjel.net

63

64

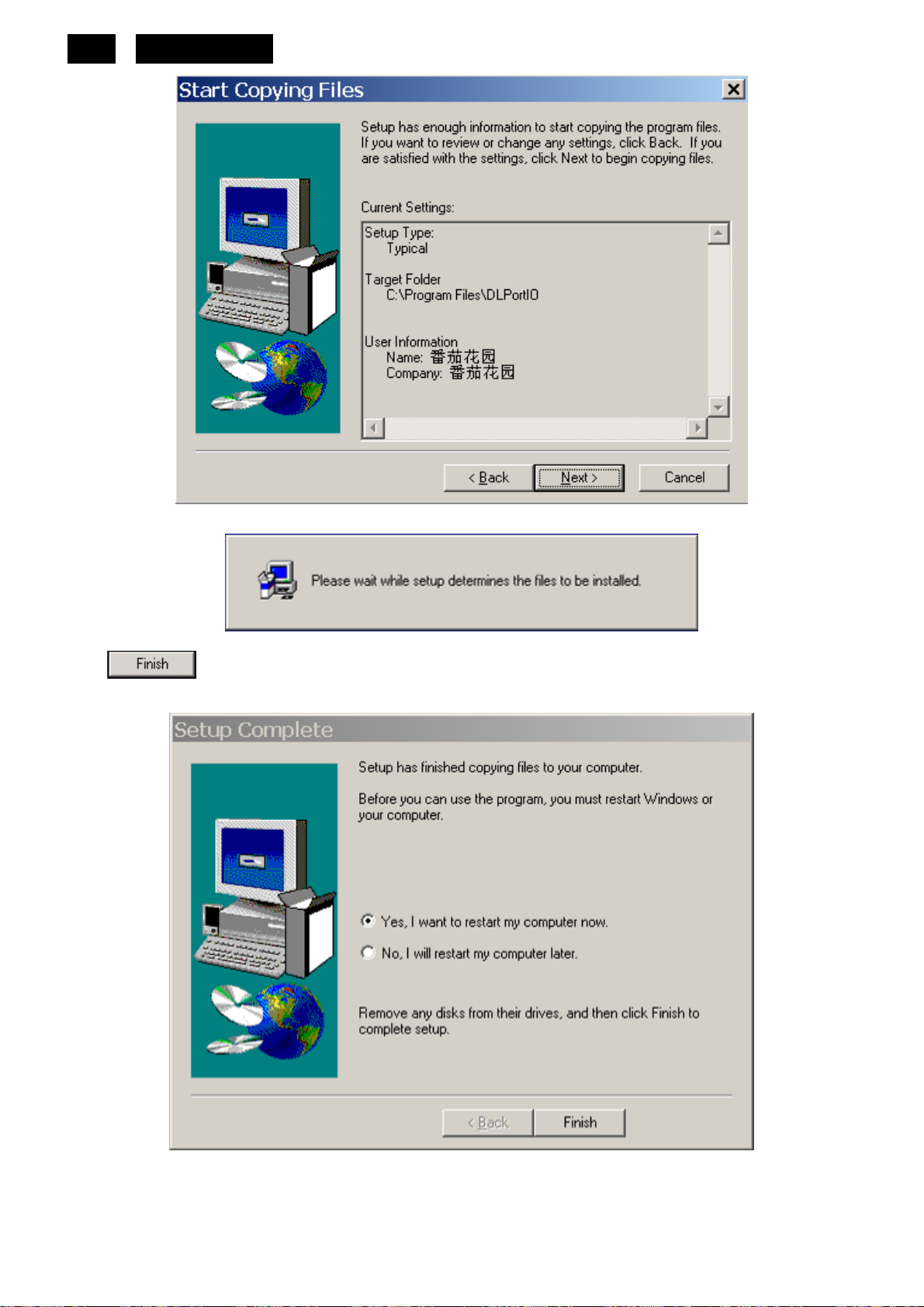

HUDSON 8

Click to complete the installation.

http://www.wjel.net

Note: After installation, you must restart the PC to take the setup to effect.

2. Install the “WinDDC_ setup”

HUDSON 8

65

Second, you must install the

. The processing as follows:

http://www.wjel.net

65

66

HUDSON 8

http://www.wjel.net

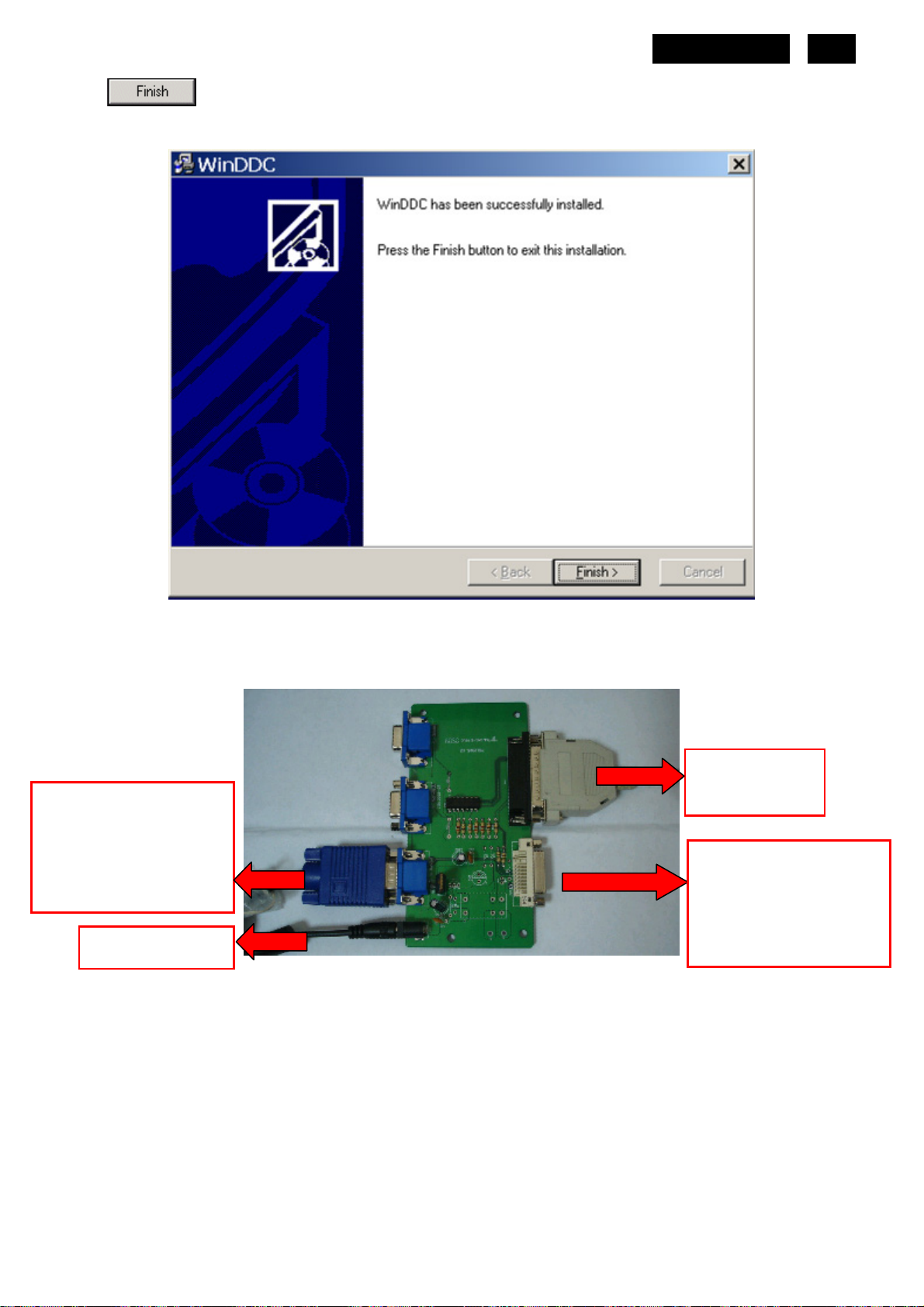

Click to complete the installation.

HUDSON 8

67

3. Connect the DDC board as follow:

When you write analog

EDID, Connect this port

to the Philips 190B8’s

VGA port

12V Input

Note: Pin5 of the VGA cable which connects to the monitor should be cut off.

http://www.wjel.net

Connect to

the PC

When you write digital

EDID, Connect this port

to the Philips 190B8’s DVI

port

67

68

4. Take analog DDC write for example, as follow

HUDSON 8

a. Double-click

，appear as follow Figs：

http://www.wjel.net

b. Click .

c. Key 14 numbers in the Serial Number blank, then click “OK”. Now analog DDC Write completes, as follow.

HUDSON 8

69

http://www.wjel.net

Note: The way of digital DDC write is the same as analog DDC write.

69

70

190B8 EDID

Analog

128 bytes EDID Data (Hex):

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15

0: 00 FF FF FF FF FF FF 00 41 0C 5A 08 01 01 01 01

16: 15 11 01 03 0E 26 1E 78 2A A1 50 A3 57 4C 9D 25

32: 11 50 54 BF EF 80 71 4F 81 40 81 80 01 01 01 01

48: 01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70

64: 13 00 78 2D 11 00 00 1E 00 00 00 FF 00 31 32 33

80: 31 33 32 31 33 32 31 33 32 33 00 00 00 FC 00 50

96: 68 69 6C 69 70 73 20 31 39 30 42 0A 00 00 00 FD

112: 00 38 4C 1E 53 0E 00 0A 20 20 20 20 20 20 00 6A

Decoded EDID data

<---Header--->

Header: 00 FF FF FF FF FF FF 00

<-x-Header-x->

<---Vendor/Product Identification--->

ID Manufacturer Name: PHL

ID Product Code: 085A

ID Serial Number: 01010101

Week of Manufacture: 21

Year of Manufacture: 2007

<-x-Vendor/Product Identification-x->

<---EDID Structure Version/Revision--->

EDID Version#: 01

EDID Revision#: 03

<-x-EDID Structure Version/Revision-x->

<---Basic Display Parameters/Features--->

Video i/p definition: Analog

Signal Level Standard: 0.700V/0.300V(0.700Vpp)

Setup: Blank-to-Black not expected

Separate Sync Support: Yes

Composite Sync Support: Yes

Sync. on green video supported:Yes

Serration of the Vsync.Pulse is not required.

Max. H. Image Size : 38cm.

Max. V. Image Size : 30cm.

Display Gamma: 2.2

DPMS Features, Active off: Yes.

Display Type: R/G/B color display.

Preferred Timing Mode: Yes.

<---Basic Display Parameters/Features--->

<---Color Characteristics--->

Red x: 0.6386718750

Red y: 0.3417968750

Green x: 0.2968750000

HUDSON 8

http://www.wjel.net

Green y: 0.6142578125

Blue x: 0.1455078125

Blue y: 0.0673828125

White x: 0.3125000000

White y: 0.3291015625

<-x-Color Characteristics-x->

<---Established Timings--->

Established Timings 1: BF

-720x400 @70Hz VGA,IBM

-640x480 @60Hz VGA,IBM

-640x480 @67Hz Apple,Mac II

-640x480 @72Hz VESA

-640x480 @75Hz VESA

-800x600 @56Hz VESA

-800x600 @60Hz VESA

Established Timings 2: EF

-800x600 @72Hz VESA

-800x600 @75Hz VESA

-832x624 @75Hz Apple,Mac II

-1024x768 @60Hz VESA

-1024x768 @70Hz VESA

-1024x768 @75Hz VESA

-1280x1024 @75Hz VESA

Established Timings 3: 80

-1152x870 @75Hz Apple,Mac II

<-x-Established Timings-x->

<---Standard Timing Identification--->

-1152x864 @75

-1280x960 @60

-1280x1024 @60

<-x-Standard Timing Identification-x->

<---Detailed Timing Descriptions--->

Detailed Timing: 1280x1024 @ 60Hz.

<-x-Detailed Timing Descriptions-x->

<---Detailed Timing Descriptions--->

Detailed Timing: FF (Monitor SN) '123132132132'

Detailed Timing: FC (Monitor Name) 'Philips 190B'

Detailed Timing: FD (Monitor limits)

Min. V. rate: 56Hz

Max. V. rate: 76Hz

Min. H. rate: 30KHz

Max. H. rate: 83KHz

Max. Pixel Clock: 140MHz

<-x-Detailed Timing Descriptions-x->

Extension Flag: 00

Checksum: 6A

http://www.wjel.net

HUDSON 8

71

71

72

HUDSON 8

190B8 EDID

Digital

128 bytes EDID Data (Hex):

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15

0: 00 FF FF FF FF FF FF 00 41 0C 5A 08 01 01 01 01

16: 15 11 01 03 80 26 1E 78 2A A1 50 A3 57 4C 9D 25

32: 11 50 54 BF EF 80 71 4F 81 40 81 80 01 01 01 01

48: 01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70

64: 13 00 78 2D 11 00 00 1E 00 00 00 FF 00 33 31 32

80: 32 33 31 32 33 32 33 31 32 33 00 00 00 FC 00 50

96: 68 69 6C 69 70 73 20 31 39 30 42 0A 00 00 00 FD

112: 00 38 4C 1E 53 0E 00 0A 20 20 20 20 20 20 00 F7

Decoded EDID data

<---Header--->

Header: 00 FF FF FF FF FF FF 00

<-x-Header-x->

<---Vendor/Product Identification--->

ID Manufacturer Name: PHL

ID Product Code: 085A

ID Serial Number: 01010101

Week of Manufacture: 21

Year of Manufacture: 2007

<-x-Vendor/Product Identification-x->

<---EDID Structure Version/Revision--->

EDID Version#: 01

EDID Revision#: 03

<-x-EDID Structure Version/Revision-x->

<---Basic Display Parameters/Features--->

Video i/p definition: Digital

Max. H. Image Size : 38cm.

Max. V. Image Size : 30cm.

Display Gamma: 2.2

DPMS Features, Active off: Yes.

Display Type: R/G/B color display.

Preferred Timing Mode: Yes.

<---Basic Display Parameters/Features--->

<---Color Characteristics--->

Red x: 0.6386718750

Red y: 0.3417968750

Green x: 0.2968750000

Green y: 0.6142578125

Blue x: 0.1455078125

Blue y: 0.0673828125

White x: 0.3125000000

White y: 0.3291015625

http://www.wjel.net

<-x-Color Characteristics-x->

<---Established Timings--->

Established Timings 1: BF

-720x400 @70Hz VGA,IBM

-640x480 @60Hz VGA,IBM

-640x480 @67Hz Apple,Mac II

-640x480 @72Hz VESA

-640x480 @75Hz VESA

-800x600 @56Hz VESA

-800x600 @60Hz VESA

Established Timings 2: EF

-800x600 @72Hz VESA

-800x600 @75Hz VESA

-832x624 @75Hz Apple,Mac II

-1024x768 @60Hz VESA

-1024x768 @70Hz VESA

-1024x768 @75Hz VESA

-1280x1024 @75Hz VESA

Established Timings 3: 80

-1152x870 @75Hz Apple,Mac II

<-x-Established Timings-x->

<---Standard Timing Identification--->

-1152x864 @75

-1280x960 @60

-1280x1024 @60

<-x-Standard Timing Identification-x->

<---Detailed Timing Descriptions--->

Detailed Timing: 1280x1024 @ 60Hz.

<-x-Detailed Timing Descriptions-x->

<---Detailed Timing Descriptions--->

Detailed Timing: FF (Monitor SN) '312231232312'

Detailed Timing: FC (Monitor Name) 'Philips 190B'

Detailed Timing: FD (Monitor limits)

Min. V. rate: 56Hz

Max. V. rate: 76Hz

Min. H. rate: 30KHz

Max. H. rate: 83KHz

Max. Pixel Clock: 140MHz

<-x-Detailed Timing Descriptions-x->

Extension Flag: 00

Checksum: F7

http://www.wjel.net

HUDSON 8

73

73

74

HUDSON 8

14. White Balance, Luminance Adjustment

1. Apparatuses and program: analyzer CA-210, PC, tool, FGA adjustment program (FGAWB0.15SN), Pattern

generator.

2. Equipment installation:

a. Connect analyzer CA-210 to PC by USB connector, install drive program CA-SDK Ver4.00 for CA-210 and

restart PC after finish installing.

b. Install Port95NT drive program, set PC printer connector mode as ECP mode and restart PC after finish

installing.

c. Connect tools as follow:

(Note: It is not necessary to connect Port2 )

3. Adjustment

Preparation before adjustment:

(1) Monitor should be warmed up for more than half an hour.

(2) Make sure that the tools are connected right and drive programs have been installed OK.

Adjustment process:

(1) Press the power of CA-210, shut off the lens, press 0-Cal and open the lens after analyzer reset.

(2) Start white balance adjustment program, select the right parameter according with the program and click OK.

(3) Make sure that the lens of CA-210 aims at the center of the screen, then click Start and start adjusting.

(4) After finish adjusting, the adjustment program displays pass, and the Start Button is changed to Next, which

means you can adjust another monitor.

http://www.wjel.net

HUDSON 8

75

4. Color Temp confirmation

Connect the signal to the monitor, the monitor display white-picture, use CA-210 to measure the Color Temp of the

screen center and select the OSD to make sure whether the Color Temps accord with the SPEC.

http://www.wjel.net

75

76

15. Monitor Exploded View

HUDSON 8

http://www.wjel.net

HUDSON 8

77

16. Recommended & Spare Parts List

Recommended Parts List

190B8CB/69

Item

1

2

2

3

4

5

5

6

6

7

8

9

10

11

Location Part No. Description Philips 12NC

FQ024 KEPC7QBB KEY BOARD

FQ001 078G 311 9 L SPK 16OHM 2.5W NEOSONICA

FQ002 078G 311 9 R SPK 16OHM 2.5W NEOSONICA

FQ007 P33G4984 VQB1C CONTORL BUTTON

FQ010 P34G1865 VBC1T BEZEL(19")

FQ006 750GLH90N3A12Z000F PANEL HSD190MEN3-A00 NJ HSD 996510005685

E750L 750GLG90E8L12Z000F

FQ021 CBPC7HNAPHQB1 SCALER BOARD (HSD)

FQ022 CBPC7GNAPHQB1 SCALER BOARD (LG)

FQ019 089G 17356G554 AUDIO CABLE 996510005691

FQ026 USB7QB1 USB BOARD

FQ012 P34G1867 VB 1T 2 REAR COVER

FQ011 P34G1866 VB 1T MID_COVER

FQ025 PWPC942GR1P POWER BOARD

PANEL LM190E08-TLL1 NJ ZBD PHP

996510005732

996500037296

996500037297

996510005686

996510005687

996510005682

996510005692

996510005693

996510005635

996510005688

996500038126

996500041051

12

13

14

15

FQ009 P33G5015 VB 1L HEING COVER BACK

FQ013 P37G 567 2 VB HINGE

FQ008 P33G5014 VB 1L HINGE COVER FRONT

FQ005 705GQ9K0S34VB1 BASE ASSY

E089A 089G 728HAA 21 SIGNAL CABLE 996510005679

E089B 089G179J30H564 FFC CABLE 996510005680

E089C 089G410A18N IS POWER CORD WALL-OUT FOR UK 996500037340

FQ004 095G801413D641 WIRE HARNESS

E089A 089G 728LAA 21 SIGNAL CABLE 996510005683

E089B 089G179E30H564 FFC CABLE 996510005684

FQ014 P44G3960 1 EPS(L)

FQ015 P44G3960 2 EPS(R)

FQ016 P45G 88609 37 R EPE BAG

FQ017 Q40G 19N81318A RATING LABEL

FQ018 Q44G3960813 2A 19 LCD CARTON

http://www.wjel.net

996500037293

996500037292

996500038119

996510005681

FQ020 Q70G9000813 7C CD MANUAL

FQ023 AUPC7QB1 AUIDO BOARD

U301 056G 563 52 IC AP1117D33LA TO252-3L ATC 996510005697

996510005730

78

HUDSON 8

U304 056G 56327A IC AP1117E18LA SOT223-3L ANACHIP 996510005698

U204 056G1133 56 M24C16-WMN6TP 996500037783

U203 705GQ756006 MCU ASS'Y 996510005729

U601 056G 616 24 TPA6030A4PWPRG4 996500037316

U811 056G 608 10 IC OZ9938GN-B SOIC-16 996500036059

IC902 056G 139 3A PC123Y22FZOF 996500036055

IC902 056G 139 3B PC123 Y82FZ0F 996500040055

IC902 056G 139 5A TCET1103G 996500040056

IC941 056G 158 4 T H431BA 996500040068

IC941 056G 158 10 T IC AZ431AZ-AE1 TO-92 BY AAC 996510002780

IC901 056G 564911 IC TEA1532AT S08 996500036960

http://www.wjel.net

HUDSON 8

79

Spare Parts List

Service Kit

Description Part No. Philips 12NC Remark

DDC Kit 715L2005C2 9965 000 43197 for all model

OSD SN Kit 715GT033 C 9965 000 43252 for all model

for all hudson 7

NOVATEK ISP Kit 715LT035A 9965 000 43198

MSTAR ISP Kit 715GT039 A 996510010027 200CW8

REALTEK ISP Kit 715GT039 A 996510010027 170CW8

190B8CB/69

Panel

Location

E750L

FQ006

Board ASS’Y

Location

for 170A8, 190B8, 150S8,

170S8,190S8, 170V8,190V8

Part No. Description

750GLG90E8L12Z000F PANEL LM190E08-TLL1 NJ ZBD 996510005682

750GLH90N3A12Z000F

Part No. Description

PANEL HSD190MEN3-A00 NJ

Philips 12NC

996510005685

Philips 12NC

FQ021 CBPC7HNAPHQB1 SCALER BOARD (HSD)

FQ022 CBPC7GNAPHQB1 SCALER BOARD (LG)

FQ023 AUPC7QB1 AUIDO BOARD

FQ024 KEPC7QBB KEY BOARD

FQ025 PWPC942GR1P POWER BOARD

FQ026 USB7QB1 USB BOARD

996510005692

996510005693

996510005730

996510005732

996500041051

996510005635

http://www.wjel.net

80

Accessory and Mechanical

HUDSON 8

Location Part No. Description Philips 12NC

FQ001 078G 311 9 L SPK 16OHM 2.5W NEOSONICA 996500037296

FQ002 078G 311 9 R SPK 16OHM 2.5W NEOSONICA 996500037297

E089A 089G 728HAA 21 SIGNAL CABLE 996510005679

E089B 089G179J30H564 FFC CABLE 996510005680

E089C 089G410A18N IS POWER CORD WALL-OUT FOR UK 996500037340

FQ004 095G801413D641 WIRE HARNESS 996510005681

FQ005 705GQ9K0S34VB1 BASE ASSY 996500038119

E750L 750GLG90E8L12Z000F PANEL LM190E08-TLL1 NJ ZBD PHP 996510005682

E089A 089G 728LAA 21 SIGNAL CABLE 996510005683

E089B 089G179E30H564 FFC CABLE 996510005684

FQ006 750GLH90N3A12Z000F PANEL HSD190MEN3-A00 NJ HSD 996510005685

FQ007 P33G4984 VQB1C CONTORL BUTTON 996510005686

FQ008 P33G5014 VB 1L HINGE COVER FRONT 996500037292

FQ009 P33G5015 VB 1L HEING COVER BACK 996500037293

FQ010 P34G1865 VBC1T BEZEL(19") 996510005687

FQ011 P34G1866 VB 1T MID_COVER 996500038126

FQ012 P34G1867 VB 1T 2 REAR COVER 996510005688

FQ013 P37G 567 2 VB HINGE

FQ014 P44G3960 1 EPS(L)

FQ015 P44G3960 2 EPS(R)

FQ016 P45G 88609 37 R EPE BAG

FQ017 Q40G 19N81318A RATING LABEL

FQ018 Q44G3960813 2A 19 LCD CARTON

FQ019 089G 17356G554 AUDIO CABLE 996510005691

FQ020 Q70G9000813 7C CD MANUAL

http://www.wjel.net

Board Parts

Location Part No. Description Philips 12NC

FQ021 CBPC7HNAPHQB1 SCALER BOARD (HSD) 996510005692

FQ022 CBPC7GNAPHQB1 SCALER BOARD (LG) 996510005693

C101 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C102 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C103 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C104 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C105 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C106 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C107 065G060310517T MLCC 0603 CAP 1UF Z 16V Y5V 996510005722

C110 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C111 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C112 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C113 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

HUDSON 8

81

C115 065G060310517T MLCC 0603 CAP 1UF Z 16V Y5V 996510005722

C116 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C117 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C118 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C121 065G0402473 12 CHIP 0.047uF 16V X7R 996510005721

C122 065G0402473 12 CHIP 0.047uF 16V X7R 996510005721

C123 065G0402102 32 1000PF +-10% 50V X7R 996510005715

C124 065G0402473 12 CHIP 0.047uF 16V X7R 996510005721

C125 065G0402473 12 CHIP 0.047uF 16V X7R 996510005721

C126 065G0402473 12 CHIP 0.047uF 16V X7R 996510005721

C127 065G0402331 32 CHIP 330PF 50V X7R 996510005719

C128 065G0402330 31 33PF +-50% 50V NPO 996510005718

C129 065G0402473 12 CHIP 0.047uF 16V X7R 996510005721

C130 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C131 065G0402102 32 1000PF +-10% 50V X7R 996510005715

C132 065G040247132K T CAP CHIP 0402 470PF 50V X7R 996510005720

http://www.wjel.net

C201 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C203 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C204 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C205 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C206 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C207 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C208 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C209 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

82

HUDSON 8

C210 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C213 065G060310517T MLCC 0603 CAP 1UF Z 16V Y5V 996510005722

C214 067G305V101 3 105C 10UF +-20% 16V 996510005694

C215 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C216 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C219 065G0402220 31 CHIP 22PF 50V NPO 996510005717

C220 065G0402220 31 CHIP 22PF 50V NPO 996510005717

C301 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C302 067G305V100 3 105deg 10UF -20% 16V 996500037413

C303 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C304 065G060310517T MLCC 0603 CAP 1UF Z 16V Y5V 996510005722

C305 067G305V101 3 105C 10UF +-20% 16V 996510005694

C306 067G305V101 3 105C 10UF +-20% 16V 996510005694

C307 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C308 065G060310517T MLCC 0603 CAP 1UF Z 16V Y5V 996510005722

C309 067G305V101 3 105C 10UF +-20% 16V 996510005694

C310 067G305V101 3 105C 10UF +-20% 16V 996510005694

C311 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C312 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C315 067G305V101 3 105C 10UF +-20% 16V 996510005694

C316 065G0603104 22 CHIP 0.1UF 25V X7R 996500042674

C317 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C402 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C403 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

C405 065G0402104 12 CHIP 0.1UF 50V X7R 996510005716

D101 093G 6433S DIODE BAV99 SEMTECH 996510005726

D102 093G 64 42 PP BAV70 SOT-23 996500035995

D103 093G 6433S DIODE BAV99 SEMTECH 996510005726

D104 093G 6433S DIODE BAV99 SEMTECH 996510005726

D105 093G 6433S DIODE BAV99 SEMTECH 996510005726

D106 093G 6433S DIODE BAV99 SEMTECH 996510005726

http://www.wjel.net

D107 093G 6433S DIODE BAV99 SEMTECH 996510005726

D108 093G 6433S DIODE BAV99 SEMTECH 996510005726

D109 093G 6433S DIODE BAV99 SEMTECH 996510005726

D110 093G 64 42 PP BAV70 SOT-23 996500035995

D111 093G 6433S DIODE BAV99 SEMTECH 996510005726

D112 093G 6433S DIODE BAV99 SEMTECH 996510005726

D113 093G 6433S DIODE BAV99 SEMTECH 996510005726

D201 093G 64 42 PP BAV70 SOT-23 996500035995

D301 093G3004 3 SM340A 996510005728

Q201 057G 417 13 T KEC 2N3906S-RTK/PS 996500035967

Q301 057G 417 12 T KEC 2N3904S-RTK/PS 996500036961

Q302 057G 763 1 A03401 SOT23 BY AOS(A1) 996500035968

Q305 057G 417 12 T KEC 2N3904S-RTK/PS 996500036961

Q402 057G 417 13 T KEC 2N3906S-RTK/PS 996500035967

Q403 057G 417 13 T KEC 2N3906S-RTK/PS 996500035967

R101 061G0402750 RST CHIPR 75 OHM +-5% 1/16W 996510005713

R102 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W 996510005702

R103 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W 996510005711

R104 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W 996510005711

R106 061G0402100 RST CHIPR 10 OHM +-5% 1/16W 996510005700

R107 061G0402100 RST CHIPR 10 OHM +-5% 1/16W 996510005700

R108 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 996510005701

R109 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 996510005701

R110 061G0402100 RST CHIPR 10 OHM +-5% 1/16W 996510005700

HUDSON 8

83

R111 061G0402100 RST CHIPR 10 OHM +-5% 1/16W 996510005700

R113 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W 996510005702

R115 061G0402100 RST CHIPR 10 OHM +-5% 1/16W 996510005700

R116 061G0402100 RST CHIPR 10 OHM +-5% 1/16W 996510005700

R117 061G0402100 RST CHIPR 10 OHM +-5% 1/16W 996510005700

R118 061G0402100 RST CHIPR 10 OHM +-5% 1/16W 996510005700

R120 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W 996510005702

R122 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W 996510005702

R123 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W 996510005711

R124 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W 996510005711

R126 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 996510005701

R127 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 996510005701

R128 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 996510005701

R129 061G0402151 RST CHIP 150R 1/16W 5% 996510005704

R131 061G0402391 RST CHIPR 390 OHM +-5% 1/16W 996510005708

R132 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 996510005701

http://www.wjel.net

R133 061G0402151 RST CHIP 150R 1/16W 5% 996510005704

R134 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 996510005701

R135 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 996510005701

R136 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 996510005701

R138 061G0402151 RST CHIP 150R 1/16W 5% 996510005704

R139 061G0402750 RST CHIPR 75 OHM +-5% 1/16W 996510005713

R140 061G0402750 RST CHIPR 75 OHM +-5% 1/16W 996510005713

R141 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W 996510005707

R142 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W 996510005707

84

HUDSON 8

R144 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W 996510005702

R201 061G0402105 RST CHIPR 1MOHM +-5% 1/16W 996510005703

R202 061G0402103 RST CHIPR 10 KOHM -5% 1/16W 996500044984

R206 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W 996510005711

R211 061G0402000 RST CHIPR 0 OHM +-5% 1/16W 996510005699

R213 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W 996510005711

R214 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W 996510005711

R215 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W 996510005711

R218 061G0402220 RST CHIPR 22 OHM +-5% 1/16W 996510005705

R220 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 996510005701

R221 061G0402471 RST CHIPR 470 OHM +-5% 1/16W 996510005710

R225 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 996510005701

R228 061G0402000 RST CHIPR 0 OHM +-5% 1/16W 996510005699

R234 061G0402221 RST CHIPR 220 OHM +-5% 1/16W 996510005706

R301 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W 996510005702

R302 061G1206331 RST CHIPR 330 OHM +-5% 1/4W 996510005714

R303 061G1206331 RST CHIPR 330 OHM +-5% 1/4W 996510005714

R304 061G0402103 RST CHIPR 10 KOHM -5% 1/16W 996500044984

R305 061G0402103 RST CHIPR 10 KOHM -5% 1/16W 996500044984

R307 061G0402513 RST CHIP 51K 1/16W 5% 996510005712

R308 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W 996510005711

R309 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 996510005701

R311 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W 996510005702

R312 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W 996510005702

R314 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W 996510005711

R316 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W 996510005711

R402 061G0402392 RST CHIP 3.9K 1/16W 5% 996510005709

R403 061G0402392 RST CHIP 3.9K 1/16W 5% 996510005709

R404 061G0402000 RST CHIPR 0 OHM +-5% 1/16W 996510005699

R407 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 996510005701

R410 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 996510005701

http://www.wjel.net

R412 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W 996510005702

R415 061G0402103 RST CHIPR 10 KOHM -5% 1/16W 996500044984

R416 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 996510005701

R417 061G0402103 RST CHIPR 10 KOHM -5% 1/16W 996500044984

R418 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 996510005701

R421 061G0402103 RST CHIPR 10 KOHM -5% 1/16W 996500044984

R431 061G0402000 RST CHIPR 0 OHM +-5% 1/16W 996510005699

R432 061G0402000 RST CHIPR 0 OHM +-5% 1/16W 996510005699

U203 705GQ756006 MCU ASS'Y 996510005729

U204 056G1133 56 M24C16-WMN6TP 996500037783

U301 056G 563 52 IC AP1117D33LA TO252-3L ATC 996510005697

U304 056G 56327A IC AP1117E18LA SOT223-3L 996510005698

X201 093G 2251B MXS12.000AC20F-KAB5 HC-49/US 996510005696

CN101 088G 35315F H D-SUB 15PIN 996500035960

CN102 088G 35424F N DVI 24PIN CONN F 996510005695

FB101 071G 56D121 B201209D121TT 996510005724

FB102 071G 56D121 B201209D121TT 996510005724

FB103 071G 59B300 K BEAD 30 996500036934

FB104 071G 59B300 K BEAD 30 996500036934

FB105 061G0805000 0 OHM 1/10W 996500042284

FB106 071G 59B300 K BEAD 30 996500036934

FB107 071G 56D121 B201209D121TT 996510005724

FB202 071G 56D121 JA CHIP BEAD 120 OHM 0805 1A 996510005725

FB203 071G 56D121 B201209D121TT 996510005724

HUDSON 8

85

FB204 071G 56D121 B201209D121TT 996510005724

FB205 071G 56D121 B201209D121TT 996510005724

FB206 071G 56D121 JA CHIP BEAD 120 OHM 0805 1A 996510005725

FB207 071G 56D102 MA CHIP HEAD 1000OHM 0805 1A 996510005723

ZD101 093G 39S 24 T RLZ 5.6B LLDS 996500036079

ZD102 093G 39S 24 T RLZ 5.6B LLDS 996500036079

ZD103 093G 39S 24 T RLZ 5.6B LLDS 996500036079

ZD104 093G 39S 24 T RLZ 5.6B LLDS 996500036079

ZD105 093G 39S 24 T RLZ 5.6B LLDS 996500036079

ZD106 093G 39S 24 T RLZ 5.6B LLDS 996500036079

ZD107 093G 39S 24 T RLZ 5.6B LLDS 996500036079

ZD201 093G 39G586 RLZ2.2B 996510005727

FQ023 AUPC7QB1 AUIDO BOARD 996510005730

C601 065G0603101 31 CER1 0603 NP0 50V 100P PM5 R 996500037323

C602 067G215S102 3N KZE16VB1000-M-L10*20 996500037315

C603 065G0805105 37 CHIP 1UF 50V Y5V 996500037327

http://www.wjel.net

C604 065G0603101 31 CER1 0603 NP0 50V 100P PM5 R 996500037323

C605 067G215V221 4H 220UF 996510005731

C606 065G0603101 31 CER1 0603 NP0 50V 100P PM5 R 996500037323

C607 065G0603103 32 0.01UF -10% 50V X7R 996500036004

C608 065G0603474 17 CHIP CAP.CER 0.47UF -20% -80% 996500037326

C609 065G0603474 17 CHIP CAP.CER 0.47UF -20% -80% 996500037326

C610 065G0603474 17 CHIP CAP.CER 0.47UF -20% -80% 996500037326

C611 065G0603104 12 CER2 0603 X7R 16V 100N PM10 R 996500036918

C612 065G0603474 17 CHIP CAP.CER 0.47UF -20% -80% 996500037326

86

HUDSON 8

C613 065G0603474 17 CHIP CAP.CER 0.47UF -20% -80% 996500037326

C614 065G0603472 32 CHIP 4700PF 50V X7R 996500037325

C615 065G0805105 37 CHIP 1UF 50V Y5V 996500037327

C616 065G0603224 17 CAP:CER 0.22UF-20%-80% 10V SM 996500037324

C617 065G0603474 17 CHIP CAP.CER 0.47UF -20% -80% 996500037326

C618 065G0805105 37 CHIP 1UF 50V Y5V 996500037327

C619 065G0603474 17 CHIP CAP.CER 0.47UF -20% -80% 996500037326

C620 065G0805105 37 CHIP 1UF 50V Y5V 996500037327

C621 065G0603474 17 CHIP CAP.CER 0.47UF -20% -80% 996500037326

C622 067G215V221 4H 220UF 996510005731

C623 065G0603101 31 CER1 0603 NP0 50V 100P PM5 R 996500037323

C624 065G0603101 31 CER1 0603 NP0 50V 100P PM5 R 996500037323

C625 065G0603103 32 0.01UF -10% 50V X7R 996500036004

C626 065G0805105 37 CHIP 1UF 50V Y5V 996500037327

C627 065G0603101 31 CER1 0603 NP0 50V 100P PM5 R 996500037323

R601 061G0603153 RST CHIPR 15KOHM -5% 1/10W 996500042397

R602 061G0603000 RST CHIPR 0 OHM -5% 1/10W 996500042212

R603 061G0603103 RST CHIPR 10 KOHM -5% 1/10W 996500042214

R604 061G0603102 RST CHIP 1K 1/10W 5% 996500040053

R605 061G0603333 RST CHIPR 33KOHM -5% 1/10W 996500042254

R606 061G0603104 RST CHIPR 100 KOHM -5% 1/10W 996500042215

R607 061G0603683 RST CHIPR 68 KOHM -5% 1/10W 996500042256

R608 061G0603512 RST CHIPR 5.1 KOHM -5% 1/10W 996500042255

R609 061G0603104 RST CHIPR 100 KOHM -5% 1/10W 996500042215

R610 061G0603103 RST CHIPR 10 KOHM -5% 1/10W 996500042214

R611 061G0603103 RST CHIPR 10 KOHM -5% 1/10W 996500042214

R612 061G0603000 RST CHIPR 0 OHM -5% 1/10W 996500042212

R613 061G0603104 RST CHIPR 100 KOHM -5% 1/10W 996500042215

R614 061G0603183 RST CHIPR 18 KOHM -5% 1/10W 996500042253

R615 061G0603153 RST CHIPR 15KOHM -5% 1/10W 996500042397

R616 061G0603512 RST CHIPR 5.1 KOHM -5% 1/10W 996500042255

http://www.wjel.net

R617 061G0603102 RST CHIP 1K 1/10W 5% 996500040053

R618 061G0603000 RST CHIPR 0 OHM -5% 1/10W 996500042212

U601 056G 616 24 TPA6030A4PWPRG4 996500037316

CN601 088G 30214K PHONE JACK 5PIN 996500037328

FB601 071G 56K121 CHIP BEAD 996500035993

FB602 071G 56K121 CHIP BEAD 996500035993

FB603 071G 56K121 CHIP BEAD 996500035993

FB604 071G 56K121 CHIP BEAD 996500035993

FB605 071G 56K121 CHIP BEAD 996500035993

FB606 071G 56K121 CHIP BEAD 996500035993

FB607 071G 56K121 CHIP BEAD 996500035993

FB608 071G 56K121 CHIP BEAD 996500035993

ZD601 093G 6021652T DIODE 1N5819 WILLAS 996500037317

FQ024 KEPC7QBB KEY BOARD 996510005732

SW2 077G 600 1GCJ TACT SWITCH 996510002796

SW3 077G 600 1GCJ TACT SWITCH 996510002796

SW4 077G 600 1GCJ TACT SWITCH 996510002796

SW5 077G 600 1GCJ TACT SWITCH 996510002796

SW6 077G 600 1GCJ TACT SWITCH 996510002796

SW7 077G 600 1GCJ TACT SWITCH 996510002796

C101 065G0603103 32 0.01UF -10% 50V X7R 996500036004

C102 065G0603103 32 0.01UF -10% 50V X7R 996500036004

C103 065G0603103 32 0.01UF -10% 50V X7R 996500036004

C104 065G0603103 32 0.01UF -10% 50V X7R 996500036004

HUDSON 8

87

C105 065G0603103 32 0.01UF -10% 50V X7R 996500036004

C106 065G0603103 32 0.01UF -10% 50V X7R 996500036004

C107 065G0603103 32 0.01UF -10% 50V X7R 996500036004

C108 065G0603103 32 0.01UF -10% 50V X7R 996500036004

C109 065G0603102 32 1000PF -10% 50V X7R 996500037517

C110 065G0603102 32 1000PF -10% 50V X7R 996500037517

C111 065G0603102 32 1000PF -10% 50V X7R 996500037517

L102 061G0603101 RST CHIPR 100 OHM -5% 1/10W 996500042213

L103 061G0603101 RST CHIPR 100 OHM -5% 1/10W 996500042213

LED1 081G 12 1 GP GP32032ME 996500036001

R101 061G0603101 RST CHIPR 100 OHM -5% 1/10W 996500042213

R102 061G0603430 1F RST CHIPR 4.3 KOHM +-1% 1/10W 996510005736

R103 061G0603910 0F RST CHIPR 910 OHM +-1% 1/10W 996510005737

R104 061G0603240 1F RST CHIPR 2.4 KOHM +-1% 1/10W 996510005735

R106 061G0603430 1F RST CHIPR 4.3 KOHM +-1% 1/10W 996510005736

R107 061G0603910 0F RST CHIPR 910 OHM +-1% 1/10W 996510005737

http://www.wjel.net

R108 061G0603240 1F RST CHIPR 2.4 KOHM +-1% 1/10W 996510005735

R109 061G0603000 RST CHIPR 0 OHM -5% 1/10W 996500042212

R110 061G0603101 RST CHIPR 100 OHM -5% 1/10W 996500042213

CN101 033G380213H WAFER 13P RIGHT ANGLE PITCH 996510005734

CN102 088G 30237B PHONE JACK 996500037333

CN103 033G3802 2 BH F CONNECTOR 996510005733

CN104 033G3802 2 BH F CONNECTOR 996510005733

FQ025 PWPC942GR1P POWER ASSY 996500041051

C801 065G 6J1006ET 10PF 5% SL 6KV 996500036942

88

HUDSON 8

C802 065G 3J5096ET 5PF 5% SL 3KV 996500036941

C803 065G 3J5096ET 5PF 5% SL 3KV 996500036941

C806 065G 6J1006ET 10PF 5% SL 6KV 996500036942

C807 065G 3J5096ET 5PF 5% SL 3KV 996500036941

C808 065G 3J5096ET 5PF 5% SL 3KV 996500036941

C811 065G0805105 22 CHIP 1UF 25V X7R 0805 996500036073

C812 065G0805104 22 0.1UF -10% 25V X7R 080 996500036040

C813 065G0805561 31 CHIP 560PF 50V NPO 0805 996500036997

C819 065G0805103 22 CHIP 0.01uF 25V X7R 0805 996500036039

C820 067G215D471 4K ED 470UF 25V 996500036007

C821 065G0805105 22 CHIP 1UF 25V X7R 0805 996500036073

C822 065G0805222 32 CHIP 2200PF 25V X7R 0805 996500037334

C823 065G0805222 32 CHIP 2200PF 25V X7R 0805 996500037334

C831 065G0805331 32 CHIP 330P 50V X7R 0805 996500036994

C832 065G0805104 22 0.1UF -10% 25V X7R 080 996500036040

C838 065G0805102 31 1000PF 50V NPO 996500036991

C840 067G215D471 4K ED 470UF 25V 996500036007

C841 065G0805105 22 CHIP 1UF 25V X7R 0805 996500036073

C842 065G0805222 32 CHIP 2200PF 25V X7R 0805 996500037334

C843 065G0805222 32 CHIP 2200PF 25V X7R 0805 996500037334

C846 065G0805105 22 CHIP 1UF 25V X7R 0805 996500036073

C847 065G0805223 22 CHIP 0.022UF 25V X7R 0805 996500036043

C858 065G0805391 31 CHIP 390PF 50V 996500036996

C860 065G0805221 22 CHIP 220PF 25V X7R 0805 996500036993

C861 065G0805102 31 1000PF 50V NPO 996500036991

C865 065G0805333 32 CHIP 0.033UF 50V 996500036995

C874 065G0805105 22 CHIP 1UF 25V X7R 0805 996500036073

C880 065G0805104 22 0.1UF -10% 25V X7R 080 996500036040

C881 065G0805103 22 CHIP 0.01uF 25V X7R 0805 996500036039

C883 065G0805103 22 CHIP 0.01uF 25V X7R 0805 996500036039

C885 065G0805103 22 CHIP 0.01uF 25V X7R 0805 996500036039

http://www.wjel.net

C887 065G0805103 22 CHIP 0.01uF 25V X7R 0805 996500036039

C900 065G305M1022BP Y2 1000PF M 250VAC Y5P 996500036943

C901 065G305M1022BP Y2 1000PF M 250VAC Y5P 996500036943

C907

C908 063G 10747410S Film capacitor 996500037794

C912 065G305M2222BP 2200PF -20% 996500036944

C913 065G0805104 22 0.1UF -10% 25V X7R 080 996500036040

C914 065G0805105 22 CHIP 1UF 25V X7R 0805 996500036073

C915 065G0805123 22 CHIP 12nF 25V X7R 0805 996500036992

67G 40Z10115K

CAP 105℃ 100UF M 450V

996500036086

C917 065G0805334 22 0.33UF -10% 25V X7R 0805 996500036074

C920 065G 1K102 5T 1000PF/1KV 996500036999

C927 067G 3056804KT ELCAP 68UF M 25V 105_KINGNIC 996500037001

C931 065G517K332 2T 3.3NF 500V 996500037000

C932 067G215S102 4K ED1000UF 25V 996500036946

C933 067G215S102 4K ED1000UF 25V 996500036946

C936 067G215D2222KV 105_2200UF M 10V 996500036945

C936 067G215D222 2K 105 2200UF M 10V 996500040057

C941 065G0805562 21 5600PF/25V/NPO/J 996500036998

C951 065G0805104 22 0.1UF -10% 25V X7R 080 996500036040

C952 067G215B2214KT LOW E,S,R 220UF -20% 25V 996500036076

C955 065G0805104 22 0.1UF -10% 25V X7R 080 996500036040

C956 067G215B2214KT LOW E,S,R 220UF -20% 25V 996500036076

D831 093G 64 33 DIO SIG SM BAV99 (PHSE)R 996500035994

D833 093G 64 42 PP BAV70 SOT-23 996500035995

HUDSON 8

89

D851 093G 64 33 DIO SIG SM BAV99 (PHSE)R 996500035994

D853 093G 64 42 PP BAV70 SOT-23 996500035995

D881 093T 64 44 S LL4148WP 996510005242

D883 093T 64 44 S LL4148WP 996510005242

D885 093T 64 44 S LL4148WP 996510005242

D887 093T 64 44 S LL4148WP 996510005242

D901 093G 6026T52T RECTIFIER DIODE FR107 996500036030

D919 093G 6038T52T FR103 996500036095

D926 093G 6038T52T FR103 996500036095

D926 093G 64 5152T RGP10-DO-204AL 996500040067

D931 093G 60901 MBRF10H100CT ITO-220AB 996500040064

D931 093G 60267 SP10100 996500036957

D935 093G 60240 YG802C06R TO-220F15 996500037337

D935 093G1506 2 FMW-2156 996500036958

D935 093G 60526

http://www.wjel.net

SCHOTTKY MBRF1060CT

996510002528

ITO-220AB

F901 084G 55 7 GP FUSE 3.15A 250V 996500037006

F902 084G 55 4 FOSE 382-5A 250V SICKMANN 996500037005

L901 073G 174 65 LS LINE FILTER BY LISHIN 996500036025

L901 073G 174 65 H LINE FILTER 996500036088

L902 071G 55 24 FERRITE BEAD 996500036947

L903 071G 55 24 FERRITE BEAD 996500036947

L951 073G 253902 YS

L951 073G 253902 S IND CHOKE 0.8uH TAICHANG 996500040059

IND CHOKE 0.8uH MIN TOP

996500040060

NATION

90

HUDSON 8

L951 073G 253902 H IND CHOKE 0.8uH MIN DADONG 996500040058

L951 073G 253902 T CKOLE COIL 0.8uH 996500036948

L955 073G 253902 T CKOLE COIL 0.8uH 996500036948

L955 073G 253902 YS

L955 073G 253902 S IND CHOKE 0.8uH TAICHANG 996500040059

L955 073G 253902 H IND CHOKE 0.8uH MIN DADONG 996500040058

Q801 057G 759 2 RK7002 996500036033

Q821 057G 763 14 AM9945N 996500036100

Q821 057G 600 55 P5506 HVG SO-8 996500036032

Q821 057G 763 6 AO4828L 996500039748

Q841 057G 763 6 AO4828L 996500039748

Q841 057G 763 14 AM9945N 996500036100

Q841 057G 600 55 P5506 HVG SO-8 996500036032

Q871 057G 759 2 RK7002 996500036033

Q873 057G 760 4B PDTA144WK SOT346 996500036962

Q874 057G 417 12 T KEC 2N3904S-RTK/PS 996500036961

Q880 057G 759 2 RK7002 996500036033

Q881 057G 759 2 RK7002 996500036033

IND CHOKE 0.8uH MIN TOP

996500040060

NATION

Q883 057G 759 2 RK7002 996500036033

Q885 057G 759 2 RK7002 996500036033

Q886 057G 759 2 RK7002 996500036033

Q901 057G 667 22 FQPF8N80C 996500040063

Q901 057G 600 35 STP8NK80ZFP 996500036959

R801 061L0805103 CHIPR 10K OHM -5% 1/10W 996500036964

R802 061L0805104 CHIPR 100K OHM -5% 1/10W 996500036965

R804 061L0805103 CHIPR 10K OHM -5% 1/10W 996500036964

R807 061L0805103 CHIPR 10K OHM -5% 1/10W 996500036964

R811 061L0805335 3.3M 0805 996500036978

R812 061L0805624 CHIP 620KOHM 5% 0805 1/8W 996500036980

R813 061L0805330 2F CHIP 33KOHM 1/8W 1% 996500036975

R815 061L0805303 CHIP 30K OHM 1/8W 996500036974

R816 061L0805203 CHIPR 20KOHM -5% 1/8W 996500036972

R819 061L0805105 CHIP 1M OHM 5% 1/8W 996500036013

R822 061L0805100 CHIPR 10 OHM -5% 1/10W 996500036012

http://www.wjel.net

R823 061L0805100 CHIPR 10 OHM -5% 1/10W 996500036012

R825 061L0805752 CHIP 7.5K OHM 1/10W 996500036981

R829 061L0805000 CHIPR 0OHM -5% 1/10W 996500035984

R831 061L0805102 CHIPR 1K OHM -5% 1/10W 996500036963

R833 061L0805122 1.2KOHM -5%,1/8W,0805 996500036967

R835 061L0805100 2F CHIP 10K OHM 1/8W 1% 996500036020

R836 061L0805100 2F CHIP 10K OHM 1/8W 1% 996500036020

R837 061L0805752 CHIP 7.5K OHM 1/10W 996500036981

R839 061G212Y625 KT MGFR 6.2MOHM -5% 1/2W 996500036083

R842 061L0805100 CHIPR 10 OHM -5% 1/10W 996500036012

R843 061L0805100 CHIPR 10 OHM -5% 1/10W 996500036012

R849 061L0805000 CHIPR 0OHM -5% 1/10W 996500035984

R851 061L0805102 CHIPR 1K OHM -5% 1/10W 996500036963

R853 061L0805122 1.2KOHM -5%,1/8W,0805 996500036967

R855 061L0805100 2F CHIP 10K OHM 1/8W 1% 996500036020

R856 061L0805100 2F CHIP 10K OHM 1/8W 1% 996500036020

R859 061G212Y625 KT MGFR 6.2MOHM -5% 1/2W 996500036083

R861 061G203S10452T RST MFLM 100K 0.6W 1% 996510005738

R861 061G 20010452T 100K OHM 1/4W 1% 996500036989

R863 061G203S33352T RST MFLM 33K 0.6W 1% 996500045324

HUDSON 8

91

R863 061G 20033352T 33KOHM 1% 1/4W 996500036990

R865 061L0805232 0F CHIP 232OHM 996500036973

R871 061G 17210352T CFR 10KOHM -5% 1/4W 996500036988

R872 061L0805104 CHIPR 100K OHM -5% 1/10W 996500036965

R873 061L0805202 CHIP 2KOHM 1/8W 996500036971

R874 061L0805331 CHIP 330 OHM 5% 1/10W 996500036976

R880 061L0805103 CHIPR 10K OHM -5% 1/10W 996500036964

R881 061L0805104 CHIPR 100K OHM -5% 1/10W 996500036965

R882 061L0805102 CHIPR 1K OHM -5% 1/10W 996500036963

R883 061L0805104 CHIPR 100K OHM -5% 1/10W 996500036965

R884 061L0805102 CHIPR 1K OHM -5% 1/10W 996500036963

R885 061L0805104 CHIPR 100K OHM -5% 1/10W 996500036965

R886 061L0805102 CHIPR 1K OHM -5% 1/10W 996500036963

R887 061L0805104 CHIPR 100K OHM -5% 1/10W 996500036965

R888 061L0805102 CHIPR 1K OHM -5% 1/10W 996500036963

R900 061L1206684 CHIPR 680K OHM -5% 1/8W 996500036024

http://www.wjel.net

R901 061L1206684 CHIPR 680K OHM -5% 1/8W 996500036024

R902 061L1206684 CHIPR 680K OHM -5% 1/8W 996500036024

R904 061L1206155 1.5M/0805 996500036983

R905 061G152M104 64 100KOHM 5% 2W 996500036939

R907 061L1206103 CHIP 10KOHM 5% 1/4W 996500036016

R910 061L1206155 1.5M/0805 996500036983

R912 061L0805105 CHIP 1M OHM 5% 1/8W 996500036013

R914 061L0805124 1F CHIP 1.24K OHM 1/10W 1% 996500036969

R915 061G 17210052T 100HM 5% 1/4W 996500036987

92

HUDSON 8

R916 061L0805152 CHIPR 1.5K OHM -5% 1/10W 996500036970

R917 061L0805333 CHIP 33KOHM 1% 1/8W 996500036977

R918 061L1206000 CHIPR 0 OHM -5% 1/8W 996500036067

R920 061G152M208 64 0.20 OHM 2W 996500036940

R923 061L0805123 CHIP 12KOHM 1/8W 996500036968

R926 061L1206000 CHIPR 0 OHM -5% 1/8W 996500036067

R927 061L1206472 CHIP 4.7KOHM 5% 1/4W 996500036986

R931 061L1206229 CHIP 2.2OHM 5% 1/8W 996500036985

R932 061L1206229 CHIP 2.2OHM 5% 1/8W 996500036985

R937 061L1206182 CHIP 1.8KOHM 996500036984

R941 061L0805102 CHIPR 1K OHM -5% 1/10W 996500036963

R943 061L0805510 1F CHIP 5.1K OHM 1/10W 1% 996500036979

R944 061L0805910 1F CHIP 9.1K OHM 1/10W 1% 996500036982

R945 061L0805910 1F CHIP 9.1K OHM 1/10W 1% 996500036982

R946 061L0805110 3F 110KOHM 1% 1/10W 996500036966

R952 061G 17210052T 100HM 5% 1/4W 996500036987

R954 061L0805100 CHIPR 10 OHM -5% 1/10W 996500036012

T901 080GL17T900 L XFMR FOR POWER LITAI 996500040061

T901 080GL17T900 N XFMR FOR POWER YUVA 996500040062

T901 080GL17T900 T X'FMR SRW28LEC-T93H016 996500036950

T901 S80GL17T900V XFMR FOR POWER LITAI 996500040065

U811 056G 608 10 0Z9938 996500036059

BD901 093G 50460 16 U4KB80R 996500036951

BD901 093G 50460 10 GBU405 996500040054

FB901 071G 55901 FERRITE CORE 2.5*3*1 BF30TA-2 996500040066

FB901 071G 55 29 FERRITE BEAD 996500036053

FB902 071G 55 23 BEAD 996510005739

FB902 071G 55 23 S BEAD 996500037004

FB903 071G 55 23 S BEAD 996500037004

FB903 071G 55 23 BEAD 996510005739

FB905 071G 55 23 S BEAD 996500037004

http://www.wjel.net

FB905 071G 55 23 BEAD 996510005739

IC901 056G 564911 IC TEA1532AT S08 996500036960

IC902 056G 139 3A PC123Y22FZOF 996500036055

IC902 056G 139 3B PC123 Y82FZ0F 996500040055

IC902 056G 139 5A TCET1103G 996500040056

IC941 056G 158 4 T H431BA 996500040068

IC941 056G 158 10 T IC AZ431AZ-AE1 TO-92 BY AAC 996510002780

NR901 061G 5810T 8 OHM 4A NTCR BY THINKING 996500036938

PT801 080GL19T 8DN1 X'FMR DARFONTK.2006M.101 996500036093

PT802 080GL19T 8DN1 X'FMR DARFONTK.2006M.101 996500036093

RJ801 061L0805000 CHIPR 0OHM -5% 1/10W 996500035984

RJ804 061L1206000 CHIPR 0 OHM -5% 1/8W 996500036067

RJ827 061L0805000 CHIPR 0OHM -5% 1/10W 996500035984

ZD874 093G 39S 24 T RLZ 5.6B LLDS 996500036079

ZD951 093G 39A3552T ZENER DIODE P6KE8.2A ZOWIE 996500037007

ZD951 093G 3990352T ZD P6KE8.2A 996500037335

ZD975 093G 39S 25 T RLZ5.1B LLDS 996500037002

FQ026 USB7QB1 USB BOARD 996510005635

HUDSON 8

93

http://www.wjel.net

94

HUDSON 8

17. Different Parts List

Diversity of 190B8CS/00 compared with 190B8CB/69

Location

Part No. Description Philips 12NC Part No. Description Philips 12NC

E089C 089G404A18N YH POWER CABLE 089G410A18N IS POWER CORD 996500037340

FQ005 705GQ9K0S34VO1 BASE ASSY 705GQ9K0S34VB1 BASE ASSY 996500038119

FQ007 P33G4984 VPB1C CONTORL BUTTON P33G4984 VQB1C CONTORL BUTTON 996510005686

FQ010 P34G1865 VOC1T BEZEL(19") P34G1865 VBC1T BEZEL(19") 996510005687

FQ011 P34G1866 VO 1T MID_COVER P34G1866 VB 1T MID_COVER 996500038126

FQ012 P34G1867 VB 1T 1 REAR COVER P34G1867 VB 1T 2 REAR COVER 996510005688

FQ013 P37G 567 2 VO HINGE P37G 567 2 VB HINGE

U203 705GQ756005 MCU ASS'Y 705GQ756006 MCU ASS'Y 996510005729

Diversity of 190B8CB/27 compared with 190B8CB/69

Location

Part No. Description Philips 12NC Part No. Description Philips 12NC

FQ027 089G1748HAA AC DVI CABLE

E089C 089G402A18N YH POWER CABLE 089G410A18N IS POWER CORD 996500037340

FQ004 095G801413D643 WIRE HARNESS 095G801413D641 WIRE HARNESS 996510005681

190B8CS/00 190B8CB/69

190B8CB/27 190B8CB/69

FQ017 Q40G 19N81321A RATING LABEL Q40G 19N81318A RATING LABEL

LED1 081G 12 1F GP LED 081G 12 1 GP GP32032ME 996500036001

CN102 088G 30237B CL PHONE JACK 3.5mm BLACK 088G 30237B PHONE JACK 996500037333

http://www.wjel.net

Diversity of 190B8CB/75 compared with 190B8CB/69

Location

Part No. Description Philips 12NC Part No. Description Philips 12NC

E089C 089G412A18NIS3 POWER CORD WALL-OUT 996500037345 089G410A18N IS POWER CORD 996500037340

LED1 081G 12 1F GP LED GP32032M/R003-ZY-33 996500036001 081G 12 1 GP GP32032ME 996500036001

Diversity of 190B8CS/27 compared with 190B8CB/69

190B8CB/75 190B8CB/69

HUDSON 8

95

Location

Part No. Description Philips 12NC Part No. Description Philips 12NC

FQ027 089G1748HAA AC DVI CABLE

E089C 089G402A18N YH POWER CABLE 089G410A18N IS POWER CORD 996500037340

FQ004 095G801413D643 WIRE HARNESS 095G801413D641 WIRE HARNESS 996510005681

FQ005 705GQ9K0S34VO1 BASE ASSY 705GQ9K0S34VB1 BASE ASSY 996500038119

FQ007 P33G4984 VPB1C CONTORL BUTTON P33G4984 VQB1C CONTORL BUTTON 996510005686

FQ010 P34G1865 VOC1T BEZEL(19") P34G1865 VBC1T BEZEL(19") 996510005687

FQ011 P34G1866 VO 1T MID_COVER P34G1866 VB 1T MID_COVER 996500038126

FQ012 P34G1867 VB 1T 1 REAR COVER P34G1867 VB 1T 2 REAR COVER 996510005688

FQ013 P37G 567 2 VO HINGE P37G 567 2 VB HINGE

FQ017 Q40G 19N81321A RATING LABEL Q40G 19N81318A RATING LABEL

LED1 081G 12 1F GP LED 081G 12 1 GP GP32032ME 996500036001

CN102 088G 30237B CL PHONE JACK 3.5mm BLACK 088G 30237B PHONE JACK 996500037333

190B8CS/27 190B8CB/69

http://www.wjel.net

96

HUDSON 8

18. General Product Specification

CONTENTS

1 FOREWORD

2 PRODUCT PROFILE

2.1 LCD

2.2 SCANNING FREQUENCIES

2.3 AMBIENT TEMPERATURE: 0 °C - 35 °C

3 ELECTRICAL CHARACTERISTICS

3.1 INTERFACE SIGNALS

3.2 INTERFACE

3.3 TIMING REQUIREMENT

3.4 HORIZONTAL SCANNING

3.5 VERTICAL SCANNING

3.6 POWER INPUT CONNECTION

3.7 POWER MANAGEMENT

3.8 ANALOG DISPLAY IDENTIFICATION

3.9 DVI-D DISPLAY IDENTIFECATION

3.10 USB PLUG SUPPORT

3.11 DDC/CI SUPPORT

3.12 EDID

3.13 HOT-KEY DEFINITION

3.14 SMART BRIGHT-DYNAMIC BRIGHTNESS CONTROL (DBC) (NOT REQUIRED FOR THIS PRODUCT)

3.15 SMART CONTRAST (DYNAMIC CONTRAST RATIO)

3.16 SMART IMAGE

3.17 SMART RESPONSE (NOT REQUIRED FOR THIS PRODUCT)

4 VISUAL CHARACTERISTICS

4.1 TEST CONDITIONS

4.2 BRIGHTNESS

4.3 IMAGE SIZE

4.4 BRIGHTNESS UNIFORMITY

4.5 CHECK CROSS TALK (S)

4.6 WHITE COLOR ADJUSTMENT

http://www.wjel.net

5 MECHANICAL CHARACTERISTICS

5.1 COSMETIC PHILIPS ID

5.2 MECHANICAL DATAFILES PROE FILES REQUIRED

5.3 LOCATION OF PHILIPS LOGO PER PHILIPS MAKE-UP SHEET

5.4 GAP BETWEEN PANEL AND FRONT BEZEL <0.8 (TYP) MM

5.5 LOCATION OF CONTROL ICONS PER PHILIPS GRAPHIC SHEET

5.6 COLOR FOR RESIN/PAINT PER PHILIPS MAKE-UP SHEET

5.7 RESINS

5.8 IF RAINT IS USED

5.9 PLASITIC MOLD TOOLING

5.10 PLASTICS FLAMMABILITY

5.11 TEXTURE/GLOSSING OF HOUSING

5.12 TILT AND SWIVEL BASE

5.13 KENSINGTON LOCK

5.14 LABEL

5.15 PRODUCT DIMENSION/WEIGHT (PREFER TO SHT 191)

5.16 TRANSPORTATION

5.17 PALLET/CONTAINER LOADING

6. ENVIRONMENTAL CHARACTERISTICS

6.1 SUSCEPTIBILITY OF DISPLAY TO EXTERNAL ENVIRONMENT

6.2 TRANSPORTATION TESTS

6.3 DISPLAY DISTURBANCES FROM EXTERNAL ENVIRONMENT

6.4 DISPLAY DISTURBANCES TO EXTERNAL ENVIRONMENT

7. RELIABILITY

7.1 MEAN TIME BETWEEN FAILURES

8. QUALITY ASSURANCE REQUIREMENTS

8.1 ACCEPTANCE TEST

9. PHILIPS’ FLAT PANEL MONITORS PIXEL DEFECT POLICY

10 REGULATORY COMPLIANCE

10.1 WORLDWIDE REGULATORY

10.2 EMC REQUIREMENTS

10.3 ROHS

10.4 WEEE

10.5 ONGOING REGULATORY

http://www.wjel.net

98

1. FOREWORD

This specification describes a 19" SXGA multi-scan color TFT LCD monitor with maximum resolution up to 1280 x

1024 /75 Hz non-interlaced. All optical characteristics (including WHITE-D, Brightness, and so on) are determined

according to panel specification after warming up approximate 30 minutes that brightness stability is optimal, and

follow strictly after panel specification.

2. PRODUCT PROFILE

This display monitor unit is a color display monitor enclosed in PHILIPS styling cabinet which has an integrated tilt/

high adjustment base.

2.1 LCD

Priority : 1. LPL/HSD

Type : TN

Supplier offer the Panel specification.

Panel incoming specification : Follow Philips’ specification.

HUDSON 8

LPL

Type NR. : LM190E08-TLL1/TLL4 (TN)

Resolution : 1280x1024 (SXGA)

Outside dimensions :

Pitch ( mm ) : 0.294 mm x 0.294 mm

Color pixel arrangement : RGB vertical stripes

Display surface : low reflection, antiglare with hard coating

Color depth : 16.7 M colors (6 bits + Hi FRC)

Backlight : CCFL edge light system

Active area(WxH) :

View angle (CR>10 ) : 160/160 (typ) for H/V

Contrast ratio :800:1 (typ)

White luminance : 300 nit (typ)

Color gamut :72% (typ)

Gate IC :

Source IC :

Response time : 5 ms

HSD

Type NR. : HSD HSD190MEN3-A (TN)

http://www.wjel.net

Resolution : 1280x1024 (SXGA)

Outside dimensions :

Pitch ( mm ) : 0.294 mm x 0.294 mm

Color pixel arrangement : RGB vertical stripes

Display surface : low reflection, antiglare with hard coating

Color depth : 16.7 M colors (8 bits 6 bits + Hi FRC)

Backlight : CCFL edge light system

Active area(WxH) :

View angle (CR>10) : >=160/160 (typ) for H/V

Contrast ratio : >=1000:1 (typ)

White luminance : >=300 nit (typ)

Color gamut : >=72% (typ)

Gate IC :

Source IC :

Response time : 5 ms

2.2 Scanning frequencies

Hor. : 30 – 83 K Hz

Ver.: 56 - 76 Hz

Video dot rate: 165 MHz

Power input: 90-264 V AC, 50/60 ± 2 Hz

Power consumption : : 36 W typical

Functions:

(1)D-SUB analog R/G/B separate inputs, H/V sync separated, Composite (H+V) TTL level, SOG sync

(2) DVI digital Panel Link TMDS inputs

2.3 Ambient temperature: 0 °C - 40 35°C

3. Electrical characteristics

3.1 Interface signals

1). D-Sub Analog

Input signal : Video, Hsync., Vsync

Video : 0.7 Vp-p, input impedance, 75 ohm @DC

Sync. : Separate sync TTL level , input impedance 2.2k ohm terminate

Hsync Positive/Negative

Vsync Positive/Negative

Composite sync TTL level, input impedance 2.2k ohm terminate (Positive/Negative)

Sync on green video 0.3 Vp-p Negative (Video 0.7 Vp-p Positive)

2). DVI-D Digital

Input signal: Single TMDS link (Three channels: RX0-/+, RX1-/+, RX2-/+)

3). Audio (Not required in this product)

Input signal: 1000 mVrms

Loudspeaker (Impedance: 16 Ohm +/-15%): 21.5W+21.5W stereo for RMS Power

Frequency range: 360 450Hz - 20KHz

http://www.wjel.net

Headphone connection will mute speakers

4). USB PLUG 2.0 (Not required in this product)

Input signal: Upstream input (VBUS, D+, D-, GND) via USB-B receptacle.

Output signal: Downstream output (VBUS, D+, D-, GND) through USB-A receptacle

100

3.2 Interface

3.2.1 D-Sub Cable

Length : 1.8 M +/- 50 mm

Connector type : D-Sub male with DDC2B pin assignments.

Blue connector thumb-operated jack screws

HUDSON 8

Pin No. Signal

1 Red
2 Green/ SOG
3 Blue
4 Sense (GND)
5 Cable Detect (GND)
6 Red GND
7 Green GND
8 Blue GND

9 DDC +3.3V or +5V
10 Logic GND
11 Sense (GND)
12 Bi-directional data
13 H/H+V sync
14 V-sync
15 Data clock

3.2.2 DVI Cable

The input signals are applied to the display through DVI-D cable.

Length. : 1.8 M +/- 50 mm

Connector type . : DVI-D male with DDC-2B pin assignments

White connector thumb-operated jackscrews

http://www.wjel.net
