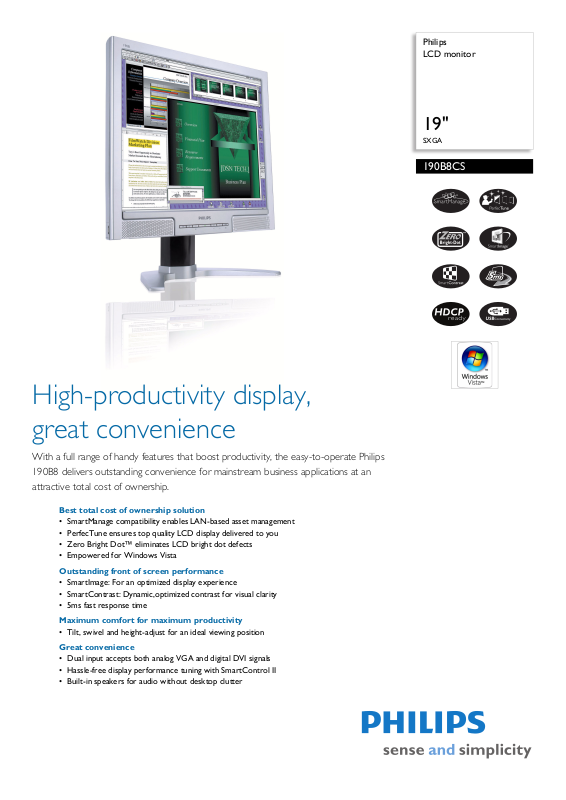

Philips
LCD monitor

19"

SXGA

190B8CS

High-productivity display,
great convenience

With a full range of handy features that boost productivity, the easy-to-operate Philips
190B8 delivers outstanding convenience for mainstream business applications at an
attractive total cost of ownership.

Best total cost of ownership solution

• SmartManage compatibility enables LAN-based asset management

• PerfecTune ensures top quality LCD display delivered to you

• Zero Bright Dot™ eliminates LCD bright dot defects

• Empowered for Windows Vista

Outstanding front of screen performance

• SmartImage: For an optimized display experience

• SmartContrast: Dynamic,optimized contrast for visual clarity

• 5ms fast response time

Maximum comfort for maximum productivity

• Tilt, swivel and height-adjust for an ideal viewing position

Great convenience

• Dual input accepts both analog VGA and digital DVI signals

• Hassle-free display performance tuning with SmartControl II

• Built-in speakers for audio without desktop clutter

LCD monitor

190B8CS/00

19" SXGA

Specifications Product highlights

Picture/Display

• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe

• Panel Size: 19"/ 48cm

• Effective viewing area: 376.3 x 301.1 mm

• Pixel pitch: 0.294 x 0.294 mm

• Brightness: 300 cd/m²

• Contrast ratio (typical): 800:1

• SmartContrast ratio (dynamic): 3000:1

• Display colors: 16.7 M

• Viewing angle: 176º (H) / 170º (V), @ C/R > 5

• Response time (typical): 5 ms

• White Chromaticity, 6500K: x = 0.313 / y = 0.329

• White Chromaticity, 9300K: x = 0.283 / y = 0.297

• Maximum Resolution: 1280 x 1024 @ 75 Hz

• Recommended Resolution: 1280 x 1024 @ 60 Hz

• Video Dot Rate: 140 MHz

• Horizontal Scanning Frequency: 30 - 83 kHz

• Vertical Scanning Frequency: 56 -75 Hz

• Picture enhancement: SmartImage

•sRGB

Connectivity

• Signal Input: Analog (VGA), DVI-D, PC Audio in

• Audio output: Stereo Audio (3.5 mm jack) 1x

• USB: 1 x USB 2.0

• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on Green

• Video input impedance: 75 ohm

• Sync input impedance: 2.2k ohm

• Video input signal levels: 0.7 Vpp

Convenience

• Built-in Audio: 1.5W RMS x 2 stereo speakers

• Convenience Enhancements: On-screen Display,
SmartManage enabled, SmartControl II

• Monitor Controls: SmartImage, Volume control,
Auto (Back), Power On/Off, Input (Down),
Brightness (Up), Menu (OK)

• OSD Languages: English, French, German, Italian,
Russian, Portuguese, Simplified Chinese, Spanish

• Other convenience: Kensington lock compatible

• Plug & Play Compatibility: DDC/CI, sRGB,
Windows 98/ME/2000/XP/Vista

• Regulatory Approvals: CE Mark, EMC, Energy

Issue date 2008-05-17

Version: 7.0.5

12 NC: 8670 000 25449
EAN: 87 12581 30291 7

Star, FCC-B, UL, CSA, SEMKO, TCO '03, TÜV/
GS, TÜV Ergo

• Swivel: +/- 60°

• Tilt: -5° to 25°

• VESA Mount: 100 x 100 mm

Accessories

• Included Accessories: AC Power Cord, Audio
Cable, VGA cable

• Optional accessories: Super Ergo Base

•User Manual

Dimensions

• Box dimensions (W x H x D):
503

x 507 x 198 mm

• Box dimensions in inch (W x H x D):

19.8

x 20 x 7.8 inch

• Set dimensions (W x H x D):
422

x 374.2 x 68.7 mm

• Set dimensions in inch (W x H x D):

16.6

x 14.7 x 2.7 inch

• Set dimensions with stand (W x H x D):
422

x 411.2 x 198.8 mm

• Set dimensions with stand in inch (W x H x D):

16.6

x 16.2 x 7.8 inch

• Height adjustment range: 60 mm

• Height adjustment range (inch): 2.4 inch

• MTBF: 50,000 hrs

• Relative humidity: 20% - 80%

• Temperature range (operation): 0°C to 40°C

• Temperature range (storage): -20°C to 60°C

• Product weight (+stand): 5.86 kg

• Product weight (+stand) (lb): 12.9 lb

• Weight incl. Packaging: 6.77 kg

• Weight incl. Packaging (lb): 14.9

Power

• Complies with: Energy Star

• Consumption: < 36 W

• Consumption (economy mode): 28 W

• Off Mode: < 1 W

• Power LED indicator: Operation - green, Stand
by/sleep - Amber

• Power supply: Built-in, 100-240VAC, 50/60Hz

•

© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com

SmartManage enabled

SmartManage is a system for monitoring, managing and
checking status of display devices as well as delivering
remote support to users who experience difficulties - all
accomplished over a LAN.

PerfecTune

PerfectTune is industry-leading, proprietary Philips testing
and algorithm technology for monitor adjustment and
fine tuning, an extensive process that ensures ultimate
display performance in compliance with a standard four­times more stringent than Microsoft's Vista requirements
from each and every monitor that leaves the factory - not
just a few review samples. Only Philips goes to these
lengths to deliver this exacting level of color accuracy and
display quality in every new monitor.

Zero Bright Dot™

Br igh t dots a re d efe cts in a LCD pan el o nce tho ugh t to be
an inevitable part of the manufacturing process. With
Zero Bright Dot™, Philips monitors are guaranteed
without bright dot defects.

Windows Vista ready

Philips Vista-ready monitors are empowered for vibrant,
exciting display of this new, visually sophisticated and
demanding Windows operating system, designed to
enhance your entertainment experience, make you more
productive and help you control your computing
experience at home and in the office, making viewing,
finding and organizing information for work or play quick,
efficient and easy.

SmartImage

SmartImage is an exclusive, leading edge Philips
technology that analyzes the content displayed on your
screen. Based on a scenario you select, SmartImage
dynamically enhances the contrast, color saturation and
sharpness of images and videos for ultimate display
performance - all in real time with the press on a single
button.

SmartContrast

SmartContrast is Philips technology that analyzes the
contents you are displaying, automatically adjusting colors
and controlling backlight intensity to dynamically enhance
contrast for the best digital images and optimum contrast
for more entertainment fun when viewing videos or
playing games where dark hues are displayed; when you
select the Economy mode, contrast is adjusted and
backlighting fine-tuned for just-right display of everyday
office applications and lower power consumption.

5ms on/off response time

On-Off response time is the period required for a liquid
crystal cell to go from active (black) to inactive (white)
and back to active (black) again. It is measured in
milliseconds. Faster is better: Lower response time means
faster transitions and, therefore, results in fewer visible
image artifacts in the display of transition of texts and
graphics. On-Off response time is a more important
measure in the display of business content like
documents, graphs and photos.

Compact Ergo Base

The Compact Ergo Base is a 'people friendly' Philips
monitor b ase tha t ti lts , sw ivels and hei ght adjus ts s o each
user can position the monitor for maximum viewing
comfort and efficiency.

Dual input

Dual input provides connectors to accommodate input of
both analog VGA and digital DVI signals.
