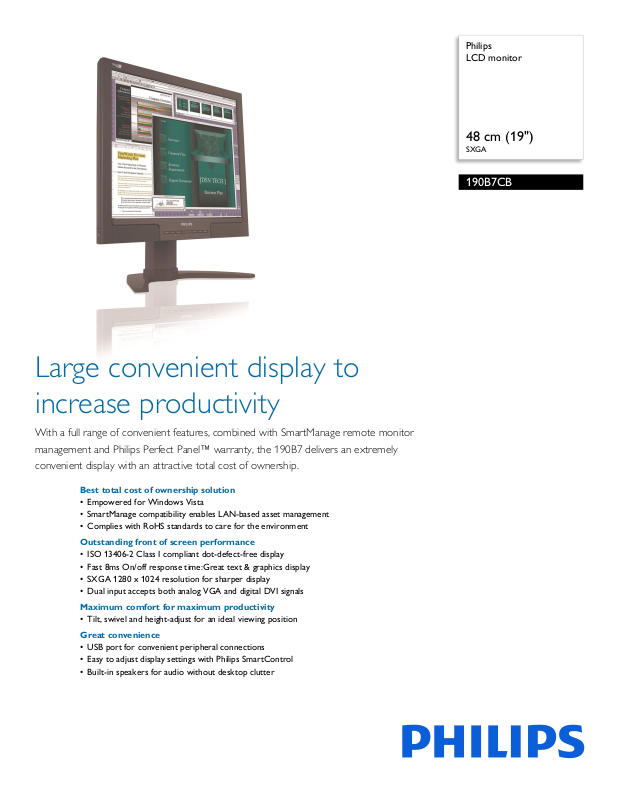

Page 1
Philips
LCD monitor
48 cm (19")
SXGA
190B7CB
Large convenient display to
increase productivity
With a full range of convenient features, combined with SmartManage remote monitor
management and Philips Perfect Panel™ warranty, the 190B7 delivers an extremely
convenient display with an attractive total cost of ownership.
Best total cost of ownership solution
• Empowered for Windows Vista
• SmartManage compatibility enables LAN-based asset management
• Complies with RoHS standards to care for the environment
Outstanding front of screen performance
• ISO 13406-2 Class I compliant dot-defect-free display
• Fast 8ms On/off response time:Great text & graphics display
• SXGA 1280 x 1024 resolution for sharper display
• Dual input accepts both analog VGA and digital DVI signals
Maximum comfort for maximum productivity
• Tilt, swivel and height-adjust for an ideal viewing position
Great convenience
• USB port for convenient peripheral connections
• Easy to adjust display settings with Philips SmartControl
• Built-in speakers for audio without desktop clutter
Page 2
190B7CB/27
LCD monitor
48 cm (19") SXGA
Highlights
Windows Vista ready
Philips Vista-ready monito
vibrant, exciting display of this new, visually
sophisticated and demanding Windows
operating system, designed to enhance your
entertainment experience, make you more
productive and help you control your computing
experience at home and in the office, making
viewing, finding and organizing information for
work or play quick, efficient and easy.
SmartManage enabled
SmartManage is a system for monitoring,
managing and checking statu
as well as delivering remote support to users
who experience difficulties - all accomplished
over a LAN.
Compliant with RoHS standards
Philips designs and produces display products in
c
ompliance with strict Restriction of Hazardous
Substances (RoHS) standards that restrict lead
and other toxic substances that can harm the
environment.
PerfectPanel™
Bright dots and dark dots
panel. While some manufacturers still consider
bright and dark defects in a LCD panel an
inevitable part of the manufacturing process,
rs are empowered for
s of display devices
are defects in a LCD
Philips doesn't. Philips monitors, compliant with
ISO 13406-2 Class I standard, are produced with
zero tolerance for LCD panel defects and
backed by Philips PerfectPanel™ globally valid
warranty providing repair or replacement of any
LCD monitors that display even a single
defective bright or dark dot.
8ms response time (On/Off)
On-Off response time is the period required for
a
liquid crystal cell to go from active (black) to
inactive (white) and back to active (black) again.
It is measured in milliseconds. Faster is better:
Lower response time means faster transitions
and, therefore, results in fewer visible image
artifacts in the display of transition of text and
graphics. On-Off response time is a more
important measure in the display of business
content like documents, graphs and photos.
Dual input
Dual input provides connectors to
accommoda
digital DVI signals.
Compact Ergo Base
The Compact Ergo Base is a 'people friendly'
Phil
ips monitor base that tilts, swivels and height
adjusts so each user can position the monitor
for maximum viewing comfort and efficiency.
te input of both analog VGA and
USB 2.0 port
USB port allows user to conveniently connect
their pl
ug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which has USB connection available. The
conveniently located USB 2.0 port on the
monitor allows USB 2.0 signals to pass thru to
the computer. Note that many devices like
cameras and HDD may need to be powered On
independently, as they have higher power
requirements than the monitor USB port can
provide
SmartControl
PC software for fine tuning display performance
and set
tings. Philips offers users two choices for
display setting adjustment. Either navigate the
multilevel On Screen Display menu through
buttons on the display itself or use the Philips
SmartControl software to easily adjust the
various display settings in a familiar way.
Built-in speakers
A pair of stereo speakers built into a display
device
. It can be visible front firing, or invisible
down firing, top firing, rear firing, etc depending
on model and design.
Page 3
190B7CB/27
LCD monitor
48 cm (19") SXGA
Specifications
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 19"/ 48cm
• Effective viewing area: 14
• Pixel pitch: 0.294 x 0.294 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 700:1
• Display colors: 16.2 M
• Viewing angle: @ C/R > 5
• Viewing angle (H / V): 176 / 170 degree
• Response time (typical): 8 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz (digital
t)
inpu
• Optimum resolution: 1280 x 1024 @ 60 Hz (digital
t)
inpu
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 - 76 Hz
•sRGB
.8 x 11.9 inch
Connectivity
• Signal Input: VGA (Analog ), DVI-D, PC Audio in
• Audio output: Stereo Audio (3.5 mm jack) 1x
• USB: USB 2.0 x 1
• Sync Input: Composite Sync, Separate Sync, Sync on
en
Gre
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Convenience
• Built-in Audio: 2W RMS x 2 stereo speakers
• User convenience: On-screen Display, SmartManage
led
enab
• Monitor Controls: Auto, Brightness Control (Up/
), Left/Right, Menu (OK), Power On/Off,
Down
Volume control
• OSD Languages: English, French, Portuguese,
ied Chinese, Spanish
Simplif
• Other convenience: Kensingto
• Plug & Play Compatibility: DDC/CI, sRGB, Windows
n lock compatible
ME/2000/XP/Vista
98/
• Regulatory approvals: CE Mark, EMC, Energy Star,
CC-B, UL, CSA, SEMKO, TCO '03, TÜV/GS, TÜV
F
Ergo
• Swivel: +/- 60°
• Tilt: -5° to 25°
• VESA Mount: 100 x 100 mm
Accessories
• Included accessories: AC Power Cord, Audio Cable,
DVI-D cable, USB cable, VGA cable
• Optional accessories: Super Ergo Base
•User Manual
Dimensions
• Box dimensions (W x H x D): 503 x 198 x 507 mm
• Box dimensions in inch (W x H x D):
19.8 x 7.8 x 20 inch
• Set dimensions (W x H x D):
x 374.2 x 68.7 mm
422
• Set dimensions in inch (W x H x D):
16.6 x 14.7 x 2.7 inch
• Set dimensions with stand (W x H x D):
422 x 405 x 198.8 mm
• Set dimensions with stand in inch (W x H x D):
16.6 x 15.9 x 7.8 inch
• Height adjustment range: 60 mm
• Height adjustment range (inch): 2.4 inch
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 5°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 6.14 kg
• Product weight (+stand) (lb): 13.5 lb
• Weight incl. Packaging: 7.55 kg
• Weight incl. Packaging (lb): 16.6 lb
Power
• Complies with: Energy Star
• Consumption (On mode): 40 W (Typical)
• Consumption (Off Mode): < 1 W
• Power LED indicator: Operation - green, Stand by/
- Amber
sleep
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
Issue date 2022-04-21
Version: 8.0.14
12 NC: 8639 000 16899
UPC: 6 09585 11273 5
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
o change without notice.
