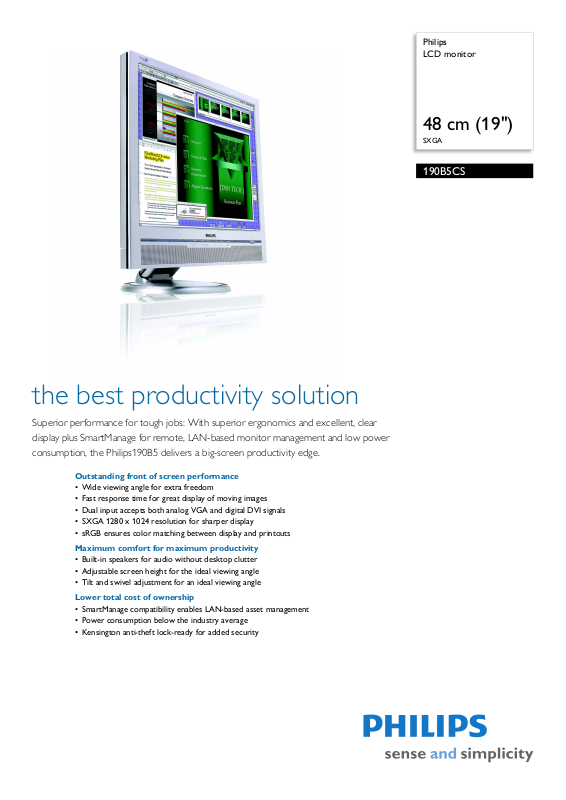

Philips
LCD monitor
48 cm (19")
SXGA
190B5CS
the best productivity solution
Superior performance for tough jobs: With superior ergonomics and excellent, clear
display plus SmartManage for remote, LAN-based monitor management and low power
consumption, the Philips190B5 delivers a big-screen productivity edge.
Outstanding front of screen performance
• Wide viewing angle for extra freedom
• Fast response time for great display of moving images
• Dual input accepts both analog VGA and digital DVI signals
• SXGA 1280 x 1024 resolution for sharper display
• sRGB ensures color matching between display and printouts
Maximum comfort for maximum productivity
• Built-in speakers for audio without desktop clutter
• Adjustable screen height for the ideal viewing angle
• Tilt and swivel adjustment for an ideal viewing angle
Lower total cost of ownership
• SmartManage compatibility enables LAN-based asset management
• Power consumption below the industry average
• Kensington anti-theft lock-ready for added security
LCD monitor
48 cm (19") SXGA
190B5CS/27
Highlights
Wide viewing angle
A wide viewing angle provides the clearest display
with little reflection from virtually any angle.
Fast response time
Response time measures signal reaction speed in
milliseconds. On/off response time measures the
time required for the screen to turn from
completely white to completely black and vice versa.
Fast on/off response time improves display of text.
Gray-to-grey response time measures the average
time of transition between several sets of random
gray levels - Lower numbers mean faster transitions.
Faster is better because a fast response time
eliminates visible image artifacts that could dampen
your experience when viewing fast moving images or
objects.
Dual input
Dual input provides connectors to accommodate
input of both analog VGA and digital DVI signals.
SXGA, 1280 x 1024 resolution
For graphics monitors, the screen resolution signifies
the number of dots (pixels) on the entire screen. For
example, a 1280-by-1024 pixel screen is capable of
displaying 1280 distinct dots on each of 1024 lines, or
about 1.3 million pixels.
sRGB ready
sRGB is an industry standard that ensures the best
possible match between the colors displayed on
your screen and those in your printouts.
Built-in speakers
A pair of high quality stereo speakers built into a
display device. It can be visible front firing, or invisible
down firing, top firing, rear firing, etc depending on
model and design.
Adjustable height
Adjustable height is the ability of a monitor to travel
up or down on its base and lock into position when
the desired height is reached, delivering a
comfortable, individualized viewing angle that is just
right for the user's height, weight, body-type and
posture, alleviating possible eyestrain or fatigue that
can come from long hours working on a computer.
Screen tilt and swivel
Screen tilt and swivel is a mechanism built into the
base permits the monitor to swivel and tilt backward
or forward.
SmartManage enabled
SmartManage is a system for monitoring, managing
and checking status of display devices as well as
delivering remote support to users who experience
difficulties - all accomplished over a LAN.
Lower power consumption
Reduction of the electrical power required to
operate a device.
Kensington lock compatible
Small apertures built into the display's frame for use
with a locking device that secures a display to a fixed
object for added protection against theft.
Embedded power supply
An embedded power supply is a power adaptor built
into the body of a display device that replaces a bulky
external power adaptor.
VESA mounting holes
A unified industry standard for wall mounting IT
equipment set by the Video Electronics Standards
Association.
Specifications
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 19"/ 48cm
• Effective viewing area: 376.3 x 301.1 mm
• Pixel pitch: 0.294 x 0.294 mm
• Brightness: 250 cd/m²
• Contrast ratio (typical): 500:1
• Display colors: 16 M
• Viewing angle: @ C/R > 10
• Viewing angle (H / V): 176 / 176 degree
• Response time (typical): 25 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz
• Optimum resolution: 1280 x 1024 @ 60 Hz
• Factory Preset Modes: 15 modes
• User definable modes: 14 modes
• Horizontal Scanning Frequency: 30 - 82 kHz
• Refresh Rate (V): 56 - 76 Hz
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D, PC Audio in
• I/O interface on pad: Headphone jack
Convenience
• Built-in Audio: 2W RMS x 2 stereo speakers
• User convenience: On-screen Display,
SmartManag
• Monitor Controls: Auto, Brightness Control, Left/
ght, Menu (OK), Power On/Off, Up/Down,
Ri
Volume control
• OSD Languages: English, Fr
Simplified Chinese, Spanish
• Other convenience: Kensington lock
• Plug & Play Compatibility: DDC CI, sRGB,
Windo
• Regulatory approvals: CE Mark, E2000, EMC, FCC-
, UL, CSA, NUTEK, Energy Star, SEMKO, TCO
B
'03, TCO '99, TÜV/GS, TÜV Ergo
• Swivel: +/- 175°
• Tilt: -5° to 30°
• VESA Mount: 100 x 100 mm
e
ench, German, Italian,
ws 98/ME/2000/XP
Issue date 2011-06-07
Version: 2.0.4
12 NC: 8639 000 15388
UPC: 0 37849 94773 9
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
Accessories
• User Manual
• Included accessories: AC Power
Cable, Protective film, VGA cable
• Optional accessories: Super Ergo Base
Cord, Audio
Dimensions
• Dimensions (with base) (W x H x D):
425 x 410 x 235 mm
• Height adjustment range: 40 mm
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 5°C to 35°C
• Temperature range (storage): -20°C to 60°C
•Weight: 7.8 kg
Power
• Complies with: E2000, Energy Star, NUTEK
• Consumption (On mode):
• Consumption (Off Mode): 1 W
•Power LED indicator: Operation
sleep - Amber
• Power supply: Built-in
•
40 W (Typical)
- green, Stand by/
