Philips 190b5 User Manual

Philips LCD Monitor Electronic User’s Manual

e-Manual

file:///D|/My%20documents/dfu/W9/english/190b5/index.htm [3/16/2004 1:47:17 PM]

Safety and Troubleshooting Information

•Safety
Precautions
and
Maintenance

• Installation
Locations

• FAQs

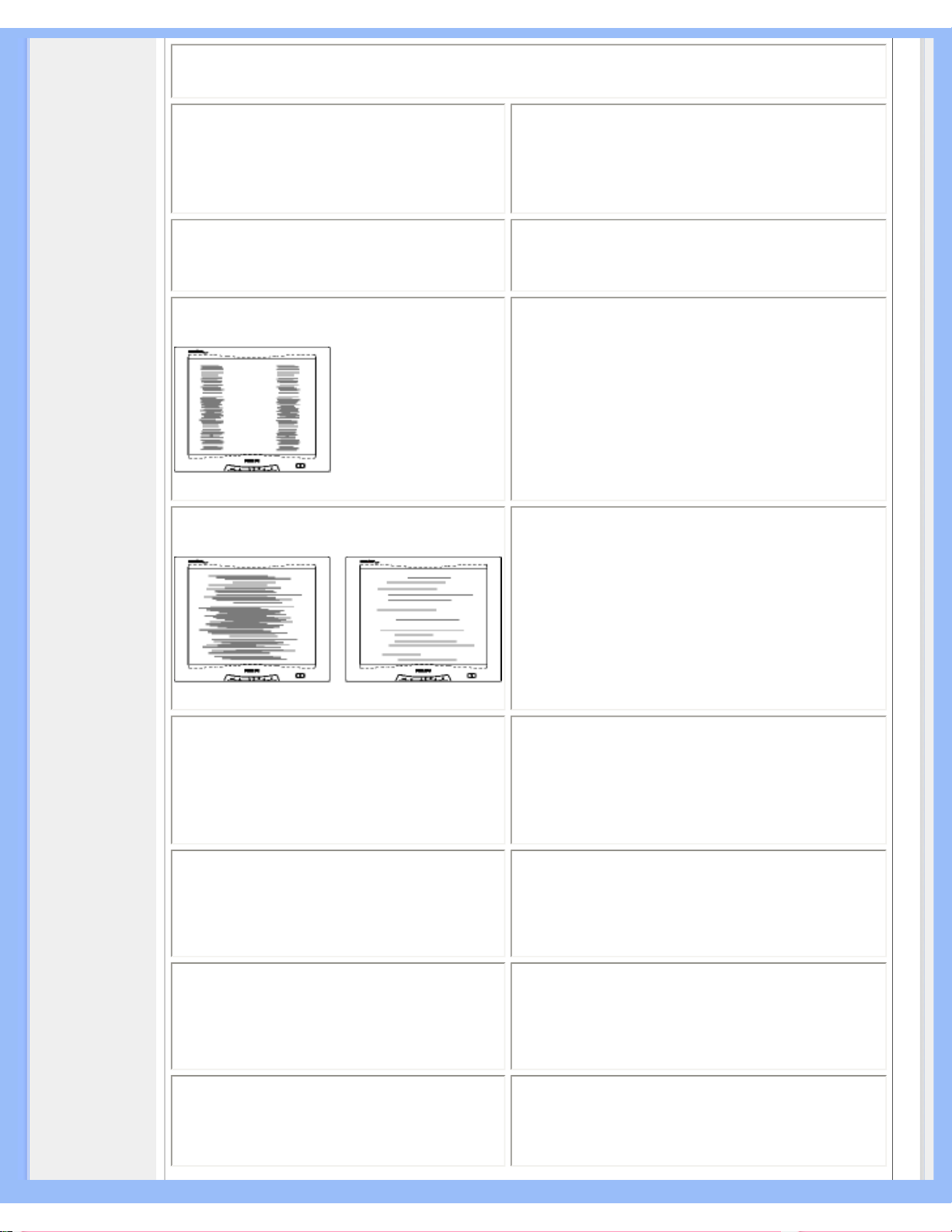

• Troubleshooting

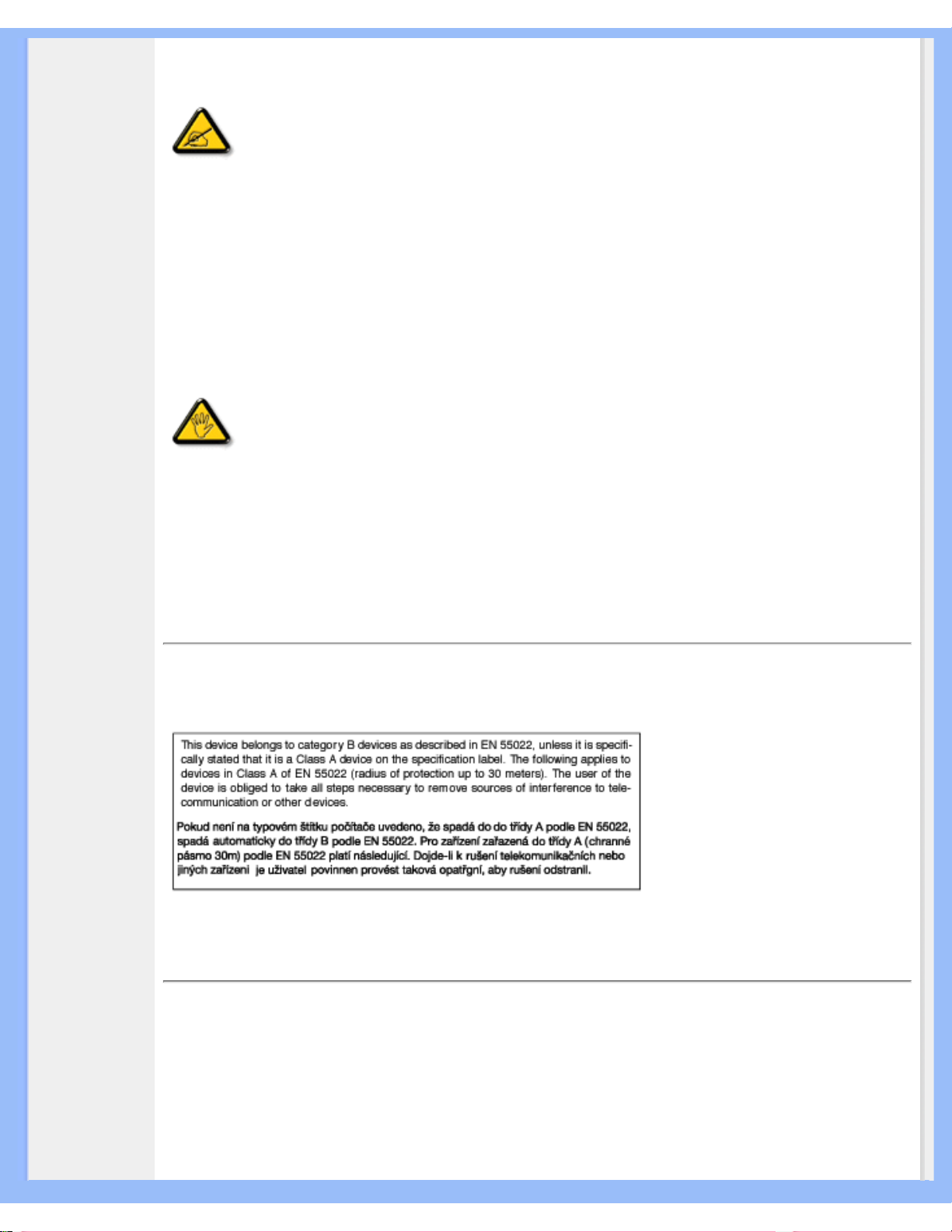

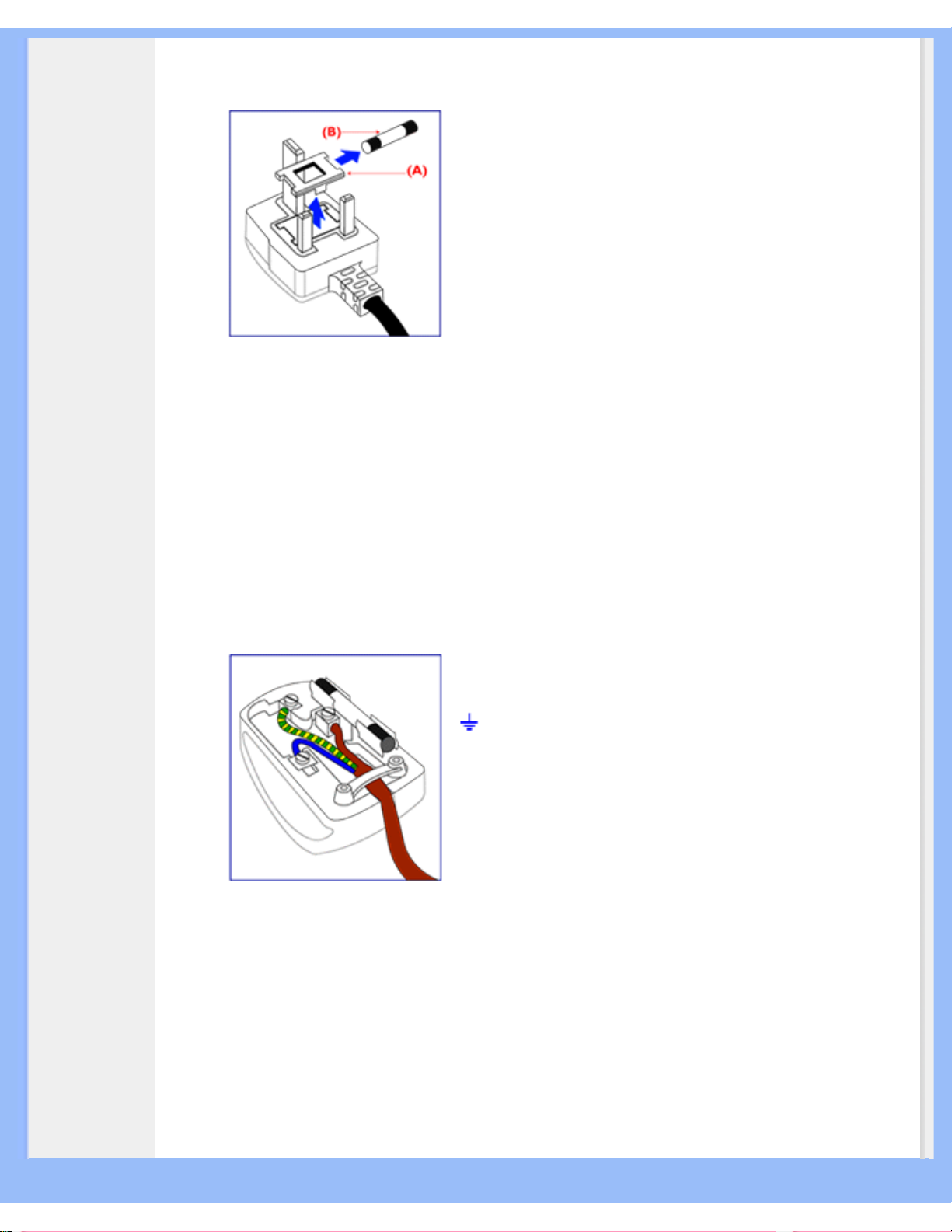

• Regulatory
Information

• Other Related
Information

Safety and Troubleshooting Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments or procedures other than those
specified in this documentation may result in exposure to shock,
electrical hazards and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

● Unplug the monitor if you are not going to use it for an extensive period of time.

● Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be wiped

with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based
liquids.

● Consult a service technician if the monitor does not operate normally when you have followed

the instructions in this manual.

● The casing cover should be opened only by qualified service personnel.

● Keep the monitor out of direct sunlight and away from stoves or any other heat source.

● Remove any object that could fall into the vents or prevent proper cooling of the monitor’s

electronics.

● Do not block the ventilation holes on the cabinet.

● Keep the monitor dry. To avoid electric shock, do not expose it to rain or excessive moisture.

● When positioning the monitor, make sure the power plug and outlet are easily accessible.

● If turning off the monitor by detaching the power cable or DC power cord, wait for 6 seconds

before attaching the power cable or DC power cord for normal operation.

● To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain or

excessive moisture.

● IMPORTANT: Always activate a screen saver program during your application. If a still image in

high contrast remains on the screen for an extended period of time, it may leave an 'after-image'
or 'ghost image' on front of the screen. This is a well-known phenomenon that is caused by the
shortcomings inherent in LCD technology. In most cases, the after-image will disappear
gradually over a period of time after the power has been switched off. Be aware, that the after-

image symptom cannot be repaired and is not covered under warranty.

Consult a service technician if the monitor does not operate normally when the operating instructions
given in this manual have been followed.

RETURN TO TOP OF THE PAGE

Installation Locations

● Avoid exposure to heat and extreme cold.

file:///D|/My%20documents/dfu/W9/english/190b5/safety/safety.htm (1 of 2) [3/16/2004 1:47:23 PM]

Safety and Troubleshooting Information

● Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or extreme

cold.

● Avoid moving the LCD monitor between locations with large temperature differences. Choose a

site that falls within the following temperature and humidity ranges.

❍ Temperature: 5-35°C 41-95°F
❍ Humidity: 20-80% RH

● Do not subject the LCD monitor to severe vibration or high impact conditions. Do not place the

LCD monitor in the trunk of a car.

● Take care not to mishandle this product by either knocking or dropping it during operation or

transportation.

● Do not store or use the LCD monitor in locations where there is a high level of humidity or in

dusty environments. Do not allow water or other liquids to spill on or into the LCD monitor.

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/W9/english/190b5/safety/safety.htm (2 of 2) [3/16/2004 1:47:23 PM]

About This Manual

• About This
Guide

• Notational
Descriptions

About This Manual

About This Guide

This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the
LCD monitor's features, setup, operation and other important information. Its contents are identical to the
information in our printed version.

It includes the following sections:

● Safety and Troubleshooting Information provides tips and solutions for common problems as well

as other related information you may need.

● About This Electronic User's Manual gives an overview of information included, along with

notation icon descriptions and other documentation for your reference.

● Product Information gives an overview of the monitor's features as well as the technical

specifications for this monitor.

● Installing Your Monitor describes the initial setup process and gives an overview of how to use the

monitor.

● On-Screen Display provides information on adjusting the settings on your monitor.

● Customer Care and Warranty contains a list of worldwide Philips Consumer Information Centers

along with help desk phone numbers and information on the warranty applicable to your product.

● Glossary defines technical terms.

● Download and Print Option transfers this entire manual to your hard drive for easy reference.

RETURN TO TOP OF THE PAGE

Notational Descriptions

The following subsections describe notational conventions used in this document.

Notes, Cautions and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type.
These blocks contain notes, cautions or warnings. They are used as follows:

file:///D|/My%20documents/dfu/W9/english/190b5/about/about.htm (1 of 2) [3/16/2004 1:47:25 PM]

About This Manual

NOTE: This icon indicates important information and tips that help you make better
use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either potential
damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how to
avoid the problem.

Some warnings may appear in alternate formats and may not be accompanied by an icon. In such cases,
the specific presentation of the warning is mandated by the relevant regulatory authority.

RETURN TO TOP OF THE PAGE

©2004 Koninklijke Philips Electronics NV

All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or
broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV

file:///D|/My%20documents/dfu/W9/english/190b5/about/about.htm (2 of 2) [3/16/2004 1:47:25 PM]

Product Information

• Product
Features

•Technical
Specifications

•Resolution &
Preset Modes

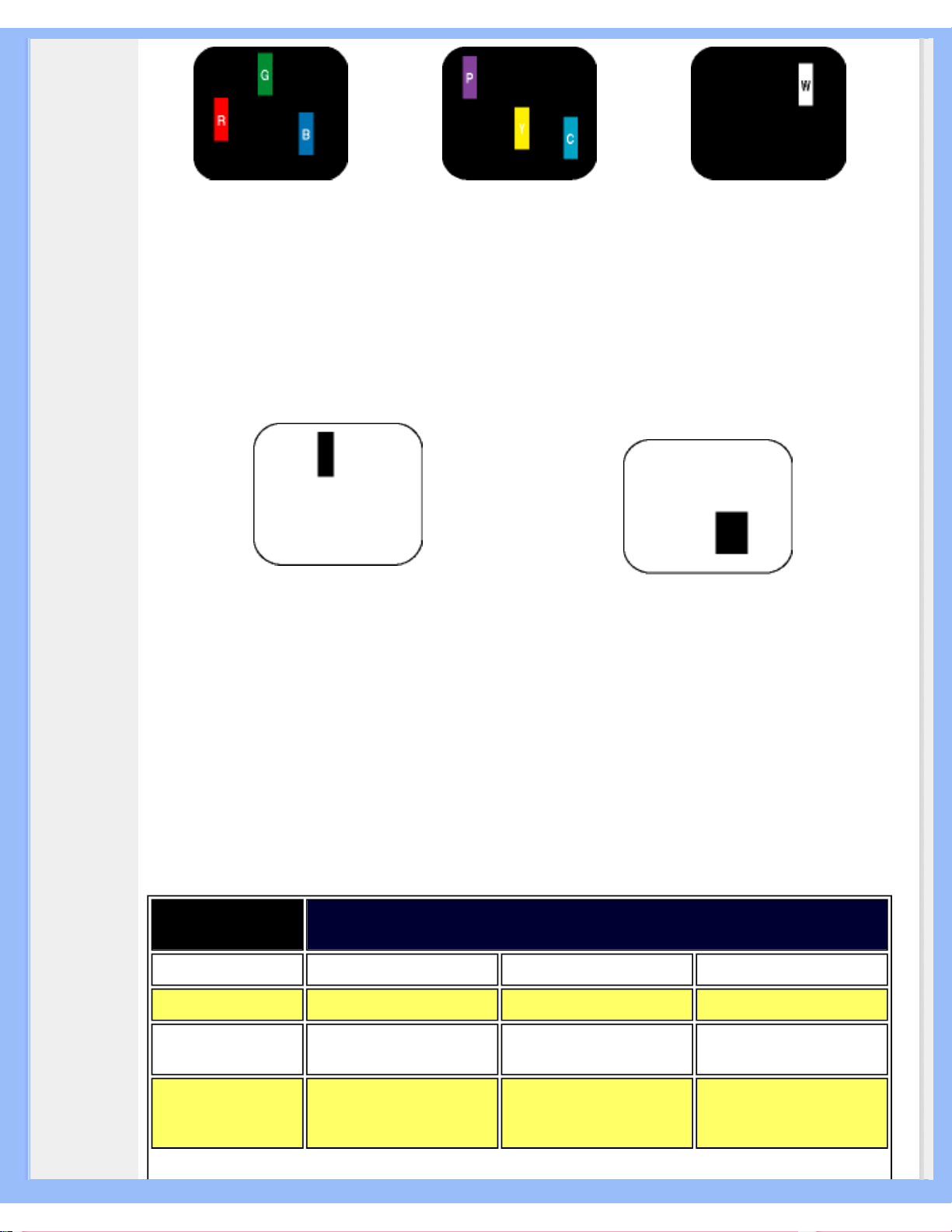

•Philips Pixel
Defect Policy

•Automatic
Power Saving

•Physical
Specification

•Pin
Assignment

•Product
Views

•Physical
Function

Product Information

Product Features

190B5

The best productivity solution

● Outstanding front of screen performance

❍ Wide viewing angle for extra efficiency
❍ Fast response time capable of handling fast moving pictures
❍ Dual Input accepts both analog VGA and digital DVI signals
❍ SXGA, 1280 x 1024 resolution for sharper display
❍ sRGB ensures color matching between display and printouts

● Maximum comfort for maximum productivity

❍ Audio speakers built into a display device without clutter
❍ Stand-alone audio makes net conferences most efficient
❍ Screen height adjustable for ideal viewing angle
❍ Screen tilt and swivel adjustment for ideal viewing angle

● Lower total cost of ownership

❍ Up to 20% lower power consumption than industry average
❍ Kensington anti-theft lock secures monitor against theft

● Great convenience

❍ Embedded power supply eliminates external power adaptors
❍ VESA mounting pattern for easy wall mounting of display

RETURN TO TOP OF THE PAGE

Technical Specifications*

LCD PANEL

• Type TFT LCD

• Screen size 19" / 48.26 cm diagonal

• Pixel Pitch 0.294 x 0.294 mm

• LCD Panel type

1280 x 1024 pixels

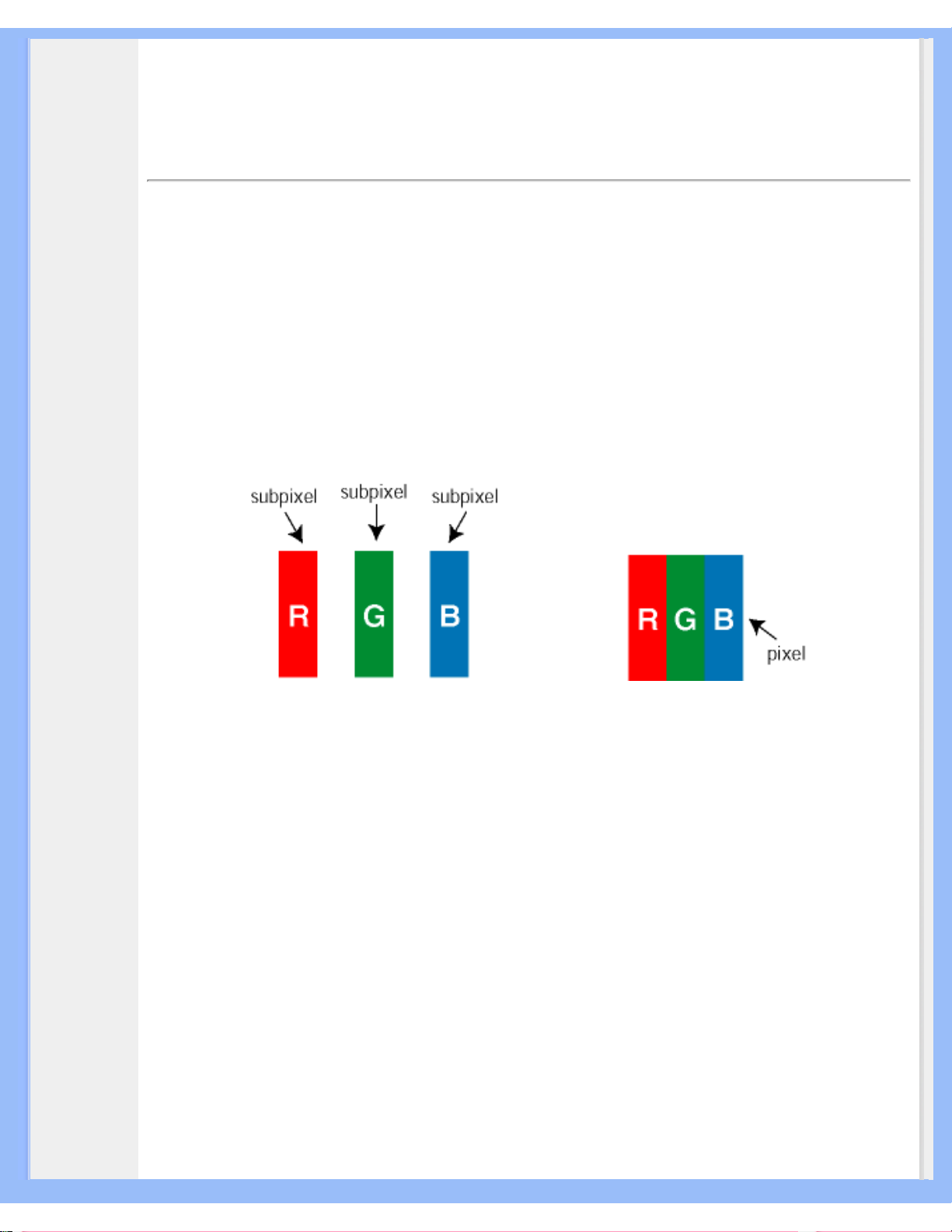

R.G.B. vertical stripe

Anti-glare polarizer, hard coated

• Effective viewing area 376.32 x 301.06 mm

file:///D|/My%20documents/dfu/W9/english/190b5/product/product.htm (1 of 8) [3/16/2004 1:47:28 PM]

Product Information

• Display Colors 16M colors

SCANNING

Vertical refresh rate 56 Hz-76 Hz
Horizontal Frequency 30k Hz-82 kHz

VIDEO

• Video dot rate 135 MHz

• Input impedance

- Video
75 ohm

- Sync

2.2K ohm

• Input signal levels 0.7 Vpp

• Sync input signal

Separate sync
Composite sync
Sync on green

• Sync polarities Positive and negative

• Video interface

Dual input: D-Sub (analog) and DVI-D (digital) are available and
user selectable

Audio

• Loudspeaker

4W Stereo Audio (2W/channel RMSx2, 300 Hz-12 kHz, 16 ohm,
THD=10%, PMPO 32 Watts)

• Headphone connector 3.5mm mini jack

• Input signal connector 3.5mm mini jack

• Stand-alone audio output

Audio output can still function whenever there is an audio source
playing, even there is no video input.

Note: The volume adjustment can not function under the
following conditions:

1. A warning message appears on screen

2. No audio input

Optical characteristics

• Contrast ratio 500:1 (typ.)

• Brightness

250 cd/m

2

(typ.)

• Peak contrast angle 6 o'clock

• White Chromaticity

x: 0.283 y: 0.297 (at 9300°K)
x: 0.313 y: 0.329 (at 6500°K)
x: 0.313 y: 0.329 (at sRGB)

file:///D|/My%20documents/dfu/W9/english/190b5/product/product.htm (2 of 8) [3/16/2004 1:47:28 PM]

Product Information

• Viewing Angle (C/R>10)

Upper >88° (typ.)
Lower >88° (typ.)
Left >88° (typ.)
Right >88° (typ.)

• Response time

<25 ms (typ.)

sRGB

sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital
cameras, monitors, printers, scanners, etc.)

Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible
device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you
can rely on the correctness of the colors shown on your screen.

Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a
predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the
monitor's OSD.

To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down button
to go to Adjust Color and press OK again. Then move the down button to go to sRGB and press OK
again.

Exit this OSD.

After this, please do not change the brightness or contrast setting of your monitor. If you change either
of these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K.

For more information on sRGB, please visit: www.srgb.com

* This data is subject to change without notice.

RETURN TO TOP OF THE PAGE

Resolution & Preset Modes

• Maximum

1280 x 1024 at 75 Hz

• Recommended 1280 x 1024 at 60 Hz

15 user definable modes

15 factory preset modes:

file:///D|/My%20documents/dfu/W9/english/190b5/product/product.htm (3 of 8) [3/16/2004 1:47:28 PM]

Product Information

H. freq (kHz) Resolution V. freq (Hz)

31.5 640*350 70

31.5 720*400 70

31.5 640*480 60

35.0 640*480 67

37.5 640*480 75

35.2 800*600 56

37.9 800*600 60

46.9 800*600 75

49.7 832*624 75

48.4 1024*768 60

60.0 1024*768 75

69.0 1152*870 75

71.8 1152*900 76

63.9 1280*1024 60

80.0 1280*1024 75

RETURN TO TOP OF THE PAGE

Automatic Power Saving

If you have VESA DPMS compliance display card or software installed in your PC, the monitor can
automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other
input device is detected, the monitor will 'wake up' automatically. The following table shows the power
consumption and signaling of this automatic power saving feature:

Power Management Definition

VESA Mode Video H-sync V-sync Power Used LED color

ON Active Yes Yes

40 W (typ.)

Blue

OFF Blanked No No < 1 W Amber

file:///D|/My%20documents/dfu/W9/english/190b5/product/product.htm (4 of 8) [3/16/2004 1:47:28 PM]

Product Information

This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has
determined that this product meets the

ENERGY STAR

®

guidelines for energy efficiency.

RETURN TO TOP OF THE PAGE

Physical Specifications

• Dimension (WxHxD) * 425 x 377 x 235 mm (in lowest position)

• Weight 8.6 Kg

• Tilt / Swivel -5° ~ 30° / + - 135°

• Height adjustment rang 40 mm

• Power supply 100 — 240 VAC, 50/60 Hz

• Power consumption 40 W* (typ.)

• Temperature

5° C to 35° C (operating)

-20° C to 60° C (storage)

• Relative humidity
20% to 80%

• System MTBF 50K hours

• Cabinet color

190B5CG: Light Gray
190B5CB: Black
190B5CS: Silver

* This data is subject to change without notice.

* Resolution 1280x1024, standard size, brightness max., contrast 70%, 6500° K, full white pattern,
without audio/USB.

RETURN TO TOP OF THE PAGE

Pin Assignment

1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal
pin assignments are listed in the following table:

Pin

No.

Signal
Assignment

Pin
No.

Signal
Assignment

Pin
No.

Signal
Assignment

file:///D|/My%20documents/dfu/W9/english/190b5/product/product.htm (5 of 8) [3/16/2004 1:47:28 PM]

Product Information

1

T.M.D.S. Data2-

9

T.M.D.S. Data1- 17 T.M.D.S. Data0-

2

T.M.D.S. Data2+

10

T.M.D.S. Data1+ 18 T.M.D.S. Data0+

3

T.M.D.S. Data2/4
Shield

11

T.M.D.S. Data1/3
Shield

19

T.M.D.S. Data0/5
Shield

4

No connect

12

No connect 20 No connect

5

No connect

13

No connect 21 No connect

6

DDC Clock

14

+5V Power 22

T.M.D.S. Clock
Shield

7

DDC Data

15

Hot Plug Detect 23 T.M.D.S. Clock+

8

No connect 16 Ground (for +5V) 24 T.M.D.S. Clock-

2. The 15-pin D-sub connector (male) of the signal cable:

Pin

No.

Assignment

Pin

No.

Assignment

1

Red video input

9

+5V

2

Green video input/SOG

10

Logic ground

3

Blue video input

11

Ground

4

Sense (GND)

12

Serial data line (SDA)

5

Hot Plug Detect

13

H. Sync / H+V

6

Red video ground

14

V. Sync (VCLK for DDC)

7

Green video ground

15

Data clock line (SCL)

file:///D|/My%20documents/dfu/W9/english/190b5/product/product.htm (6 of 8) [3/16/2004 1:47:28 PM]

Product Information

8

Blue video ground

RETURN TO TOP OF THE PAGE

Product Views

Follow the links to see various views of the monitor and its components.

Front View Product Description

RETURN TO TOP OF THE PAGE

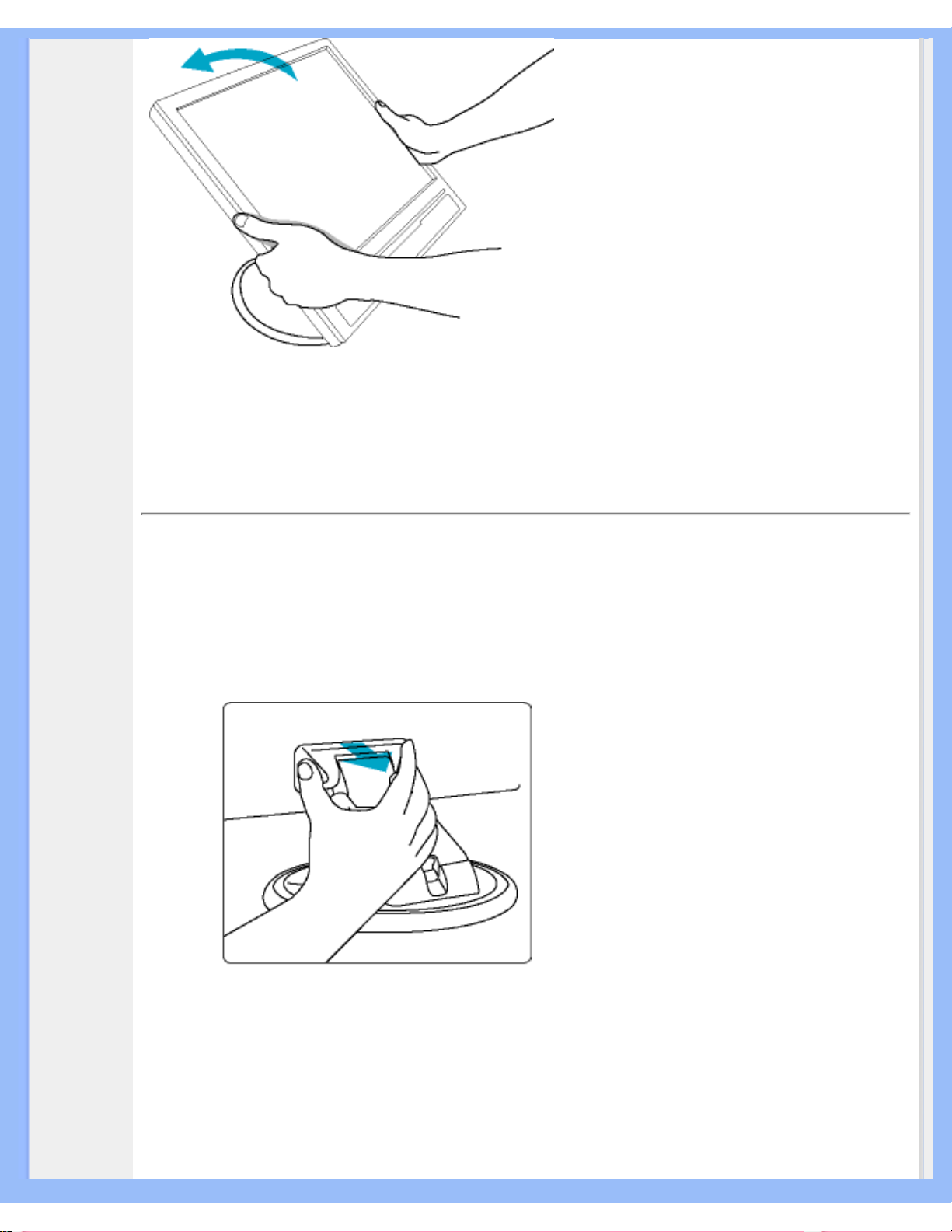

Physical Function

1) Tilt

file:///D|/My%20documents/dfu/W9/english/190b5/product/product.htm (7 of 8) [3/16/2004 1:47:28 PM]

Product Information

2) Swivel

3) Height adjustment

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/W9/english/190b5/product/product.htm (8 of 8) [3/16/2004 1:47:28 PM]

Installing Your LCD Monitor

•

Front View
Produt
Description

•

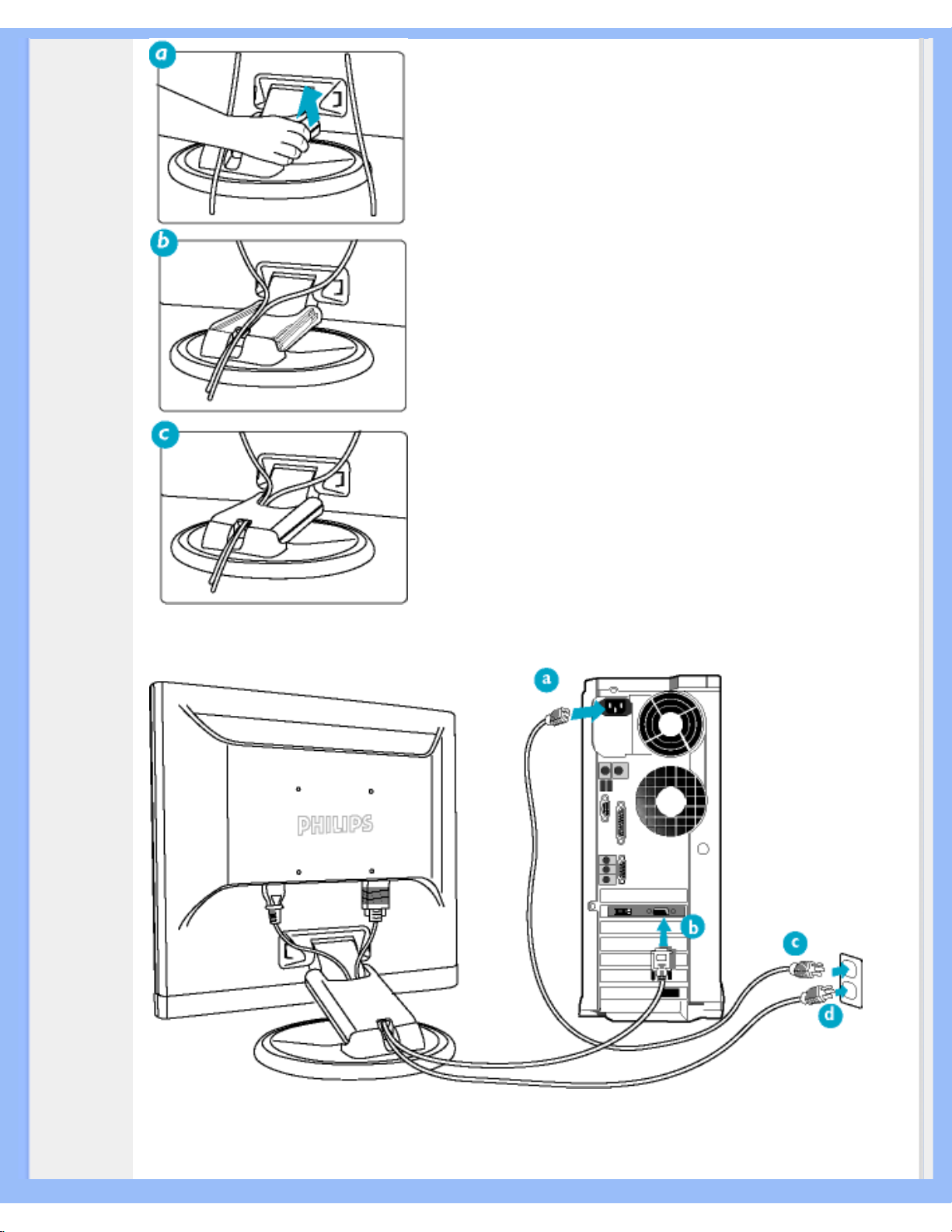

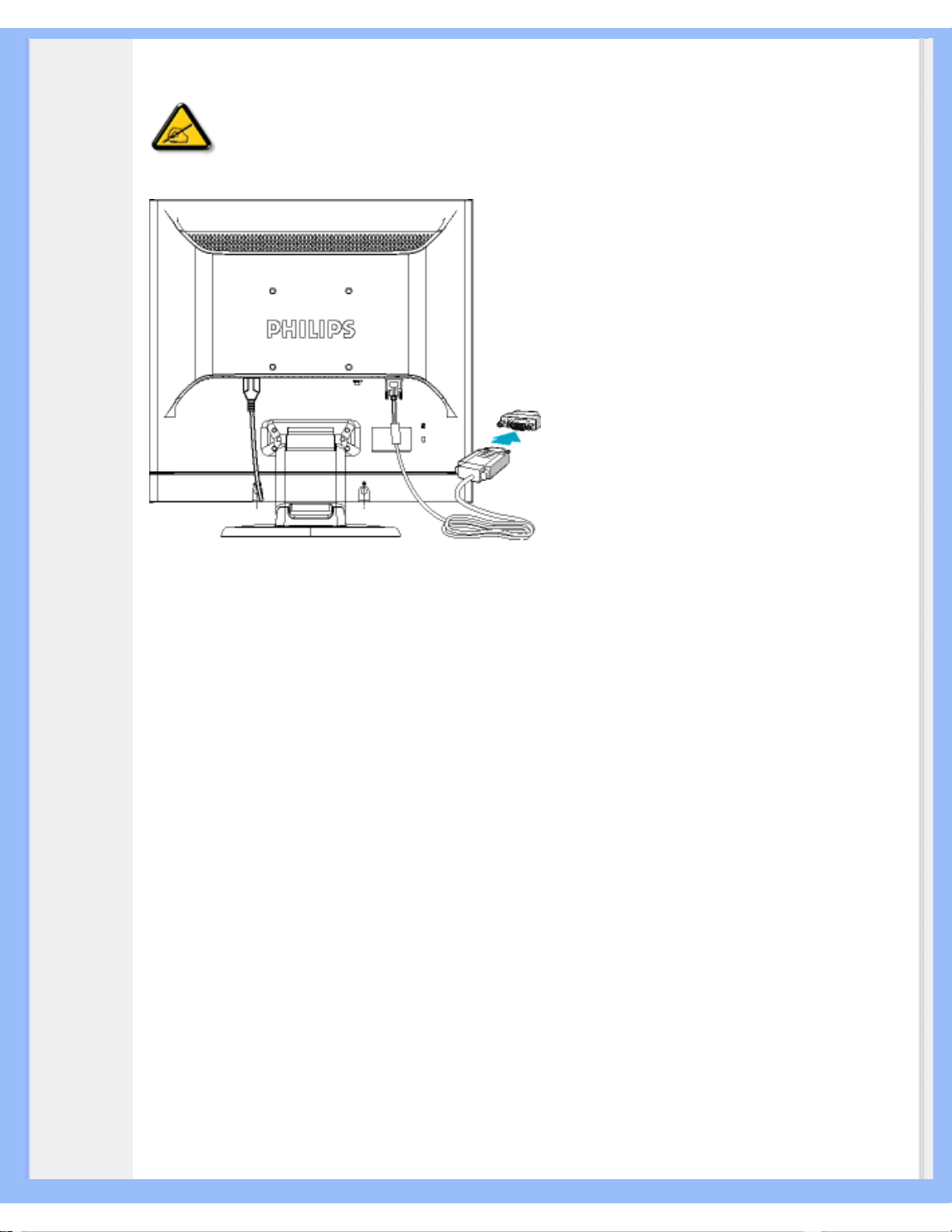

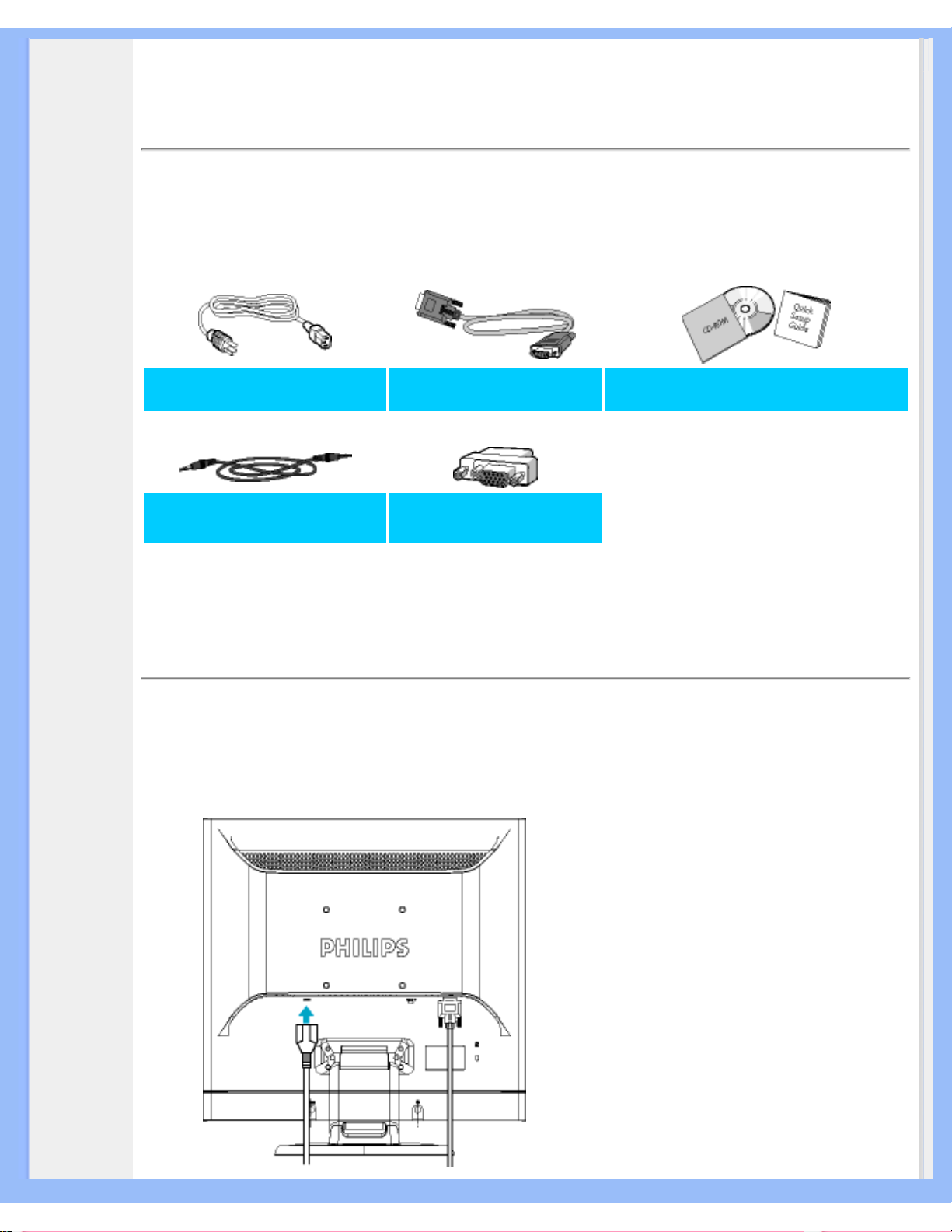

Connecting
to Your PC

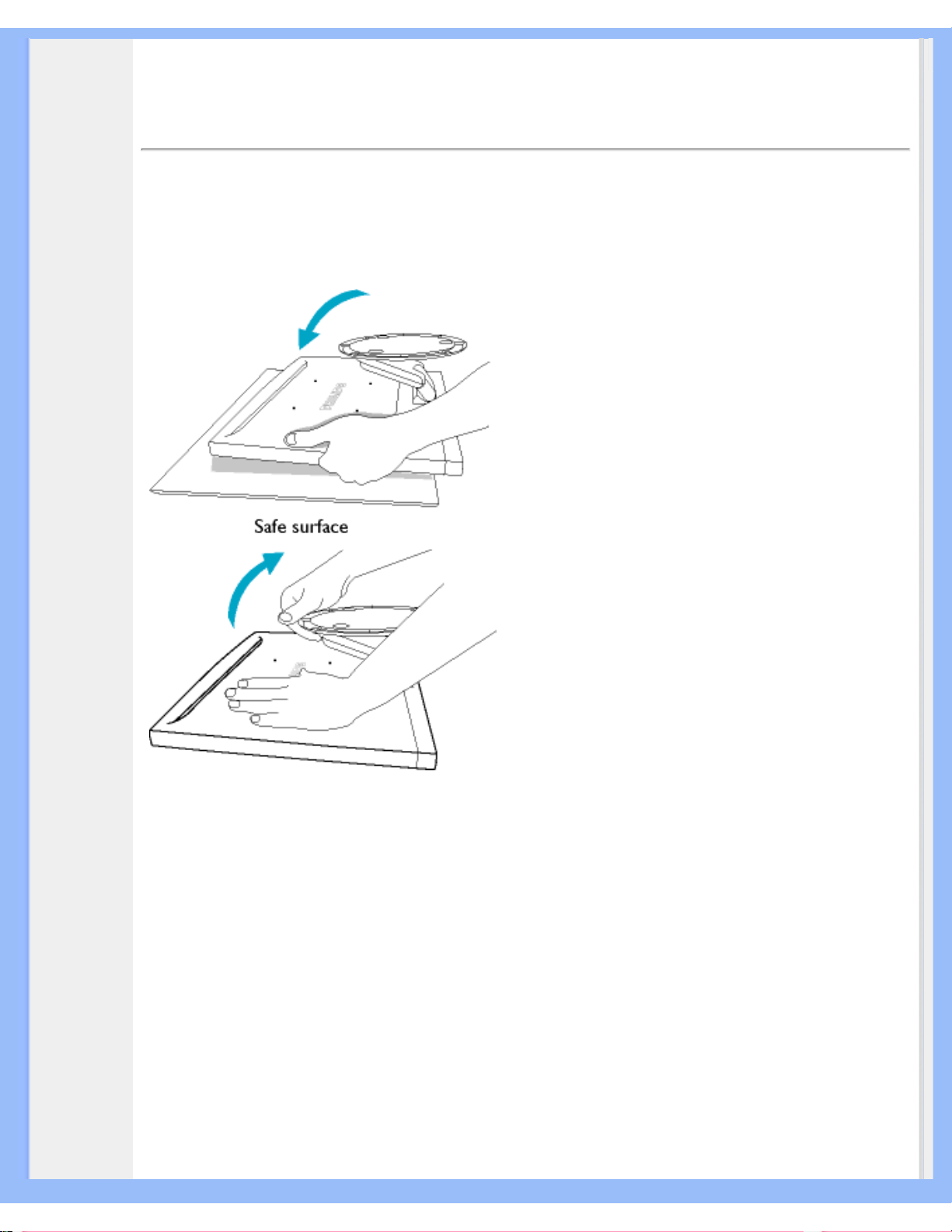

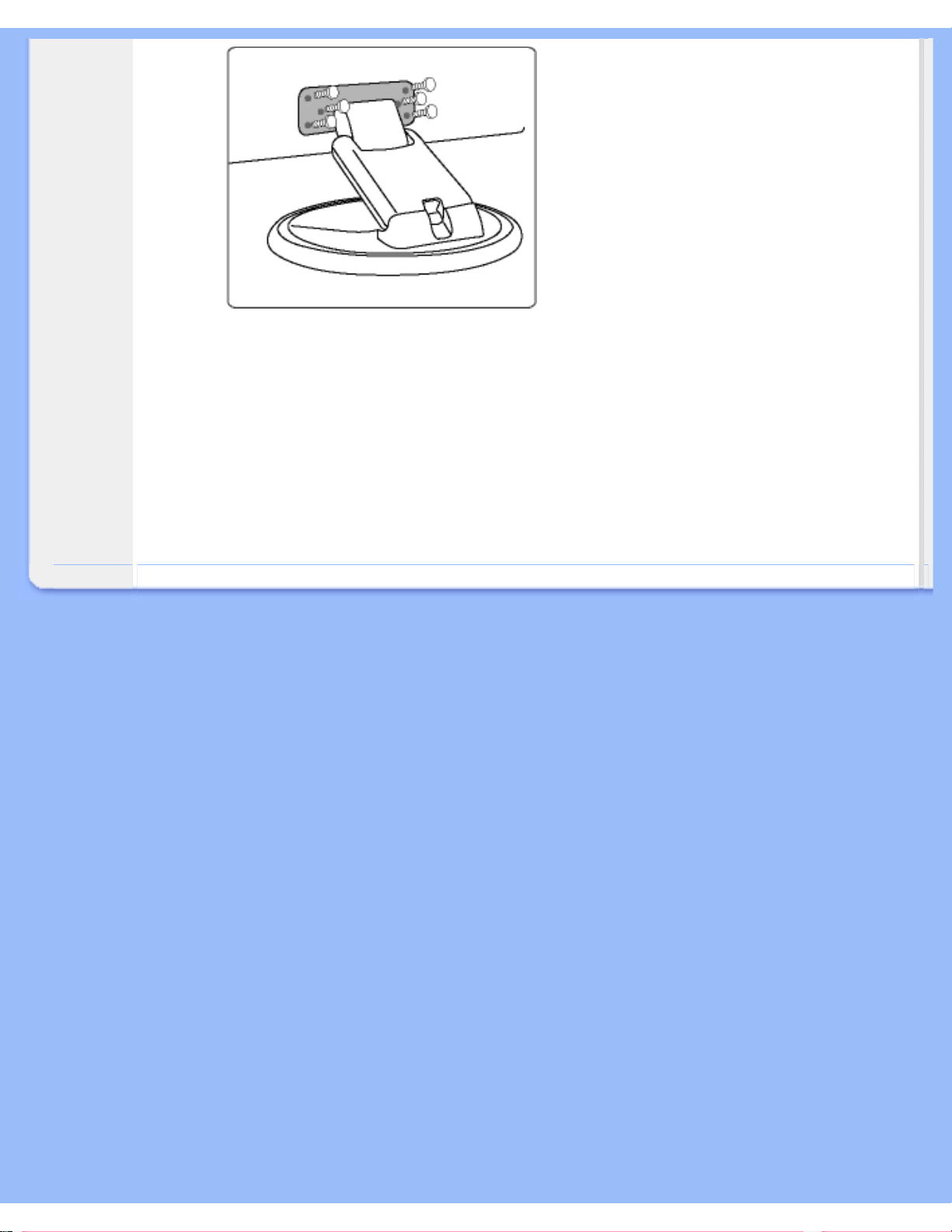

• The Base

•

Getting
Started

•

Optimizing
Performance

Installing Your LCD Monitor

Front View Product Description

UP and DOWN buttons are used when adjusting the OSD of your monitor.
LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in

adjusting the OSD of your monitor.
BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are

pressed, the adjustment controls for the BRIGHTNESS will show up.

VOLUME

VOLUME hotkey. When the LEFT and RIGHT arrow buttons are pressed,
the adjustment controls for VOLUME will show up.

OK button which when pressed will take you to the OSD controls.

POWER button switches your monitor on.

Automatically adjust the horizontal position, vertical position, phase and
clock setting.

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/W9/english/190b5/install/install.htm (1 of 3) [3/16/2004 1:47:31 PM]

Installing Your LCD Monitor

Rear View

1 Kensington anti-thief lock
2 VGA input
3 Earphone jack
4 DVI-D input
5 PC audio input
6 AC power input

RETURN TO TOP OF THE PAGE

Optimizing Performance

● For best performance, ensure that your display settings are set at 1280x1024, 60Hz.

Note: You can check the current display settings by pressing the 'OK' button once.

Go into the Product Information. The current display mode is shown on the item
called RESOLUTION.

● You can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best

performance out of your monitor. This is included on this CD. Step-by-step instructions are provided
to guide you through the installtion process. Click on the link to know more about this program.

file:///D|/My%20documents/dfu/W9/english/190b5/install/install.htm (2 of 3) [3/16/2004 1:47:31 PM]

Installing Your LCD Monitor

More about FP_setup04.exe

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/W9/english/190b5/install/install.htm (3 of 3) [3/16/2004 1:47:31 PM]

On-Screen Display

•Description
of the On­Screen
Display

•

The OSD
Tree

On-Screen Display

Description of the On Screen Display

What is the On-Screen Display?

This is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance of the
monitors directly through an on-screen instruction window. The user interface provides user-friendliness and
ease-of-use when operating the monitor.

Basic and simple instruction on the control keys.

When you press the

button on the front control of your monitor, the On-Screen Display (OSD) Main

Controls window will pop up and you can then start making adjustments to your monitor's various features.
Use the

or the keys to make your adjustments.

RETURN TO TOP OF THE PAGE

The OSD Tree

Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when
you want to work your way around the different adjustments later on.

Analog signal input:

file:///D|/My%20documents/dfu/W9/english/190b5/osd/osddesc.htm (1 of 3) [3/16/2004 1:47:33 PM]

On-Screen Display

Digital signal input:

file:///D|/My%20documents/dfu/W9/english/190b5/osd/osddesc.htm (2 of 3) [3/16/2004 1:47:33 PM]

On-Screen Display

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/W9/english/190b5/osd/osddesc.htm (3 of 3) [3/16/2004 1:47:33 PM]

Customer Care & Warranty

Customer Care & Warranty

PLEASE SELECT YOUR COUNTRY/AREA TO REVIEW DETAILS OF YOUR WARRANTY
COVERAGE

WESTERN EUROPE: Austria • Belgium • Cyprus • Denmark • France • Germany • Greece •

Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden •
Switzerland • Spain • United Kingdom

EASTERN EUROPE: Czech Republic • Hungary • Poland • Russia • Turkey

LATIN AMERICA: Antilles • Argentina • Brasil • Chile • Colombia • Mexico • Paraguay • Peru

• Uruguay • Venezuela

NORTH AMERICA: Canada • USA

PACIFIC: Australia • New Zealand

ASIA: Bangladesh • China • Hong Kong • India • Indonesia • Japan • Korea • Malaysia •

Pakistan • Philippines • Singapore • Taiwan • Thailand

AFRICA: Morocco • South Africa

MIDDLE EAST: Dubai • Egypt

file:///D|/My%20documents/dfu/W9/english/warranty/warranty.htm [3/16/2004 1:47:35 PM]

Glossary

Glossary

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

C

Color temperature

A way of describing the color of a radiating source in terms of the temperature (in degrees Kelvin) of a black
body radiating with the same dominant frequency as the source.

Most Philips monitors offer the possibility of setting the color temperature to any desired value.

RETURN TO TOP OF THE PAGE

D

D-SUB

Your monitor comes with a D-Sub cable.

Digital Visual Interface (DVI)

The Digital Visual Interface (DVI) specification provides a high-speed digital connection for visual data types
that is display technology independent. The interface is primarily focused at providing a connection between
a computer and its display device. The DVI specification meets the needs of all segments of the PC industry
(workstation, desktop, laptop, etc.) and will enable these different segments to unite around one monitor
interface specification.

file:///D|/My%20documents/dfu/W9/english/190b5/glossary/glossary.htm (1 of 5) [3/16/2004 1:47:39 PM]

Glossary

The DVI interface enables:

1. Reduce signal loss and video noise in signal due to less signal conversion.

2. Independent from display technology, and can be used on LCD, Plasma, LCOS, etc.

3. Plug and play through hot plug detection, EDID and DDC2B.

4. Digital and Analog support in a single connector (DVI-I only).

RETURN TO TOP OF THE PAGE

E

Energy Star Computers Program

An energy conservation program launched by the US Environmental Protection Agency (EPA), promotes
the manufacture and marketing of energy-efficient office automation equipment. Companies joining this
program, must be willing to commit themselves to manufacture one or more products capable of going into
a low -power state (< 30 W) either after a period of inactivity, or after a predetermined time selected by the
user.

RETURN TO TOP OF THE PAGE

L

LCD Liquid Crystal Display

An alphanumeric display, using the unique properties of liquid crystal, to form characters. The latest flat­panel displays, contains a matrix of hundreds or thousands of individual LCD cells that generate text and
colorful graphics on a screen. They consume little power, though they do require external lighting to make
them legible to the user.

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/W9/english/190b5/glossary/glossary.htm (2 of 5) [3/16/2004 1:47:39 PM]

Glossary

U

USB or Universal Serial Bus

A smart plug for PC peripherals. USB automatically determines resources (like driver software and bus

bandwidth) required by peripherals. USB makes necessary resources available without user intervention.

● USB eliminates "case anxiety" -- the fear of removing the computer case to install add-on

peripherals. USB also eliminates adjustment of complicated IRQ settings when installing new
peripherals.

● USB does away with "port gridlock." Without USB, PCs are normally limited to one printer, two Com

port devices (usually a mouse and modem), one Enhanced Parallel Port add-on (scanner or video
camera, for example) and a joystick. More and more peripherals for multimedia computers arrive on
the market every day. With USB, up to 127 devices can run simultaneously on a computer.

● USB permits "hot plug-in." There's no need to shut down, plug in, reboot and run set-up to install

peripherals. And no need to go through the reverse process to unplug a device.

In short, USB transforms today's "Plug-and-Pray" into true Plug-and-Play!

Hub

A Universal Serial Bus device that provides additional connections to the Universal Serial Bus.

Hubs are a key element in the plug-and-play architecture of USB. The Figure shows a typical hub. Hubs
serve to simplify USB connectivity from the user's perspective providing low cost and complexity.

Hubs are wiring concentrators and enable the multiple attachment characteristics of USB. Attachment points
are referred to as ports. Each hub converts a single attachment point into multiple attachment points. The
architecture supports concatenation of multiple hubs.

The upstream port of a hub connects the hub towards the host. Each of the other downstream ports of a
hub allows connection to another hub or function. Hubs can detect, attach and detach at each downstream
port and enable the distribution of power to downstream devices. Each downstream port can be individually
enabled and configured at either full or low speed. The hub isolates low speed ports from full speed
signaling.

A hub consists of two portions: the Hub Controller and Hub Repeater. The repeater is a protocol-controlled
switch between the upstream port and downstream ports. It also has hardware support for reset and
suspend/resume signaling. The controller provides the interface registers to allow communication to/from
the host. Hub specific status and control commands permit the host to configure a hub and to monitor and
control its ports.

Device

file:///D|/My%20documents/dfu/W9/english/190b5/glossary/glossary.htm (3 of 5) [3/16/2004 1:47:39 PM]

Glossary

A logical or physical entity that performs a function. The actual entity described depends on the context of
the reference. At the lowest level, device may refer to a single hardware component, as in a memory device.
At a higher level, it may refer to a collection of hardware components that perform a particular function, such
as a Universal Serial Bus interface device. At an even higher level, device may refer to the function
performed by an entity attached to the Universal Serial Bus; for example, a data/FAX modem device.
Devices may be physical, electrical, addressable, and logical.

Downstream

The direction of data flow from the host or away from the host. A downstream port is the port on a hub
electrically farthest from the host that generates downstream data traffic from the hub. Downstream ports
receive upstream data traffic.

Upstream

The direction of data flow towards the host. An upstream port is the port on a device electrically closest to
the host that generates upstream data traffic from the hub. Upstream ports receive downstream data traffic.

RETURN TO TOP OF THE PAGE

V

file:///D|/My%20documents/dfu/W9/english/190b5/glossary/glossary.htm (4 of 5) [3/16/2004 1:47:39 PM]

Glossary

Vertical refresh rate

Expressed in Hz, it is the number of frames (complete pictures) written to the screen every second.

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/W9/english/190b5/glossary/glossary.htm (5 of 5) [3/16/2004 1:47:39 PM]
