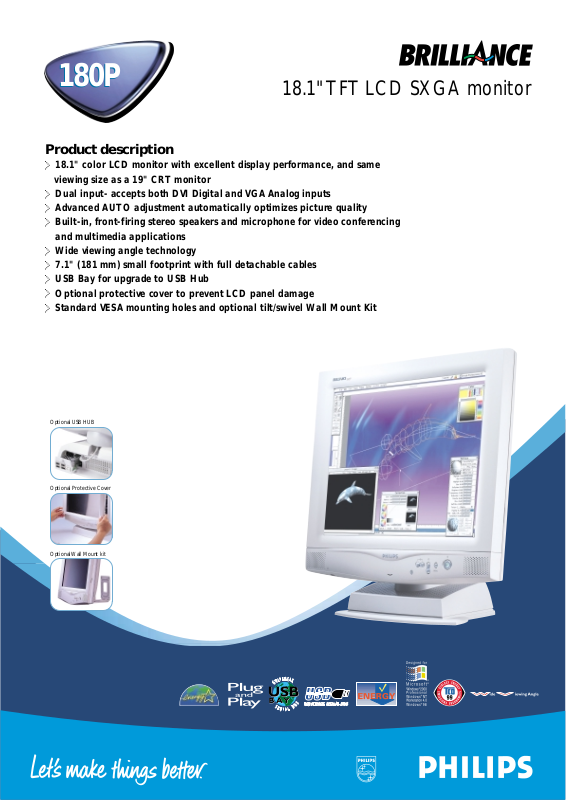

18.1" TFT LCD SXGA monitor
Product description
18.1" color LCD monitor with excellent display performance, and same
>
viewing size as a 19" CRT monitor
Dual input- accepts both DVI Digital and VGA Analog inputs
>
Advanced AUTO adjustment automatically optimizes picture quality
>
Built-in, front-firing stereo speakers and microphone for video conferencing
>
and multimedia applications
Wide viewing angle technology
>
7.1" (181 mm) small footprint with full detachable cables
>
USB Bay for upgrade to USB Hub
>
Optional protective cover to prevent LCD panel damage
>
Standard VESA mounting holes and optional tilt/swivel Wall Mount Kit
>
Optional USB HUB
Optional Protective Cover
Optional Wall Mount kit
Page 2
Technical Specifications
Power management
Complies with EPA Energy Star and NUTEK specifications
• Typical operation: 30W
• Sleep mode 3W
Low-emission characteristics
• Complies with MPR-II and TCO ’99 specifications
Monitor controls and functions
• Front Power on/off - push button
OSD (OK) - push button
Auto - push button
Up/Down (Brightness) - push button
Left/Right (Mute) - push button
LED indicator Green power on
Amber sleep mode
Flashing Green New mode
Connections and cables
• Connections
- Video 15-pin D-sub (analog)
DVI-D (digital)
- DC input 6.5mm DC connector
- Power IEC/CEE-22 type male power inlet on
base
• Cables D-Sub video,Audio,
Microphone and Power
User Options Accessories (sold separately)
• USB Hub
- 1 Upstream port
- 4 Downstream ports
- Self-powered bus
- Digital communication speed up to 12Mbs
• Protective cover
• VESA standard Wall mount kit with 18V AC/DC adapter
Regulatory approvals
• TUV/GS,TUV-Ergo
• FCC-B,UL, CSA
• SEMKO
• MPR-II Low Emission
• CE Mark
• Nutek,Energy Star
• TCO ’99
Physical specifications
• Dimension (WxHxD) 451x476x181 mm (incl.Pedestal)
• Tilt / Swivel 0°~27°/ ±40°
• Weight 8.5 Kg
• Power supply 100 – 240 VAC,50/60 Hz
• Power consumption 48 W* (typ.)
• Temperature 5°C to 35°C (operating)
-20°C to 60°C (storage)
• Relative humidity 20% to 80%
• System MTBF 50K hrs (excluding LCD panel,CCFL)
LCD panel
• Type TFT LCD
• Screen size 18.1"/ 46cm diagonal
• Pixel pitch 0.280 x 0.280mm
• LCD panel type 1280 x 1024 pixels,R.G.B.vertical stripe
Anti-glare polarizer, hard coated
• Effective viewing area 359 x 287.2mm
• Display colors 8 bits interface (16M colors)
Scanning
• Vertical refresh rate 56~76 Hz
• Horizontal Frequency 30~82 kHz
Video
• Video dot rate (Max.) 135MHz
• Input impedance
- Video 75 Ohm
- Sync 2K Ohm
• Input signal level 0.7 Vpp
• Sync input signal Separate sync, Composite sync
Sync on green
• Sync polarities Positive and negative
• Video interface Dual input:Both Analog (D-Sub) and
Digital (DVI-D) are available and user
selectable.
Audio
• Input signal level 0.7 Vpp
• Headphone out signal level 32 Ohm 20+20mW
• Input signal connector 3.5mm mini jack
• Loudspeaker 1+1W stereo front firing (PMPO: 24W)
Microphone
• Sensitivity -55dB re 1V/µbar at 1 kHz typical
• Output impedance 2.2K Ohm max
• Directivity -5dB at 180°
• Frequency range 300Hz~3 kHz
Optical characteristics (at 25°C)
• Contrast ratio: 250 (typ.)
• Brightness 200 nits (typ.)
• White Chromatcity: x:0.281 y: 0.311 (at 9300°K)
x:0.312 y: 0.338 (at 6500°K)
• Viewing Angle: Upper ≥80°(min.)
(C/R≥5) Lower ≥80°(min.)
Left ≥80°(min.)
Right ≥80°(min.)
• Response time: ≤50ms (typ.)
Resolution and preset modes
• Maximum 1280 x 1024 at 75Hz
• Recommended 1280 x 1024 at 60Hz
• 32user definable modes
• 15 factory preset modes
Resolution H.Feq.(kHz)/ V.Feq.(Hz)
640 x 350 31.5/70
720 x 400 31.5/70
640 x 480 31.5/60, 35.0/67,
37.5/75
800 x 600 35.2/56, 37.9/60,
46.9/75
832 x 624 49.7/75
1024 x 768 48.4/60,60.0/75
1152 x 870 69.0/75
1152 x 900 71.8/76
1280 x 1024 63.9/60,80.0/75
(Interlace mode is not applicable)
Plug and play compatibility
• Display data channel DDC 1/2B (VESA)
• Microsoft® Windows®95/98/NT/2000 compatible
We recommend using 1280 x 1024 at 60Hz non-interlaced mode for the best picture quality
As an Energy Star partner,Philips has determined that this product meets the Energy Star
guidelines for energy efficiency.
Microsoft and Windows are registered trademarks of Microsoft Corporation
* Resolution 1280 x 1024,standard size, contrast max., brightness 50%,
6500°K,full white pattern, without audio/USB.
All data subject to change without notice
Release date: June 2000
www.philips.com
