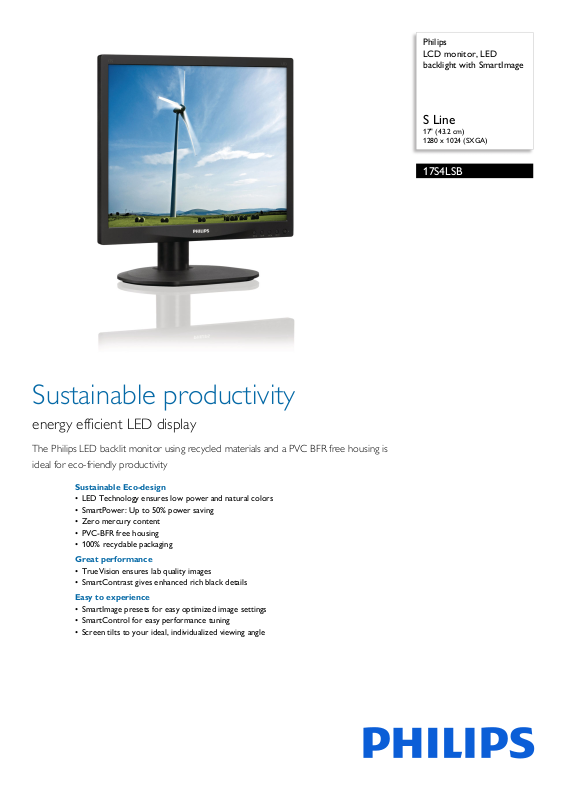

Page 1
Philips
LCD monitor, LED
backlight with SmartImage
S Line
17" (43.2 cm)
1280 x 1024 (SXGA)
17S4LSB
Sustainable productivity
energy efficient LED display
The Philips LED backlit monitor using recycled materials and a PVC BFR free housing is
ideal for eco-friendly productivity
Sustainable Eco-design
• LED Technology ensures low power and natural colors
• SmartPower: Up to 50% power saving
• Zero mercury content
• PVC-BFR free housing
• 100% recyclable packaging
Great performance
• TrueVision ensures lab quality images
• SmartContrast gives enhanced rich black details
Easy to experience
• SmartImage presets for easy optimized image settings
• SmartControl for easy performance tuning
• Screen tilts to your ideal, individualized viewing angle
Page 2
17S4LSB/67
LCD monitor, LED backlight
S Line 17" (43.2 cm), 1280 x 1024 (SXGA)
Highlights
LED Technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
SmartPower
SmartPower is an artificial intelligent
te
chnology which dynamically analyzes the
content of the screen image to achieve power
saving. The backlight intensity can be
controlled automatically and pre-set by the
system to reduce the power consumption by
up to 50%, which saves substantially on energy
costs
Zero mercury content
Philips monitors with LED backlighting are free
of
Mercury content, one of the most toxic
natural substances, which affects humans and
animals. This reduces the environmental
impact of the display throughout its life-cycle,
from manufacturing to disposal.
TrueVision
TrueVision is a proprietary Philips technology
that uses advanced algorithm for testing and
aligning monitor display which gives you the
ultimate display performance. Philips ensures
TrueVision monitors leave the factory finetuned with this process giving you consistent
color and picture quality.
SmartContrast
SmartContrast is a Philips technology that
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
SmartControl for easy tuning
PC software for fine tuning display
p
erformance and settings. Philips offers users
two choices for display setting adjustment.
Either navigate the multilevel On Screen
Display menu through buttons on the display
itself or use the Philips SmartControl software
to easily adjust the various display settings in a
familiar way
Page 3
17S4LSB/67
LCD monitor, LED backlight
S Line 17" (43.2 cm), 1280 x 1024 (SXGA)
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 17 inch / 43.2 cm
• Effective viewing area: 337.92 x 270.33 mm
• Display Screen Coating: Anti-Glare, 3H, Haze 25%
• Aspect ratio: 5:4
• Optimum resolution: 1280 x 1024 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1,000:1
• SmartContrast:
• Pixel pitch: 0.264 x 0.264 mm
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
20,000,000:1
kHz (H) / 56 -75 Hz (V)
Connectivity
• Signal Input: DVI-D (digital, HDCP), VGA (Analog )
• Sync Input: Separate Sync, Sync on Green
Convenience
• User convenience: SmartImage, Brightness,
SmartPower, Menu, Power On/Off
• Control software: SmartControl Premium
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukranian
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 8/7/Vista
sR
• On mode: 11.9 W (typ.) (EnergyStar 6.0 test
met
hod)
• Standby mode: 0.2 W (typ.)
• Off mode: 0.2 W (typ.)
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand (mm): 367 x 393 x 194 mm
• Product without stand (mm): 367 x 319 x 65 mm
• Packaging in mm (WxHxD): 450 x 446 x 160 mm
Weight
• Product with stand (kg): 3.54 kg
• Product without stand (kg): 3.14 kg
• Product with packaging (kg): 4.94 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 6.0, RoHS
• Recyclable packaging material: 100 %
• Specific Substances: PVC / BFR free housing,
ry free
Mercu
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, cETLus,
FCC Class B, GOST, SASO, SEMKO, TUV Ergo,
TUV/GS, WEEE, TCO Certified
Stand
• Tilt: -5/20 degree
Power
• ECO mode: 8 W (typ.)
Issue date 2022-04-21
Version: 4.0.1
12 NC: 8670 001 07064
EAN: 87 12581 69827 0
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
•
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
