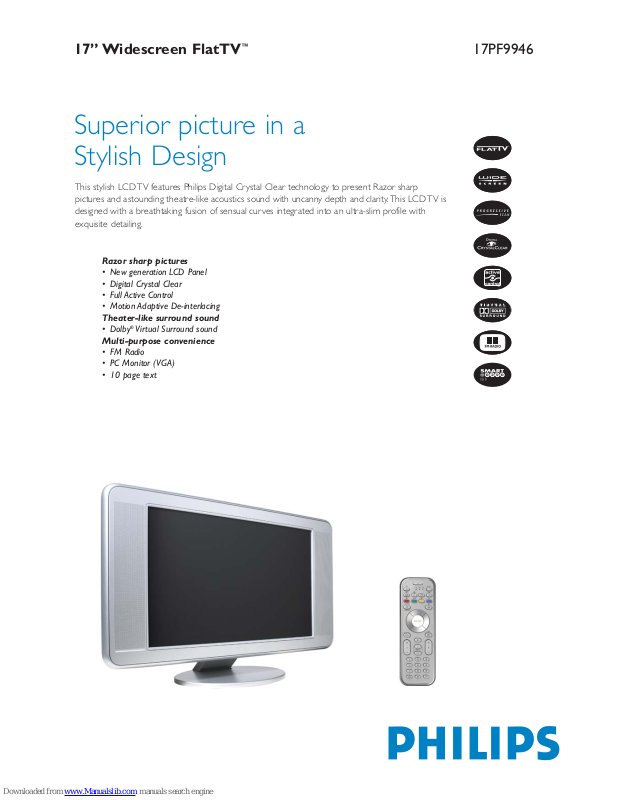

17” Widescreen FlatTV
™
Superior picture in a
Stylish Design
Razor sharp pictures
• New generation LCD Panel
• Digital Crystal Clear
• Full Active Control
• Motion Adaptive De-interlacing
Theater-like surround sound
• Dolby®Virtual Surround sound
Multi-purpose convenience
• FM Radio
• PC Monitor (VGA)
• 10 page text
This stylish LCD TV features Philips Digital Crystal Clear technology to present Razor sharp
pictures and astounding theatre-like acoustics sound with uncanny depth and clarity.This LCD TV is
designed with a breathtaking fusion of sensual curves integrated into an ultra-slim profile with
exquisite detailing.
17PF9946
Page 2
2CS NICAM 2CS NICAM NICAM NICAM PAL PAL PAL SECAM SECAM SECAM
DK DK BG BG I LL’ BG DK I BG DK LL’
stereo system
transmission system
• Screen (diagonal) : 43 cm
• Visible screen size : 43 cm
• Aspect ratio : Widescreen
• Display : LCD S-IPS Active
Matrix TFT
• Response Time : 16 ms
• Resolution : 1280 x 768
• Brightness : 450 nits
• Contrast Ratio : 400:1
• Viewing Angle : 176 H/176 V
• Anti Reflex Coated Screen
• Progressive Scan
• Digital Crystal Clear
- Digital Combfilter
- Dynamic contrast
- Colour Enhancement : Green/Blue Stretch
- Colour Transcient Improvement (CTI)
- Luminance Transcient Improver (LTI)
• Active Control + Light Sensor
- Auto sharpness
- Auto DNR
- Auto Contrast with respect to ambient light
Sound Quality
• Sound Power : 6 watt RMS
• Music Power : 12 watt
• 2 on board Flat speakers
• Virtual Dolby®Surround
• DBE
Ease of Installation
• Plug & play
• 100 Preset channels
• Autostore/Manual Store
• Fine tuning
• Sorting
• Smart ATS/ACI
Ease of Use
• Side controls
• Graphical User Interface
• Smart Picture (5 modes)
• Smart Sound (4 modes)
• Smart Listening (AVL+Delta Volume)
• 6 Widescreen modes : 4:3, Zoom 14:9,
Zoom 16:9, Super
wide,Widescreen,
Full Screen
• Multi-language OSD and menu control
• Program List (100 presets)
• Slim Remote Control (RCAE49_FRP)
Side Connections
• S-Video
• Headphone
• Video CVBS (mini jack)
Rear Connections
• EXT I: Euro AV Connector (RGB in,
CVBS in/out)
• EXT 2: Euro AV Connector (S-Video in,
CVBS in/out)
• Stereo Audio out constant level
• PC Audio
• VGA,Analog PC input
Information
• 10 Page Smart Text
• Text Dual Screen
• Twin Page Text
FM Radio
• Stereo FM Radio
• 40 Preset Channels
• Autostore/Manual store
• Sorting
• Preset List
Multimedia modes
Standard Resolution Refresh rate
VGA 640 x 480 60,72,75,85 Hz
VGA 720 x 400 70, 85 Hz
VGA 640 x 350 70, 85 Hz
MAC 640 x 480 66.67 Hz
MAC 832 x 624 74.55 Hz
SVGA 800 x 600 56, 60, 72, 75, 85 Hz
XGA 1024 x 768 60, 70, 75, 85 Hz
WXGA 1280 x 768 60, 75 Hz
Reception
Tuning System : PLL
Tuner : VHF, UHF, S-channel,
Hyperband
Colour system : See Table
Stereo system : See Table
Aerial Input : 75 Ohm Coaxial
Miscellaneous
Ambient Temperature : +5/45°C
Main : AC 90 V– 240 V
Net Weight : 6 Kg
Gross Weight : 8 Kg
Set Dimensions : 528 x 300 x 86 mm /
(WxHxD) 528 x 375.5 x 240 mm
without Stand/
With Stand
Box Dimensions : 624 x 254 x 477 mm
(WxHxD)
Technical specifications
17” Widescreen FlatTV
™
17PF9946
Product highlights
New generation LCD Panel
New generation LCD Panel offers superior
entertainment with a wider viewing angle, a faster
response time and natural brilliant colors. Minimal
‘color shift’ i.e. uniform natural colors when viewed
from different angles, is a key picture performance
factor for LCD TVs.
Digital Crystal Clear
A unique package of picture innovations including
Combfilter, Dynamic Contrast., Color Enhancement, and
Luminance Transient Improvement resulting in more
contrast, natural colors and a high level of detail.
Full Active Control
Active Control delivers the best picture setting, any
time, any source.The incoming signal is automatically
analysed and key picture settings are adjusted;
sharpness, noise reduction, color and contrast.
The ambient light sensor adjusts the settings according
to the viewing conditions in the room.
Motion Adaptive De-interlacing
A smart de-interlacing algorithm which is able to
detect the type of video source such as Still Picture,
Motion Picture or Film and automatically optimize the
de-interlacing process with Spatial,Temporal or Film
mode de-interlacing to deliver razor sharp and stable
images at all time.
Virtual Dolby
®
Surround
Enjoy enhanced cinema surround sound effect without
the need for rear speakers.
FM Radio
Listen to all your favorite radio channels (40 presets).
Digital Connectivity
With the DVI Digital PC input, superior picture quality
can be achieved when used as PC monitor.
Predecessor : Nil
Chassis : LC04V
Introduction : Year 2004
Dolby and the double-D symbol are trademarks
of Dolby Laboratories Licensing, Inc.
Features and specifications subject to change without notice
2004 Royal Philips Electronics – All rights reserved.
