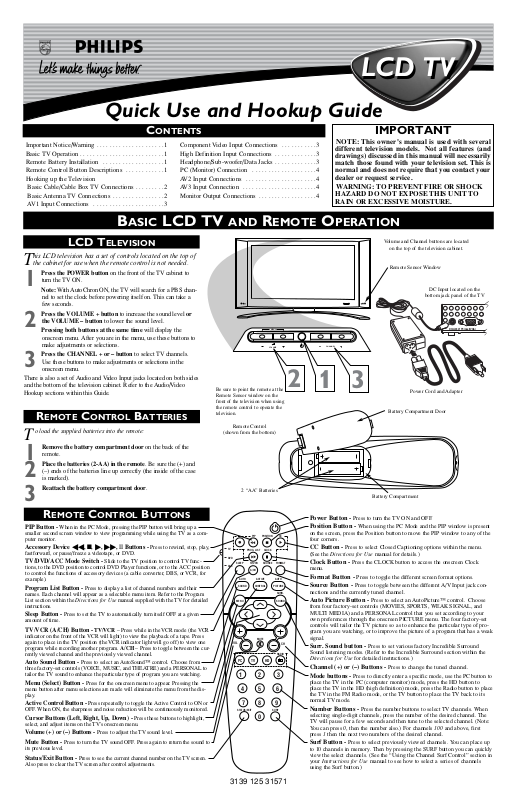

Quick Use and Hookup Guide
Important Notice/Warning . . . . . . . . . . . . . . . . . . . . .1
Basic TV Operation . . . . . . . . . . . . . . . . . . . . . . . . . .1
Remote Battery Installation . . . . . . . . . . . . . . . . . . .1
Remote Control Button Descriptions . . . . . . . . . . . .1
Hooking up the Television
Basic Cable/Cable Box TV Connections . . . . . . . . .2
Basic Antenna TV Connections . . . . . . . . . . . . . . . .2

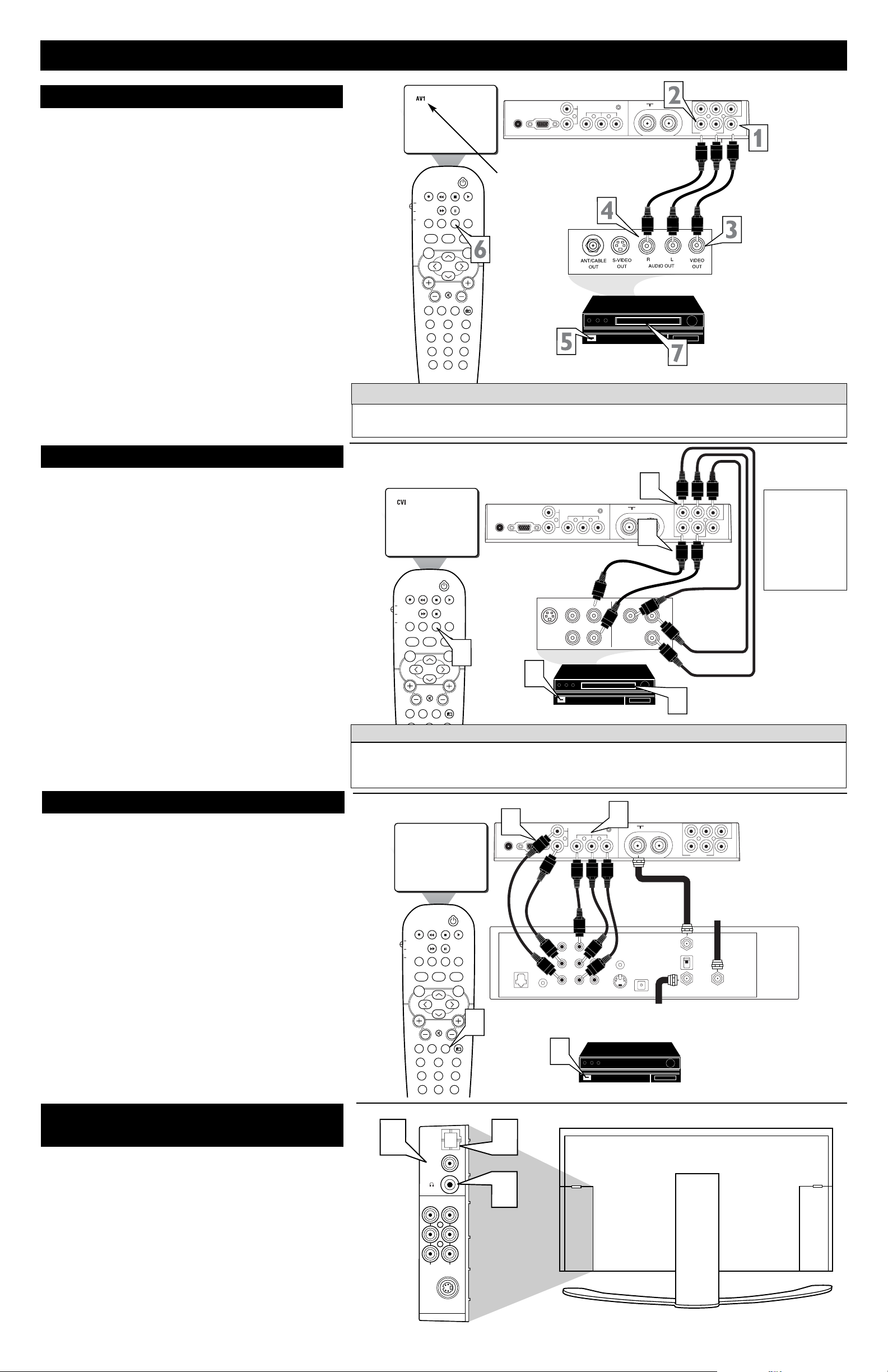

AV1 Input Connections . . . . . . . . . . . . . . . . . . . . . .3
Component Video Input Connections . . . . . . . . . . .3
High Definition Input Connections . . . . . . . . . . . . .3
Headphone/Sub-woofer/Data Jacks . . . . . . . . . . . . .3

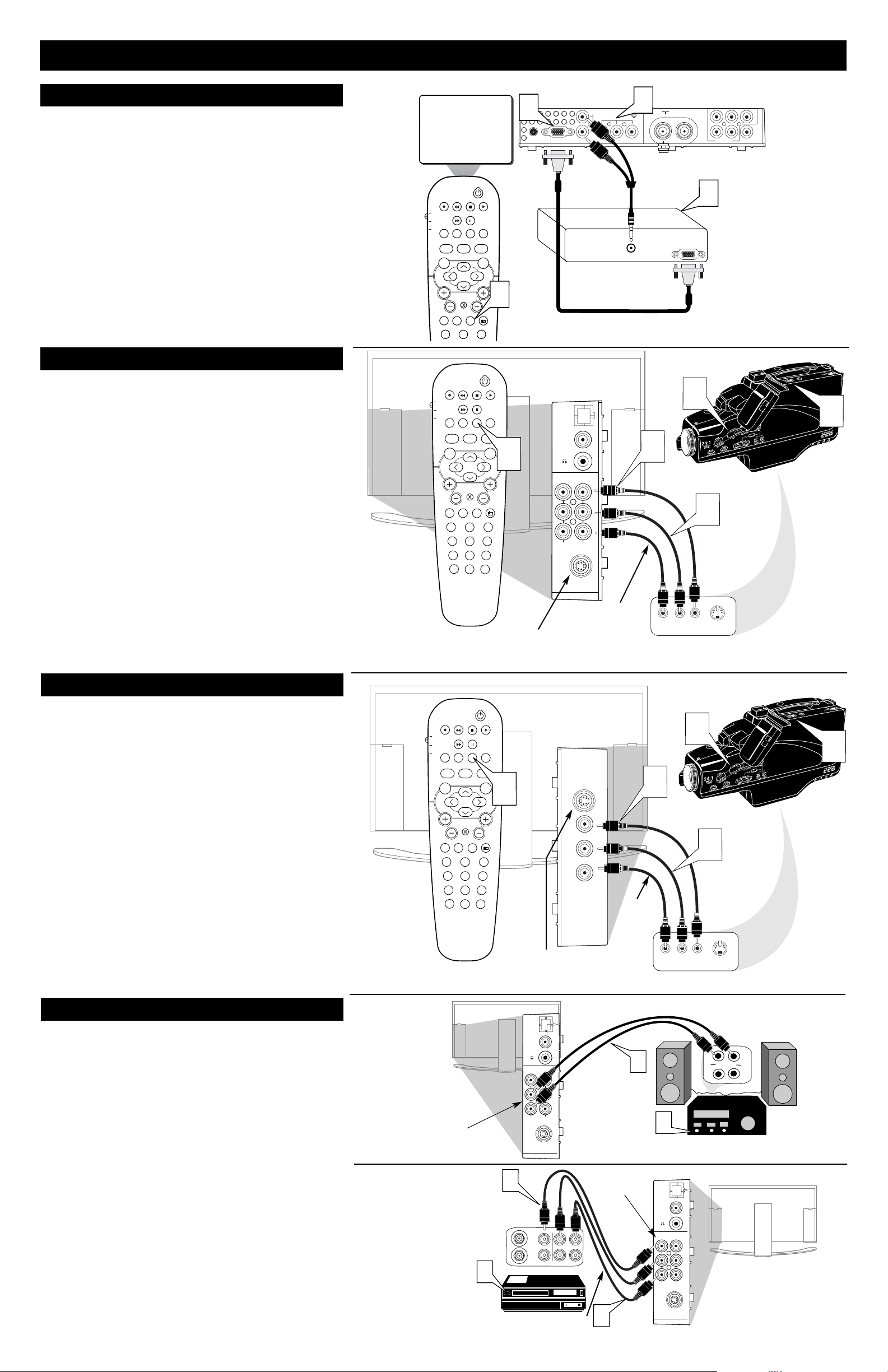

PC (Monitor) Connection . . . . . . . . . . . . . . . . . . . .4
AV2 Input Connections . . . . . . . . . . . . . . . . . . . . . .4
AV3 Input Connection . . . . . . . . . . . . . . . . . . . . . . .4
Monitor Output Connections . . . . . . . . . . . . . . . . . .4
IMPORTANT
NOTE: This owner's manual is used with several
different television models. Not all features (and
drawings) discussed in this manual will necessarily
match those found with your television set. This is
normal and does not require that you contact your
dealer or request service.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD DO NOT EXPOSE THIS UNIT TO
RAIN OR EXCESSIVE MOISTURE.
LCD TV
LCD TV
CONTENTS
BASIC LCD TV
AND
REMOTE OPERATION
T
his LCD television has a set of controls located on the top of
the cabinet for use when the remote control is not needed.
1
Press the POWER button on the front of the TV cabinet to
turn the TV ON.
Note: With AutoChron ON, the TV will search for a PBS channel to set the clock before powering itself on. This can take a
few seconds.
2
Press the VOLUME + button to increase the sound level or
the VOLUME – button to lower the sound level.
Pressing both buttons at the same time will display the
onscreen menu. After you are in the menu, use these buttons to
make adjustments or selections.
3
Press the CHANNEL + or – button to select TV channels.
Use these buttons to make adjustments or selections in the
onscreen menu.
There is also a set of Audio and Video Input jacks located on both sides
and the bottom of the television cabinet. Refer to the Audio/Video
Hookup sections within this Guide.
LCD TELEVISION
Remote Sensor Window
Volume and Channel buttons are located
on the top of the television cabinet.
T
o load the supplied batteries into the remote:
1
Remove the battery compartment door on the back of the
remote.
2
Place the batteries (2-AA) in the remote. Be sure the (+) and
(–) ends of the batteries line up correctly (the inside of the case
is marked).
3
Reattach the battery compartment door.
REMOTE CONTROL BATTERIES
Remote Control
(shown from the bottom)
Battery Compartment Door
2 “AA” Batteries
Battery Compartment
REMOTE CONTROL BUTTONS
Be sure to point the remote at the
Remote Sensor window on the
front of the television when using
the remote control to operate the
television.
PIP Button - When in the PC Mode, pressing the PIP button will bring up a
smaller second screen window to view programming while using the TV as a computer monitor.
Accessory Device , ■, , , II Buttons - Press to rewind, stop, play,
fastforward, or pause/freeze a videotape, or DVD.
TV/DVD/ACC Mode Switch - Slide to the TV position to control TV func-
tions, to the DVD position to control DVD Player functions, or to the ACC position
to control the functions of accessory devices (a cable converter, DBS, or VCR, for
example).
Program List Button - Press to display a list of channel numbers and their
names. Each channel will appear as a selectable menu item. Refer to the Program
List section within the Directions for Use manual supplied with the TV for detailed
instructions.
Sleep Button - Press to set the TV to automatically turn itself OFF at a given
amount of time.
TV/VCR (A/CH) Button - TV/VCR – Press while in the VCR mode (the VCR
indicator on the front of the VCR will light) to view the playback of a tape. Press
again to place in the TV position (the VCR indicator light will go off) to view one
program while recording another program. A/CH – Press to toggle between the currently viewed channel and the previously viewed channel.
Auto Sound Button - Press to select an AutoSound™ control. Choose from
three factory-set controls (VOICE, MUSIC, and THEATRE) and a PERSONAL to
tailor the TV sound to enhance the particular type of program you are watching.
Menu (Select) Button - Press for the onscreen menu to appear. Pressing the
menu button after menu selections are made will eliminate the menu from the display.
Active Control Button - Press repeatedly to toggle the Active Control to ON or
OFF. When ON, the sharpness and noise reduction will be continuously monitored.
Cursor Buttons (Left, Right, Up, Down) - Press these buttons to highlight,
select, and adjust items on the TV's onscreen menu.
Volume (+) or (–) Buttons - Press to adjust the TV sound level.
Mute Button - Press to turn the TV sound OFF. Press again to return the sound to
its previous level.
Status/Exit Button - Press to see the current channel number on the TV screen.
Also press to clear the TV screen after control adjustments.
Power Button - Press to turn the TV ON and OFF.
Position Button - When using the PC Mode and the PIP window is present
on the screen, press the Position button to move the PIP window to any of the
four corners.
CC Button - Press to select Closed Captioning options within the menu.
(See the Directions for Use manual for details.)
Clock Button - Press the CLOCK button to access the onscreen Clock
menu.
Format Button - Press to toggle the different screen format options.
Source Button - Press to toggle between the different A/V Input jack con-
nections and the currently tuned channel.
Auto Picture Button - Press to select an AutoPicture™ control. Choose
from four factory-set controls (MOVIES, SPORTS, WEAK SIGNAL, and
MULTI MEDIA) and a PERSONAL control that you set according to your
own preferences through the onscreen PICTURE menu. The four factory-set
controls will tailor the TV picture so as to enhance the particular type of program you are watching, or to improve the picture of a program that has a weak
signal.
Surr. Sound button - Press to set various factory Incredible Surround
Sound listening modes. (Refer to the Incredible Surround section within the
Directions for Use for detailed instructions.)
Channel (+) or (–) Buttons - Press to change the tuned channel.
Mode buttons - Press to directly enter a specific mode, use the PC button to
place the TV in the PC (computer monitor) mode, press the HD button to
place the TV in the HD (high definition) mode, press the Radio button to place
the TV in the FM Radio mode, or the TV button to place the TV back to its
normal TV mode.
Number Buttons - Press the number buttons to select TV channels. When
selecting single-digit channels, press the number of the desired channel. The
TV will pause for a few seconds and then tune to the selected channel. (Note:
You can press 0, then the number also.) For channels 100 and above, first
press 1 then the next two numbers of the desired channel.
Surf Button - Press to select previously viewed channels. You can place up
to 10 channels in memory. Then by pressing the SURF button you can quickly
view the select channels. (See the “Using the Channel Surf Control” section in
your Instructions for Use manual to see how to select a series of channels
using the Surf button.)
DC Input located on the
bottom jack panel of the TV
Power Cord and Adapter
MENU
VOLUME
2
DCin(24V) PCinput(VGA)
CHANNEL
1
3
PIP
POSITION
TV
PROG. LIST
DVD
ACC
TV/VCRSLEEP SOURCE FORMAT
A/CH
AUTO ACTIVE AUTO
SOUND CONTROL
MENU SOUND
VOL
MUTE
PC
TV
23
1
456
789
STATUS/EXIT
0
CLOCK
HD
SURF
SURR.
RADIO
CC
CH
2
HOOKING UP THE TELEVISION
A
combination antenna receives normal broadcast channels (VHF 2–13 and UHF 14–69). Your connection is
easy because there is only one 75Ω (ohm) antenna plug on
the back of your TV, and that’s where the antenna goes.
1
If your antenna has a round cable (75 ohm) on the end,
then you're ready to connect it to the TV.
If your antenna has flat, twin-lead wire (300 ohm), you
first need to attach the antenna wires to the screws on a
300- to 75-ohm adapter.
2
Push the round end of the adapter (or antenna) onto the
75Ω (ohm) plug on the bottom of the TV. If the round end
of the antenna wire is threaded, screw it down finger tight.
ANTENNA TV
COMP
VIDEO
INPUT
Audio in (PC/HD)
HD input
75 Ω
FM ANT
DCin(24V) PCinput(VGA)
L
R
YPbPr
AVI
in
Pr
Pb Y
RL
Audio in
Video in
Antenna Connection:
Jack Panel
Bottom of TV
Round 75Ω
Coaxial Cable
from Antenna
Twin
Lead Wire
300 to 75-ohm
Adapter
Outdoor or Indoor Antenna
(Combination VHF/UHF)
The combination antenna receives normal
broadcast channels 2-13 (VHF) and 14-69 (UHF).
COMP
VIDEO
INPUT
Audio in (PC/HD)
HD input
75 Ω
FM ANT
DCin(24V) PCinput(VGA)
L
R
YPbPr
AVI
in
Pr
Pb Y
RL
Audio in
Video in
Y
our Cable TV input into your home may be a single (75 ohm)
cable or use a cable box decoder. In either case the connection is very simple. Follow the steps below to connect your cable
signal to your new television.
Direct Cable Connections:
This connection will supply Stereo sound to the TV.
1
Connect the open end of the round Cable Company sup-
plied cable to the 75Ω input on the bottom of the TV. Screw
it down finger tight.
Cable Box (w/RF In/Outputs):
This connection will NOT supply Stereo sound to the TV. The sound
from the cable box will be mono.
1
Connect the open end of the round Cable Company sup-
plied cable to
the cable signal IN(put) plug on the back of
the Cable Box.
2
Using a separate round coaxial cable, connect one end to the
OUT(put) (TO TV) plug on the back of the Cable Box.
3
Connect the other end of the round coaxial cable to the
75Ω input on the bottom of the television. Screw it down finger tight.
NOTE: Be sure to set the OUTPUT CHANNEL SWITCH on the
back of the cable box to CH 3 or 4, then tune the cable box on the
TV to the corresponding channel. Once tuned, change channels at
the cable box, not the television.
Cable Box (w/Audio/Video Outputs):
This connection will supply Stereo sound to the TV.
1
Connect the open end of the round Cable Company sup-
plied cable to
the cable signal IN(put) plug on the back of
the Cable Box.
2
Using a RCA type Video Cable, connect one end of the
cable to the Video (yellow) (or ANT, your cable box may be
labeled differently) Out jack on the cable box and the other
end to the Video Input on the bottom of the TV.
3
Using a RCA type Audio Left and Right Cable, connect one
end to the left and right Audio Out L & R jacks (red &
white) on the cable box. Connect the other end to the Audio
L& R Input jacks on the bottom of the TV.
NOTE: Use the SOURCE button on the TV remote control to tune to
the AV1 channel for the cable box signal. Once tuned, change channels at the cable box, not the television. Pressing the SOURCE button
repeatedly will scroll all the AV Input channels, including the presently tuned channel.
CABLE/CABLE BOX TV
COMP
VIDEO
INPUT
Audio in (PC/HD)
HD input
75 Ω
FM ANT
DCin(24V) PCinput(VGA)
L
R
YPbPr
AVI
in
Pr
Pb Y
RL
Audio in
Video in
COMP
VIDEO
INPUT
Audio in (PC/HD)
HD input
75 Ω
FM ANT
DCin(24V) PCinput(VGA)
L
R
YPbPr
AVI
in
Pr
Pb Y
RL
Audio in
Video in
Direct Cable Connection:
Cable Box with RF Inputs and Outputs Connection:
Cable signal
coming from
Cable Company
(Round 75Ω
coaxial cable)
Jack Panel Bottom of TV
Jack Panel Back
of Cable Box
Cable Signal
IN from the
Cable
Company
Round 75Ω
Coaxial Cable
Jack Panel Bottom of TV
Cable Box with Audio/Video Outputs Connection:
Cable Signal IN
from the Cable
Company
Jack Panel Back
of Cable Box with A/V Outputs
Jack Panel Bottom of TV
Audio Cables
L& R (Red, White)
Video Cable (Yellow)
Output Channel Switch
HOOKING UP THE TELEVISION
3
I
f your using a High Definition receiver that can transmit high
definition programming, the TV can except those signals
through the HD Inputs located on the bottom of the TV.
1
Connect the Component (Y, Pb, Pr) Video OUT jacks
from the HD Receiver (or similar device) to the HD (Y, Pb,
Pr) input jacks on the bottom of the TV.
2
Connect the red and white AUDIO CABLES to the
Audio (left and right) output jacks on the rear of the HD
Receiver to the Audio In (PC/HD) Input Jacks on the bottom of the TV.
3
Turn the TV and the HD Receiver ON.
4
Press the HD Mode button to set the TV into the HD
Mode and tune to the HD signal.
Note: The Audio/Video cables needed for this connection are not
supplied with your TV. Please contact your dealer or Philips at
800-531-0039 for information about purchasing the needed
cables.
HD (H
IGH
DEFINITION
) INPUTS
T
he audio/video input jacks on the bottom panel of the TV are
for direct picture and sound connections between the TV and
a VCR (or similar device) that has audio/video output jacks.
1
Connect the VIDEO (yellow) cable to the VIDEO AV1 in
jack on the bottom of the TV.
2
Connect the AUDIO (red and white) cables to the
AUDIO (left and right) AV1 in jacks on the bottom of the
TV.
3
Connect the VIDEO (yellow) cable to the VIDEO OUT
jack on the back of the VCR or accessory device being
used.
4
Connect the AUDIO (red and white) cables to the
AUDIO (left and right) OUT jacks on the rear of the VCR
or accessory device being used.
5
Turn the VCR or accessory device and the TV ON.
6
Press the SOURCE button on the remote control to select
the AV1 channel for the accessory device. AV1 will appear
in the upper left corner on the TV screen when tuned properly.
7
With the VCR (or accessory device) ON and a prerecorded
tape (CD, DVD, etc.) inserted, press the PLAY button to
view the tape on the television.
AV1 I
NPUTS
Note: The Audio/Video cables needed for this connection are not supplied with your TV. Please contact
your dealer or Philips at 800-531-0039 for information about purchasing the needed cables.
H
ELPFUL HINT
AUDIO IN
(RED/WHITE)
BOTTOM OF TV
VCR (or accessory device)
(EQUIPPED WITH VIDEO AND
AUDIO OUTPUT JACKS)
BACK OF VCR
(or Accessory device)
VIDEO IN (YELLOW)
C
omponent Video inputs provide the highest possible color and
picture resolution in the playback of digital signal source
material, such as with DVD players.
1
Connect the Component (Y, Pb, Pr) Video OUT jacks
from the DVD player (or similar device) to the
COMP(onent) VIDEO Input (Y green, Pb blue, Pr red)
jacks on the bottom of the TV. When using the Component
Video Inputs, it is best not to connect a signal to the AV1 in
Video Jack.
2
Connect the red and white AUDIO CABLES to the
Audio (left and right) output jacks on the rear of the accessory device to the Audio (L and R) AV1 in Input Jacks on
the TV.
3
Turn the TV and the DVD (or digital accessory device)
ON.
4
Press the SOURCE button to scroll the available channels until CVI appears in the upper left corner of the TV
screen.
5
Insert a DVD disc into the DVD player and press the
PLAY
button on the DVD Player.
COMPONENT (CVI) INPUTS
TUNE TO AV1 CHANNEL
The description for the component video connectors may differ depending on the DVD player or accessory
digital source equipment used (for example, Y, Pb, Pr; Y, B-Y, R-Y; Y, Cr, Cb). Refer to your DVD or digital accessory owner’s manual for definitions and connection details.
HELPFUL HINT
AUDIO CABLES
(RED/WHITE)
COMPONENT
VIDEO CABLES
(Green, Blue, Red)
BOTTOM OF TV
ACCESSORY DEVICE
EQUIPPED WITH COMPO-
NENT VIDEO OUTPUTS.
The CVI connection
will be dominate over
the AV1 in Video Input.
When a Component
Video Device is connected as described, it is
best not to have a video
signal connected to the
AV 1 in Video Input
jack.
AUDIO
CABLES
COMPONENT
VIDEO CABLES
(Green, Blue, Red)
BOTTOM OF TV
HD RECEIVER
EQUIPPED WITH COMPONENT
VIDEO OUTPUTS.
T
he left side Jack Panel contains three jacks that can be used
for your convenience. They include a Headphone Jack, a Sub-
Woofer Jack, and a Data Jack.
1
HEAD PHONE JACK - Used for headphone listening in
any of the available modes. When headphones are connected to this jack the TV speakers will be muted.
2
SUB-WOOFER JACK - An external Sub-woofer speaker
can be connected to the TV at this jack. This would provide for a deeper bass sound.
3
DATA JACK - This jack is used in service applications
and should not be used by the customer.
HEADPHONE/SUB-WOOFER
/DATA JACKS
TV VIEWED FROM THE BACK
JACKS LOCATED
ON THE LEFT
REAR OF THE TV
PIP
TV
PROG. LIST
DVD
TV/VCRSLEEP
ACC
A/CH
AUTO
ACTIVE
SOUND CONTROL
MENU SOUND
MUTE
VOL
PC
TV
23
1
456
789
STATUS/EXIT
0
POSITION
SOURCE
Audio in (PC/HD)
L
HD input
R
DCin(24V) PCinput(VGA)
CC
CLOCK
FORMAT
AUTO
SURR.
CH
RADIO
HD
SURF
YPbPr
FM ANT
75 Ω
Pb Y
Pr
COMP
VIDEO
INPUT
AVI
RL
in
Video in
Audio in
PIP
TV
PROG. LIST
DVD
TV/VCRSLEEP
ACC
A/CH
AUTO
ACTIVE
CONTROL
SOUND
MENU SOUND
POSITION
CLOCK
SOURCE
Audio in (PC/HD)
L
HD input
R
DCin(24V) PCinput(VGA)
CC
FORMAT
AUTO
SURR.
YPbPr
S-VIDEO
VIDEO
OUT
OUT
AUDIO
R
OUT
L
4
75 Ω
COMP VIDEO
Y
1
FM ANT
2
Pr
Pb
Pb Y
Pr
COMP
VIDEO
INPUT
AVI
RL
in
Audio in
Video in
3
MUTE
VOL
PC
1
456
789
STATUS/EXIT
HD
TV
23
SURF
0
CH
RADIO
5
2
PIP
TV
PROG. LIST
DVD
TV/VCRSLEEP
ACC
A/CH
AUTO
ACTIVE
CONTROL
SOUND
MENU SOUND
MUTE
VOL
PC
TV
1
456
789
Data
Sub
woofer
out
VIDEO
out
L
R
Monitor
out
POSITION
CC
CLOCK
SOURCE
FORMAT
AUTO
SURR.
CH
RADIO
HD
23
VIDEO
in
L
R
AV2
in
HD 1
4
2
DCin(24V) PCinput(VGA)
Rear of HD Receiver
(Illustration is for reference only.
Your HD Receiver's jack panel will
look and be labelled different.)
3
1
RF
REMOTEPHONE JACK
AUDIO
L
R
VIDEO
3
in 1
Audio in (PC/HD)
L
HD input
R
Y
PB
PR
1
YPbPr
AUDIO
L
VCR
CONTROL
R
VIDEO
S-VIDEO
in 2
Pb Y
Pr
COMP
FM ANT
75 Ω
DIGITAL
AUDIO OUT
Coaxial Cable Lead-in
from Cable Outlet,
Cable Converter Box,
or VHF/UHF Antenna
VIDEO
INPUT
AVI
RL
in
Audio in
OUT TO TV
CH 3
CH 4
IN FROM ANT SATELLITE IN
Video in
Coaxial Cable
Lead-in
from
Satellite
Dish Antenna
S-VIDEO
HOOKING UP THE TELEVISION
4
T
he Monitor (Audio/Video) out jacks are great for recording with a
VCR or used to connect an external audio system for better audio.
For Audio System Connection:
1
Connect one end of the R(ight) and L(eft) AUDIO (Monitor
Out) jacks located on the right rear of the TV to the R and L
audio input jacks on your sound system. Refer to the AUDIO
OUT control within the Directions for Use for FIXED or VARIABLE settings.
2
Turn the TV and audio system ON. TV sound can be heard
through the audio system
For Second VCR Connection/Recorder:
The following steps allow you to connect a VCR to record the program while your watching it.
3
Connect one end of the yellow Video Cable to the Monitor
out VIDEO OUT plug on the left rear of the TV. Connect the
other end to the VIDEO IN plug on the second VCR.
4
Connect one end of the red and white Audio cable from the
Monitor out L and R plugs on the left rear of the TV to the
AUDIO IN plugs on the VCR.
5
Turn the VCR ON, insert a black VHS tape and it’s ready to
record what’s being viewed on the TV screen.
M
ONITOR OUTPUTS
T
his TV can be used as a PC Monitor. Your computer will have
to be equipped with a VGA type video output and VGA cable.
1
Connect one end of the VGA Video cable to the Monitor
(video) output on the computer to the PC Input (VGA) jack
on the bottom of the TV.
2
Although audio connections are not required, the TV can
reproduce the computers audio out by an AUDIO
ADAPTER to the Audio output jack on the computer (if
available) while connecting the other ends of the Audio
cables to the Audio In left and right (PC/HD) Input Jacks
on the bottom of the TV.
3
Turn the TV and the Computer ON.
4
Press the PC Mode button to set the TV into the HD
Mode and tune to the computer’s signal.
Note: Please contact your dealer or Philips at 800-531-0039 for
information about purchasing the needed cables.
PC (M
ONITOR) INPUTS
AUDIO
ADAPTER
VGA CABLE
BOTTOM OF TV
PC with VIDEO VGA OUT
T
here are Audio/Video Input Jacks located on both sides of the TV
located under removable panels. These jack allow for extra acces-
sory device connections for items such as cameras or gaming stations.
1
Connect the VIDEO (yellow) cable to the VIDEO AV2 in
jack on the left rear of the TV. Connect the other end of the
VIDEO (yellow) cable to the VIDEO OUT jack on the back of
the accessory device being used. Note: An S-Video cable can
be used in place of the yellow Video cable if your device is
equiped with an S-Video Output. S-Video provides better video
playback.
2
Connect the AUDIO (red and white) cables to the AUDIO
(left and right) AV2 in jacks on the left rear of the TV. Connect
the other ends of the AUDIO (red and white) cables to the
AUDIO (left and right) OUT jacks on the rear of the accessory
device being used.
3
Turn the accessory device and the TV ON.
4
Press the SOURCE button on the remote control repeatedly
to select the AV2 channel for the accessory device. AV2 will
appear in the upper left corner on the TV screen when tuned
properly.
5
With the accessory device ON, press the PLAY button to acti-
vate the playback on the television.
AV2 INPUTS
M
uch like the AV2 jacks, the AV3 jacks allow for extra accessory
device connections for items such as cameras or gaming stations.
The AV3 Input Jacks are located on the right rear of the TV.
1
Connect the VIDEO (yellow) cable to the VIDEO AV3 in jack
on the right rear of the TV. Connect the other end of the
VIDEO (yellow) cable to the VIDEO OUT jack on the back of
the accessory device being used. Note: An S-Video cable can be
used in place of the yellow Video cable if your device is equiped
with an S-Video Output. S-Video provides better video playback.
2
Connect the AUDIO (red and white) cables to the AUDIO
(left and right) AV2 in jacks on the right rear of the TV. Connect
the other ends of the AUDIO (red and white) cables to the
AUDIO (left and right) OUT jacks on the rear of the accessory
device being used.
3
Turn the accessory device and the TV ON.
4
Press the SOURCE button on the remote control repeatedly to
select the AV3 channel for the accessory device. AV3 will appear
in the upper left corner on the TV screen when tuned properly.
5
With the accessory device ON, press the PLAY button to acti-
vate the accessory device (DVD, VCR, CAMERA, etc.) and
view the playback on the television.
AV3 INPUTS
AUDIO CABLES
(Left and Right)
VIDEO CABLE
ACCESSORY DEVICE
JACK PANEL
ACCESSORY DEVICE
(Camera., DVD, VCR, etc.)
AN S-VIDEO CABLE CAN BE
USED IN PLACE OF THE
YELLOW VIDEO CABLE IF
DESIRED.
ACCESSORY DEVICE
(Camera., DVD, VCR, etc.)
JACK PANEL
BACK RIGHT OF TV
AUDIO
CABLES
(Left and
Right)
VIDEO CABLE
ACCESSORY DEVICE
JACK PANEL
AN S-VIDEO CABLE CAN BE
USED IN PLACE OF THE
YELLOW VIDEO CABLE IF
DESIRED.
Audio System
Connection:
Second VCR
Connection/Recorder:
AUDIO CABLES
(Red & White)
AUDIO SYSTEM
with AUDIO INPUTS
AV OUT
AUDIO L(eft) and R(ight)
JACK PANEL
Located on the back left of the
TV
AUDIO CABLES (Red & White)
Monitor OUT
VIDEO &AUDIO
L(eft) and R(ight)
SECOND VCR
VIDEO CABLE
(Yellow)
JACK PANEL
BACK LEFT OF TV
PIP
TV
PROG. LIST
DVD
TV/VCRSLEEP
ACC
A/CH
AUTO
ACTIVE
CONTROL
SOUND
MENU SOUND
MUTE
VOL
PC
TV
1
TV
PROG. LIST
DVD
TV/VCRSLEEP
ACC
A/CH
AUTO
SOUND
MENU SOUND
VOL
PC
1
456
789
STATUS/EXIT
POSITION
CC
CLOCK
SOURCE
FORMAT
AUTO
SURR.
CH
RADIO
HD
23
PIP
POSITION
CLOCK
SOURCE
FORMAT
AUTO
ACTIVE
CONTROL
SURR.
MUTE
RADIO
HD
TV
23
SURF
0
PC
1
DCin(24V) PCinput(VGA)
4
CC
Data
Sub
woofer
out
4
VIDEO
out
CH
L
R
Monitor
out
Audio in (PC/HD)
L
HD input
R
YPbPr
VIDEO
in
L
R
AV2
in
S-VIDEO
2
Audio
Out
FM ANT
75 Ω
VGA/RGB
1
RIGHT LEFT
Pr
COMP
VIDEO
INPUT
AVI
RL
in
3
Out
5
2
VIDEOAUDIO
S-VIDEO
Pb Y
Video in
Audio in
3
PIP
POSITION
TV
DVD
ACC
CLOCK
PROG. LIST
SOURCE
TV/VCRSLEEP
A/CH
AUTO
ACTIVE
CONTROL
SOUND
MENU SOUND
MUTE
VOL
PC
HD
TV
23
1
456
789
STATUS/EXIT
0
CC
FORMAT
AUTO
SURR.
4
CH
RADIO
SURF
Data
Sub
woofer
out
VIDEO
VIDEO
in
out
L
L
R
R
AV2
Monitor
out
in
S-VIDEO
3
ANTENNA
OUT OUT
IN
AUDIO
VIDEO
ANTENNA
OUT
IN
IN
5
S-VIDEO
VIDEO
L
AUDIO
R
RL
4
1
5
1
2
VIDEOAUDIO
RIGHT LEFT
2
Data
Sub
woofer
out
VIDEO
VIDEO
in
out
L
L
R
R
AV2
Monitor
out
in
S-VIDEO
S-VIDEO
R
L
AUX/TV INPUT
PHONO INPUT
3
Loading...
