Philips 17E4222E82 User Manual

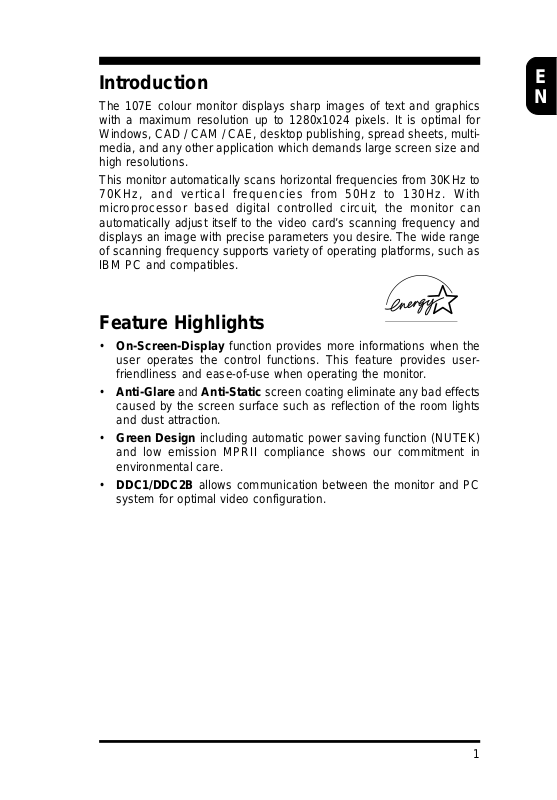

Introduction

The 107E colour monitor displays sharp images of text and graphics
with a maximum resolution up to 1280x1024 pixels. It is optimal for
Windows, CAD / CAM / CAE, desktop publishing, spread sheets, multi­media, and any other application which demands large screen size and
high resolutions.

This monitor automatically scans horizontal frequencies from 30KHz to
70KHz, and vertical frequencies from 50Hz to 130Hz. With
microprocessor based digital controlled circuit, the monitor can
automatically adjust itself to the video card’s scanning frequency and
displays an image with precise parameters you desire. The wide range
of scanning frequency supports variety of operating platforms, such as
IBM PC and compatibles.

Feature Highlights

• On-Screen-Display function provides more informations when the
user operates the control functions. This feature provides user­friendliness and ease-of-use when operating the monitor.

• Anti-Glare and Anti-Static screen coating eliminate any bad effects
caused by the screen surface such as reflection of the room lights
and dust attraction.

• Green Design including automatic power saving function (NUTEK)
and low emission MPRII compliance shows our commitment in
environmental care.

• DDC1/DDC2B allows communication between the monitor and PC
system for optimal video configuration.

E
N

1

E
N

Note: If you experienced your monitor display is changing from color to
mono, it's possible that you are using a non-VESA-DDC-standard video
card. Please consult with your local PCEC dealer for more information.

ENERGY STAR is a U.S. registered mark.
As an ENERGY STAR

product meets the ENERGY STAR
IBM, IBM PC and Power PC are registered trademarks of International

Business Machines Corporation.

®

Partner, PCEC, has determined that this

®

guidelines for energy efficiency.

2

Safety precautions and maintenance

◆ Disconnect the monitor from the mains supply if the monitor is not to
be used for an extended period of time.

◆ Do not attempt to remove the back cover, as you will be exposed to
a shock hazard. The back cover should only be removed by qualified
service personnel.

◆ Do not place objects on top of the monitor cabinet, which could fall
into vents or which could cover them and prevent proper cooling of
the monitor’s electronic devices.

◆

Do not expose the monitor to rain or excessive moisture to avoid the
risk of shock or permanent damage to the set.

◆ Do not use alcohol or ammonia based liquid to clean the monitor. If
necessary, clean with a slightly damp cloth. Disconnect the monitor
from the mains supply before cleaning.

◆ Consult a service technician if the monitor does not operate normally
when operating instructions of this manual are followed.

Package

Your 107E package includes the following items:

E
N

• The monitor (integrated with tilt / swivel pedestal)

• Pedestal

• Power cord

• Interface cable (flying-in)

• Win95 driver disk

End of life disposal

Your new set contains materials which can be recycled and reused.
Specialized companies can recycle your product to increase the amount
of reusable materials and to minimize the amount of materials to be
disposed of.

Please inform yourself on local regulations on disposal of your old set.

3

E
N

Installation

Important: Please refer to the user’s manuals of your computer
and video adapter to make sure these equipments are properly
installed and configured before installing the monitor.

Positioning / Ventilation

◆ Avoid exposing the monitor to direct sunlight, stoves or any other
heat sources.

◆ To prevent overheating, make sure that the ventilation openings of
the monitor are not covered.

◆ Keep moisture and dust away.

◆ Keep away from any magnetic objects, such as speakers, electric

motors, transformers, ...etc.

◆ When positioning this monitor, make sure that the mains plug and
socket are easily accessible.

Pedestal

With the built-in pedestal you can tilt and / or swivel the monitor for a
most comfortable viewing angle.

E

107

EXIT

MENU

4

Connection

Important: Please make sure the AC power to your computer is
“OFF” before connecting or disconnecting any display
peripheral. Failure to do so may cause serious personal injury
as well as permanent damage to your computer equipments.

• Connect the monitor to the computer using the supplied interface
cables. Connection with computer system other than IBM PC may
need different type of adapters. Please consult your computer supplier
for these adapters. Connect the power cord to a wall outlet after the
interface cable is properly connected.

Monitor rear view

1) IBM PC connection

2) Mains connection

WARNING:SHOCK HAZARD-DO NOT OPEN
AVIS:RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
PRECAUCION RIESGO DE CHOQUE ELECTRICO,NO ABRIR

E
N

2

1

5

E
N

Control locations and functions

Monitor control panel

➀➁➂➃➄

EXIT

Descriptions of knobs and keypads on front control panel

➀ • Press this knob to switch ON and OFF of monitor’s power

➁ • OSD rotary control knob.

➂ • Active OSD menu.

√ / • Adjust contrast or the display.

➄ / • Adjust brightness or the display.

MENU

6

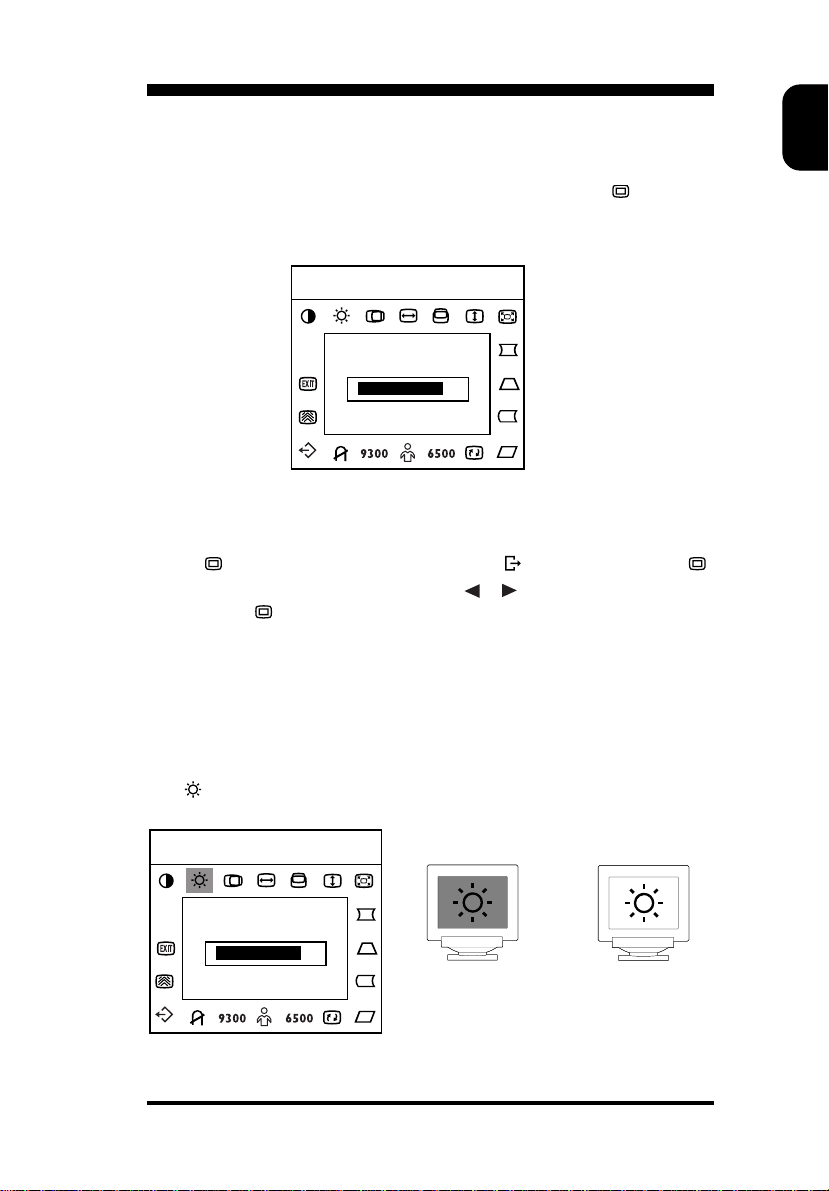

On-Screen-Display

Activating the On-Screen-Display
The monitor controls are accessed by pressing button

OSD (On-Screen-Display). The main menu will be displayed as follows.

H:68.8KHz V:85Hz

CONTRAST

70

Each Function is selected by highlighting it via the tact key and pressing
button

While operating Function, please use
press button

to confirm. To exit OSD, highlight press select button .

, to select or adjust and

to confirm.

Note: If adjustment or selection of any OSD menu is not made for more
than 10 seconds, the current setup will be saved and the OSD will
disappear automatically.

to enable

E
N

BRIGHTNESS & CONTRAST

● Brightness : Adjusts background brightness.

H:68.8KHz V:85Hz

BRIGHTNESS

70

7

E
N

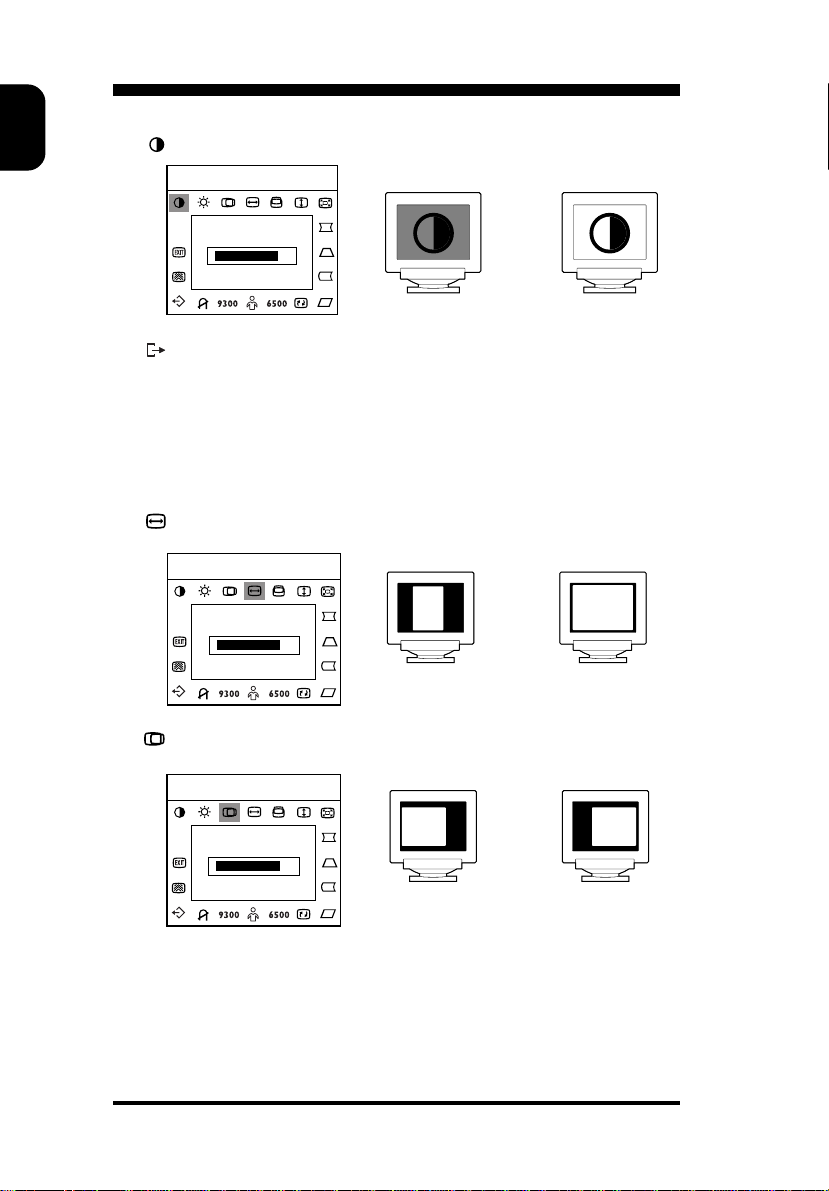

● Contrast : Adjusts contrast between foreground and background.

H:68.8KHz V:85Hz

CONTRAST

70

● EXIT : Save user adjustment and OSD disappear.

SIZE & POSITION

● Horizontal Size : Adjusts image width.

H:68.8KHz V:85Hz

H-SIZE

70

● Horizontal Position : Moves image left or right.

H:68.8KHz V:85Hz

H-CENTER

70

A

A

8

A

A

● Vertical Size : Adjusts image height.

H:68.8KHz V:85Hz

E
N

V-SIZE

70

● Vertical Position : Moves image up or down.

H:68.8KHz V:85Hz

V-CENTER

70

● EXIT : Save user adjustment and OSD disappear.

A A

A

A

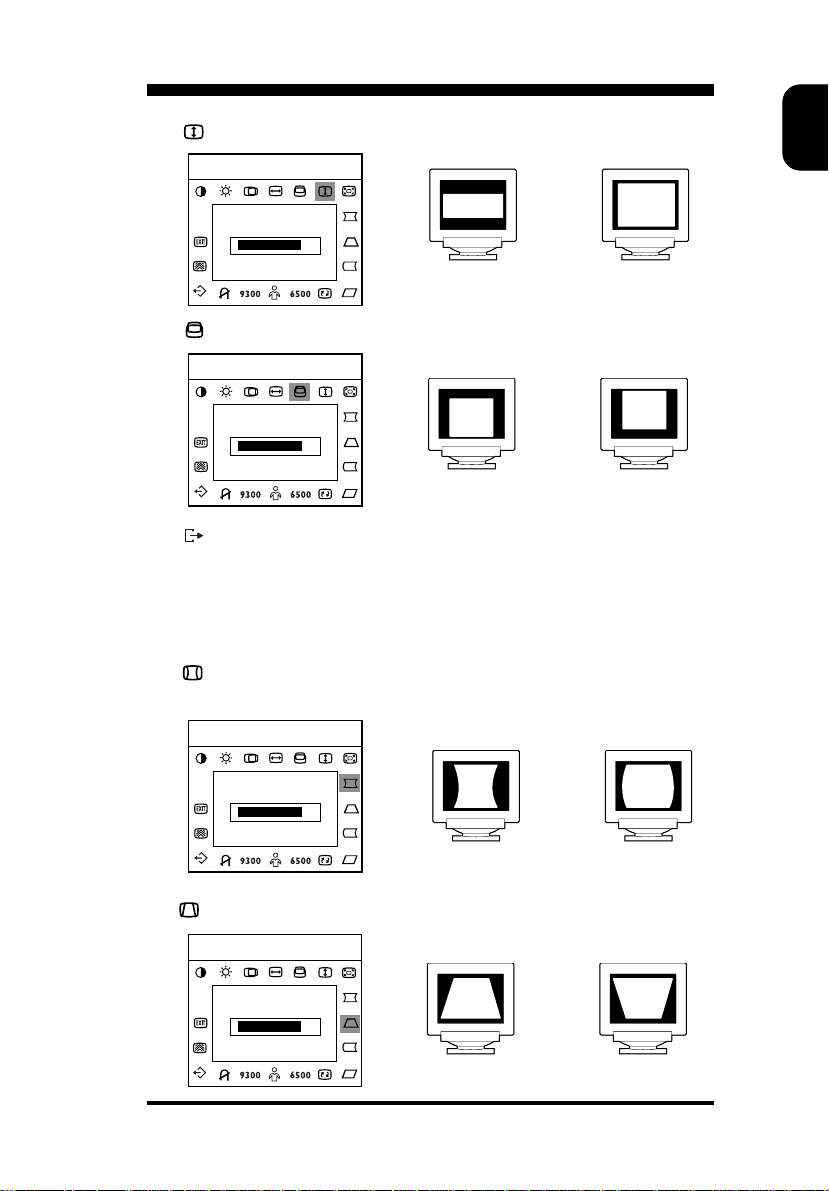

GEOMETRY

● Pincushion : Adjusts the amount of curvature on the vertical

edges.

H:68.8KHz V:85Hz

PINCUSHION

70

● Trapezoid : Equalizes the length of the top and bottom edges.

H:68.8KHz V:85Hz

TRAPEZOID

70

A

AA

A

9

E
N

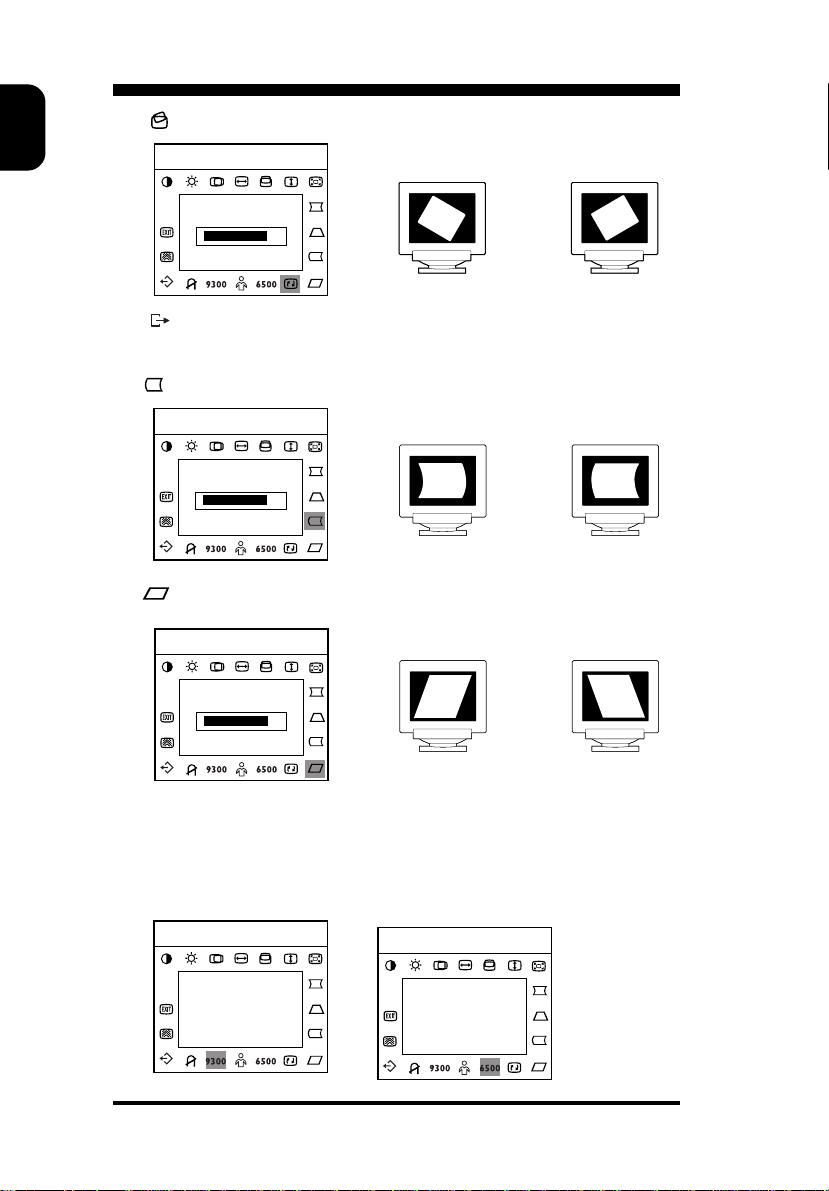

● Rotation : Tilts the image clockwise or counter-clockwise.

H:68.8KHz V:85Hz

ROTATION

70

● EXIT : Save user adjustment and OSD disappear.

● PIN-BALANCE : Adjust picture curves outwards or inwards.

H:68.8KHz V:85Hz

PIN BALANCE

70

● PARALLEL : Adjust for optimal parallelogram screen picture.

H:68.8KHz V:85Hz

PARALLELOGRAM

70

A

A

A A

AA

COLOR TEMPERATURE

● 9300°K : Factory preset color temperature of 9300°K.

● 6500°K : Factory preset color temperature of 6500°K.

H:68.8KHz V:85Hz

RECALL

9300K COLOR

TEMPERATURE

H:68.8KHz V:85Hz

RECALL

6500K COLOR

TEMPERATURE

10

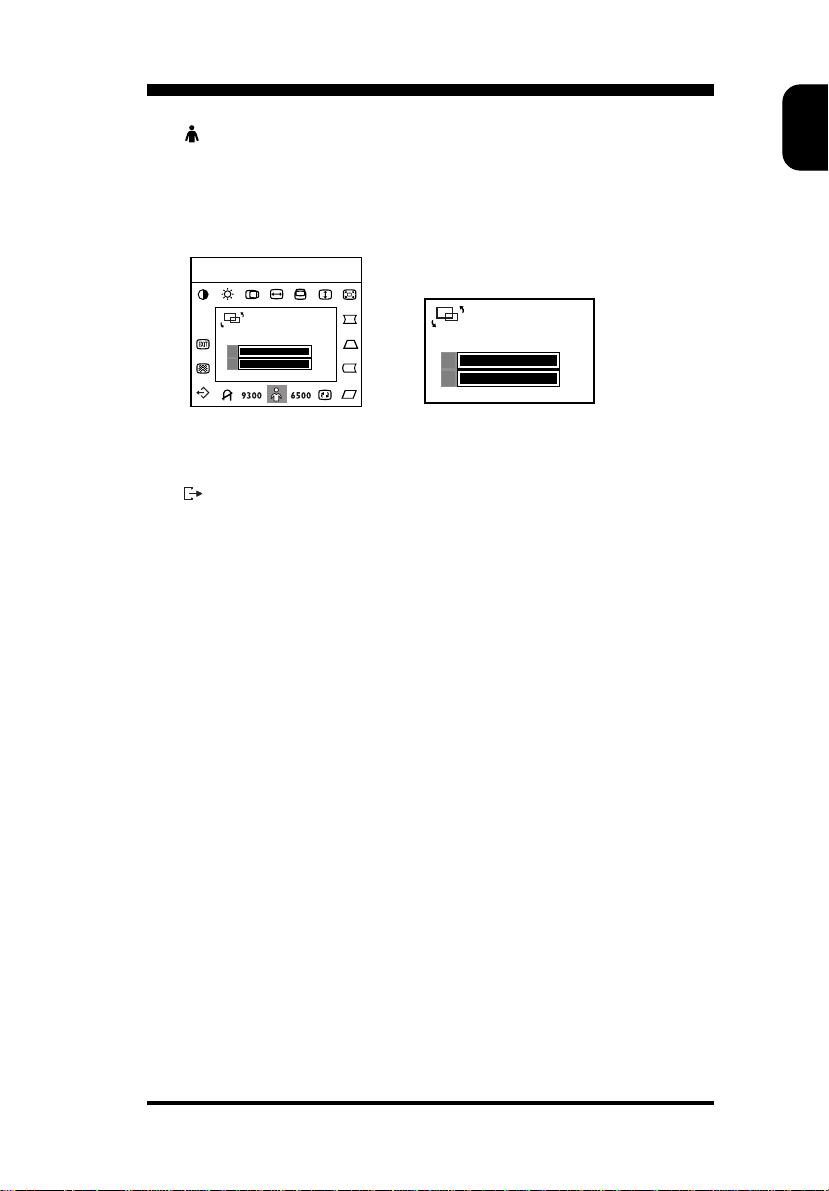

● User : User set for color temperature then select R, G for

adjustment.
R : Adjusts red intensity.
G : Adjusts green intensity.

H:68.8KHz V:85Hz

E
N

EXIT

USER COLOR

R

G

● EXIT : Save user adjustment and OSD disappear.

100
100

EXIT

USER COLOR

R
G

100
100

11

E
N

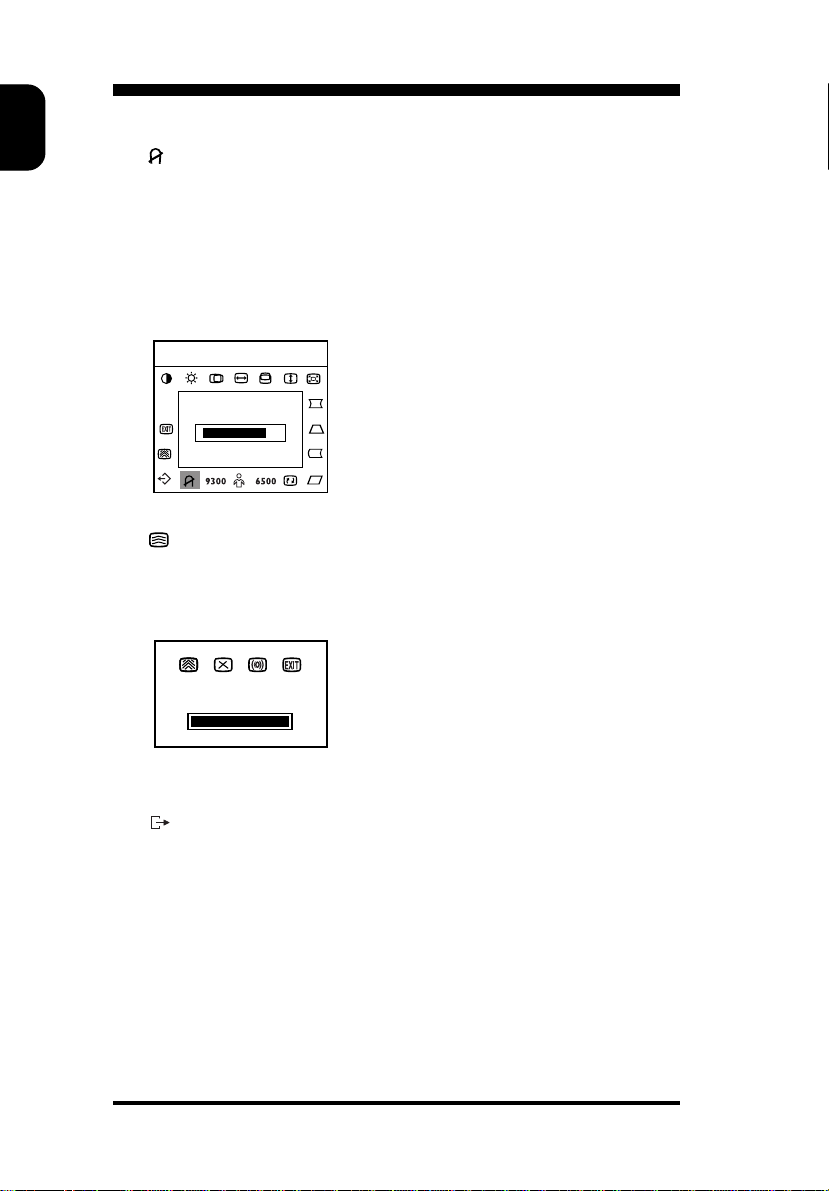

SPECIAL

● Manual Degauss : Discoloration of the image can be caused

by gradual magnetization of the monitor
components. This is particularly likely to
occur when the monitor is moved or rotated.
The monitor may "buzz" momentarily when
the user control is selected and the image
will change color and wobble for a few
seconds. These effects are normal.

H:68.8KHz V:85Hz

DEGAUSS

70

● Moire Cancellation : Moire effect may be found in some display

modes. If this is the case, please use "Moire
Cancellation" function to reduce Moire
effect.

MOIRE REDUCE

100

● EXIT : Save user adjustment and OSD disappear.

12

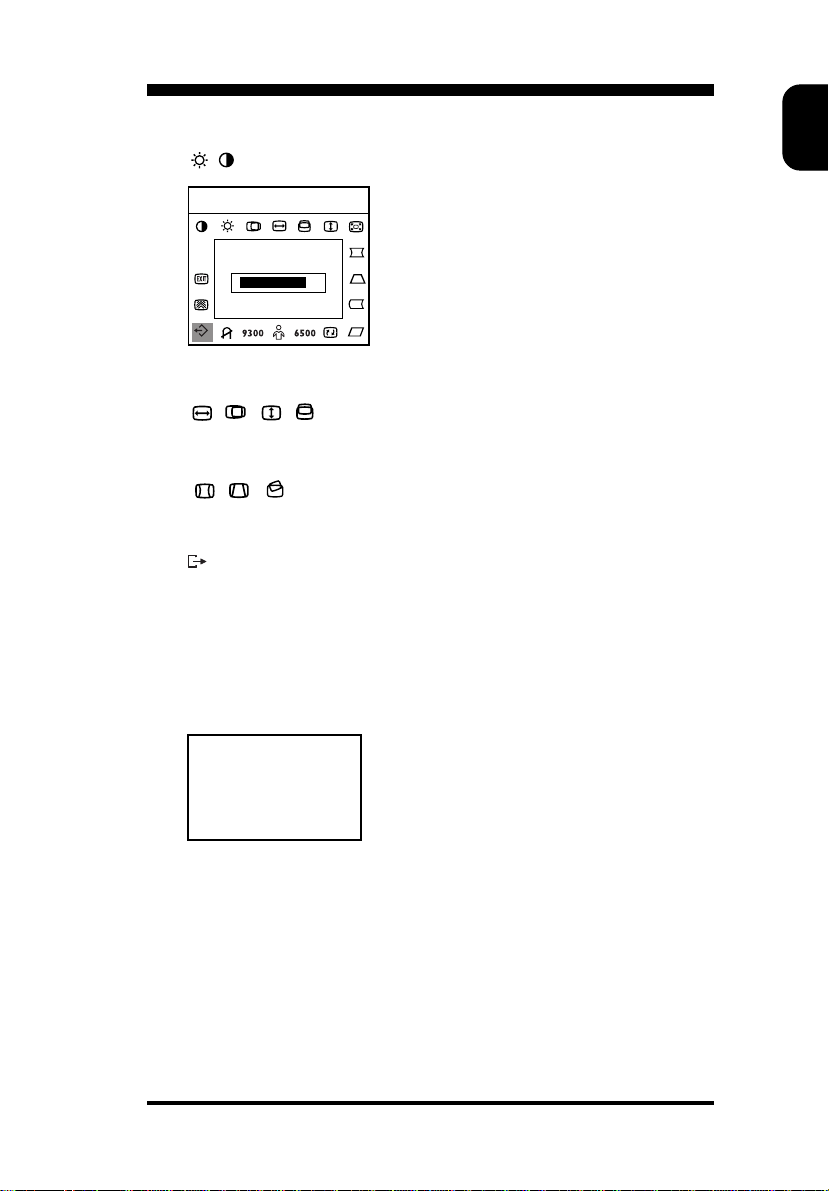

RECALL FACTORY PRESETS

● Recall : Recall brightness and contrast presets.

H:68.8KHz V:85Hz

RECALL

70

● Recall : Recall size and phase presets.

● Recall : Recall geometry preset.

● EXIT : Save user adjustment and OSD disappear.

* Whenever the signal cable is disconnected, the screen will appear a
message as below:

E
N

NO SIGNAL INPUT

OR

CABLE DISCONNECTED

13

E
N

Data Storage

(A) Factory preset mode:

This monitor has 9 factory-preset modes as indicated in the following
table:

Frequence Sync polarity

Mode Resolution H(KHz) V(Hz) H V
M01 VGA 720x400 31.5 70 – +
M02 VGA 640x480 31.5 60 – –
M03 VGA 640x480 37.5 75 – –
M04 VESA 640x480 43.3 85 – –
M05 SVGA 800x600 46.9 75 + +
M06 VESA 800x600 53.7 85 + +
M07 VESA 1024x768 60.0 75 + +
M08 VESA 1024x768 68.7 85 + +
M09 VESA 1280x1024 64.0 60 + +

* Does not support sync-on-green.

(B) User mode

In addition to factory preset modes, the monitor can also provides
additional 9 User-defined modes.

If the input video signal is different from our factory-preset modes,the
new timing data will be automatically stored. However, the displayed
parameters may need to be adjusted. User can adjust the parameters
via OSD, as preceding procedures which already described on
"Adjustment via On-Screen-Display" section.

14

Automatic Power Saving

If you have VESA's DPMS compliance display card or software installed
in your PC, the monitor can automatically reduce its power consumption
when not in use. And if an input from keyboard, mouse or other input
devices is detected, the monitor will automatically “wake up”. The
following table shows the power consumption and signalling of this
automatic power saving feature:

Power Management Definition

VESA's mode Video H-sync V-sync Power Power LED

used saving(%) color
ON Active Yes Yes < 100W 0% Green
Stand-by Blanked No Yes < 15W 85% Amber
Suspend Blanked Yes No < 15W 85% Amber
OFF Blanked No No < 5W 95% Amber

This monitor is ENERGY STAR
management compatible.

®

compliant and power

E
N

As an ENERGY STAR

that this product meets the ENERGY STAR
energy efficiency.

®

Partner, PCEC, has determined

®

guidelines for

15

E
N

Specification*

(I) General

CRT

Screen size : 17" (43.2 cm) flat & square
Dot pitch : 0.28 mm
Phosphor : P22 or equivalent, medium short

persistence

Screen treatment : Anti-glare, anti-static

Display area

Factory preset : 300 mm (H) x 230 mm (V)
Maximum usable : 323 mm (H) x 242 mm (V)

Scanning frequency

Horizontal (line) : 30-70 kHz (AutoScan)

Vertical (frame) : 50-130 Hz (AutoScan)
Input power : 100-240 VAC, 50-60 Hz
Power consumption : 85 Watt normal, 100 Watt maximum
Input signal

Video : 0.7 Vpp, 75 Ohm inpedence

Sync : Separate sync. TTL level

Composite sync. TTL level

Pedestal

Tilt : 4.5° forward, 14° backward

Swivel : 90 ° leftward, 90° rightward
Physical

Unit dimension (WxHxD) : 410 x 408 x 430 (mm)

Net weight : 16 kg
Operating condition

Temperature : 0° C - 40° C

Humidity : 20% - 80%
Storage condition

Temperature : -25° C - 70° C

Humidity : 10% - 95%
White Color Coordinates:

Red: x= 0.625 Blue: x= 0.150
Green: x= 0.285

* Because of a policy of continuous product improvement, the above specifications

are subjected to change without notice.

y= 0.340 y= 0.065
y= 0.605

16

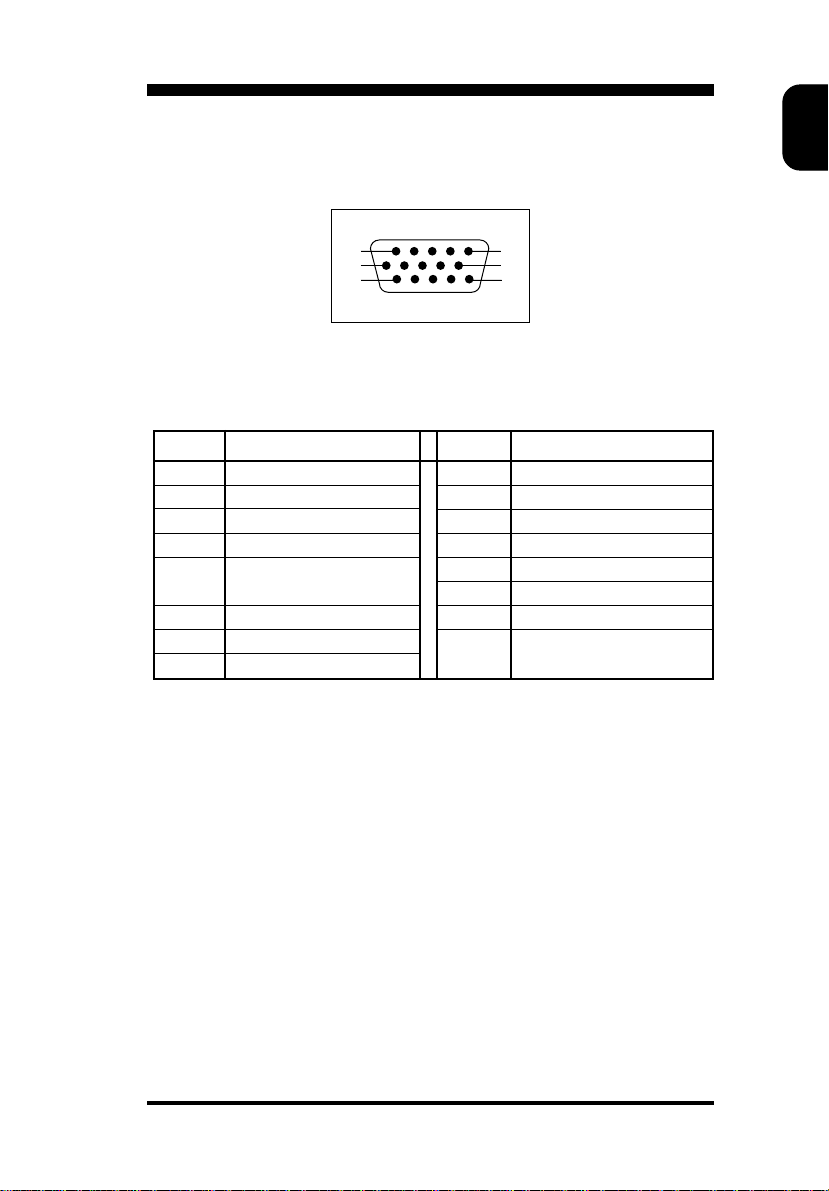

(II) Pin assignment:

E
N

1
6
11

5

10

15

The 15-pin D-sub connector (male) of the signal cable (IBM systems):

Pin No. Assignment Pin No. Assignment

1 Red video input 9 No pin
2 Green video input 10 Self-test
3 Blue video input 11 Ground
4 Ground 12 Serial data line (SDA)
5 Identical output 13 H. Sync / H+V

- Connected to pin 10 14 V. Sync (VCLK for DDC)
6 Red video ground 15 Data clock line (SDA)
7 Green video ground
8 Blue video ground

17

E
N

17E4222E

A

Digital

utoScan

Colour Monitor

Contents

English Introduction ....1

Feature Highlights .... 1

Safety precautions and maintenance .... 3

Package .... 3

End of life disposal .... 3

Installation .... 4

Connection .... 5

Control locations and functions .... 6

On-Screen-Display .... 7

Data Storage .... 14

Automatic Power Saving .... 15

Specification .... 16

18

OTHER LANGUAGE VERSIONS

FRENCH(FRANCAIS) .... 18

Appendix

English Information for Users in the U.S. ........ A1

FCC Declaration ........ A2

WARRANTY ........ A5

Deutsch Hinweis / GS / ACHTUNG ........ A3

Français FCC Declaration ........ A4

E
N

19
